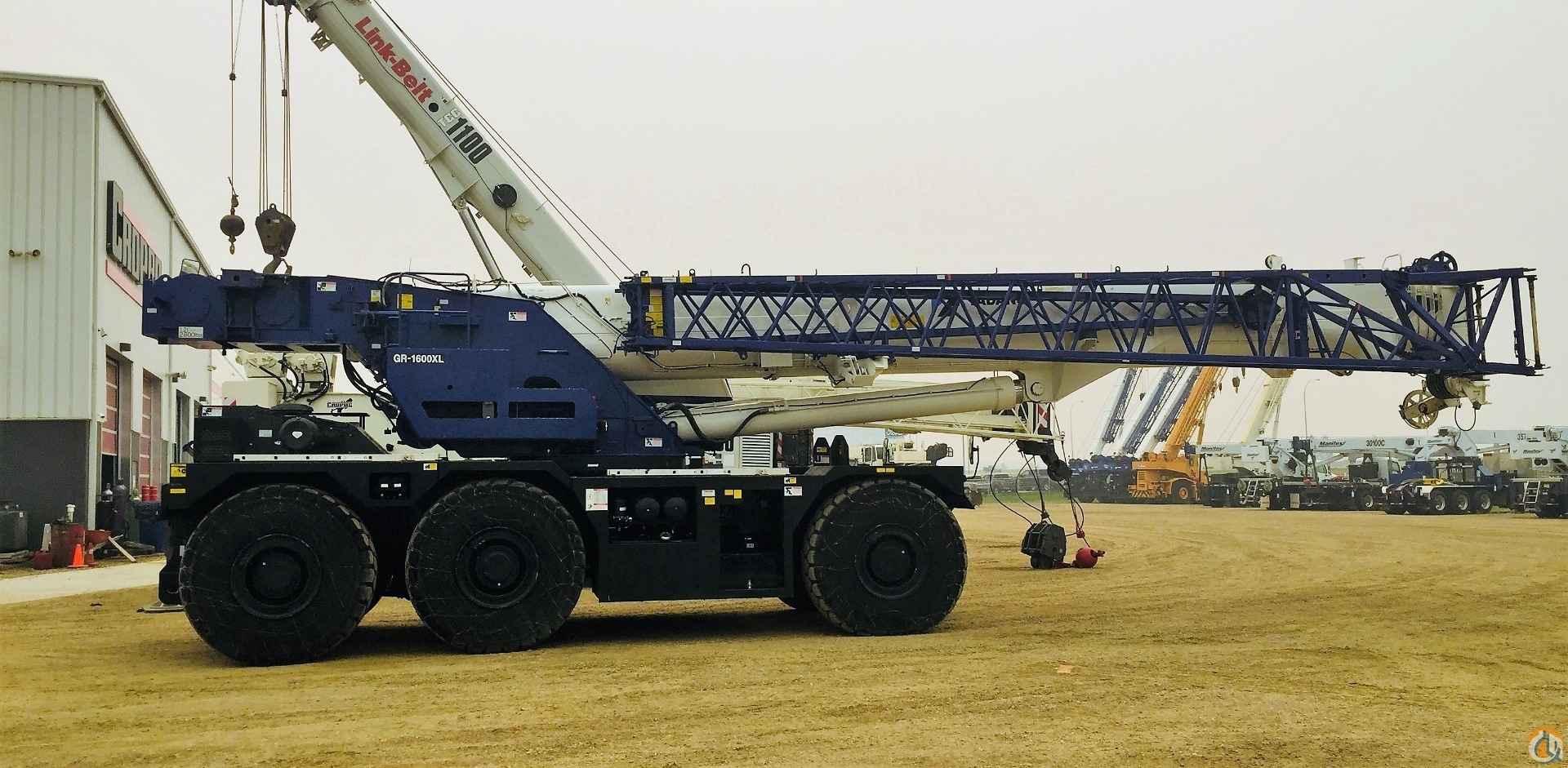

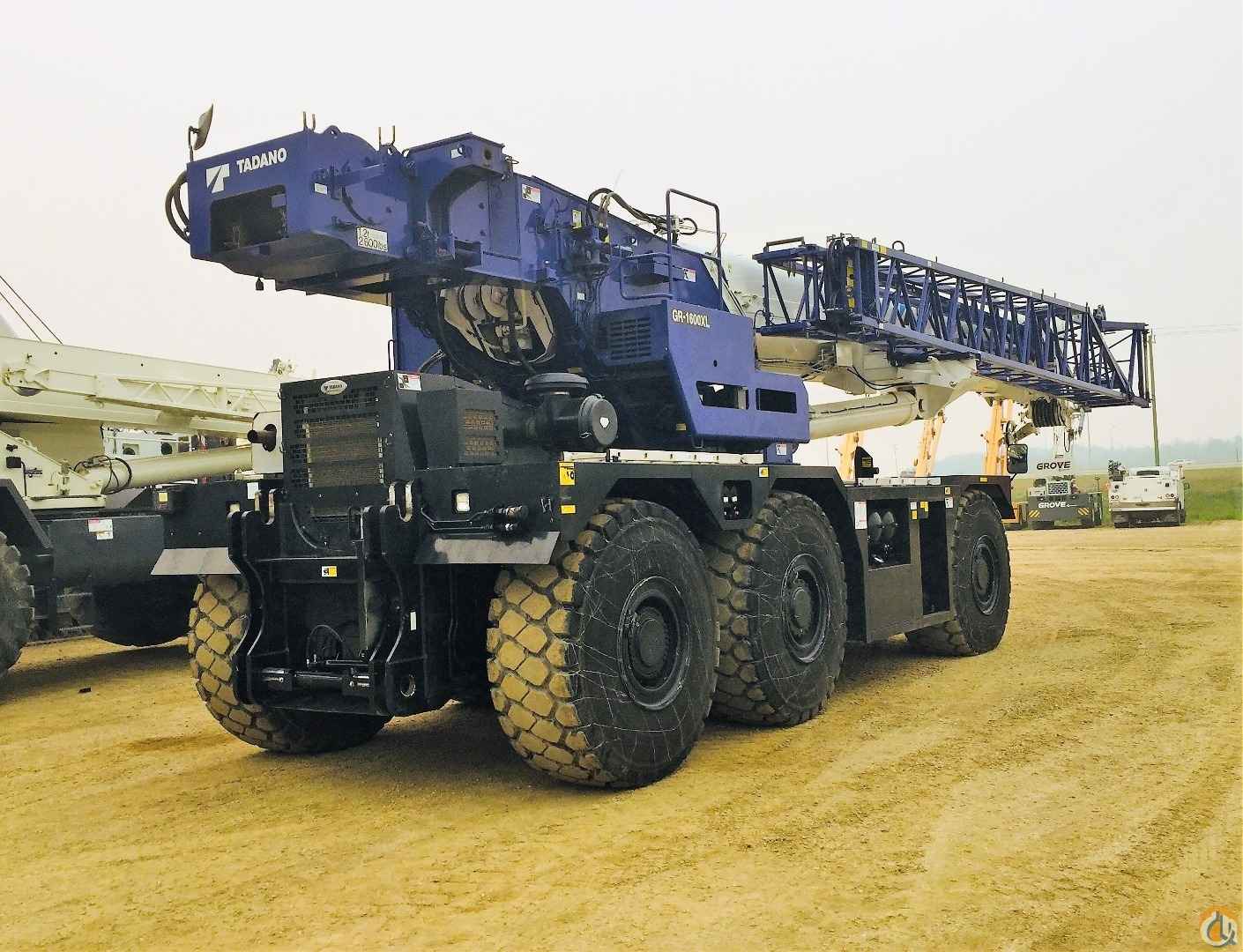

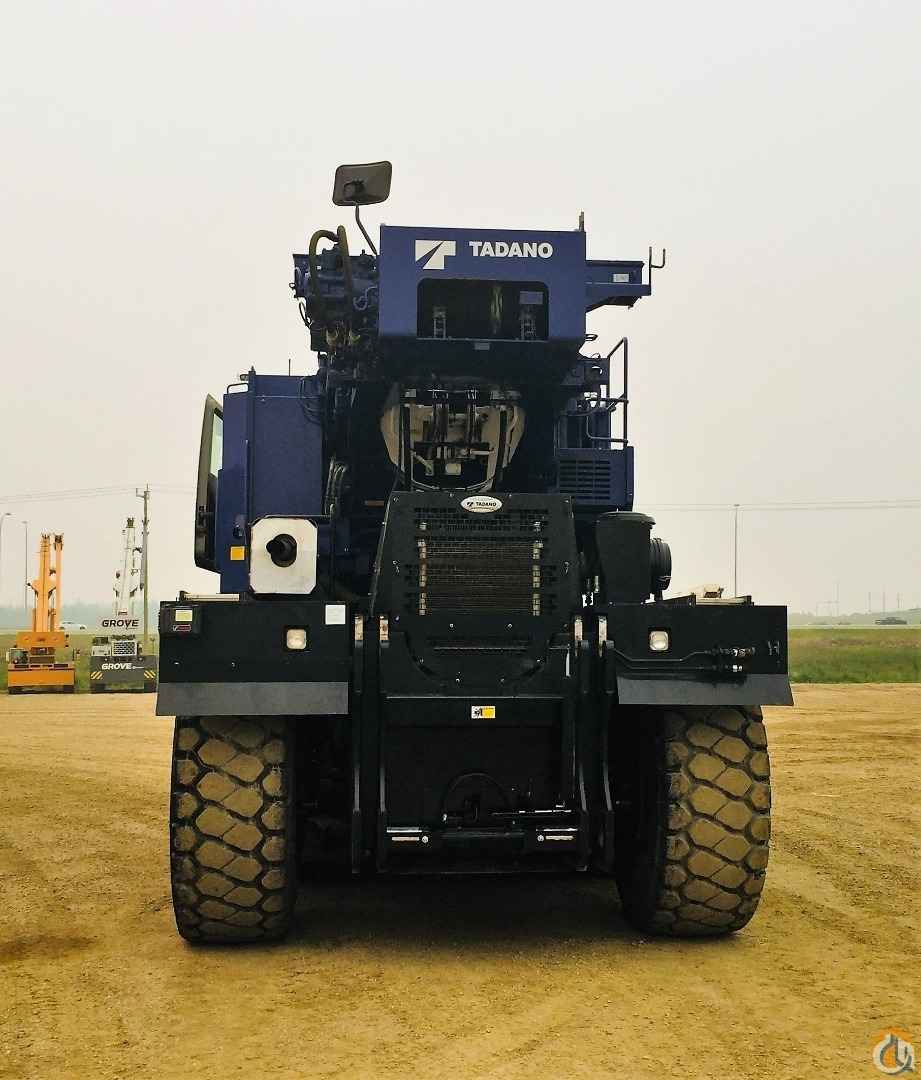

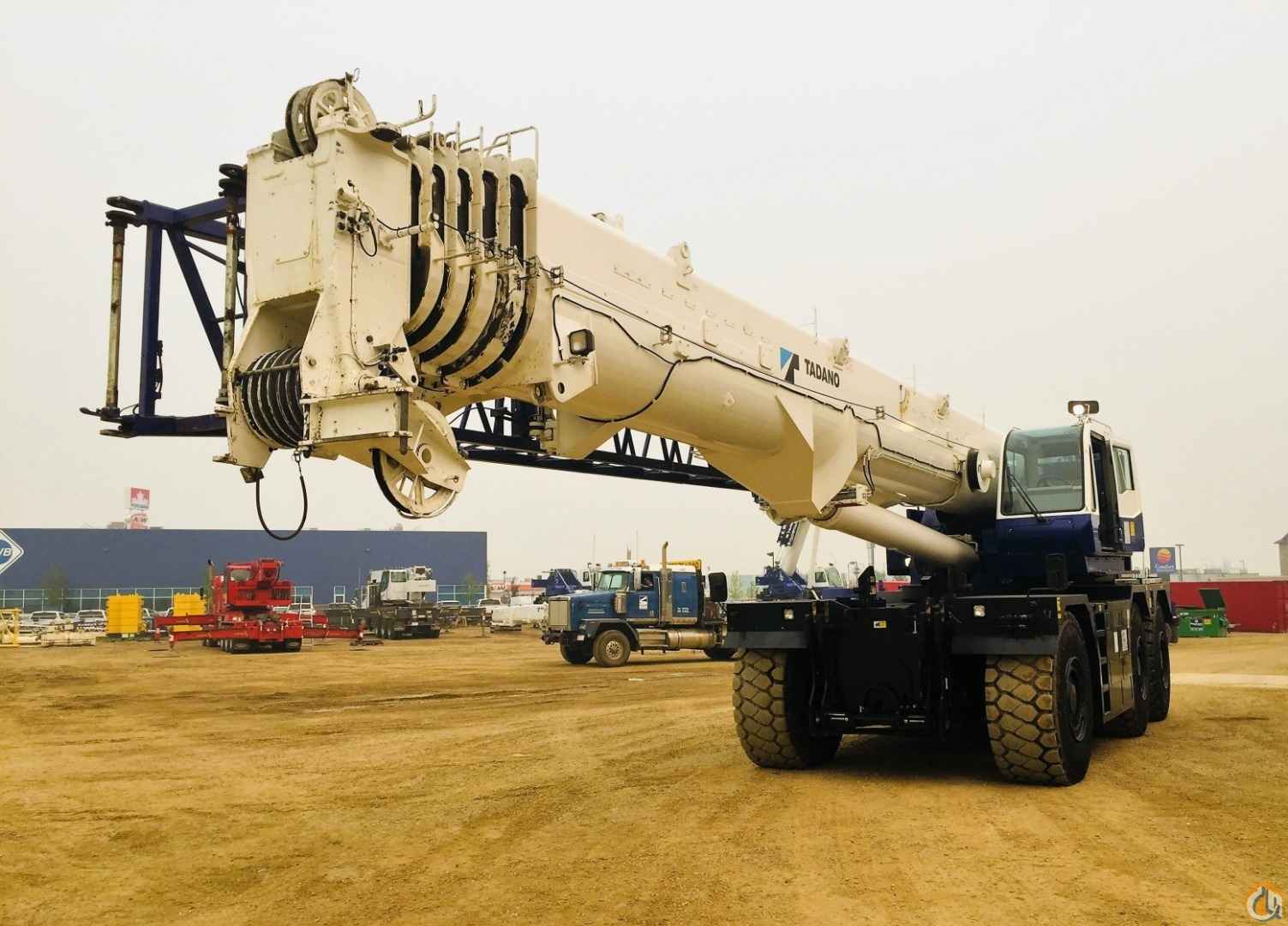

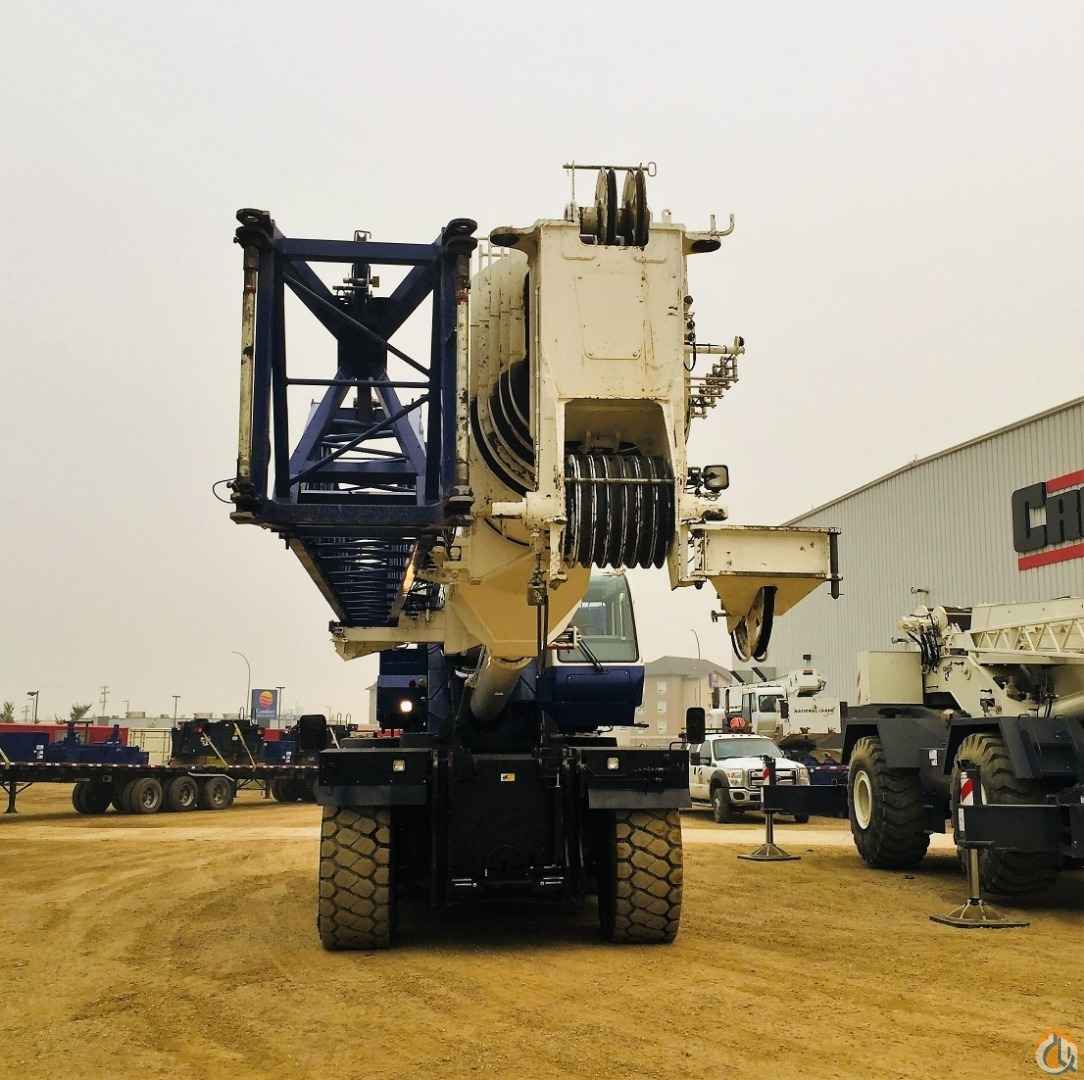

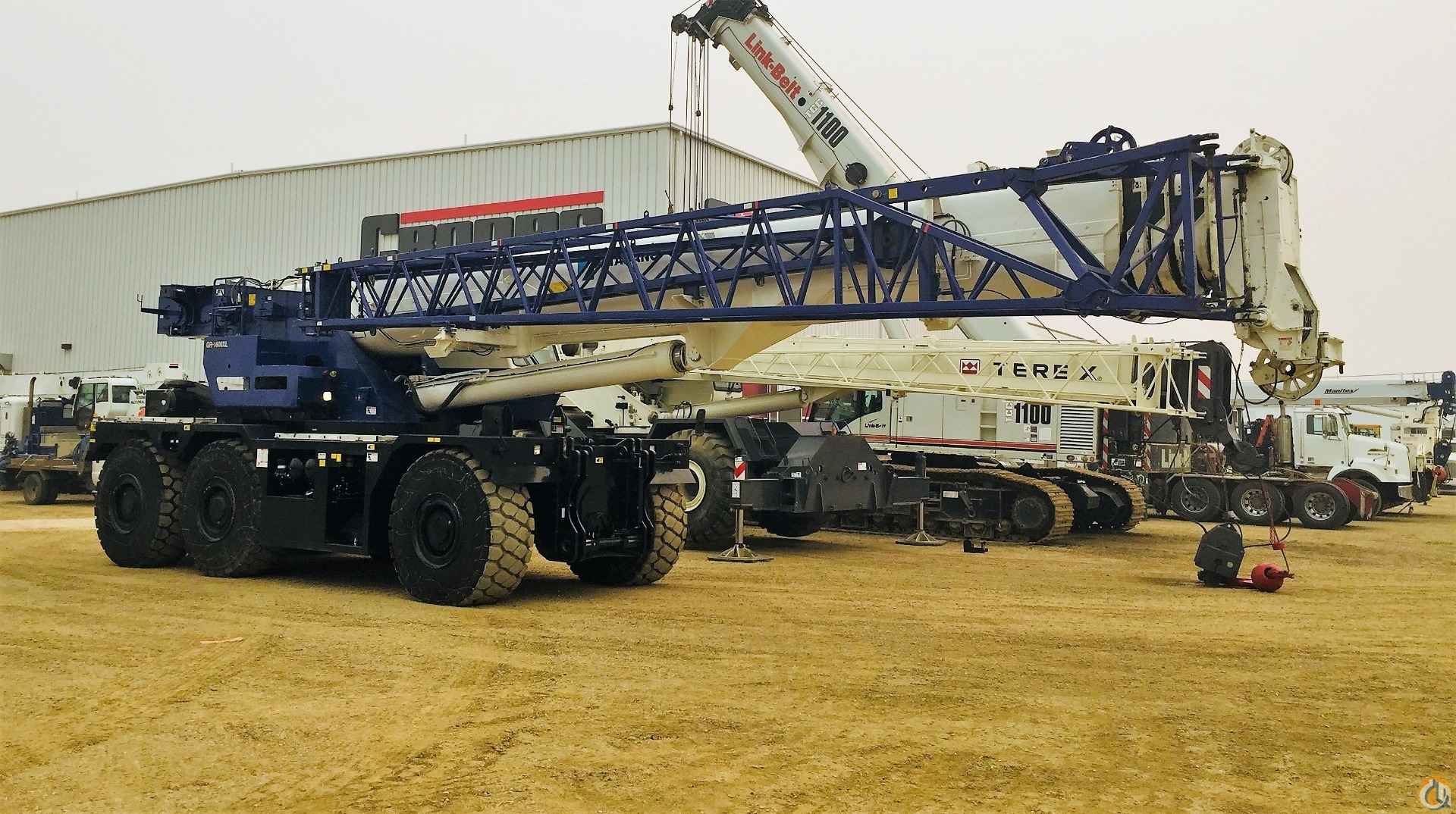

2014 Tadano GR1600XL-3 Rough Terrain Crane (Sold)

160 Ton Capacity (145 Metric Tons)

Six section boom, single cylinder telescoping with pinning system 42.8’~200.1’ (13.05m~61.0m)

Bi-fold lattice type jib (tilt type) 33.8’ or 59.1’ (10.1m or 18.0m)

Auxiliary lifting sheave (single top) stowable

Variable speed main hoist with grooved drum, cable follower and 1050’ of ¾” cable

Variable speed auxiliary hoist with grooved drum, cable follower and 738’ of ¾” cable

Drum rotation indicator (audible, visible and thumper type) main and auxiliary hoist

Anti-two block device. Pendant type over winding cut out device with audio-visual (failure lamp/buzzer) warning system.

Boom angle indicator

Tadano electronic load moment indicator system (AML-C)

Outrigger extension length detector

Tadano twin swing system and 360 degree positive swing lock

Tilting Cab

Self centering finger control levers with pilot control

Control pedals for boom elevating and boom telescoping

3 way adjustable cloth seat with armrests, high back and seat belt

Tilt-telescoping steering wheel

Tinted safety glass and sun visor

Front windshield wiper and washer

Roof window wiper and washer

Power window (cab door)

Rear view mirrors (right and left side)

Mirror for main and auxiliary hoists

Cigarette lighter and ashtray

Cab floor mat

Air Conditioner (hot water heater and cooler)

Pump disconnect in operator’s cab

Hydraulic oil cooler

Positive control

Work lights

Independently controlled outriggers

Four outrigger extension positions

Telecommunications terminal (HELLO-NET via internet)

Mitsubishi 6M60-TLA3B turbo charged after cooled engine (267HP) with exhaust brake

Electronic controlled automatic transmission driven by torque converter

3 axle unit

6 x 4 x 6 drive/steer

26.5 R25 tires

Disc brakes

Air dryer

Water separator with filter (high filtration)

Engine over-run alarm

Back-up alarm

Low oil pressure / high water temp. warning device (visual)

2nd and 3rd steer centering light

Air cleaner dust indicator

Tire inflation kit

24 volt electric system

7.9 ton (7.2 metric ton) Hook Ball with swivel

Towing hooks – front and rear

Lifting eyes

Hook block tie-down (front bumper)

Weighted hook storage compartment

Fuel consumption monitor and economy mode

Halogen head lamp

Self-removable outrigger boxes

Self-removable 40,100 lbs (18,200kg) counterweight

110 ton (100 metric ton) 7 sheaves with swivel hook block

Telematics(machine data logging and monitoring system)

Eco mode system

Emergency steer assist

Anemometer

Aircraft warning light

Boom Removable assist system

Hours 9800 Aug 27 2018
