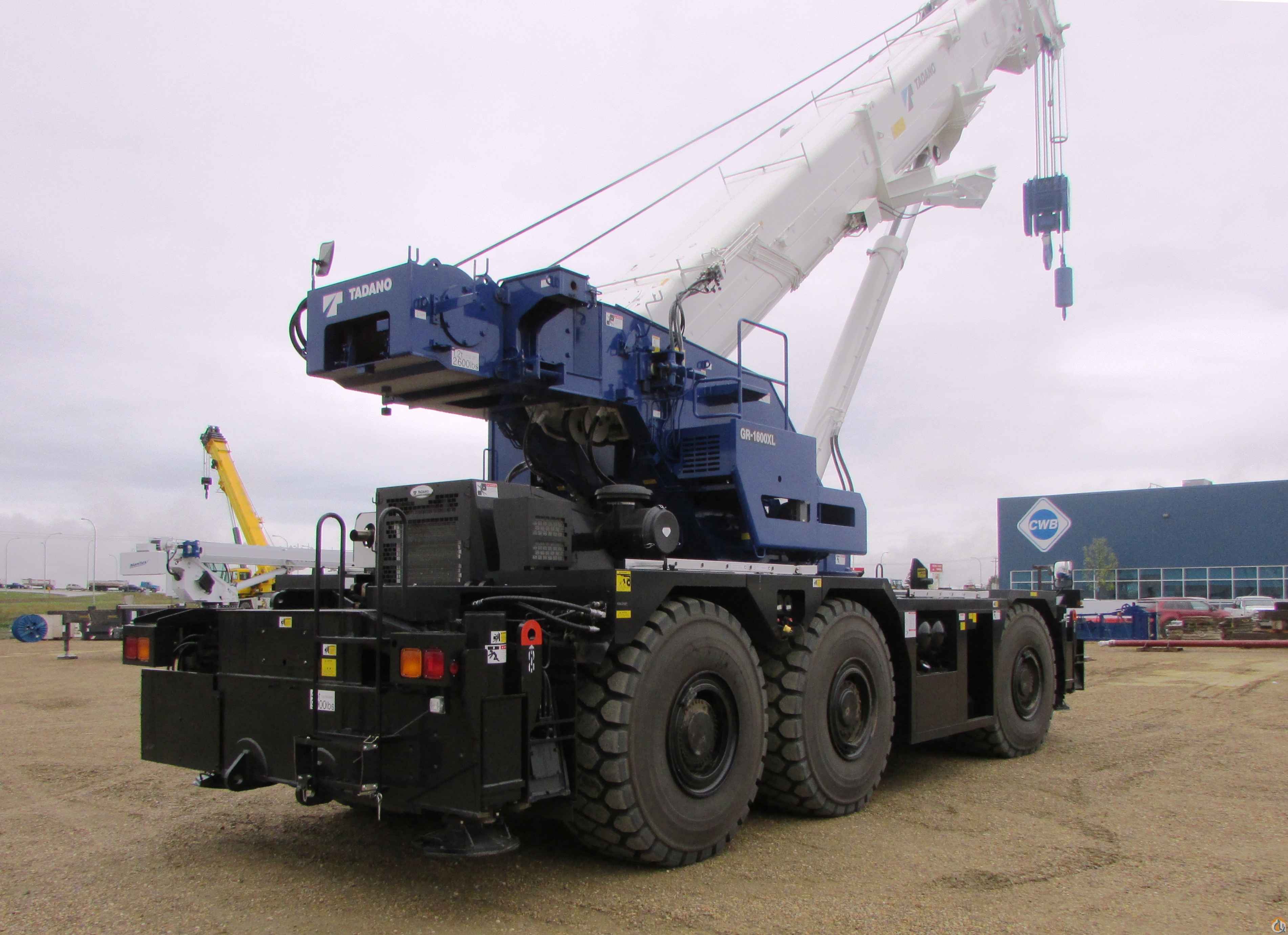

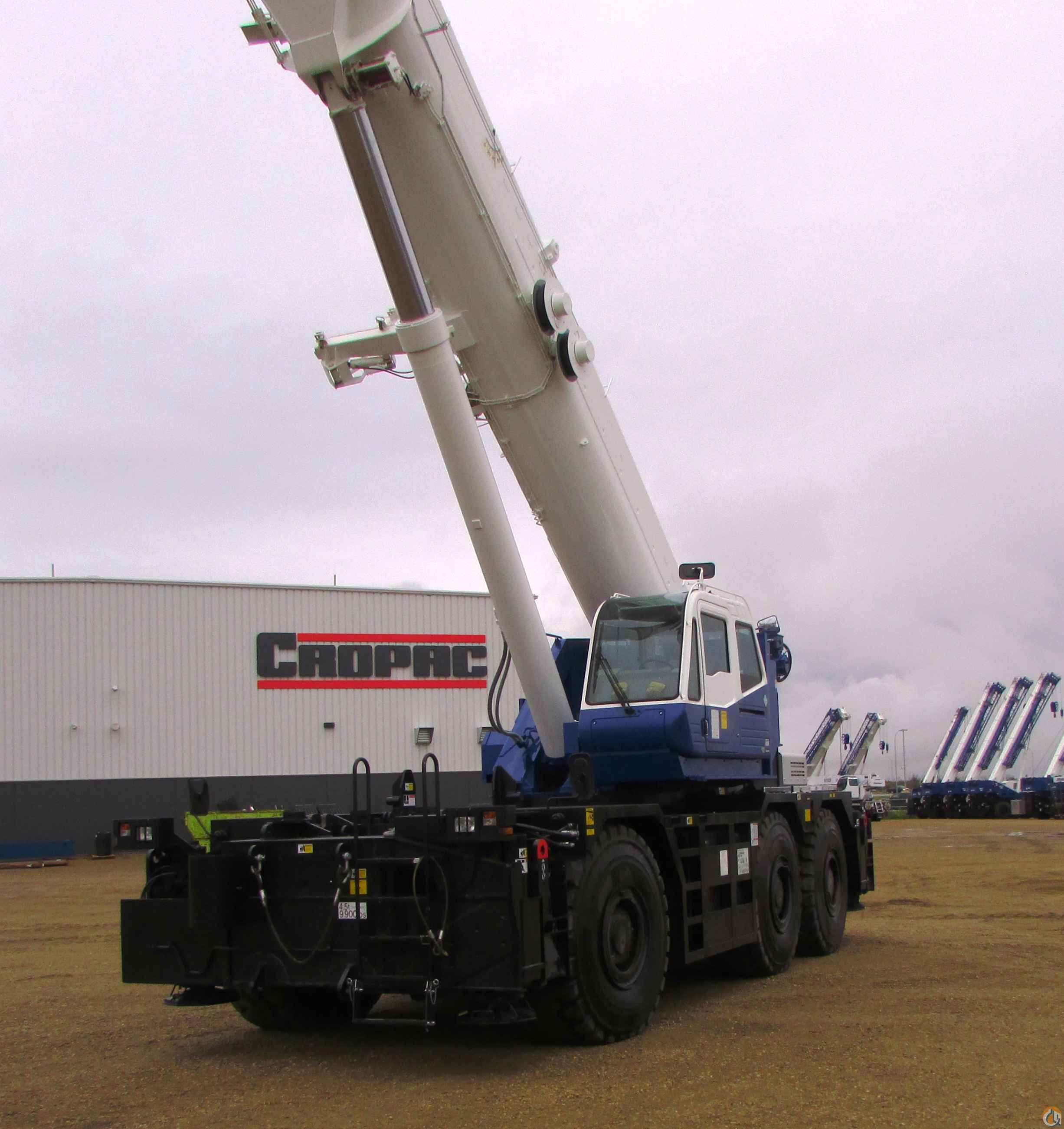

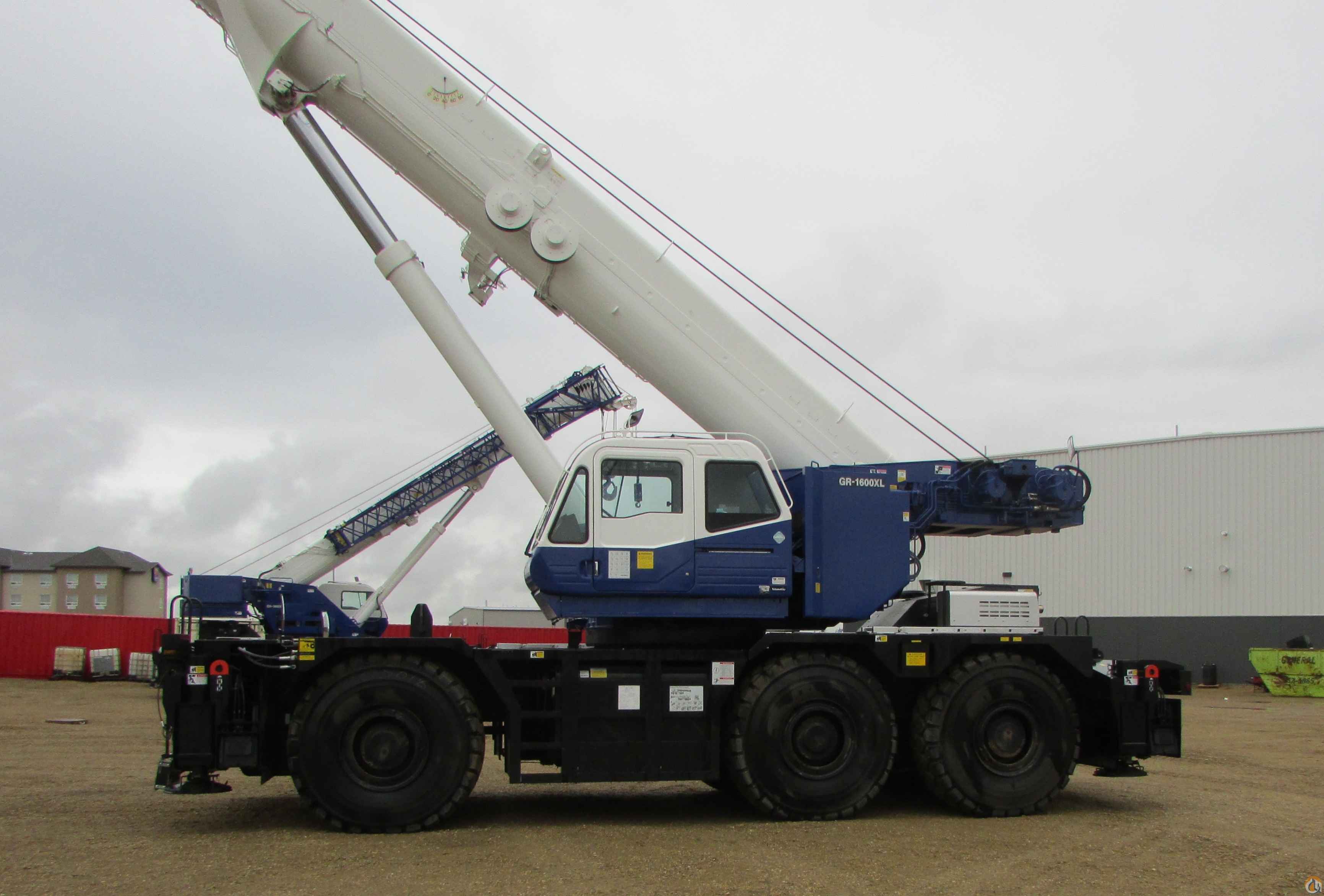

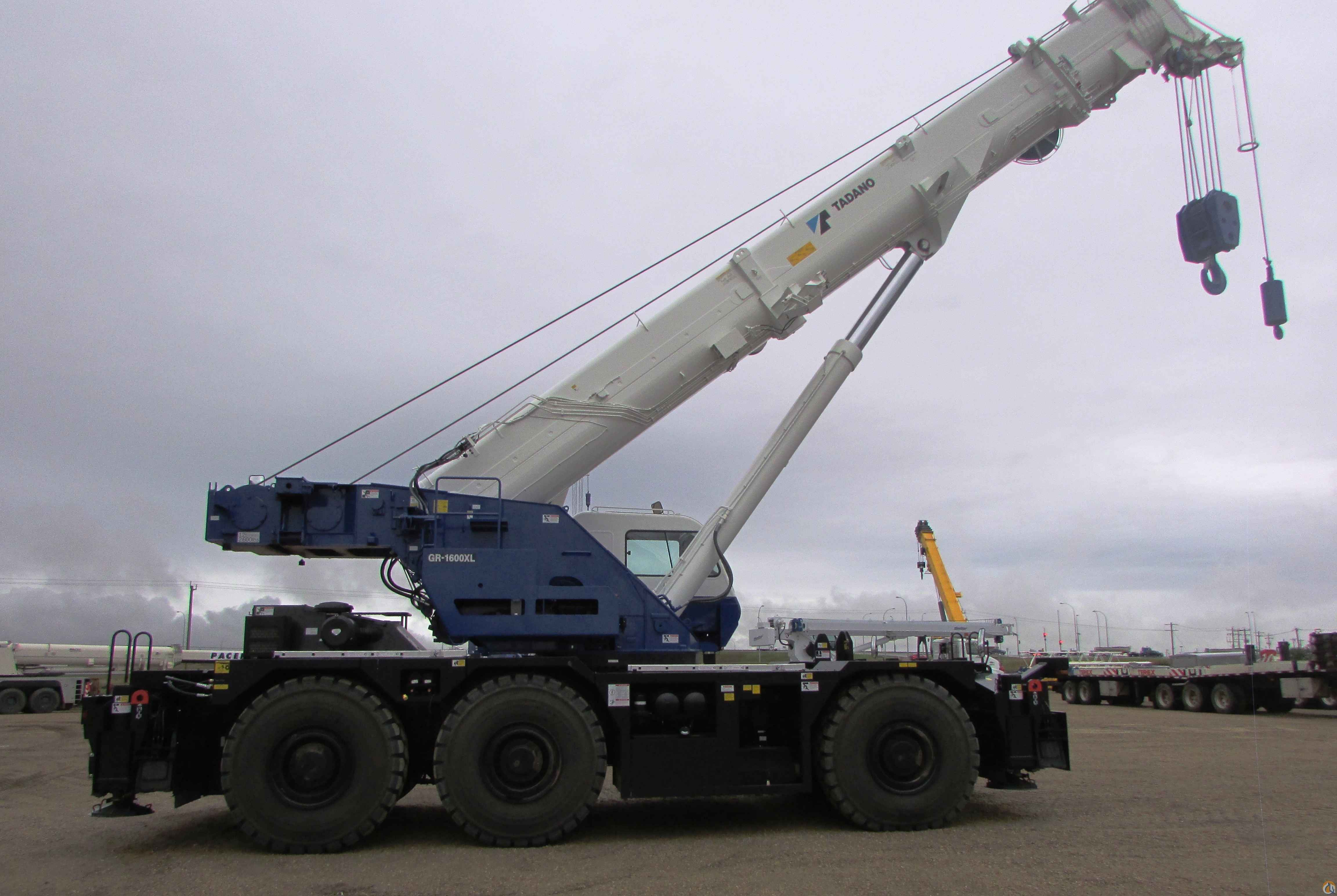

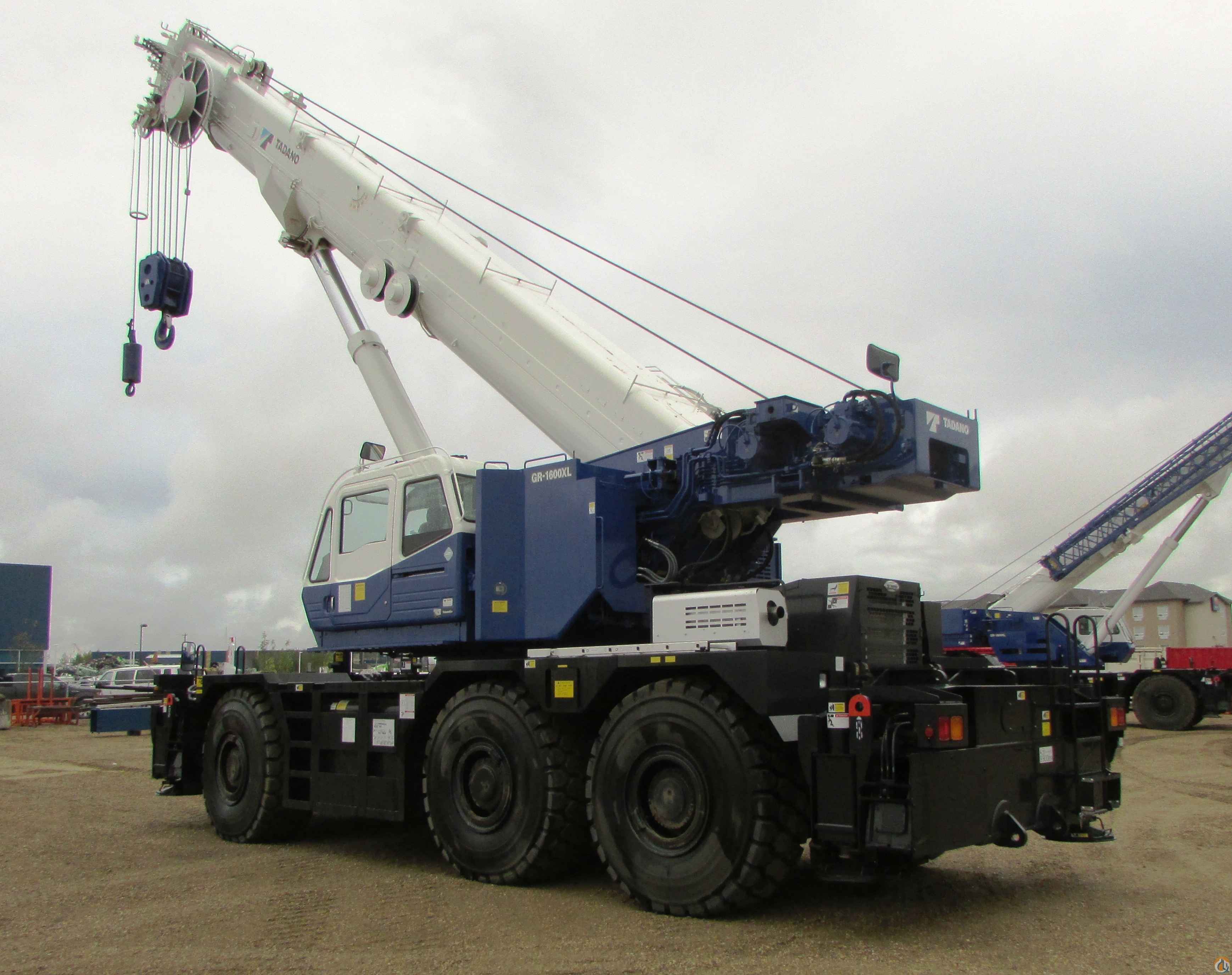

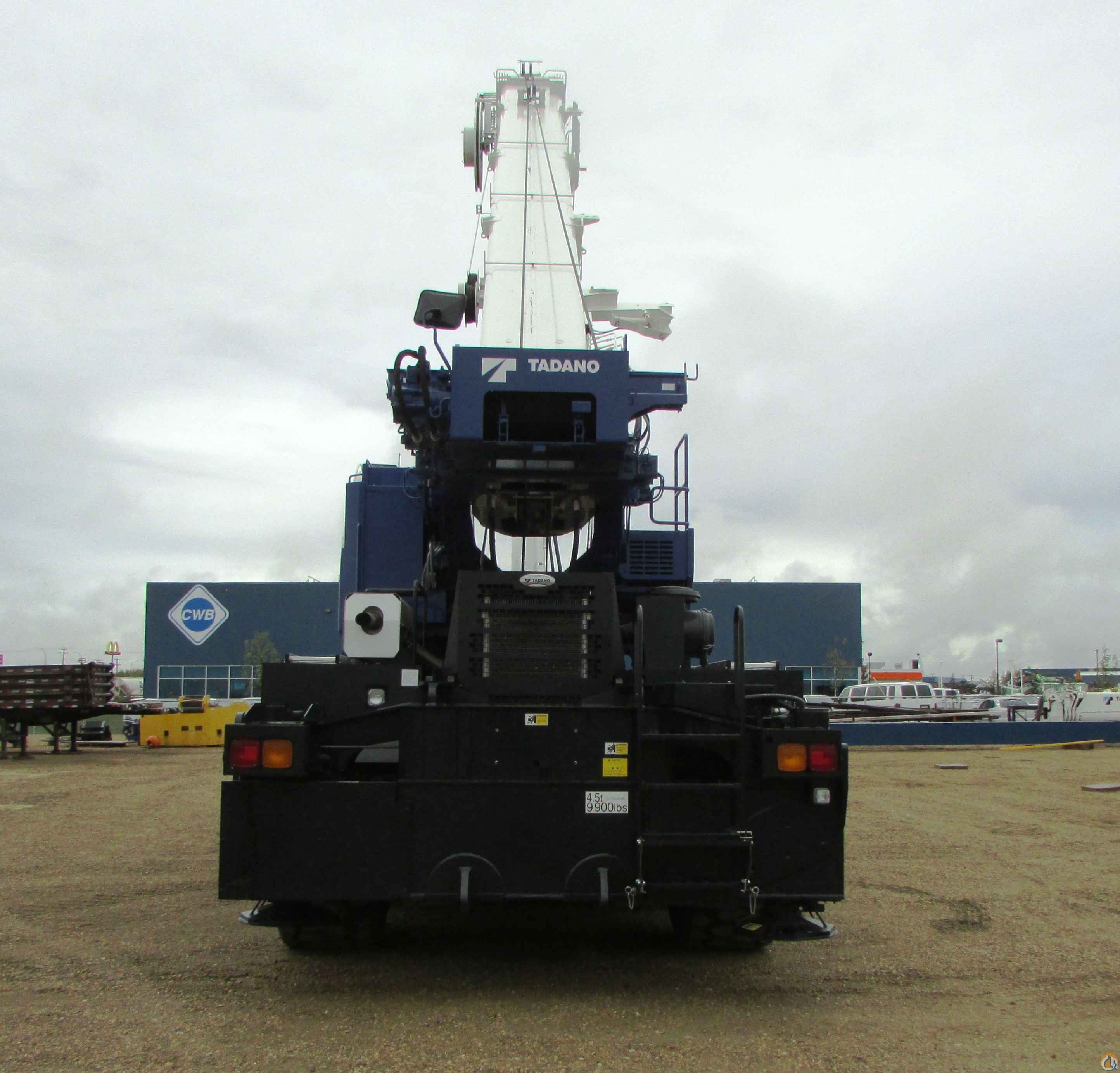

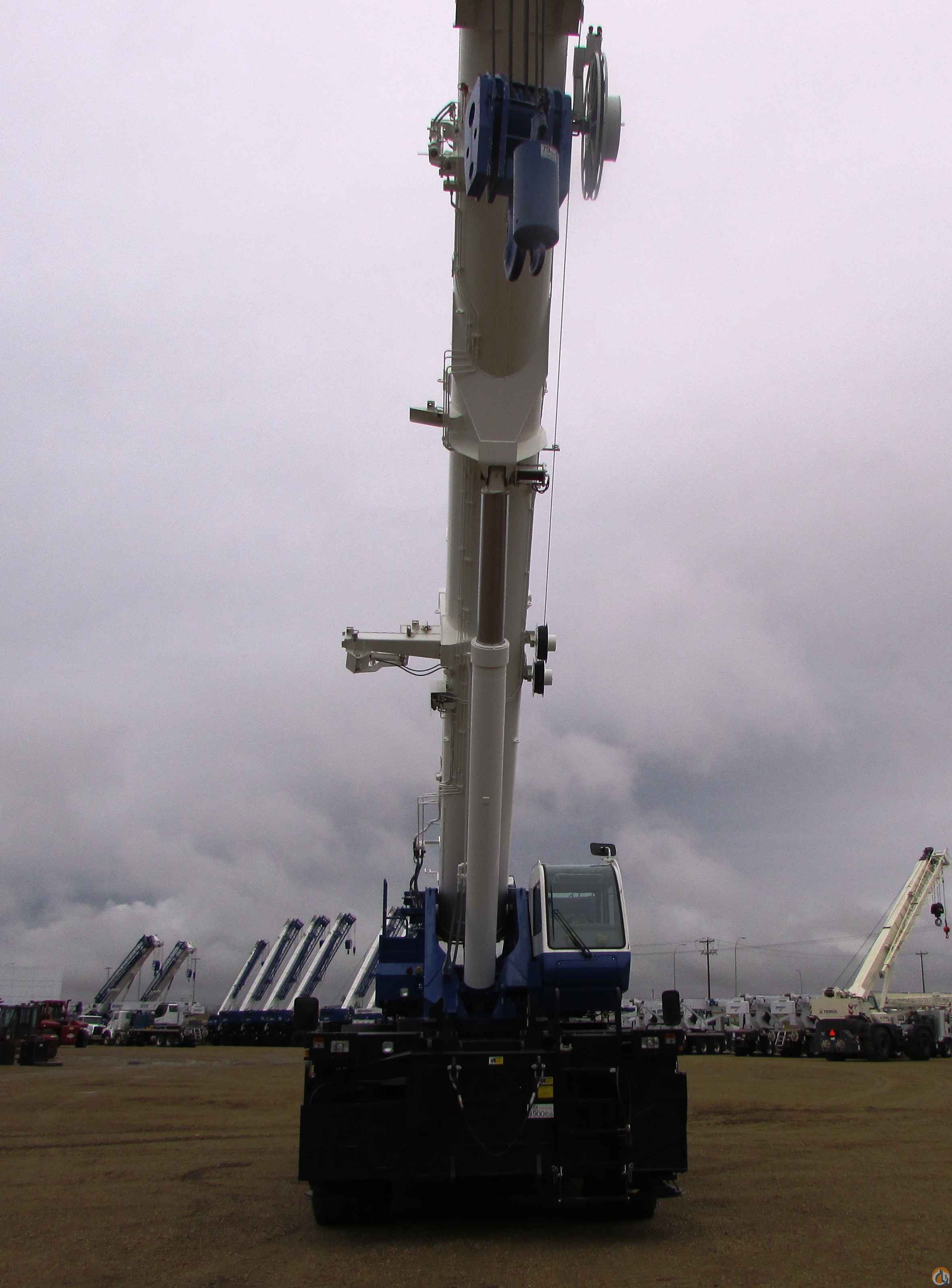

2014 Used Tadano GR1600XL-2
- 160 Ton Capacity (145 Metric Tons)
- Six section boom, single cylinder telescoping with pinning system 42.8’~200.1’ (13.05m~61.0m)
- Bi-fold hydraulic lattice type jib (tilt type) 33.8’ or 59.1’ (10.1m or 18.0m).
- Auxiliary lifting sheave (single top) stowable
- Variable speed main hoist with grooved drum, cable follower and 1050’ of ¾” cable
- Variable speed auxiliary hoist with grooved drum, cable follower and 738’ of ¾” cable
- Drum rotation indicator (audible, visible and thumper type) main and auxiliary hoist
- Anti-two block device. Pendant type over winding cut out device with audio-visual (failure lamp/buzzer) warning system.
- Boom angle indicator
- Tadano electronic load moment indicator system (AML-C)
- Outrigger extension length detector
- Tadano twin swing system and 360 degree positive swing lock
- Air Conditioner (hot water heater and cooler)
- disconnect in operator’s cab, Work lights
- Independently controlled outriggers
- Pump Four outrigger extension positions
- Mitsubishi 6M60-TLA3B turbo- charged cooled engine (267HP) w/ exhaust brake
- 3 axle unit
- Tire inflation kit
- 24 volt electric system
- 7.9 ton (7.2 metric ton) Hook Ball with swivel
- Self-removable 40,100 lbs (18,200kg) counterweight
- 110 ton (100 metric ton) 7 sheaves with swivel hook block
- Wind Anemometer
- Approx Hours 3,050 (Hours as of Dec 7, 2016)
