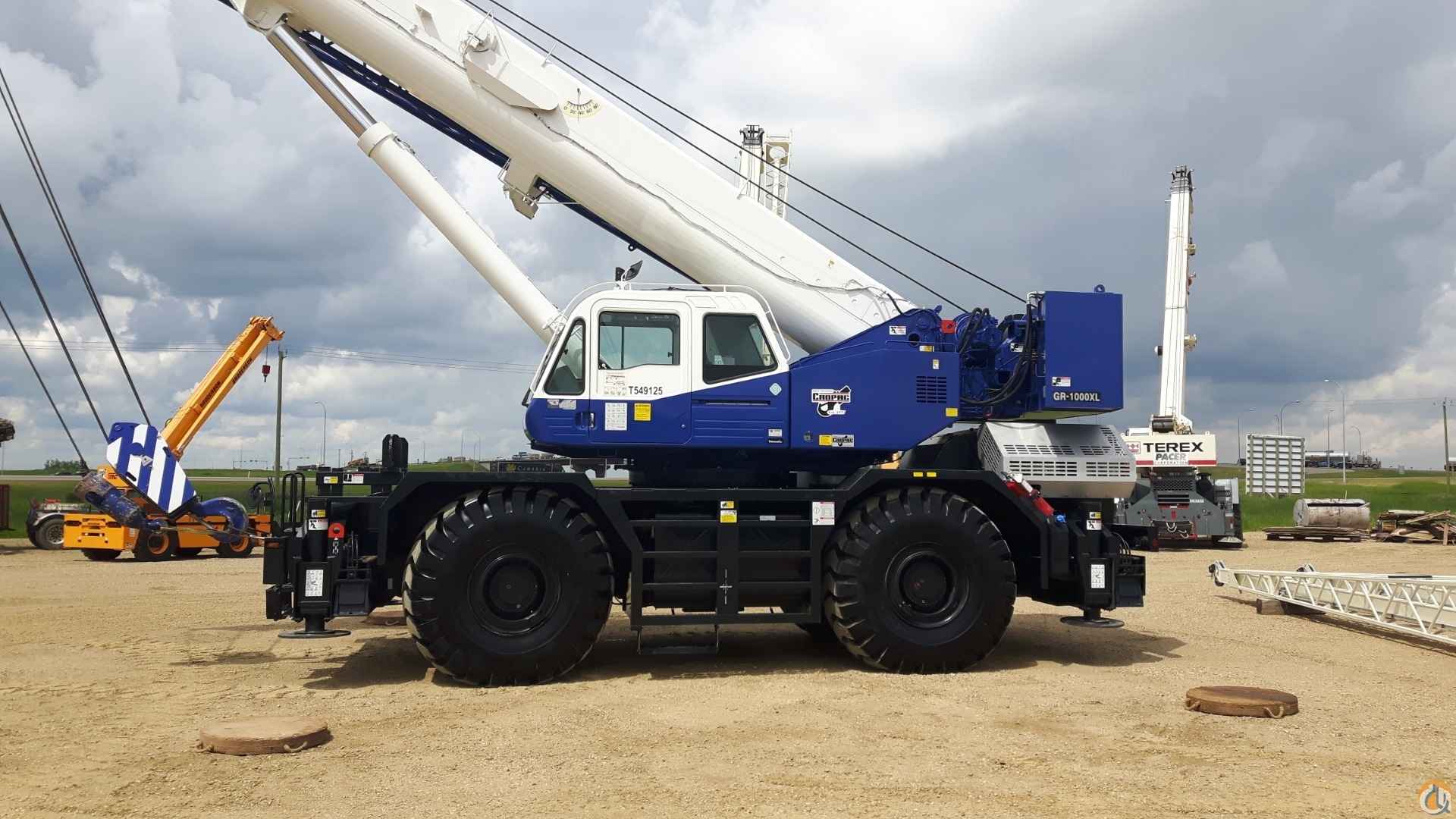

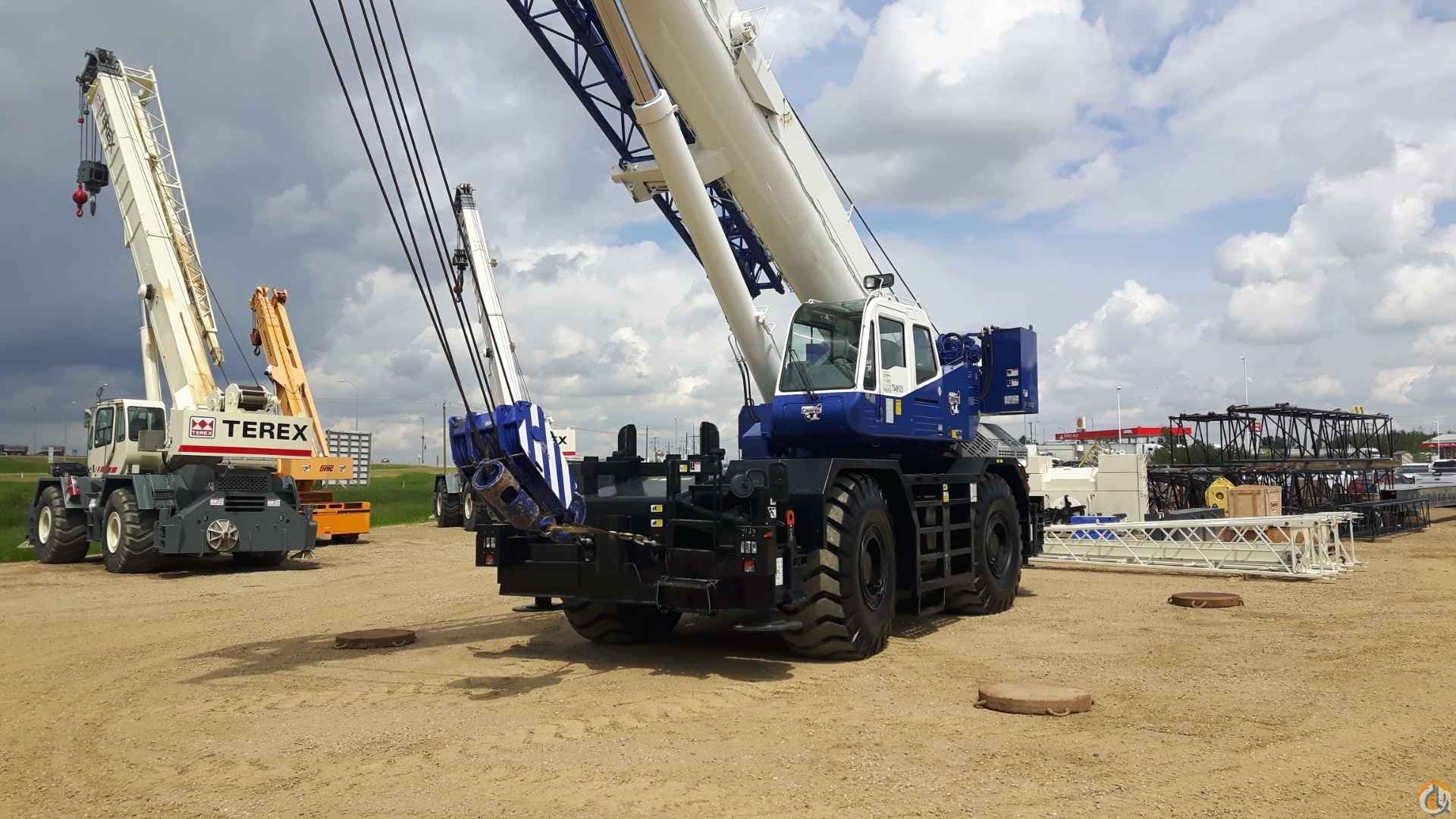

2019 TADANO GR1000XL-3 Rough Terrain Crane (Sold)

Five section full power partially synchronized boom 39.4’~154.2’ (12.0m~47.0m)

33.2’ or 58.1’ (10.1m or 17.7m) bi-fold lattice jib (tilt type) with 3.5°, 25° or 45° pinned offsets and self storing pins

Auxiliary lifting sheave (single top) stowable

Variable speed main hoist with grooved drum, cable follower and 830’ of ¾” cable

Variable speed auxiliary hoist with grooved drum, cable follower and 456’ of ¾” cable

Drum rotation indicator (thumper type, audible and visible) main and auxiliary hoist

2 speed hoist

Anti-two block device (overwind cutout)

Boom angle indicator

Tadano electronic load moment indicator system (AML-C)

Outrigger extension length detector

Electronic crane monitoring system

Tadano twin slewing system and 360° positive slewing lock

Self-centering finger control levers with pilot control

Control pedals for boom hoist and boom telescoping

3-way adjustable cloth seat with armrests, high back and seat belt

Tilt-telescoping steering wheel

Tinted safety glass and sun visor

Front windshield wiper and washer

Roof window wiper and washer

Power window (cab door)

Rear-view mirrors (right and left side)

Mirror for main and auxiliary hoists

Cigarette lighter and ashtray

Cab floor mat

Pump disconnect in operator’s cab

Hydraulic oil cooler

Hot water cab heater and air conditioner

Telematics (machine data logging and monitoring system) with HELLO-NET via internet

Positive control

Quick-reeving type bi-fold jib

Independently controlled outriggers

Four outrigger extension positions

Self-storing outrigger pads

Cummins QSB6.7 turbo charged after cooled engine (270HP) with exhaust brake

Electronic controlled automatic transmission driven by torque converter

4 x 4 x 4 drive/steer

Non-spin rear differential

Automatic rear axle oscillation lockout system

29.5-25 34PR tires

Disc brakes

Fenders

Air dryer

Water separator with filter (high filtration)

Engine over-run alarm

Back-up alarm

Low oil pressure / high water temp. warning device (visual)

Rear steer centering light

Air cleaner dust indicator

Full instrumentation package

Complete highway package

Work lights

Tool storage compartment

Tire inflation kit

24 volt electric system

7.3 ton (6.6 metric ton) hook ball with swivel

Towing hooks – front and rear

Lifting eyes

Hook block tie-down (front bumper)

Weighted hook storage compartment

Fuel consumption monitor

Halogen head lamp

Eco mode system

8 sheave, 100 ton (90.7 metric ton) with swivel hook and safety latch for ¾” (19mm) wire rope
