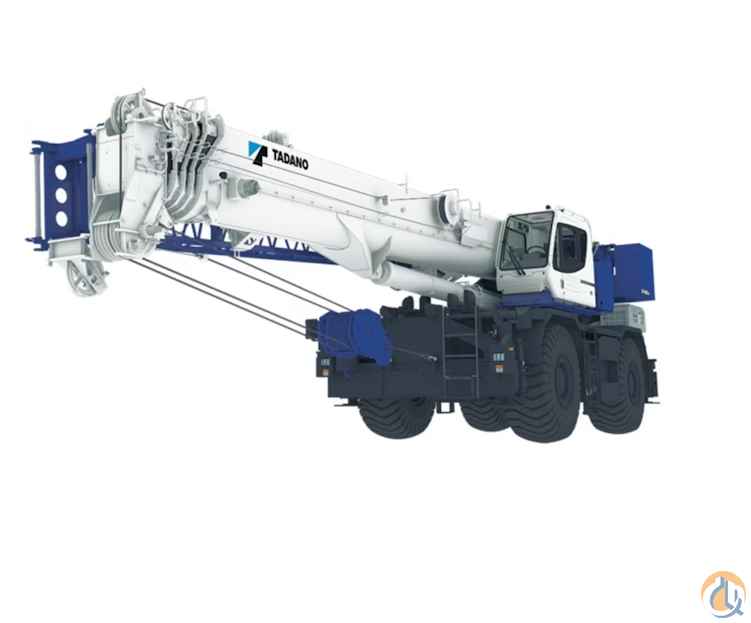

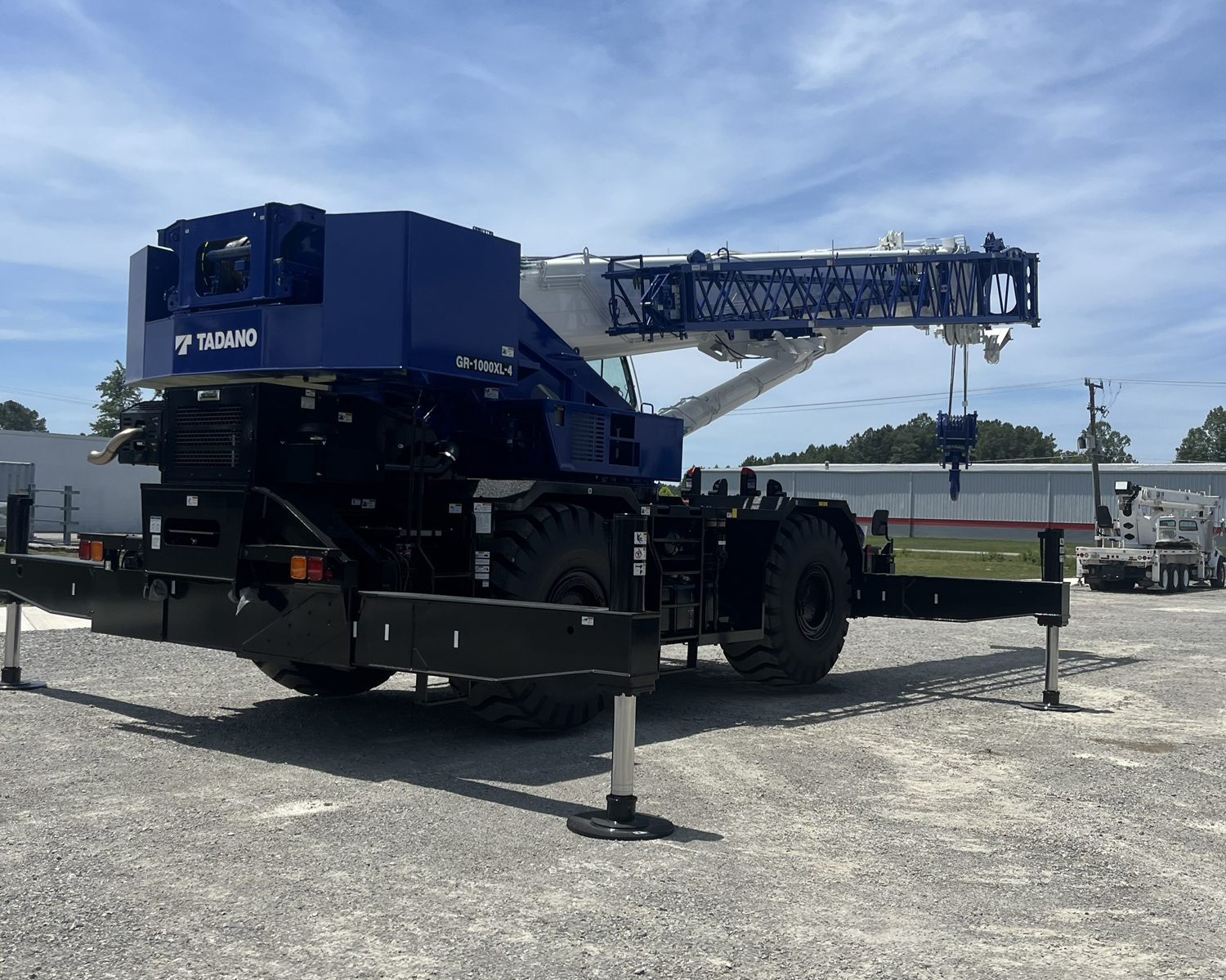

2026 Tadano GR-1000XL-4 Rough Terrain Crane

SC-751 SN: RA2821

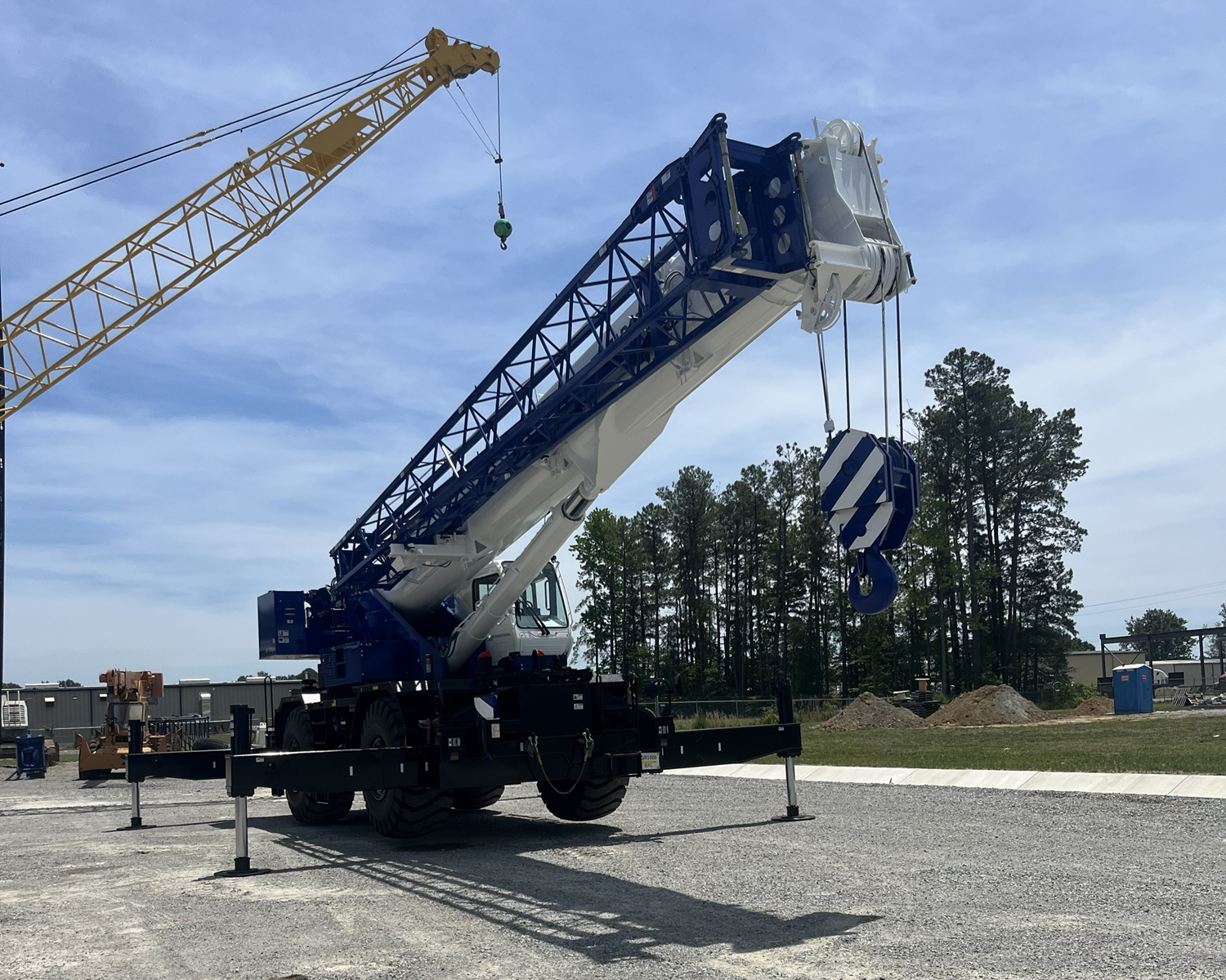

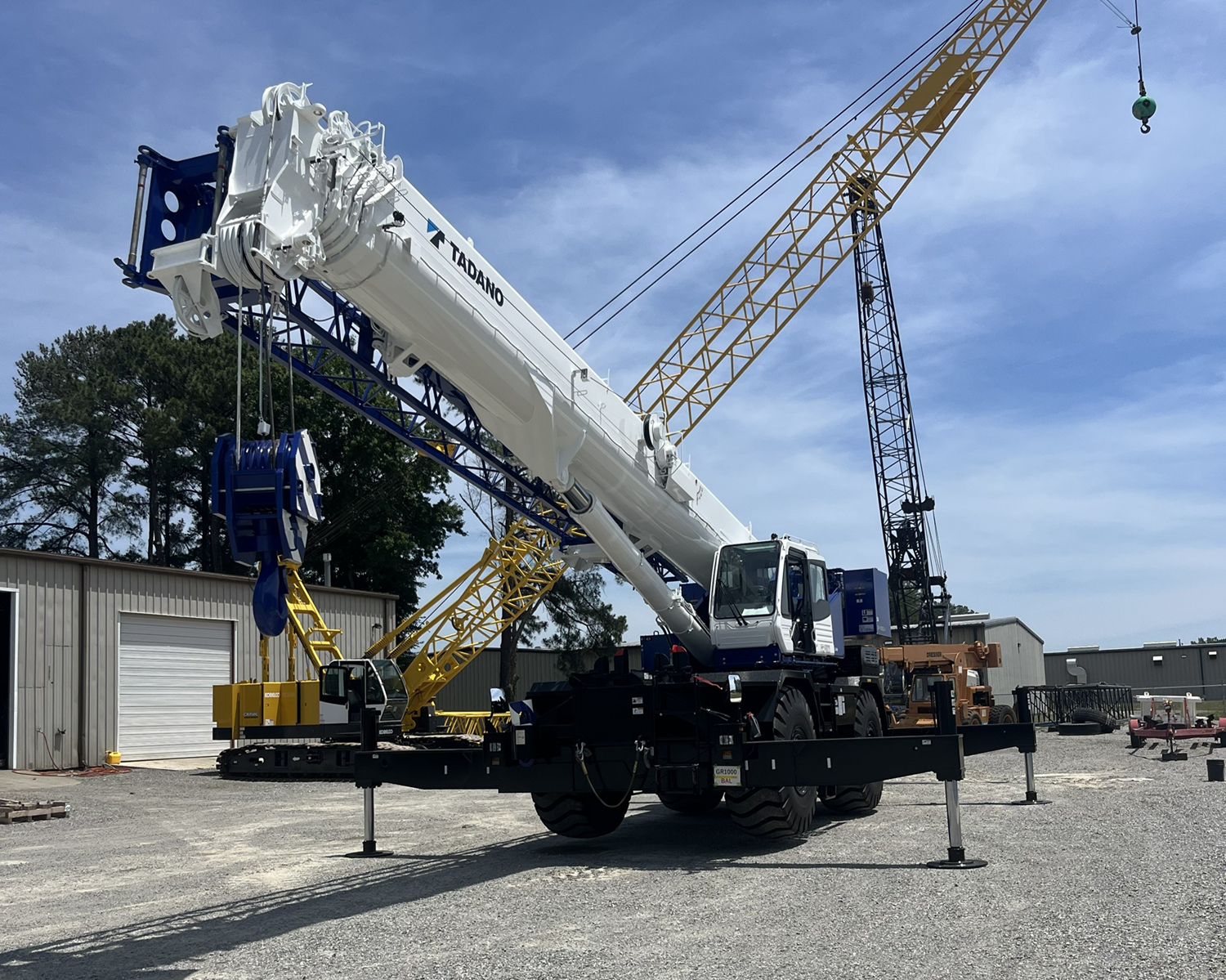

• Five section, full power partially synchronized boom 39.4 ft – 154.2 ft (12.0 m – 47.0 m), stowable auxiliary lifting sheave included (single top), boom angle indicator
• Bi-fold 33.2 ft or 58.1 ft swing-away lattice jib, manually offsetable at 3.5°, 25°, and 45°
• Cummins B6.7 turbo-charged, 280 HP aftercooled diesel engine with exhaust brake, USA EPA Tier 4 Final emissions compliant
• Electronically controlled automatic transmission with torque converter
• 2-axle, 4x4x4 drive/steer with non-spin rear differential, four steering modes, and rear steer centering light
• Semi-elliptic leaf spring suspension with hydraulic lockout device, front and rear, and automatic rear axle oscillation lockout system
• All-wheel disc brakes
• 29.5-25 36 PR or 29.5-25 40 PR tires, Bridgestone, Yokohama, or equivalent

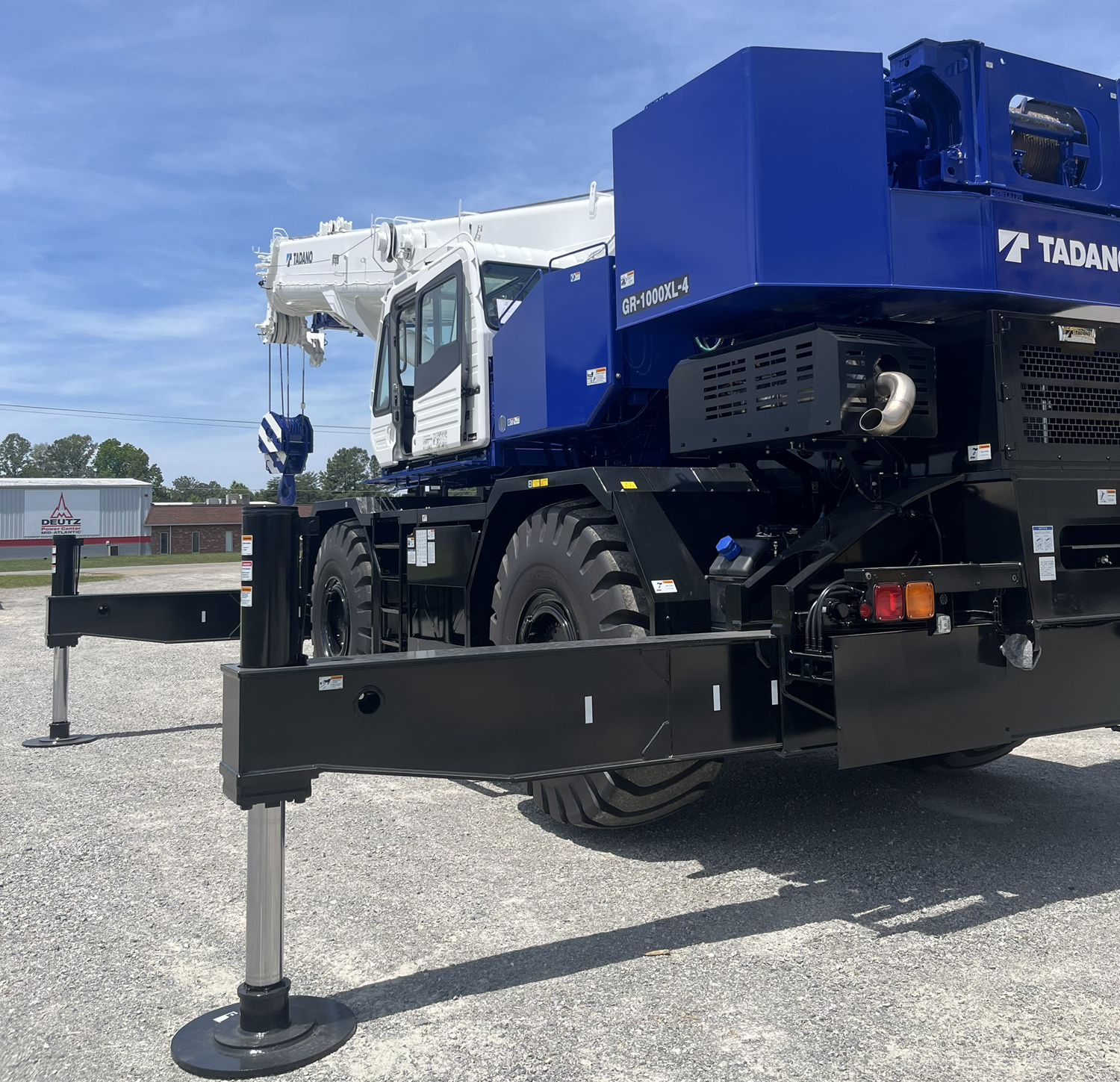

• Four independently controlled H-type outriggers with full hydraulic vertical and horizontal movement, four outrigger extension positions, self-storing outrigger pads, and outrigger extension length detection system
• Variable speed main hoist with grooved drum, cable follower, drum rotation indicator, audible/visual/thumb-thumper, 830 ft of 3/4” wire rope, and camera with light
• Variable speed auxiliary hoist with grooved drum, cable follower, drum rotation indicator, audible/visual/thumb-thumper, 456 ft of 3/4” wire rope, and camera with light
• Tadano twin slewing system with 360° positive slewing lock
• Steel operator cab with tinted safety glass, sun visor, 20° cab tilt, front windshield wiper/washer, roof window wiper/washer, power cab door window, rearview mirrors, adjustable cloth seat with armrests, high backrest, and seat belt
• Tiltable telescopic steering wheel, self-centering single-axis control levers with pilot controls, and control pedals for boom elevation and boom telescoping
• Cab heater and air conditioning, cab floor mat, 12V power outlet, USB port, automatic pump disconnect, eco-mode system, and fuel consumption monitor
• Engine over-run alarm, low oil pressure/high water temperature warning device, right front view camera, rear view camera, and emergency steering system
• Tadano AML-E2 electronic load moment indicator system with Smart Chart, anti-two block device, electronic crane monitoring, and HELLO-NET cellular telematics
• 24-volt electrical system with battery disconnect, complete highway lighting package with halogen headlights, full instrumentation package, and boom-mounted work light
• Fenders, air dryer, water separator with high-filtration filter, backup alarm, air cleaner dust indicator, front/rear towing hooks, lifting eyes, hook block tie down, headache ball storage compartment, tire inflation kit, tool storage compartment, hydraulic oil cooler, anemometer, and rear clearance sonar
• Self-removable 20,100 lb counterweight

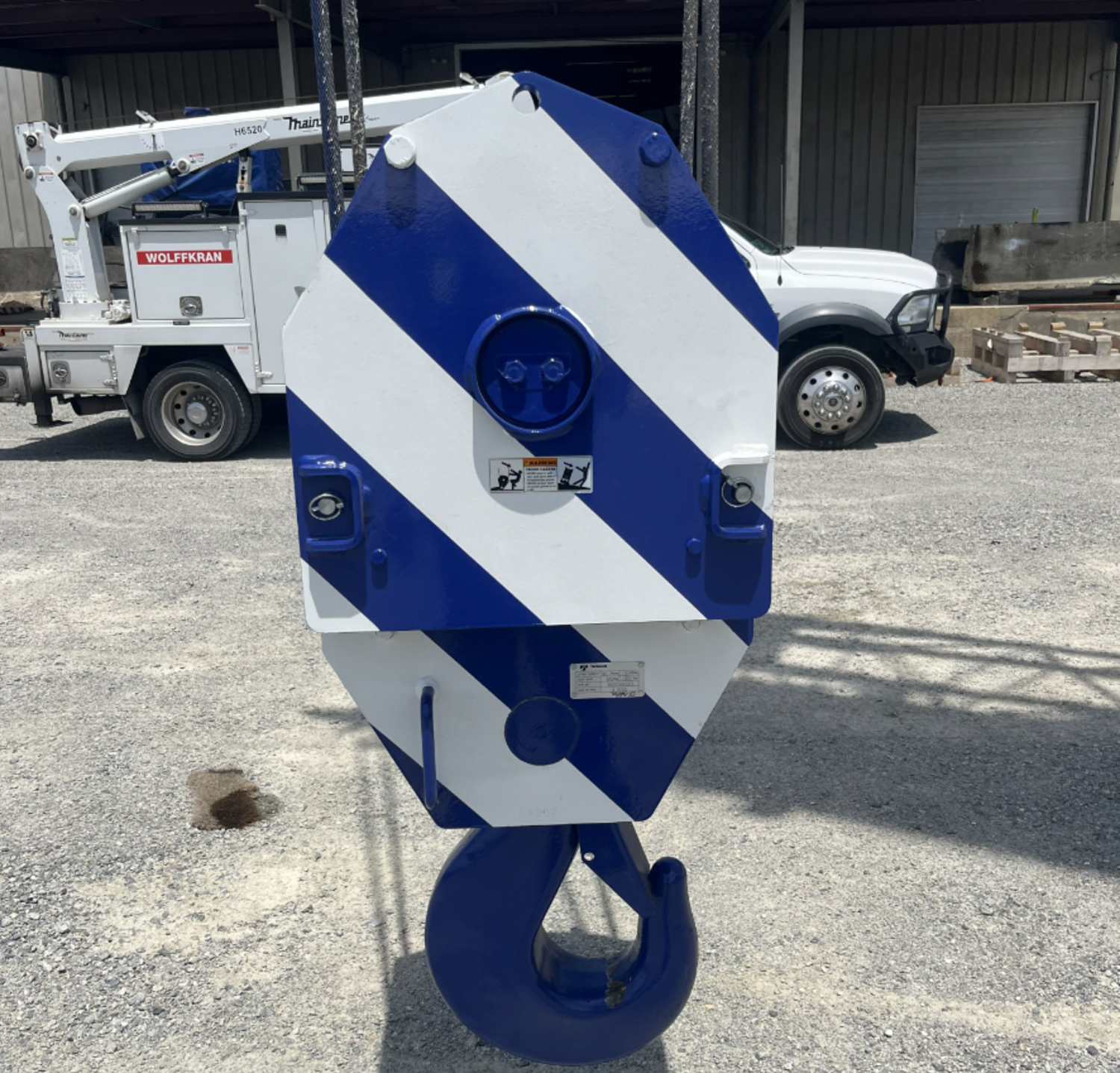

• 100 US ton hook block, 8-sheaves, with single swivel hook and safety latch
• 7.3 US ton overhaul ball with single swivel hook and safety latch
• Standard Tadano Blue/White paint with red/white chevron warning markings
• Complete set of manuals
• Tadano limited warranty: 12 months or 1,500 hours, whichever occurs first

Location: Ashland VA

Call For Pricing
