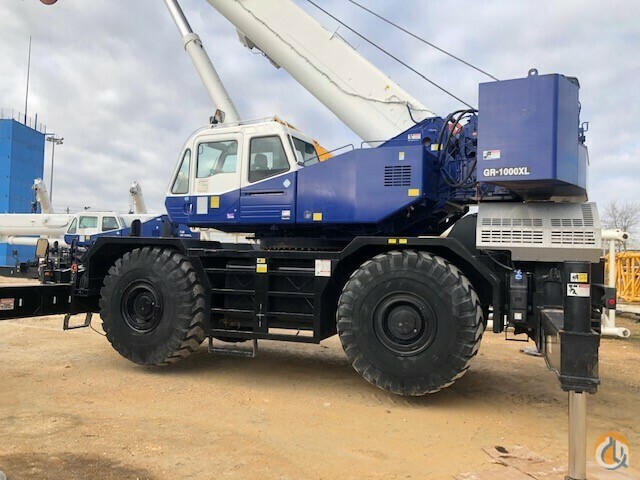

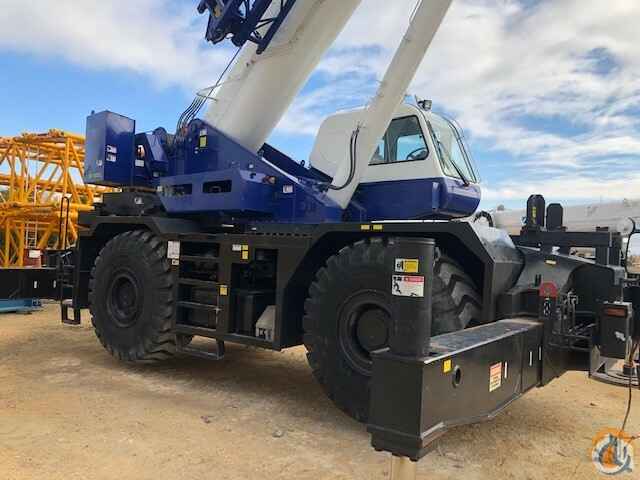

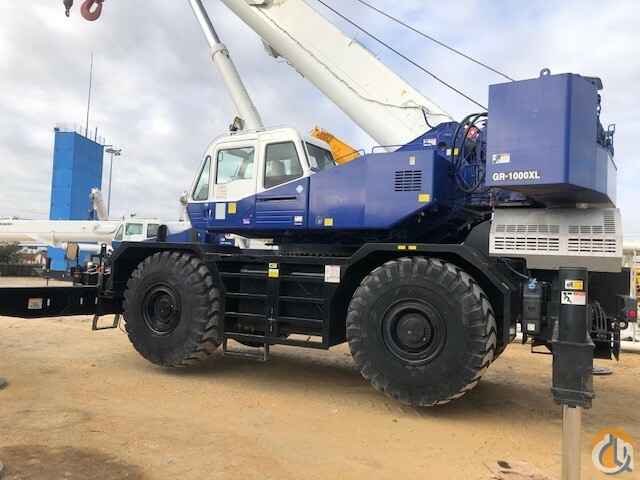

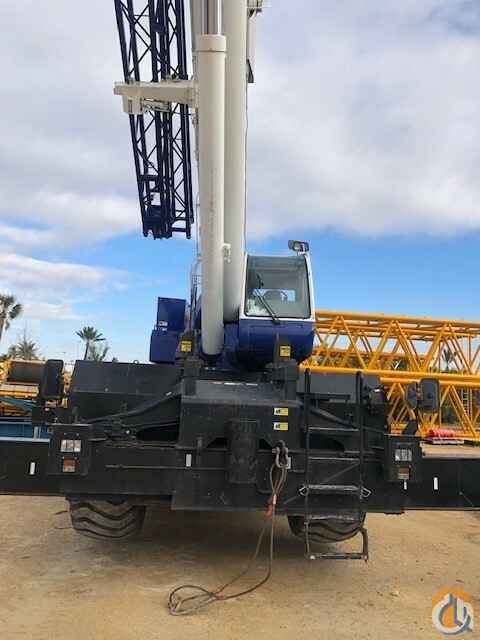

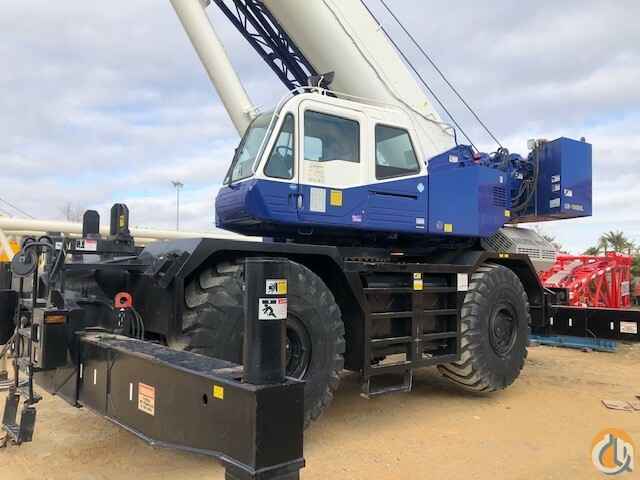

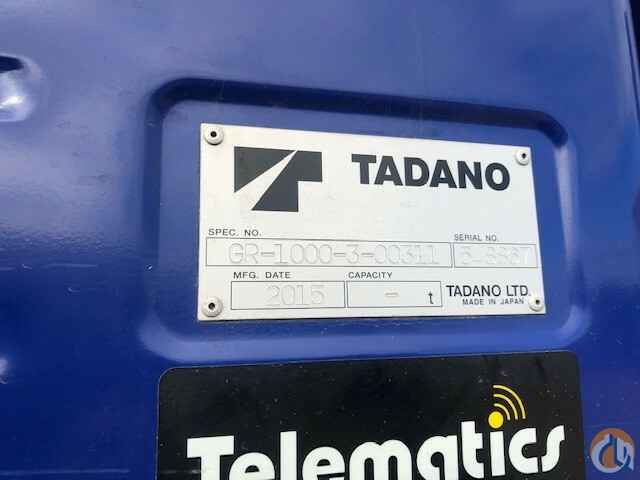

2015 Tadano GR1000XL-3, 100 Ton, Rough Terrain Crane; CranesList ID: 674,

  • 39.4' -154.2' Five Section of round box construction synchronized telescoping boom with seven sheaves at boom head and auxiliary lifting sheave,
  • 33' - 58' Two stage bi-fold lattice type with 3.5, 25 or 45 degree offset Jib - Assistant cylinders for mounting and stowing, controlled at right side of superstructure,
  • Main and Auxiliary Winches with 3/4" wire rope,
  • Two Speed,
  • Drum Rotation Indicator (audible and visible type),
  • Tadano electronic Load Moment Indicator system (AML-C) including:
    Control lever lockout function,
    Boom position indicator,
    Outrigger state indicator,
    Boom angle / boom length / jib offset angle / jib length / load radius / rated lifting capacities / actual loads read out
    Ratio of actual load moment to rated load moment indication,
  • Anti-Two Block (overwind cutout),
  • Hook Ball & Hook Block,
  • 22,000# Counterweights,
  • Self-removable counterweight,
  • Continuous 360 full circle slewing on ball bearing turntable,
  • Outrigger controls and sight level in the operator's cab,

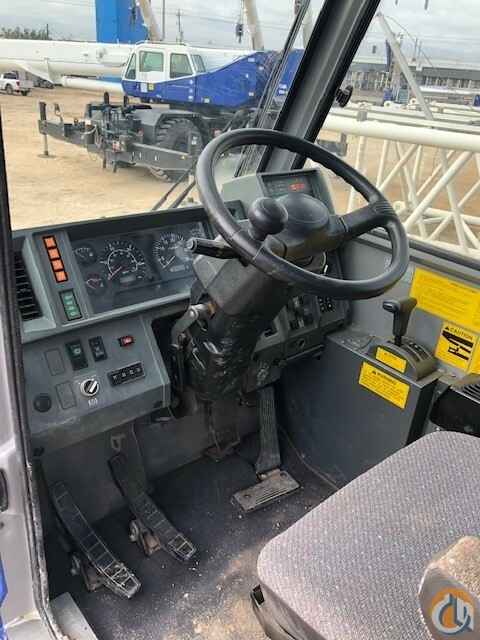

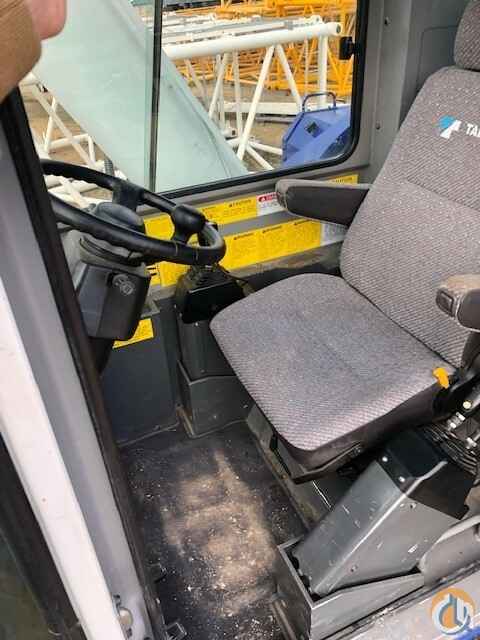

  • Tilt Cab,
  • 10.1' Wide Tadano 4 X 4 X 4 drive and steer Carrier,
  • Cummins QSB6.7L 6 Cylinders, 4 cycle, turbo charged and after cooled, 270 HP, Tier 4 Diesel Engine,
  • Exhaust Brake,
  • Electronically controlled full automatic transmission. Torque converter driving full powershift with driving axle selector. 6 forward and 2 reverse speeds, constant mesh. 3 speeds - high range - 2 wheel drive; 4 wheel drive - 3 speeds - low range - 4 wheel drive,
  • Air Conditioner and Heater,
  • Front and Rear Tires: 29.5 x 25 34 PR,

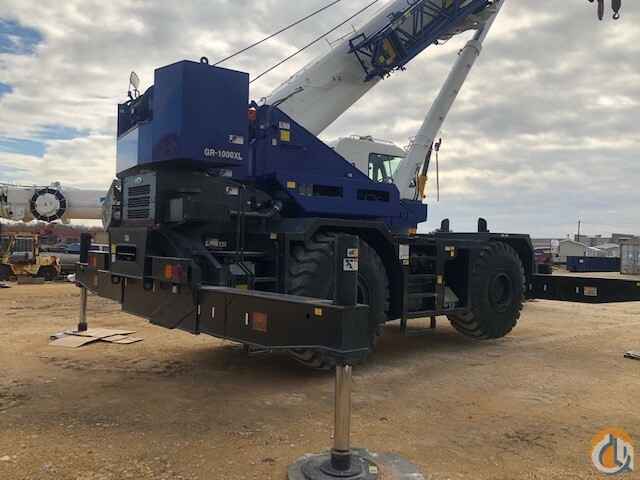

  • Four hydraulic, beam and jack outriggers. Vertical jack cylinders equipped with integral holding valve. Each outrigger beam and jack is controlled independently from cab. Beams extend to 23' 11-3/8" center-line and retract to within 10' 10-1/2" overall width with floats,
  • Standard Tadano blue and white color scheme,
  • All Tadano standard equipment,
  • Parts and operators manuals,
  • Current Certification.

http://www.CranesList.com,



LOCATED IN TEXAS!

  • Year: 2015
  • Boom: 154'
  • Capacity: 100.00
  • Jib: 58'
  • Condition: Very Good
  • Hours: 10,200 as of…
  • Unit #: 674
  • Location: Texas USA
