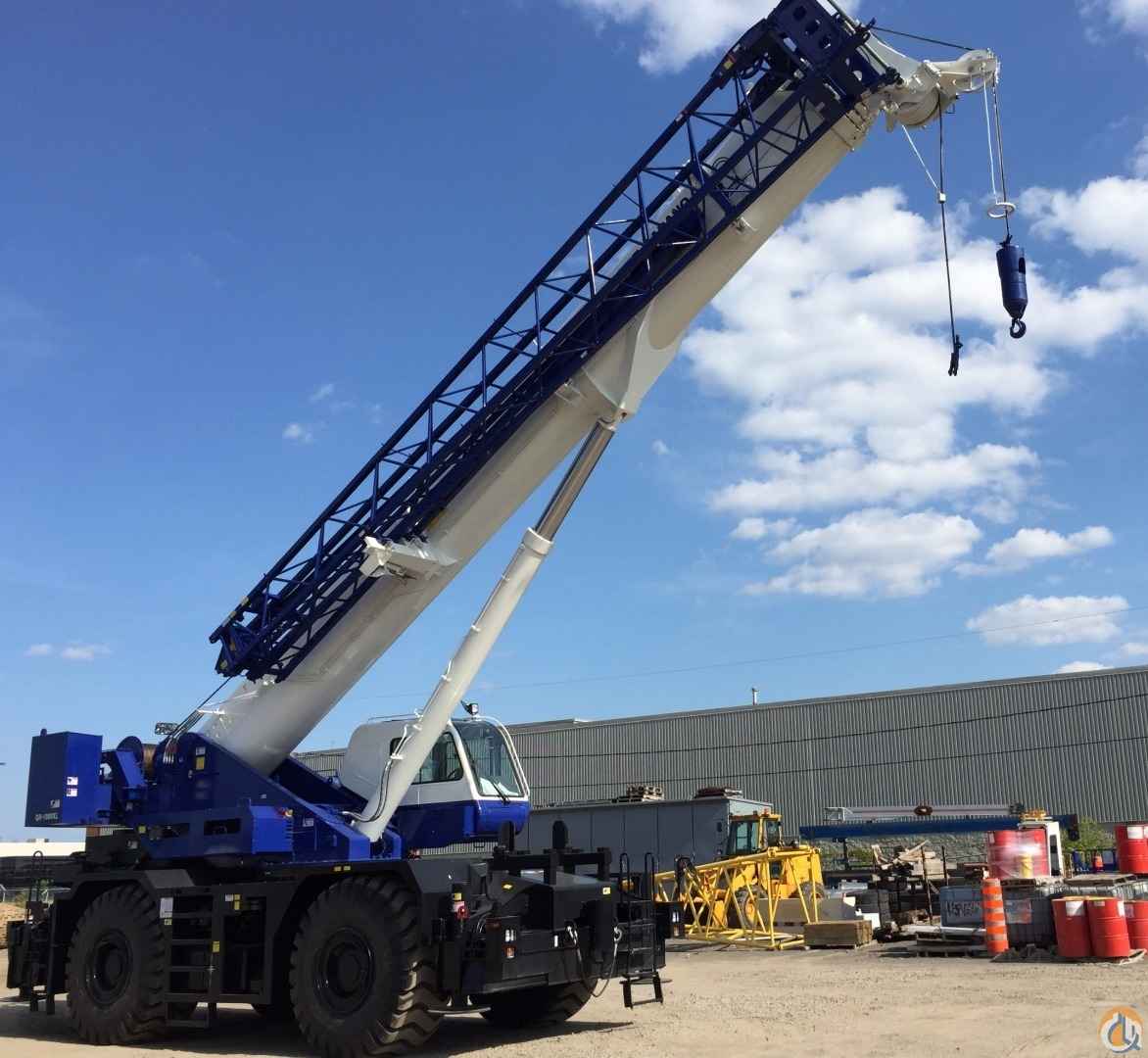

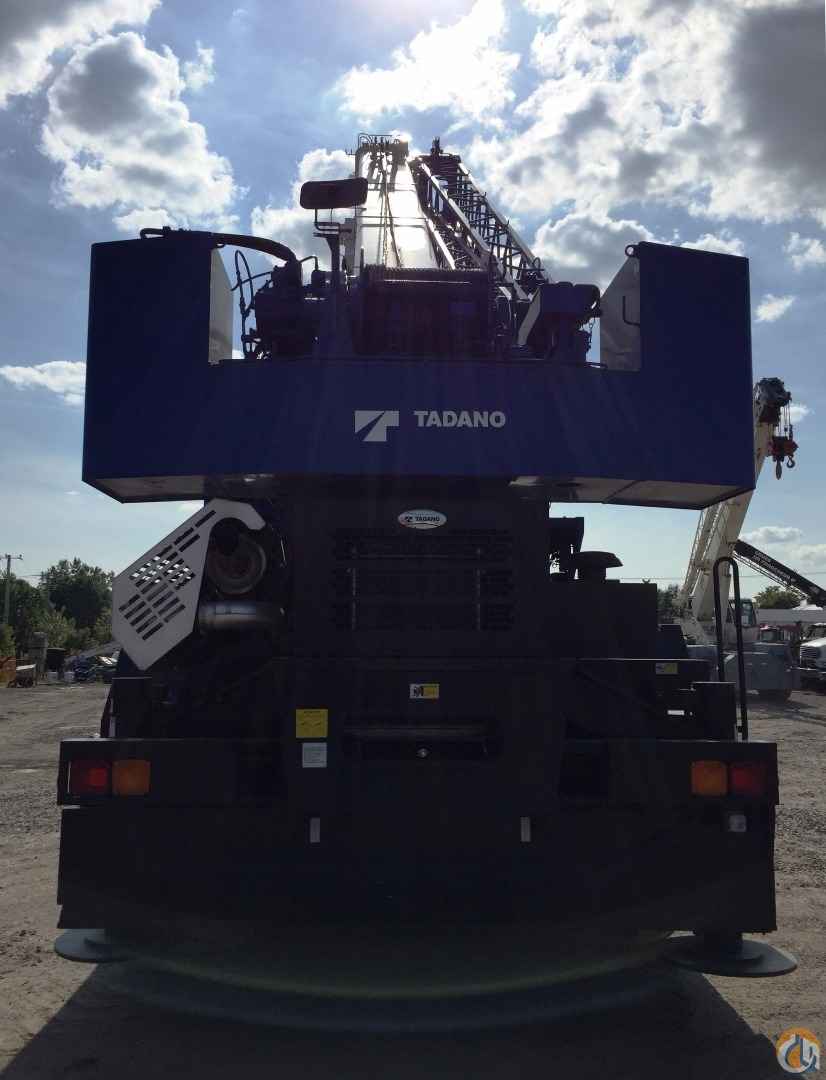

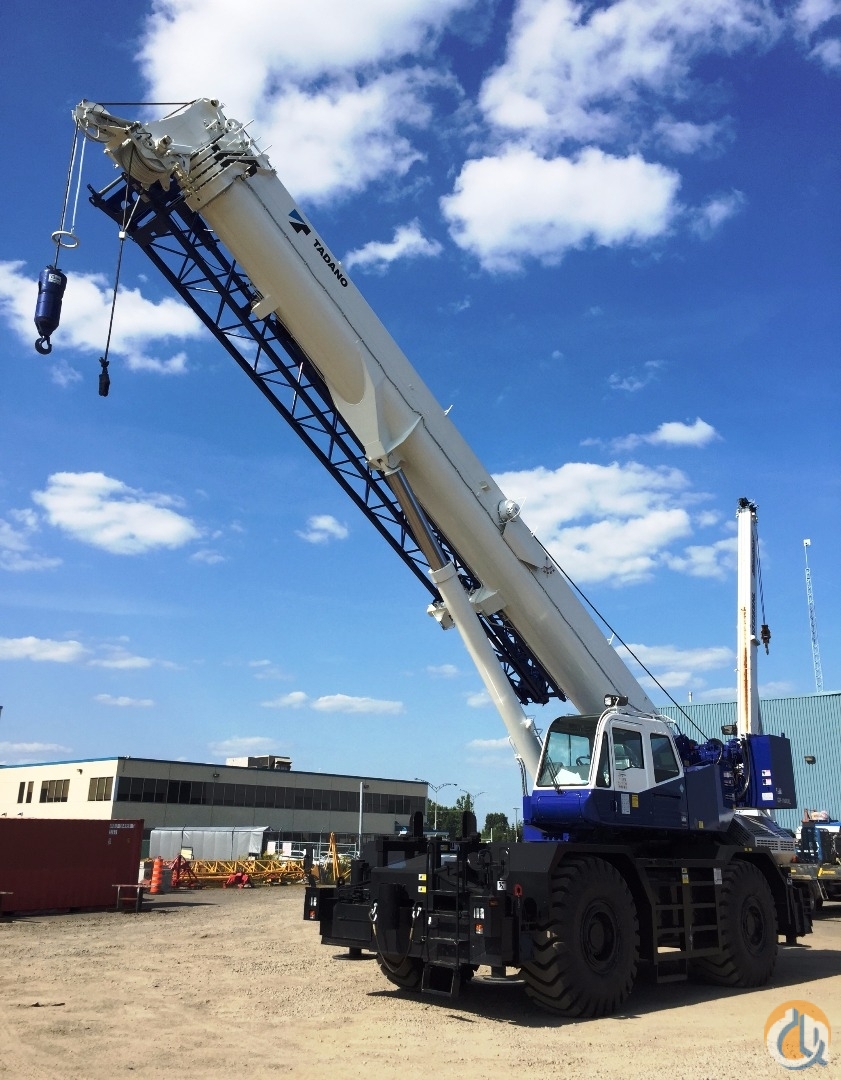

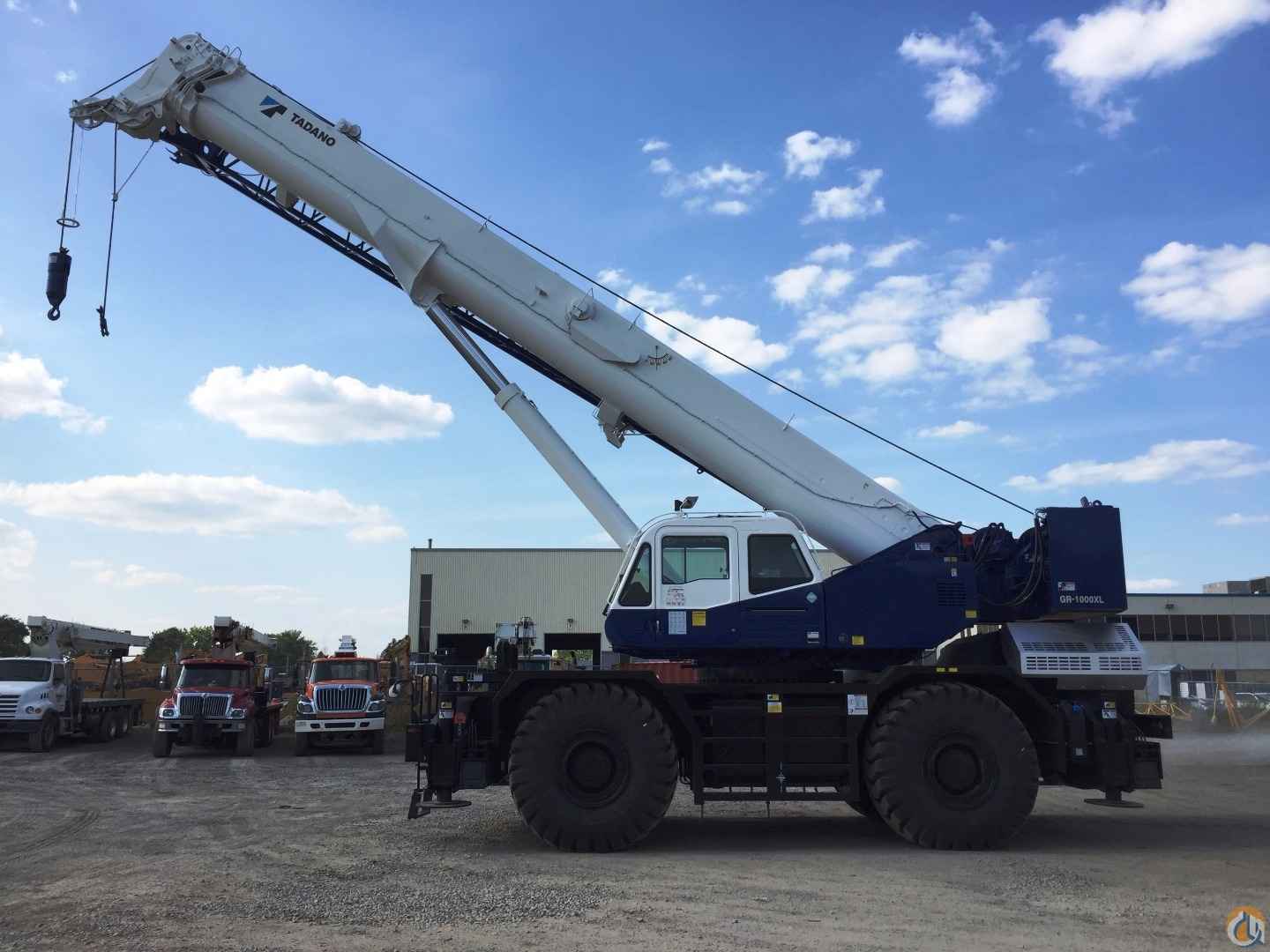

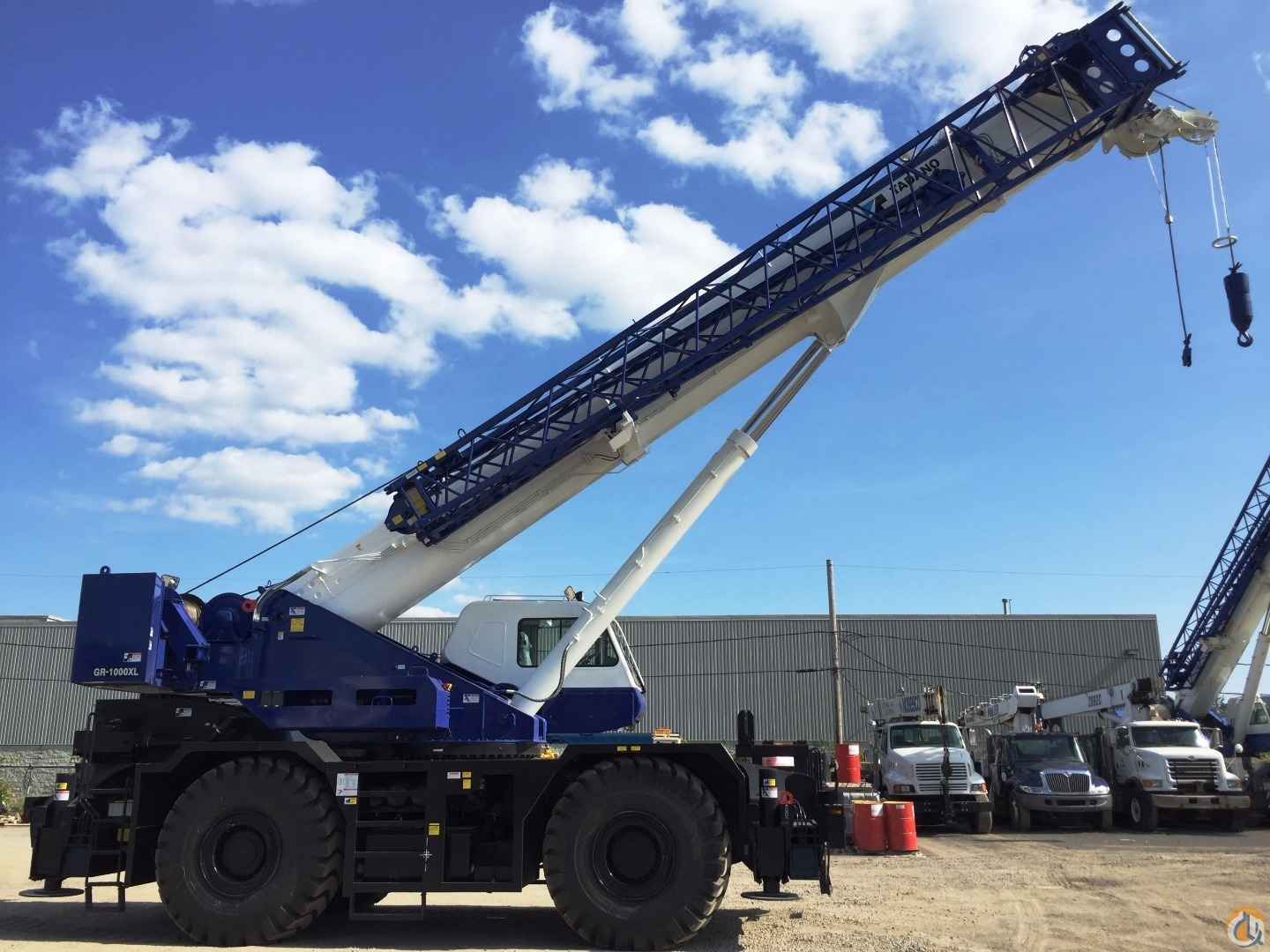

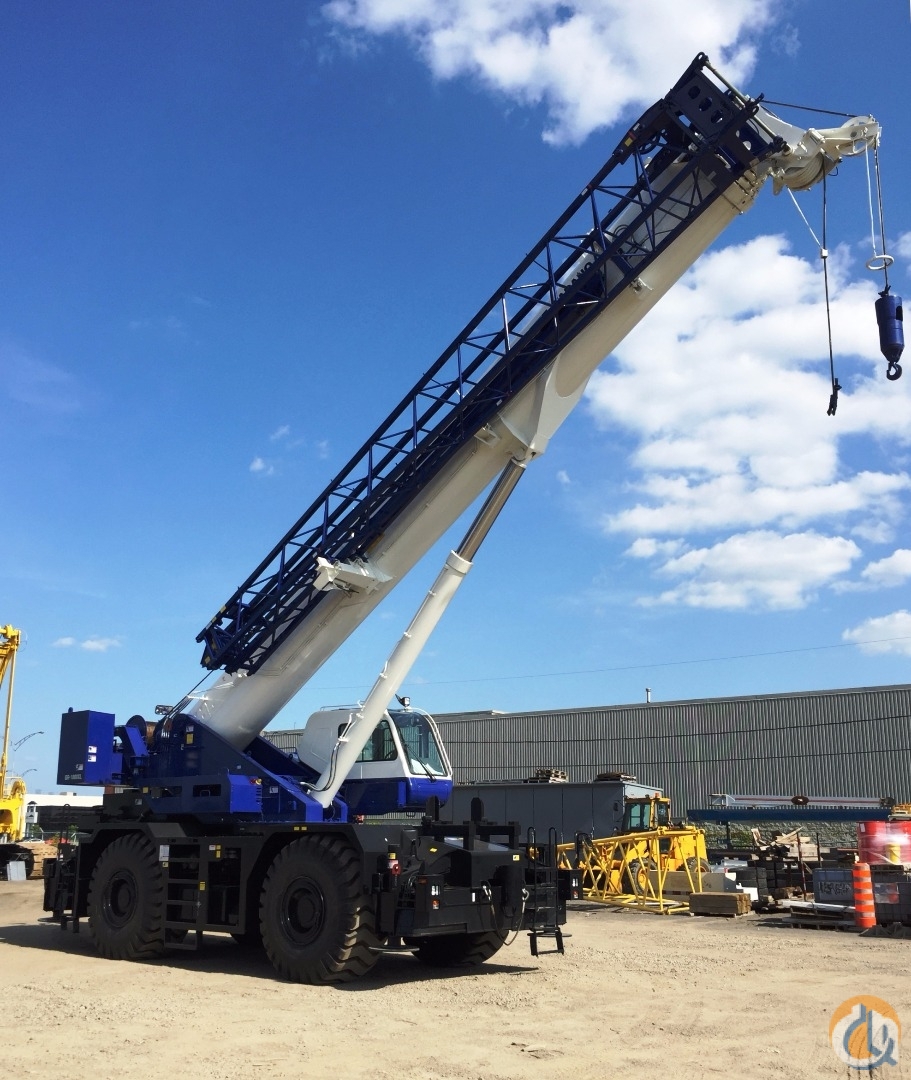

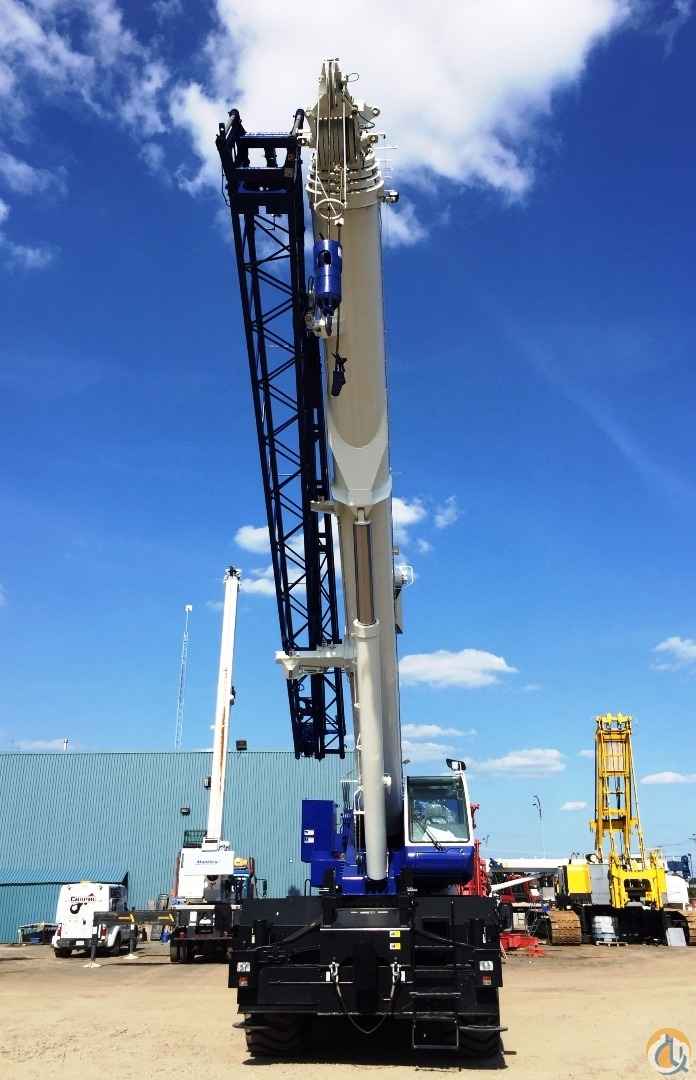

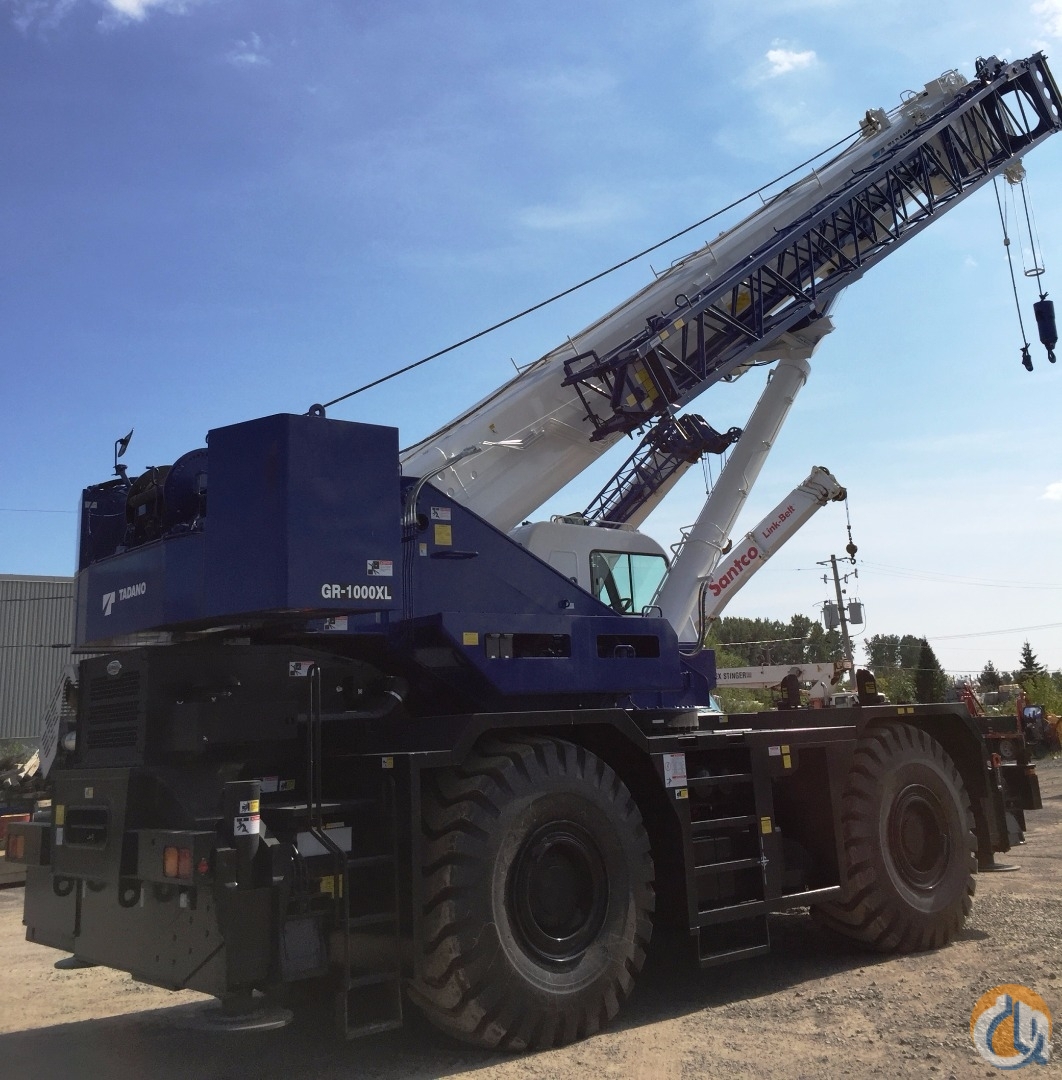

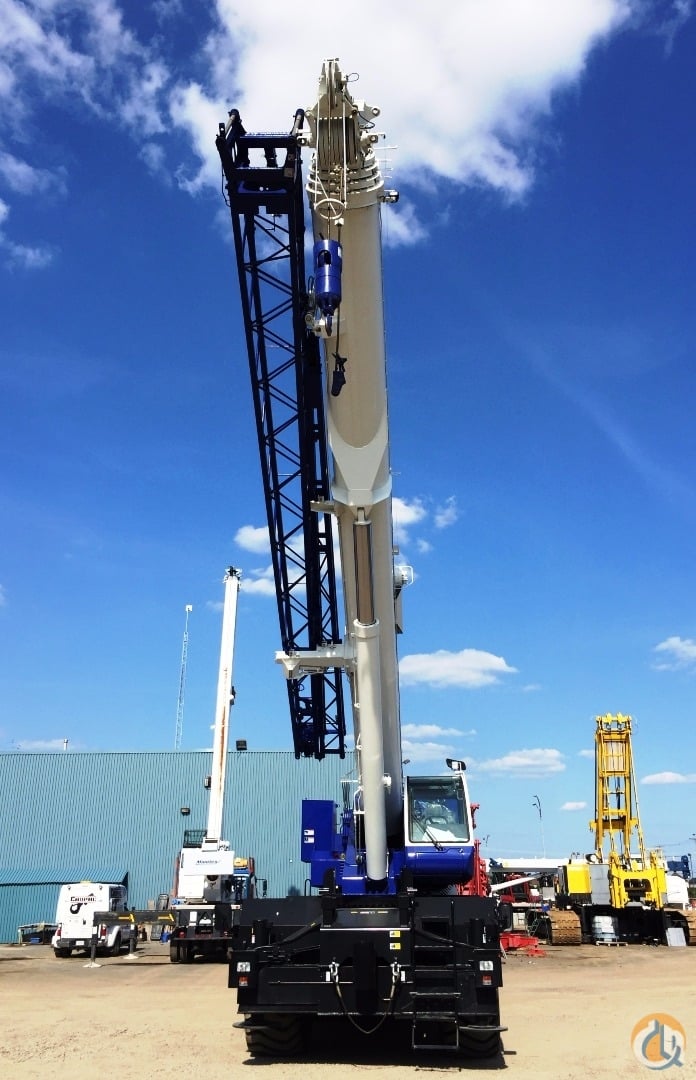

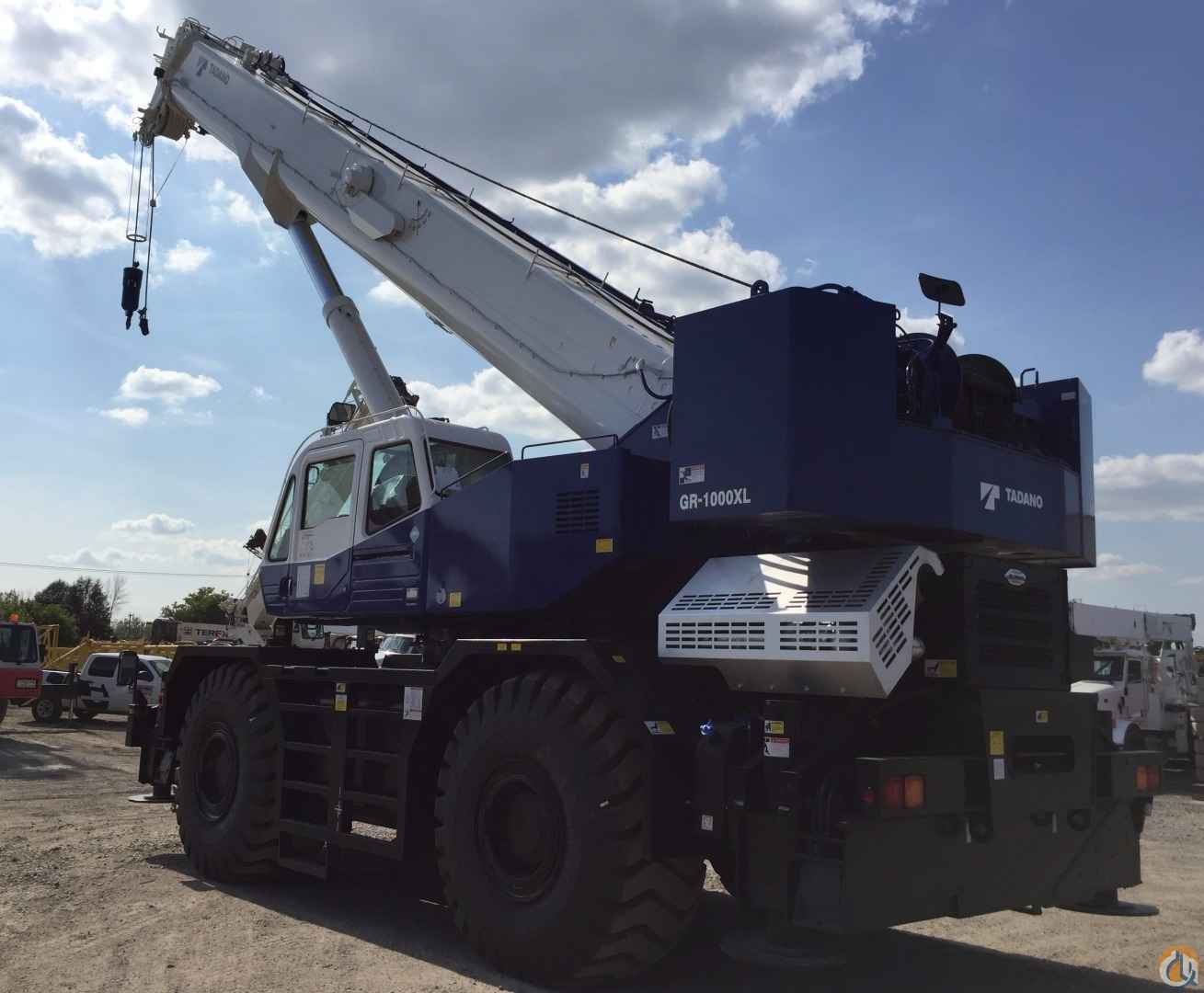

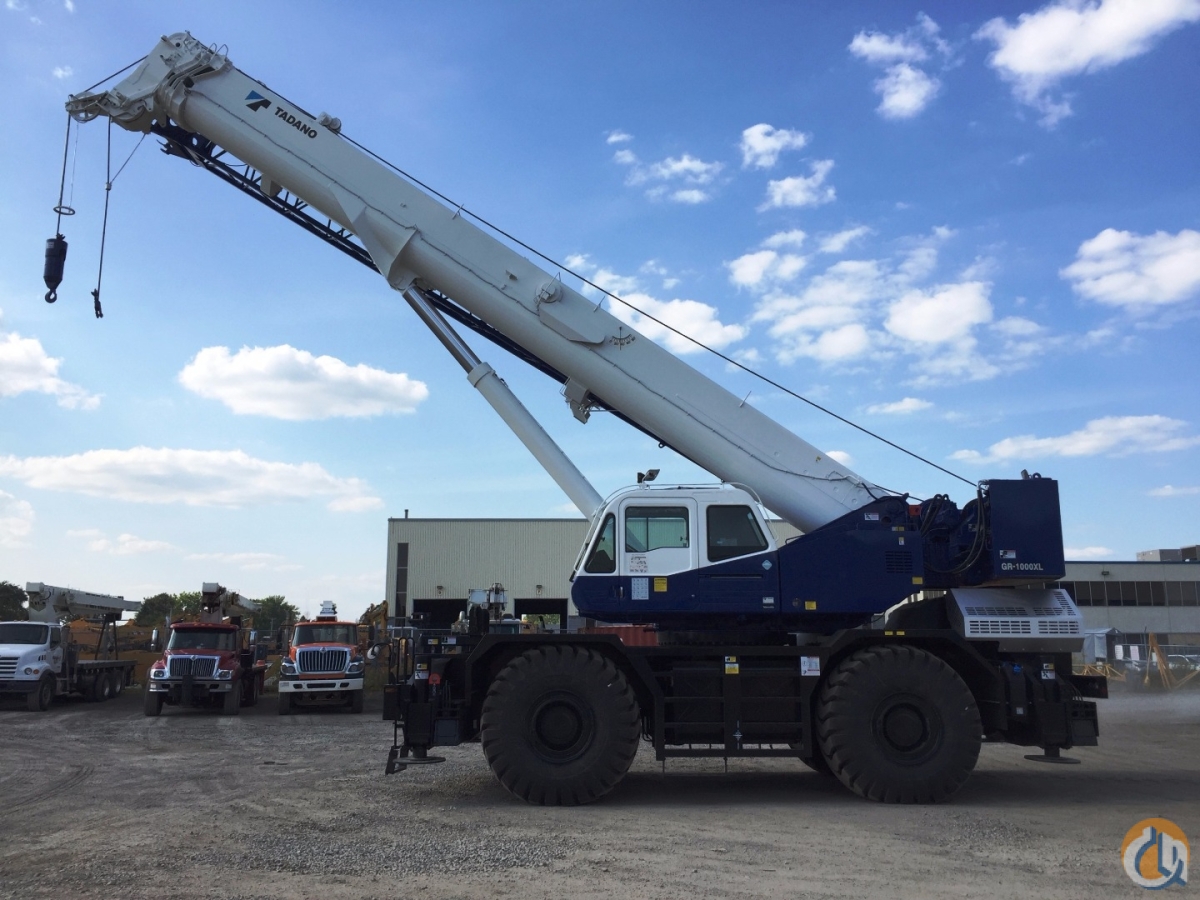

2018 Tadano GR1000XL-3

• Five section full power partially synchronized boom 39.4’~154.2’ (12.0m~47.0m)

• 33.2’ or 58.1’ (10.1m or 17.7m) bi-fold lattice jib (tilt type) with 3.5°, 25° or 45° pinned offsets and self storing pins

• Auxiliary lifting sheave (single top) stowable

• Variable speed main hoist with grooved drum, cable follower and 830’ of ¾” cable

• Variable speed auxiliary hoist with grooved drum, cable follower and 456’ of  ¾” cable

• Drum rotation indicator (thumper type, audible and visible) main and auxiliary hoist

• 2 speed hoist

• Anti-two block device (overwind cutout)

• Boom angle indicator

• Tadano electronic load moment indicator system (AML-C)

• Outrigger extension length detector

• Electronic crane monitoring system

• Tadano twin slewing system and 360° positive slewing lock

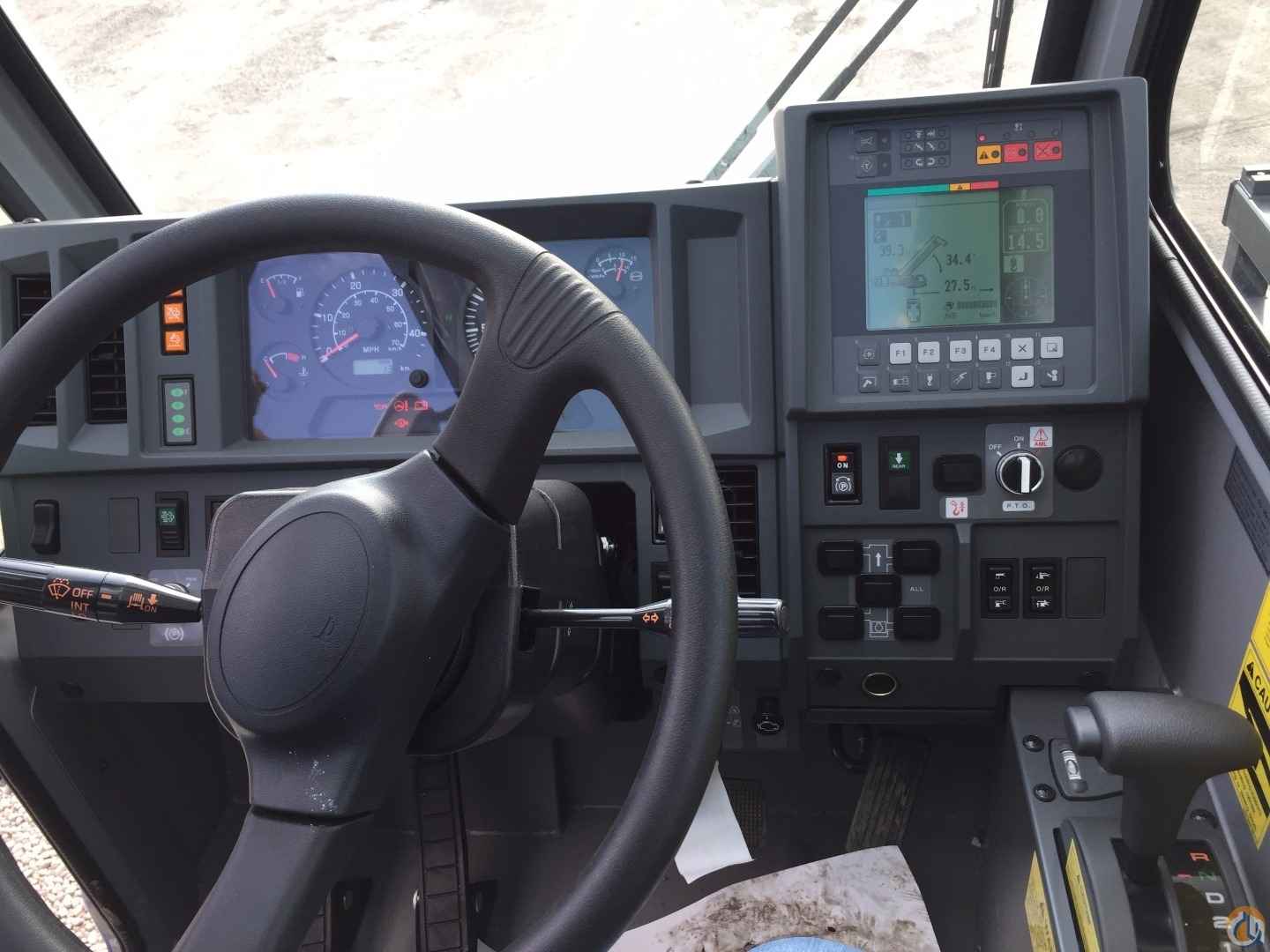

• Self-centering finger control levers with pilot control

• Control pedals for boom hoist and boom telescoping

• 3-way adjustable cloth seat with armrests, high back and seat belt

• Tilt-telescoping steering wheel

• Tinted safety glass and sun visor

• Front windshield wiper and washer

• Roof window wiper and washer

• Power window (cab door)

• Rear-view mirrors (right and left side)

• Mirror for main and auxiliary hoists

• Cigarette lighter and ashtray

• Cab floor mat

• Pump disconnect in operator’s cab

• Hydraulic oil cooler

• Hot water cab heater and air conditioner

• Telematics (machine data logging and monitoring system) with HELLO-NET via internet

• Positive control

• Quick-reeving type bi-fold jib

• Independently controlled outriggers

• Four outrigger extension positions

• Self-storing outrigger pads

• Cummins QSB6.7  turbo charged after cooled engine (270HP) with exhaust brake

• Electronic controlled automatic transmission driven by torque converter

• 4 x 4 x 4 drive/steer

• Non-spin rear differential

• Automatic rear axle oscillation lockout system

• 29.5-25 34PR tires

• Disc brakes

• Fenders

• Air dryer

• Water separator with filter (high filtration)

• Engine over-run alarm

• Back-up alarm

• Low oil pressure / high water temp. warning device (visual)

• Rear steer centering light

• Air cleaner dust indicator

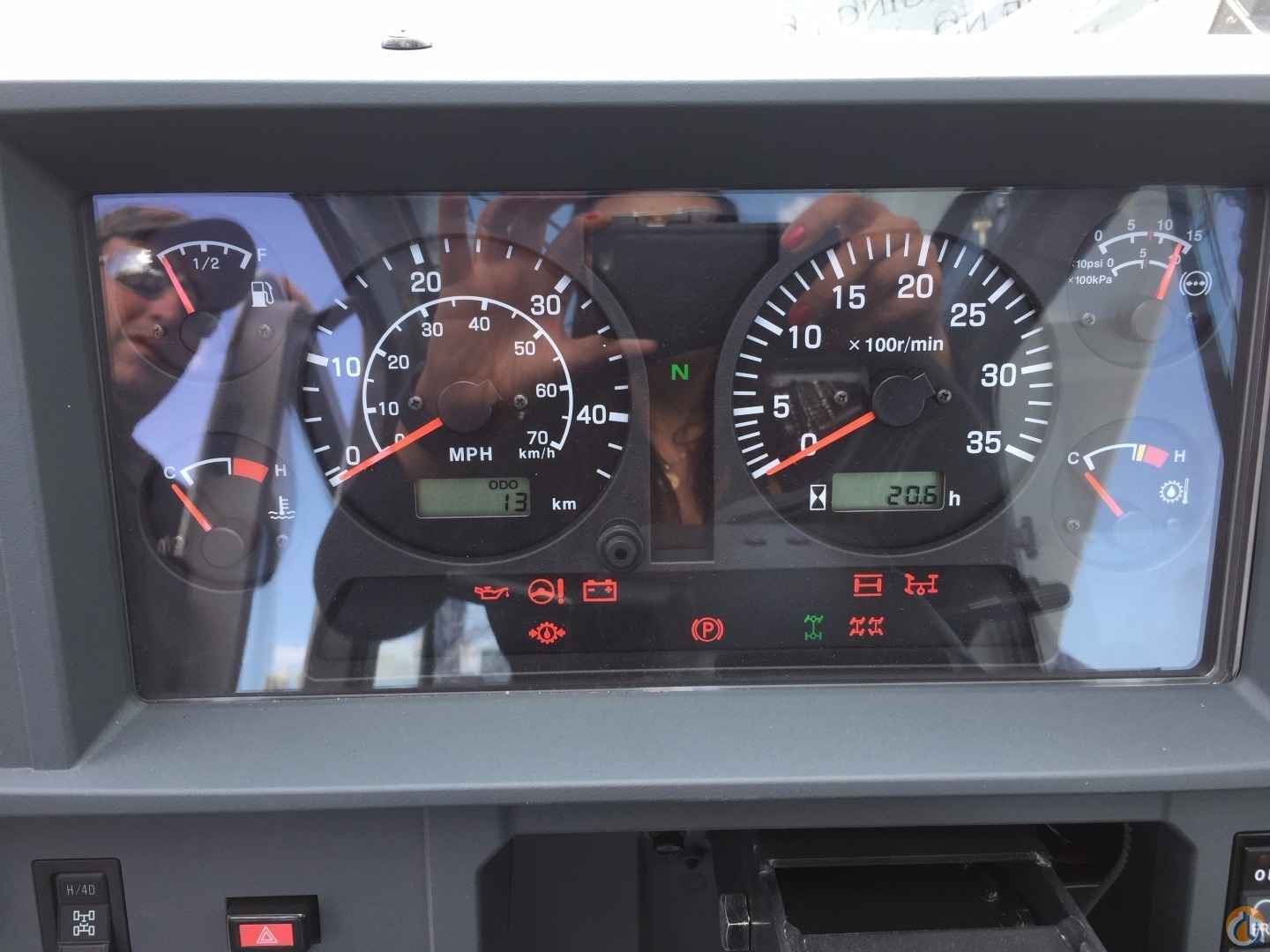

• Full instrumentation package

• Complete highway package

• Work lights

• Tool storage compartment

• Tire inflation kit

• 24 volt electric system

• 7.3 ton (6.6 metric ton) hook ball with swivel

• Towing hooks – front and rear

• Lifting eyes

• Hook block tie-down (front bumper)

• Weighted hook storage compartment

• Fuel consumption monitor

• Halogen head lamp

• Eco mode system

• 8 sheave, 100 ton (90.7 metric ton) with swivel hook and safety latch for ¾” (19mm) wire rope
