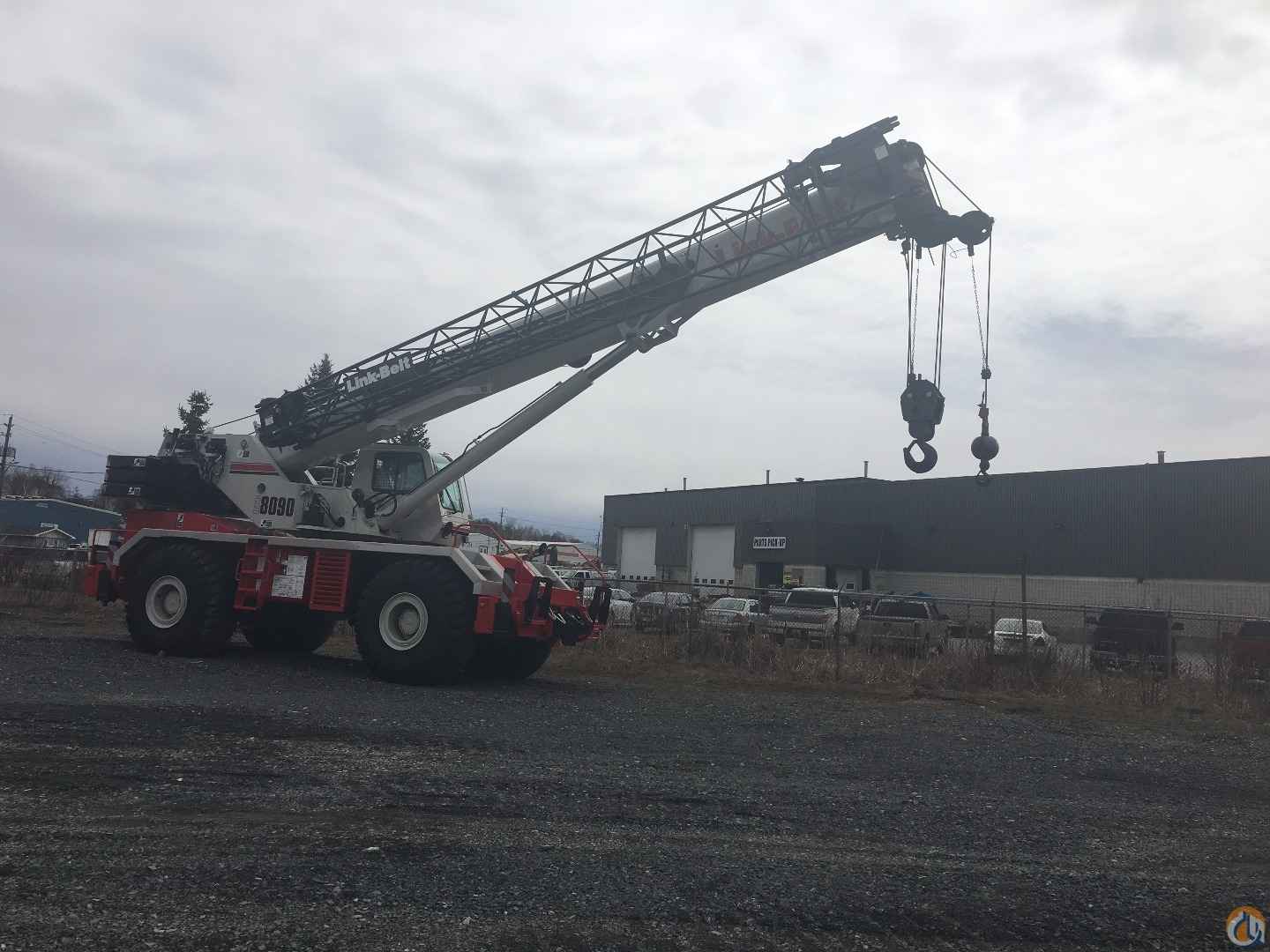

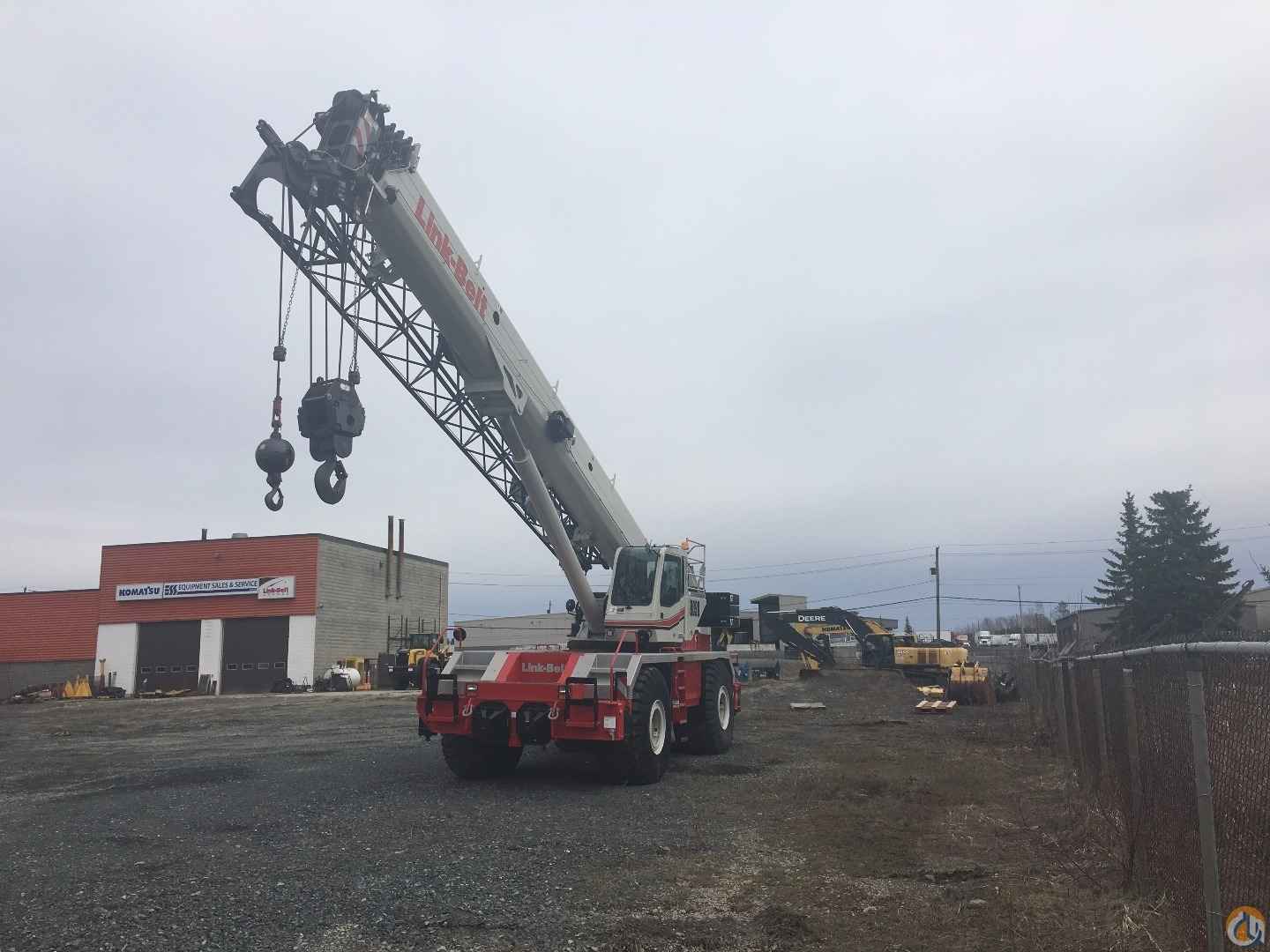

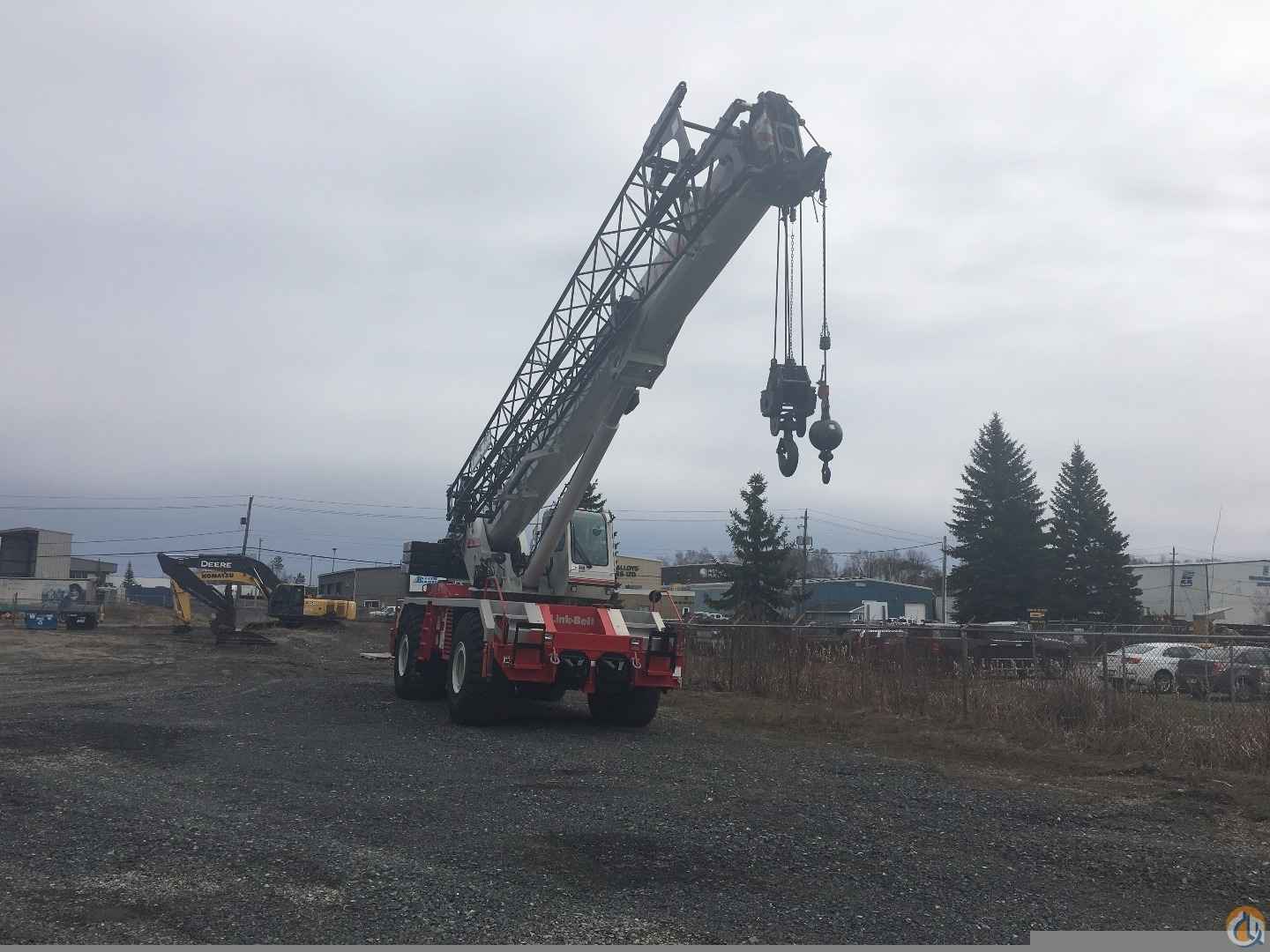

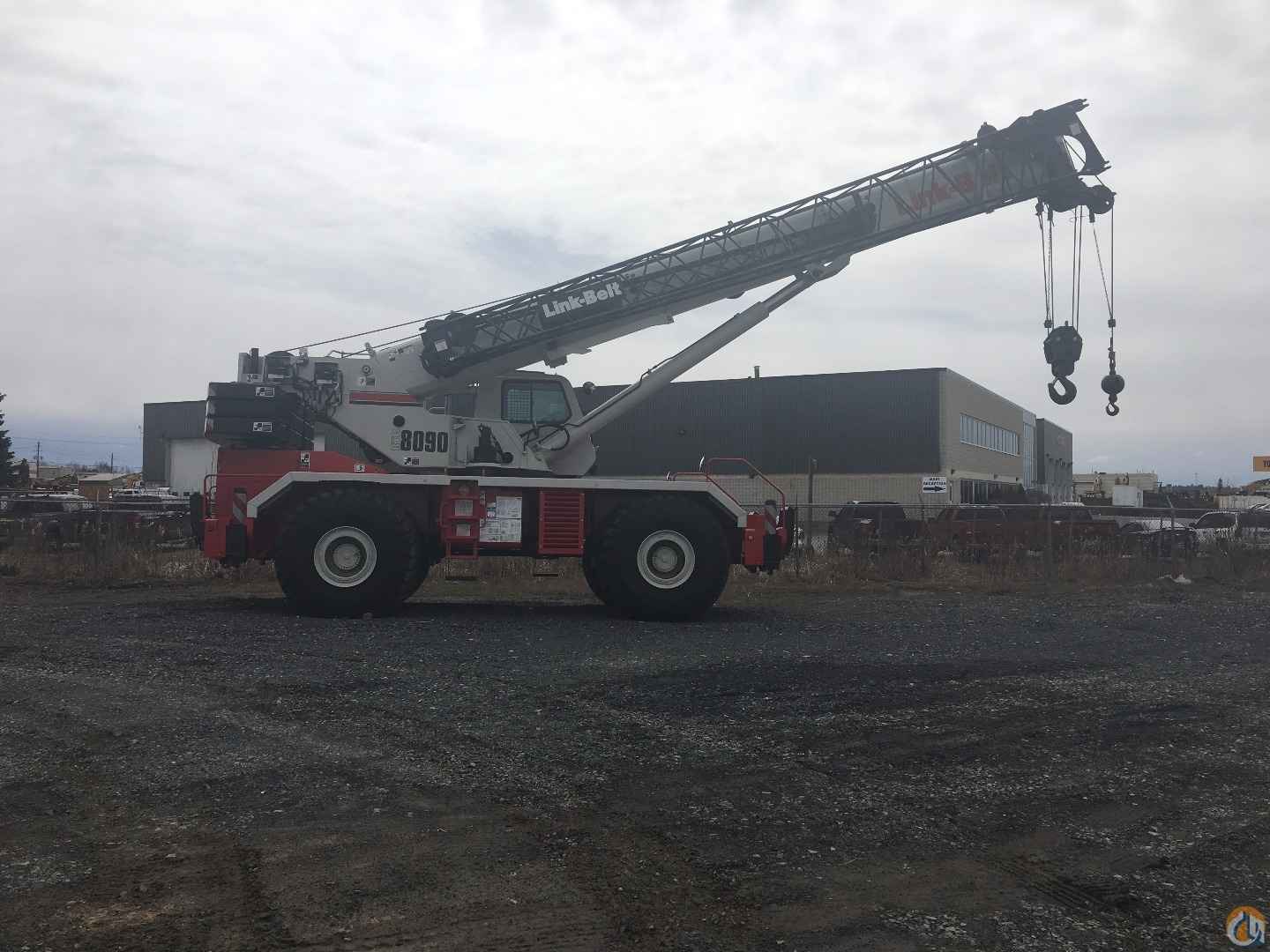

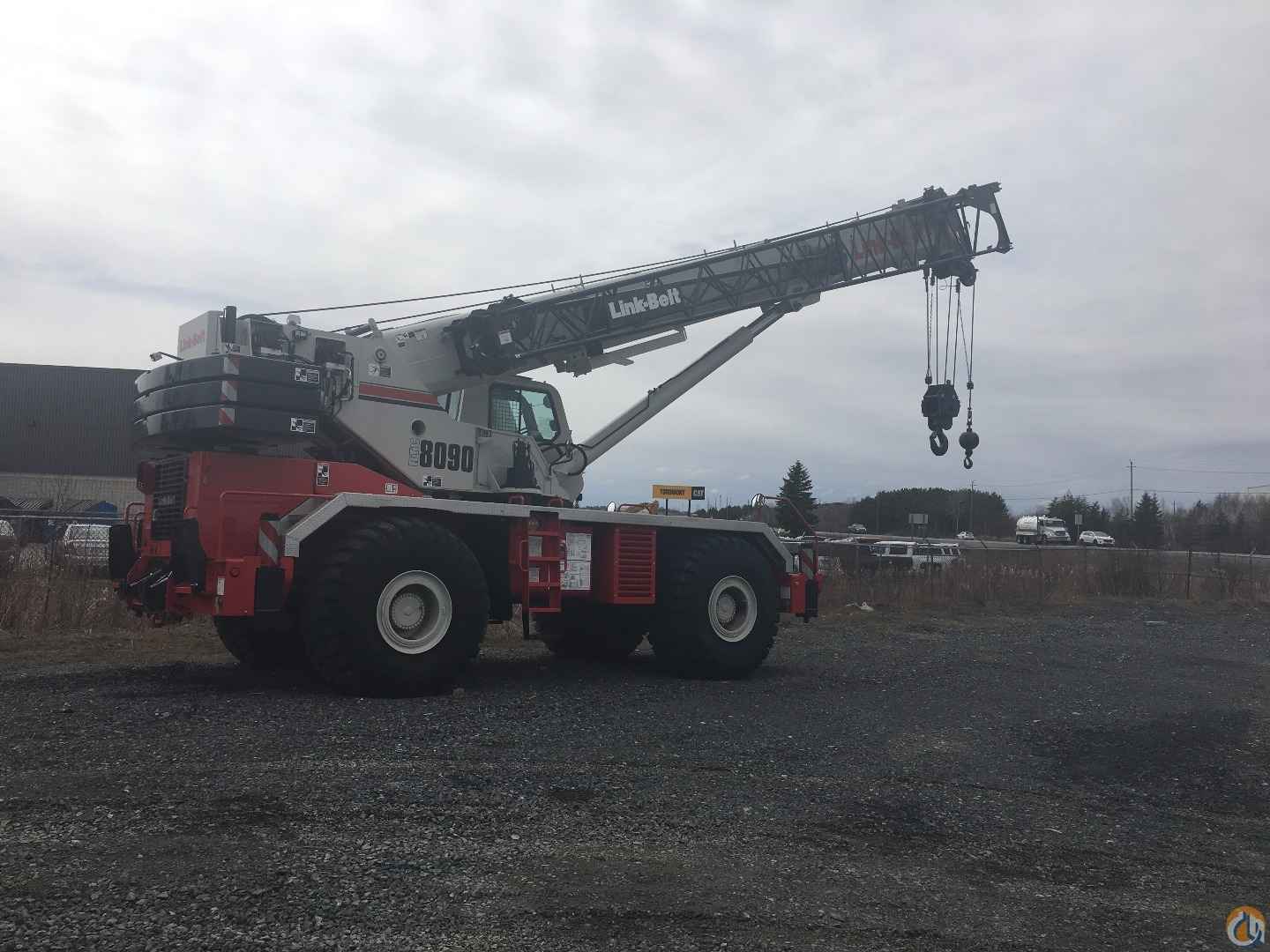

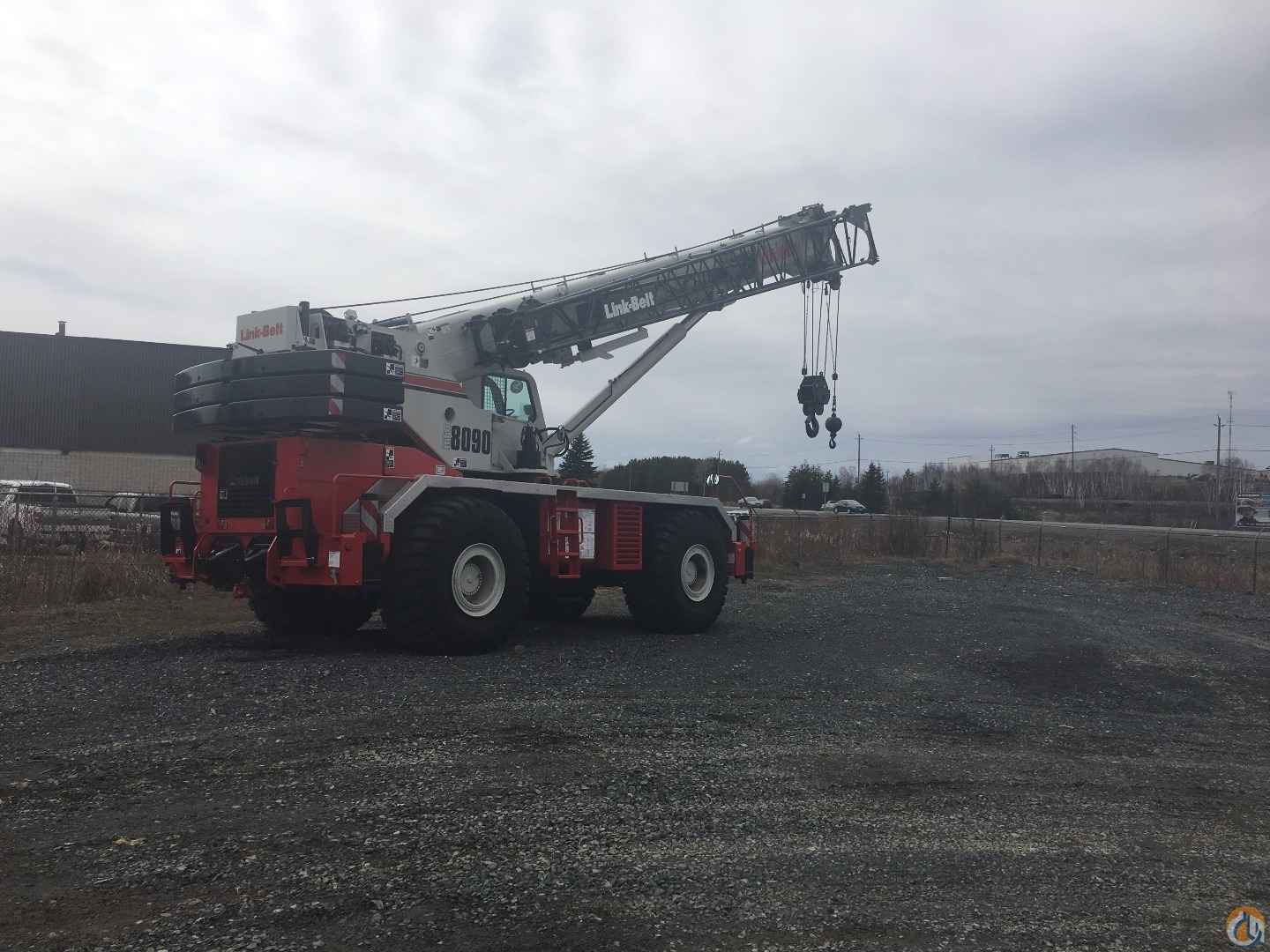

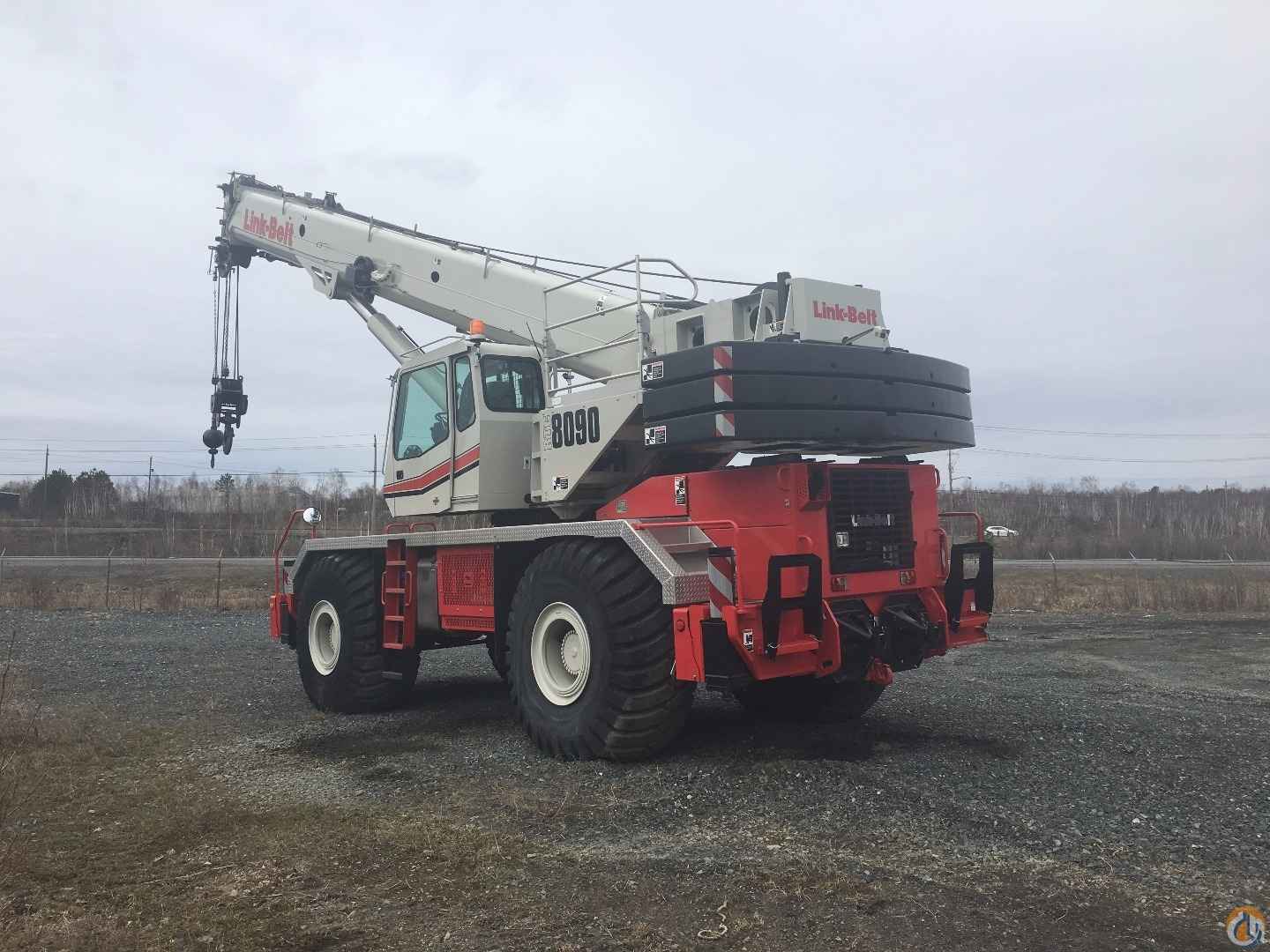

2016 Link-Belt RTC-8090 II
Nominal Capacity @ Radius 90USt @ 8' (80mt @ 2.44m)
Standard Boom 38'-140' (11.6-42.7m)
Telescope System Pin & Latching
Attachment - Option 1 35'-58' (10.7-17.7m) Bi-Fold
Attachment - Option 2 (1) or (2) 16' (4.9m) Lattice Extensions
Max. Tip Height 238' 2" (72.6m)
Max. Line Pull 16,880 lbs. (75.10kN)
Max. Speed (ft per minute) 460 fpm (140.2m/min)
Full power latching style boom with market leading capacity for its class

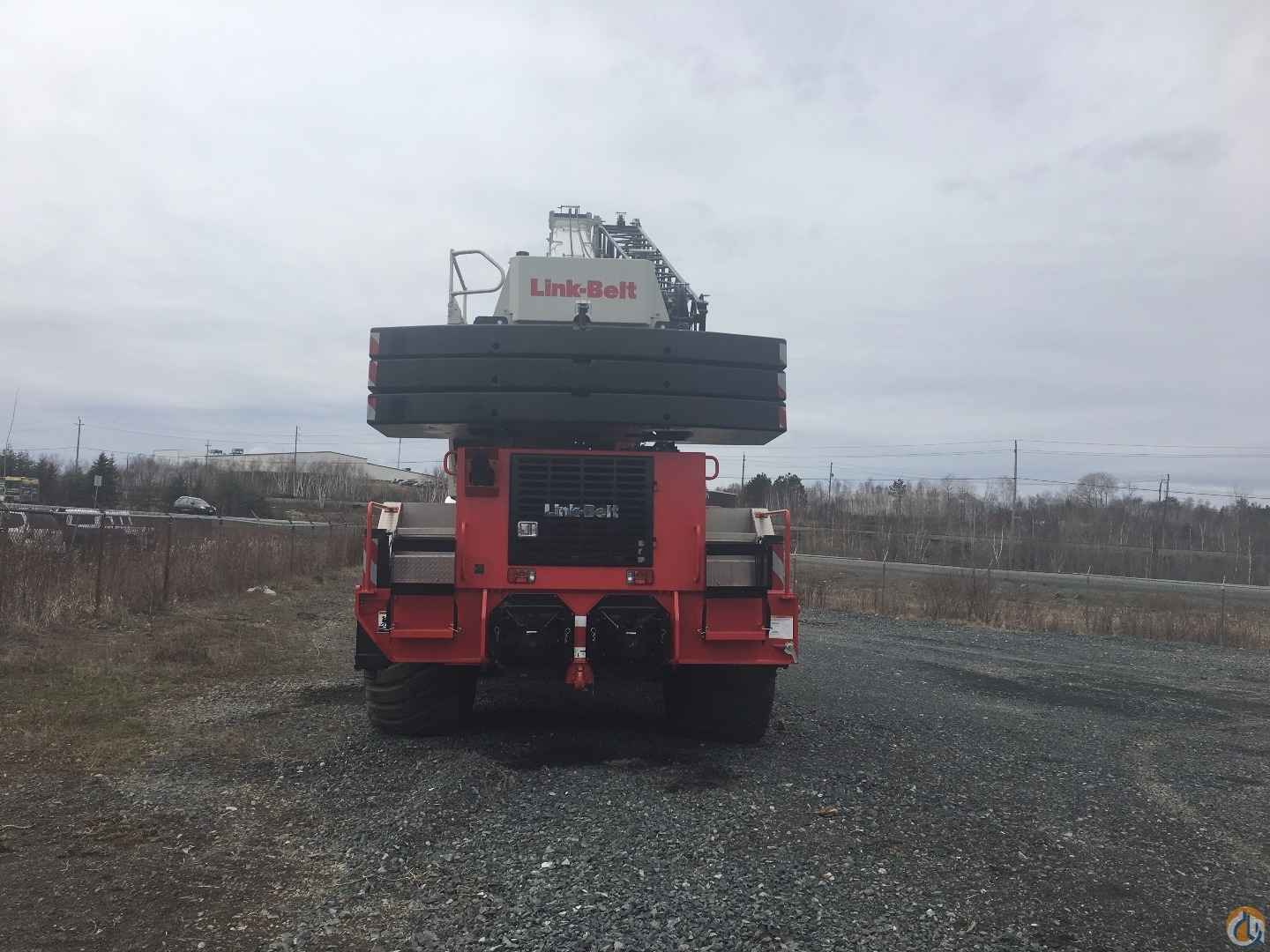

Counterweight consists of one or an option for three 9,600 lbs (4 354.5 kg) counterweights for multiple transport and lift scenarios
Boom wear pads have Teflon pucks that lubricate the boom sections (no grease)
Four fly options feature four offset positions of 2°, 15°, 30°, and 45°
Next generation operator's cab with improved visibility and ergonomics
Integral air conditioning - optional
4-Link suspension on the rear axle with an optional Hydro-Gas Ride™ system
4-mode steering controlled from the steering wheel
Full-length flat deck with integrated steps and handholds
Large swing out engine hood doors for ease of service
Access ladders and folding guardrails
