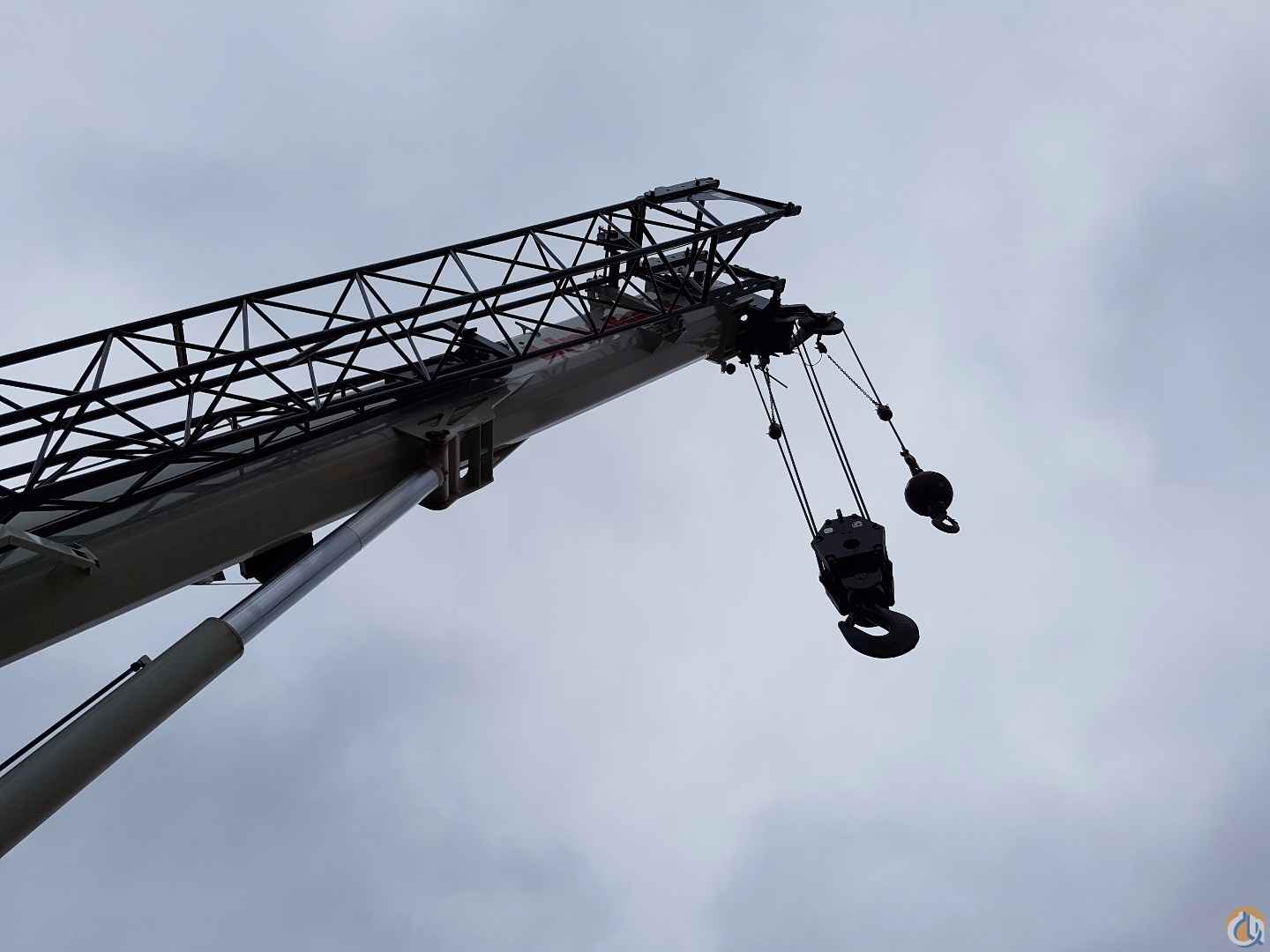

Standard Boom 38'-140' (11.6-42.7m)

Telescope System Pin & Latching

Attachment - Option 1 35'-58' (10.7-17.7m) Bi-Fold

Attachment - Option 2 (1) or (2) 16' (4.9m) Lattice Extensions

Max. Tip Height 238' 2" (72.6m)

Max. Line Pull 16,880 lbs. (75.10kN)

Max. Speed (ft per minute) 460 fpm (140.2m/min)

Full power latching style boom with market leading capacity for its class

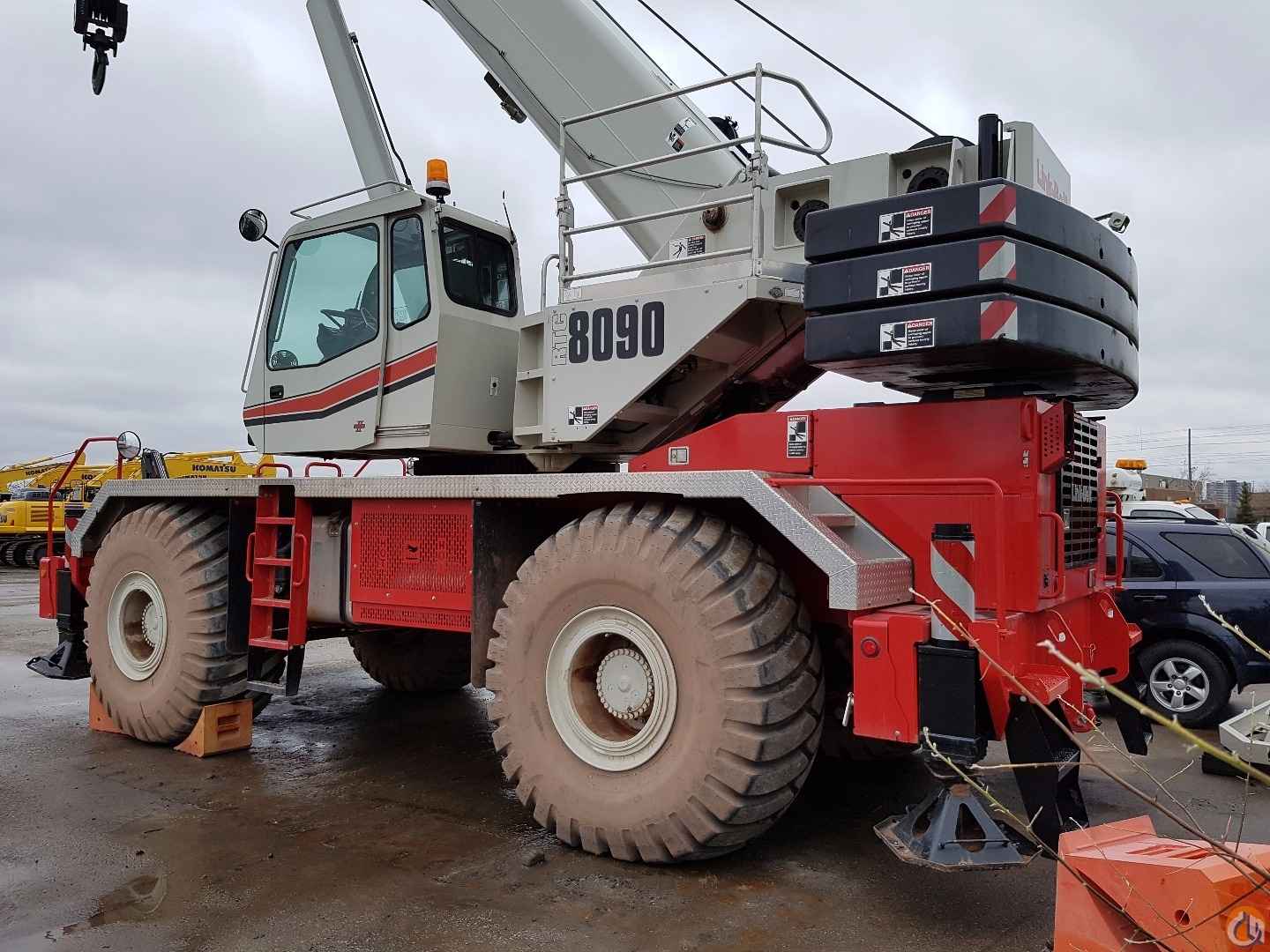

Counterweight consists of one or an option for three 9,600 lbs (4 354.5 kg) counterweights for multiple transport and lift scenarios

Boom wear pads have Teflon pucks that lubricate the boom sections (no grease)

Four fly options feature four offset positions of 2°, 15°, 30°, and 45°

Next generation operator's cab with improved visibility and ergonomics

Integral air conditioning - optional

4-Link suspension on the rear axle with an optional Hydro-Gas Ride™ system

4-mode steering controlled from the steering wheel

Full-length flat deck with integrated steps and handholds

Large swing out engine hood doors for ease of service

Access ladders and folding guardrails
