2008 Link-Belt RTC-8090 Series II Rough Terrain Crane
CranesList
Jeffery Lomas: 562-743-2338
Last Updated: 11 Oct 2022
Jeffery Lomas: 562-743-2338
Last Updated: 11 Oct 2022
Price: $199,900
Location: Oregon, United States
Year: 2008
Capacity: 90.00
Boom/Jib: 140

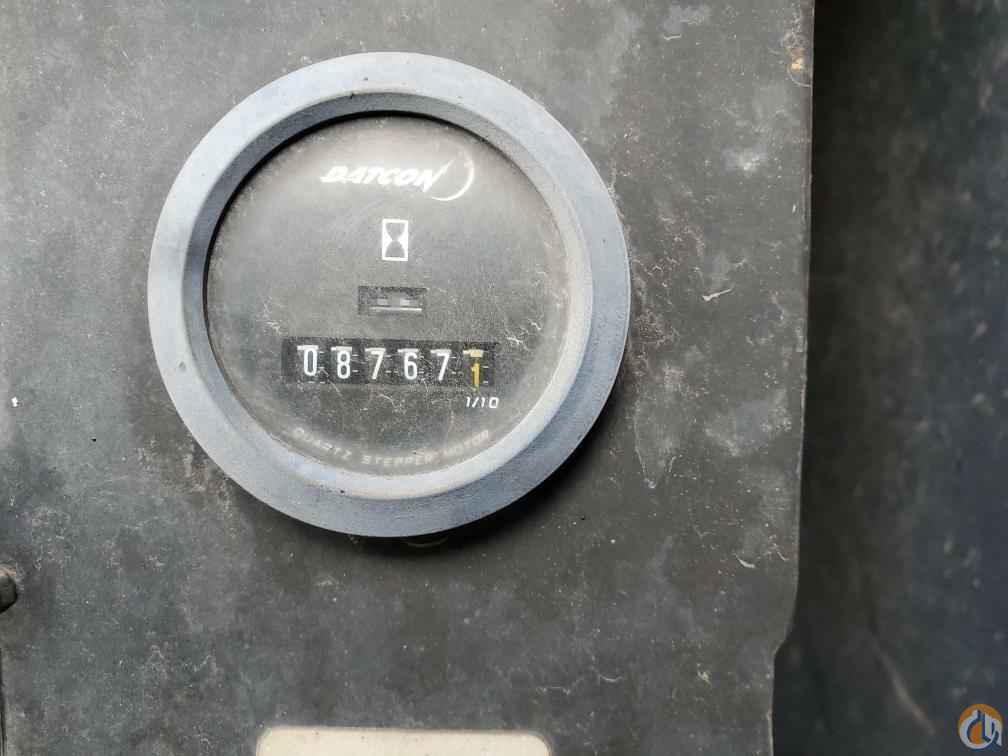

Hours: 8,767 as of 11.2021
Condition: Good
Unit #: 650
Capacity: 90.00
Boom/Jib: 140
Hours: 8,767 as of 11.2021
Condition: Good
Unit #: 650

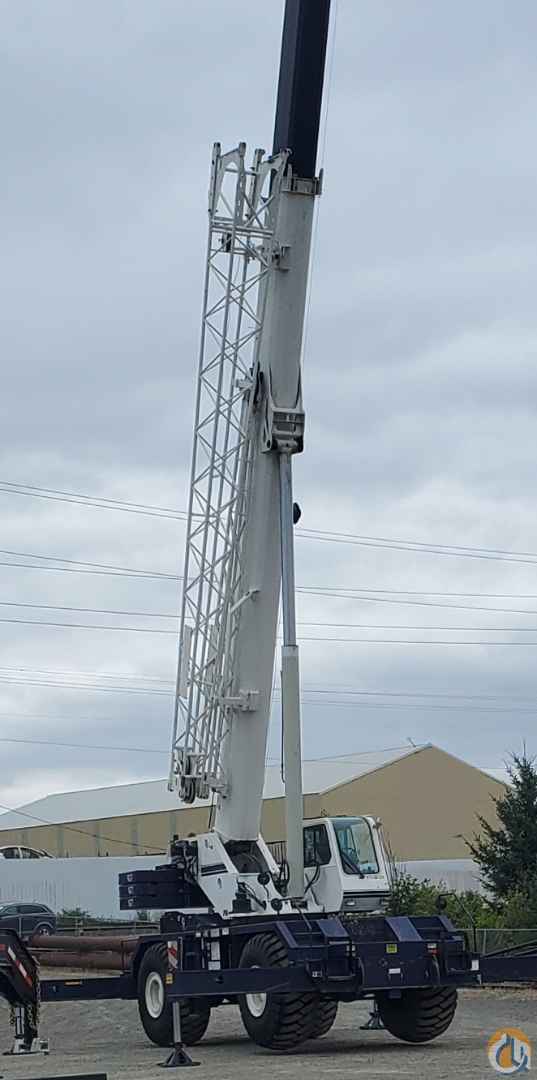

2008 Link-Belt RTC8090SII, 90 Ton, Rough Terrain Crane; CranesList ID: 650,
- 38'-140' Five section Full Power Latching Boom with Quick Reeve Boom Head and Auxiliary Lifting Sheave
- 35'-58' Bi-Fold two piece lattice Fly (Jib), stowable, off-settable to 2 ̊, 15 ̊, 30 ̊ and 45 ̊,
- Main and Auxiliary Winches with 3/4" Rotation Resistant Wire Rope,
- Drum Rotation Indicator, Two Speed, Load Moment Indicator with Anti-Two Block,
- Hook Ball,
- 50 Ton, 5 sheave hook block that weighs approximately 1,200#,
- 28,800# Counterweight consisting of three 9,600# counterweights pinned to the upper,
- 360 Degree Rotation,
- 10' 9" Wide Link-Belt 4 x 2 and 4 x 4 for off highway travel carrier,
- CAT C6.6 Six Cylinder 225 H.P. Diesel Engine,
- Powershift Transmission - Three speed with high/low range for 6 forward and 6 reverse gears. Front axle disconnect for two or four wheel drive. Front axle disconnects in high range,
- Front and Rear Tires: 29.5 x 25 - 28 Ply Rating earthmover type tires on steel disc wheels,
- Outriggers Boxes - Two double box, front and rear welded to carrier frame,
- Beams and Jacks - Four single stage beams with Confined Area Lifting Capacities (CALC) provide selectable outrigger extensions of full, intermediate, and retracted. Hydraulically controlled from the operator’s cab with integral check valves,
- Work Ready - all crane functions are operational,
- Crane is Certified.
http://ww.CranesList.com,
LOCATED IN OREGON!
This crane was posted by:
CranesList
www.CranesList.comContact: Jeffery Lomas
Phone: 562-743-2338
Condition
Good
0 views this week
0 people have saved
Condition
Good
2008 Link-Belt RTC8090SII, 90 Ton, Rough Terrain Crane; CranesList ID: 650,
- 38'-140' Five section Full Power Latching Boom with Quick Reeve Boom Head and Auxiliary Lifting Sheave
- 35'-58' Bi-Fold two piece lattice Fly (Jib), stowable, off-settable to 2 ̊, 15 ̊, 30 ̊ and 45 ̊,
- Main and Auxiliary Winches with 3/4" Rotation Resistant Wire Rope,
- Drum Rotation Indicator, Two Speed, Load Moment Indicator with Anti-Two Block,
- Hook Ball,
- 50 Ton, 5 sheave hook block that weighs approximately 1,200#,
- 28,800# Counterweight consisting of three 9,600# counterweights pinned to the upper,
- 360 Degree Rotation,
- 10' 9" Wide Link-Belt 4 x 2 and 4 x 4 for off highway travel carrier,
- CAT C6.6 Six Cylinder 225 H.P. Diesel Engine,
- Powershift Transmission - Three speed with high/low range for 6 forward and 6 reverse gears. Front axle disconnect for two or four wheel drive. Front axle disconnects in high range,
- Front and Rear Tires: 29.5 x 25 - 28 Ply Rating earthmover type tires on steel disc wheels,
- Outriggers Boxes - Two double box, front and rear welded to carrier frame,
- Beams and Jacks - Four single stage beams with Confined Area Lifting Capacities (CALC) provide selectable outrigger extensions of full, intermediate, and retracted. Hydraulically controlled from the operator’s cab with integral check valves,
- Work Ready - all crane functions are operational,
- Crane is Certified.
http://ww.CranesList.com,
LOCATED IN OREGON!
