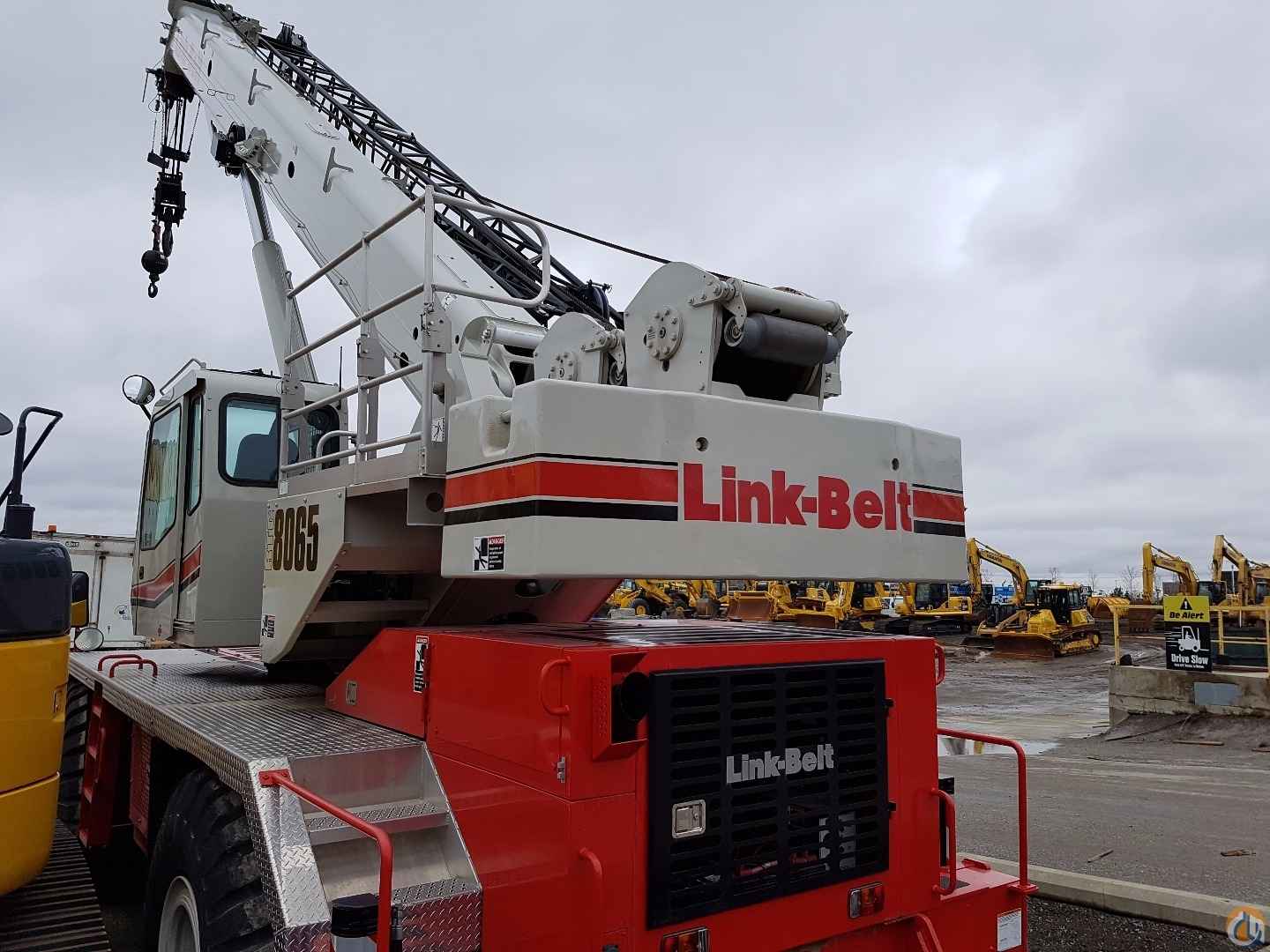

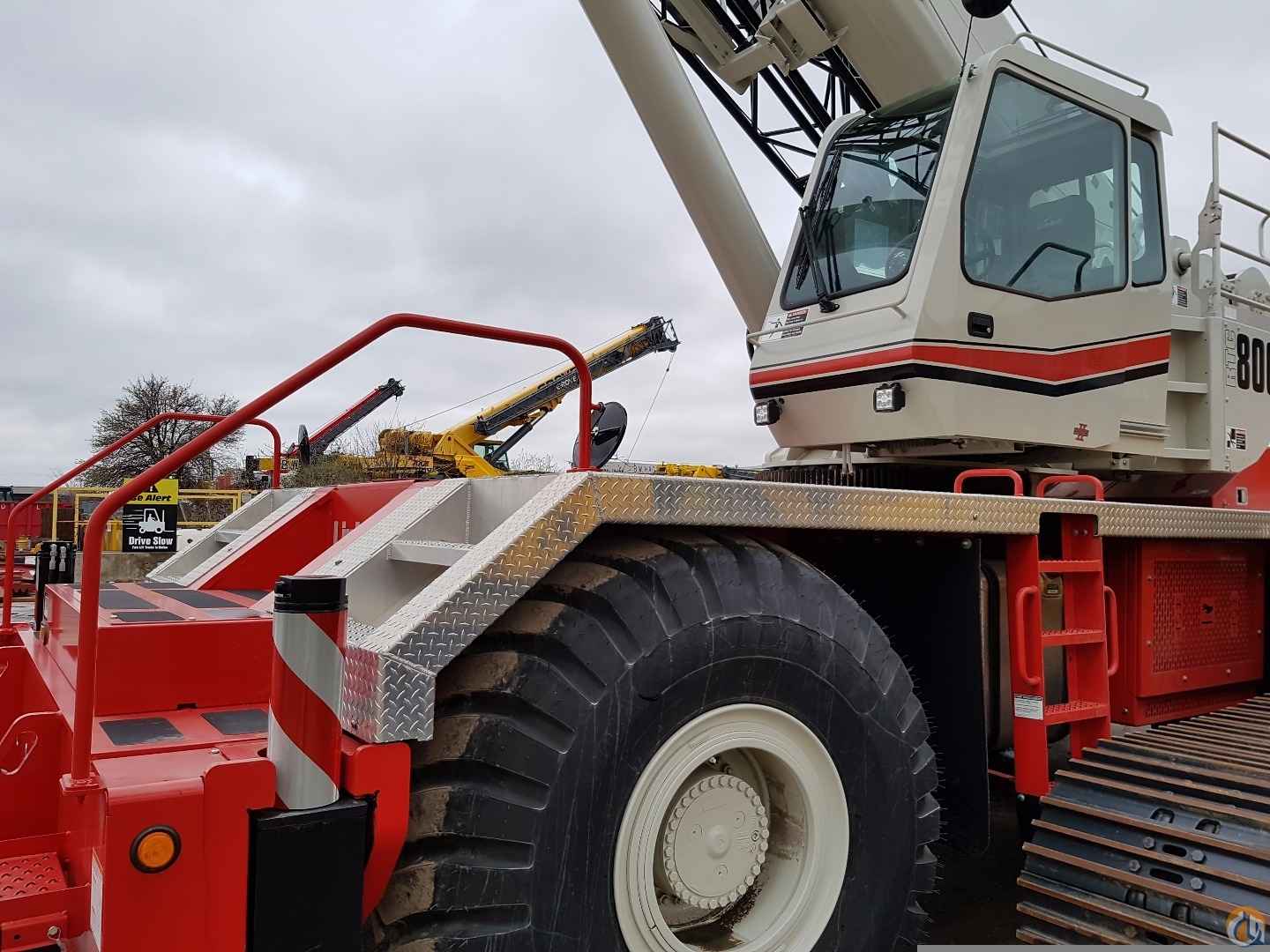

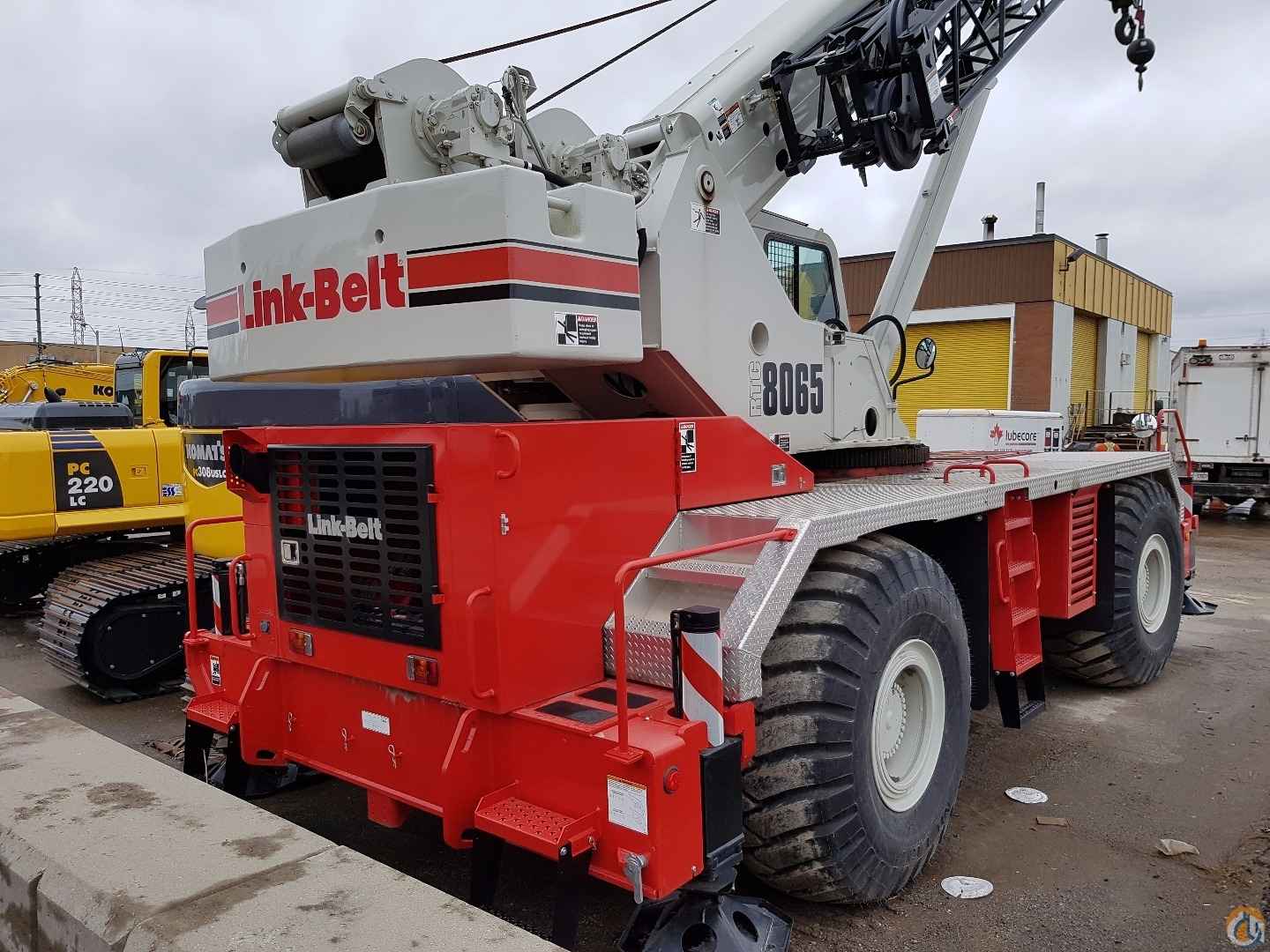

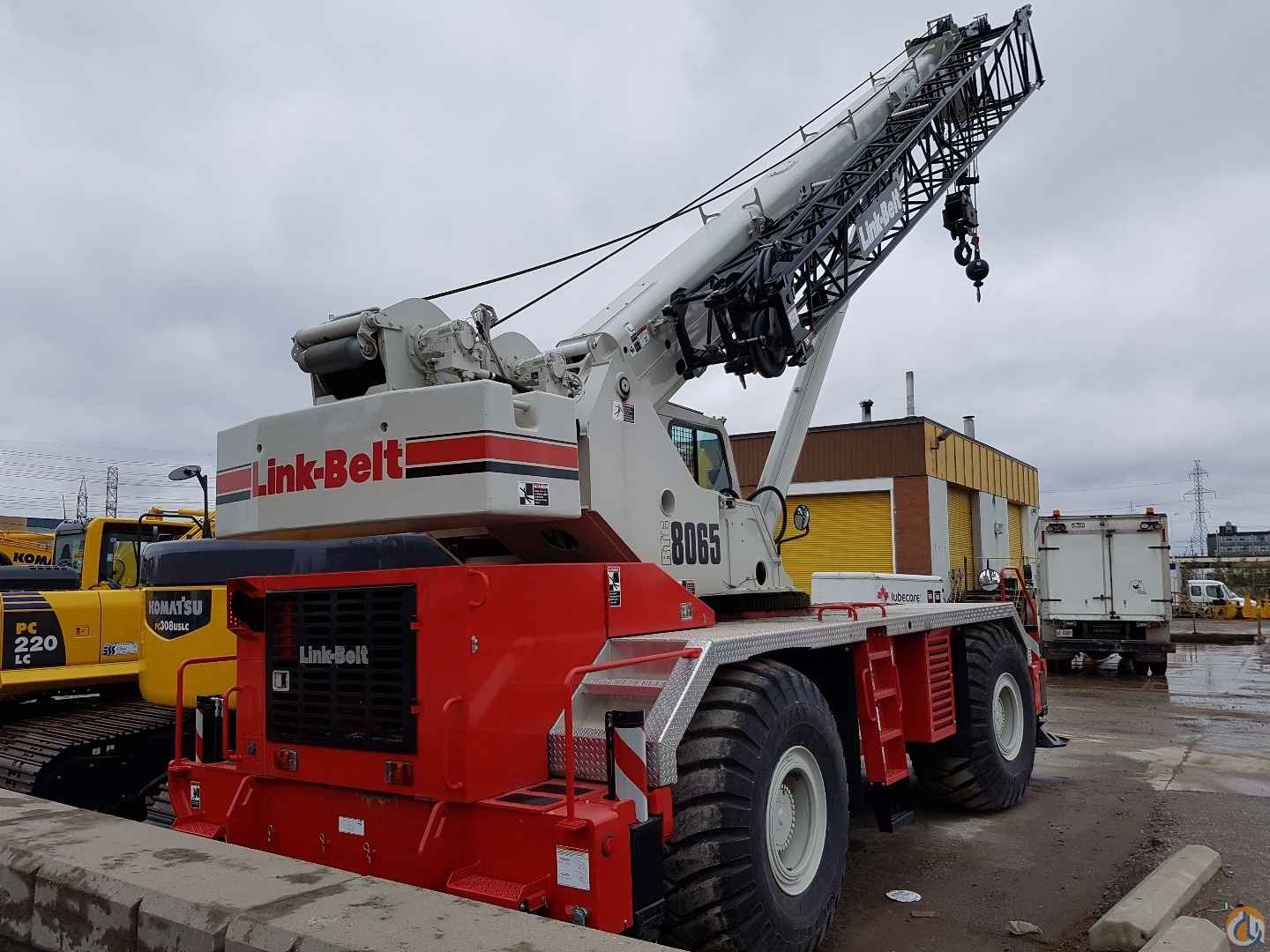

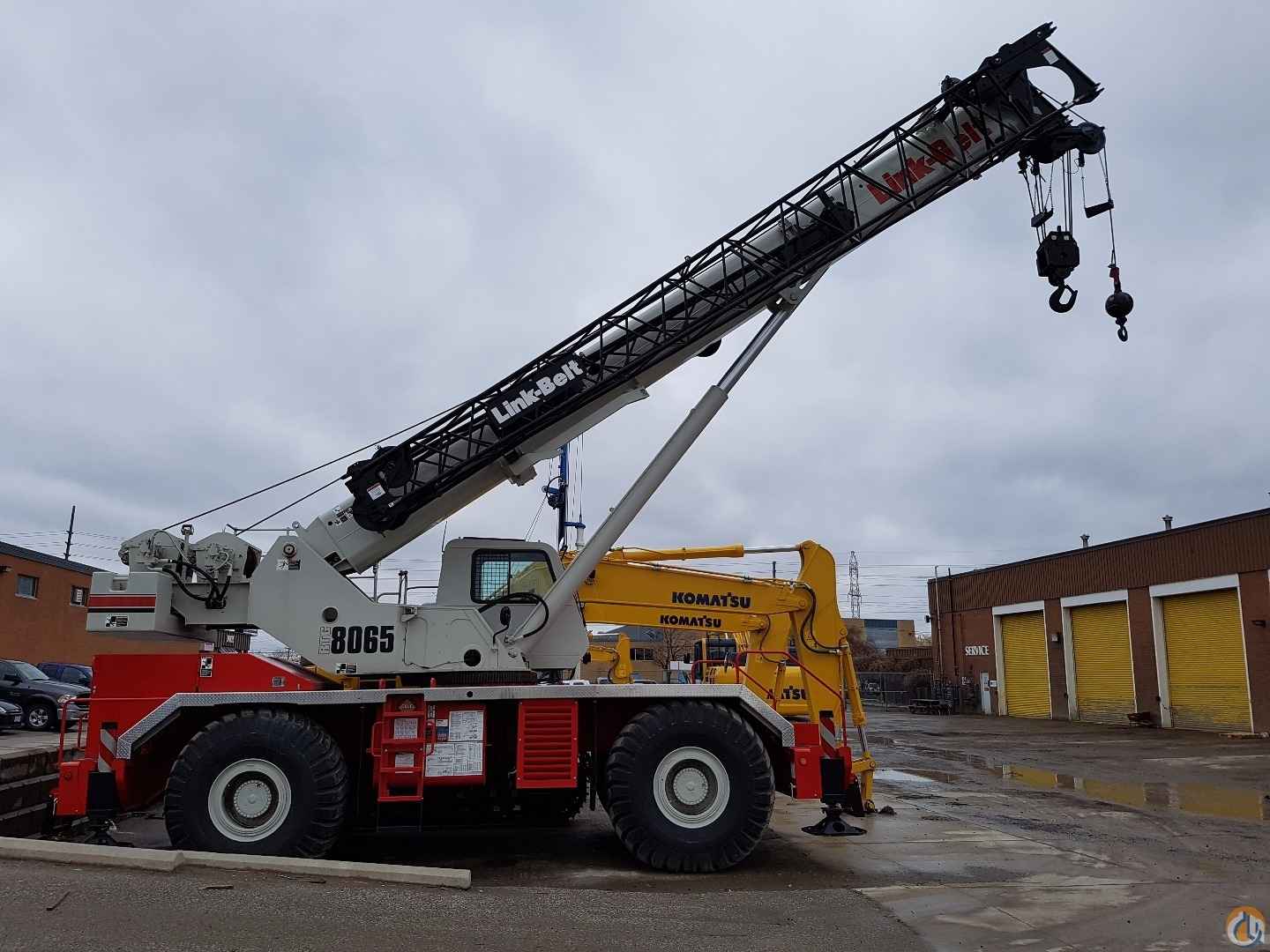

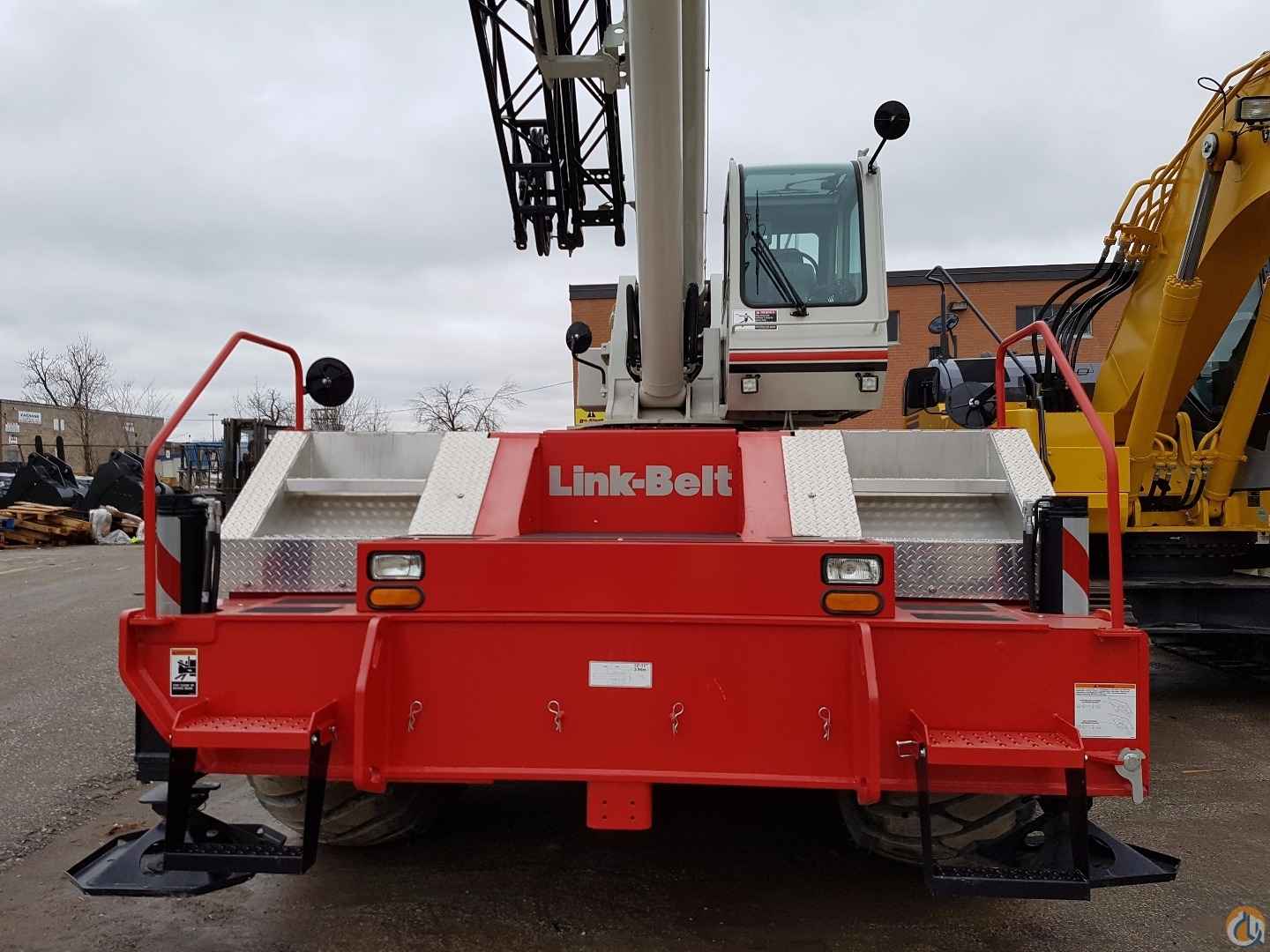

2016 Link-Belt RTC-8065

Nominal Capacity @ Radius 65USt @ 9' (60mt @ 2.5m)

Standard Boom 38'-115' (11.6-35.0m)

Telescope System Full Power

Attachment - Option 1 35-58' (10.7-17.7m) Bi-Fold

Attachment - Option 2 (1) or (2) 16' (4.9m) Lattice Extensions

Max. Tip Height 211' 7" (64.5m)

Max. Line Pull 16,883 lbs. (75.10kN)

Max. Speed (ft per minute) 459 fpm (139.9m/min)

Fully rigged transport weight of less than 90,000 lbs (40 832.3 kg)

Boom wear pads have Teflon pucks that lubricate the boom sections (no grease)

Four fly options feature four offset positions of 2°, 15°, 30°, and 45°

Next generation operator's cab with improved visibility and ergonomics

Integral air conditioning - optional

4-Link suspension on the rear axle with an optional Hydro-Gas Ride™ system

4-mode steering controlled from the steering wheel

Full-length flat deck with integrated steps and handholds

Large swing out engine hood doors for ease of service

Access ladders and folding guardrails
