2020 LIEBHERR LRT 1090-2.1
MAIN BOOM: 47M (154 FT)
SWING-AWAY JIB: 10.5 M - 19.0 M (34.5' - 62.3 ')
HOOK-BLOCKS: 64.6t 5 SHEAVE DOUBLE HOOK, 42.3t 3 SHEAVE SINGLE HOOK
BALL: 6.3t
COLD WEATHER PACKAGE
DRIVE: 4X4

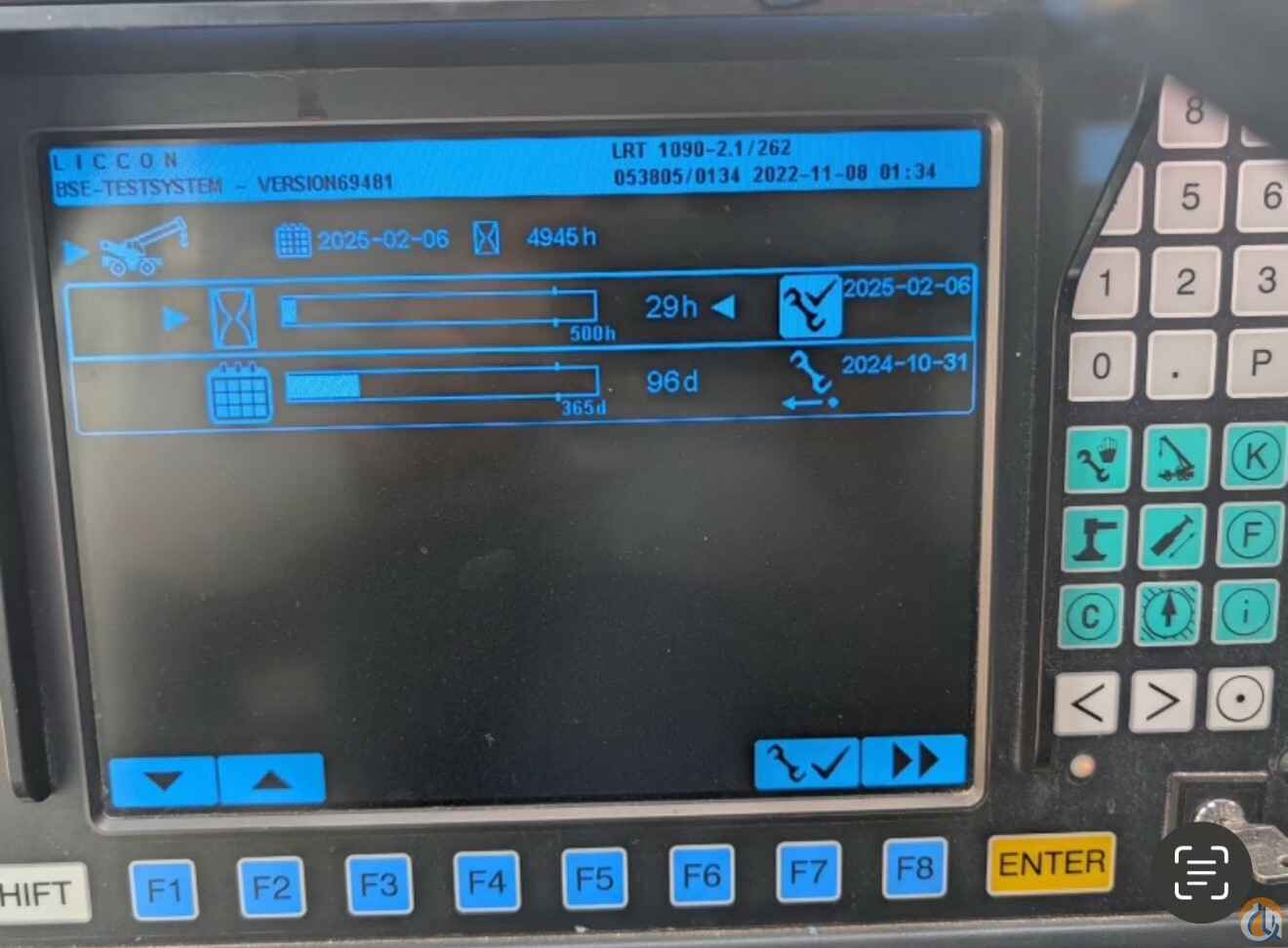

HOURS: 4,945 AS OF 2025-02-06
PLEASE CALL OR EMAIL FOR MORE INFORMATION

CRANE CARRIER
LRT 1090-2.1

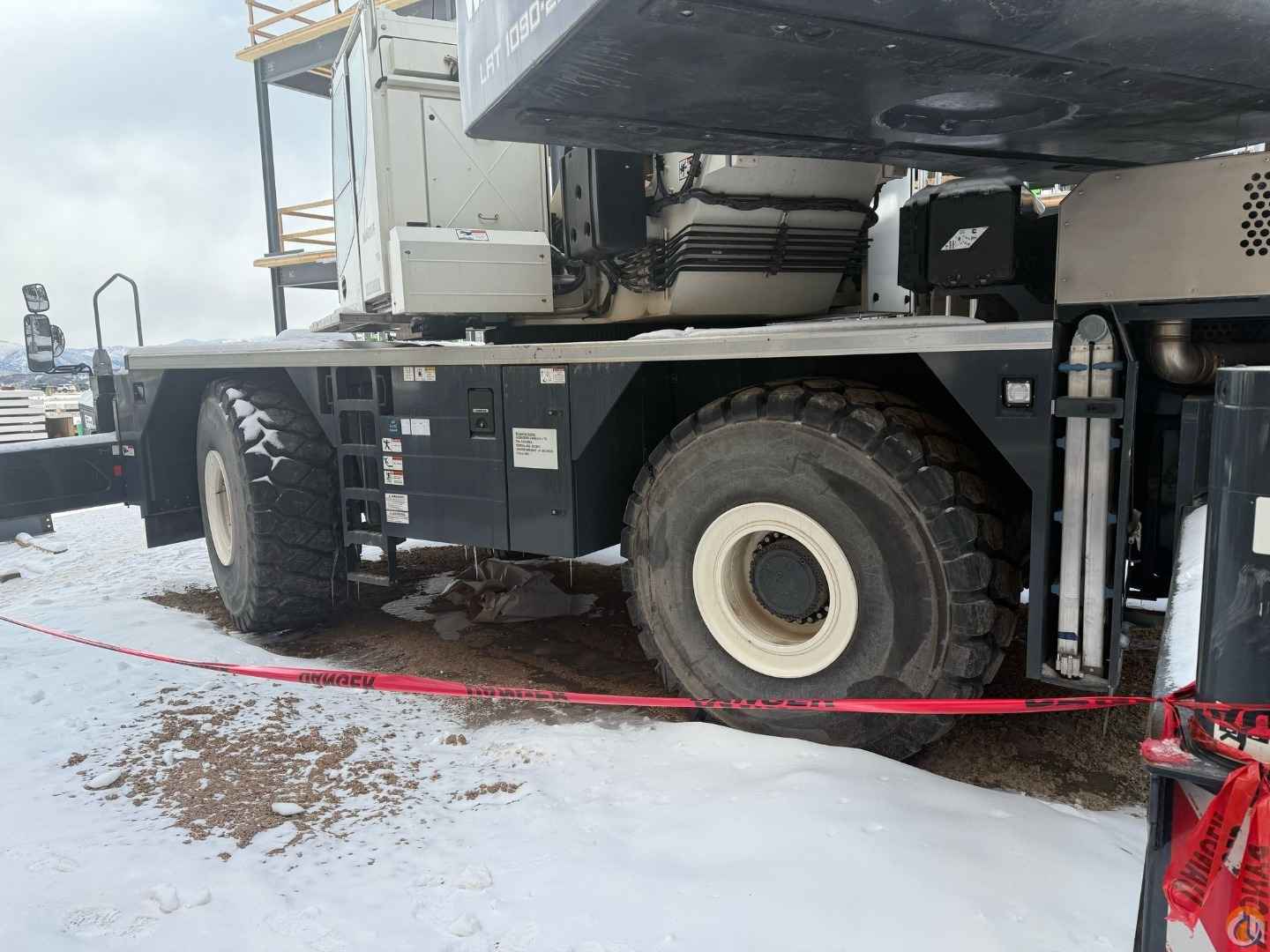

Liebherr 2-axle carrier with non-suspended axles, rear axle in oscillating execution. Cummins
diesel engine with 194 kW (264 HP), exhaust emission acc. to 97/68/EC and EPA/GARB.

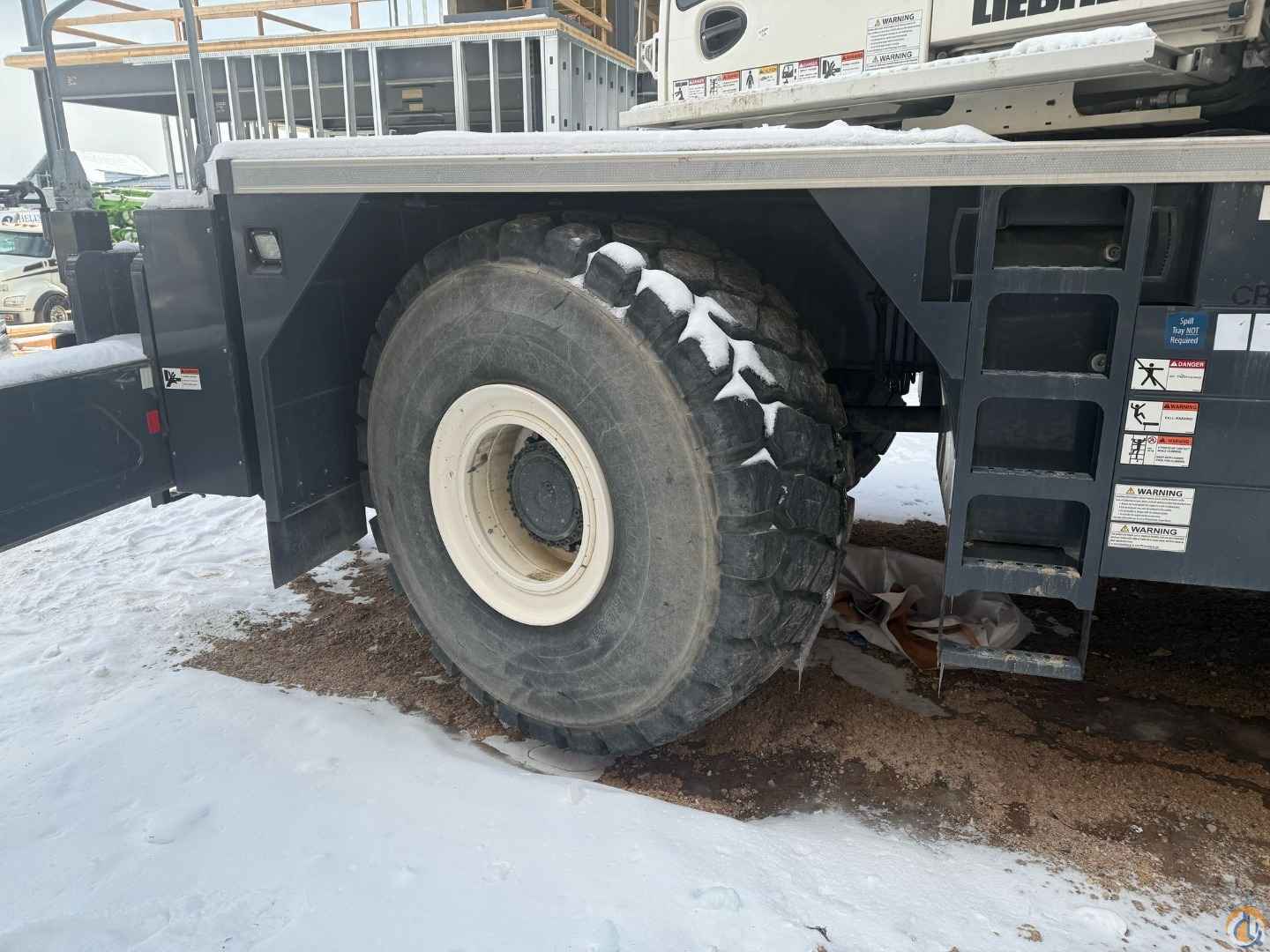

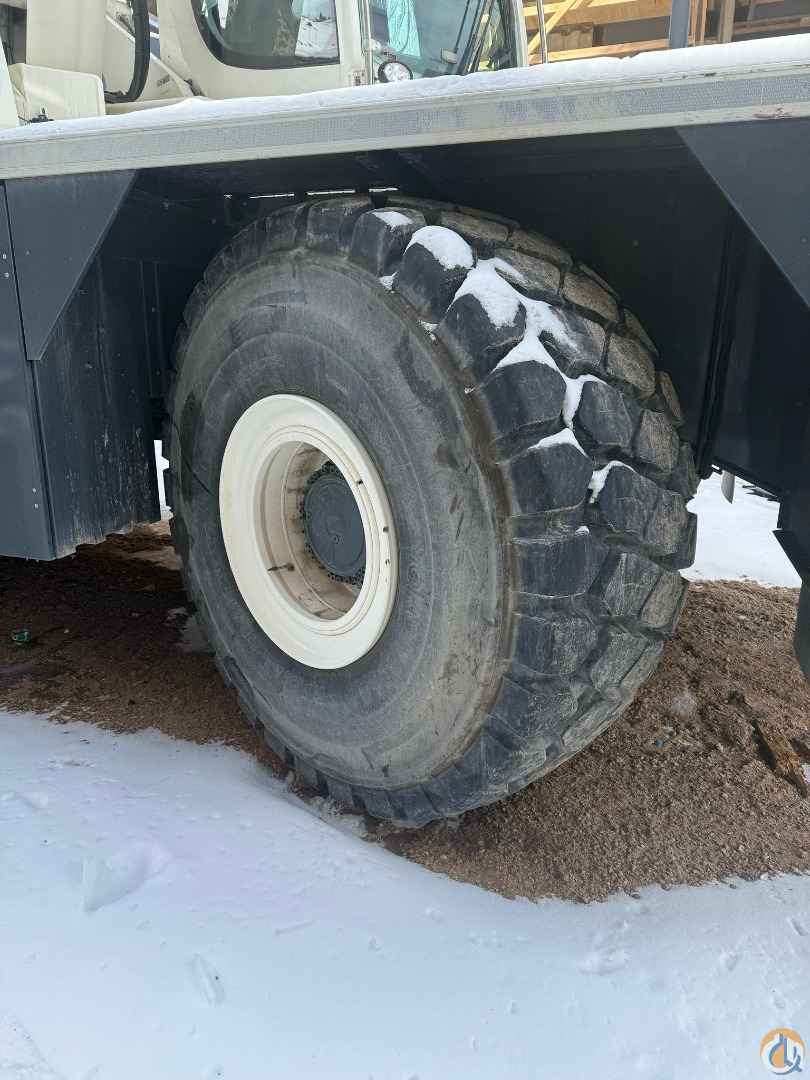

Powershift reversing gear with torque converter and integrated transfer gearbox. Drive 4 x 4. Tyres
29.5 R 25. Hydraulic steering system with steering unit, all-wheel steering, crab walk, independent
rear axle steering. Hydraulic brake system -2 circuits with disc brakes. Axles demanding low

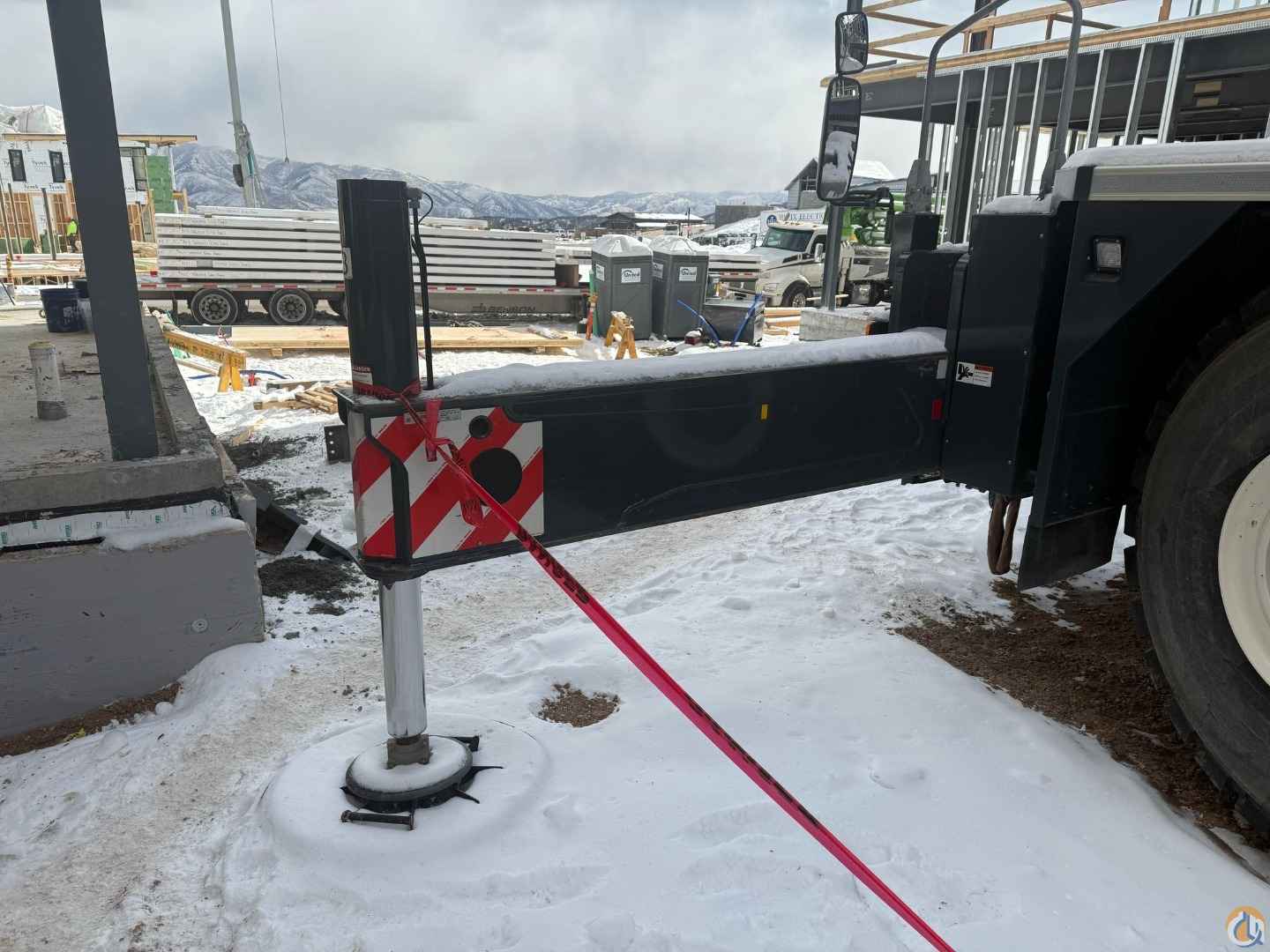

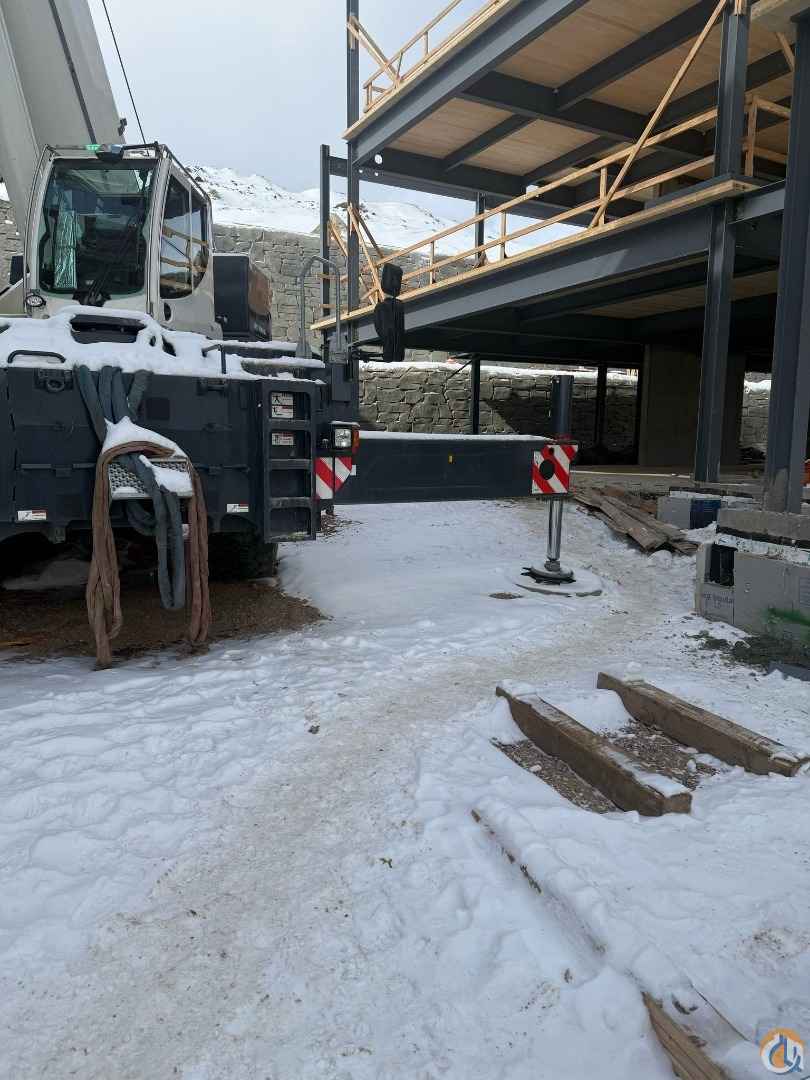

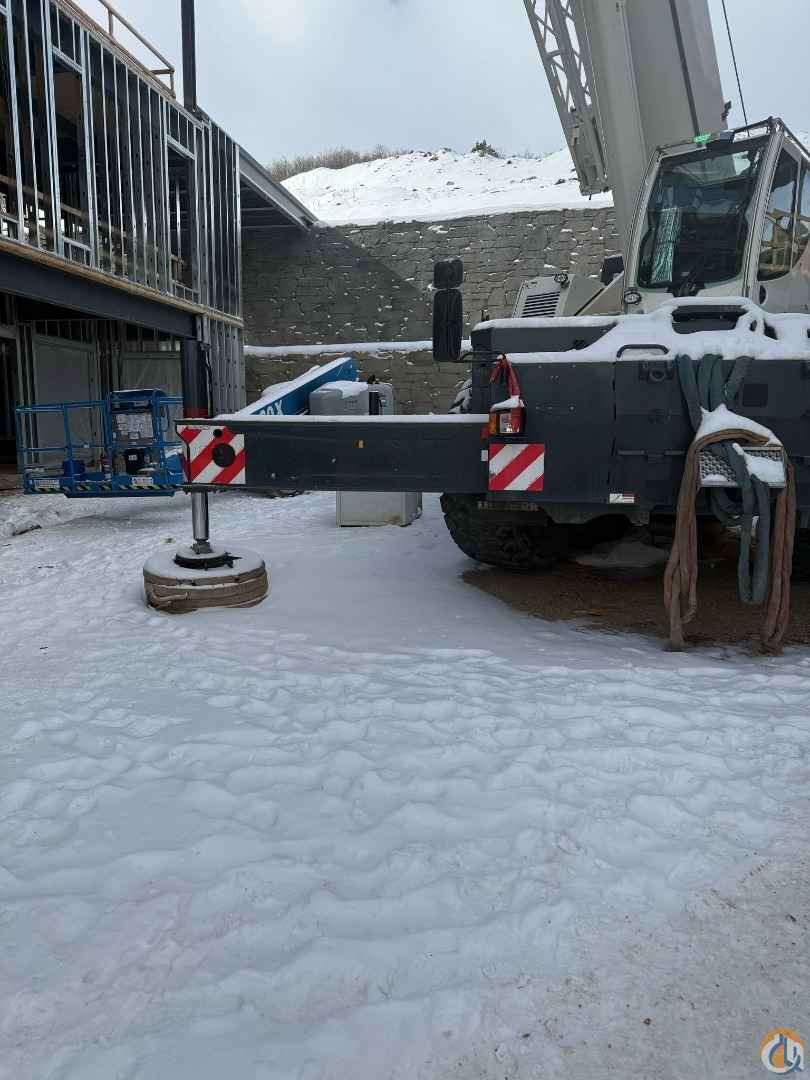

maintenance, drive shafts maintenance free. Hydraulic outriggers with rigidly mounted outrigger
pads. Comfortable support incl. Vario Base with inclinometer and automatic levelling by 2 operating
units. Illumination of supporting area. Acoustic reverse drive alarm. Maneuvering coupling at rear.
Acceptance tests of carrier.
SUPERSTRUCTURE
Liebherr ball bearing slewing ring connecting carrier and superstructure. Central greasing. ECO
mode. Hydraulic system with axial-piston swivel pumps in carrier. Main hoisting gear, auxiliary
hoisting gear, slewing gear, luffing and telescoping gear with open oil circuits, Load Sensing,

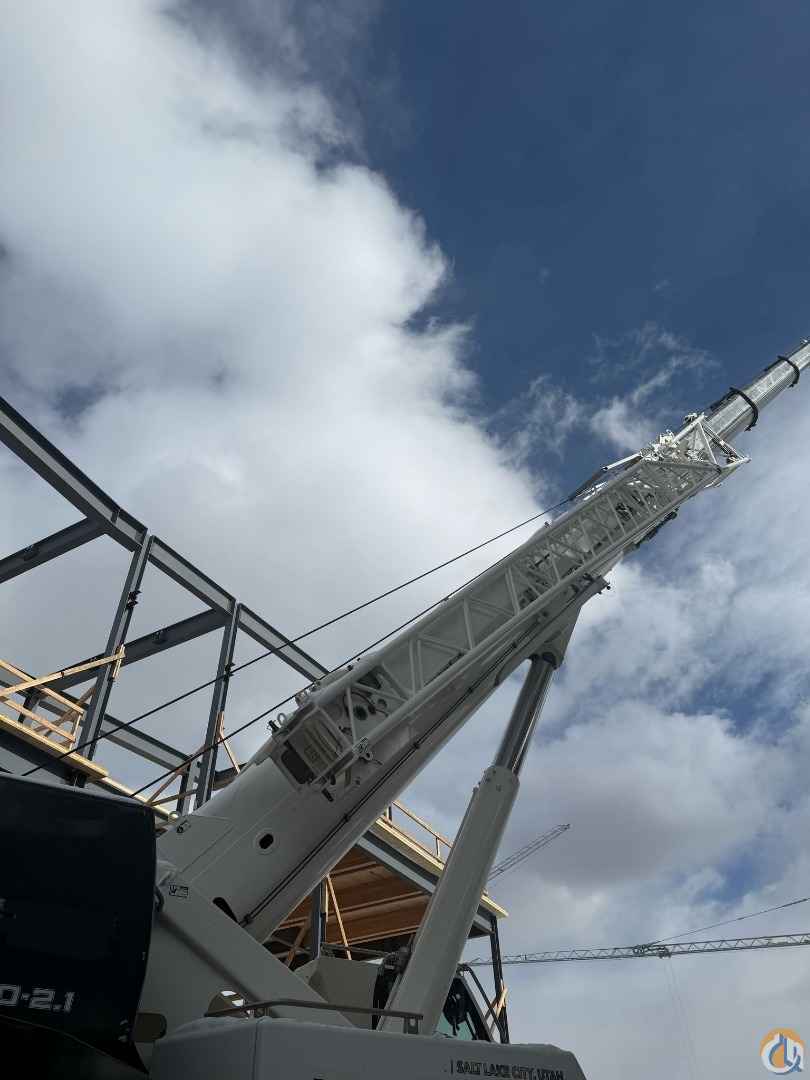

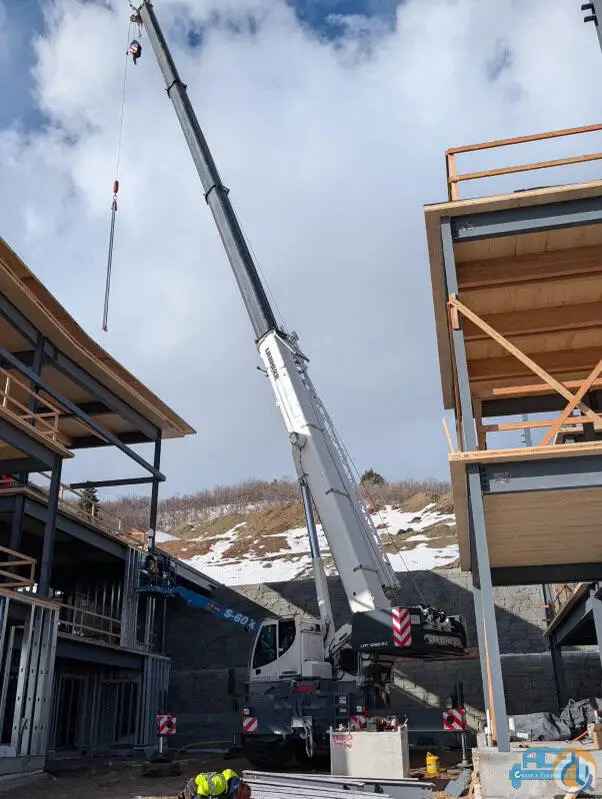

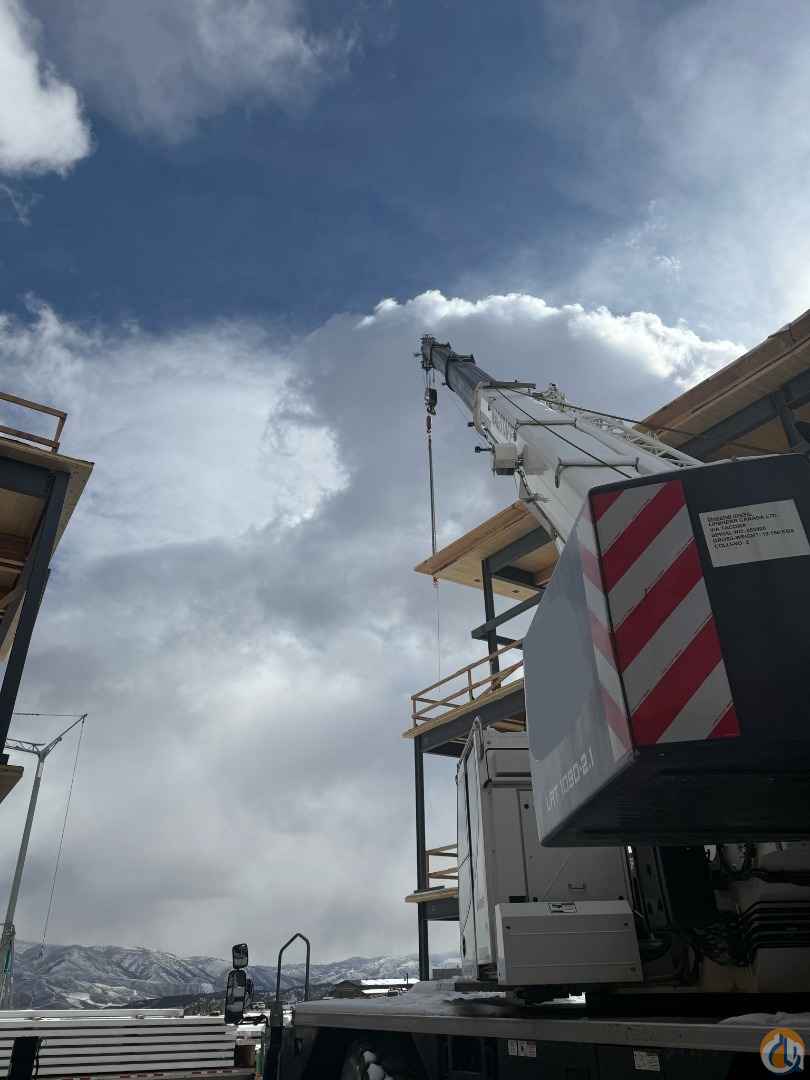

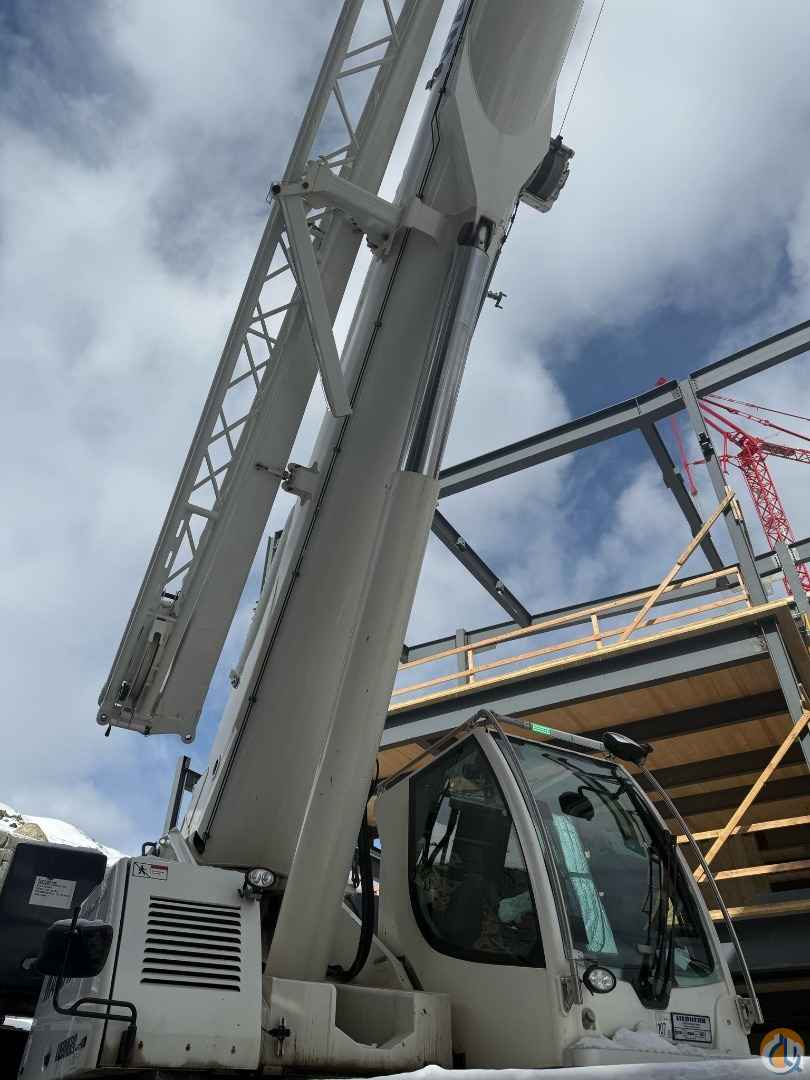

electro-hydraulic control of crane. Oil cooler. Telescopic boom consisting of the pivot section and
four telescope sections, boom length 47 m, hydromechanical telescoping system with stage

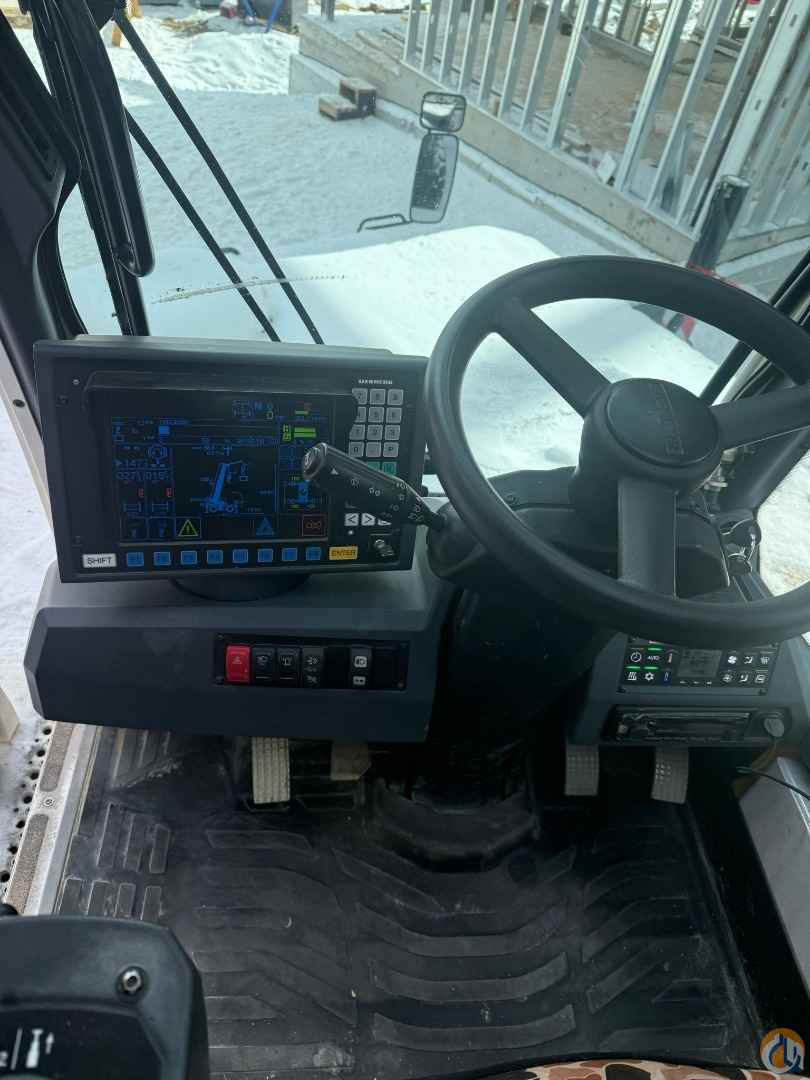

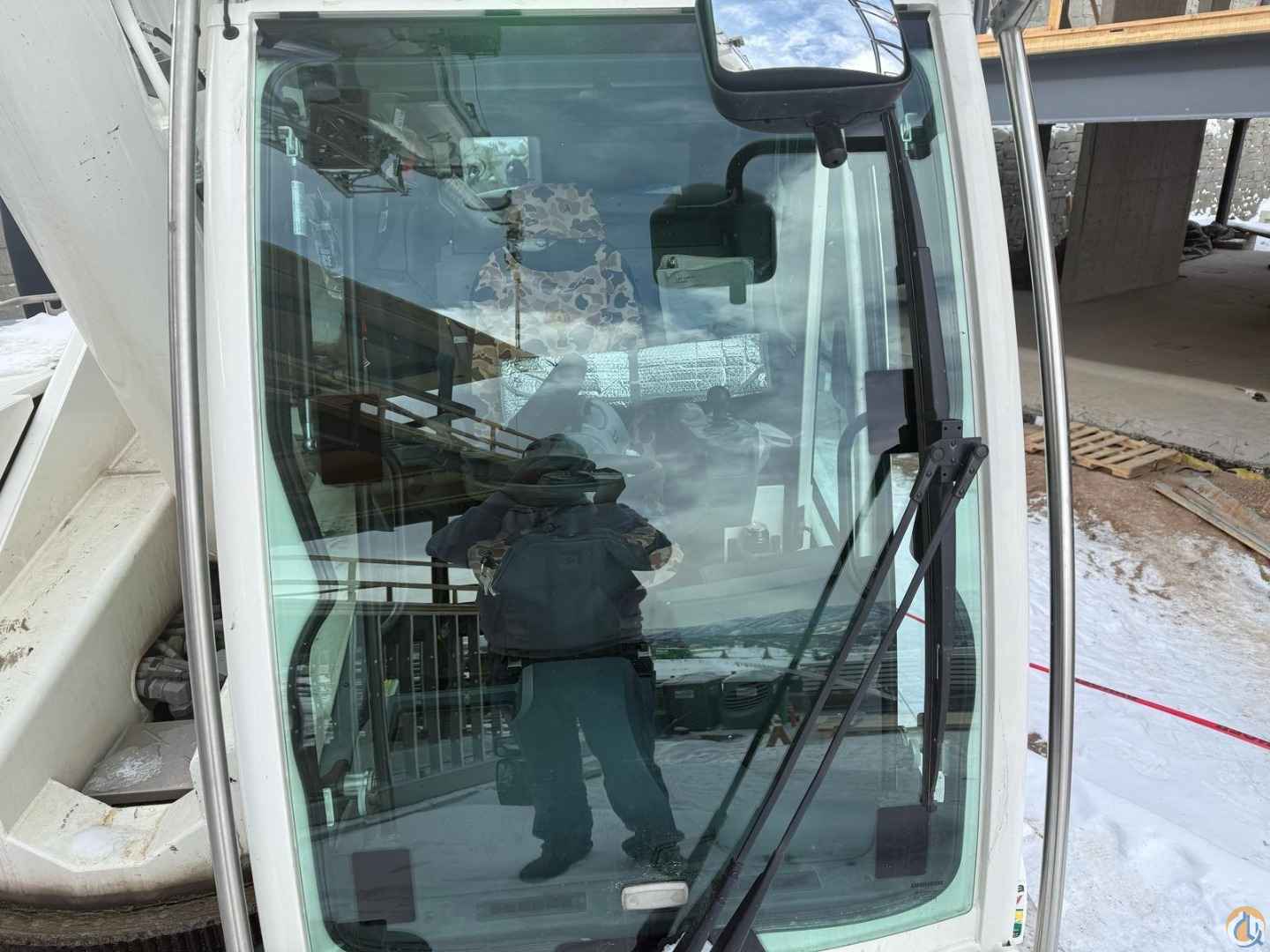

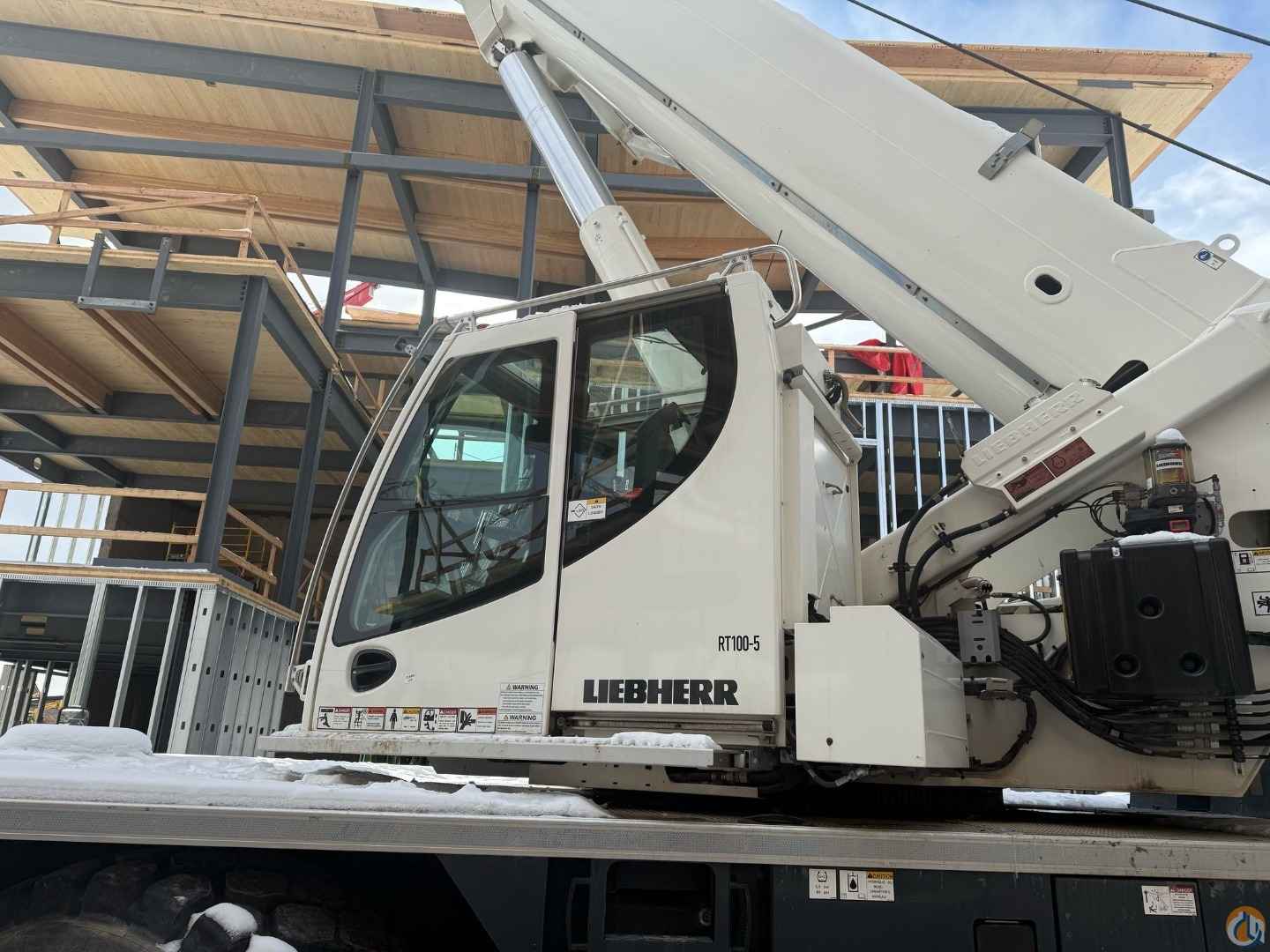

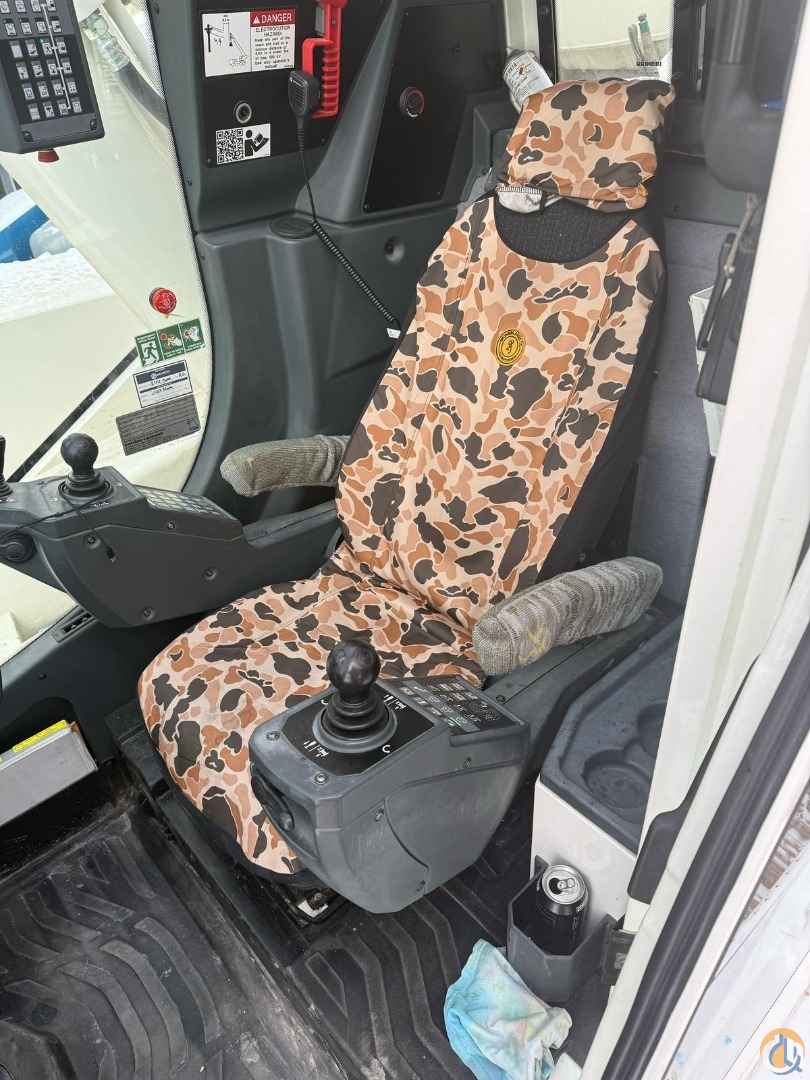

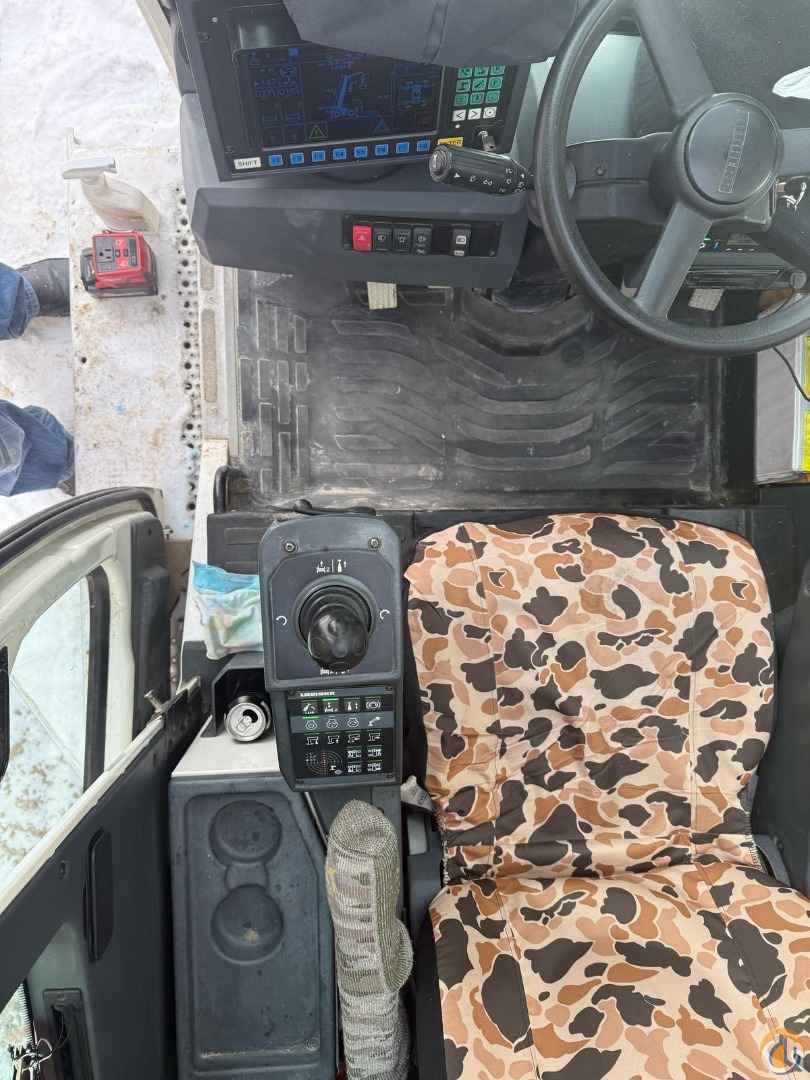

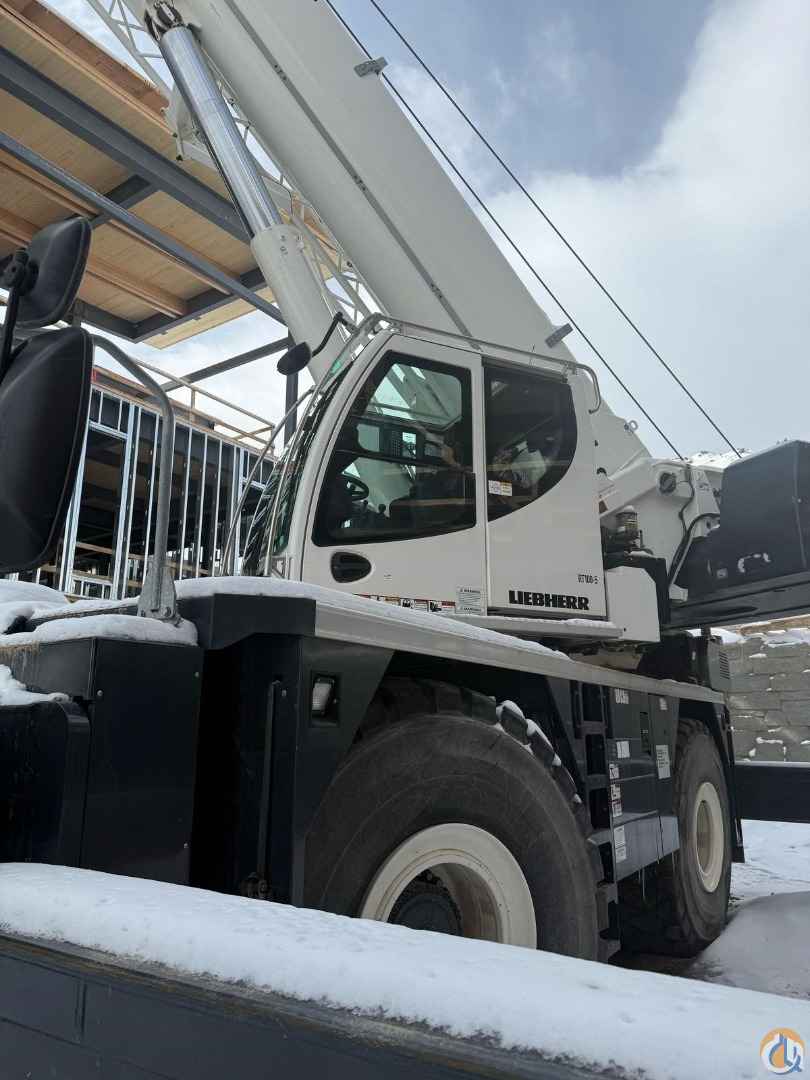

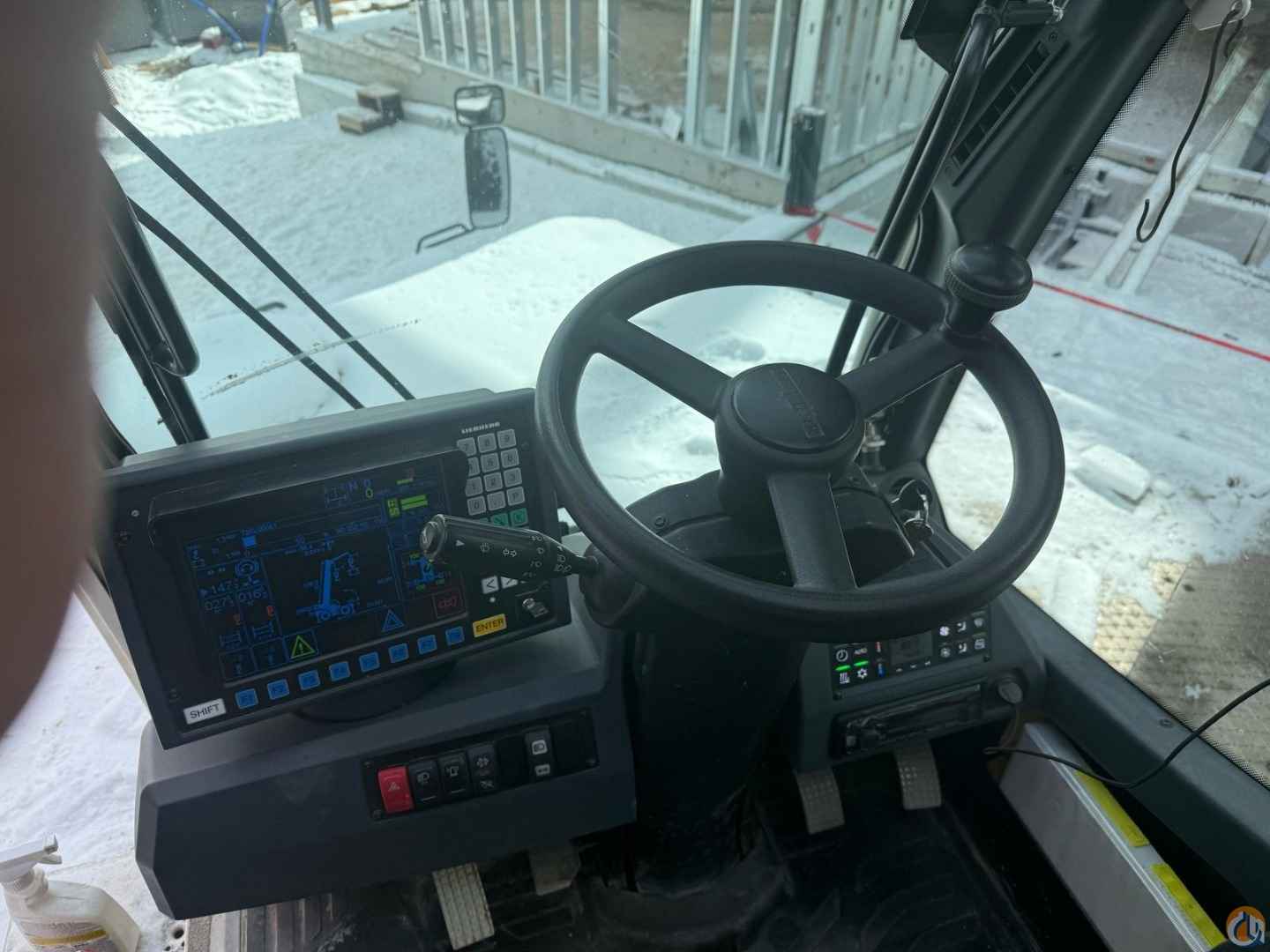

cylinder and two-way pulley tackle. Rooster sheave. Corrosion-resistant crane cabin, tiltable
hydraulically backwards 20°, control units for crane drive and crane operation, with engine

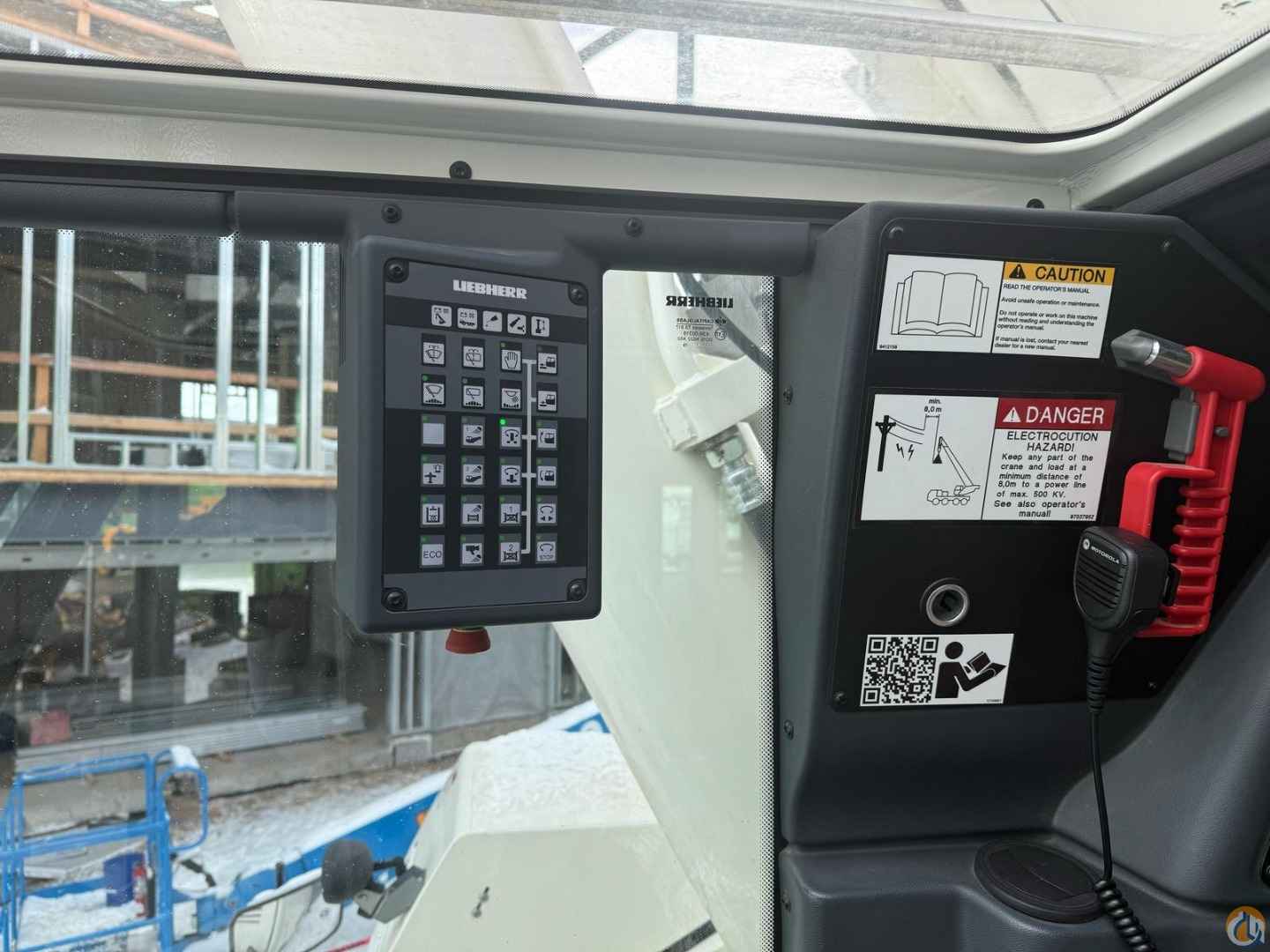

independent heating incl. timer, air condition and radio. Control of the outriggers from crane cabin.

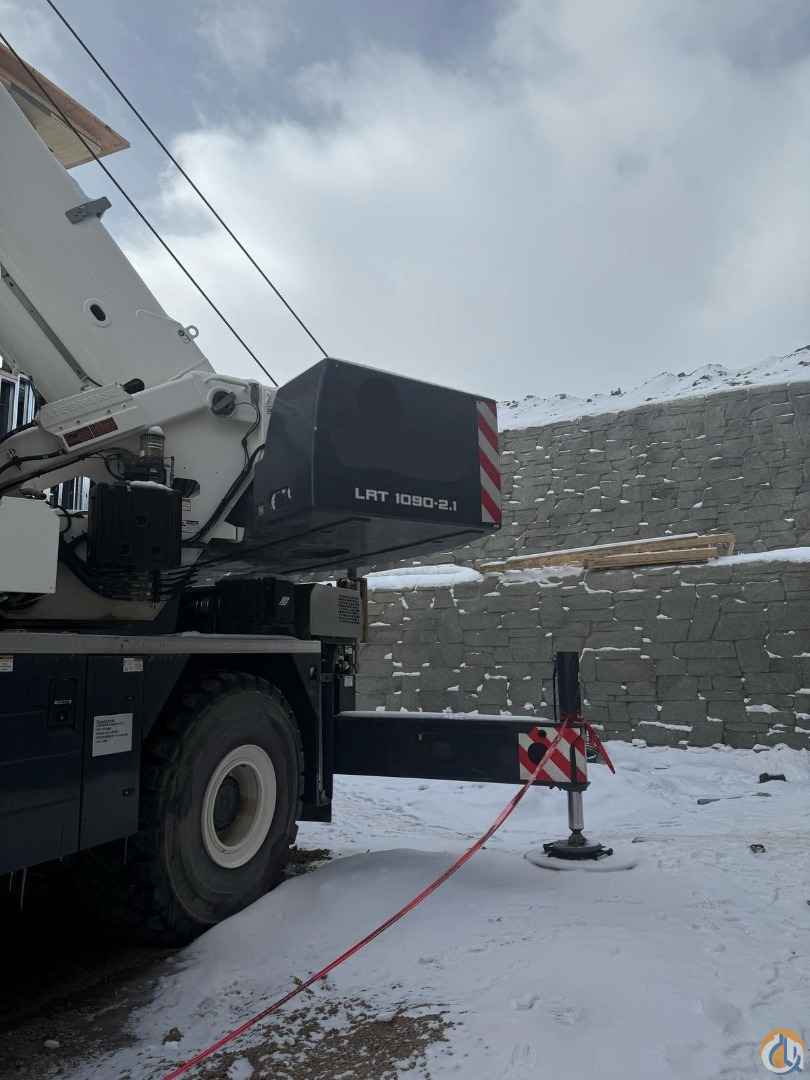

Counterweight 12 t. Safety devices including LICCON2 overload safety indicator, inclinometer and
supporting pressure indication (incl. standard program). Test system for servicing. LICCON work
planner. Wind gauge. Working area limitation. Acceptance tests of crane.
Standard painting:
Carrier, telescoping sections, counterweight and winches
Superstructure, pivot section, crane cabin and rims
10 Basic machine
WORKING EQUIPMENT -RAL 7016, anthracite grey-RAL 9010, pure white

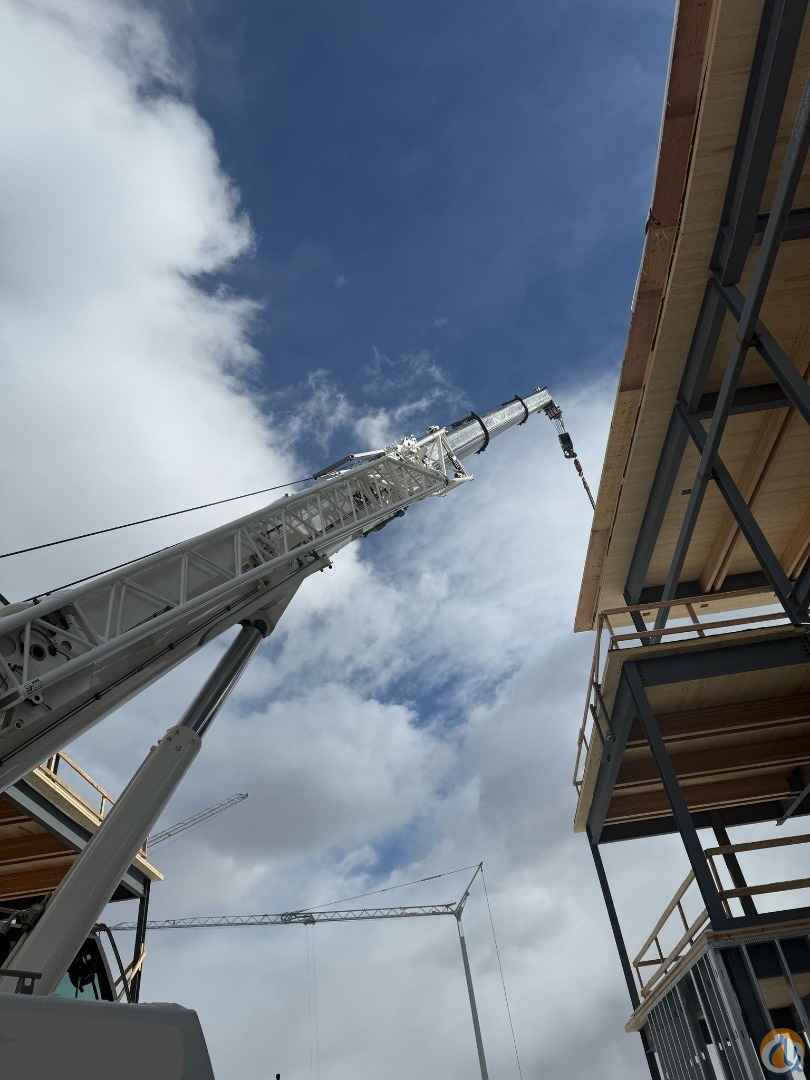

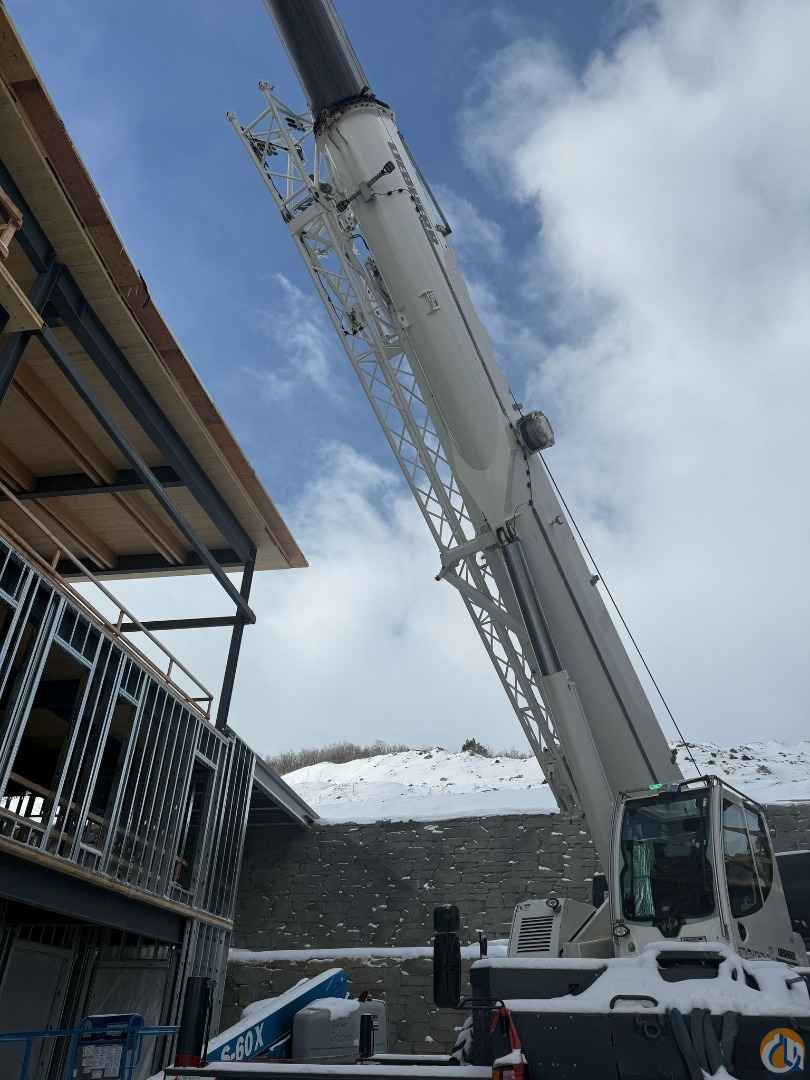

30 Double lattice-type swing-away jib, 10.5 m -19.0 m I 34.5 ft -62.3
ft (0° /20° /40°)
70 Hookblock 64.6 t, 5 sheaves, double hook
81 Hookblock 42.3 t, 3 sheaves, single hook
100 Crane hook 6.3 t
ADDITIONAL EQUIPMENT -CARRIER

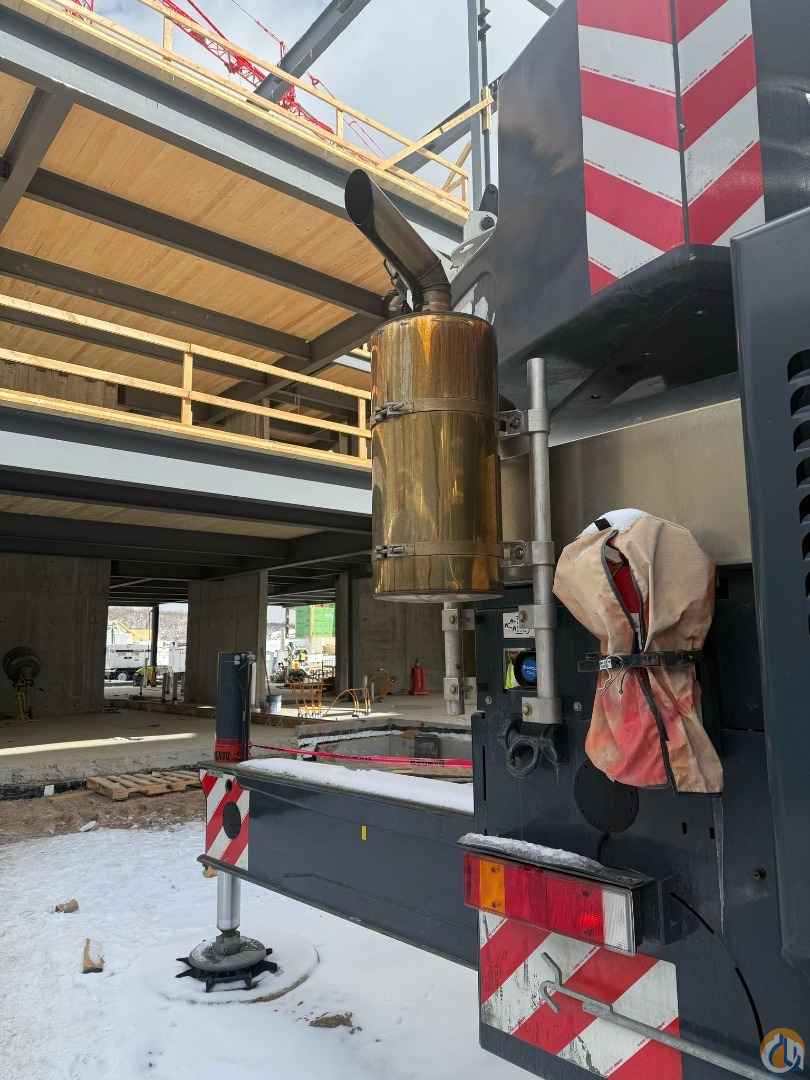

430 Spark arrestor crane carrier (only for exhaust-stage 4 / Tier 4f)
445 Engine shut down valve including overspeed protection
475 Calix engine-preheating for carrier, including 230 V / 110 V
connection
480 Cold weather package -40° C / -40° F
ADDITIONAL EQUIPMENT -SUPERSTRUCTURE
610 Hydraulic ballasting device
690 Two working floodlights at pivot section electrically adjustable
700 Flight warning light, switchable between continuous light and flash
light
765 Emergency operation of crane hydraulic
PAINTING/ OTHER
910
936
Standard painting
Safety decals USA acc. to ANSI Standard (with text), load charts (imperial)
