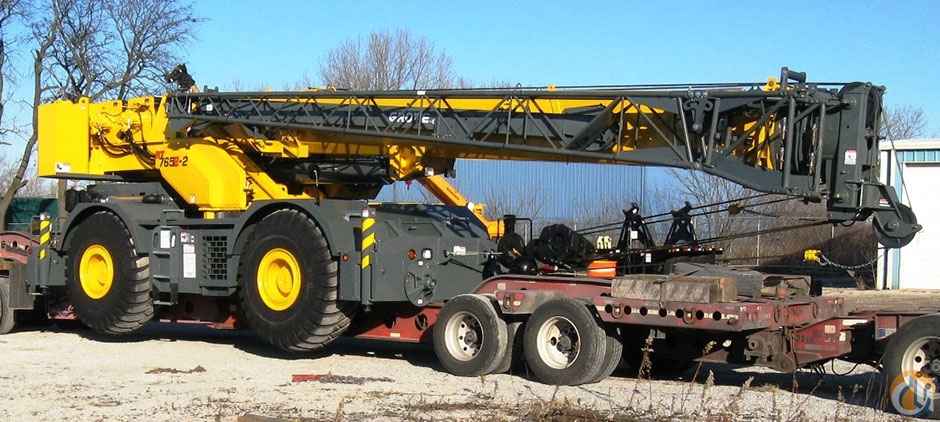

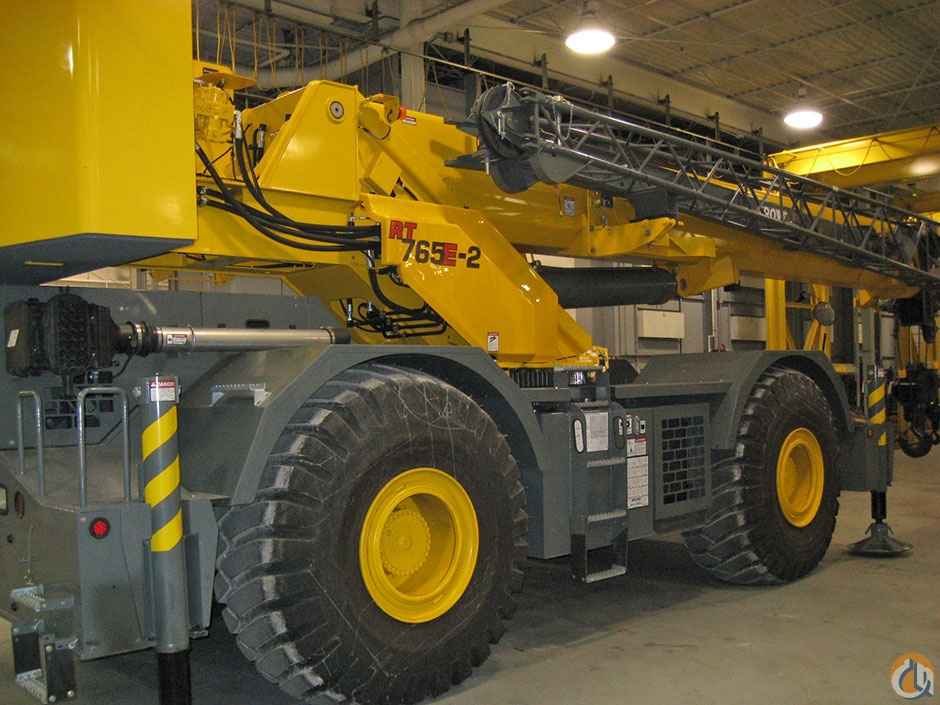

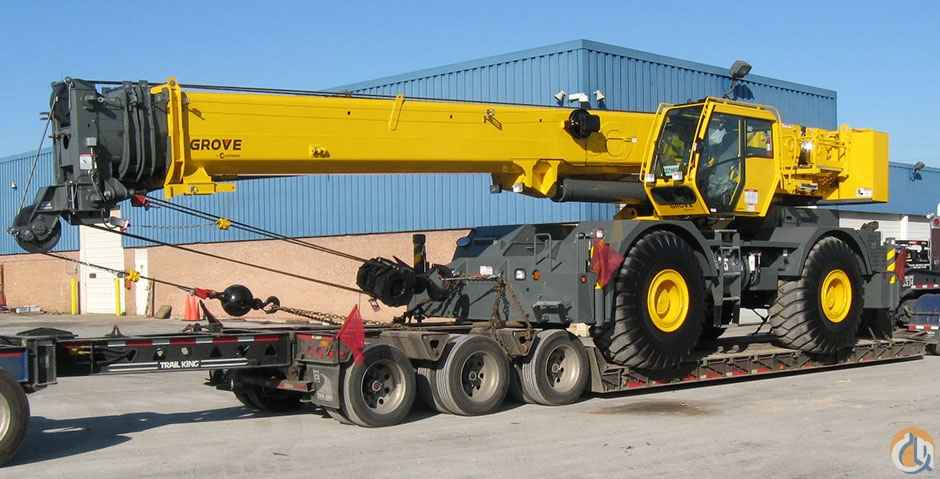

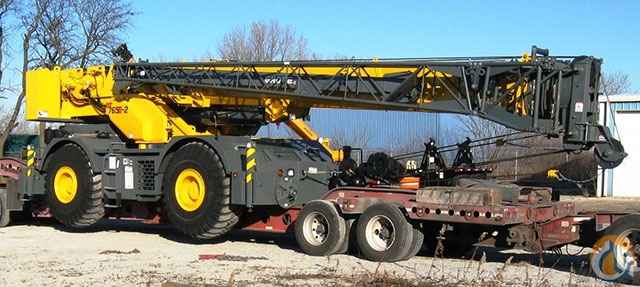

ONE 2012 GROVE MODEL RT765E Series 2; 65-TON CAPACITY ROUGH TERRAIN CRANE

Equipped as follows:

STANDARD EQUIPMENT

BOOM: 36-110 ft. 4-section sequenced synchronized full power boom, integral holding valve on the telescope cylinders. Four (4) quick reeve Nylatron sheaves in the main boom nose.

BOOM EXTENSION: Offsets at 0°, 25°, and 45°.

BOOM ELEVATION: One (1) double-acting Hydraulic Cylinder (-3° to 78°) with integral holding valve.

LOAD MOMENT AND ANTI-TWO BLOCK SYSTEM (Graphic LMI): Audio-visual (light/buzzer) warning system and Grove control lever lockout system with display of boom angle and length, relative load moment indication, rated load, load, radius and boom tip height. The standards W o r k A r e a D e f i n i t i o n S y s t e m a l l o w s t h e o p e r a t o r t o p r e s e l e c t a n d d e f i n e safe working areas. If the crane approaches the pre-set limits, audio- visual warnings aid the operator in avoiding jobsite obstructions.

CAB: All galvannealed steel with acoustical lining and tinted safety glass throughout, deluxe seat with armrest mounted single-axis controls for crane functions, gauges for engine functions, steering wheel, electric horn, windshield washer/wiper, air conditioning, hot water cab heater with defroster, opening skylight with wiper, skylight sunscreen, fire extinguisher, seat belt, circulating air fan, work light and level indicator.

SWING: 360° continuous rotation planetary Glide Swing with foot actuated multi-disc brake, hydraulic swing parking brake, and plunger-type1 position houselock; pinion guard.

COUNTERWEIGHT: One piece, pinned to turntable.

HYDRAULIC SYSTEM: 3-gear pump system; hydraulic tank with sight level indicator, filter condition gauge, pressure check ports and oil cooler.

HOIST: Grove Model HP30A-19 grooved drum main hoist, two speeds power up and down with automatic multi-disc brake, electronic hoist rotation indicator, hoist drum cable follower and hoist mirror. Auxiliary hoist control valve arrangement (less hoist).

WIRE ROPE: 500ft. of 3/4 in. diameter 6 X 37 class installed on main hoist.

HOOKBLOCK: 65-ton, 5-Sheave, Quick Reeve-type with Swivel Hook and Safety Latch; Wt. 1,250 lb.

HEADACHE BALL: 8.3-ton top swivel with hook and safety latch; Wt. 370 lb.

OUTRIGGERS: Hydraulic front and rear. Double box and beam with integral check valves and steel outrigger pads, three position setting

ENGINE: Cummins QSB 6.7L, (Tier IV) 6-cylinder turbo-charged water-cooled diesel with hour meter, air service indicator, and engine distress audio-visual warning system, cold start aid, and immersion type engine block heater (120 V, 1500 watt). Requires 15ppm "Ultra Low Sulfur Diesel"
