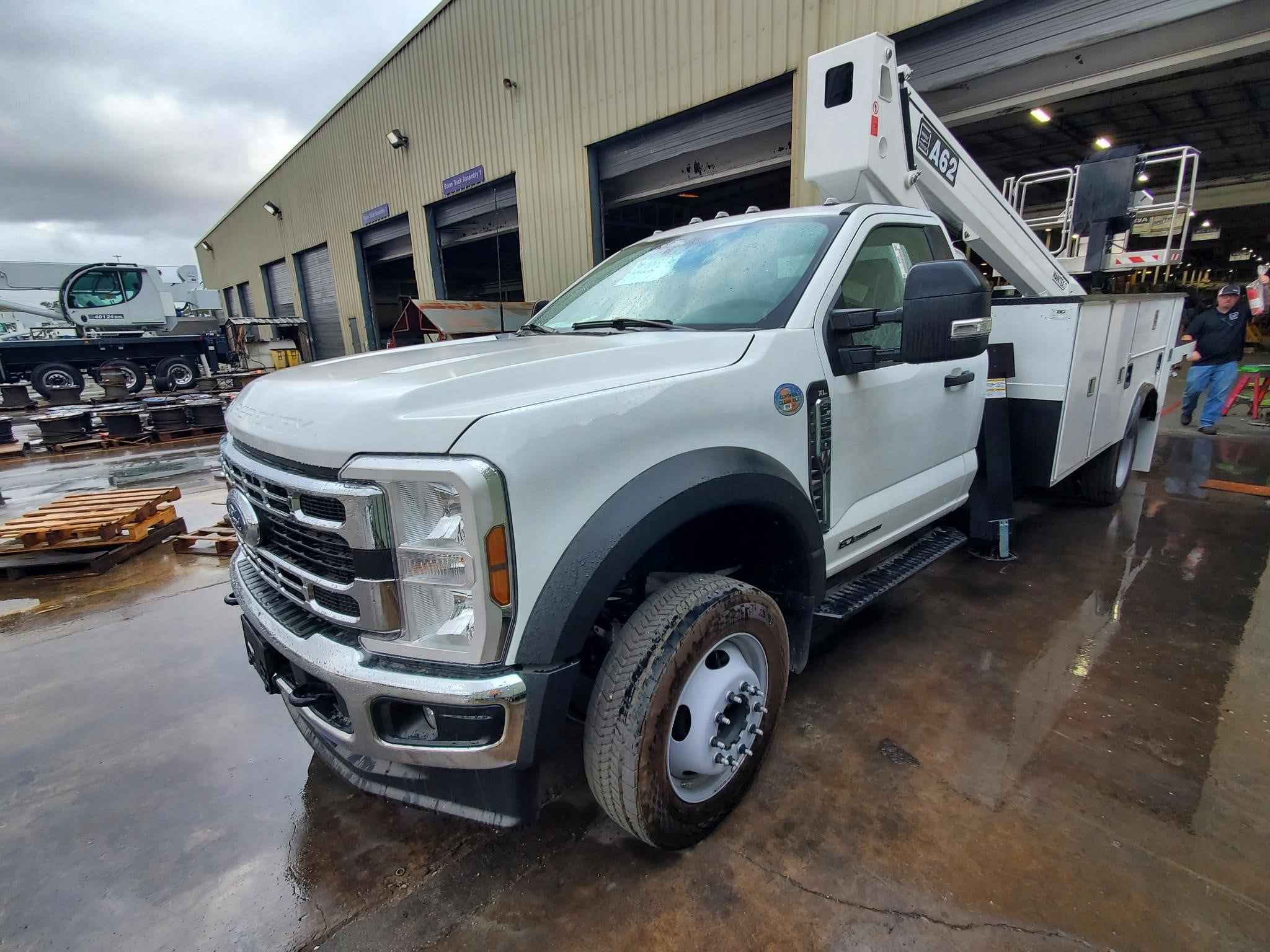

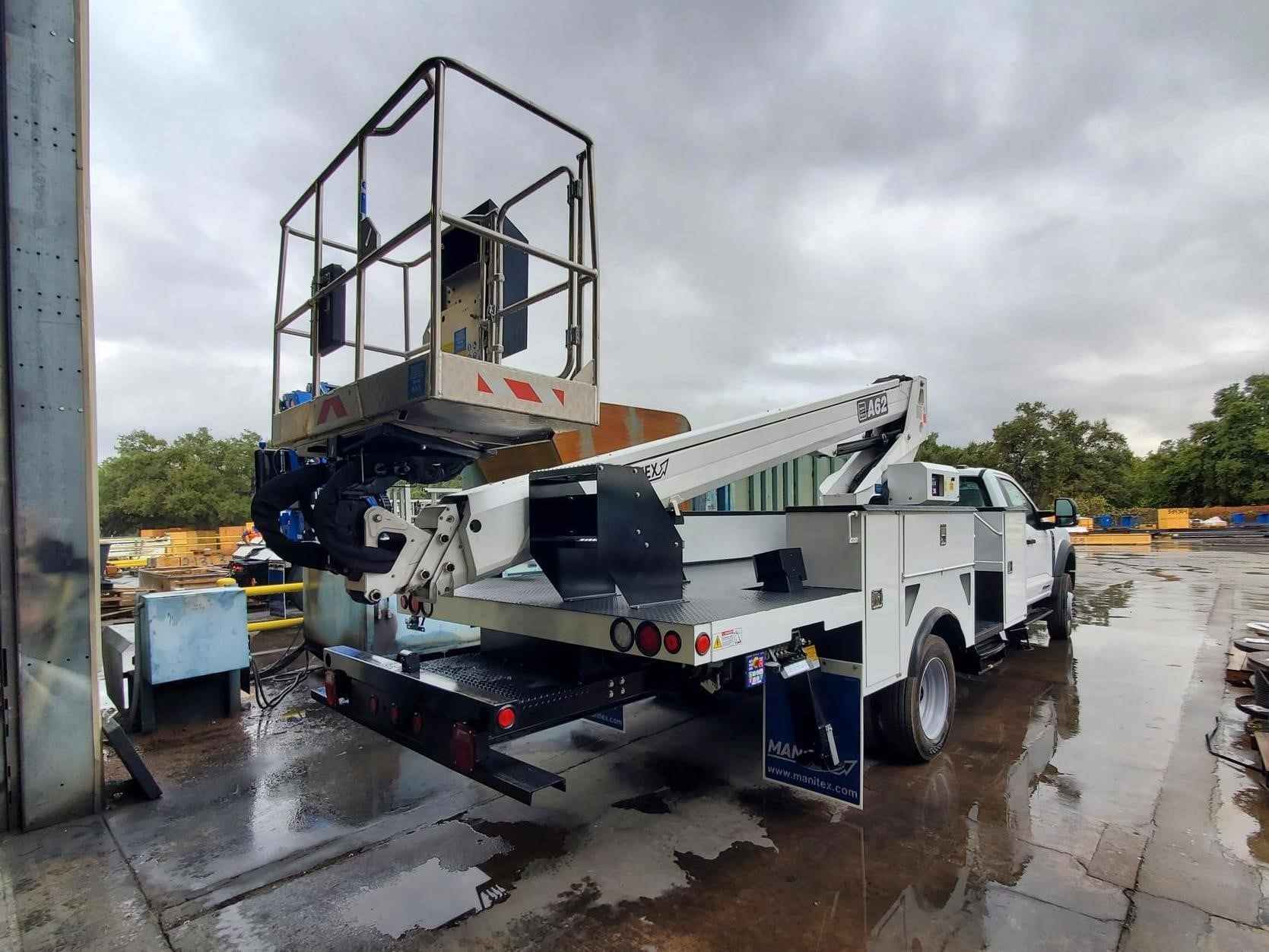

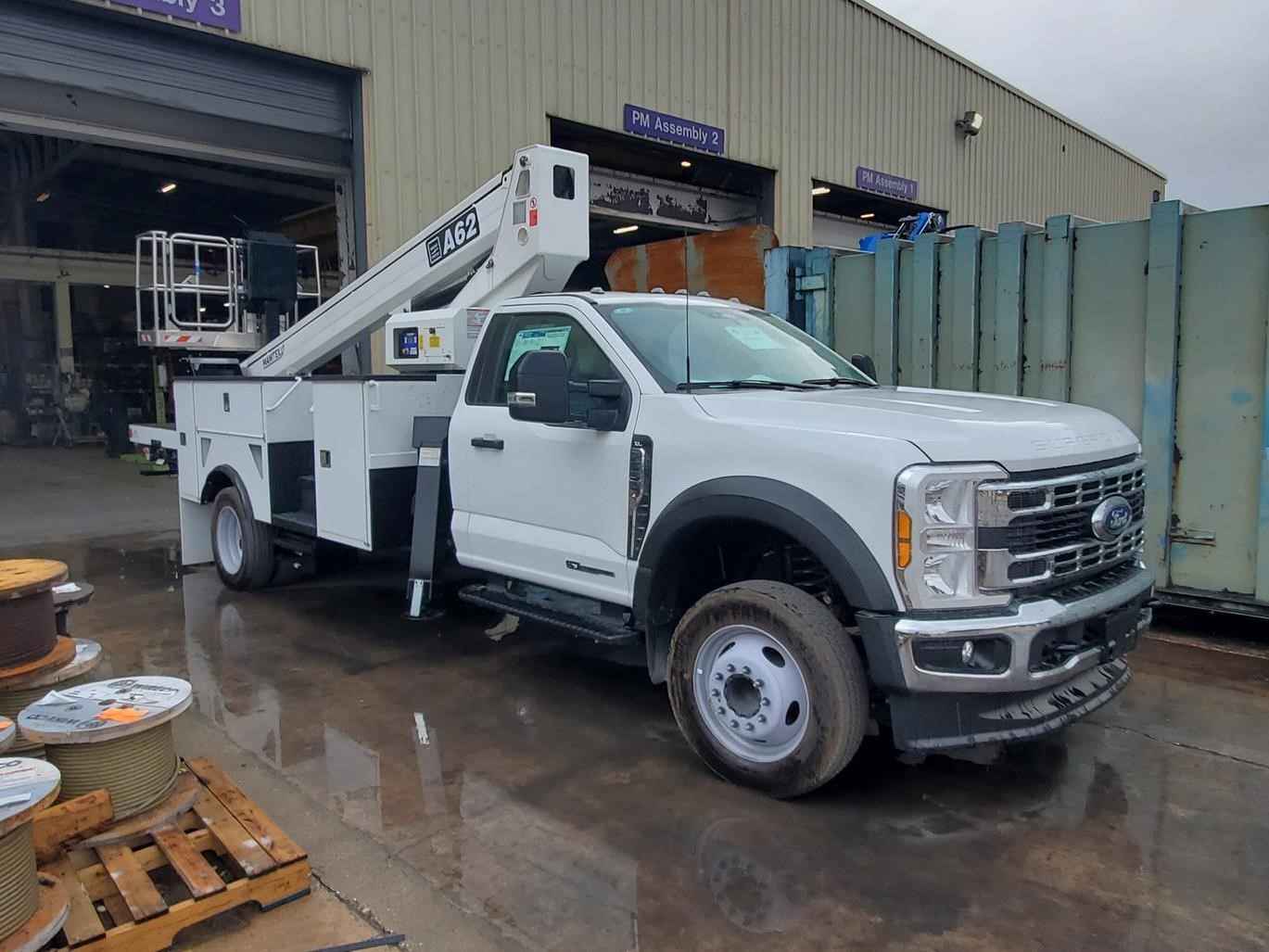

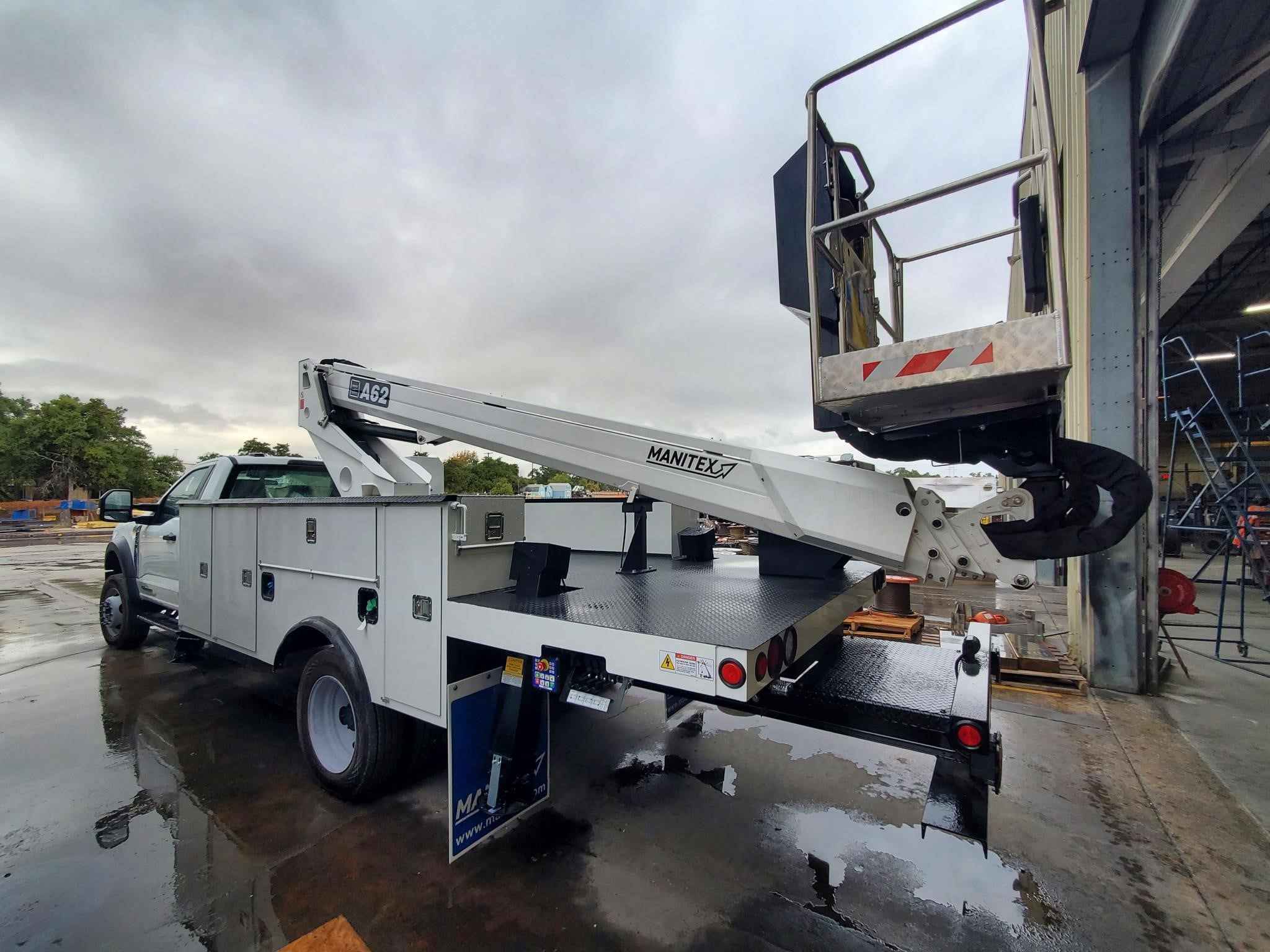

Mounted on various chassis options including, Ford, Dodge, and Chevy. Available with either a steel service body or a flatbed. Capacity: 550 lbs Max Working Height: 62 feet Type of Articulation: Telescopic Number of Boom Sections: 3 Boom Boom Angle: -15° / + 75° Chassis Requirements GWVR: 15,400 lbs FAWR (lbs): 7,000 RAWR: 14,700 lbs Max Height floor of bucket: 56 feet Outreach: 38 feet Front Outrigger: Fixed A Shape Rear Outrigger: Fixed A Shape Hoses and cables: Inside booms Cylinder of extension: Inside booms Position and angle control: Yes Size of basket: 67 x 28 x 43 Inches [aluminum] Standard Features: Start-up and shutdown of the main engine and any auxiliary engine from the basket Protective sidebars Protection on controls area on column and basket Acoustic device for PTO plugged in A self-locking device on rotation Warning device operating outriggers (truck dashboard) Interlock for stabilizers Hand pump for emergency lowering Document folder on the basket Thermal protection on the electrical system Emergency button with stop engine device Hydraulic basket rotation Holding valves on every cylinder Maximum pressure valves on the hydraulic circuit Use and maintenance manual Available Options: Jiblet Winch with 200 lbs max capacity 110V Electrical outlet in the basket and a 2.2 kW inverter Various body options including service body and flatbeds
