1996 Aurora 50' Straight Boom Crane (revolving)

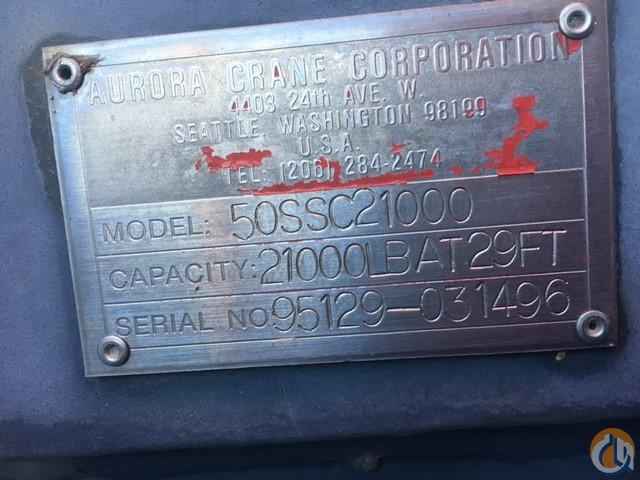

1996 Aurora 50' Straight Boom Crane (revolving) NEVER PUT INTO SERVICE LIKE NEW Serial Number 50SSC2100

25 Ton

Maximum 51'2.5" Minimum 10'4.3"

Rated Capacity @ 51'2.5" =  6,990 lbs @ 29' 0" = 21,060 lbs @ 10'4.3"

50,000 lbs

Main Hoist (2) Modes (1) Power (2) Free Fall  Hoist Block Speed 60' / minute

4 part Line Wire Rope 3/4"  (6X36) EIPS IWRC X 632' Long Slew Drives 4 each, Hydraulic Motor / Brake / Gear Drives Assy Slew Speed 0-2 RPM Slewing Angle: 360 Degrees Main Boom Hydraulic Cylinders: Dual - 11" Bore X 5.75"

Stainless Steel Rod X 68" Stroke - Built In  Safety Valves Hydraulic Power Unit 150 H.P. (TEFC) 480 Volt 3 Phase , 60Hz.

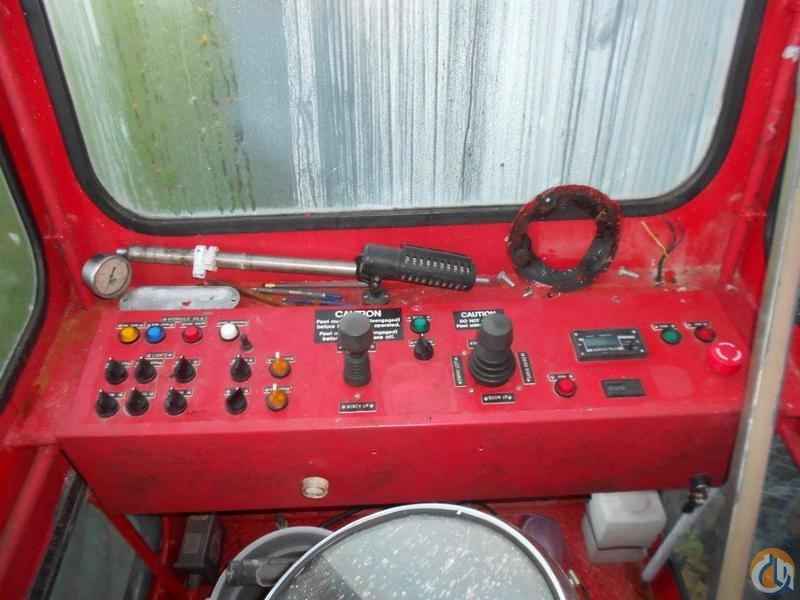

Auxiliary Hydraulic Power Unit 5 H.P.(TEFC) 230 Volt 1 Phase 60 Hz Max BYD System Pressure 3,000 PSI Crane Controls ((Two Stations) (1) Main Console or (2) Pendant Remote

PEDESTAL: 48" Dia X 3'8" Ht

Counter Weight  39,625 Lbs. Main Boom

This Crane was manufactured by Aurora Crane in Seattle WA for the US Corps of Engineers to Last and Last ! Was Never used and is in Like New Condition The Crane is currently located in Minneapolis MN
