Features

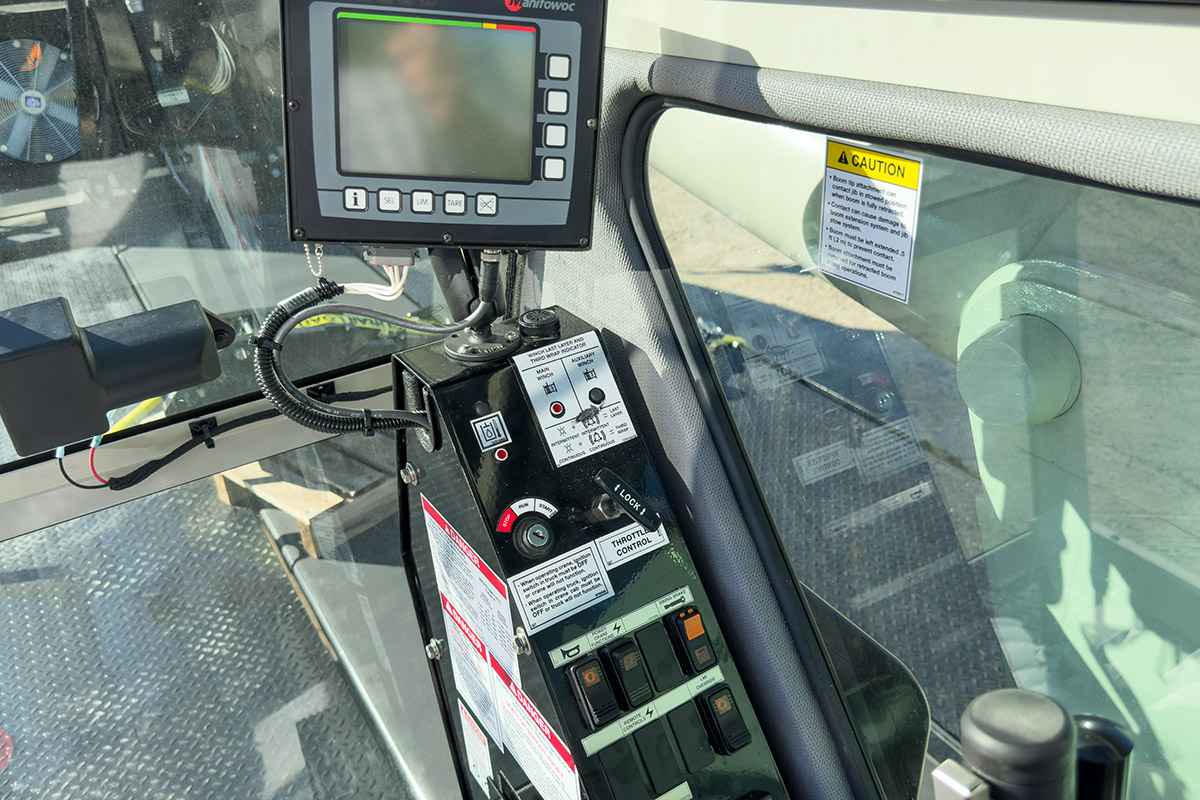

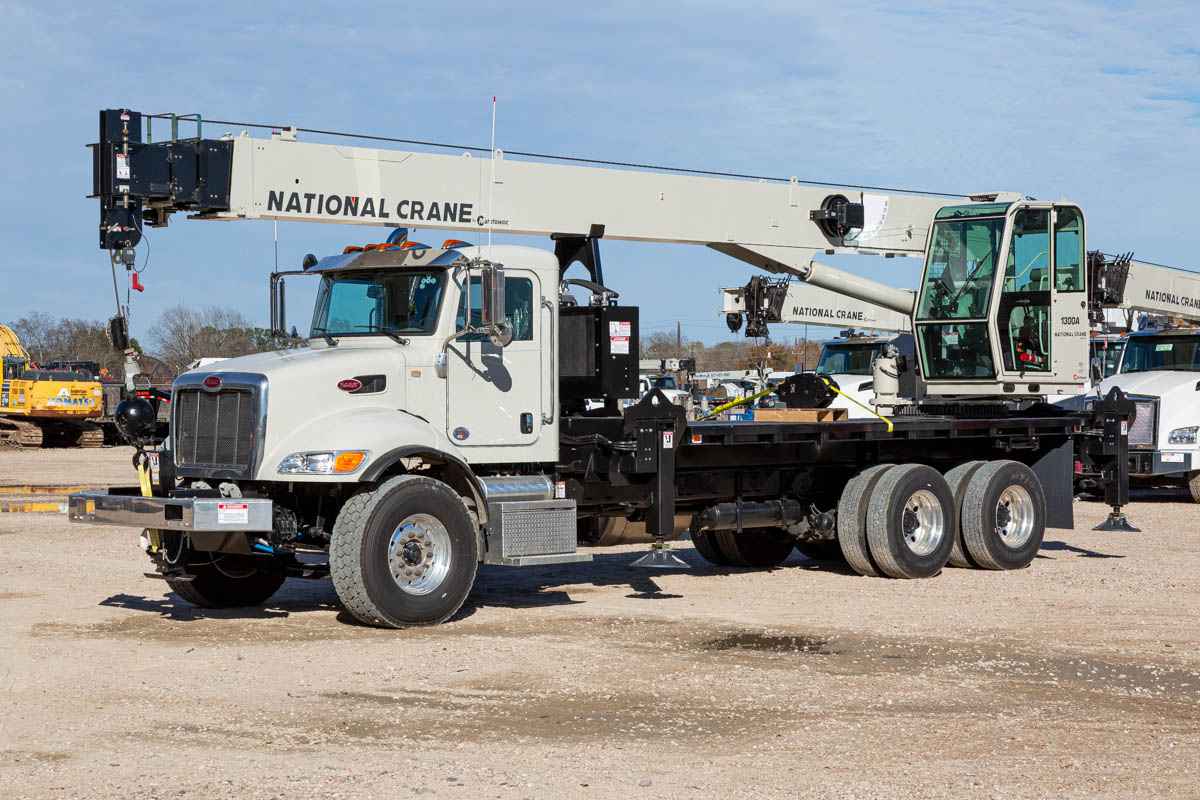

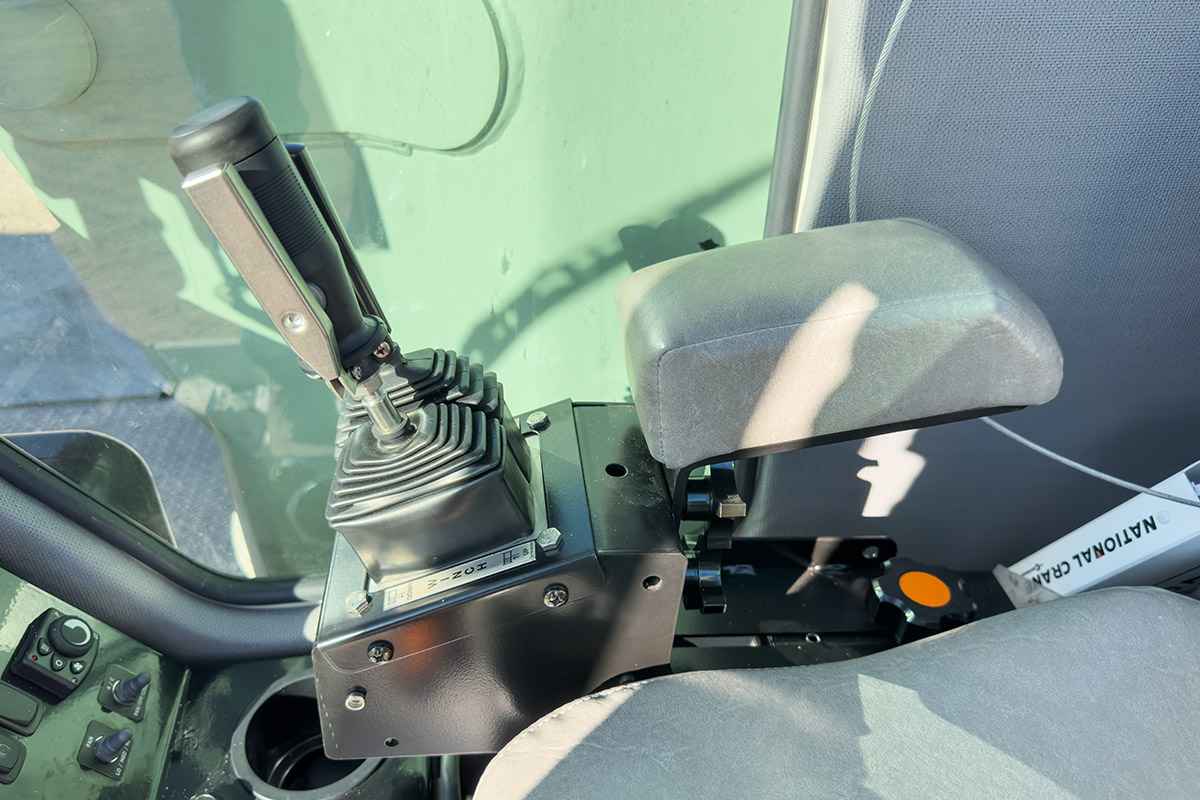

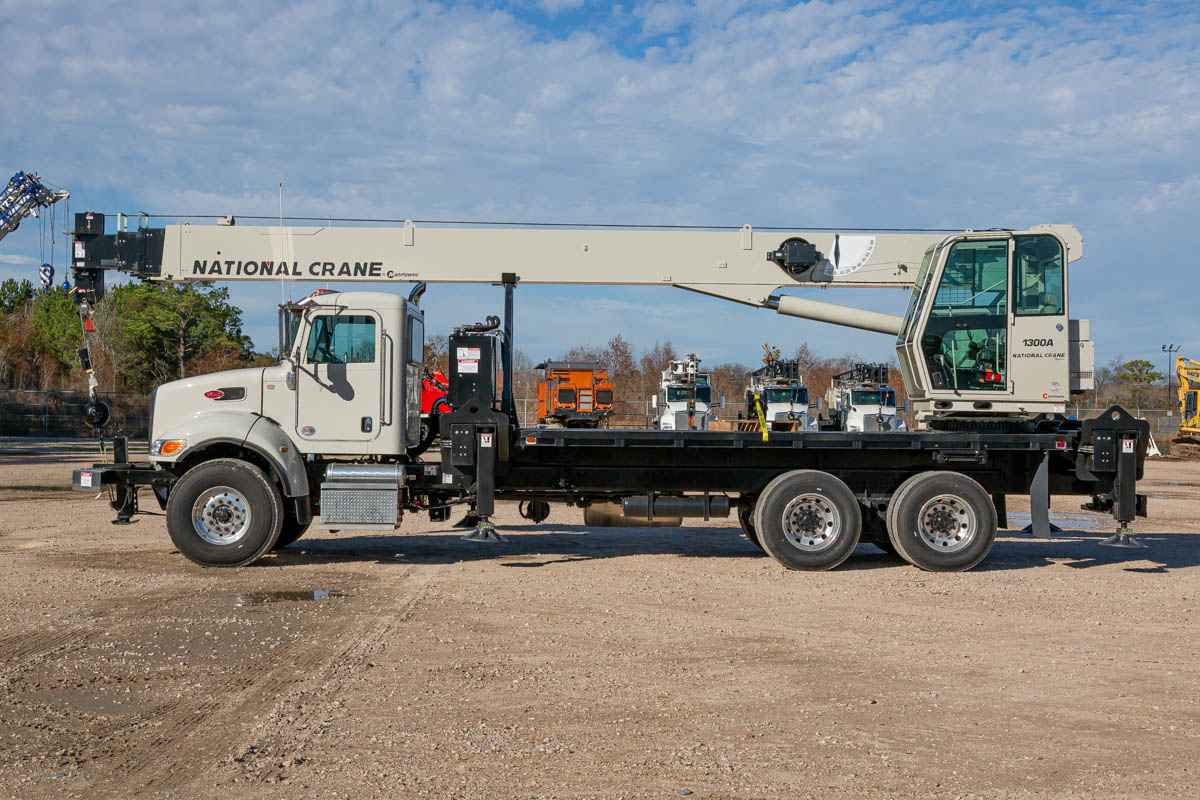

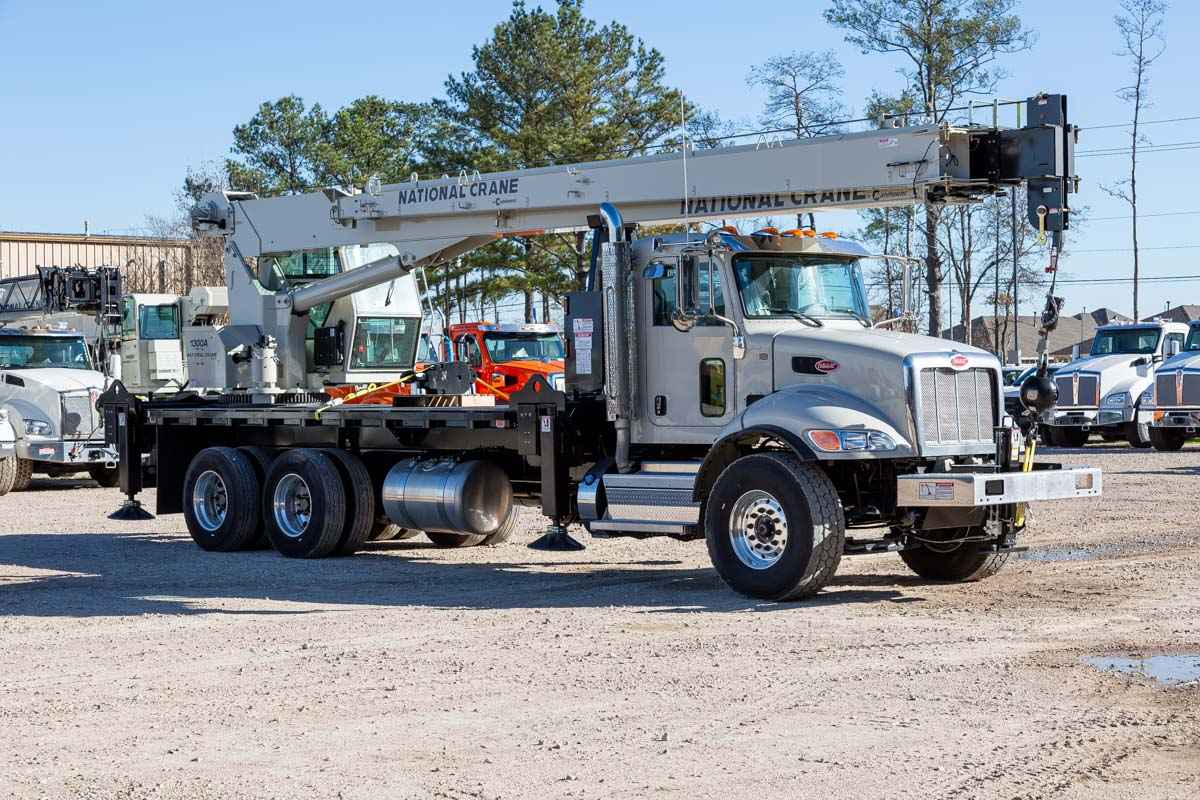

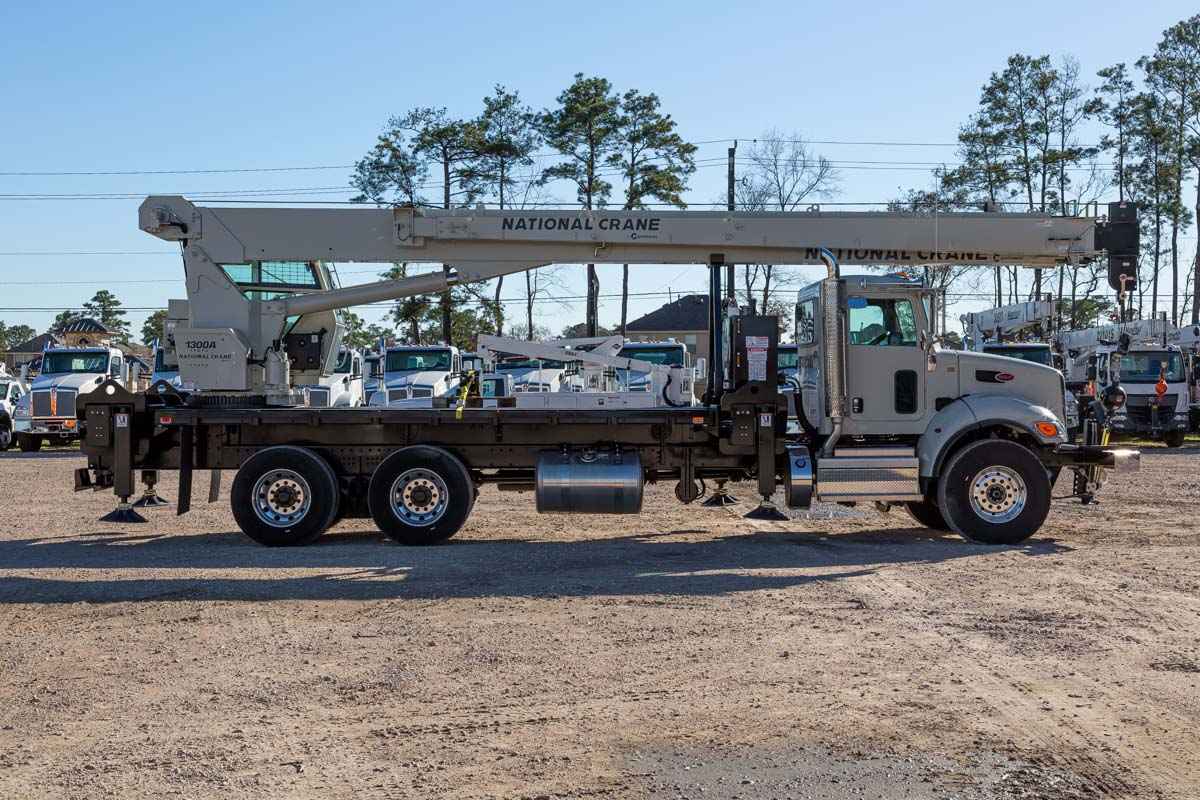

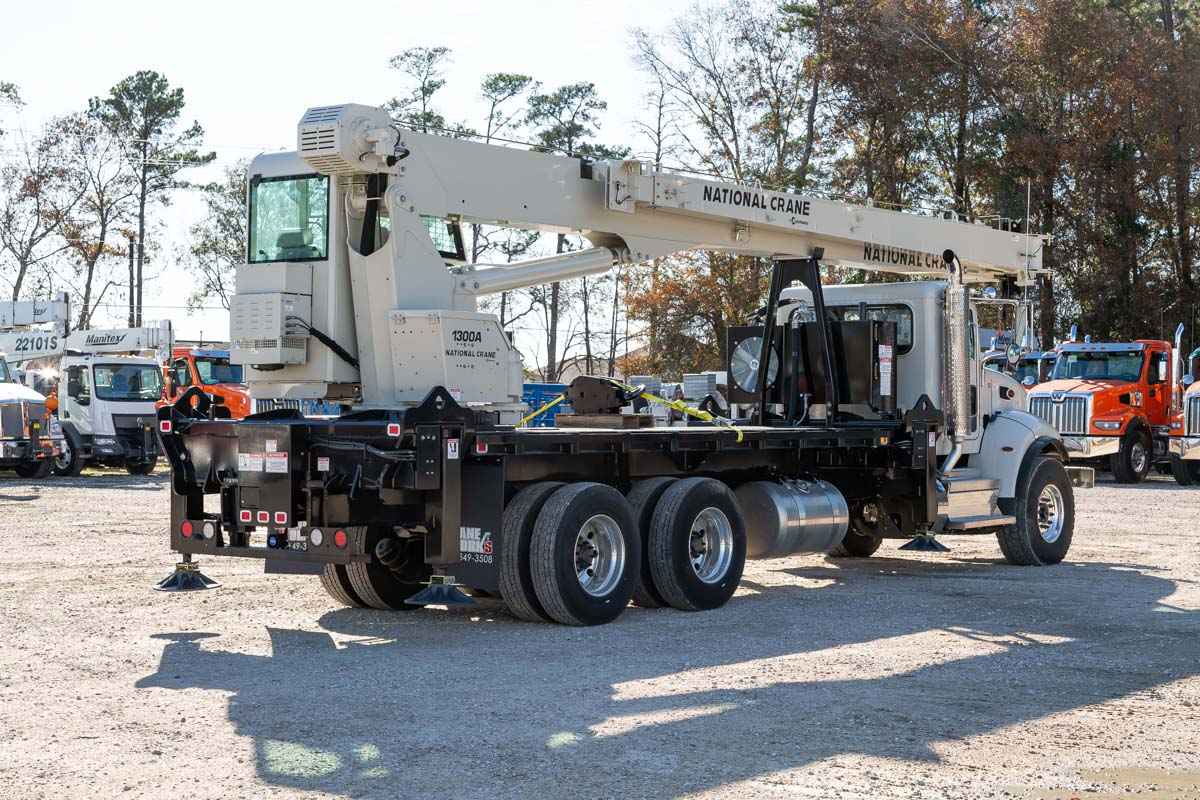

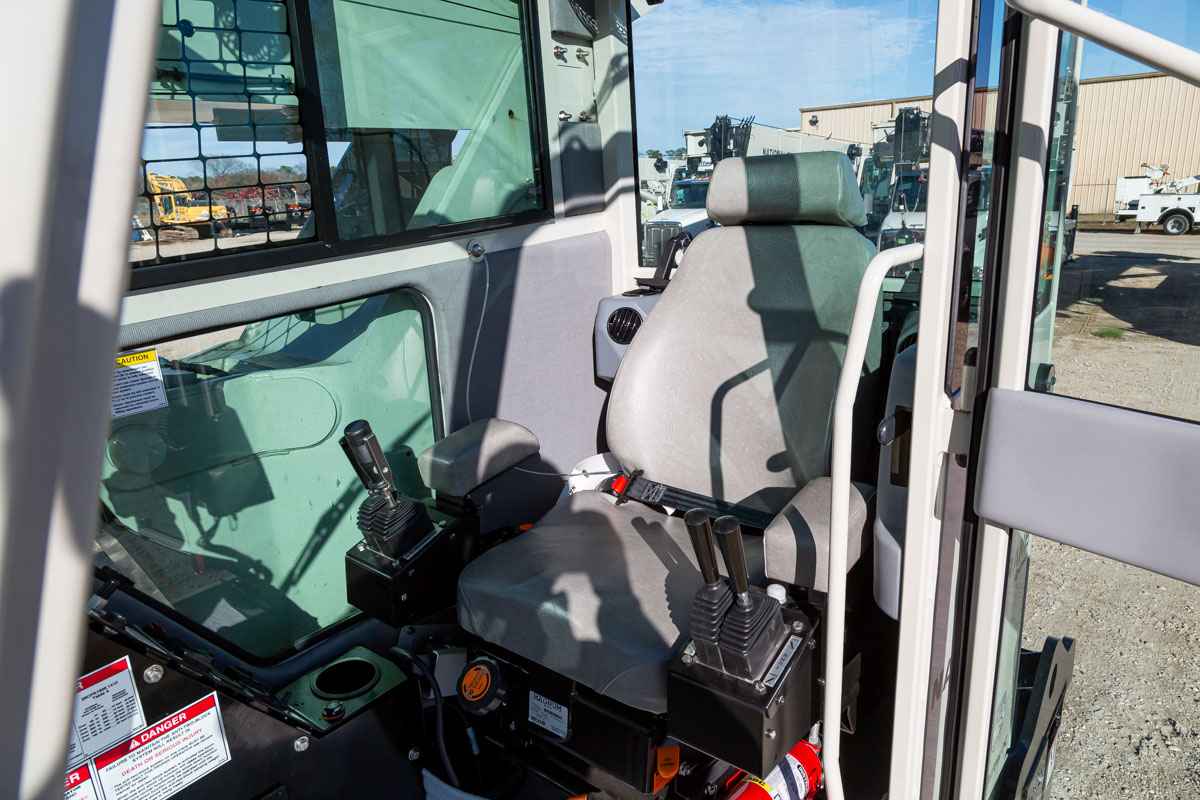

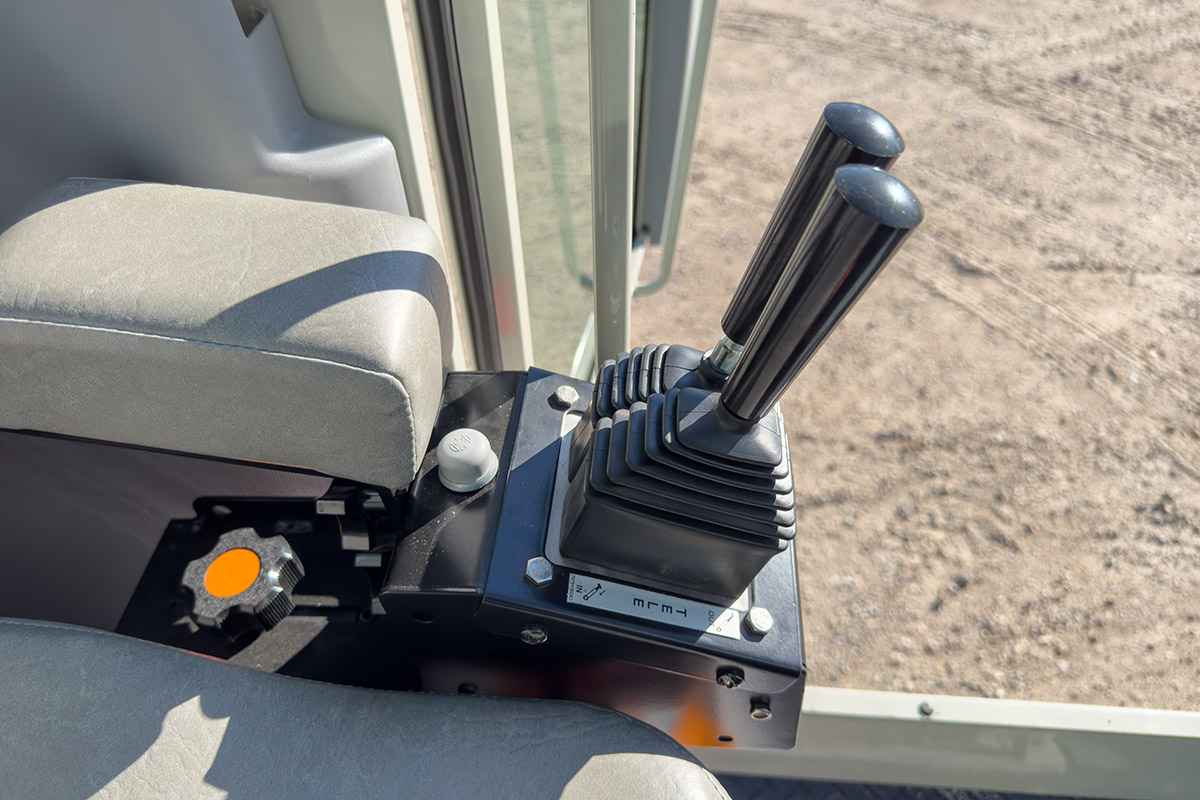

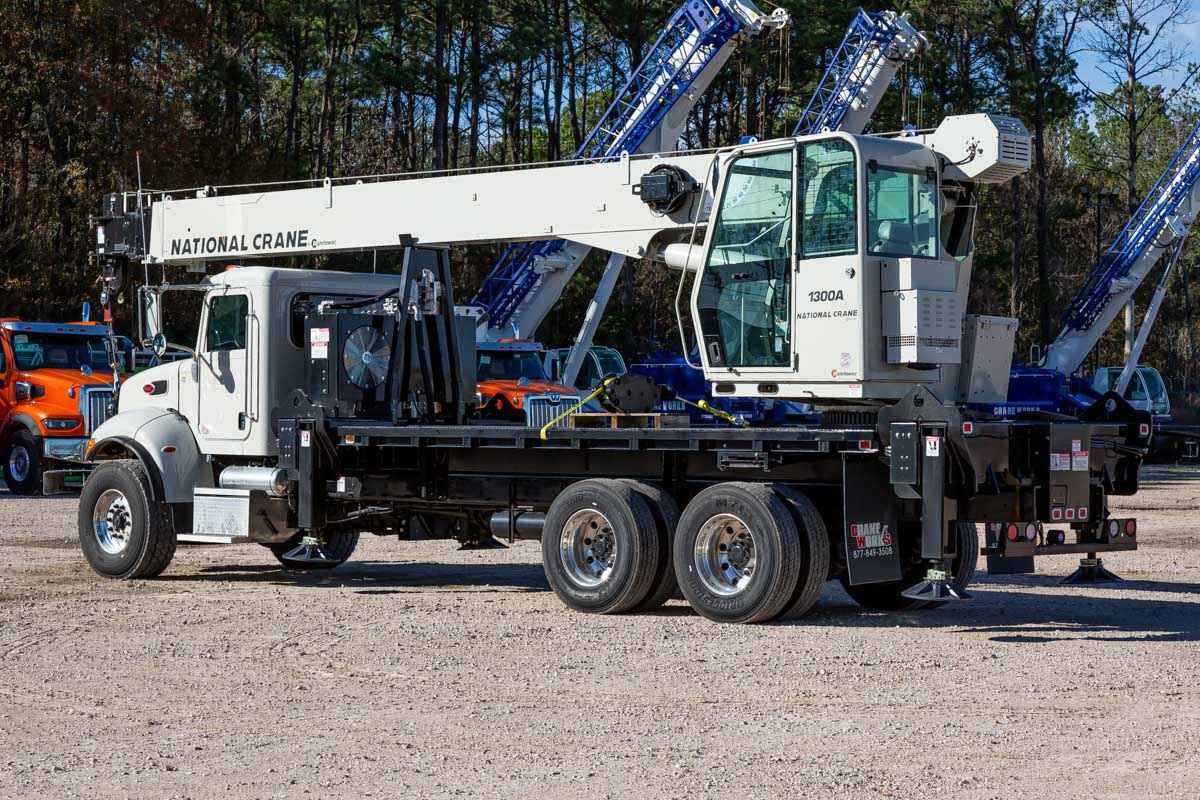

The 13110A provides a 30 USt capacity at a 5 ft radius and a 110 ft maximum boom length. Dual "H" style outriggers offer excellent stability and allow mid-span and full-span capabilities. The enclosed, air-conditioned VISIONCAB boasts integrated armrest crane controls, CANBUS electronics, a graphic LMI display, and standard Work Area Definition System (WADS). Specs - Four-section boom - Self-lubricating "Easy Glide" Wear Pads - Load Moment Indicator system (LMI) - Standard Work Area Definition System (WADS) - Ergonomic VISIONCAB - CANBUS electronics
Included Options

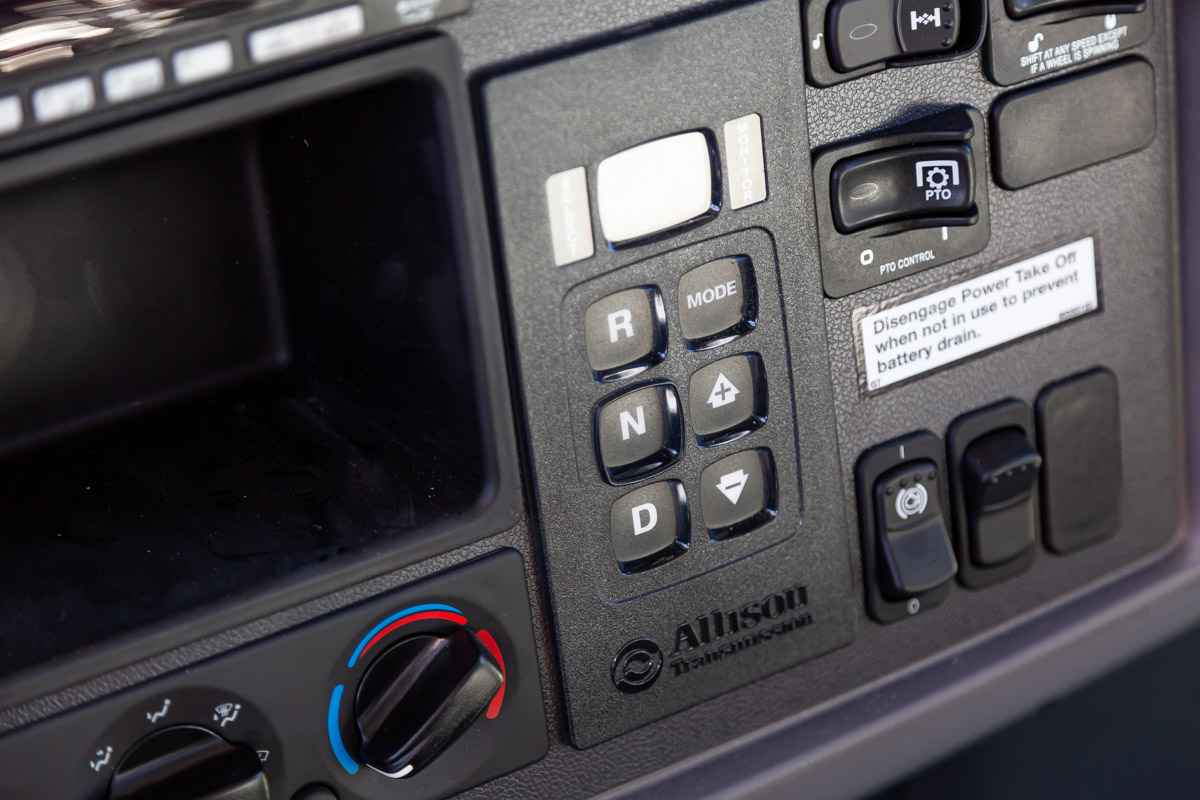

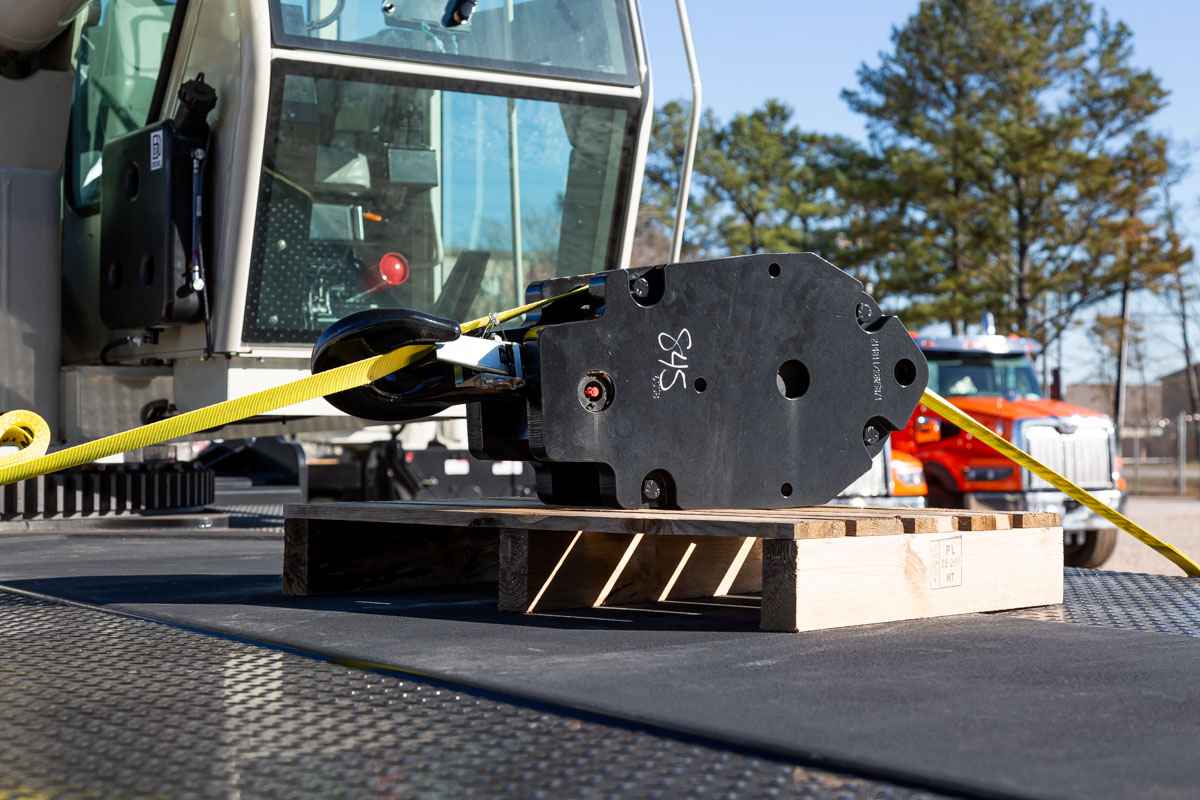

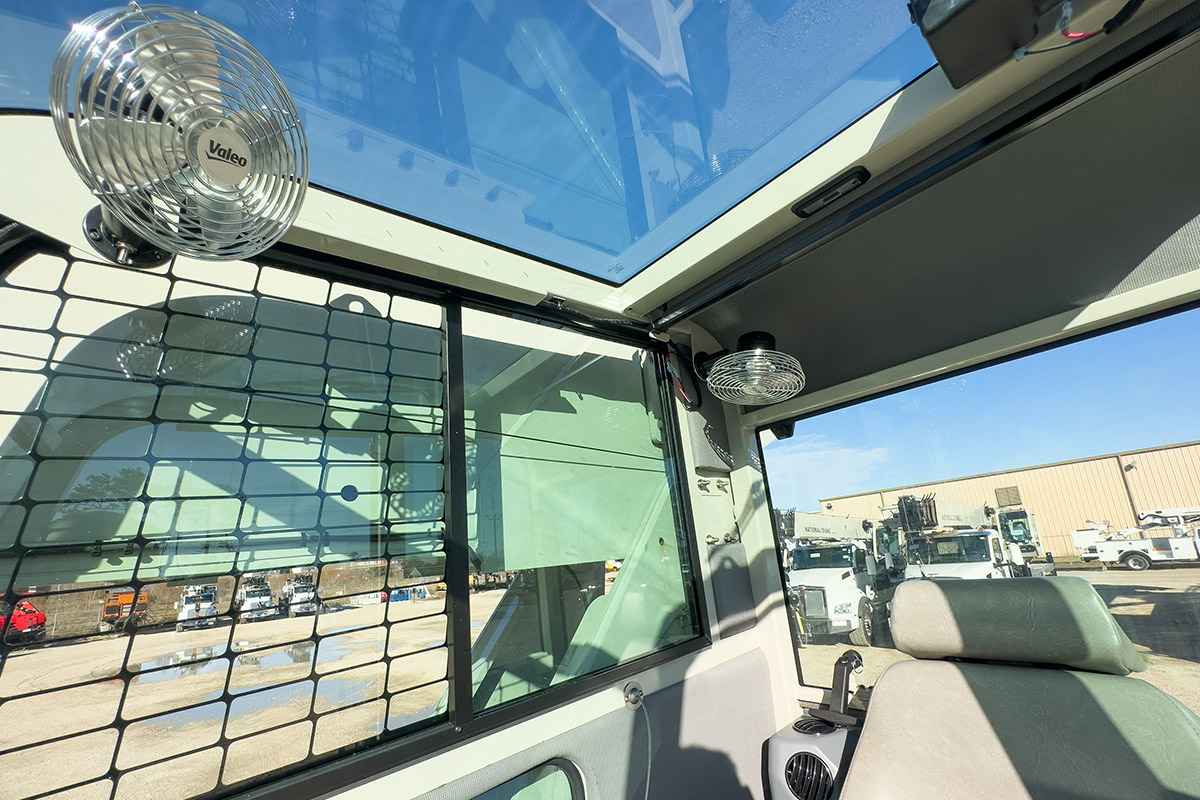

• 33' -110' (10 -33,5 m) four section, full power telescopic boom • 25' -44' (7,6 -13,4 m) Telescoping boom extension (side fold for stowing); includes 19' (5,8 m) manual pull-out. • Two and three part reeving, 15 ton (13,6 mt) capacity hook block with one sheave. • 18'8" (5,6 m) Steel tread plate wing decking with side ladder • Standard Mounting • Hot shift PTO in lieu of air shift PTO (required on automatic transmissions) • Clockwise rotation pump (Automatic Transmission ) • Drive line kit • ICC Safety Kit, includes fire extinguisher (included on mounted units) • Air conditioning for crane cab. Self-contained modular unit. • Additional outrigger controls located at operator's seat
