PM 65026 J1416 Mounted Knuckle Boom Crane


BIK Boom Trucks
BIK Sales Team: 888-557-2244
Last Updated: 01 Aug 2025
Price: Inquire
Location: Milford, Massachusetts, United States

Capacity: 65.00
Boom/Jib: 6
Condition: Good

Boom:

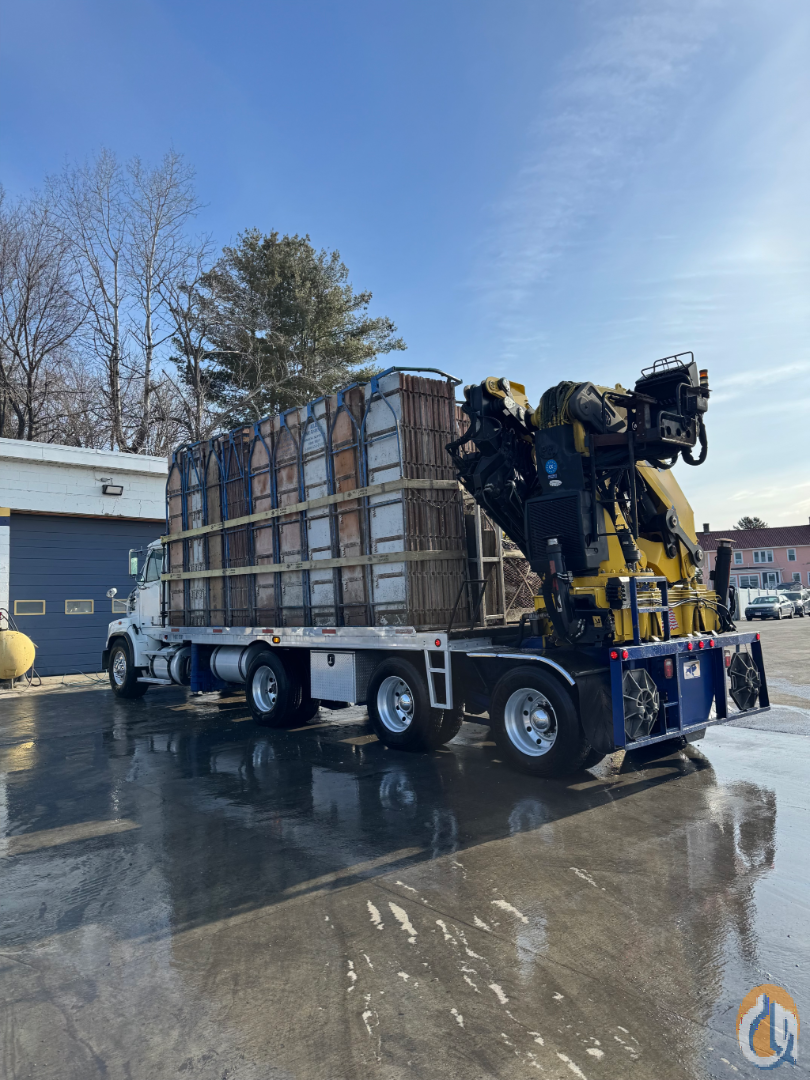

PM 65026 + J1416 Knuckle Boom (new in 2015)

  • Folding Hyd 6 ext Knuckle Boom with Detachable 6 ext jib
  • 92′ Horizontal Reach
  • Main Boom Horizontal Capacity:
    • 48,500 lb @ 8’2″
    • 28,260 lb @ 14′ 5″
    • 15,340 lb @ 25′ 3″
    • 10,000 lb @ 37′,
    • 7,210 lb@ 50′ 2″
  •  Jib Horizontal Capacity:
    • 3,850 lb @ 59′ 1″
    • 3,000 lb @ 74′ 6″
    • 2,340 lb @ 81′ 1″
    • 2,100 lb @ 86′ 8″
    • 1,800 lb @ 92′
  • Maximum Lifting Moment 59 mt (429,640 ft-lbs)
  • PM Power-Link connections at Main, Knuckle & Jib Cylinders
  • Dual Planetary Gear Motors & Continuous Boom Rotation Double pilot operated on slewing and pilot operated check valves on all cylinders
  • 180 degree flip up Hydraulic Extra Wide Main outriggers at pedestal – 28′ – 7″ span
  • 360 degree full load chart stability Hydraulic Oil Cooler
  • High pressure return filter and min. 100-gallon hyd aluminum oil tank with gate valves mounted at front under deck DANFOSS Proportional Control Valve at Top Seat with Ladder Access- & SCANRECO Proportional Radio Remote Control
  • PM- Power Tronic load & function monitoring system, Digital Load Indicator at top seat & remote, electric/hyd overload protection
  • Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode

Deck:

21′ x 102″ Aluminum Flat Deck

  • Checker plate steel deck surface
  • With 1″ lip for form cages
  • Winch bar holder and winch bar
  • Ladder
  • 6 sliding winches with 3″ straps
  • Reflectors and 5-side lights
  • Complete with removable centre divider

Truck:

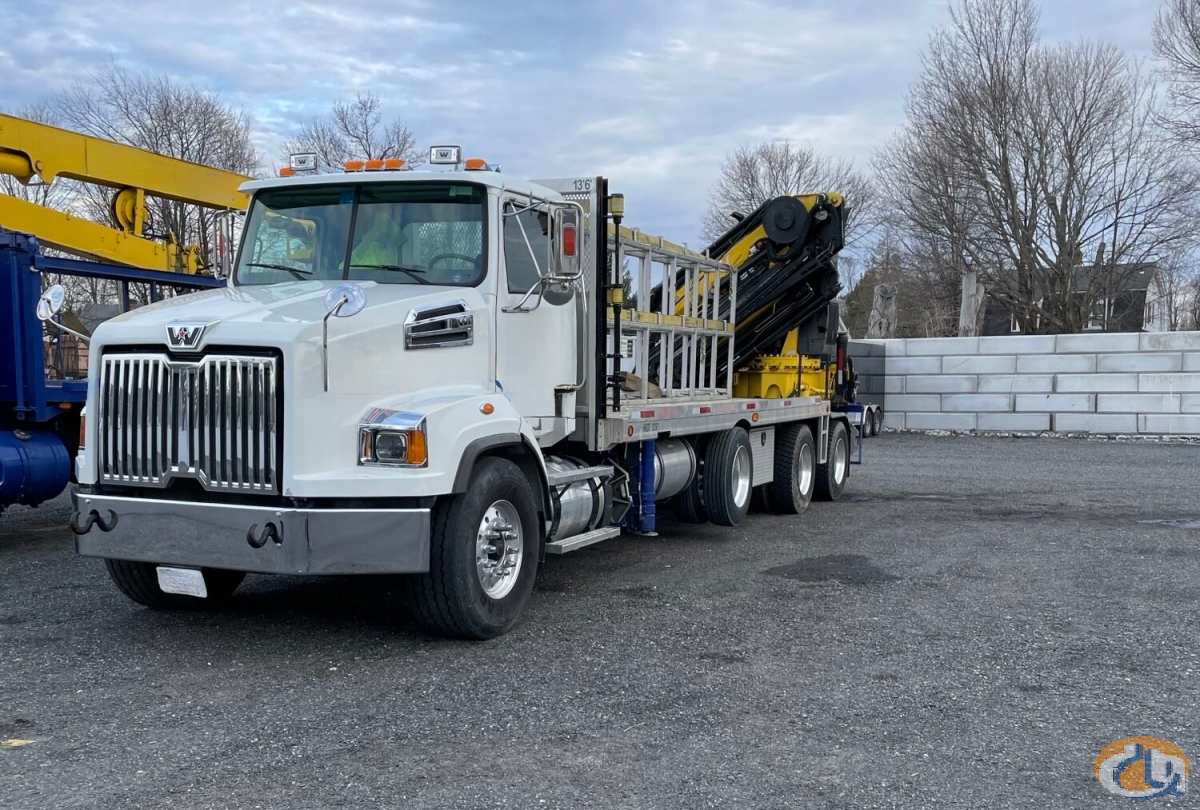

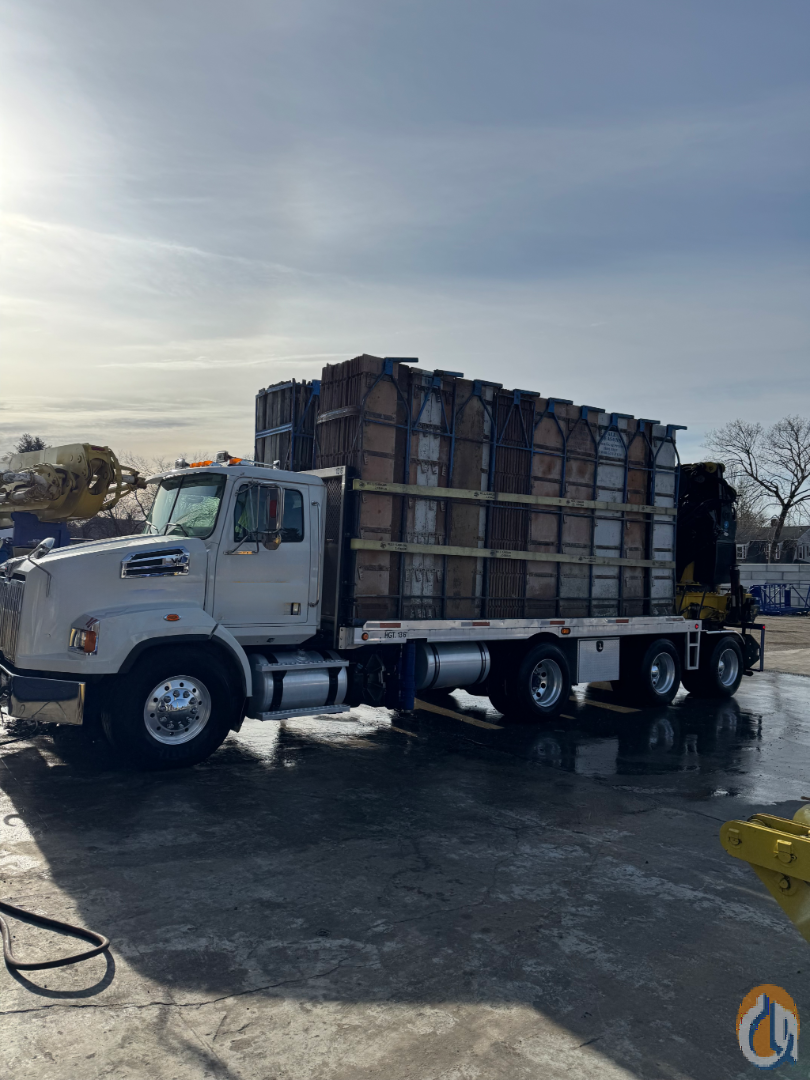

Used – 2015 Western Star 4700 Tri-Axle Diesel Truck: 86,000 lb GVWR

  • Truck Cab White
  • DDC-13 470 hp – 1,650 ft/lbs torque
  • Automated Eaton 18 spd Trans.
  • 20,000 lb fronts 425/65R22.5 Floatation tires on Aluminum rims
  • 22,000 lb self-steer lift axle
  • 101″ ahead of 1st drive wheel w/ 4 tires for max payload
  • 46,000 LB Rears on Chalmers Suspension with 11 R22.5 tires on steel white rims
  • 326″ wheel base
  • Full double frame chassis
  • Truck Features Include: Air Cond., AM/FM stereo, tilt/telescopic steering, power windows & locks, 2-man pass seat, chrome bumper & grill, painted ext sun visor, diff locks with rear wheel lock ups, dual hood mounted mirrors, air ride cab, single 80 gal alum fuel tank, trailer air tow package, full 4-wheel lock ups, etc …

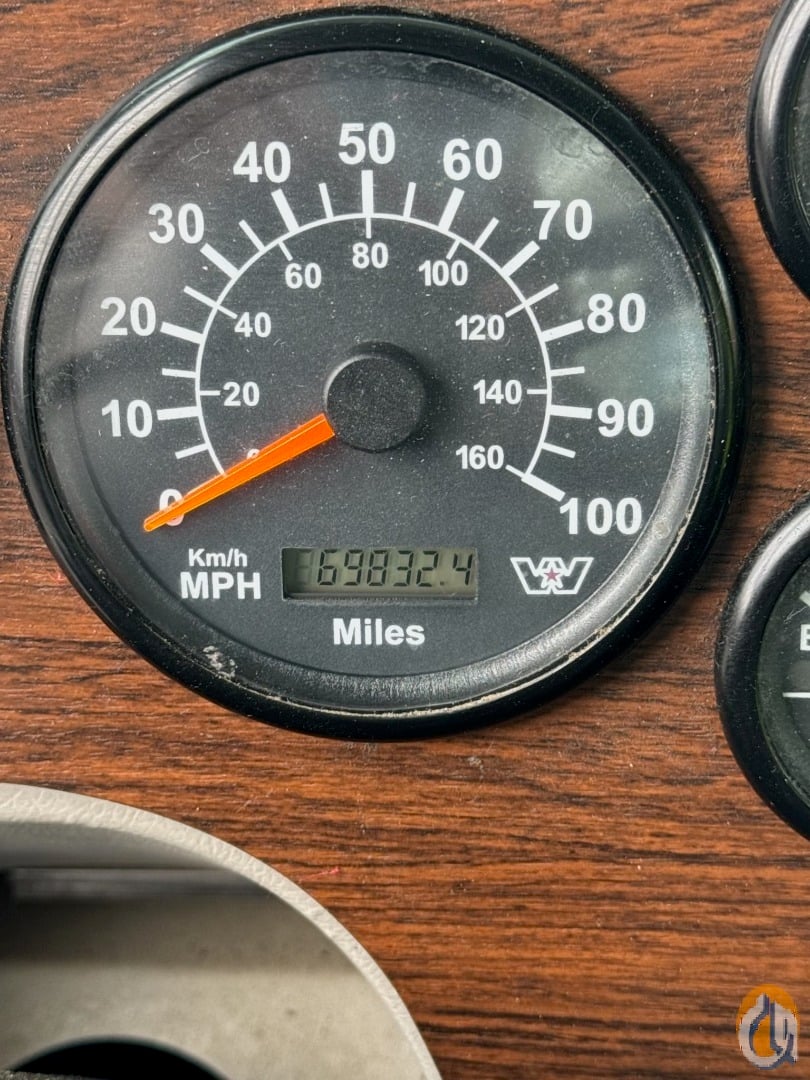

69,365 Miles | 5663 Hours

CALL FOR DETAILS AT: 1-508-769-7599

This crane was posted by:

BIK Boom Trucks

www.bikboomtrucks.com
Contact: BIK Sales Team, Sales Department
Phone: 888-557-2244
Alt Phone: 416-679-3838
Fax: 416-679-8250

Condition

Good


BIK Sales Team, 888-557-2244

BIK Boom Trucks Contact Seller Get Financing
Print
Share

Boom:

PM 65026 J1416 Knuckle Boom (new in 2015)

  • Folding Hyd 6 ext Knuckle Boom with Detachable 6 ext jib
  • 92′ Horizontal Reach
  • Main Boom Horizontal Capacity:
    • 48,500 lb @ 8’2″
    • 28,260 lb @ 14′ 5″
    • 15,340 lb @ 25′ 3″
    • 10,000 lb @ 37′,
    • 7,210 lb@ 50′ 2″
  •  Jib Horizontal Capacity:
    • 3,850 lb @ 59′ 1″
    • 3,000 lb @ 74′ 6″
    • 2,340 lb @ 81′ 1″
    • 2,100 lb @ 86′ 8″
    • 1,800 lb @ 92′
  • Maximum Lifting Moment 59 mt (429,640 ft-lbs)
  • PM Power-Link connections at Main, Knuckle & Jib Cylinders
  • Dual Planetary Gear Motors & Continuous Boom Rotation Double pilot operated on slewing and pilot operated check valves on all cylinders
  • 180 degree flip up Hydraulic Extra Wide Main outriggers at pedestal – 28′ – 7″ span
  • 360 degree full load chart stability Hydraulic Oil Cooler
  • High pressure return filter and min. 100-gallon hyd aluminum oil tank with gate valves mounted at front under deck DANFOSS Proportional Control Valve at Top Seat with Ladder Access- & SCANRECO Proportional Radio Remote Control
  • PM- Power Tronic load & function monitoring system, Digital Load Indicator at top seat & remote, electric/hyd overload protection
  • Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode

Deck:

21′ x 102″ Aluminum Flat Deck

  • Checker plate steel deck surface
  • With 1″ lip for form cages
  • Winch bar holder and winch bar
  • Ladder
  • 6 sliding winches with 3″ straps
  • Reflectors and 5-side lights
  • Complete with removable centre divider

Truck:

Used – 2015 Western Star 4700 Tri-Axle Diesel Truck: 86,000 lb GVWR

  • Truck Cab White
  • DDC-13 470 hp – 1,650 ft/lbs torque
  • Automated Eaton 18 spd Trans.
  • 20,000 lb fronts 425/65R22.5 Floatation tires on Aluminum rims
  • 22,000 lb self-steer lift axle
  • 101″ ahead of 1st drive wheel w/ 4 tires for max payload
  • 46,000 LB Rears on Chalmers Suspension with 11 R22.5 tires on steel white rims
  • 326″ wheel base
  • Full double frame chassis
  • Truck Features Include: Air Cond., AM/FM stereo, tilt/telescopic steering, power windows & locks, 2-man pass seat, chrome bumper & grill, painted ext sun visor, diff locks with rear wheel lock ups, dual hood mounted mirrors, air ride cab, single 80 gal alum fuel tank, trailer air tow package, full 4-wheel lock ups, etc …

69,365 Miles | 5663 Hours

CALL FOR DETAILS AT: 1-508-769-7599

  • Boom: 6'
  • Capacity: 65.00
  • Jib: 6'
  • Condition: Good
  • Location: Milford Massachusetts USA
