BOOM DETAILS

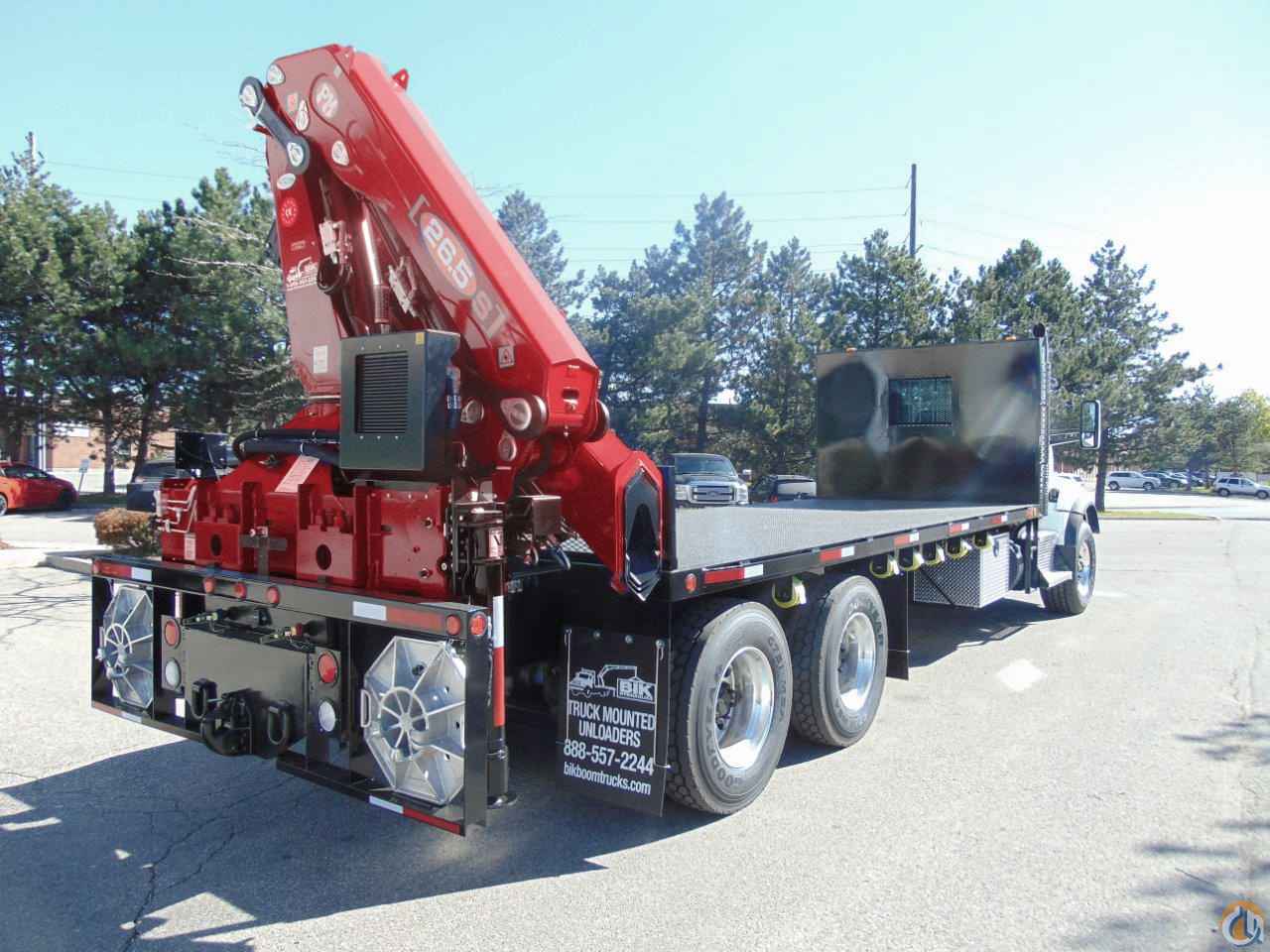

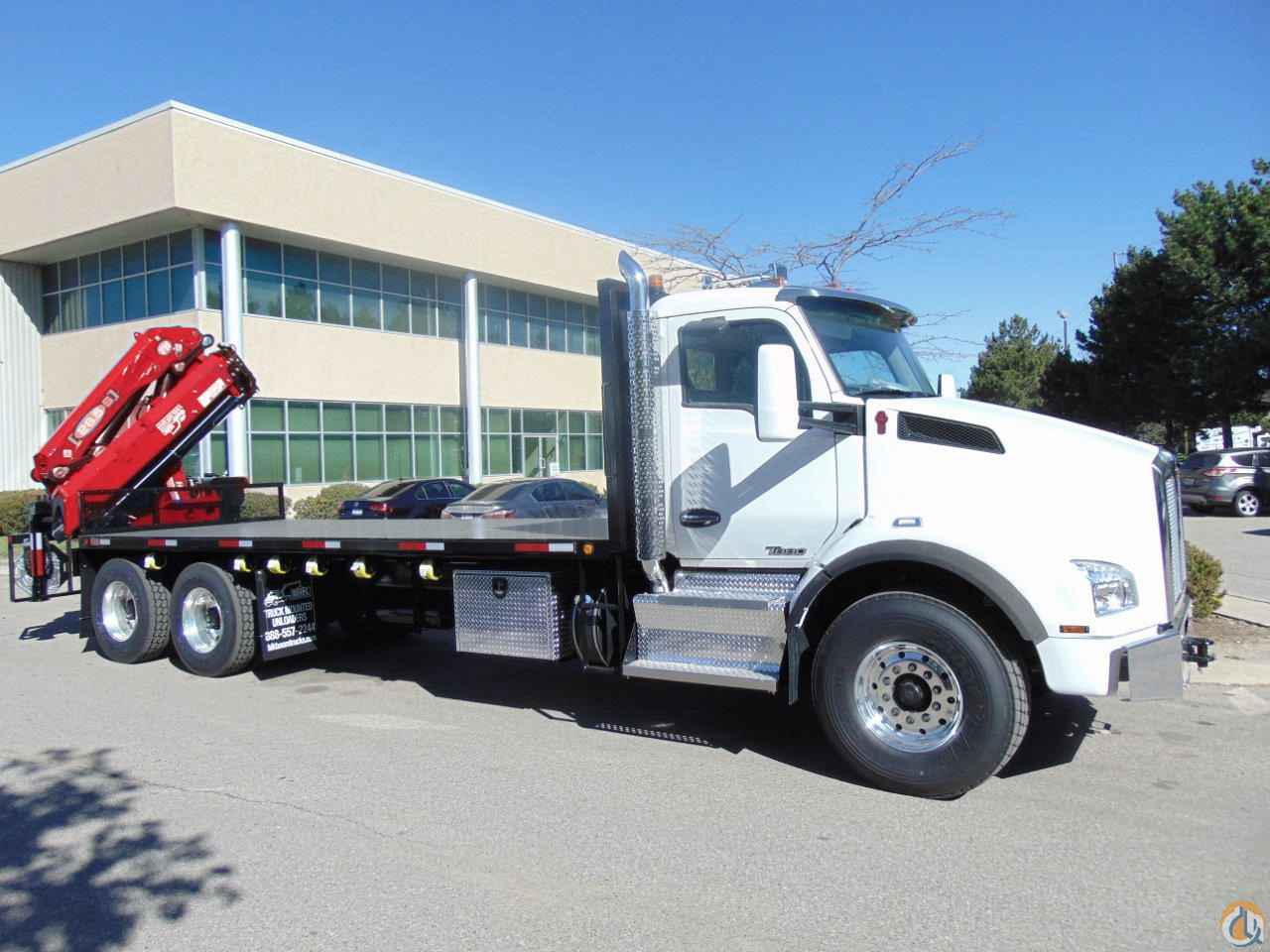

NEW – PM 26523 KNUCKLE BOOM
- Folding Knuckle Boom
- 3 Hyd Extensions to 33’ 4” Horizontal Reach (45’ Vertical)
- Horizontal Capacity:
- 12,000 lb @ 14’
- 8,400 lb @ 20’
- 6,300 lb @ 26’
- 5,000 lb @ 33’
- 408 Degrees Rotation on Main Hydraulic Slewing
- Crane Painted PM Blue
- Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
- Hydraulic Oil Cooler, High Pressure Return Filter and min. 40-Gallon Oil Tank for Boom
- DANFOSS Proportional Valve Controls – Single-Sided Operator Control Station
- SCANRECO Radio Remote Control – Electronically Actuated Controller, Proportional Precision and Ultimate Operator Feel and Control
- Radio Remote Includes: 5 Micro Speed-Reducing Settings from Handheld Unit, Emergency Stop, 2 Batteries with In-Cab Charger, 50’ Back-up Cord
- Hydraulic OUT and Hydraulic DOWN 2-Sided Stabilizers w/Round Foot Pads Welded to Bottom of Cylinder
- 15 Degree Negative Angle on Folding Arm – Hydraulic Overload Protection – Simplified System that Prevents Boom from Overload
- Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
- Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear, and Improved Precision
- Installed End of Frame, with Integral Sub-Frame to Meet or Exceed all CMVSS Standards, Stability Tested & Certified by Engineer
