BOOM DETAILS
NEW – PM 11023 KNUCKLE BOOM: MANUAL OUT & DOWN STABILIZERS, 3 HYD EXTENSIONS TO 30’ HORIZONTAL REACH (42’ VERTICAL)
- Horizontal Capacities:
- 11,680 lb @ 6’ 5”
- 5,490 lb @ 13’ 7”
- 3,541 lb @ 19’
- 2,480 lb @ 25’
- 2,050 lb @ 30’

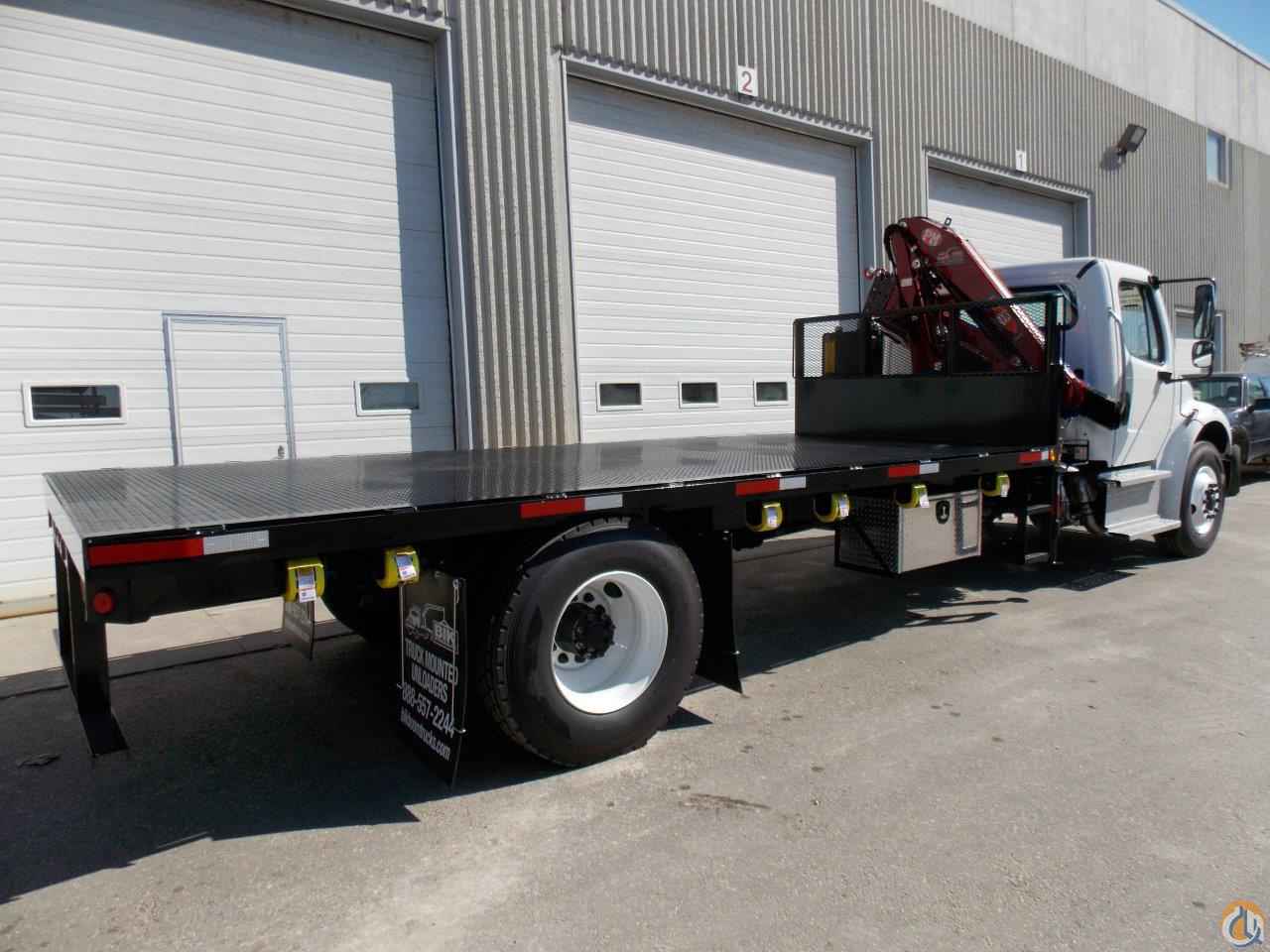

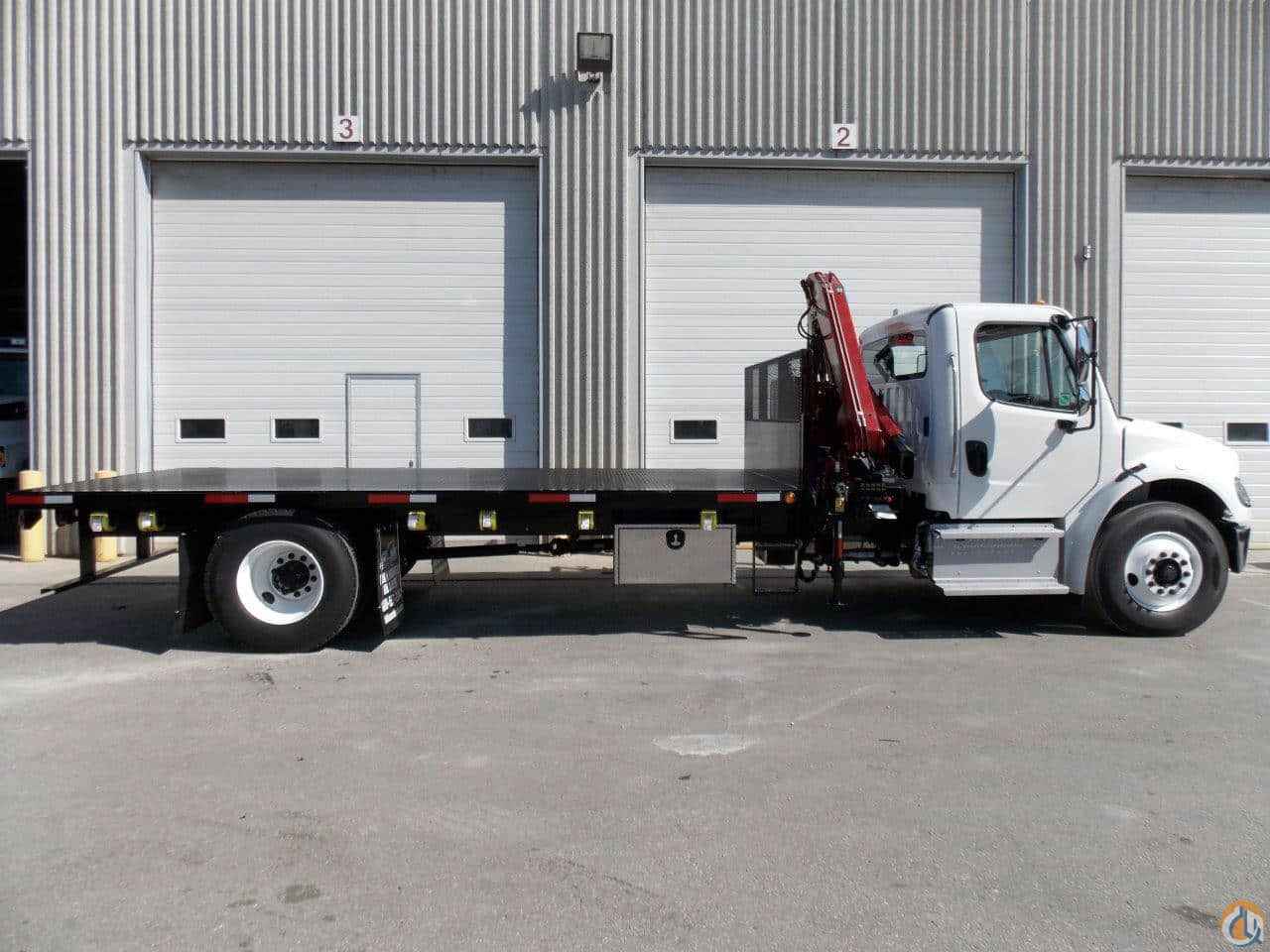

- Installed Behind the Cab on Custom, Sub-Frame by BIK, Prepped, Primed and Painted
- New Air Operated PTO, Hydraulic Pump
- Supply and Return Lines, Hydraulic Tank Mounted on Pedestal w/Shut-off Valve
- Load Testing and Operator Orientation
- Standard Features Include:

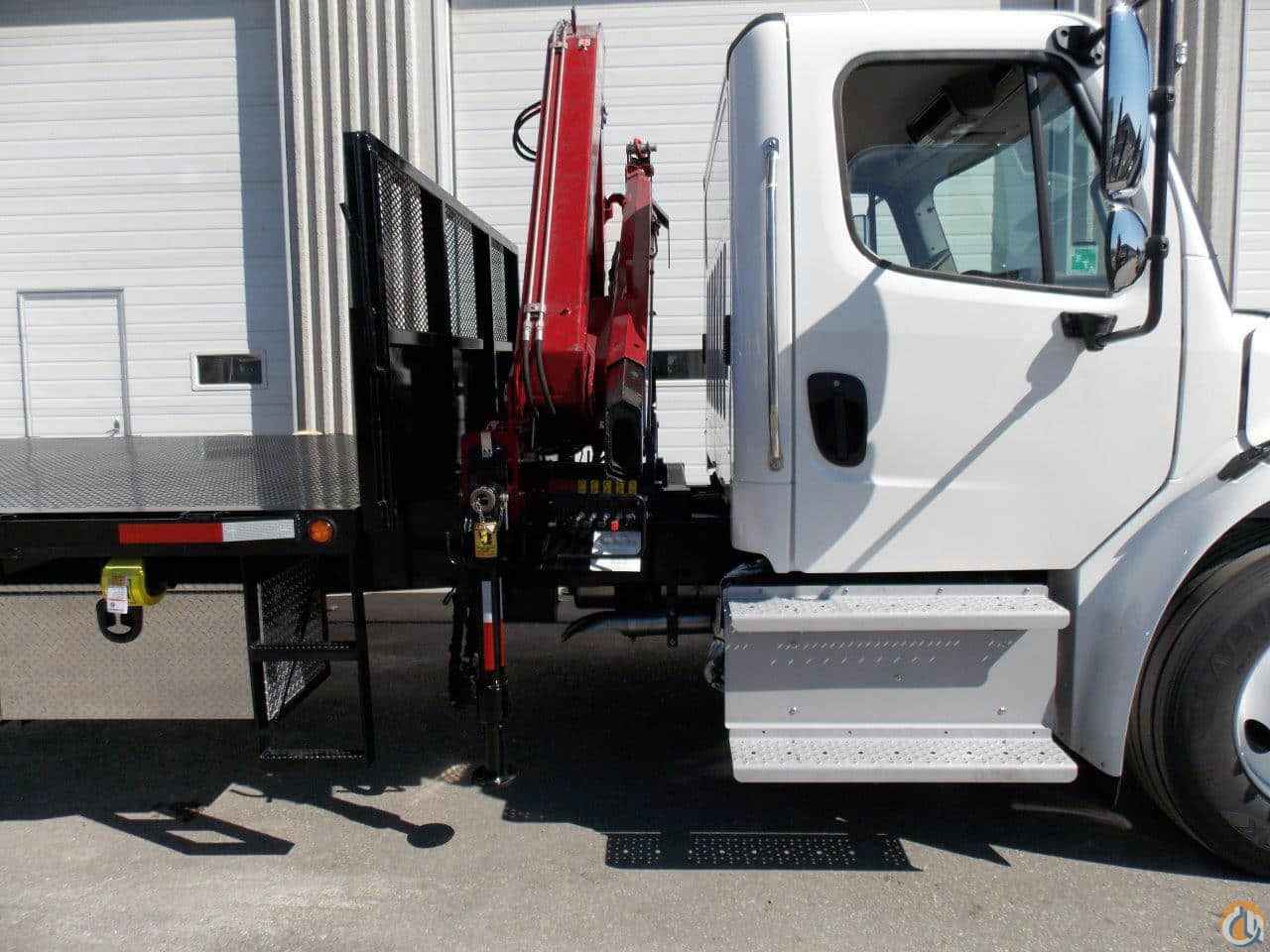

- Manual Out and Hydraulic Down Outriggers w/Round Foot Pads Welded to Bottom of Stabilizers
- Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
- Sequential Boom Extensions
- Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear and Improved Precision – 390-Degrees Rotation

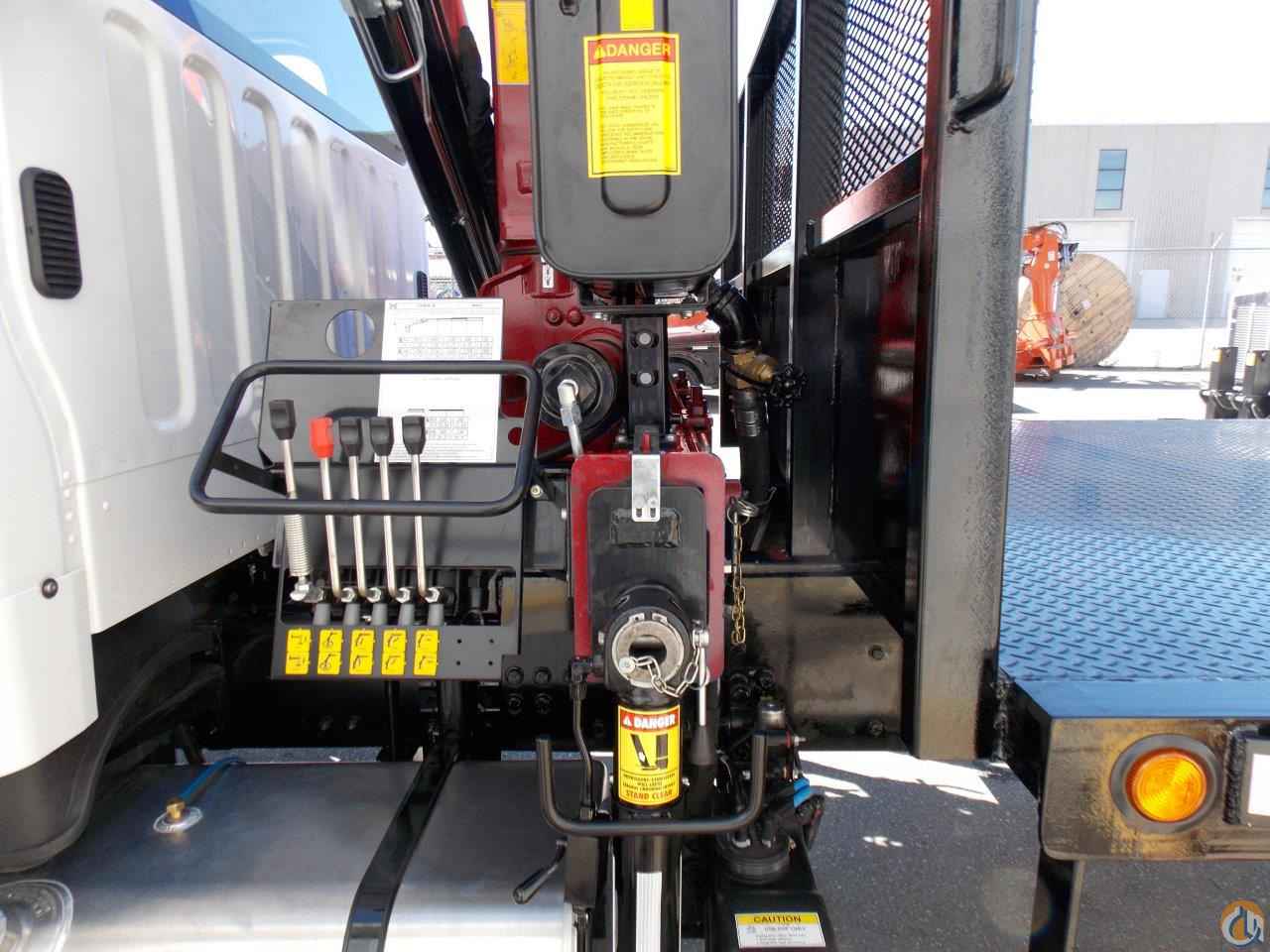

- Dual Sided Ground Controls
- Installed Back of Cab with Integral Sub-Frame to Meet or Exceed all CMVSS Standards
- Load Tested, Stability Certification by Engineer
