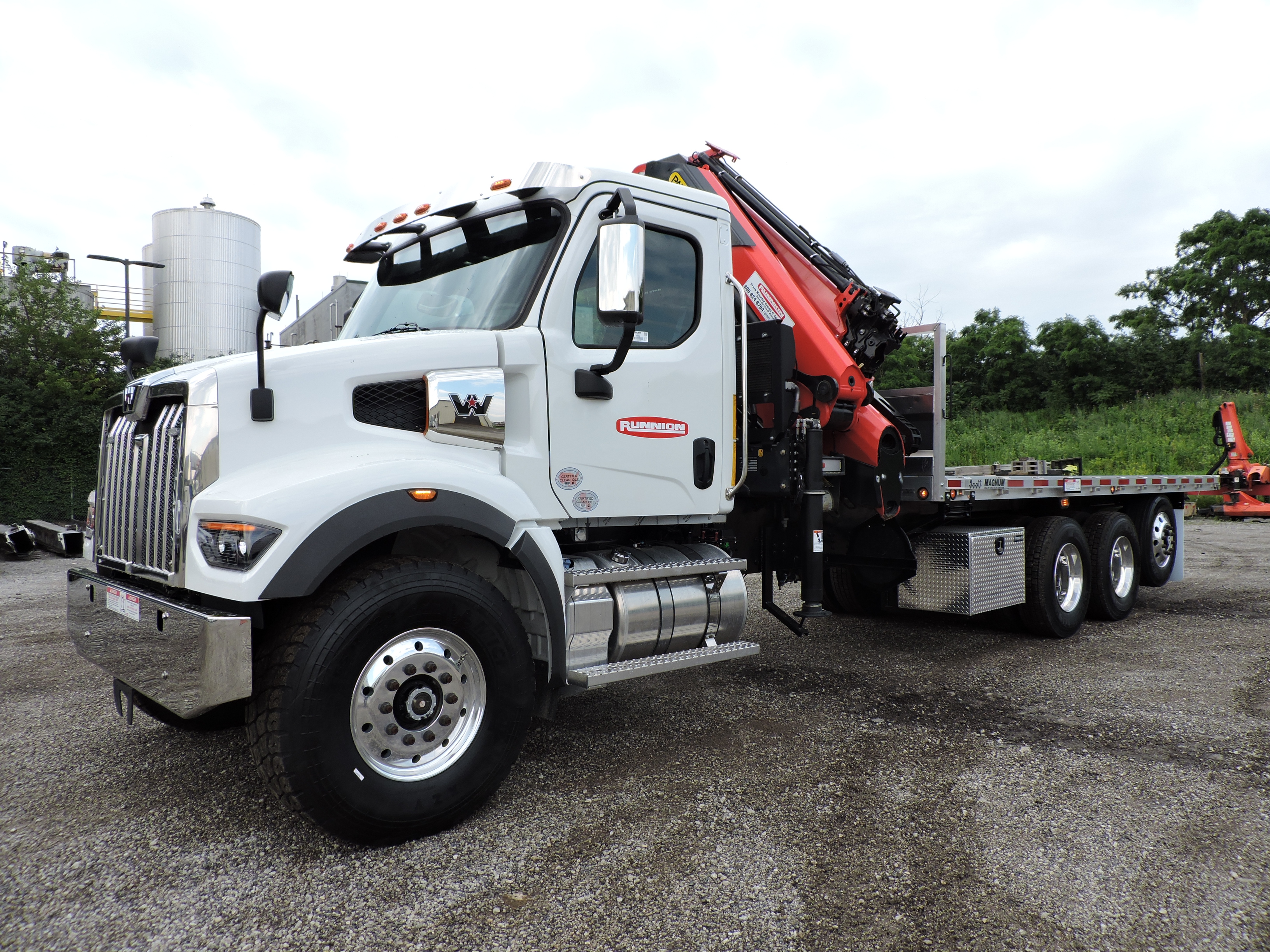

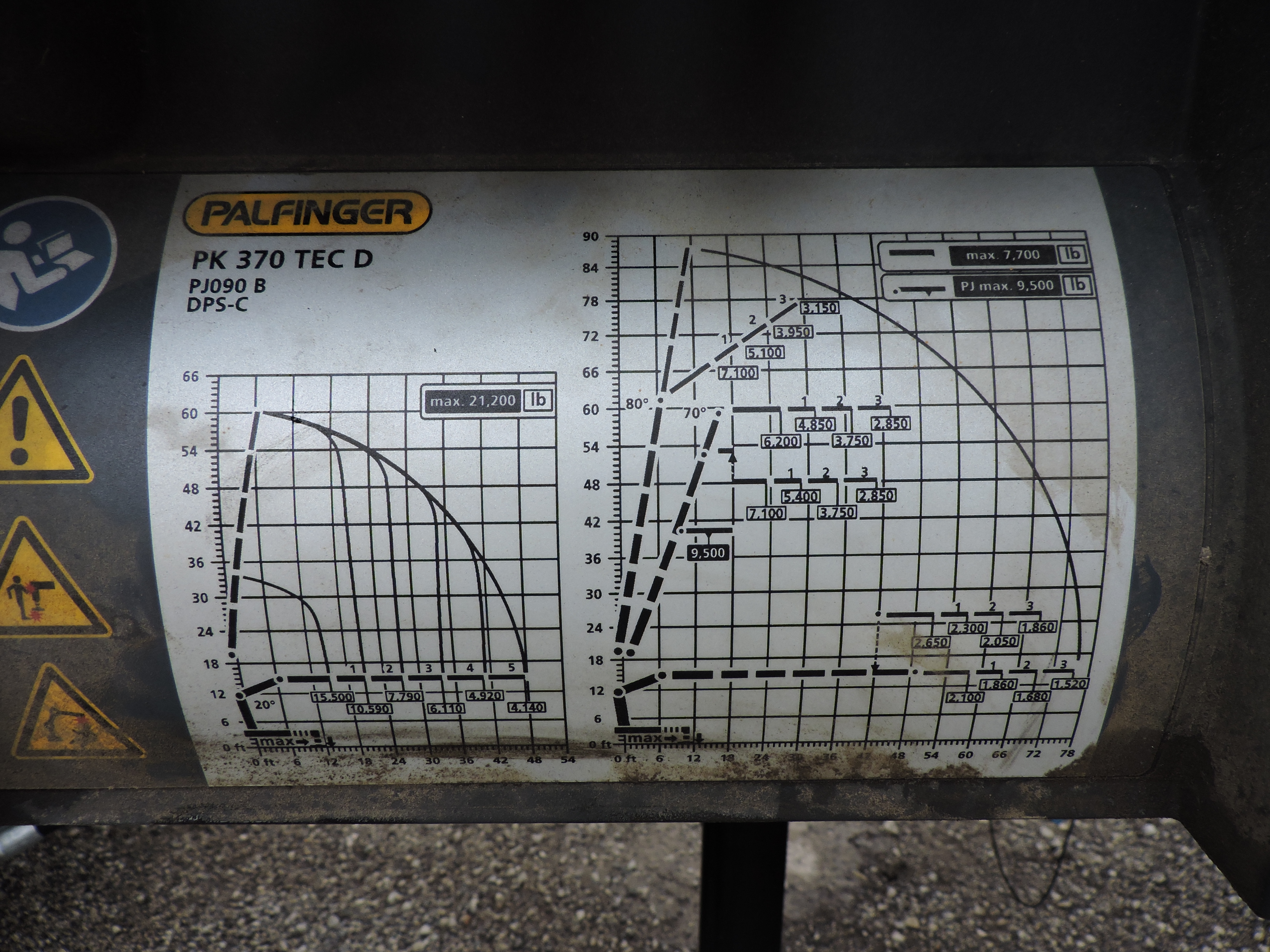

Palfinger PK370 TEC equipped as follows:

-          Maximum lifting moment 35.0 mt (253,180 ft/lb)

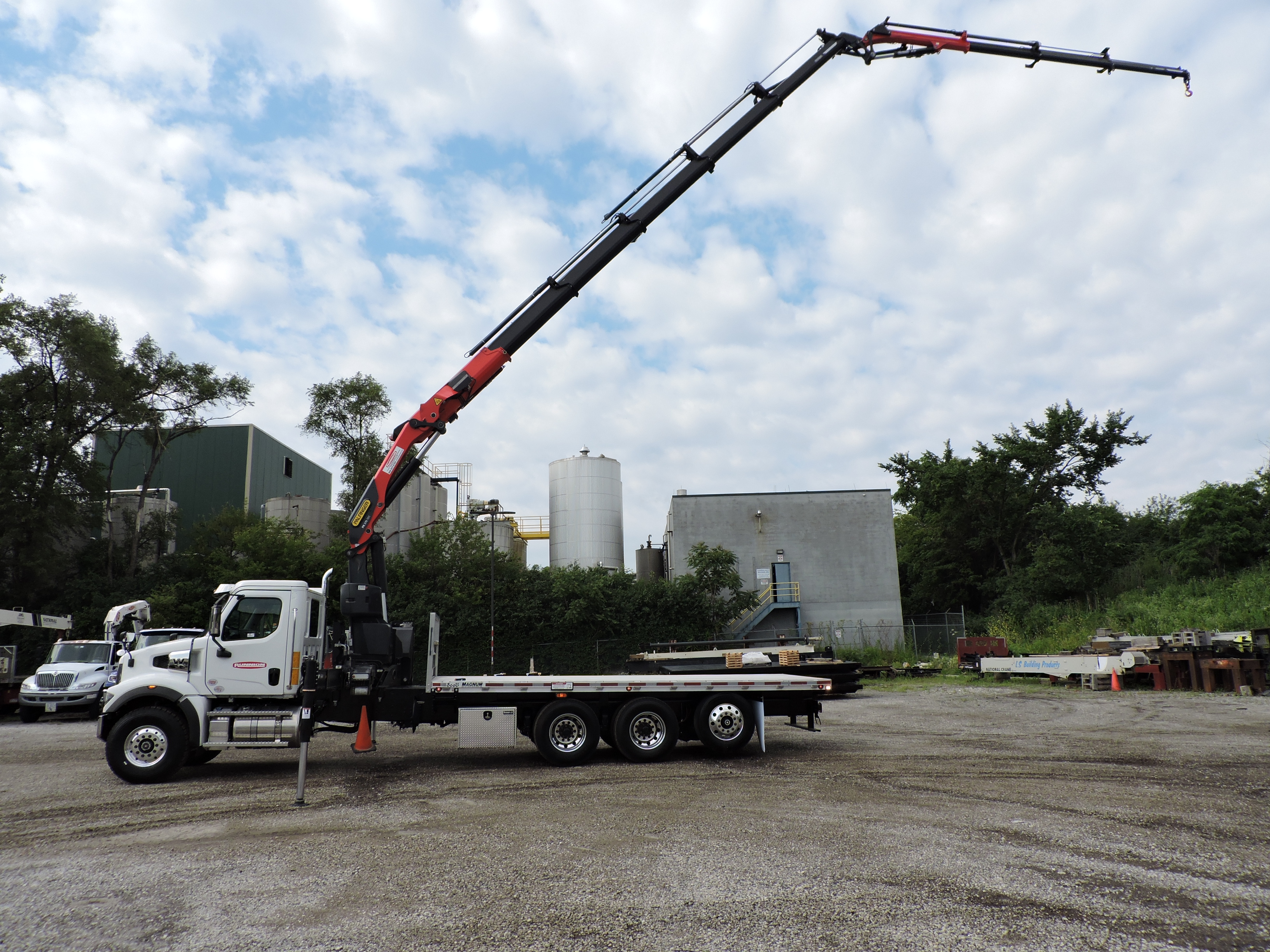

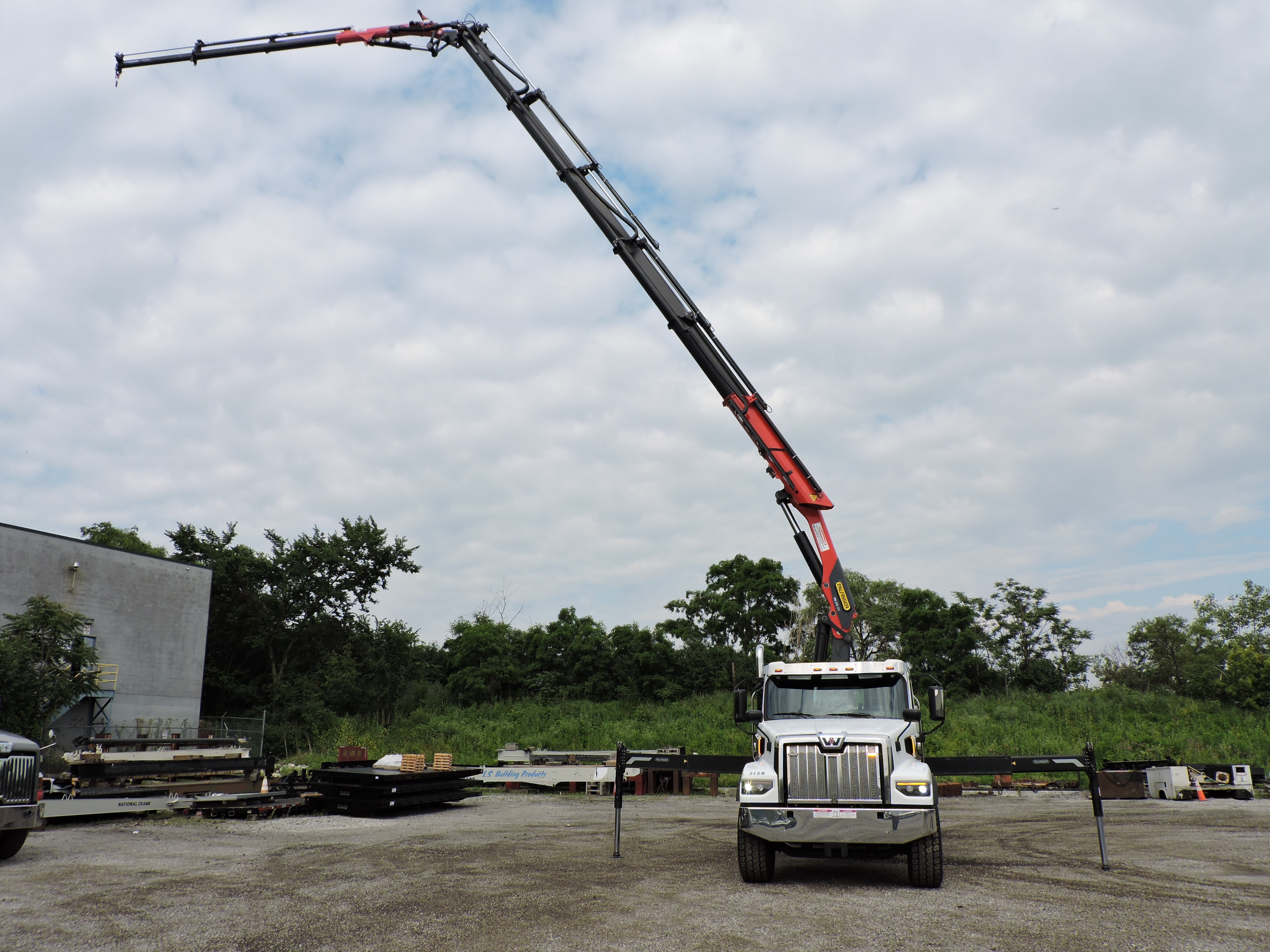

-          5-section hydraulic boom extension to 48’3”

-          PJ090B articulated fly-jib with 3 hydraulic extensions to 76’0”

-          Acoustic and Optical Overload Warning

-          Double linkage with 15 degree Power Link Plus

-          Continuous rotation

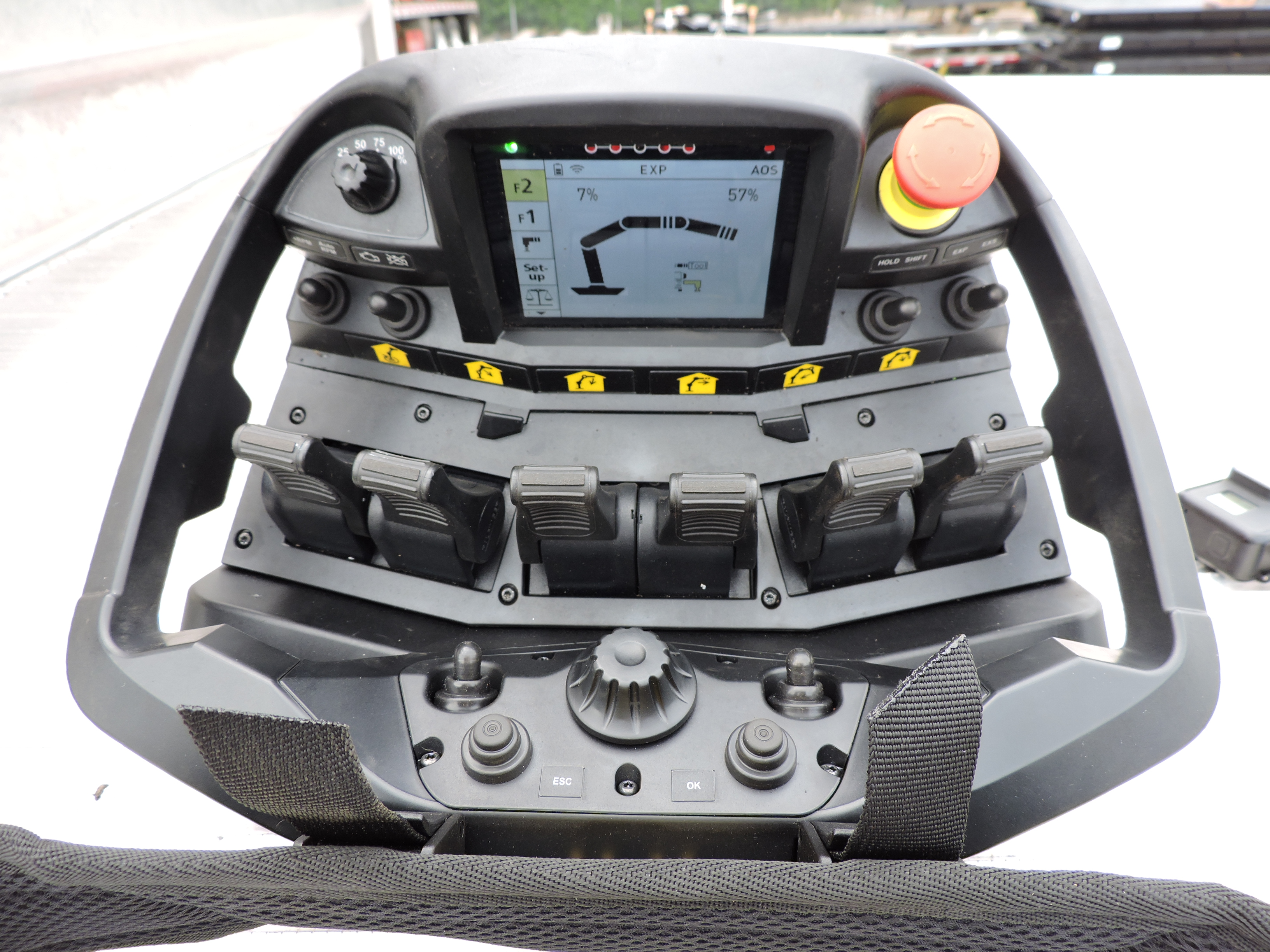

-          PALcom P7 radio remote control with 4.1" TFT color display.  Linear lever control, LED function lighting, Intelligent charging station, Waist Belt, Rollover and acceleration sensor. Transmitter, receiver, 32'9" remote control cable back-up, battery charger, 2 batteries.  Additional functions:  Acceleration +/- and engine start/stop, 1 panel for 3 spare functions

-          Paltronic 180 overload protection system

-          P-Fold Assistance System – Assists the operator in unfolding and folding the crane

-          Load Weight Display – displays the weight of the load directly from the crane display

-          Boom Extension Monitoring - Length Measuring sensor on the crane and Fly-jib extension systems to detect the position of the boom system

-          Active Oscillation Suppression System – equalizes vertical oscillations caused by crane operation and sudden load changes to reduce shock loading of crane

-          R4XH telescopic outriggers hydraulically extendable to 24’3”

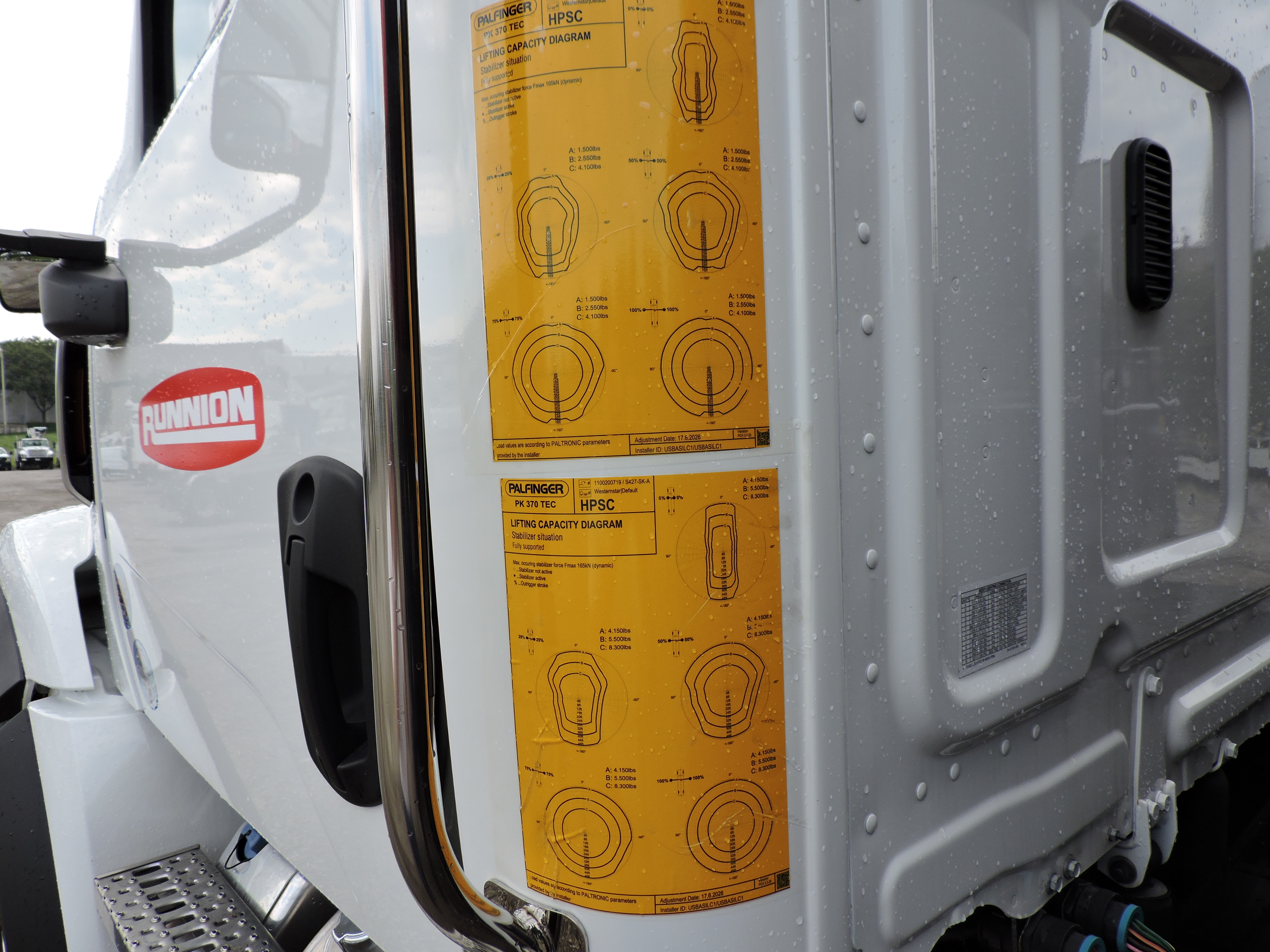

-          HPSC - Capacity limitation related to positioning of crane supports. Variable position of outrigger beams and stabilizers (ground contact or no ground contact) are recorded at crane set-up. Display of system settings at outrigger control valves

-          Two (2) PVC stabilizer shoes 19 3/4” diameter. Slides onto stabilizer plate, with rope handle and storage bracket, installed

-          Bubble level at both outrigger control stations

-          Load holding valves on rotation, inner, outer, and extension cylinders

-          Return oil utilization

-          Load sense pump

-          47.6-gallon oil tank – mounted on crane base

-          14 HP Oil cooler

-          17,640# roller bearing load hook

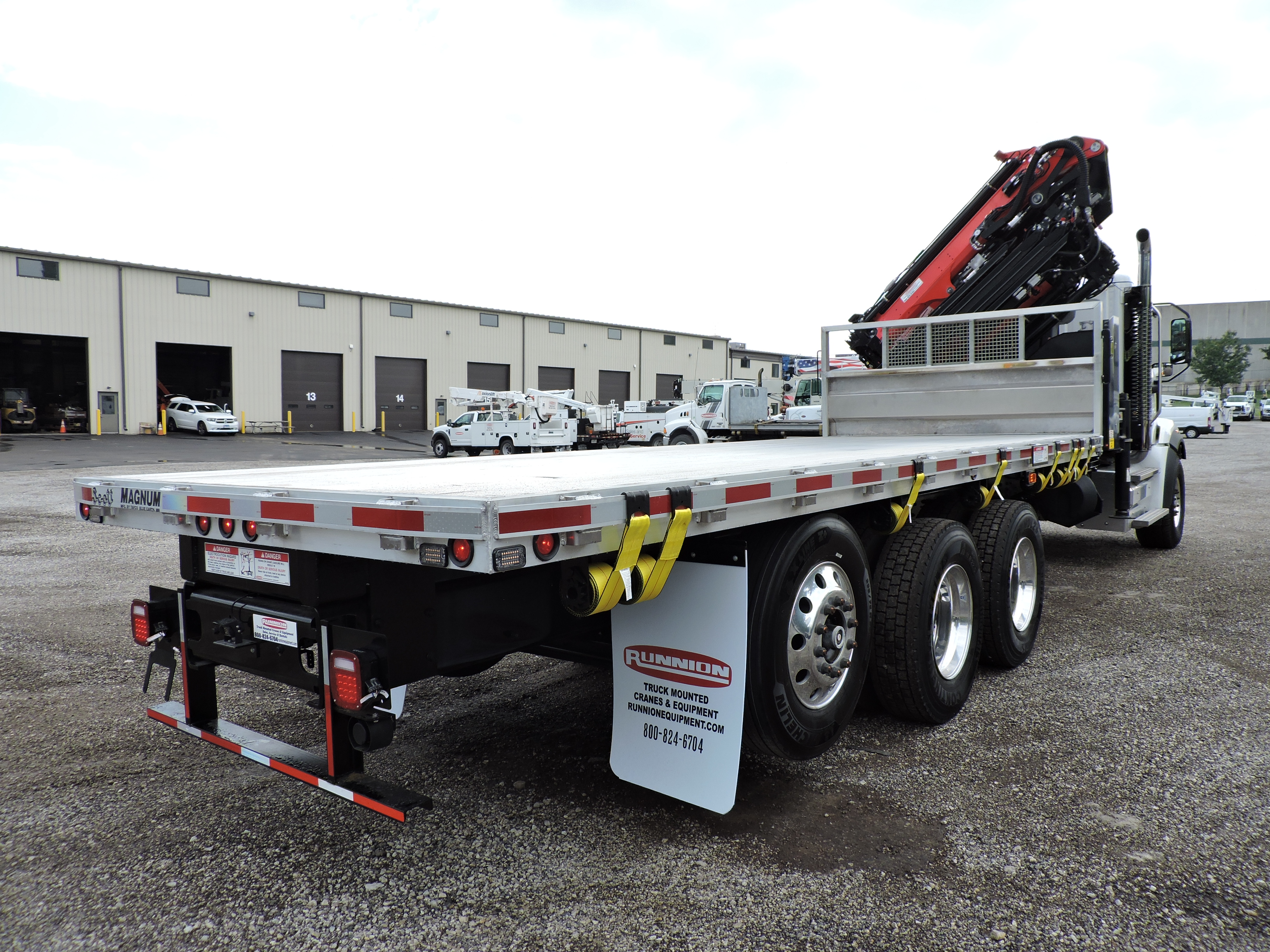

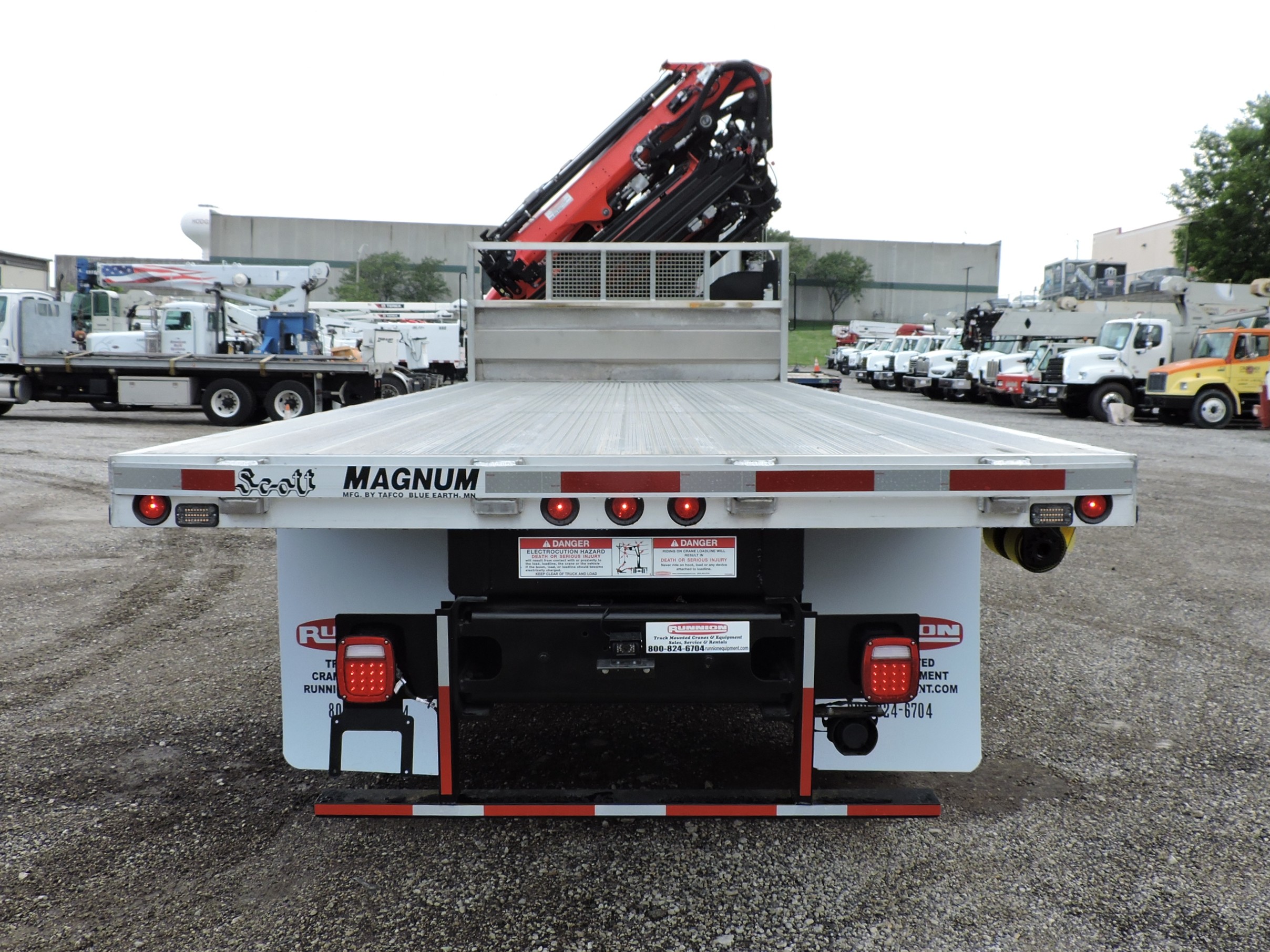

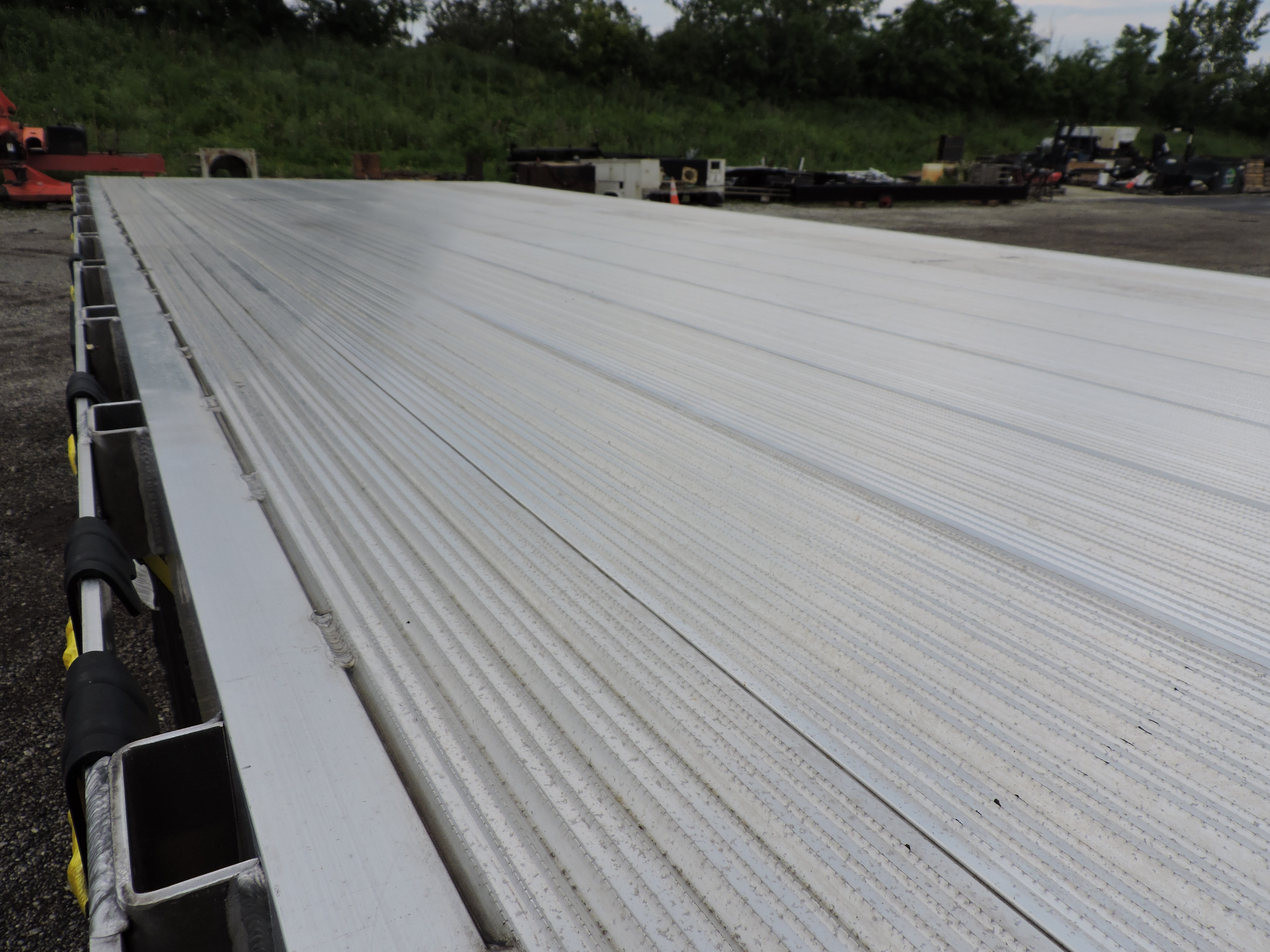

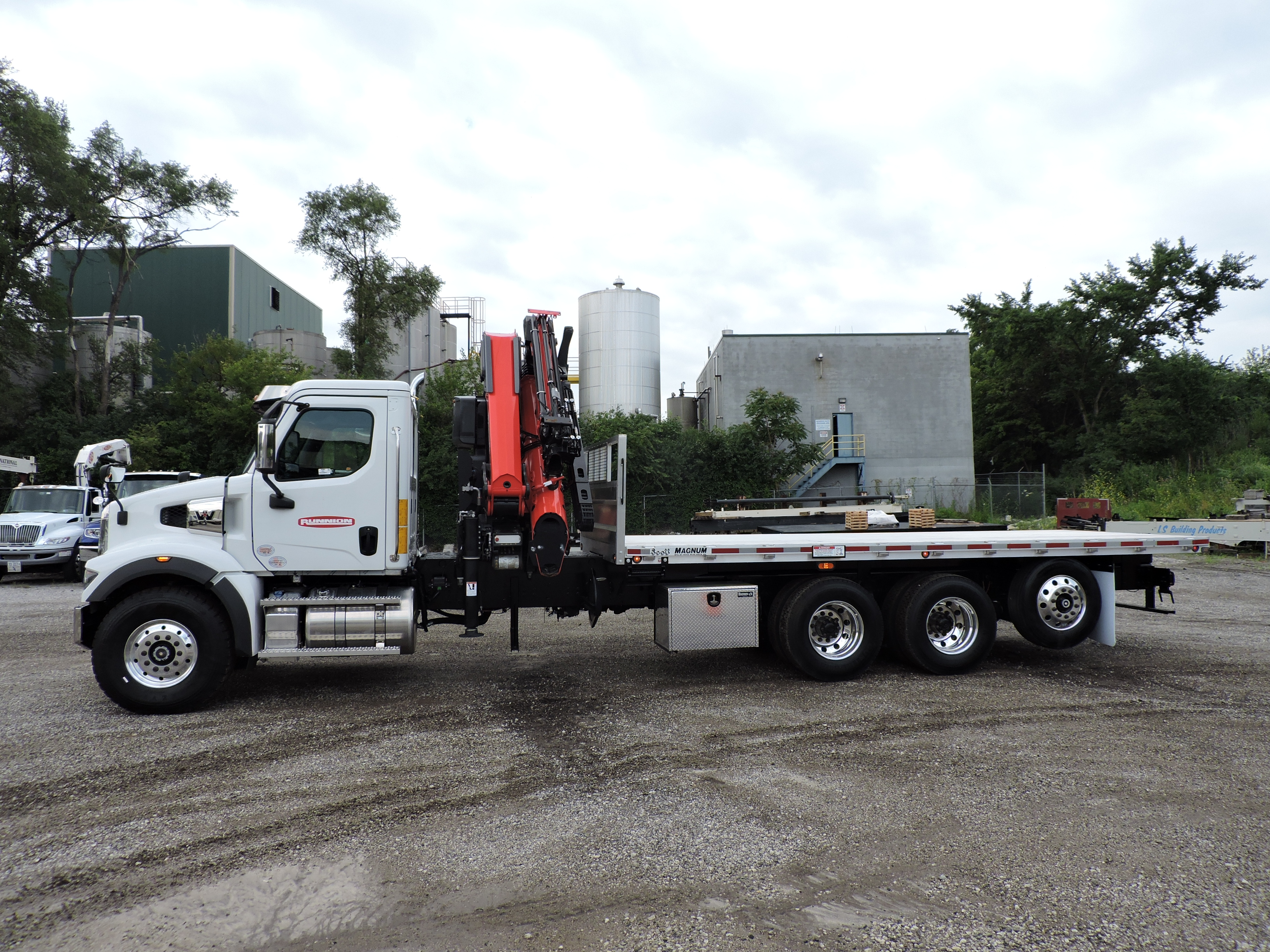

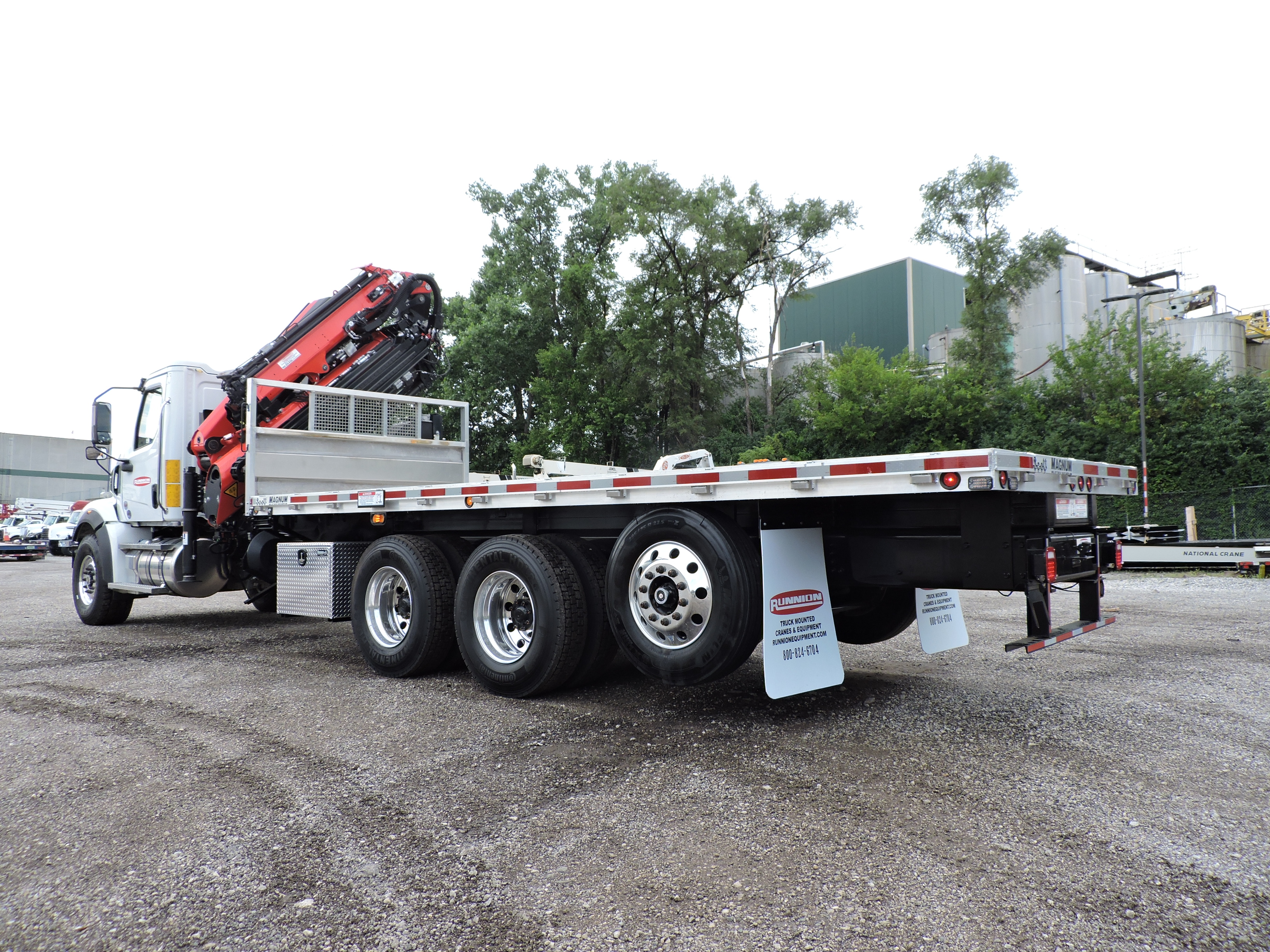

-          22’ x 102” aluminum flatbed with underside sliding winch track and straps

-          42” bulkhead



Mounted Back of Cab on:

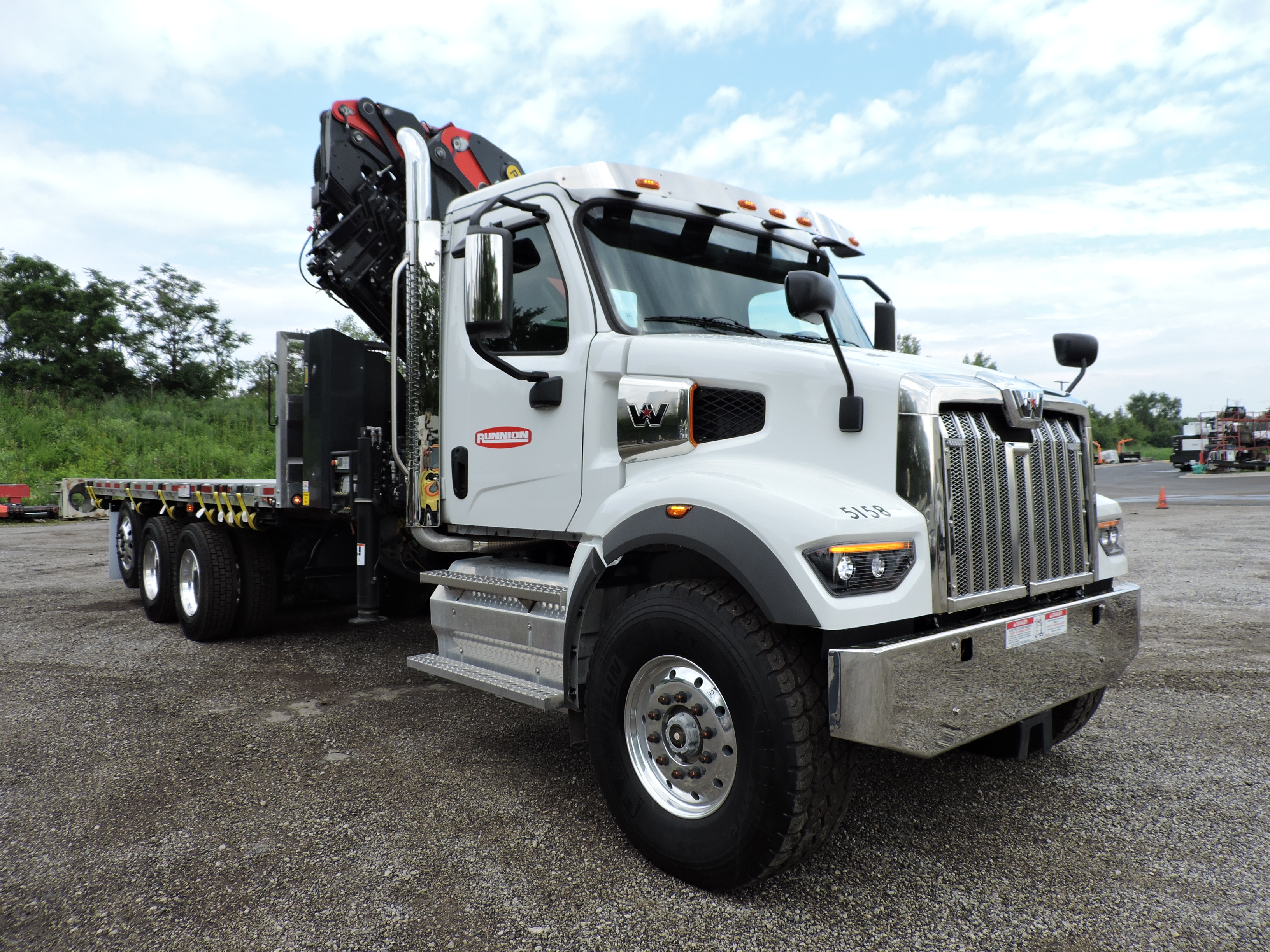

2025 Western Star 47X equipped as follows:

-          Cummins X12 455V hp @ 1,900 rpm, 1,700 lb-ft @1,000 rpm

-          Engine block heater

-          Allison 4500 RDS automatic transmission

-          20,000lb front axle with 23,000lb flat leaf front suspension

-          46,000lb rear axle with Airliner suspension

-          13,500lb steerable tag axle

-          Differential lock tandem axles

-          Winch brake on front axle

-          Air dryer with heater

-          Tires:  FR –425/65R22.5 front tires

-          Tires:  RR –11R22.5 rear tires

-          Tires:  TR –275/80R22.5 tag tires

-          Aluminum wheels with polished outer finish

-          80-gallon fuel tank

-          Unpolished aluminum DEF tank cover

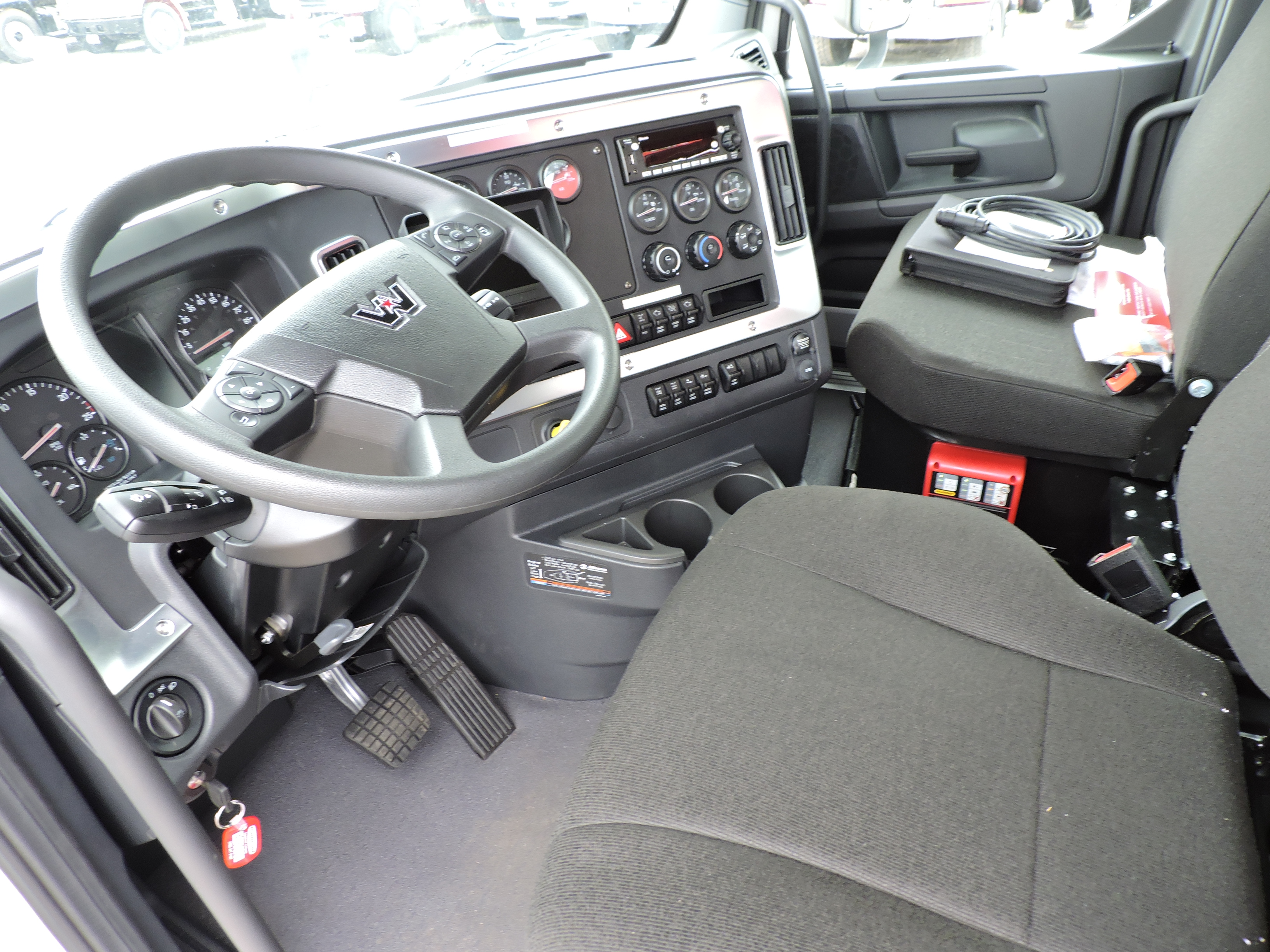

-          Driver’s Seats – Air ride, high back, black Mordura

-          Passenger Seat – Mid back, battery box, black Mordura

-          Adjustable steering column - tilt/telescope

-          Power door locks with keyless entry

-          Air conditioner

-          Bright steel bumper

-          Exterior sun visor, stainless steel

-          Air horn

-          AM/FM/WB radio with Bluetooth, USB, and Aux inputs

-          Heated mirrors

-          Triangle reflector kit

-          5lb fire extinguisher

-          Painted white
