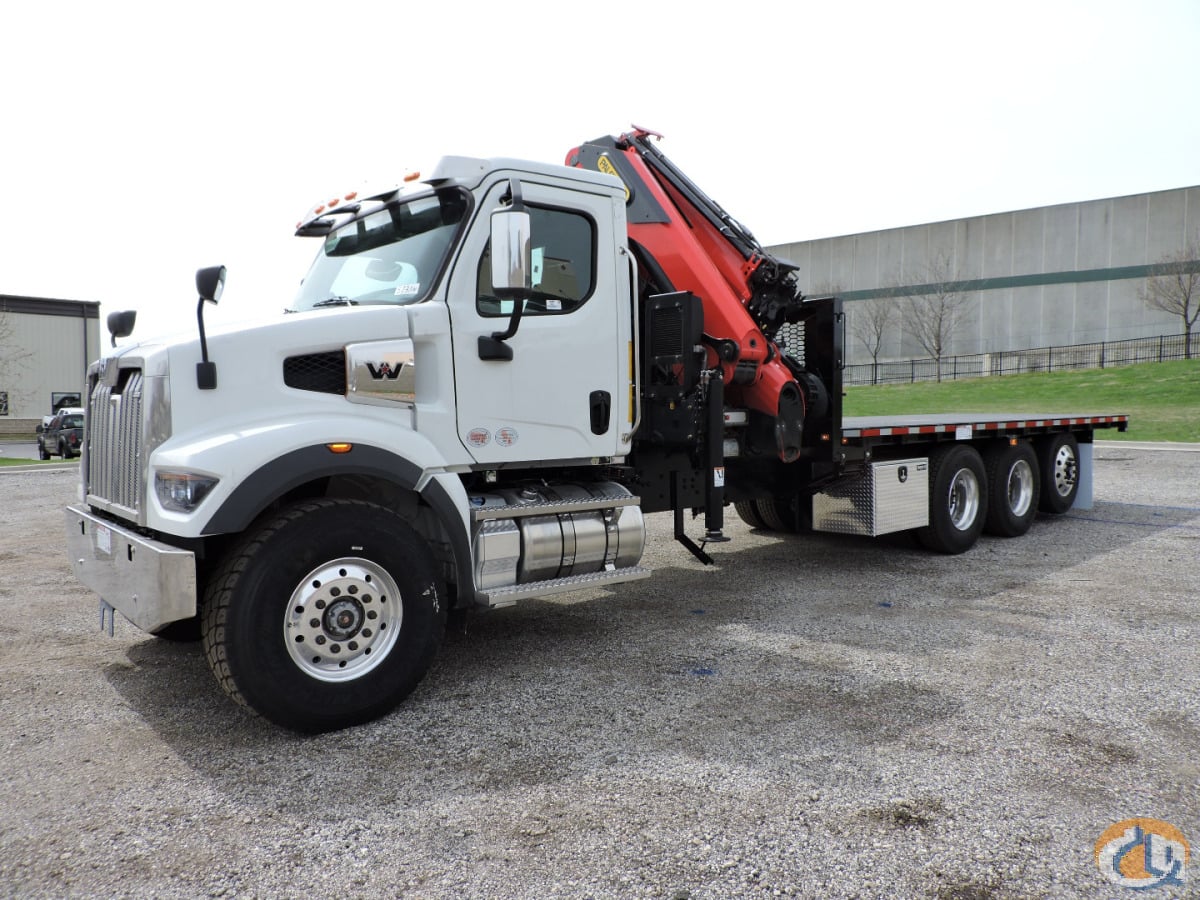

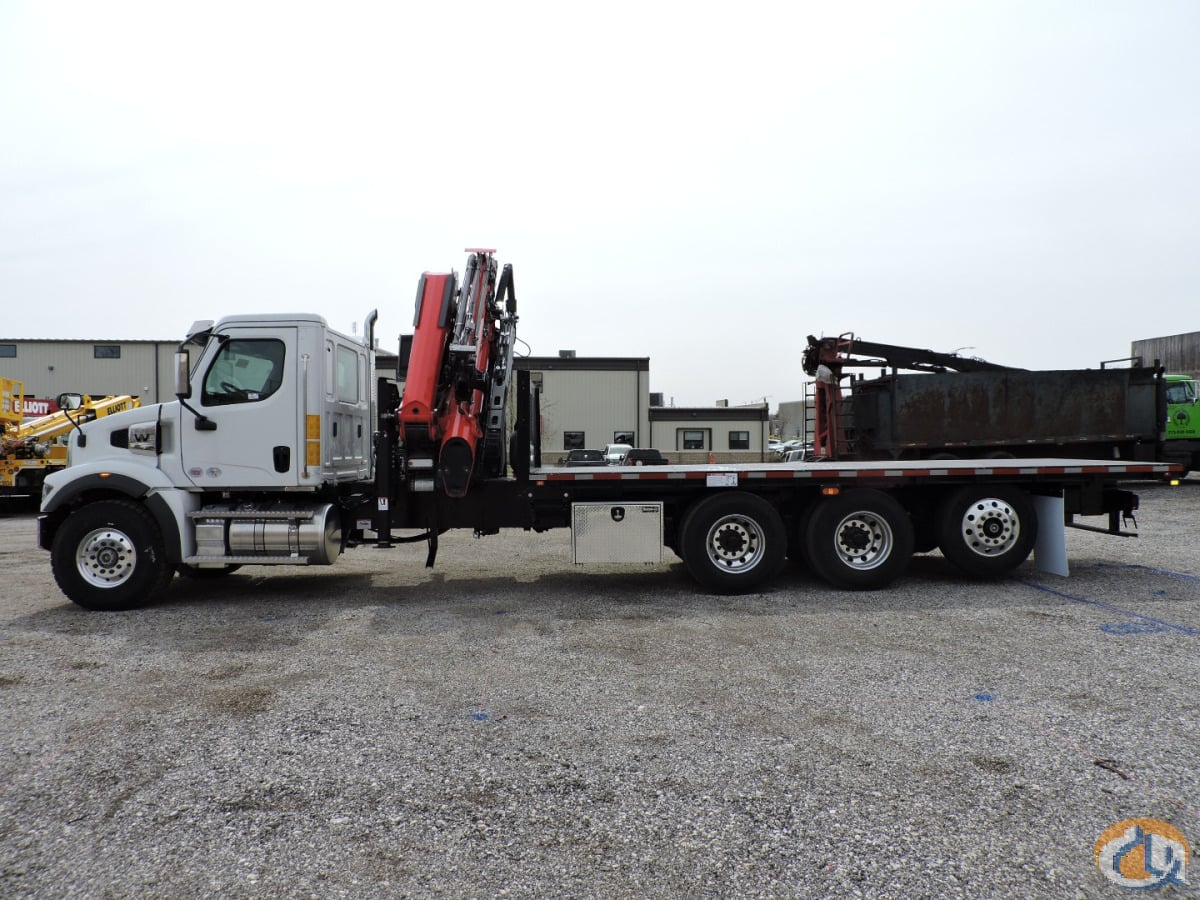

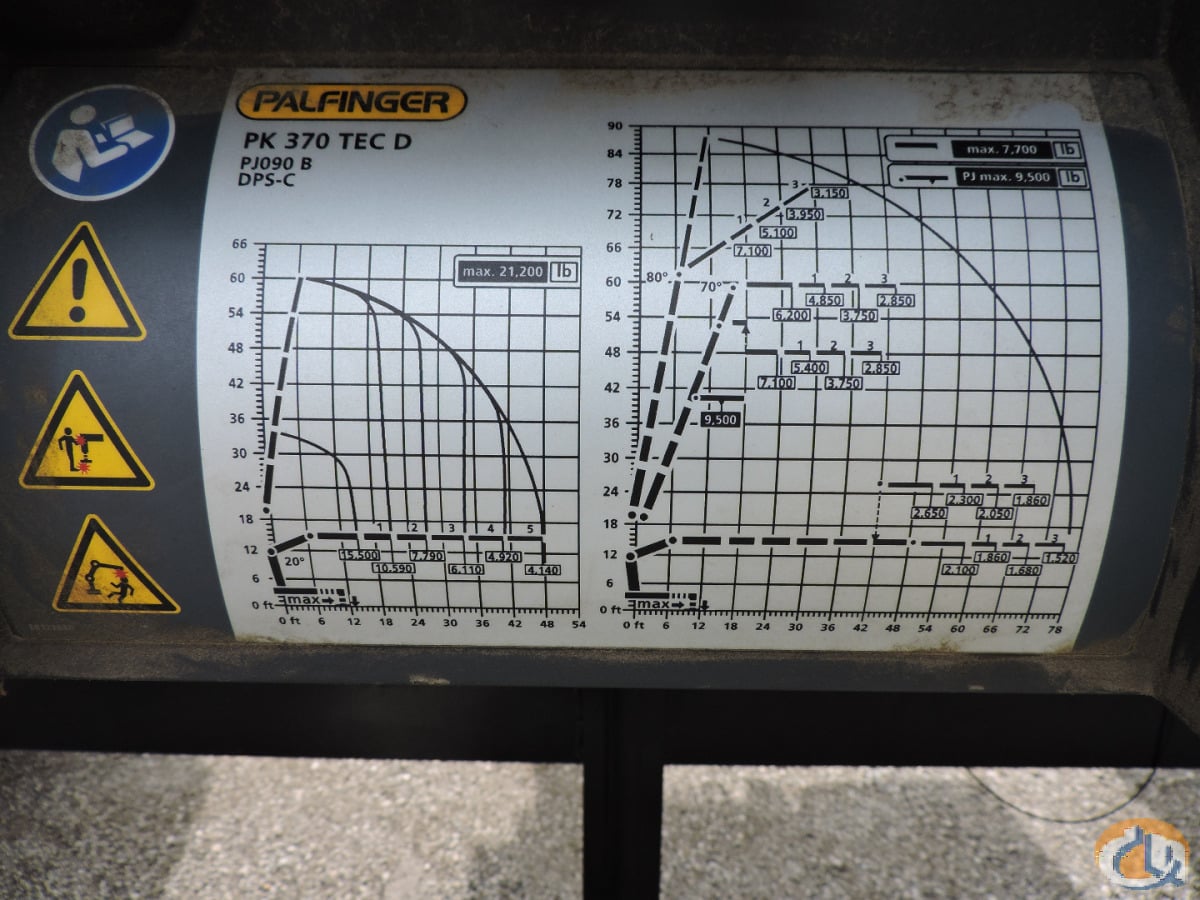

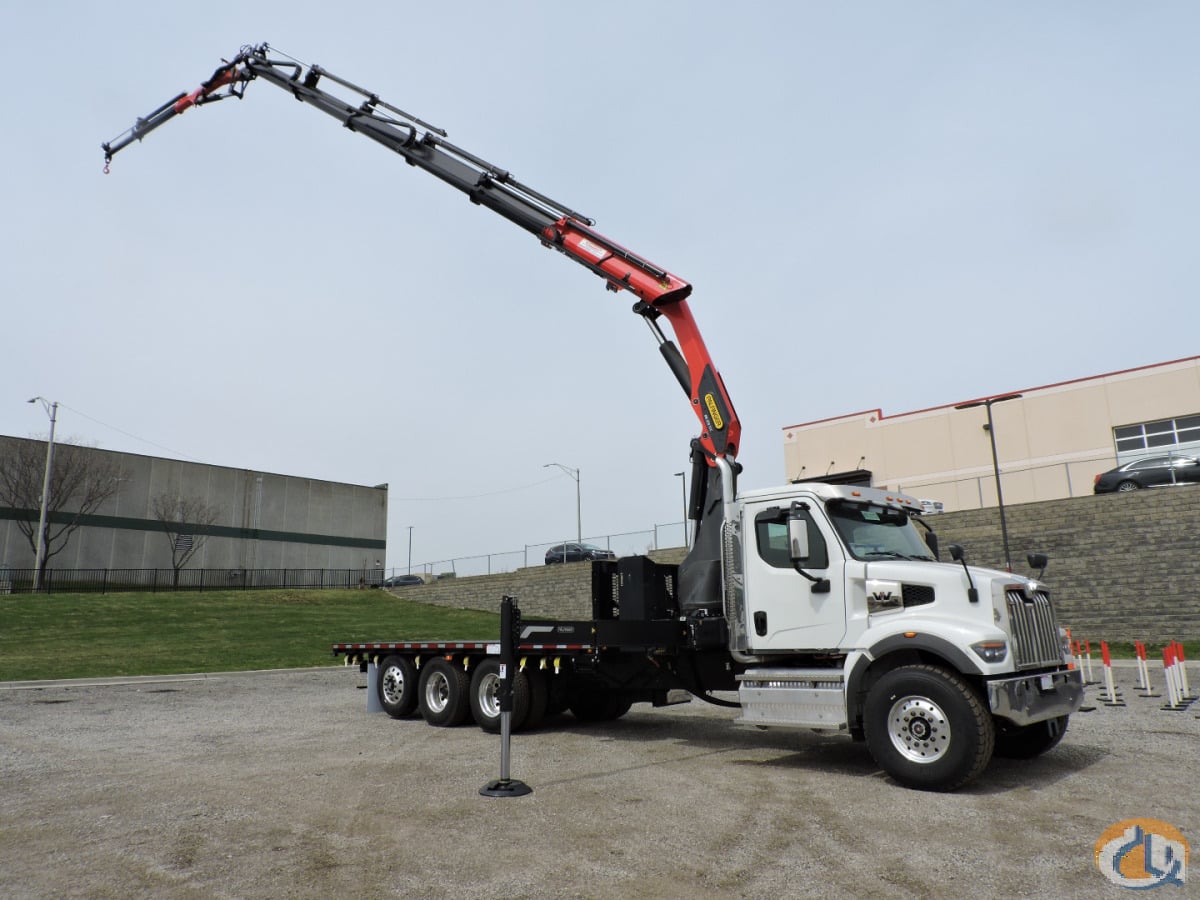

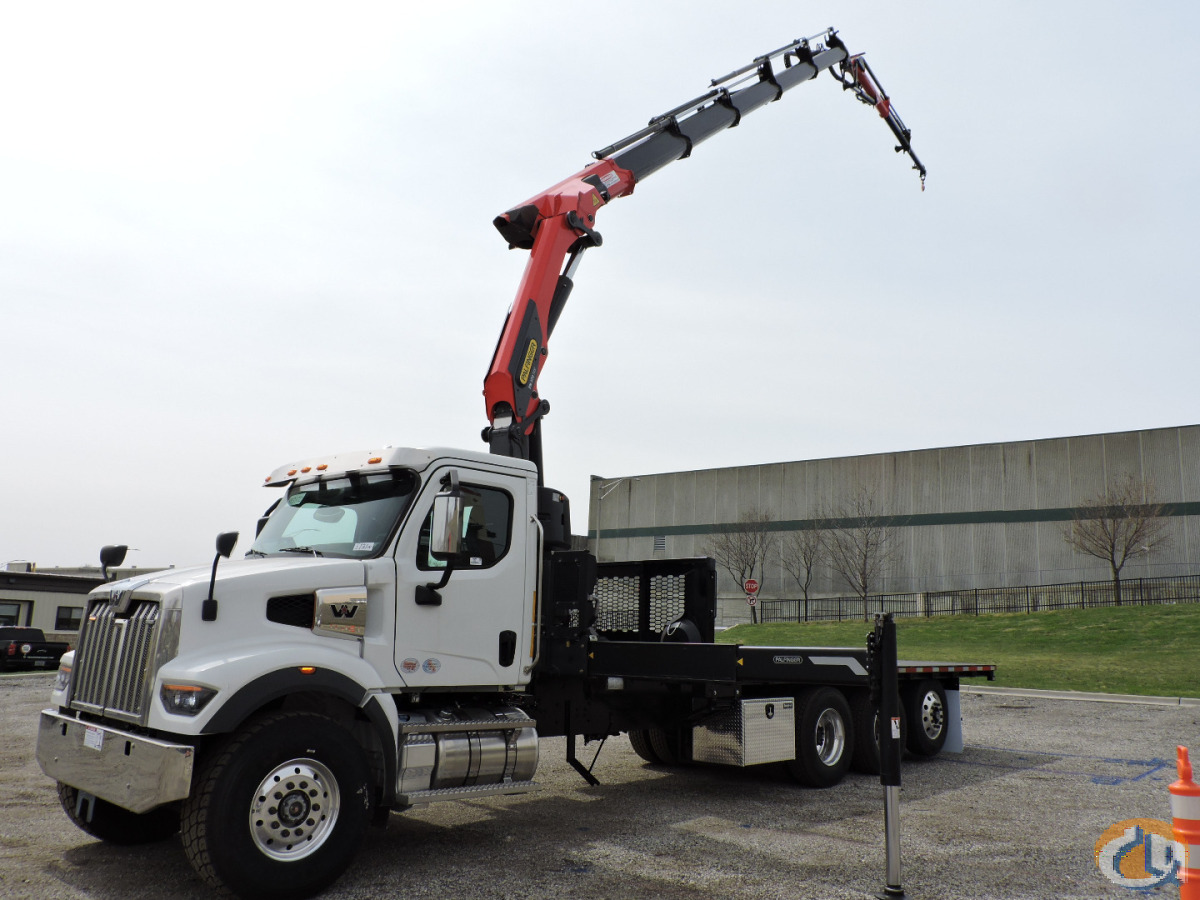

Palfinger PK370 TEC equipped as follows:

-          Maximum lifting moment 35.0 mt (253,180 ft/lb)

-          5-section hydraulic boom extension to 48’3”

-          PJ090B articulated fly-jib with 3 hydraulic extensions to 76’0”

-          Crane and fly-jib boom extension monitoring – length measuring sensor on the cranes extension system to detect the position of the boom system.

-          R4XH telescopic outriggers hydraulically extendable to 24’3”

-          Two (2) PVC stabilizer shoes 19 3/4” diameter. Slides onto stabilizer plate, with rope handle and storage bracket, installed.

-          Paltronic 180 overload protection system

-          Acoustic and Optical Overload Warning

-          Double linkage with 15 degree Power Link Plus

-          Continuous rotation

-          PALcom P7 radio remote control with 4.1" TFT color display.  Linear lever control, LED function lighting, Intelligent charging station, Waist Belt (BELT01), Rollover and acceleration sensor. Transmitter, receiver, 10 m (32'9") remote control cable back-up, battery charger, 2 batteries.  Additional functions:  Acceleration +/- and engine start/stop, 1 panel for 3 spare functions

-          P-Fold Assistance System – Assists the operator in unfolding and folding the crane

-          Load Weight Display – displays the weight of the load directly from the crane display

-          Boom Extension Monitoring - Length Measuring sensor on the crane and Fly-jib extension systems to detect the position of the boom system.

-          Active Oscillation Suppression System – equalizes vertical oscillations caused by crane operation and sudden load changes to reduce shock loading of crane

-          Bubble level at both outrigger control stations

-          Load holding valves on rotation, inner, outer, and extension cylinders

-          Return oil utilization

-          Load sense pump

-          47.6-gallon oil tank – mounted on crane base

-          14 HP Oil cooler

-          17,640# roller bearing load hook

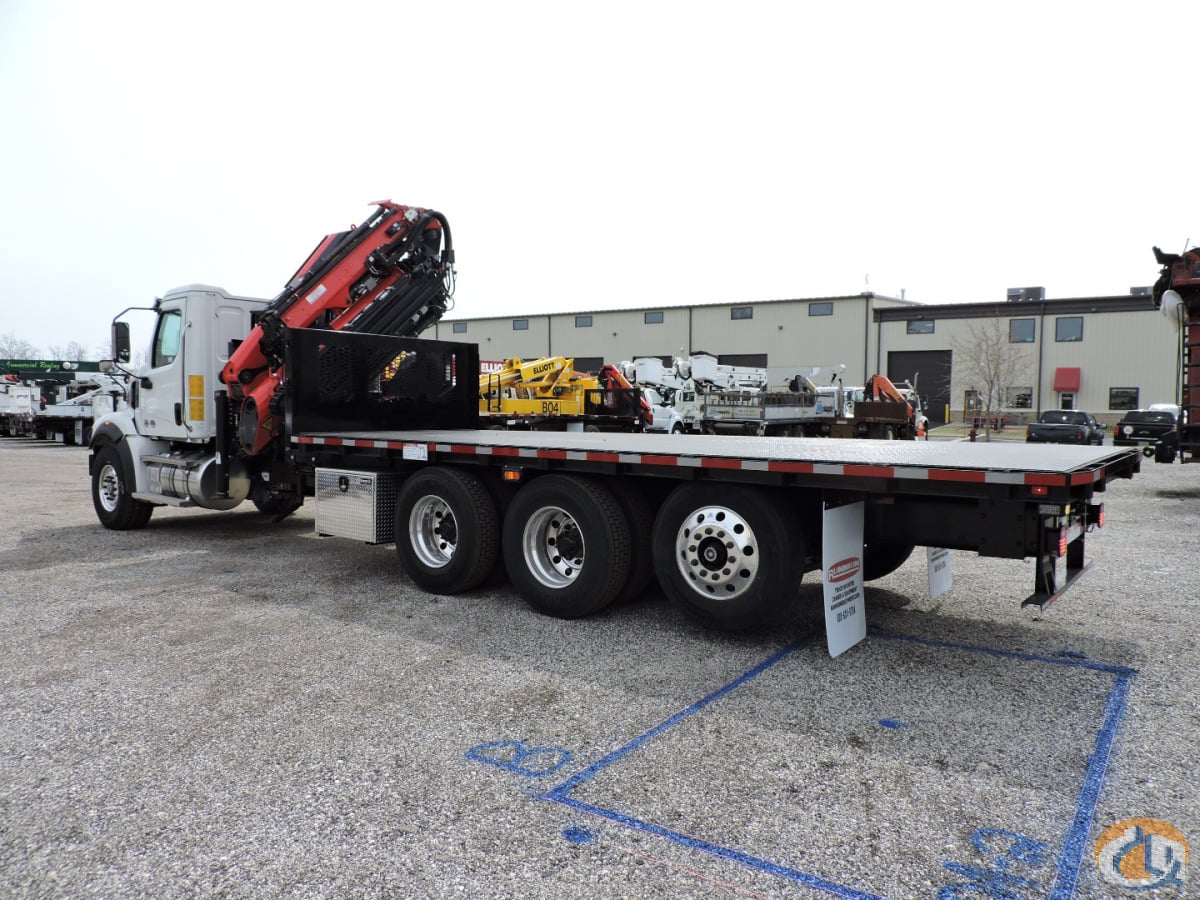

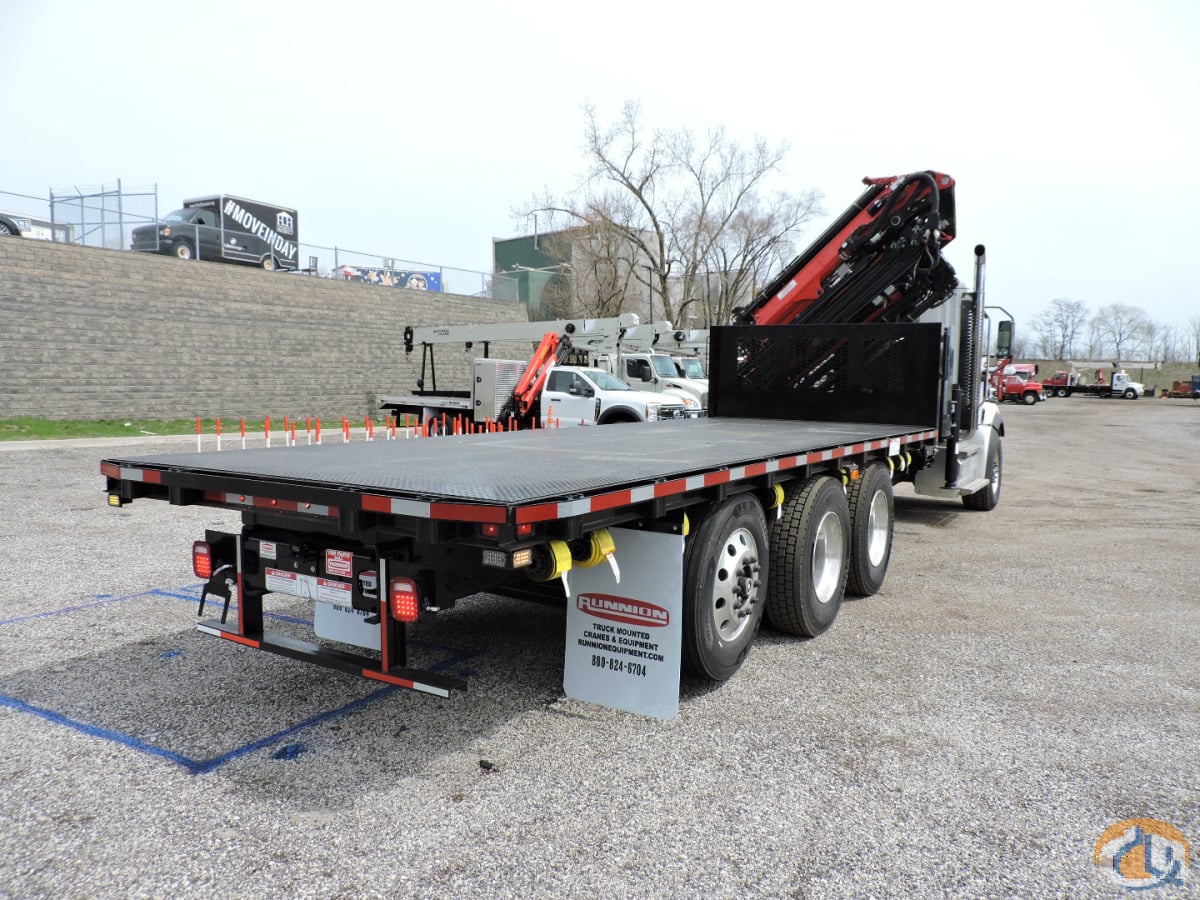

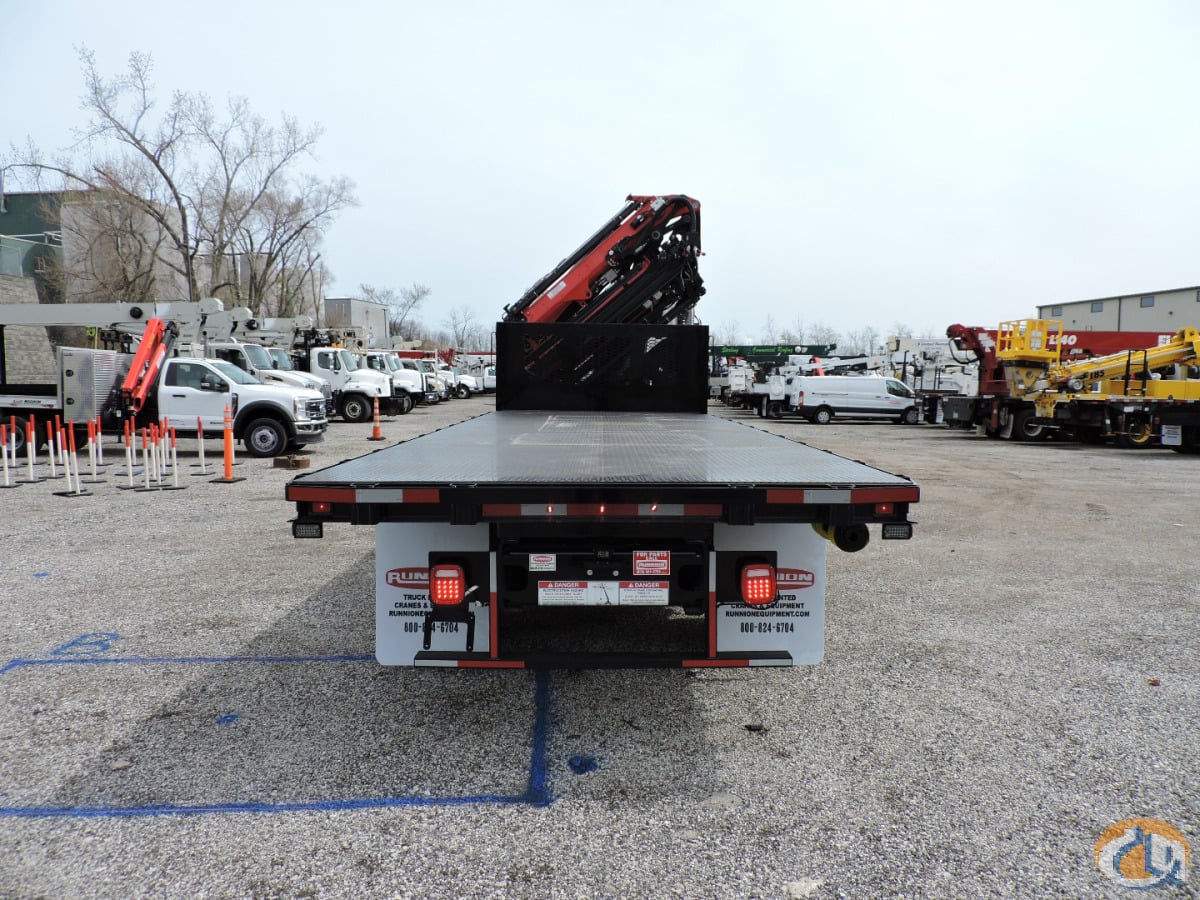

-          22’ x 102” Knapheide Heavy Hauler steel treadplate flatbed with underside sliding winch track with eight 4” straps and hooks

-          42” bulkhead

Mounted Back of Cab on:

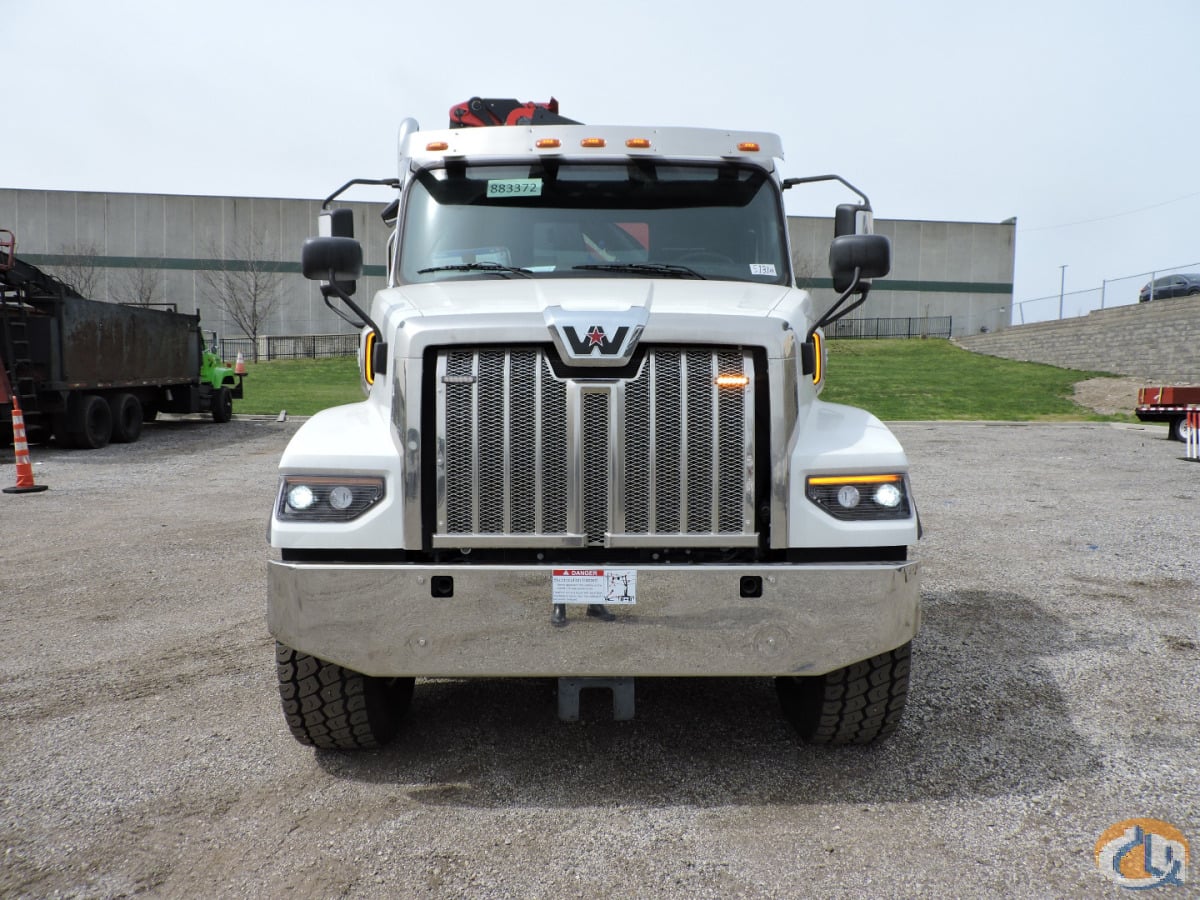

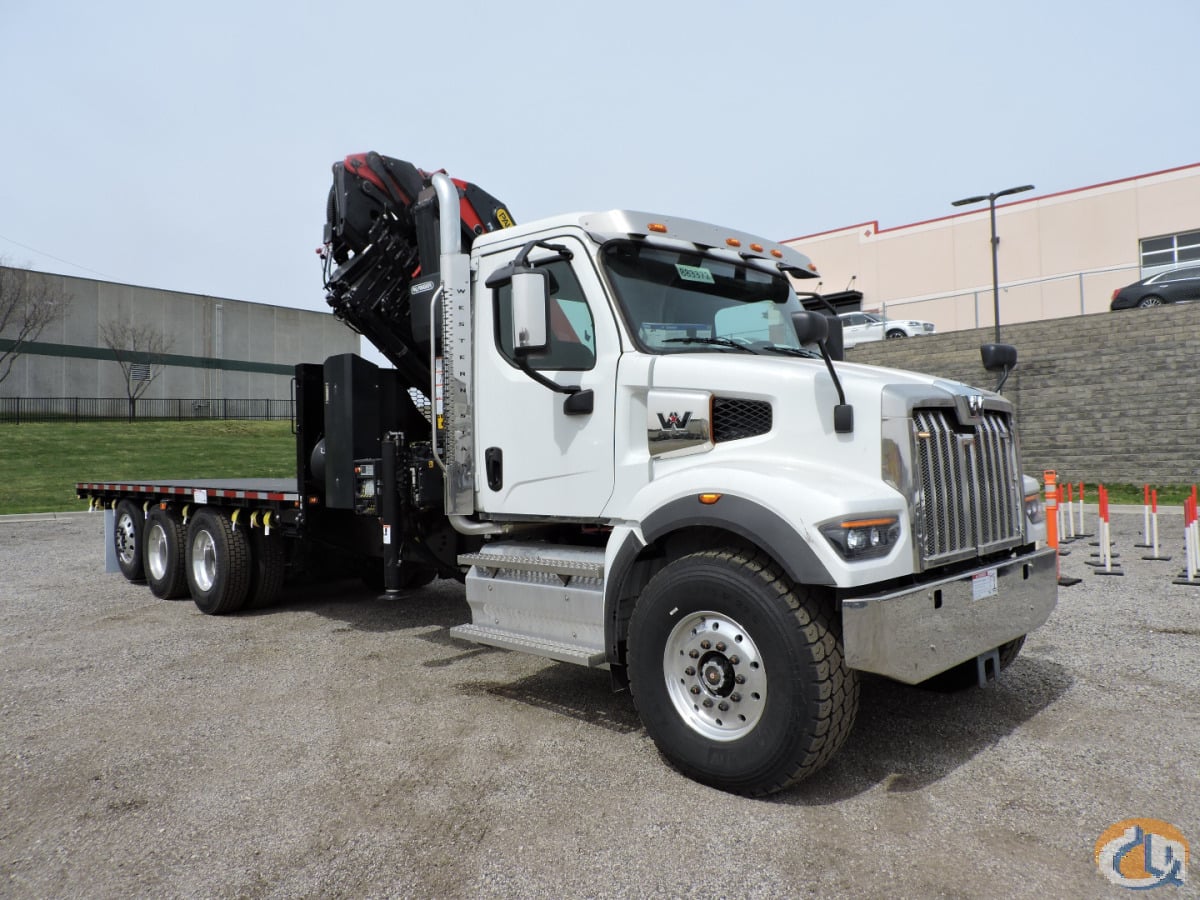

2025 Western Star 47X equipped as follows:

-          Cummins X12 455V hp @ 1,900 rpm, 1,700 lb-ft @1,000 rpm

-          Engine block heater

-          Allison 4500 RDS automatic transmission

-          20,000lb set forward front axle with 23,000lb flat leaf front suspension

-          46,000lb rear axle with Airliner suspension

-          13,500lb steerable tag axle

-          Differential lock tandem axles

-          Winch brake on front axle

-          Air dryer with heater

-          Tires:  FR –425/65R22.5 front tires

-          Tires:  RR –11R22.5 rear tires

-          Tires:  TR –275/80R22.5 tag tires

-          Aluminum wheels with polished outer finish

-          80-gallon fuel tank

-          Unpolished aluminum DEF tank cover

-          Driver’s Seats – Air ride, high back, black Mordura

-          Passenger Seat – Mid back, battery box, black Mordura

-          Adjustable steering column - tilt/telescope

-          Power door locks with keyless entry

-          Air conditioner

-          Bright steel bumper

-          Exterior sun visor, stainless steel

-          Air horn

-          AM/FM/WB radio with Bluetooth, USB, and Aux inputs

-          Heated mirrors

-          Triangle reflector kit

-          5lb fire extinguisher

-          AirWeigh Truck Scale for tandem axles

-          Painted white
