2024 Palfinger FOR SALE

Year: 2024

Condition: New

Location: Hodgkins, Illinois

Notes

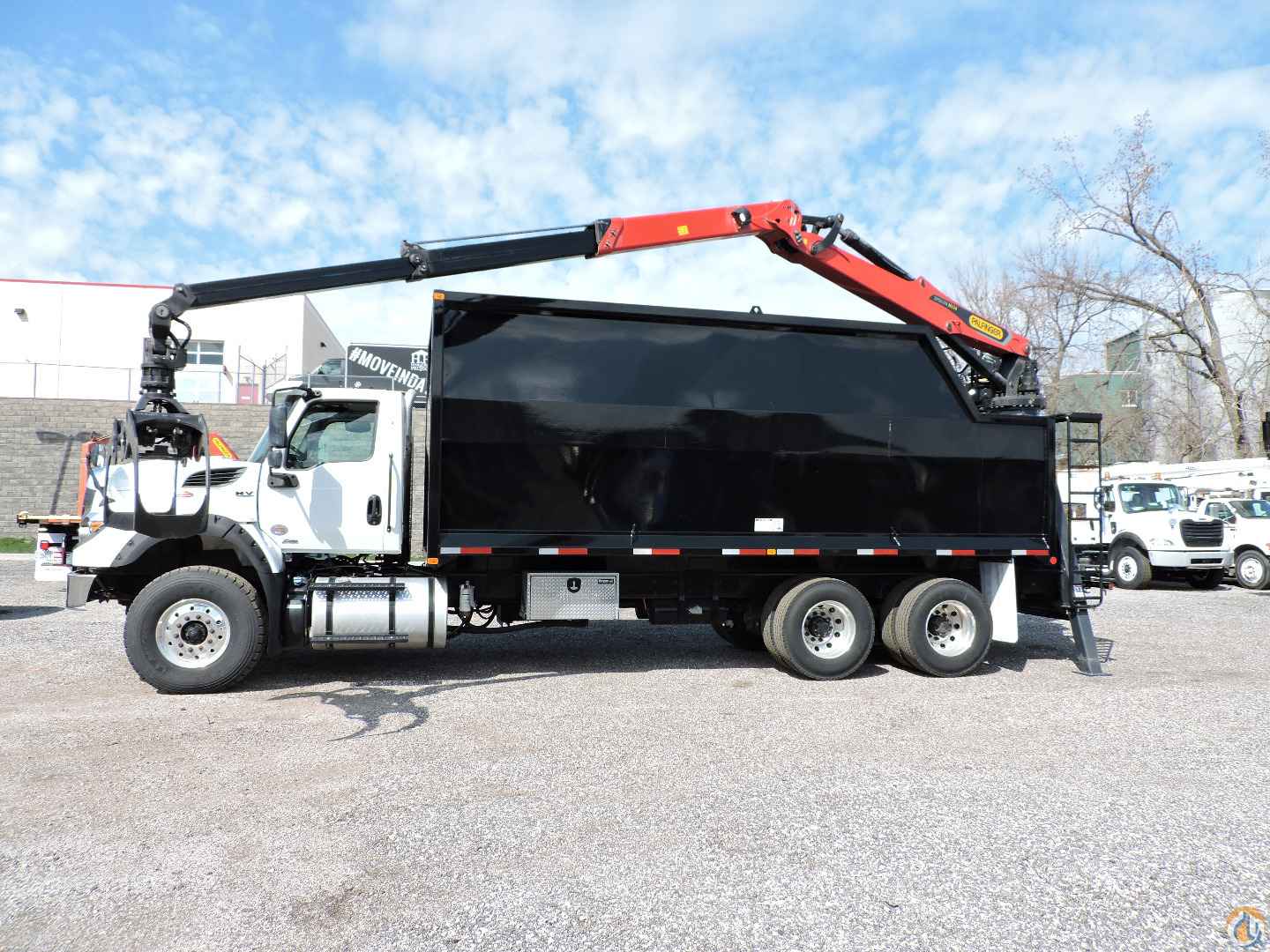

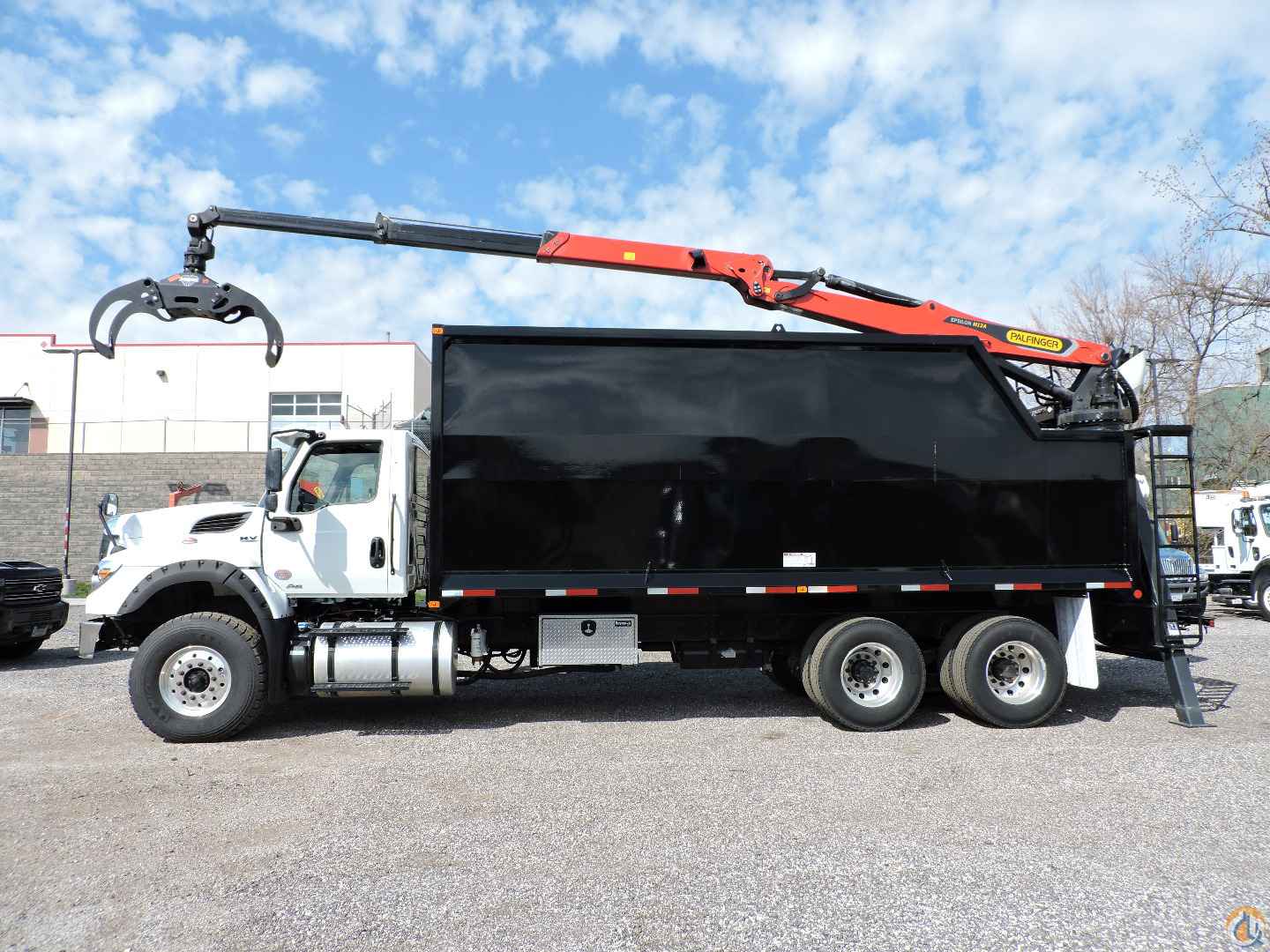

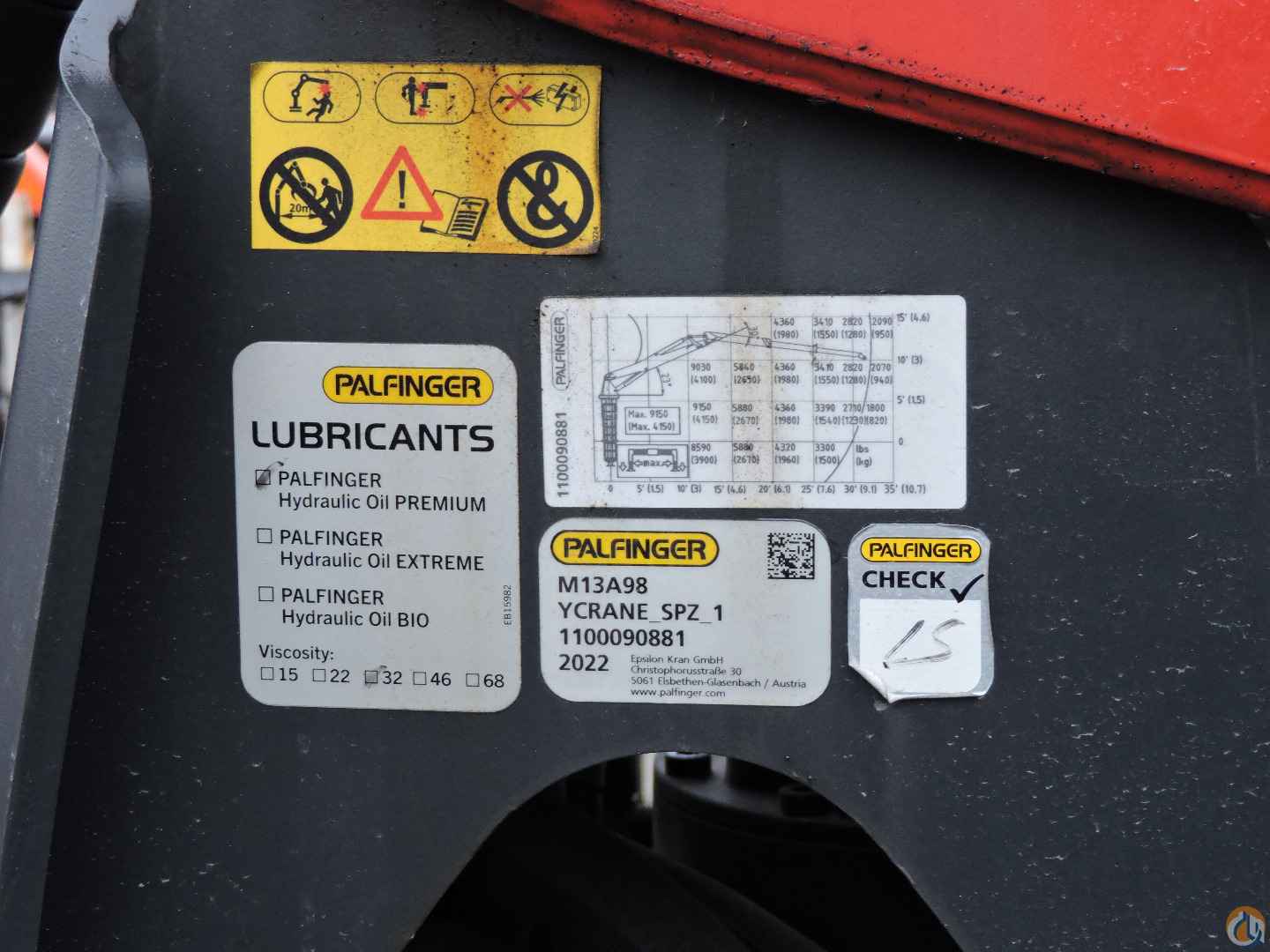

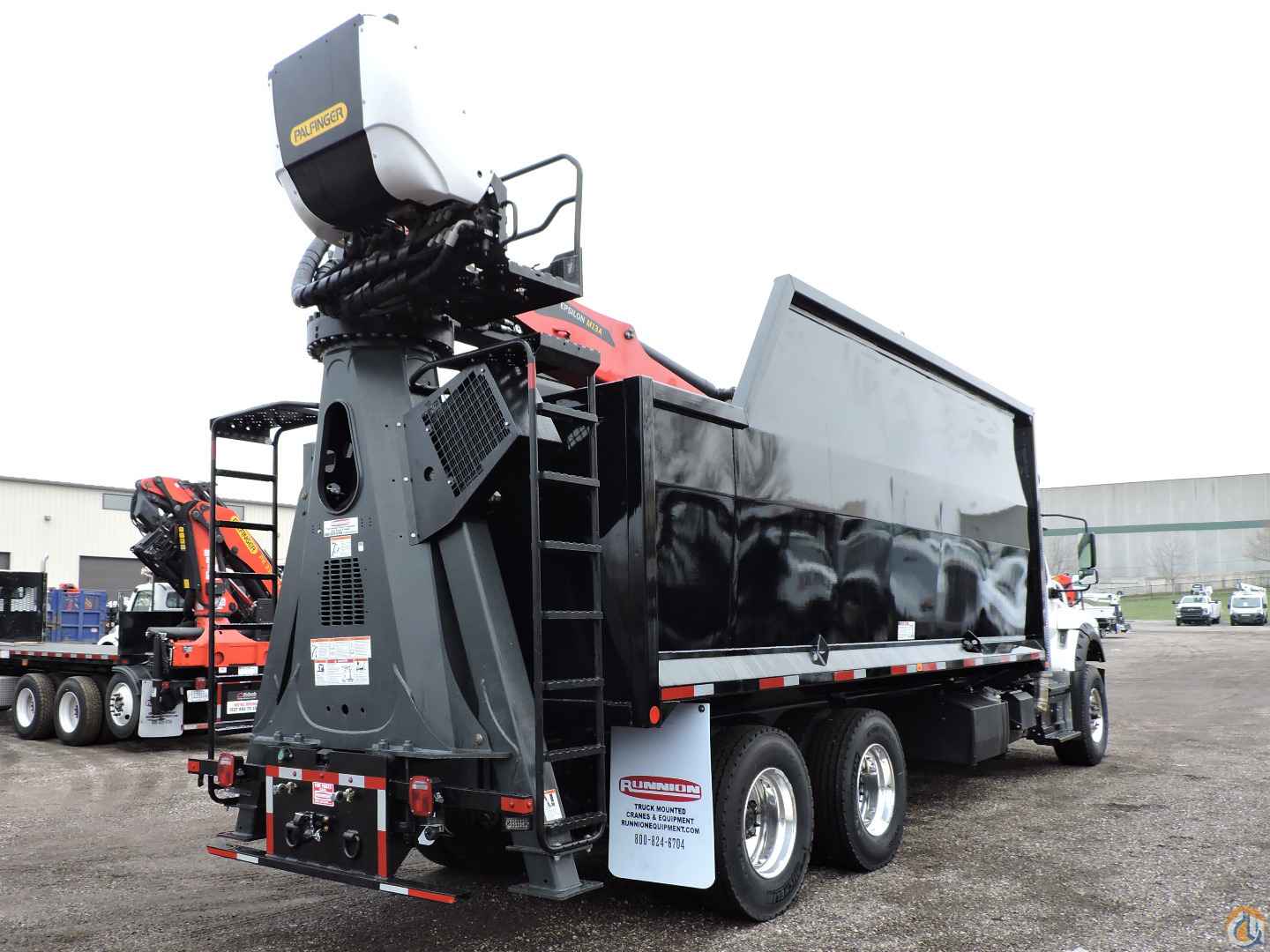

Palfinger M13A98 equipped as follows:

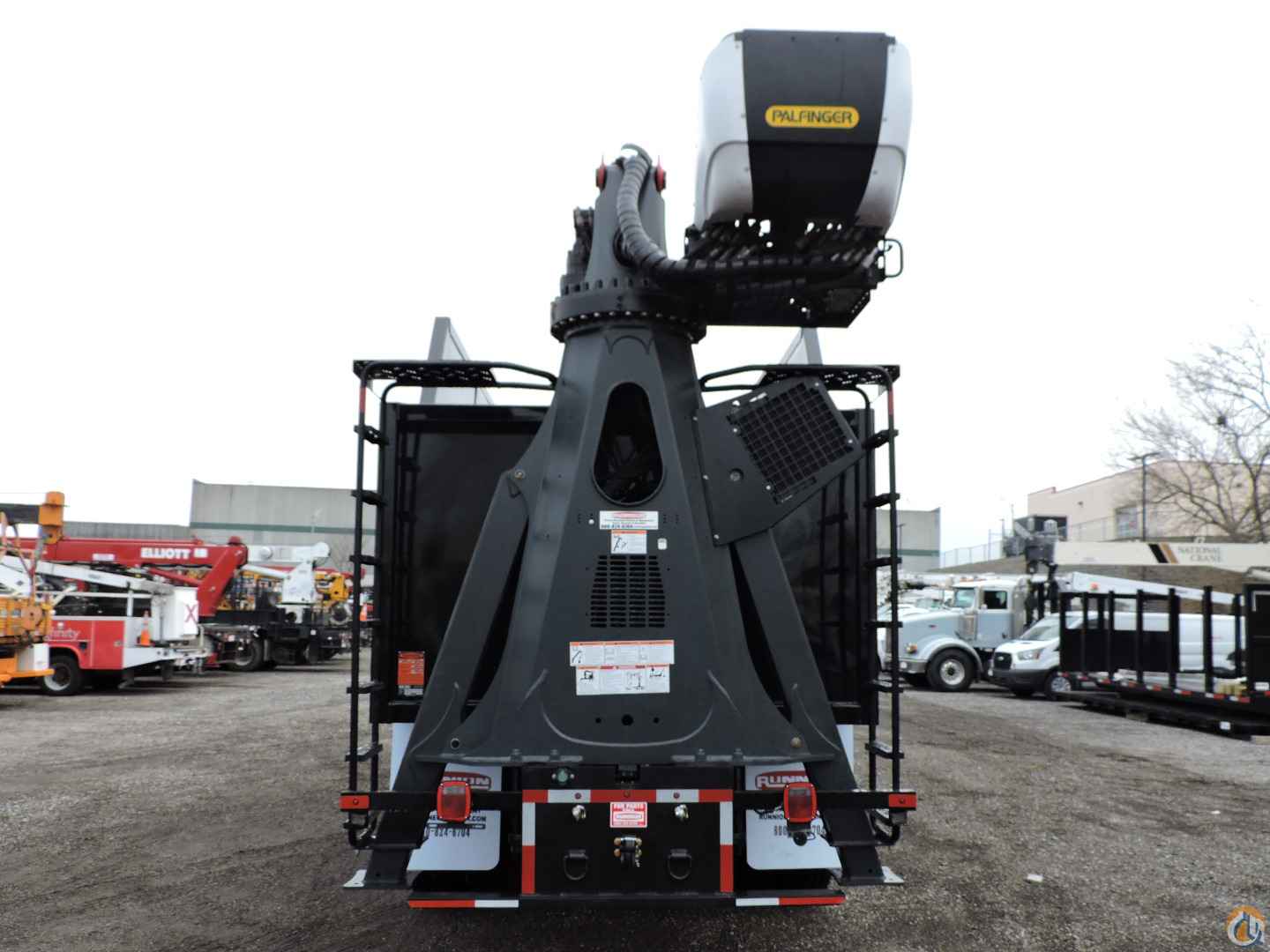

- Rear mounted

- Net lifting moment: 92,200 ft-lbs

- Net slewing torque: 14,010 ft-lbs

- 32’2” double telescope

- Right side mounted operator’s station with two joysticks

- Heated seat – seat back and bottom

- Seat adjustable in distance forward/back

- Telescope controlled electrically on right joystick, slewing via swing pedal

- Control valve mounted on operator’s station

- Independently controlled telescopic stabilizers

- Stabilization fully hydraulic controlled from top seat

- Double circuit control valve

- Operating pressure: 3,410 psi

- Oil cooler

- 79 gallon steel hydraulic oil tank

- Continuous ring and pinion rotation

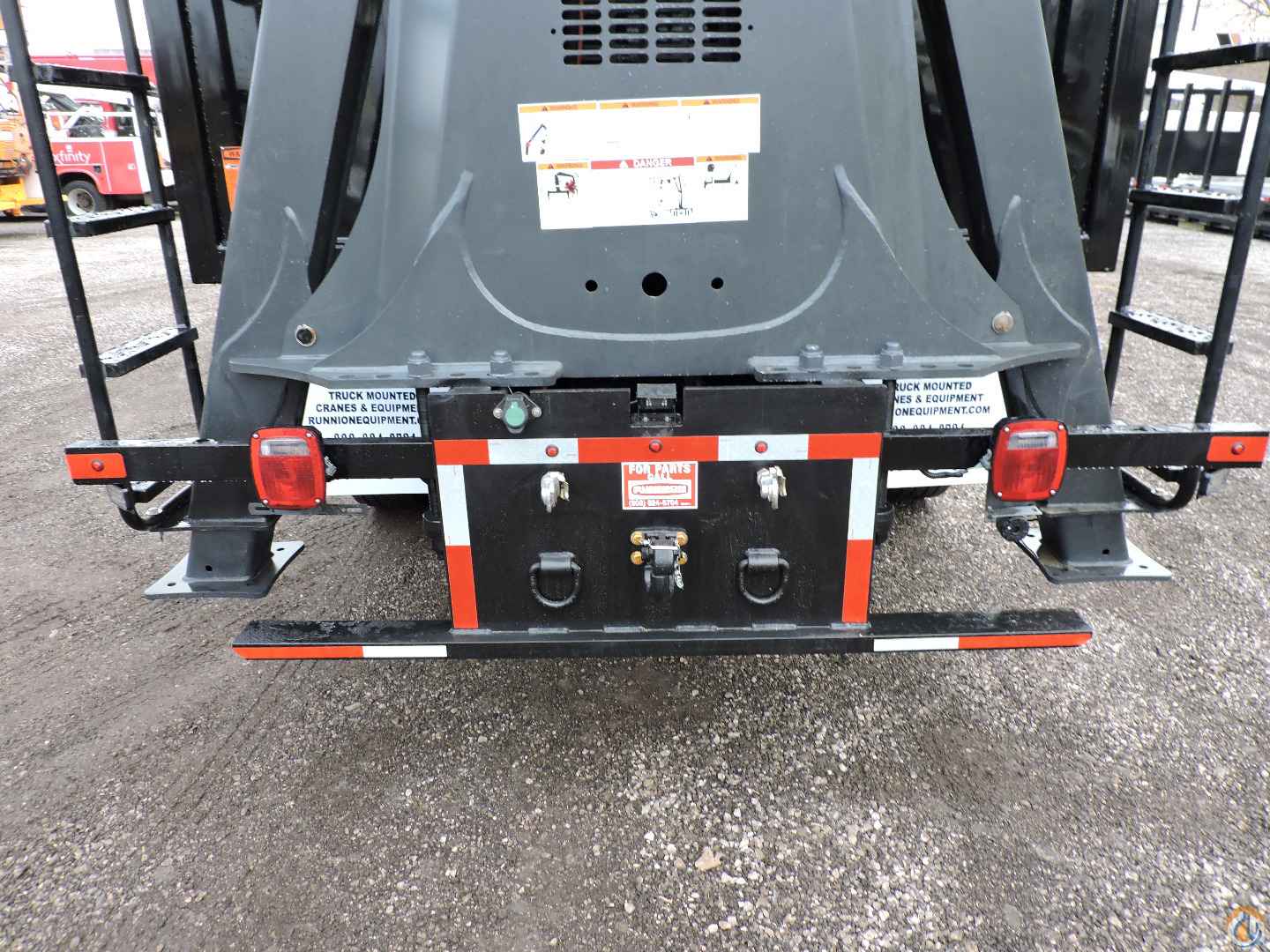

- Dual ladders

- Main boom cylinder protection

- Above mounted outer boom cylinder increases power and protects cylinder

- Linkage system between main and outer boom

- Throttle check valves on main, outer, and extension cylinders

- EPSCOPE – patented telescope system with inside hose routing

- KTL primed and powder coated – painted red

- 4x work lights, 2 on operator’s station and two on outer boom

- Epsilon rotator RB10F – 360 degree continuous rotation

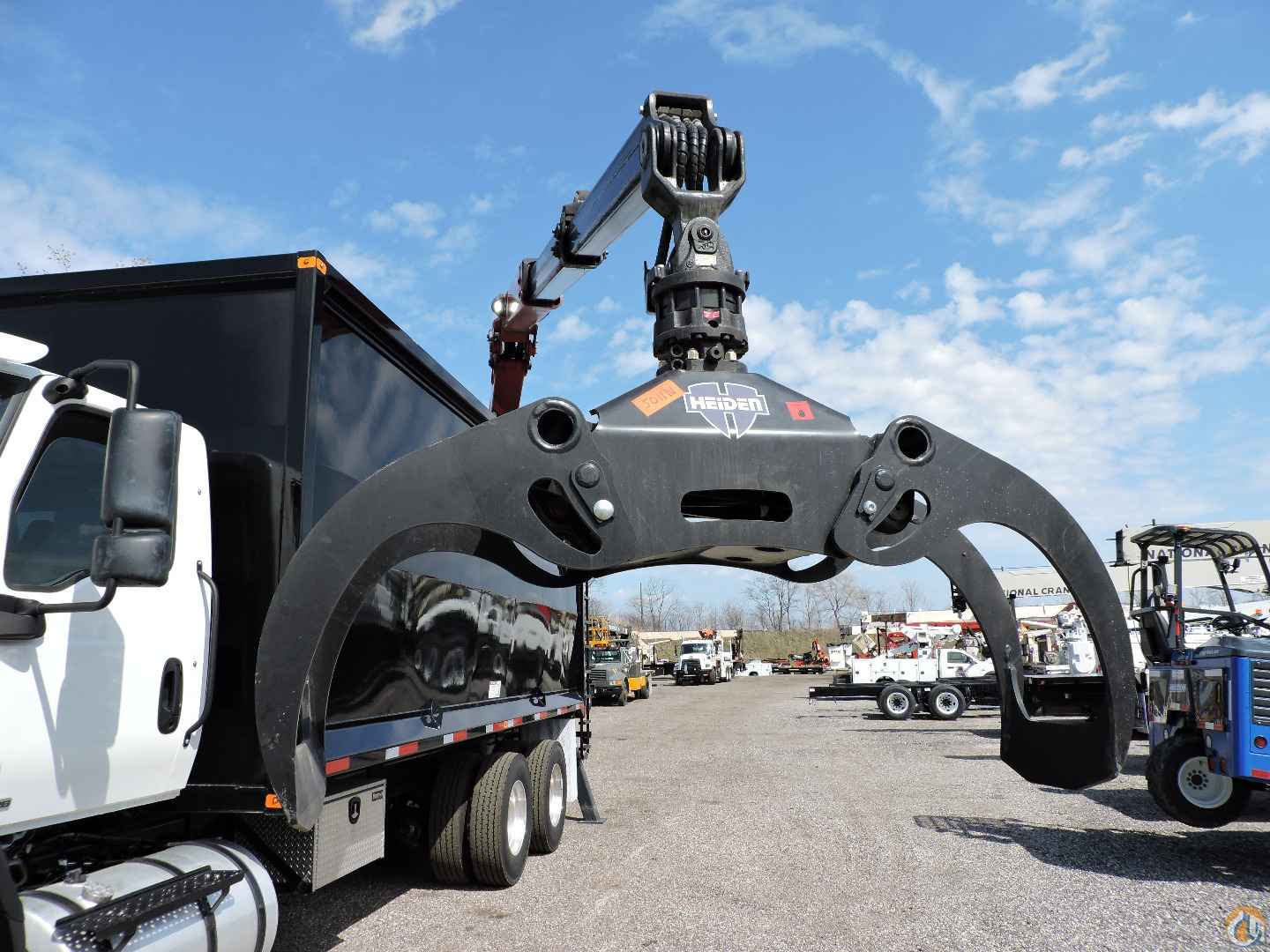

- Heiden HC90-PW62CRUN13 – 62” open, pulpwood grapple

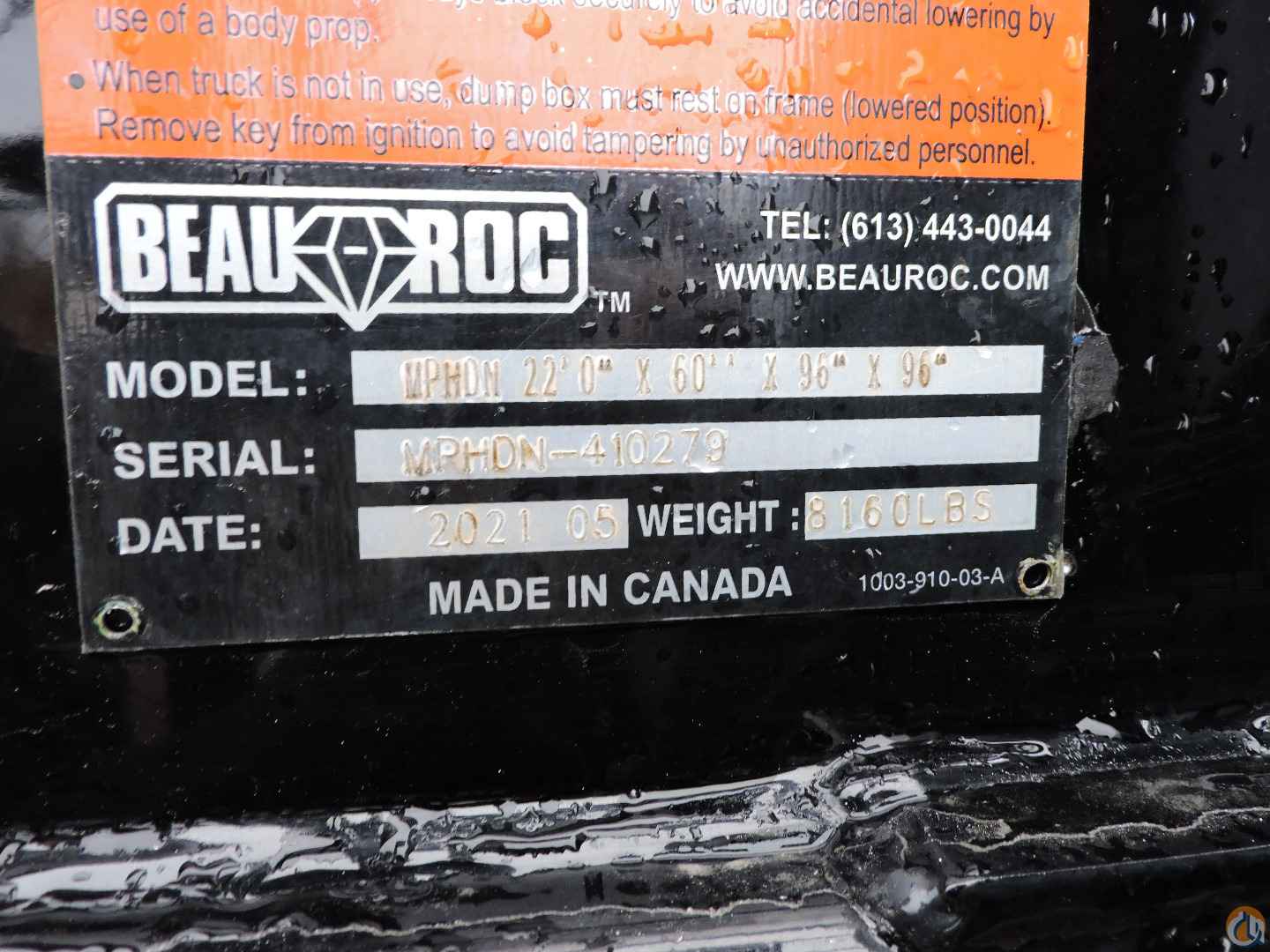

Beau-Roc 22’ MPHD body equipped as follows:

- 1/4” HARDOX 450 floor, 3/16” HARDOX 450 front and sides

- 37 cu.yd

- 72” sides and cut down to 60”

- LED body light package

- Painted black

- LED strobe lights mounted in front grill/bumper and outside edges of rear light boxes

- 36”x18”x18” steel toolbox

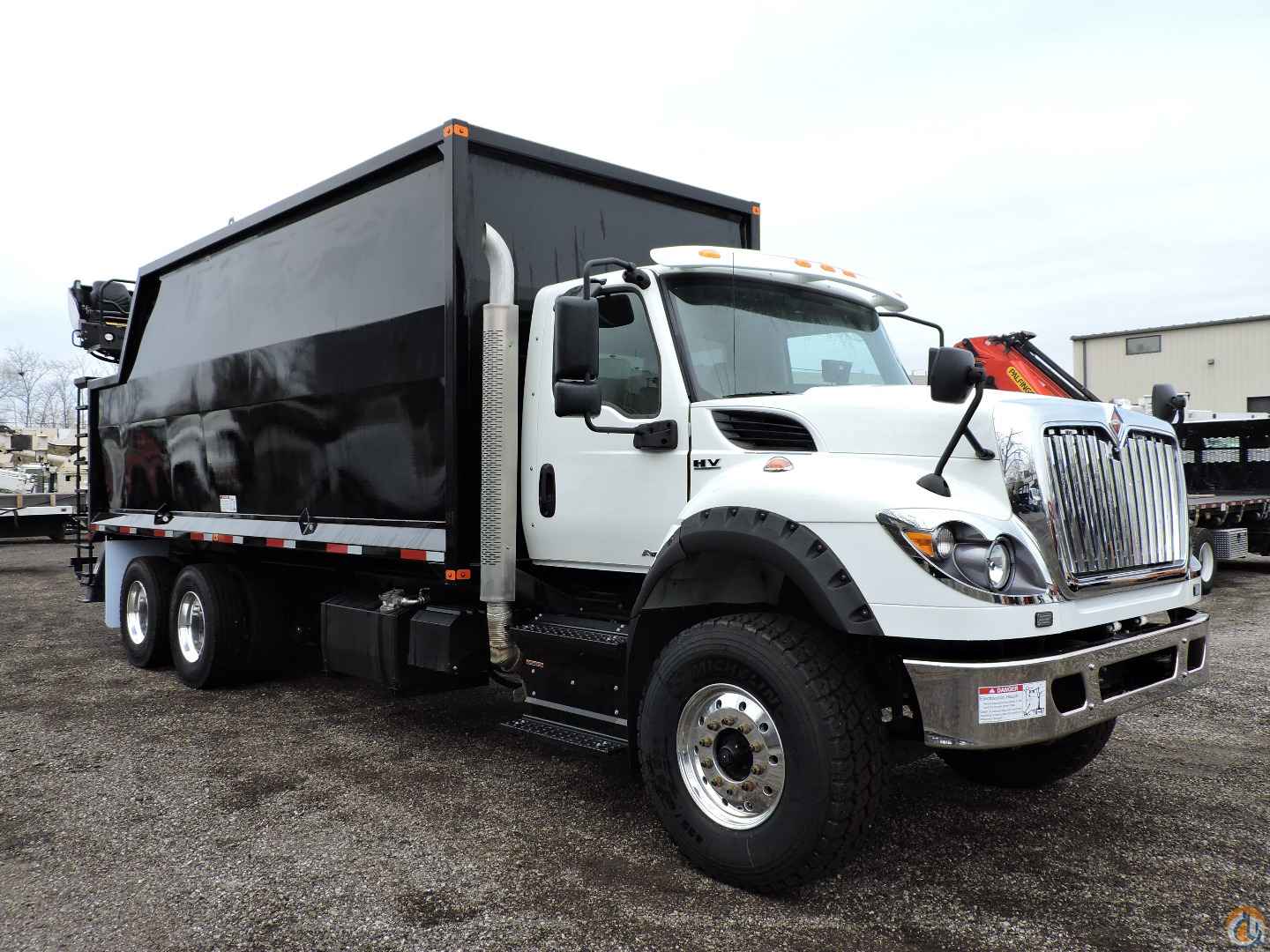

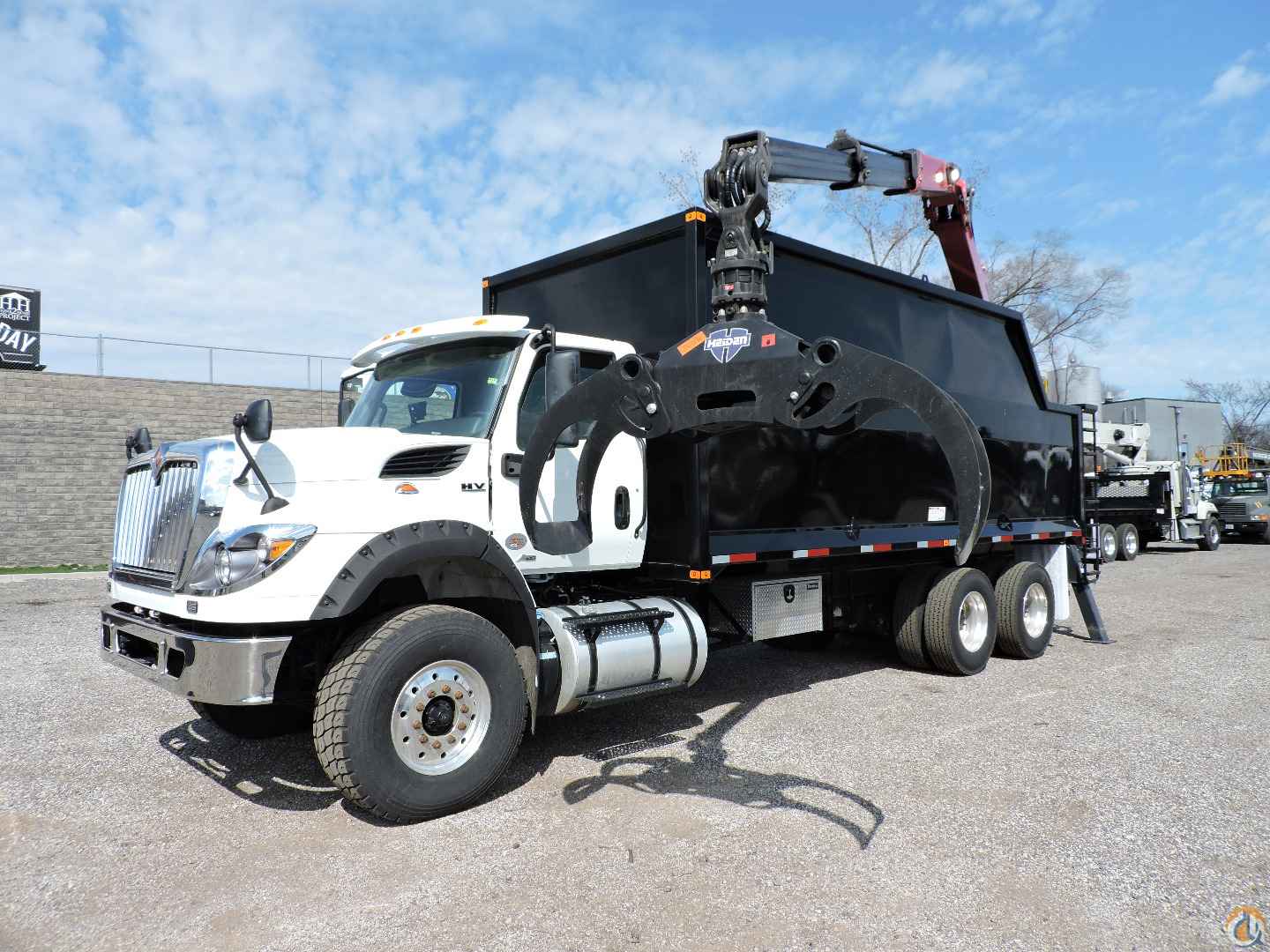

2024 International HV613 SBA equipped as follows:

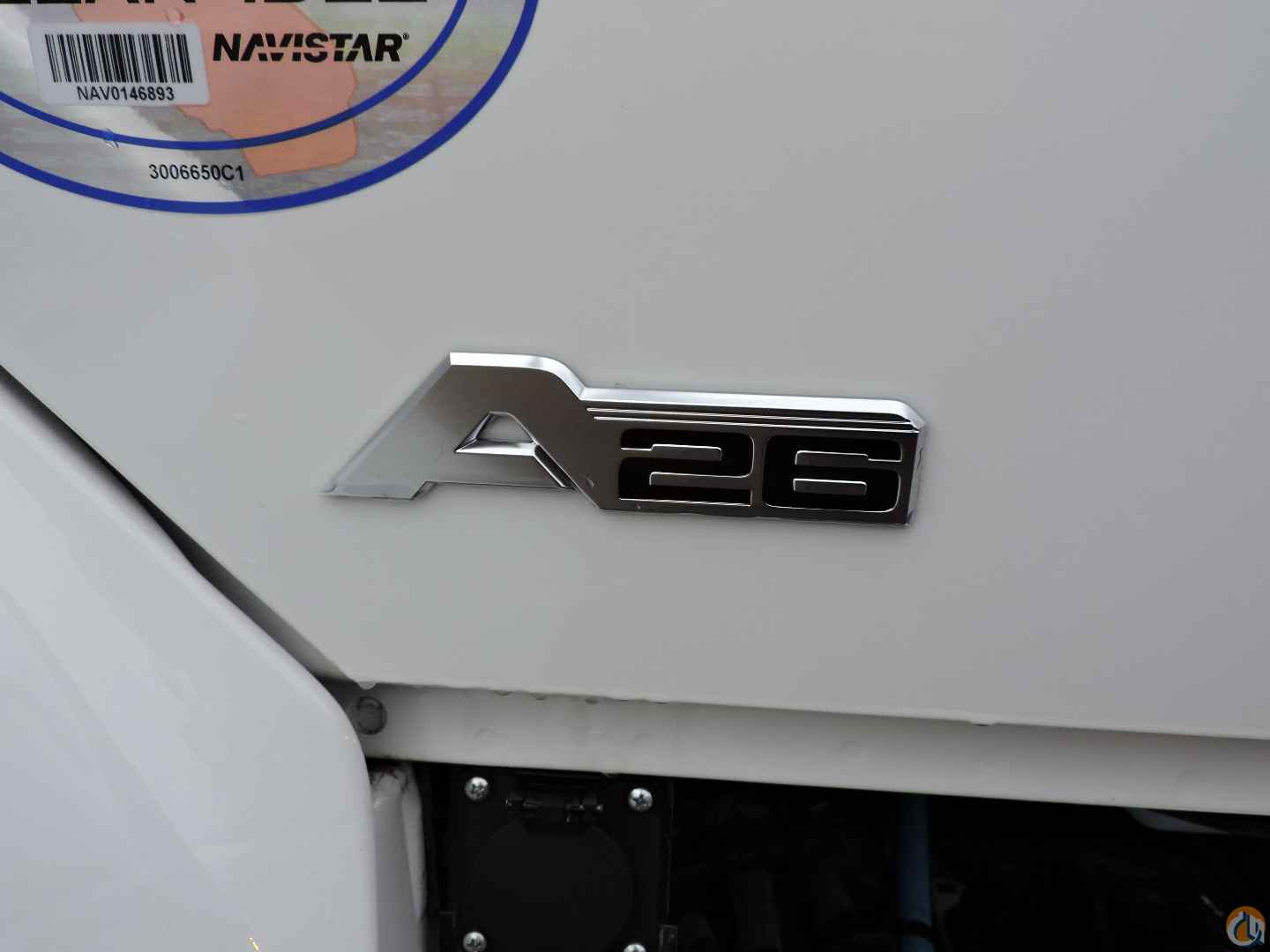

- International A26 engine – 430 hp at 1700 rpm, 1550 lb-ft at 1000 rpm

- Block heater

- Allison 4000 RDS automatic transmission

- 20,000 front axle

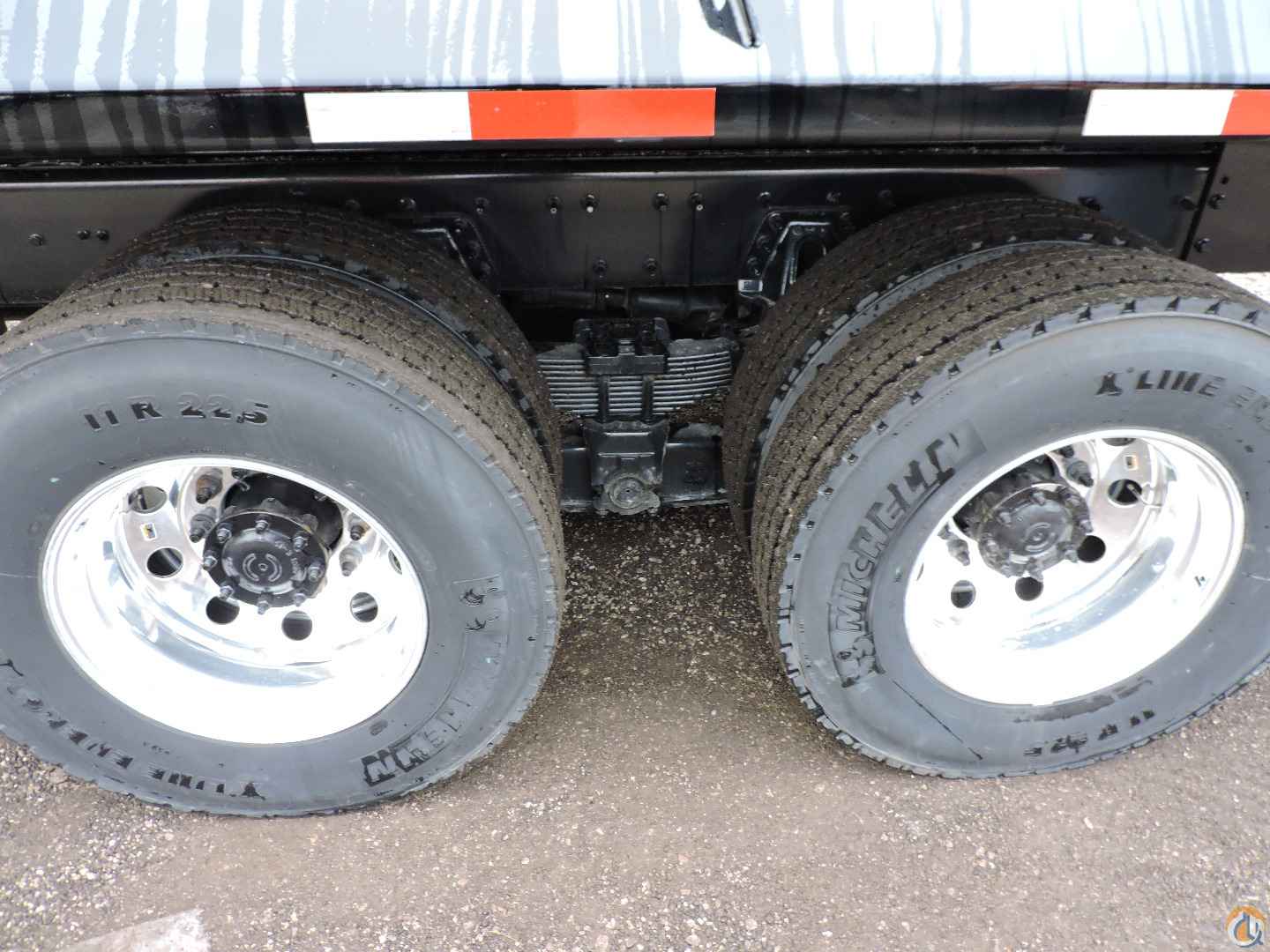

- 40,000 rear axle with Hendrickson RT-403 walking beam suspension

- Front tires 425/65R22.5 with polished aluminum wheels

- Rear tires 11R22.5 with aluminum wheels

- Heated air dryer

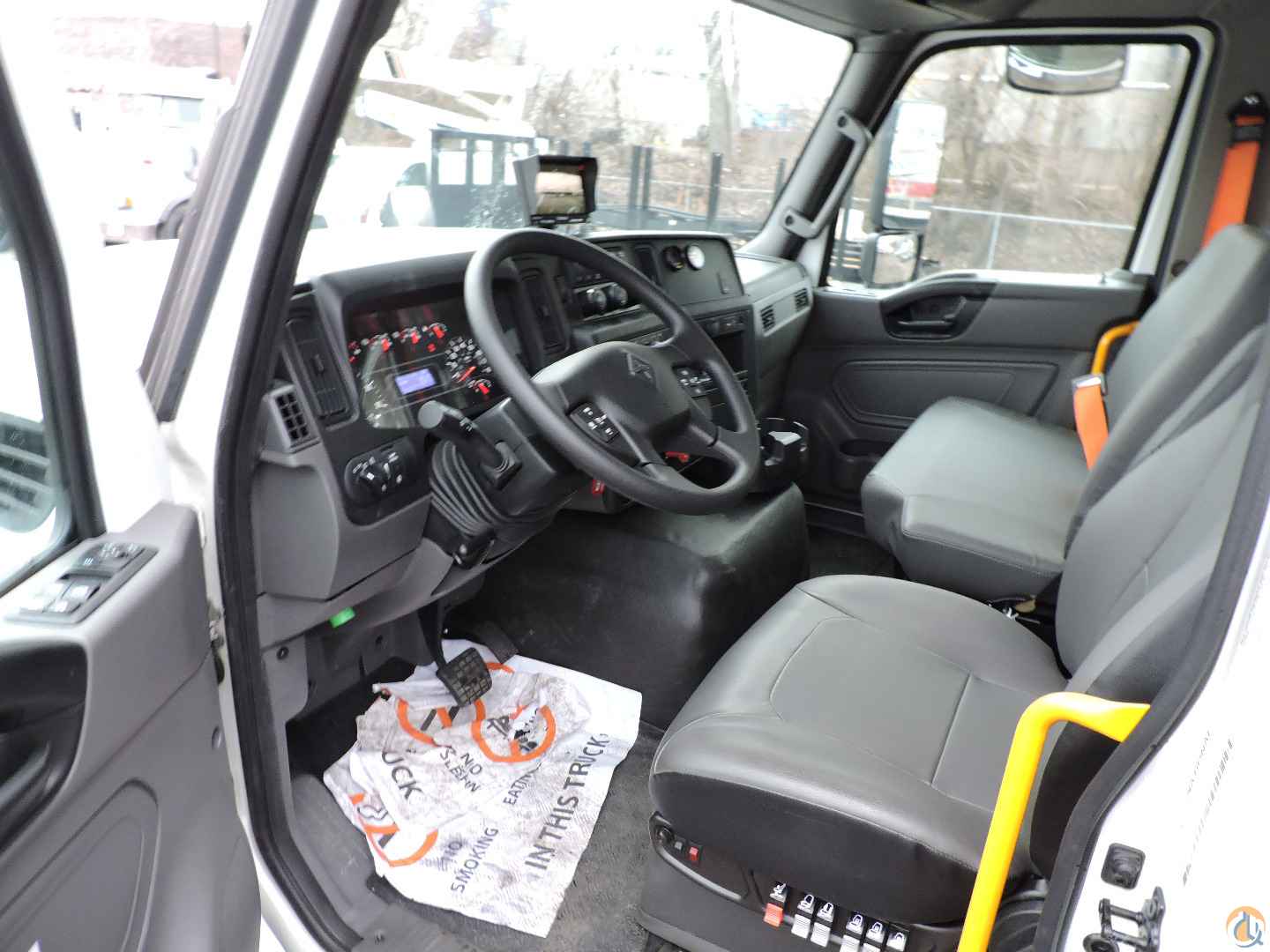

- Driver’s seat – air suspension, high back, vinyl, heated

- Two person passenger’s seat – non-suspension, mid back back

- Power locks and windows

- 100 gallon fuel tank with 9.5 gallon DEF tank

- Chromed steel bumper

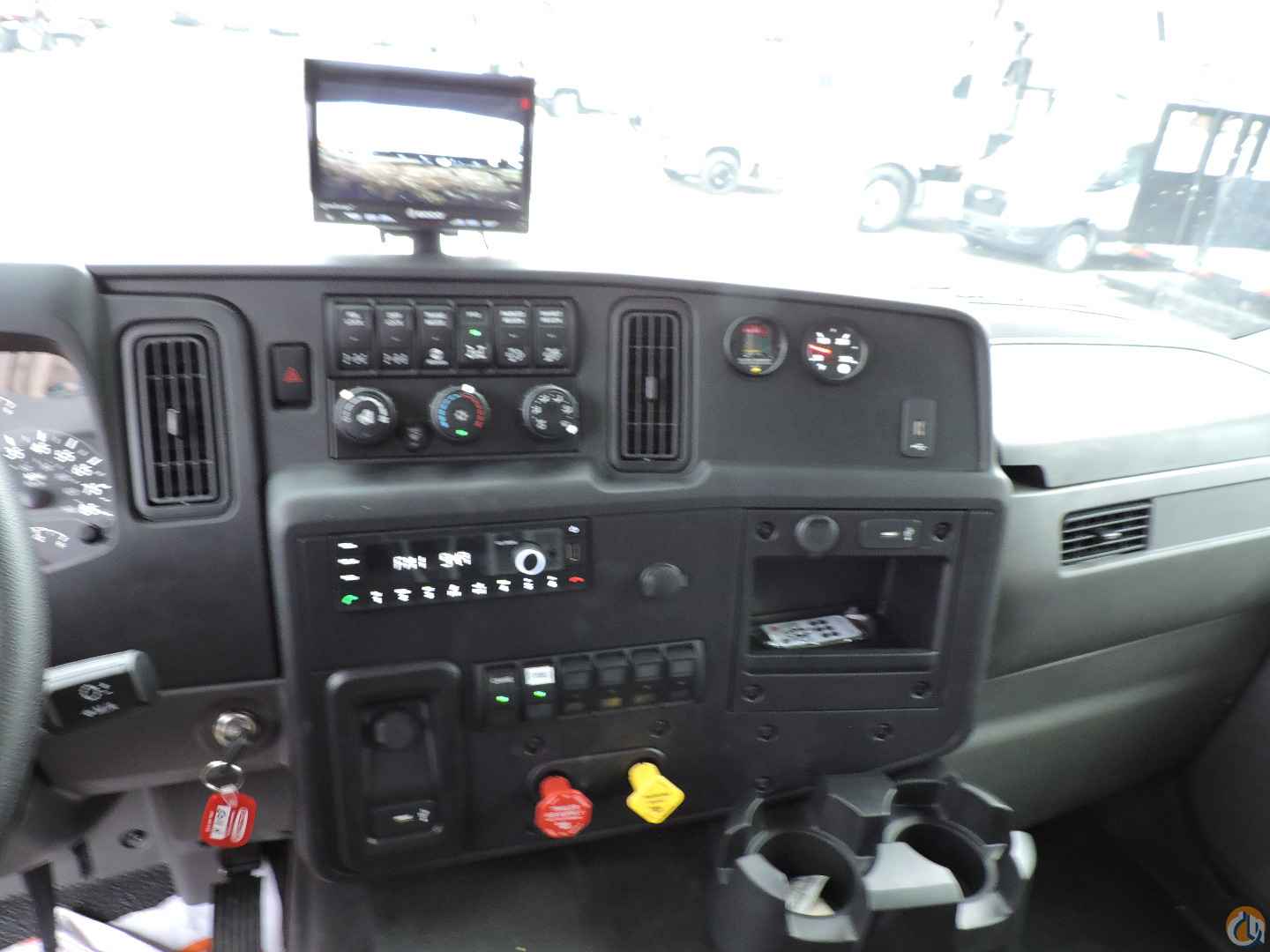

- AM/FM/WB/Bluetooth radio

- Painted white

%
