BOOM DETAILS

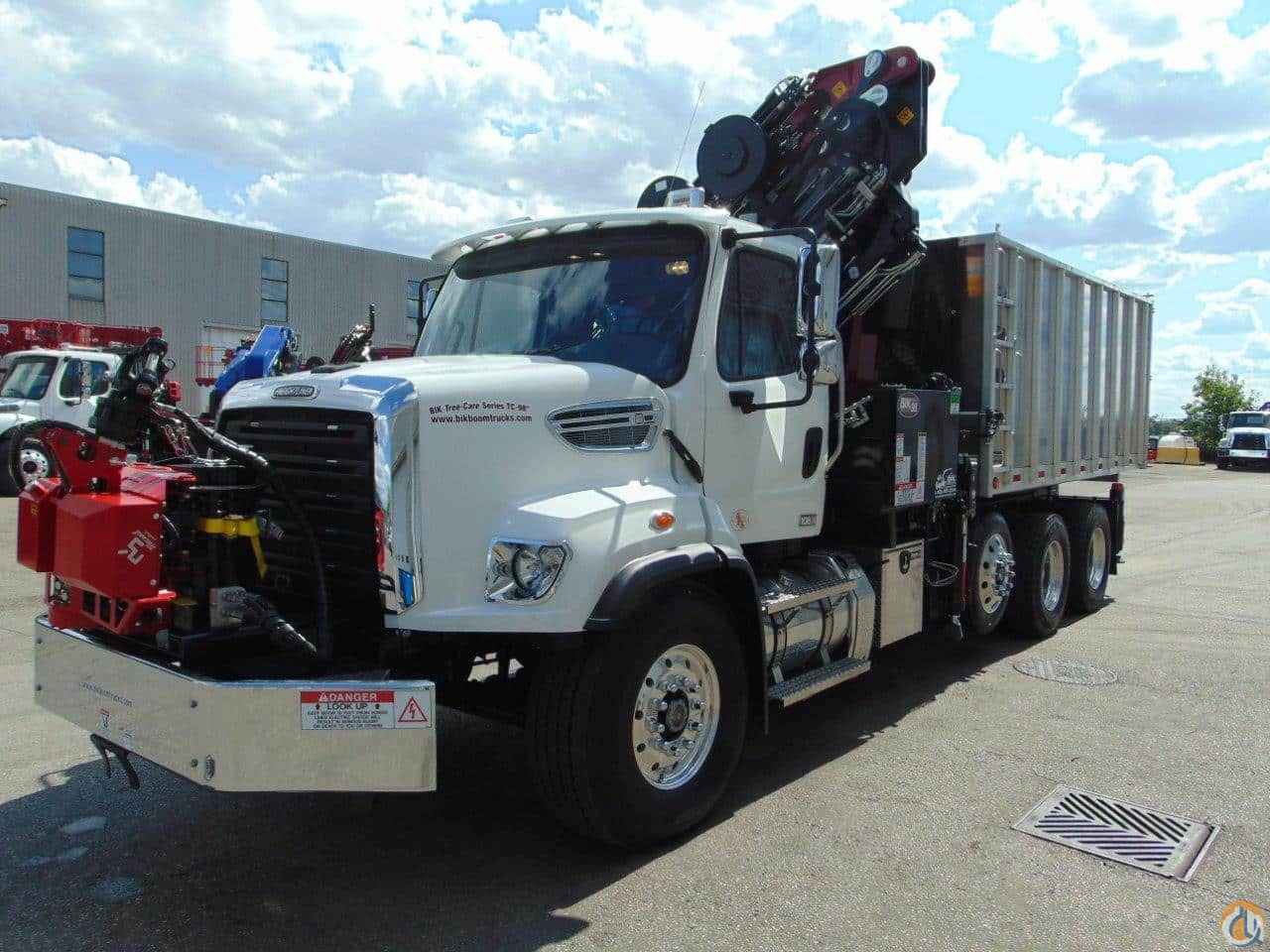

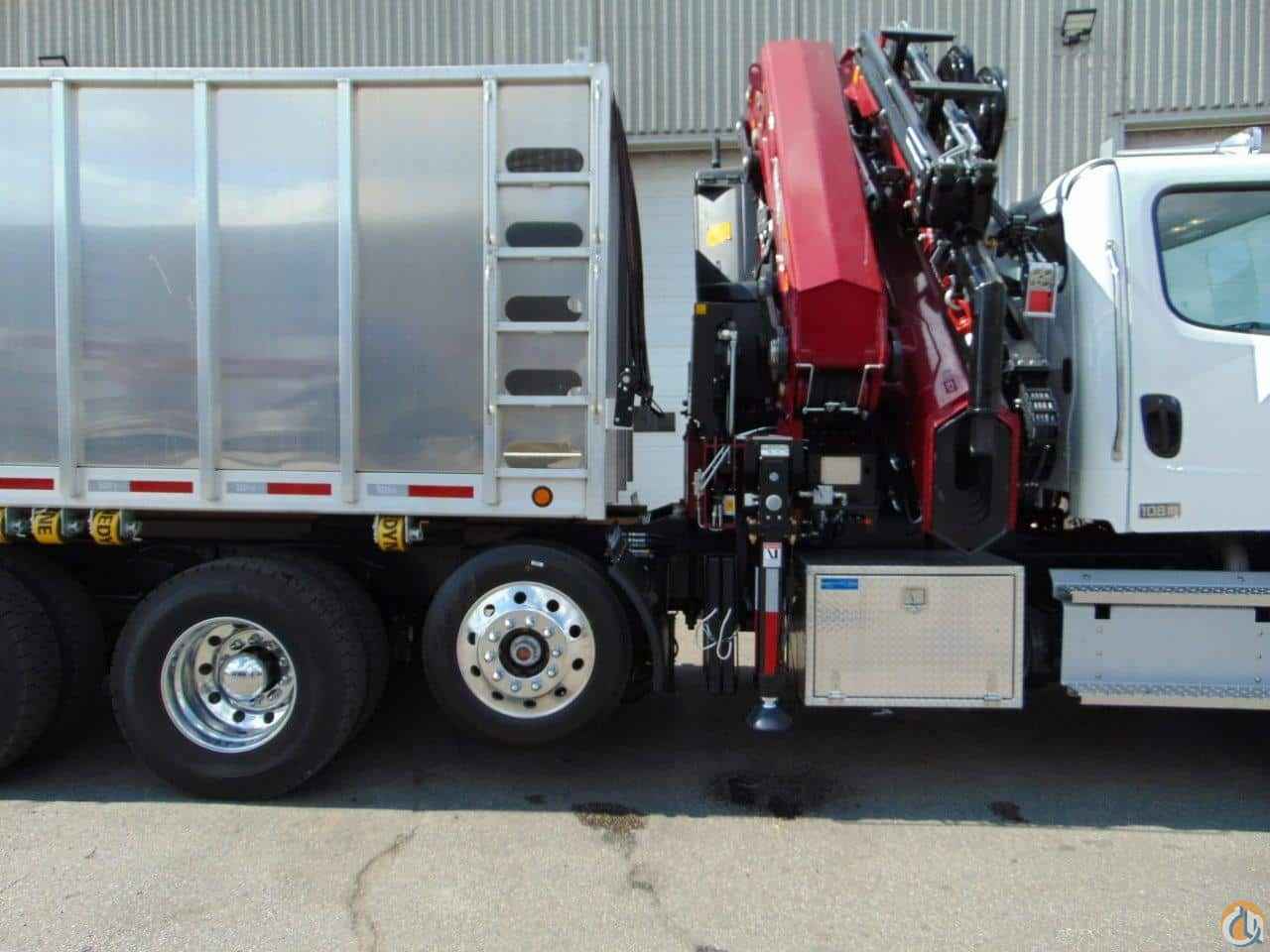

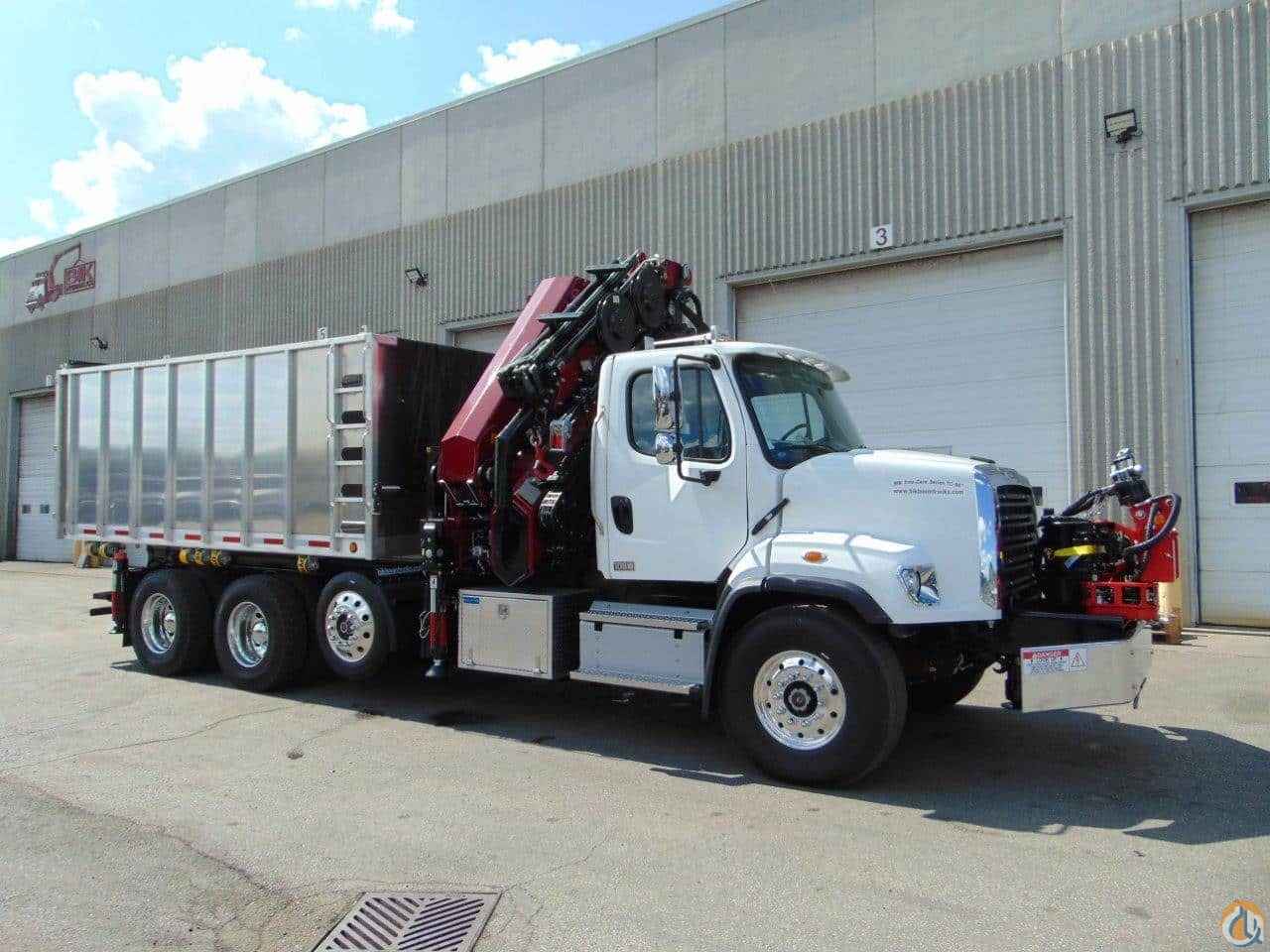

New – BIK Tree-Care Series TC-98 – 54.5 ton/m Knuckle Boom
- 6 ext Knuckle Boom w/Detachable 3 ext jib 1-grapple extn Including (1) Grapple extension in jib,
- Boom Capacity of 2,230 lbs @ 98’ Vertical Reach
- Main Boom Horizontal Capacity:
- 21,000 lbs @ 14’
- 10,900 lbs @ 25’ 8”
- 6,800 lbs @ 38’ 8”
- 4,830 lbs @ 53’ 6”
- Jib Horizontal Capacity:
- 2,100 lbs @ 63’
- 1,850 lbs @ 75’ 4”
- 1,700 lbs @ 82’
- Grapple main extension to 86’
- “Power-Link” connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders
- Planetary Gear Rotation Motor & Continuous Boom Rotation – for maximized slewing torque and reliability
- 15 Degree negative angle on main knuckle, 20 degree negative angle on jib – Hyd Extra Wide Main outriggers at base – 25’ 7” total span
- Auxiliary Stabilizers – Extra wide type – 21’ span, hyd out & down type at rear – Front Bumper Hyd Stabilizer – 100% stability 360 degrees
- Two Hydraulic Oil Coolers, high pressure return filter and 100 gal custom hydraulic oil tank with Enviro-Friendly AW-46 weight Hyd Oil
- Tandem pump / split valve pressure system for optimum speed for simultaneous multi function use
- DANFOSS Proportional Control Valve at Top Seat
- SCANRECO Proportional Radio Remote Control w/2 batteries, charger
- Engineer Stability load tested and certified
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
DECK DETAILS

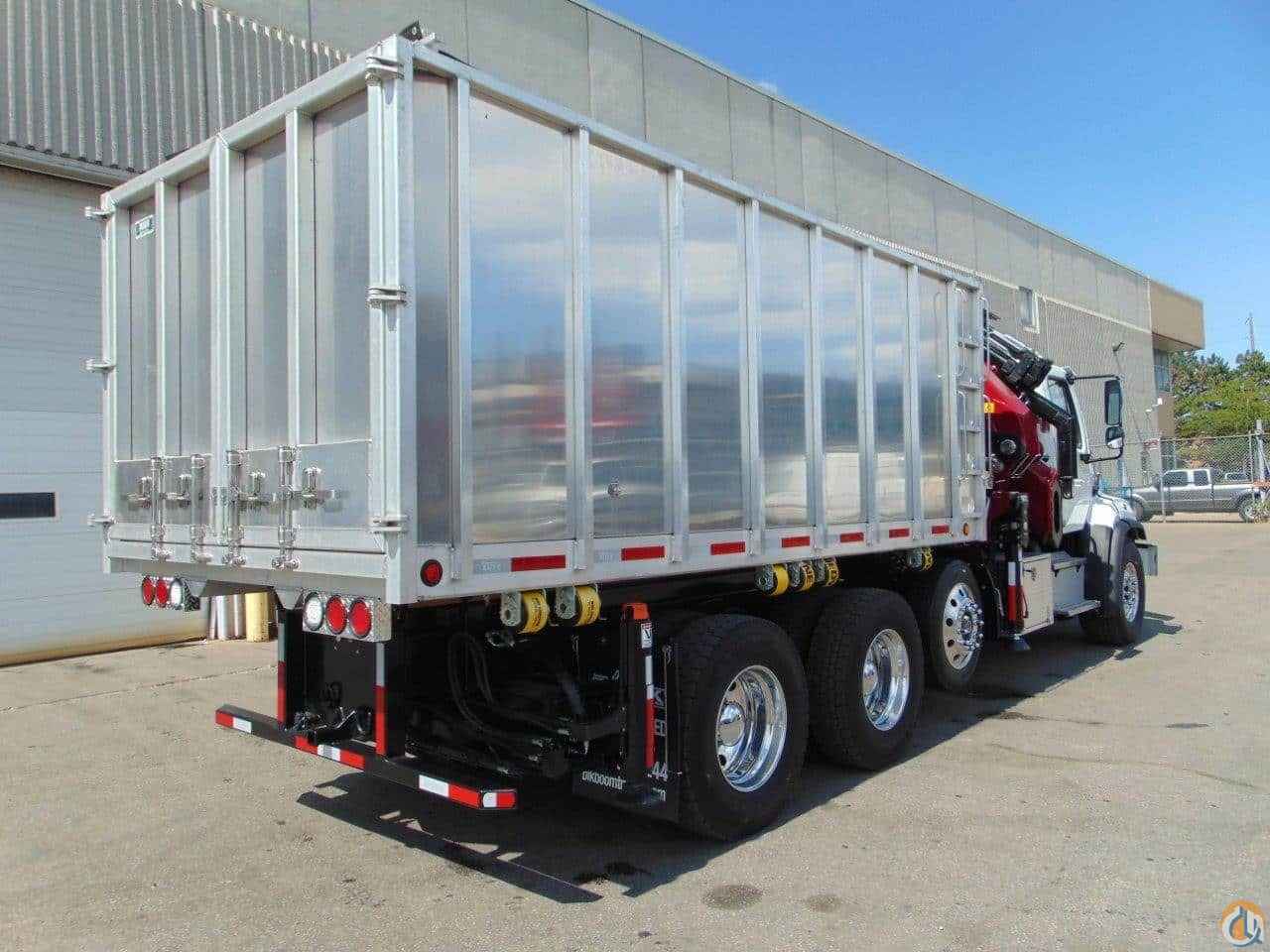

New – 16’ long x 96” Aluminum Dump Body
- 6’ solid steel sides
- Smooth steel floor
- Steel 6’ rear barn doors
- Sliding latch
- Nordic Scissor lift hydraulic dump system under body mounted that has manual ground level controls
- Attached ladders on both sides
TRUCK DETAILS
New – Freightliner 108SD 4-axle Day Cab Truck: 69,000 lb GVWR
- CUMMINS Diesel
- 380 HP – Allison Automatic Trans.
- 20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
- 40,000 LB Rears on Tuftrac suspension with 11R22.5 tires on Aluminum outer rims
- 9,000 lb self steer tag axle behind t/a with 17.5” tires/alum rims
- 166” wheel base
- Double Frame with integral front bumper frame extension (for front stabilizer)
- Chrome single polished Exhaust pipe side of cab

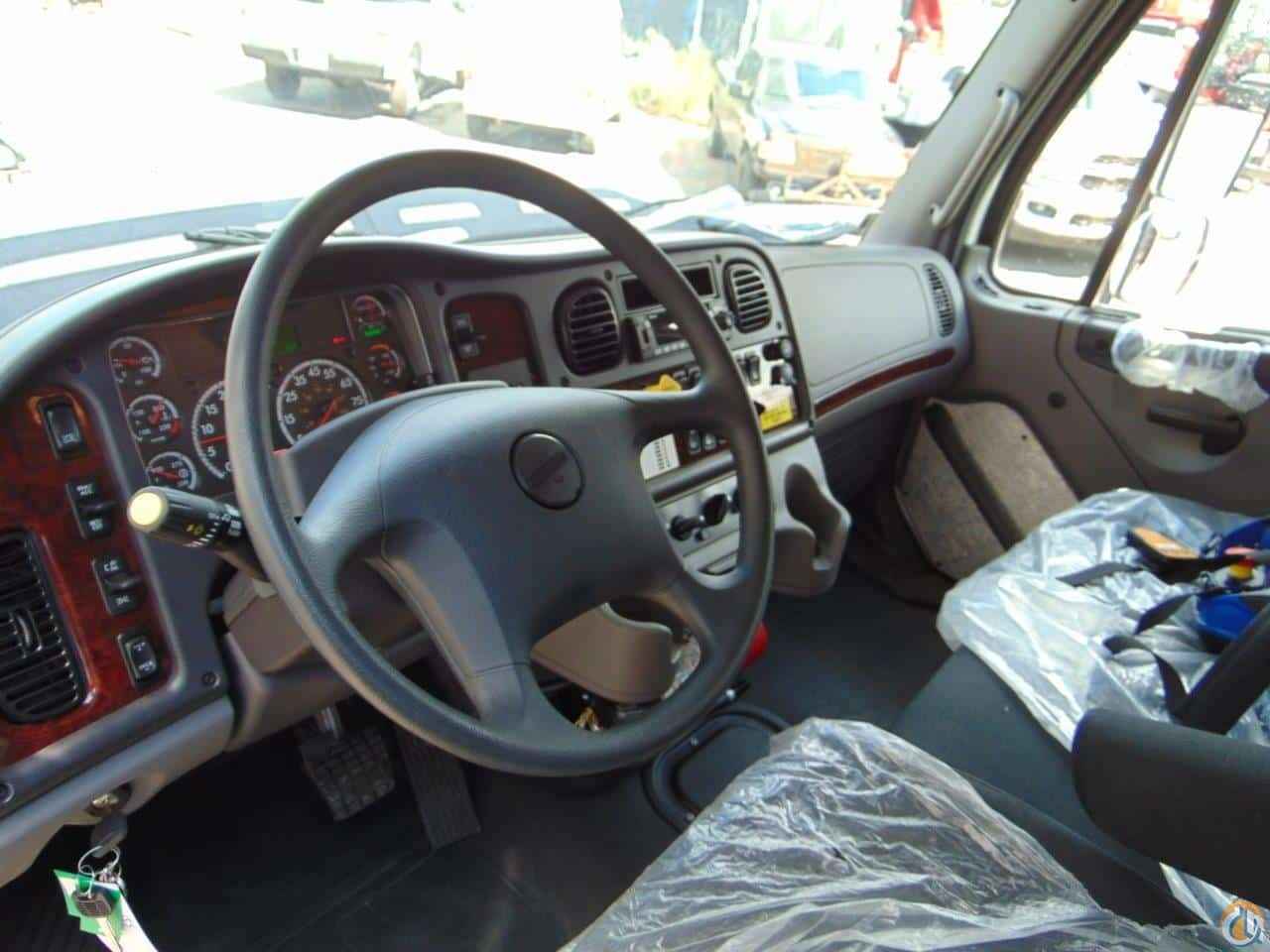

- Chromed Grille & Bumper, single 80 gallon alum fuel tank, A/C, Tilt/Telescopic steering, AM/FM radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups, Cab White, Air ride cab, full differential locks, exterior sun visor, etc…
Also Included Are:
- (5) pcs – 2” PVC stab pads w/holders
- (2) pc Alum storage boxes installed
- Custom re-enforced manual extn for grapple,

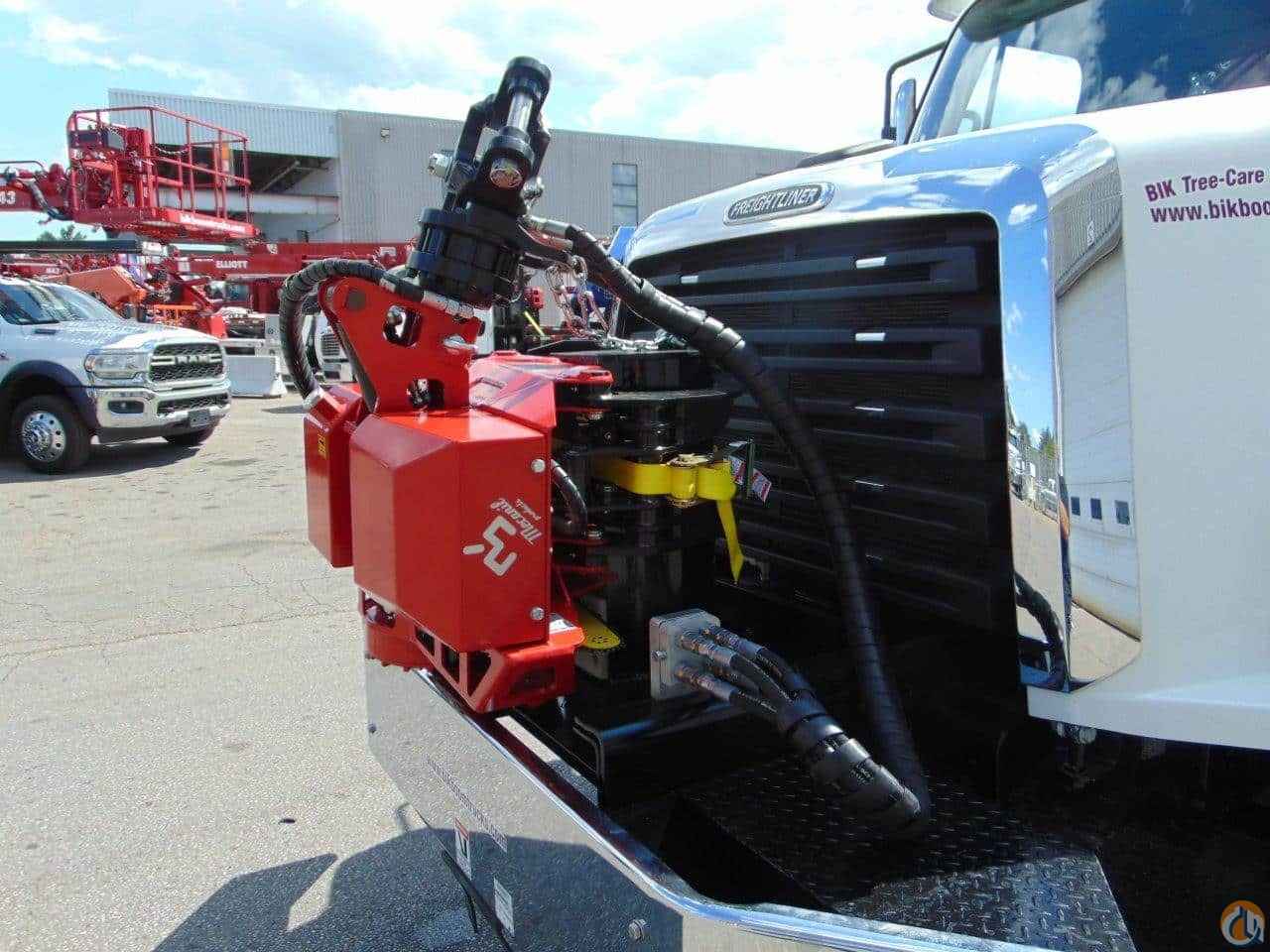

- New Mecanil SG-280 Grapple saw with spare parts
- 2 to 3 day on site boom feature/function familiarization by a BIK tech
Options at Extra Cost:
- Additional grapple saw – Mecanil SG 160 Grapple saw with spare parts kit and holder on deck
- Front Wheel Drive conversion – to be able to have 6-wheel drive for off-road use
- Draw plate at rear of truck frame with Heavy Duty air pintle hook and Reese receiver w/brake actuator (dual hitches)
- Aluminum single man self-levelling basket
- Mat rack behind the cab or mounted on top of deck at rear a
- TC-104 – 104’ Vert Reach Version – with Mecanil SG-220 (instead of SG-280)
- Condition: New
- Location: Milford Massachusetts USA
Rental Prices
Please contact the dealer for pricing -- 888-557-2244
