BOOM DETAILS

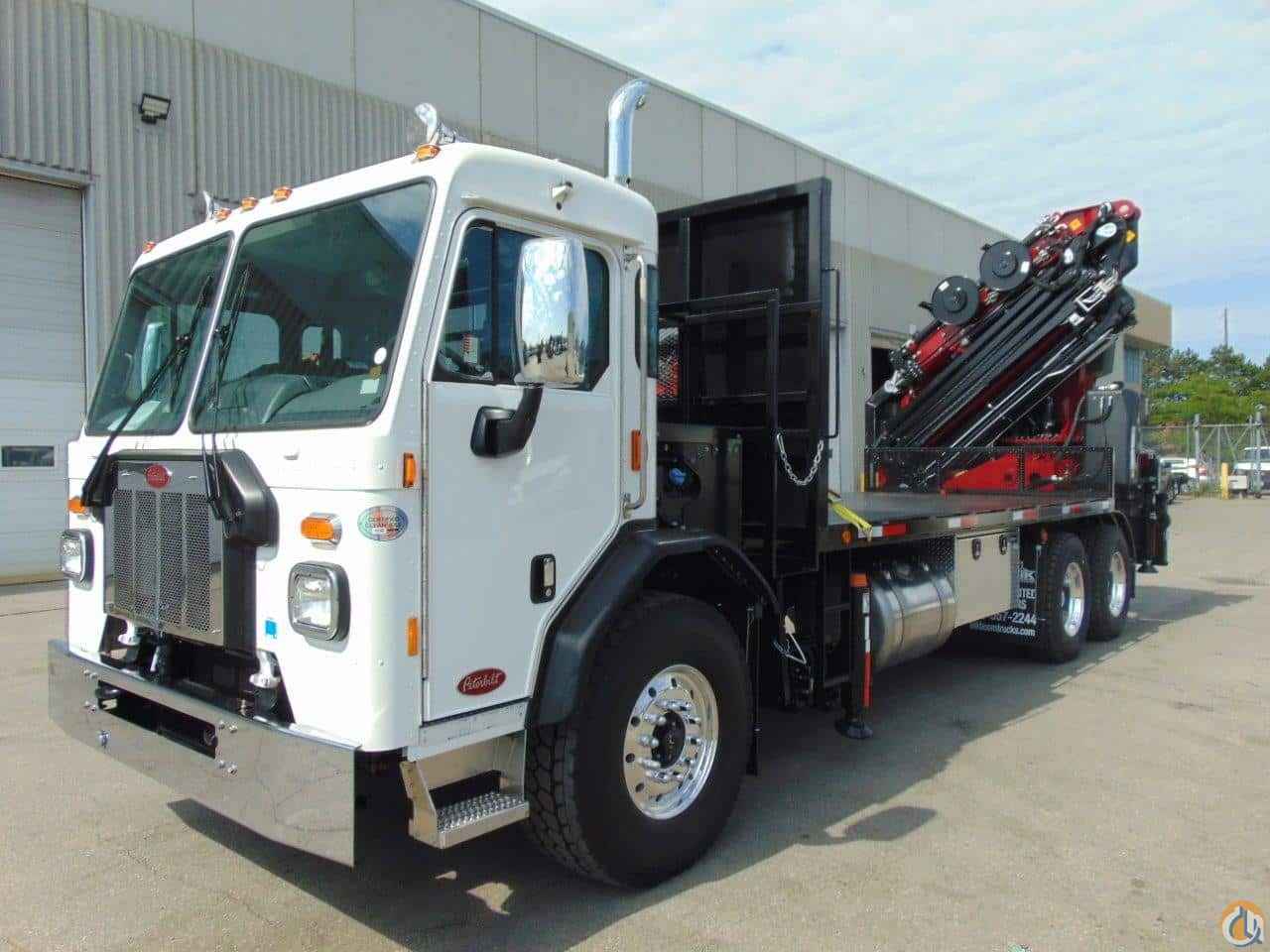

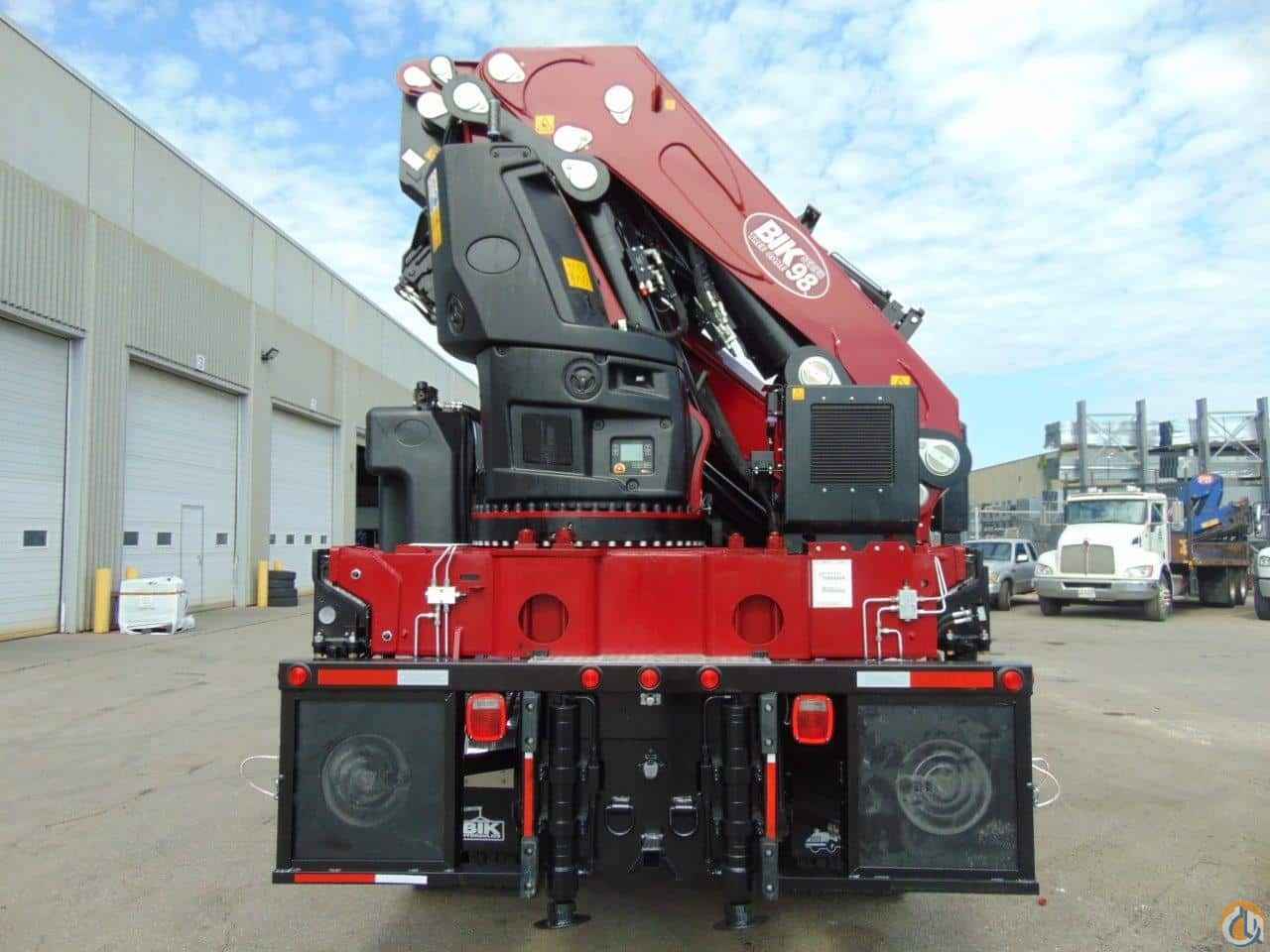

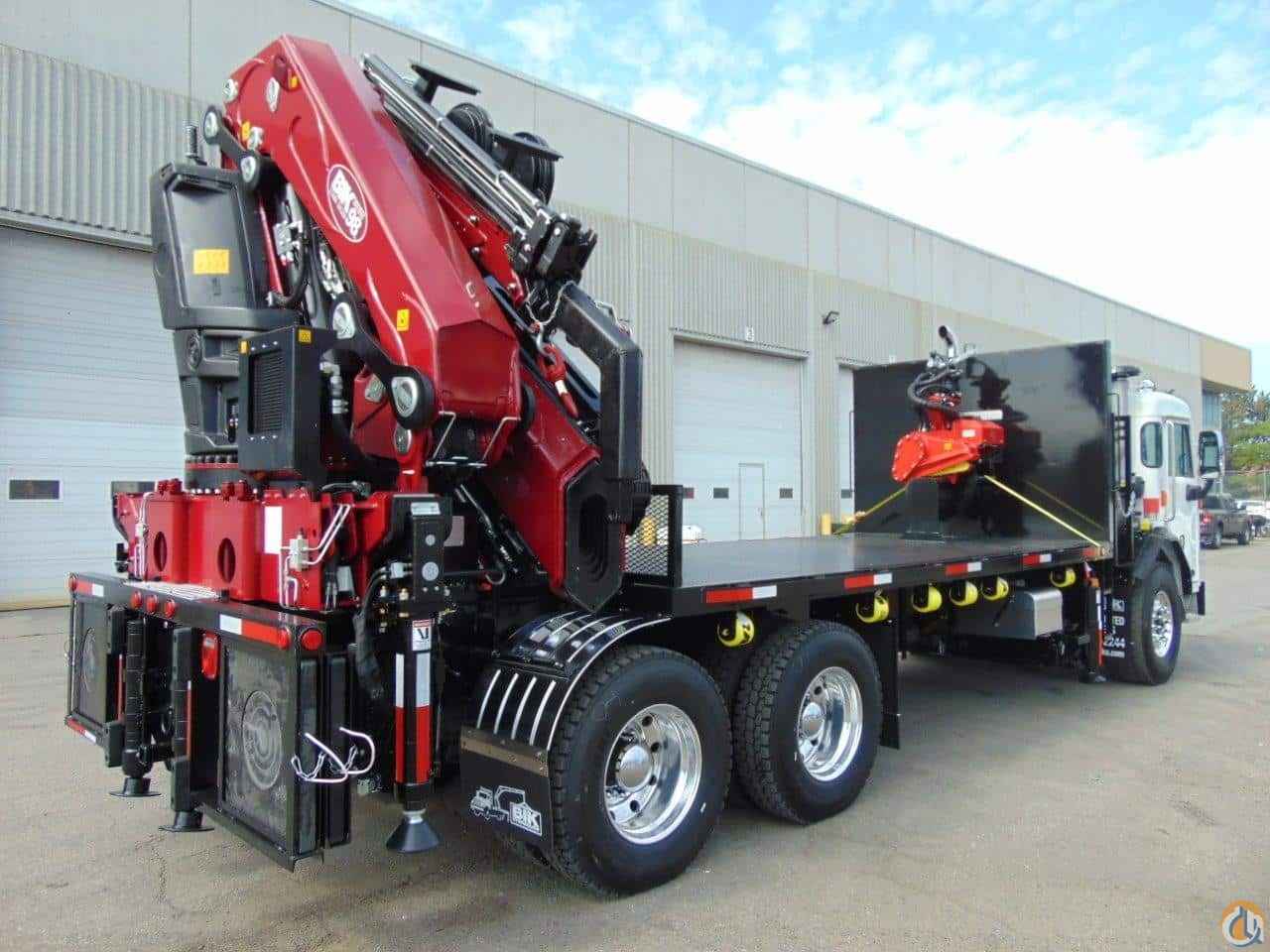

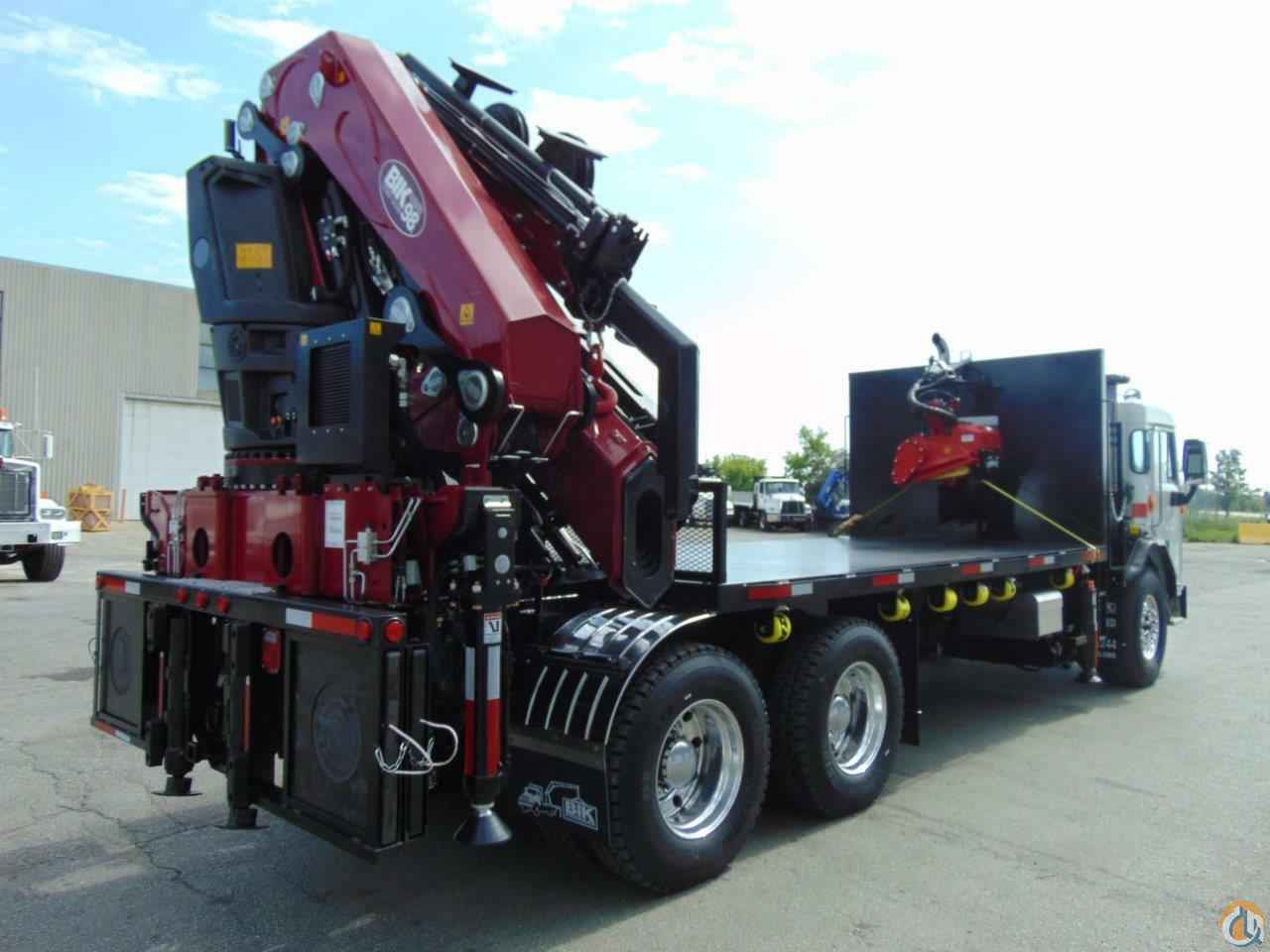

New – BIK Tree-Care Series TC-98 – 54.5 ton/m  Knuckle Boom

• 6 ext Knuckle Boom w/Detachable 3 ext jib + 1-grapple extn Including (1) Grapple extension in jib,
• Boom Capacity of  2,230 lbs @ 98’ Vertical Reach
• Main Boom Horizontal Capacity:
  • 21,000 lbs @ 14’
  • 10,900 lbs @ 25’ 8”
  • 6,800 lbs @ 38’ 8”
  • 4,830 lbs @ 53’ 6”
• Jib Horizontal Capacity:
  • 2,100 lbs @ 63’
  • 1,850 lbs @ 75’ 4”
  • 1,700 lbs @ 82’
• Grapple main extension to 86’
• “Power-Link” connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders
• Planetary Gear Rotation Motor  & Continuous Boom Rotation – for maximized slewing torque and reliability
• 15 Degree negative angle  on main knuckle,  20 degree negative angle on jib   – Hyd Extra Wide Main outriggers at base – 25’ 7” total span
• Auxiliary Stabilizers – Extra wide type – 21’ span, hyd out & down type at rear – Front Bumper Hyd Stabilizer  – 100% stability 360 degrees
• Two Hydraulic Oil Coolers, high pressure return filter and 100 gal custom hydraulic oil tank with Enviro-Friendly AW-46 weight Hyd Oil
• Tandem pump / split valve pressure system for optimum speed for simultaneous  multi function use
• DANFOSS Proportional Control Valve at Top Seat
• SCANRECO Proportional Radio Remote Control w/2 batteries, charger
• Engineer Stability load tested and certified

Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components

DECK DETAILS

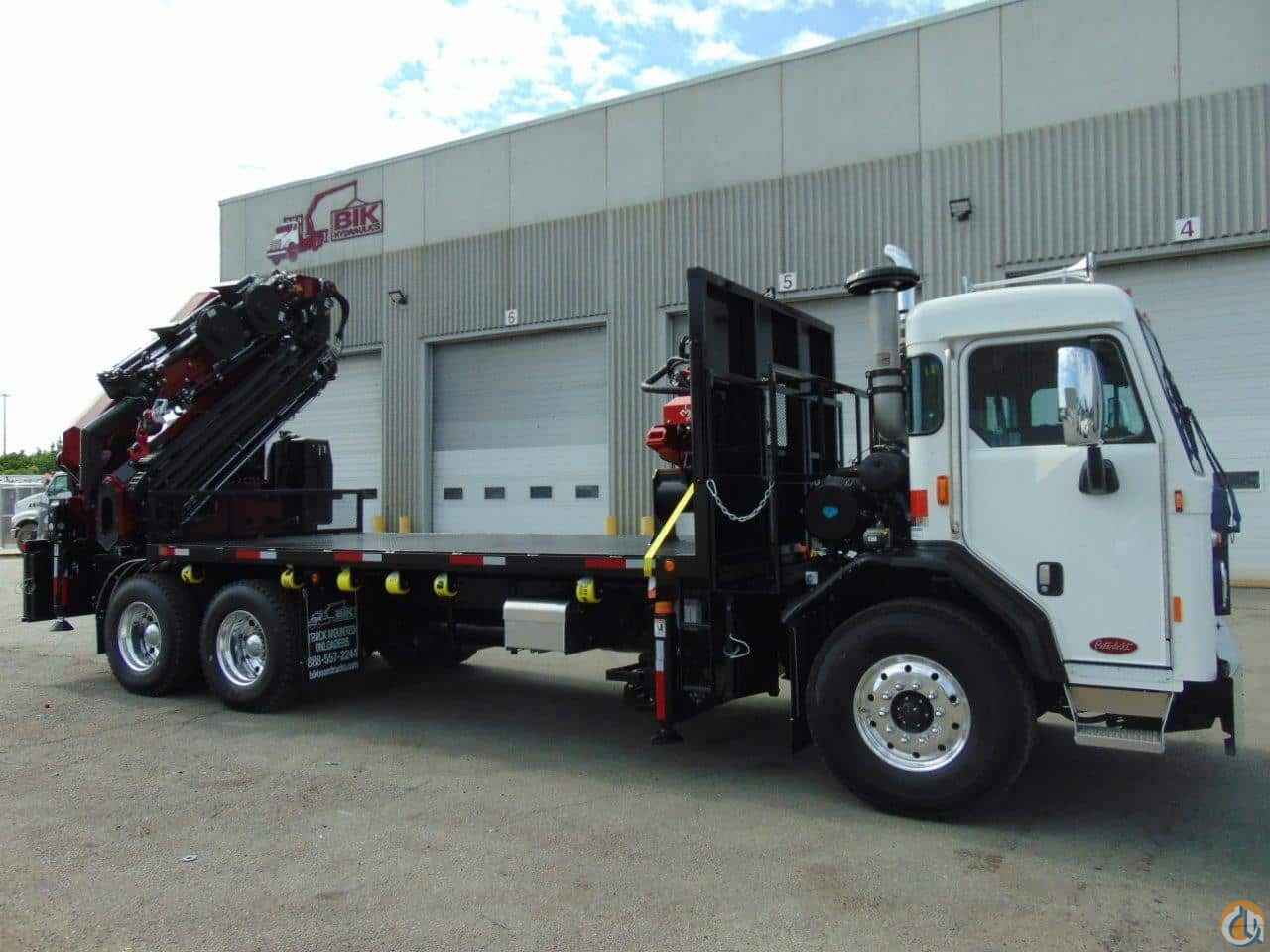

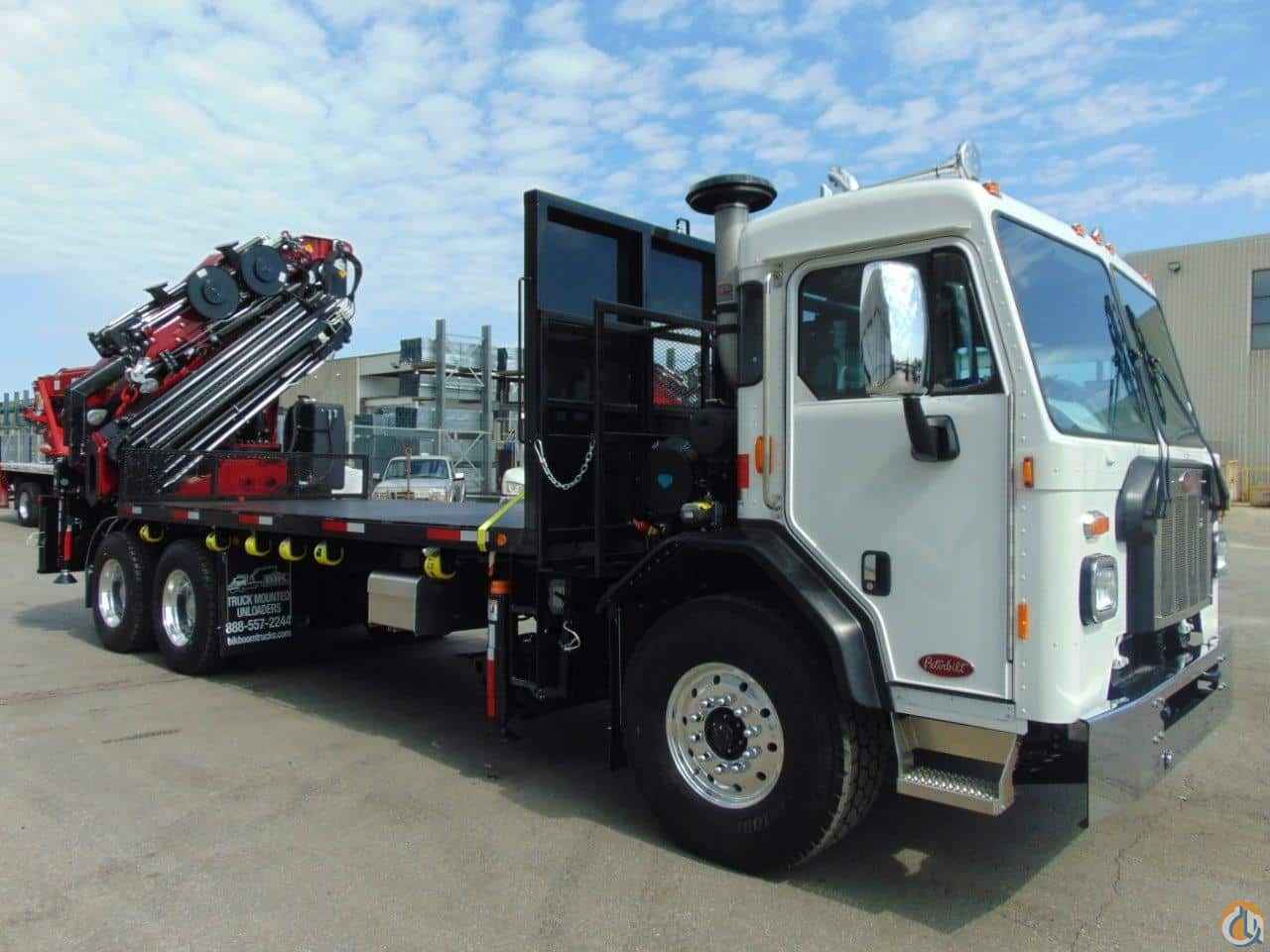

New  – 17’  x 102” Steel Flat Deck:

• Steel headboard w/ Side Wrap Winches
• Steel Checker plate Floor
• Winch bar and holder
• Integral 6” sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting
• X-braces & support
• Deck painted Black
• 2-Deck access Ladders at Headboard
• 2-Ladders at rear
• Reflectors and Mud-flaps
• 6 – Sliding Winches and track under deck
