Boom:

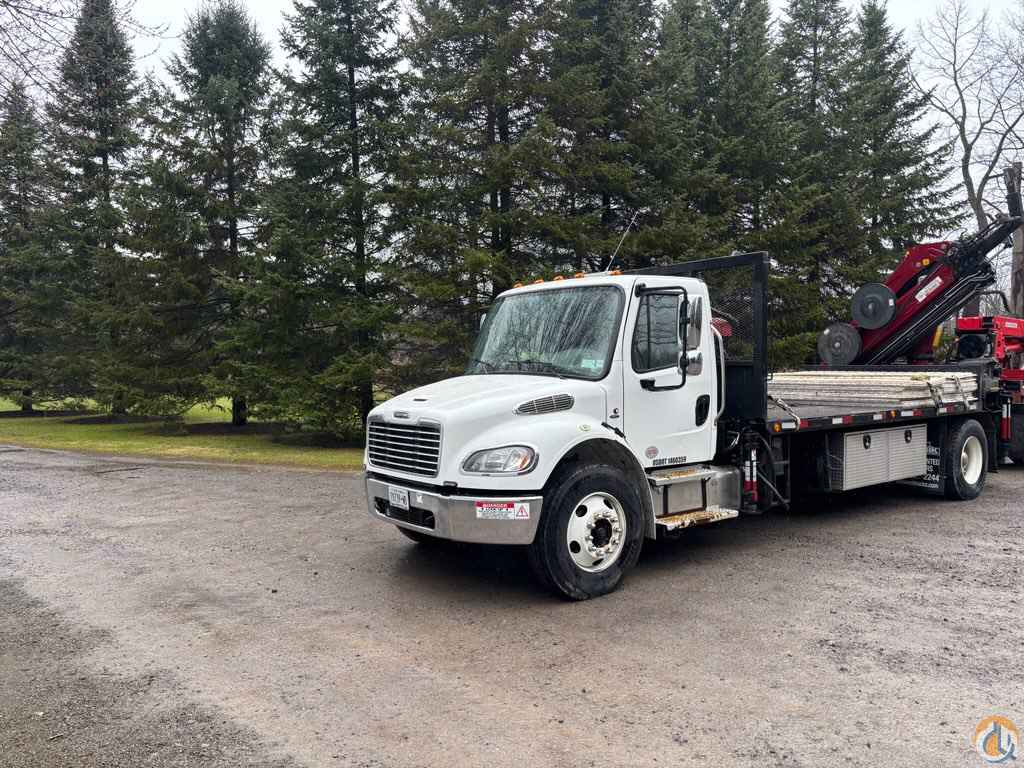

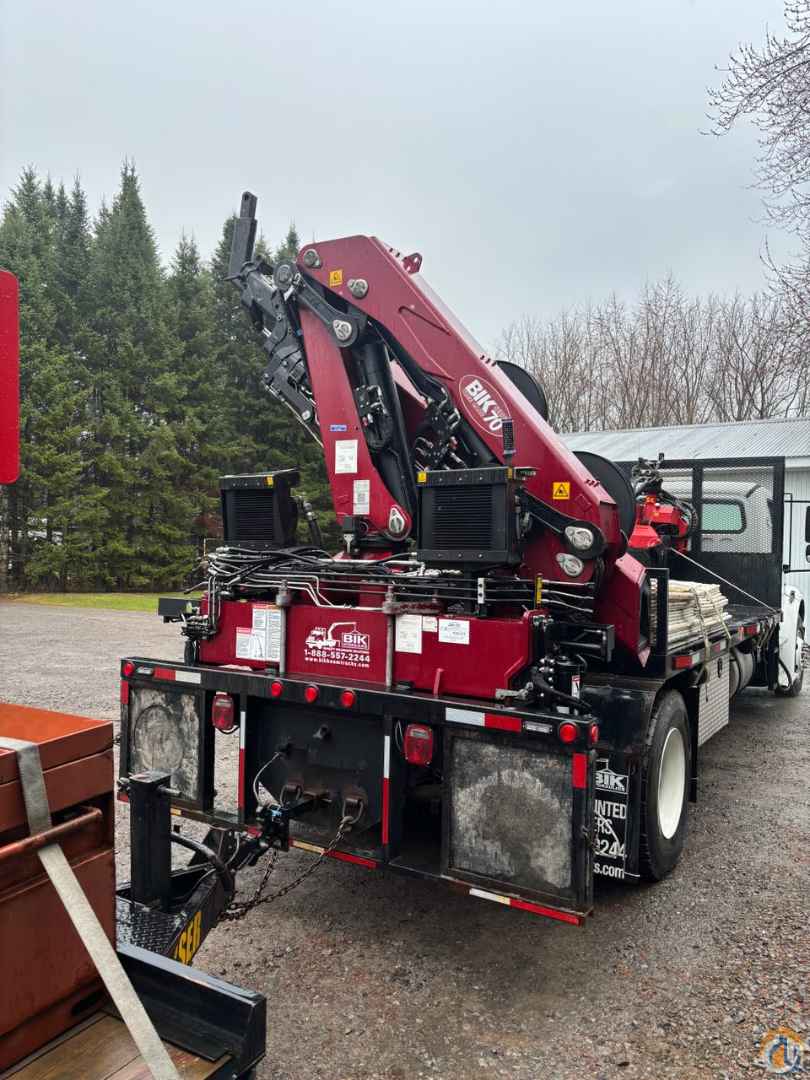

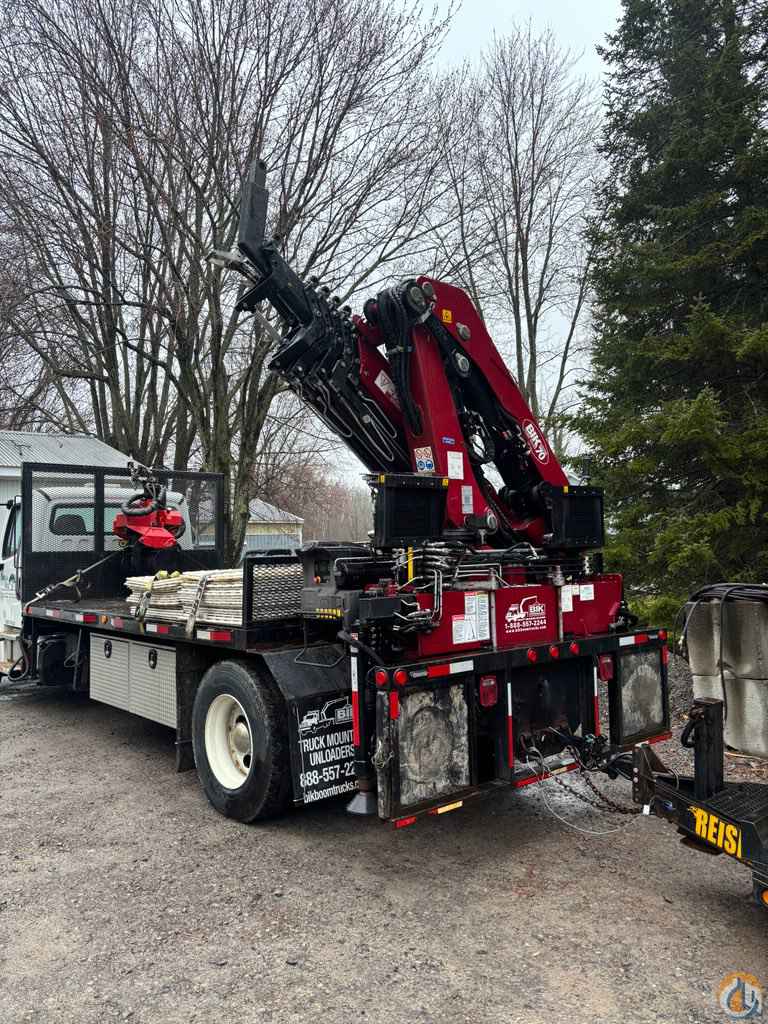

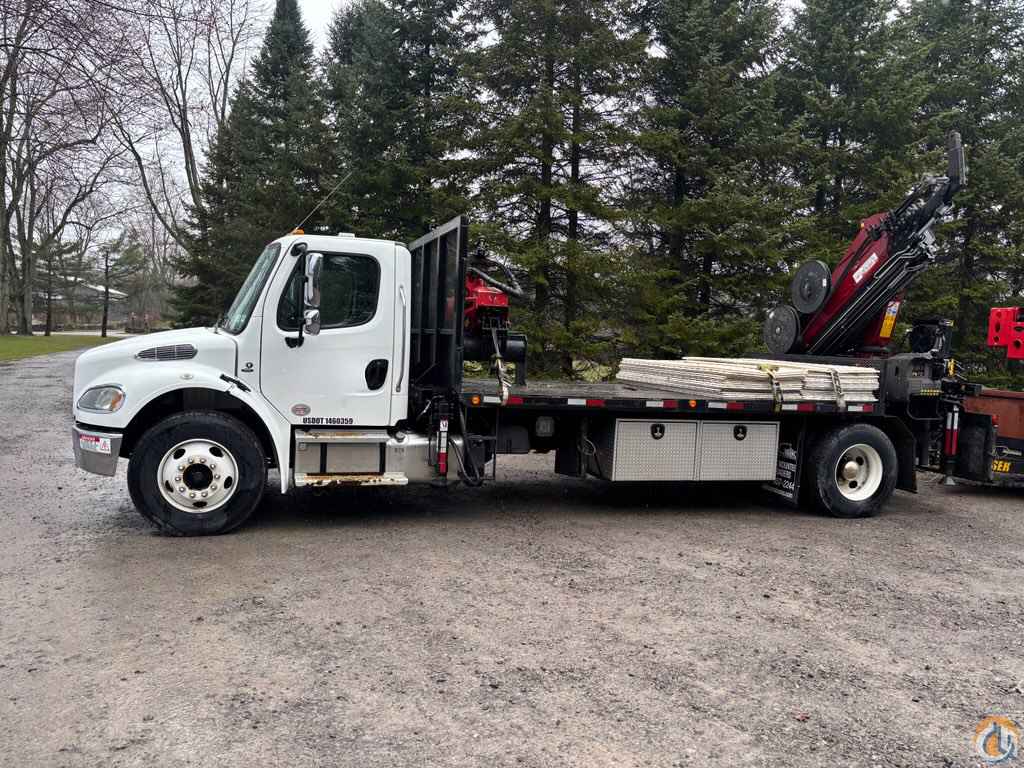

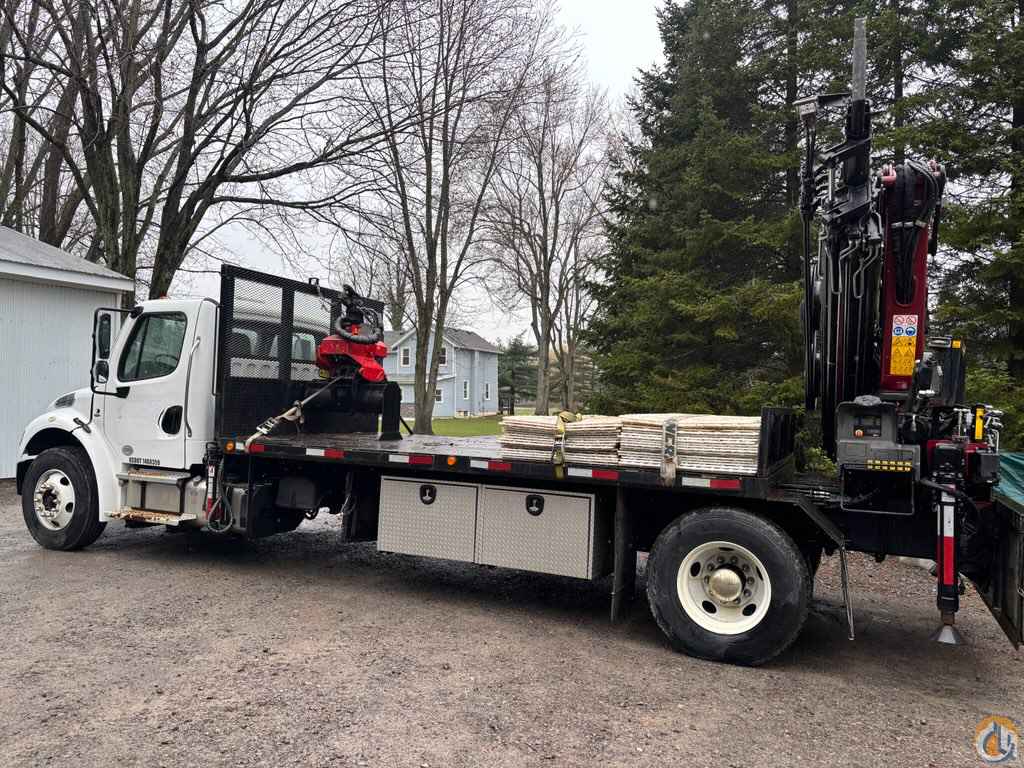

Pre-owned – BIK Tree-Care Series TC-70 (23.5 ton/ml Knuckle Boom by PM: 6-hydraulic extensions+ (1) grapple extn to 58′ Horizontal reach (70′ vertical)
HORIZONTAL Capacities:
-
- 9,800 lb at 14′
- 5,900 lb at 20′
- 4,330 lb at 26′
- 2,560 lb at 40′
- 1,750 lb at 55′
- 408 Degrees Rotation on Main Hydraulic Slewing
- Double pilot operated on slewing and pilot operated check valves on all cylinders
- Hydraulic Oil Cooler
- High pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls
- Single sided operator control station
- Load Holding Valves on all cylinders
- PM Power-Tronics electronic monitoring & load control with Stabilizer deployments sensors & digital read-out on the remote
- SCANRECO Radio Remote Control
- electronically actuated controller, proportional precision and ultimate operator feel and control Radio Remote includes: 5-micro speed reducing settings at handheld, emergency stop, 2-batteries with in-cab charger, 50′ back-up cord
- Hydraulic OUT and Hydraulic DOWN Extra Wide – 21′ 6″ span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder
- Front Auxilary Stabilizers – hyd out and down type – 16′ spread – mounted on top of truck frame back of cab
- 15 degree negative angle on folding arm
- Hydraulic Overload Protection – simplified system that prevents boom from overload Two functions plumbed to end of 6th extn
- Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear Load Tested & Installed behind cab
- with integral sub-frame to meet or exceed all CMVSS Standards Installed at rear sub base
- Engineer certified stability inspection & certificate
