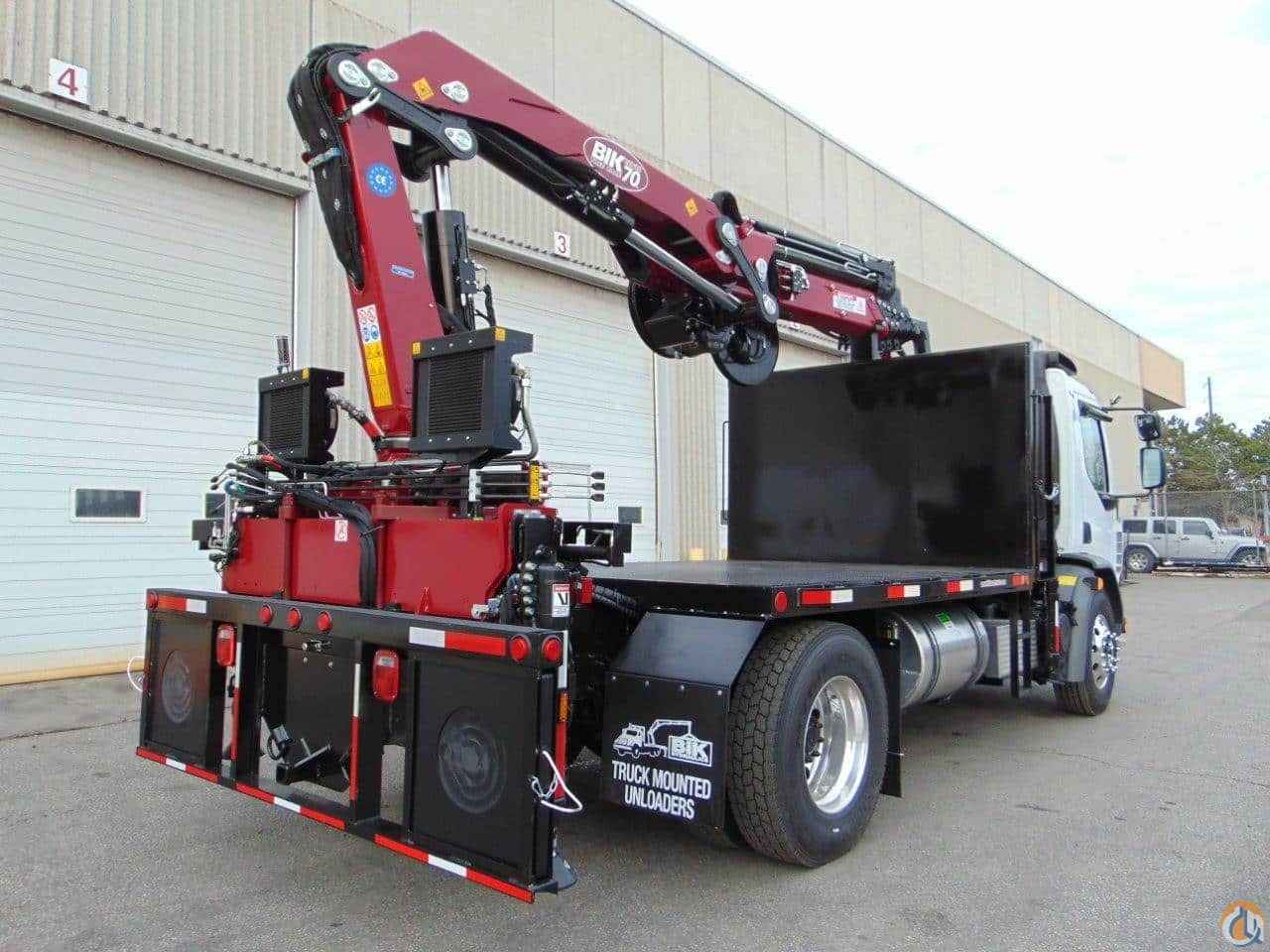

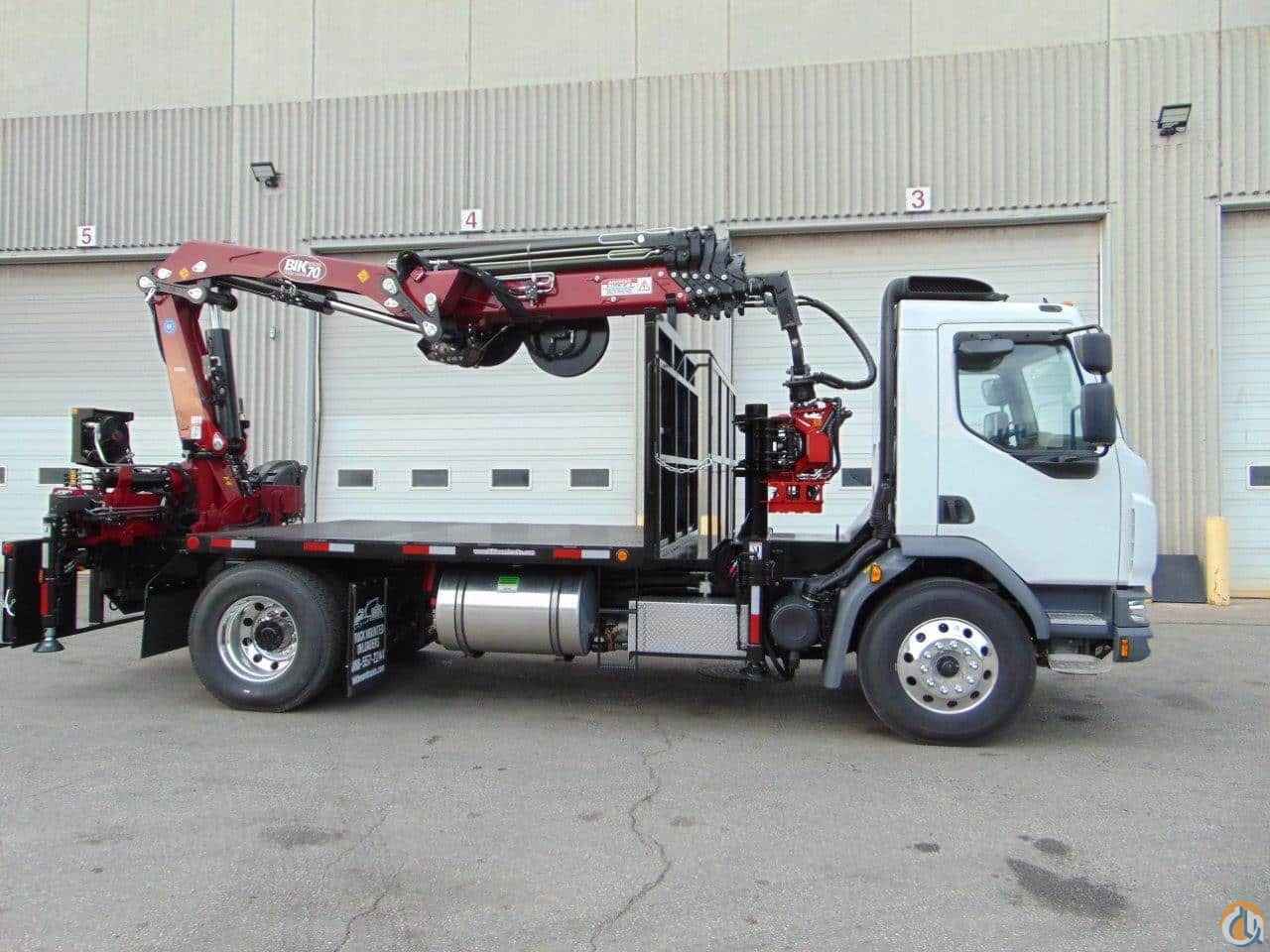

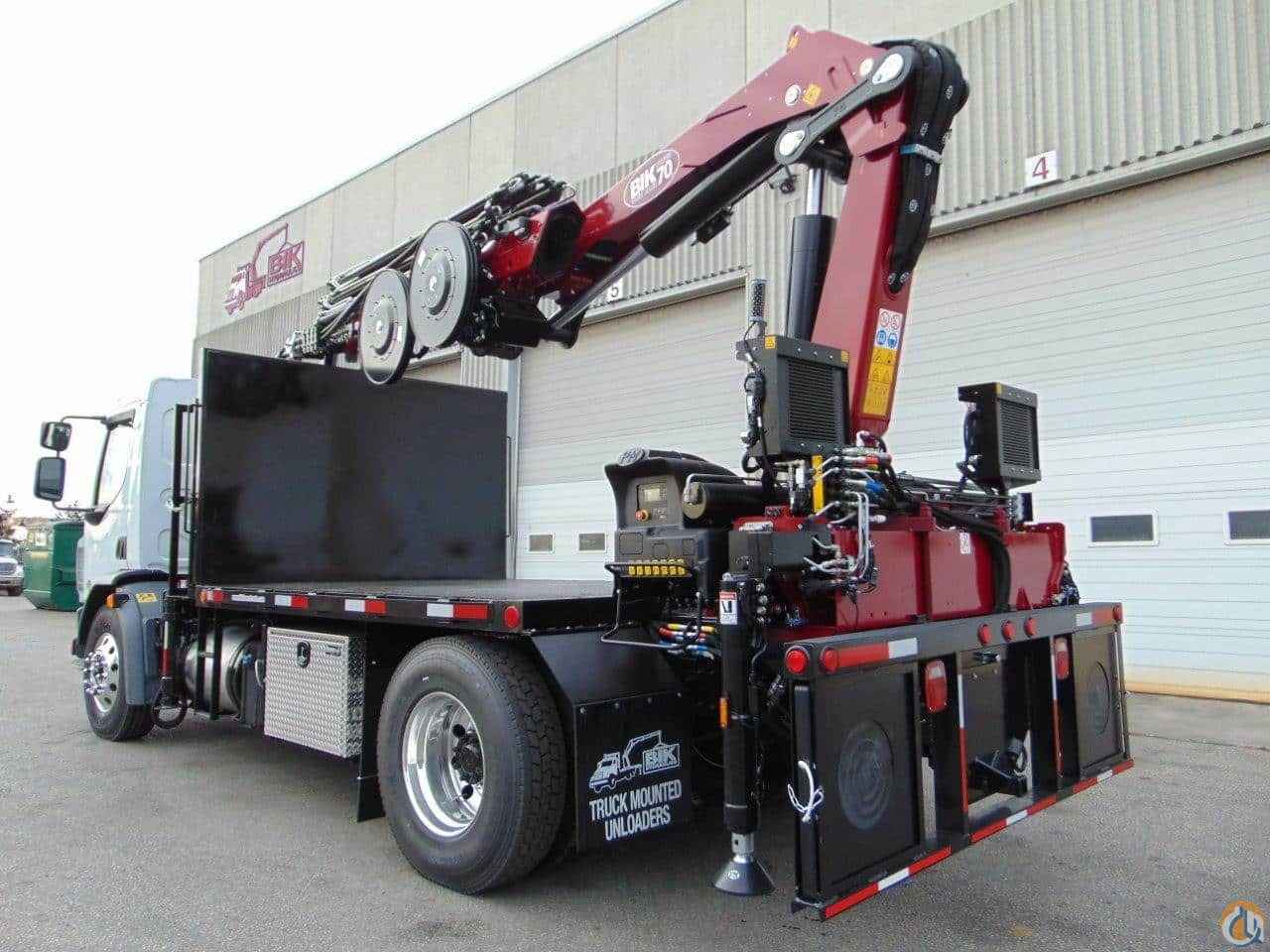

BOOM DETAILS
New – BIK Tree-Care Series TC-70 (PM 23.5 ton/m):
- 6-hydraulic extensions & one manual grapple extension
- Vertical Reach of 70’
- Handles 3,800 lbs @ 70’ Vertical
- HORIZONTAL Capacities:
- 9,800 lb @ 14’
- 5,900 lb @ 20’
- 4,330 lb @ 26’
- 2,560 lb @ 40’
- 1,750 lb @ 55’
- 408 Degrees Rotation on Main Hydraulic Slewing
- Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls – single sided operator control station, Load Holding Valves on all cylinders
- PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
- SCANRECO Radio Remote Control
- Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
- 15 degree negative angle on folding arm – Hydraulic Overload Protection – simplified sysTem that prevents boom from overload
- Two functions plumbed to end of 6th extn, – Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear
- Installed at rear on integral sub base / torque box, Engineer certified stability inspection & certificate,
Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components
DECK DETAILS
New – 10’ x 102” Steel Deck Body
- 60” steel head board
- Steel checker plate deck surface
- Main sil X-braces & support
- 2-Deck access Ladders at Headboard
- 2-Ladders at rear
- Reflectors and Mud-flaps
- 6 – Sliding Winches and track under deck
- Painted black.
Mat Rack and Grapple Saw Rest
- Integrated back of cab (ahead of head board) – To carry boom stowed over deck on Head Board with Grapple Attached.

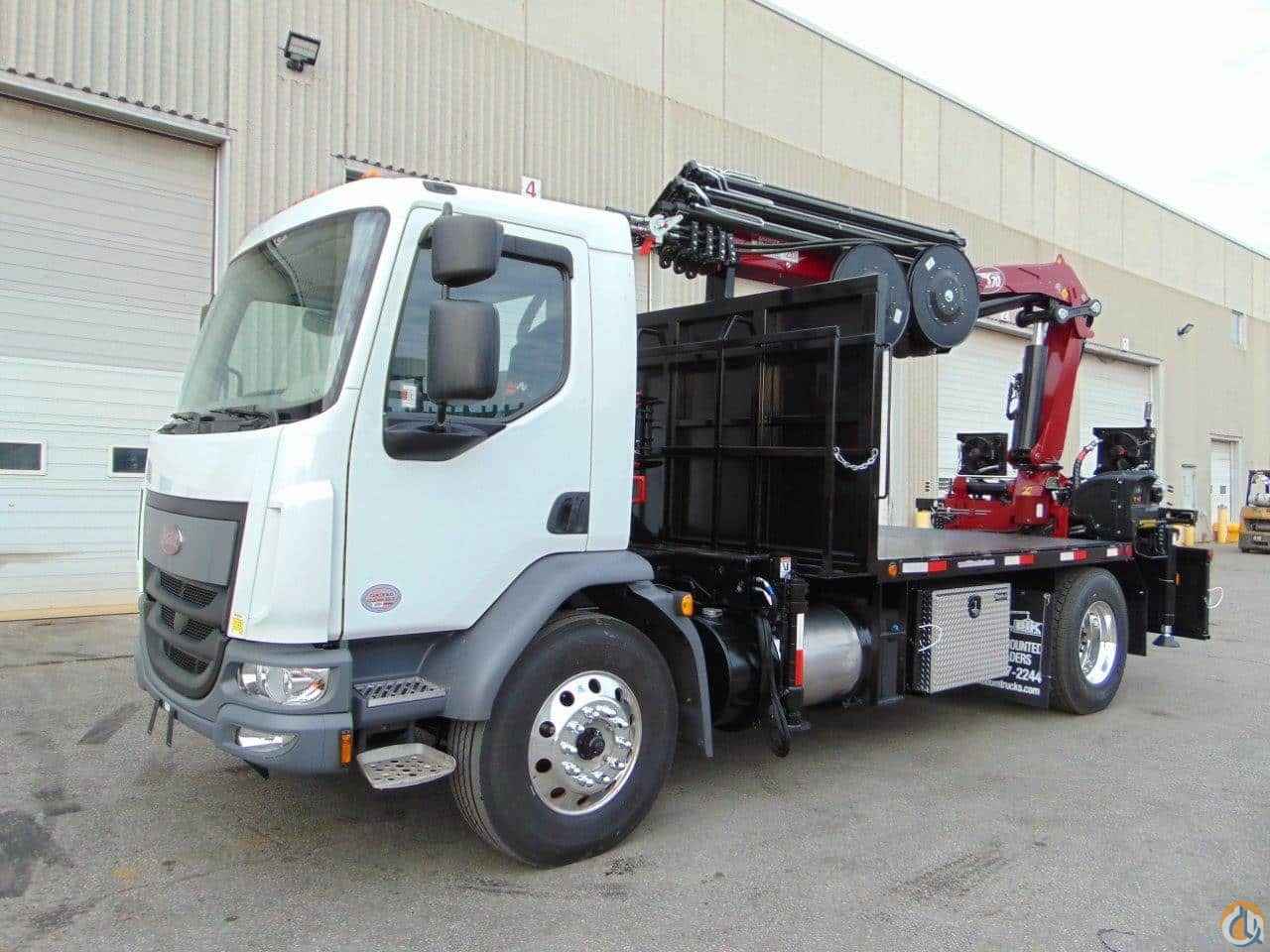

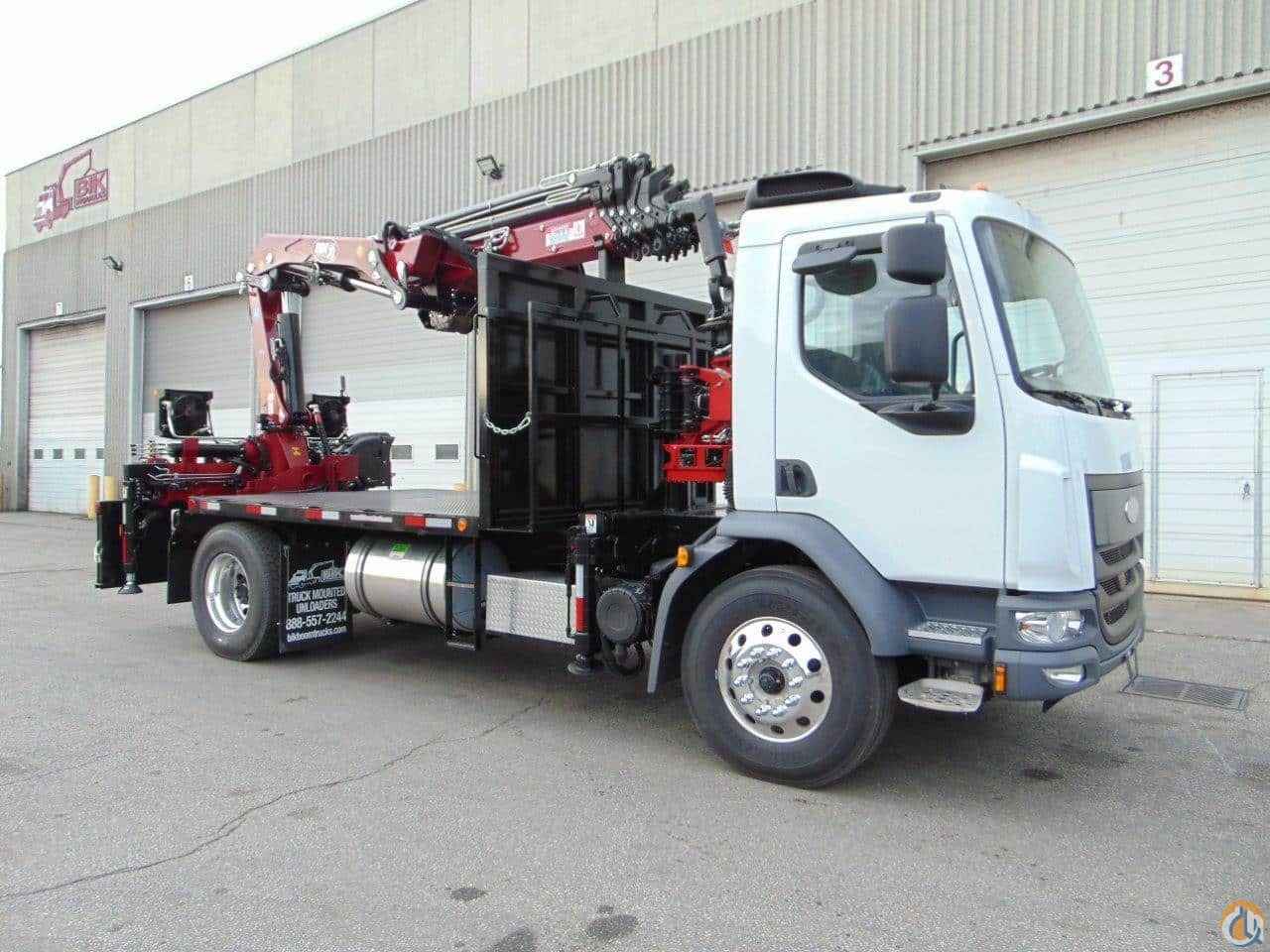

TRUCK DETAILS
New – 2023 Peterbilt 220 Cab-Over Single axle Diesel Truck:
- 26,000 lb end rating – Cummins 260 hp Diesel
- Allison 6spd Automatic transmission.
- 12,000 lb rated front axle with 11R22.5 Front tires on polished Aluminum rims
- 21,000 LB rated Rears on Spring Suspension with 11R22.5 tires on Polished Aluminum outer rims – steel inner
- Air brakes
- 180” Wheel Base
- Truck Features Include: Air cond., AM/FM stereo, Bluetooth, USB port, power windows, tilt steering, power & heated mirrors, cruise, painted bumper, fog lights, aluminum battery box cover, 75 gal Aluminum fuel tank, engine block heater, etc…
Also Included:
- (2) pcs – 2” PVC stabilizer pads – with holders
- 36” Alum storage boxes installed

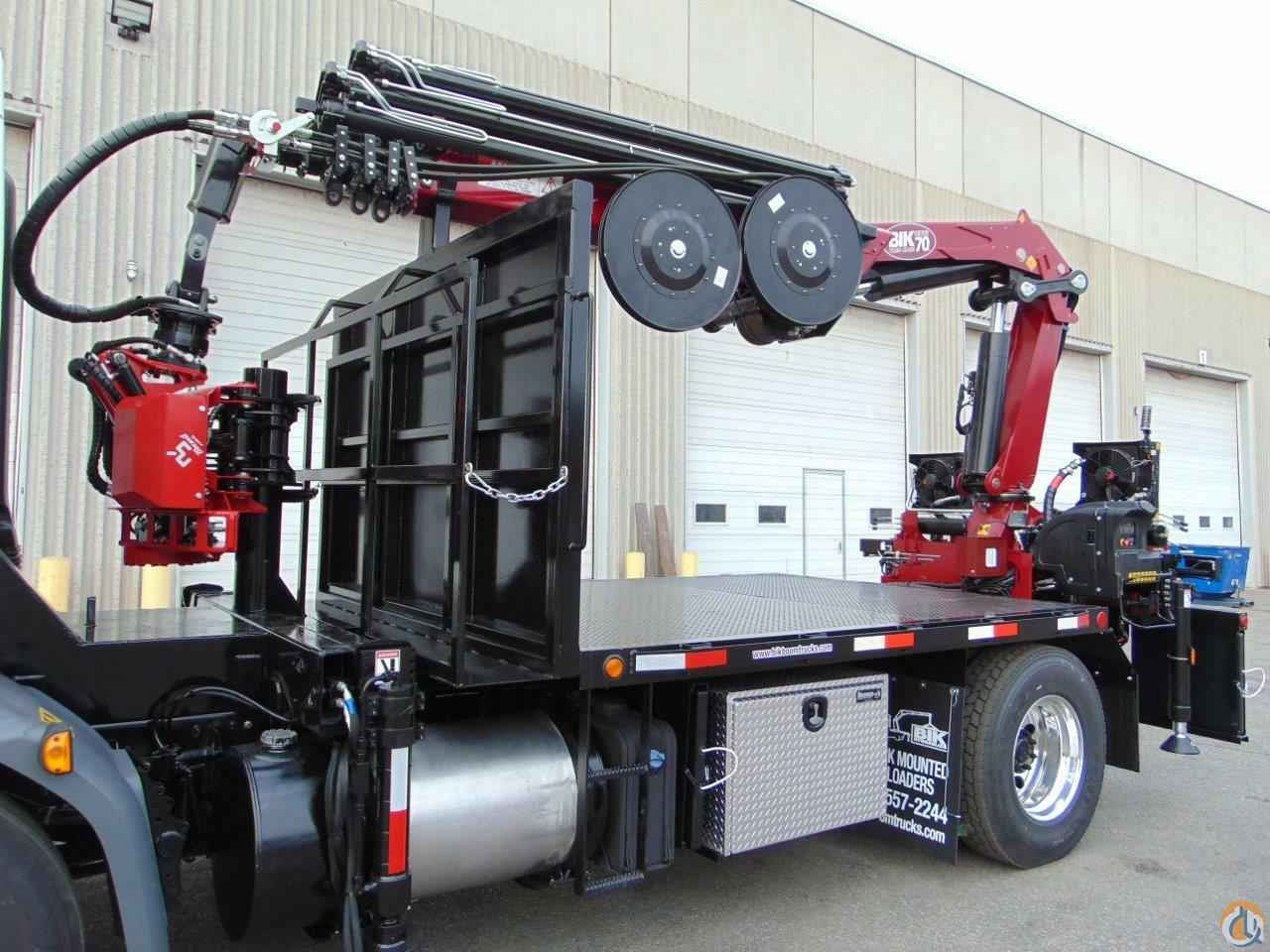

- Mecanil SG-160 Grapple saw with spare parts kit
- Grapple saw holder/stowe bracket on side of frame near boom
- BIK tech to familiarize boom operation at your facility for 2-3 days,
Other Additional Available Options:
- (1) Aluminum self evelling man basket
- Drawplate with reese type pintle hook receiver with electric trailer brake actuator installed
- Additional 3’ Aluminum storage box installed under deck
- TC-78 version – with 8’ extra reach , Handling 2,800 lbs @ 78’ Vertical Reach
- 3 sets – removable log bunks installed on each side of platform
