BOOM DETAILS

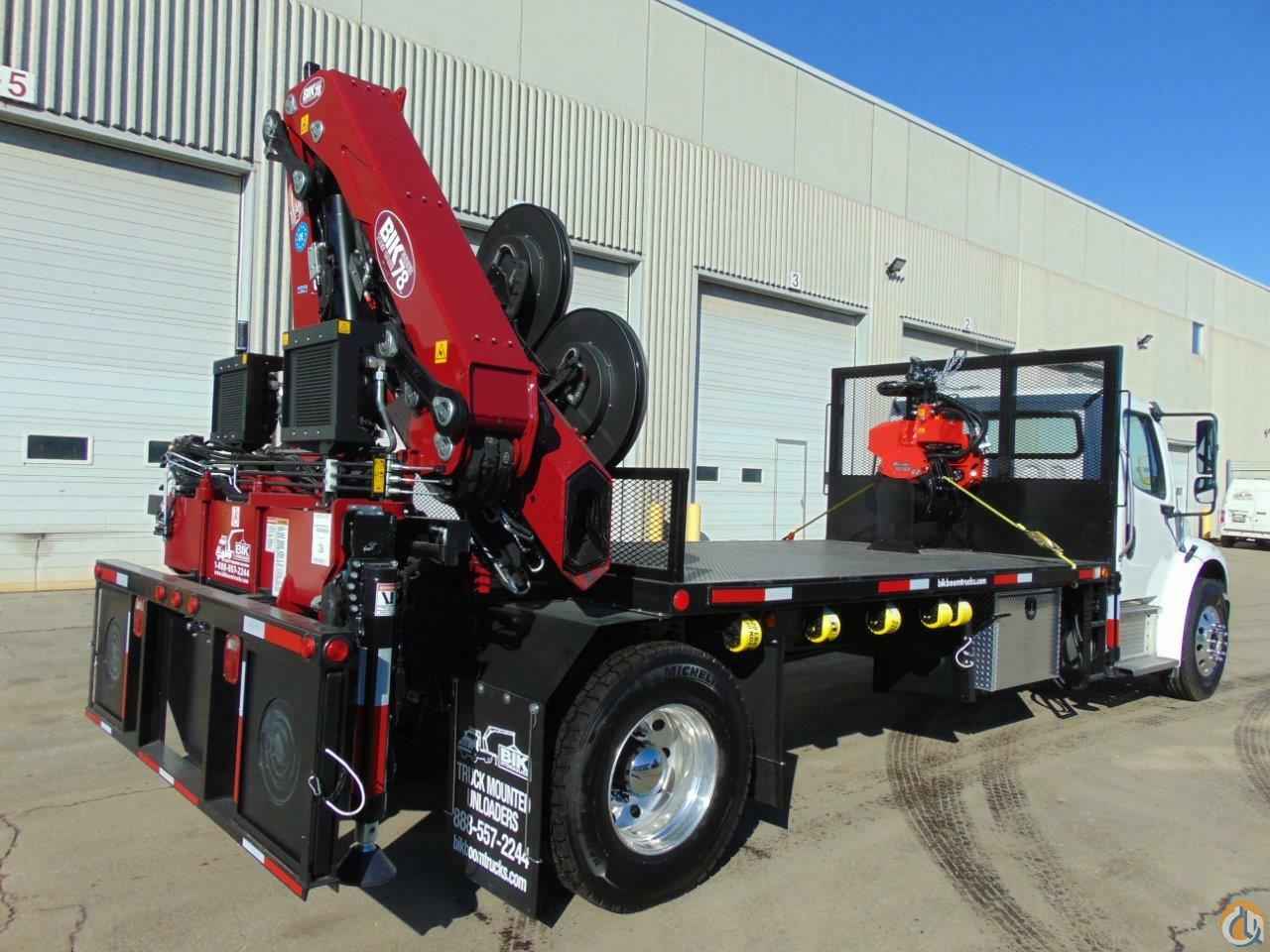

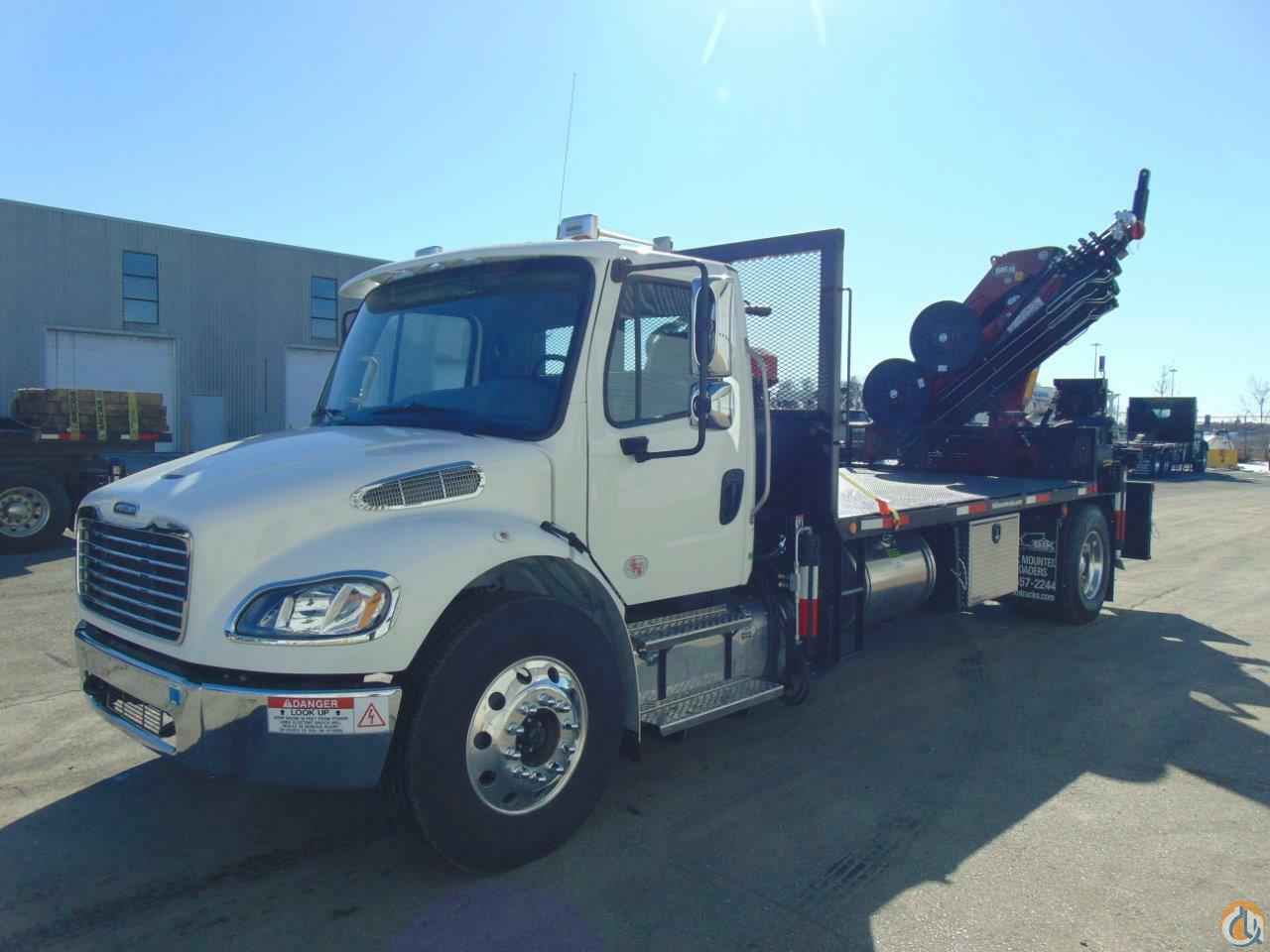

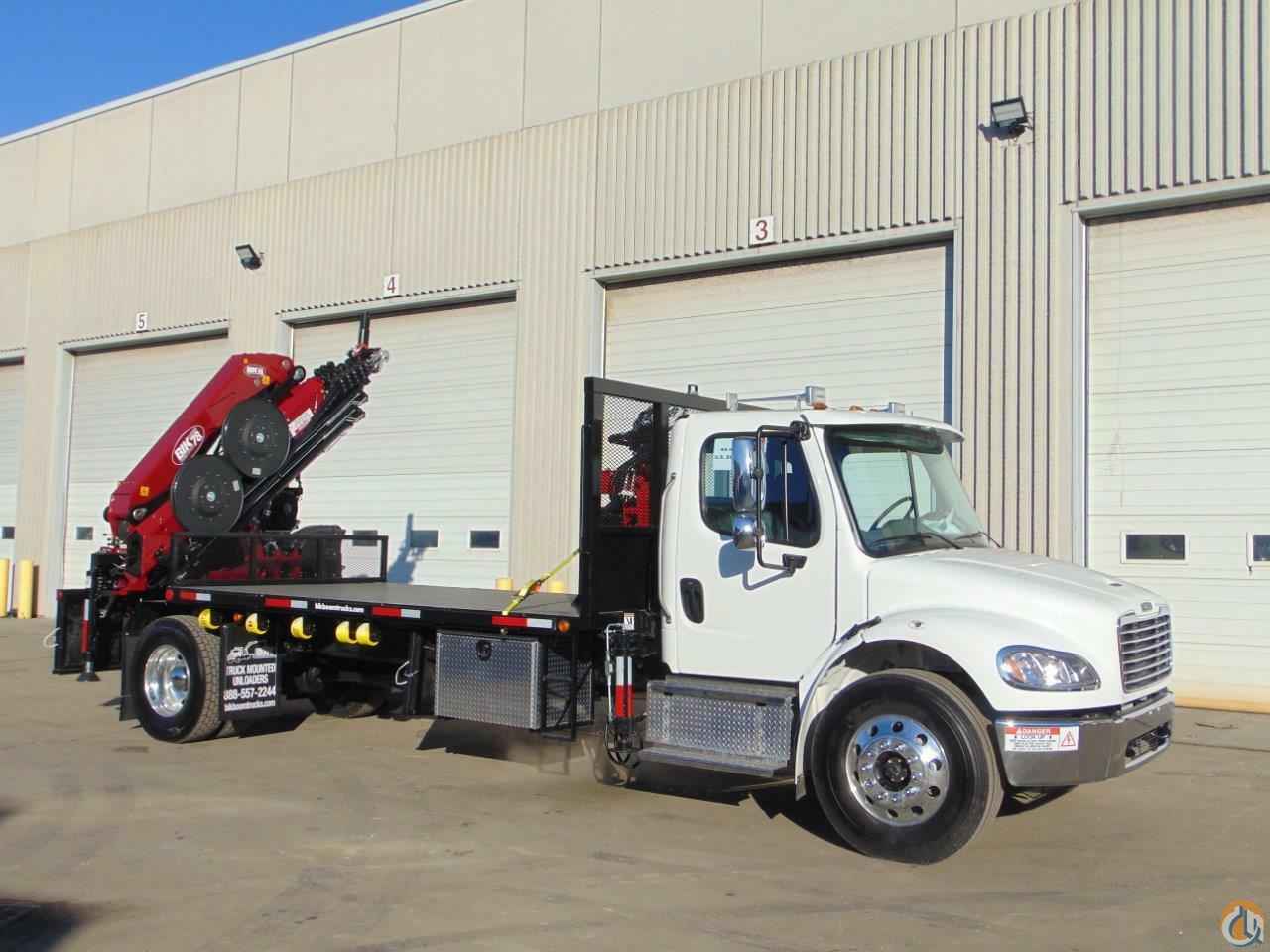

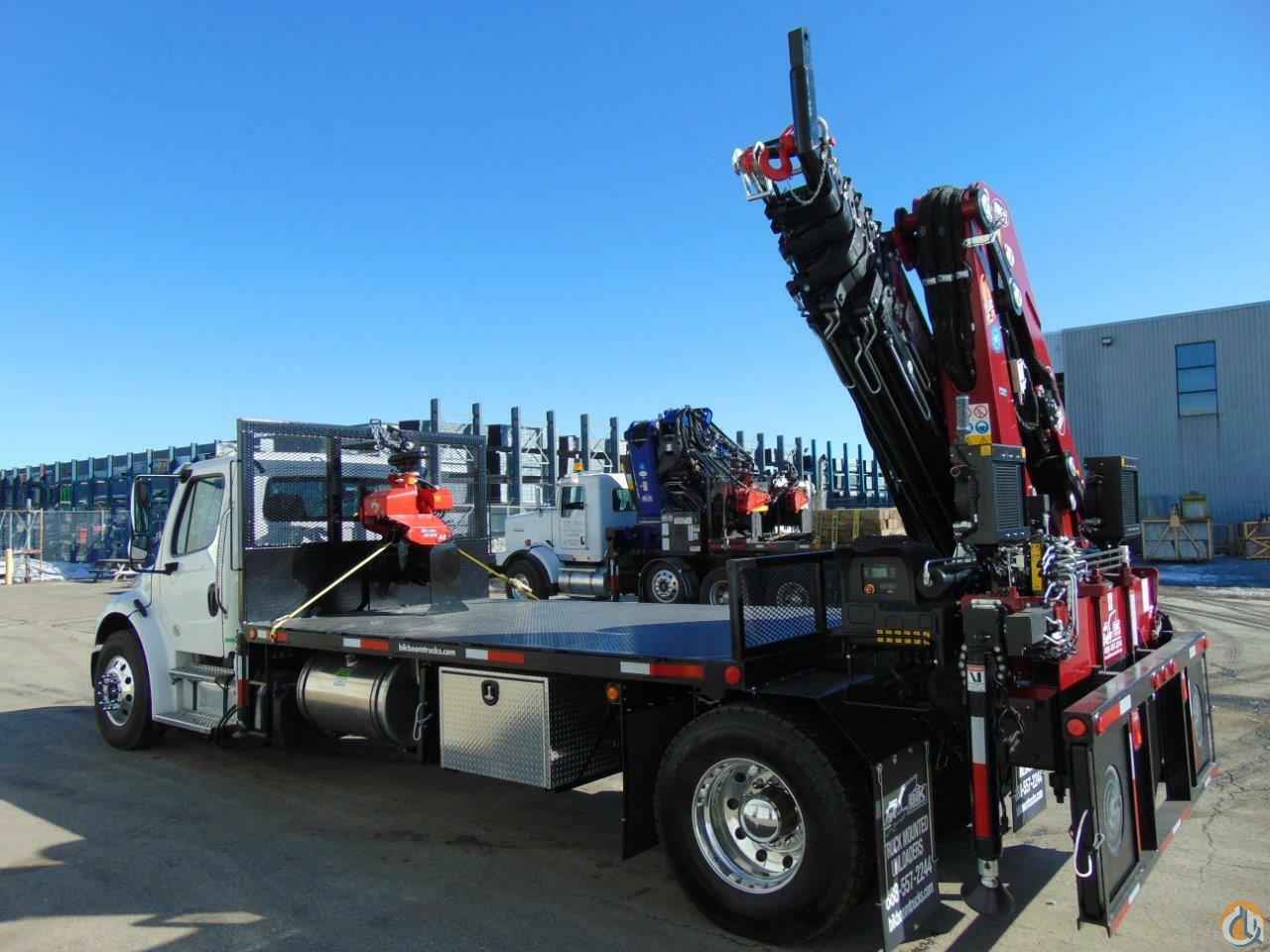

New – BIK Tree-Care Series TC-70  (PM 23.5 ton/m):

• 6-hydraulic extensions & one manual grapple extension
• Vertical Reach of 70’
  • Handles 3,800 lbs @ 70’ Vertical
• HORIZONTAL Capacities:
  • 9,800 lb @ 14’
  • 5,900 lb @ 20’
  • 4,330 lb @ 26’
  • 2,560 lb @ 40’
  • 1,750 lb @ 55’
• 408 Degrees Rotation on Main Hydraulic Slewing
• Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
• DANFOSS Proportional Valve Controls – single sided operator control station,  Load Holding Valves on all cylinders
• PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
• SCANRECO Radio Remote Control
• Hydraulic OUT and Hydraulic DOWN Extra Wide  – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
• 15 degree negative angle on folding arm   –  Hydraulic Overload Protection – simplified sysTem that prevents boom from overload
• Two functions plumbed  to end of 6th extn,  – Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear
• Installed at rear on  integral sub base / torque box, Engineer certified stability inspection & certificate,

Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components

DECK DETAILS

New  – 14’ long  Steel Flat Deck

• 4’ head board
• 8’ wide usable deck + stake pockets with rub rail
• Steel checker plate Deck surface
• 5-sliding tie down winch straps on pass side
• Dual access ladders at front & winch bar with holder
• Integral sub-base / torque box To maximize torsion strength
• DOT stickers and clearance lights as required.
