BOOM DETAILS

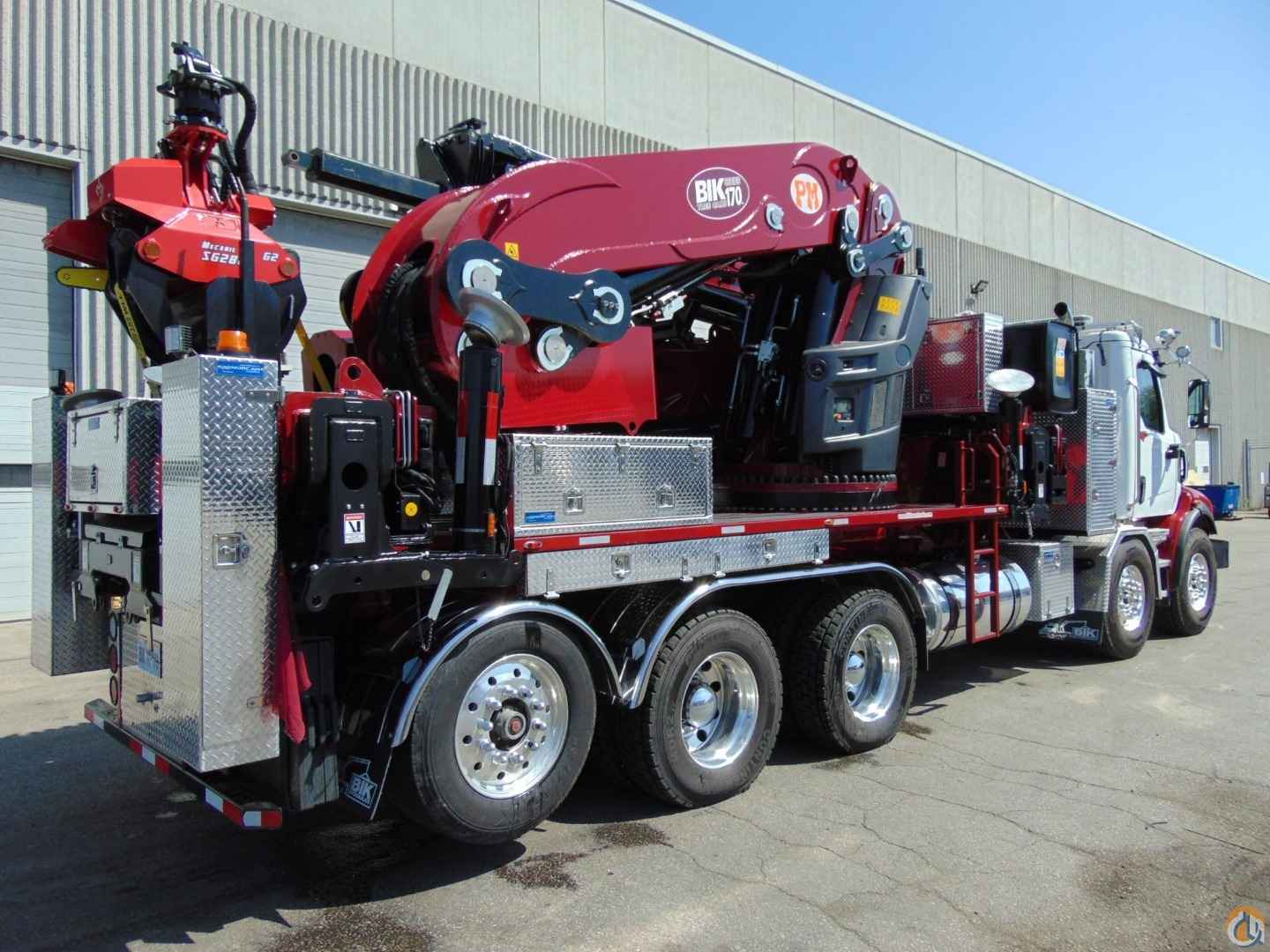

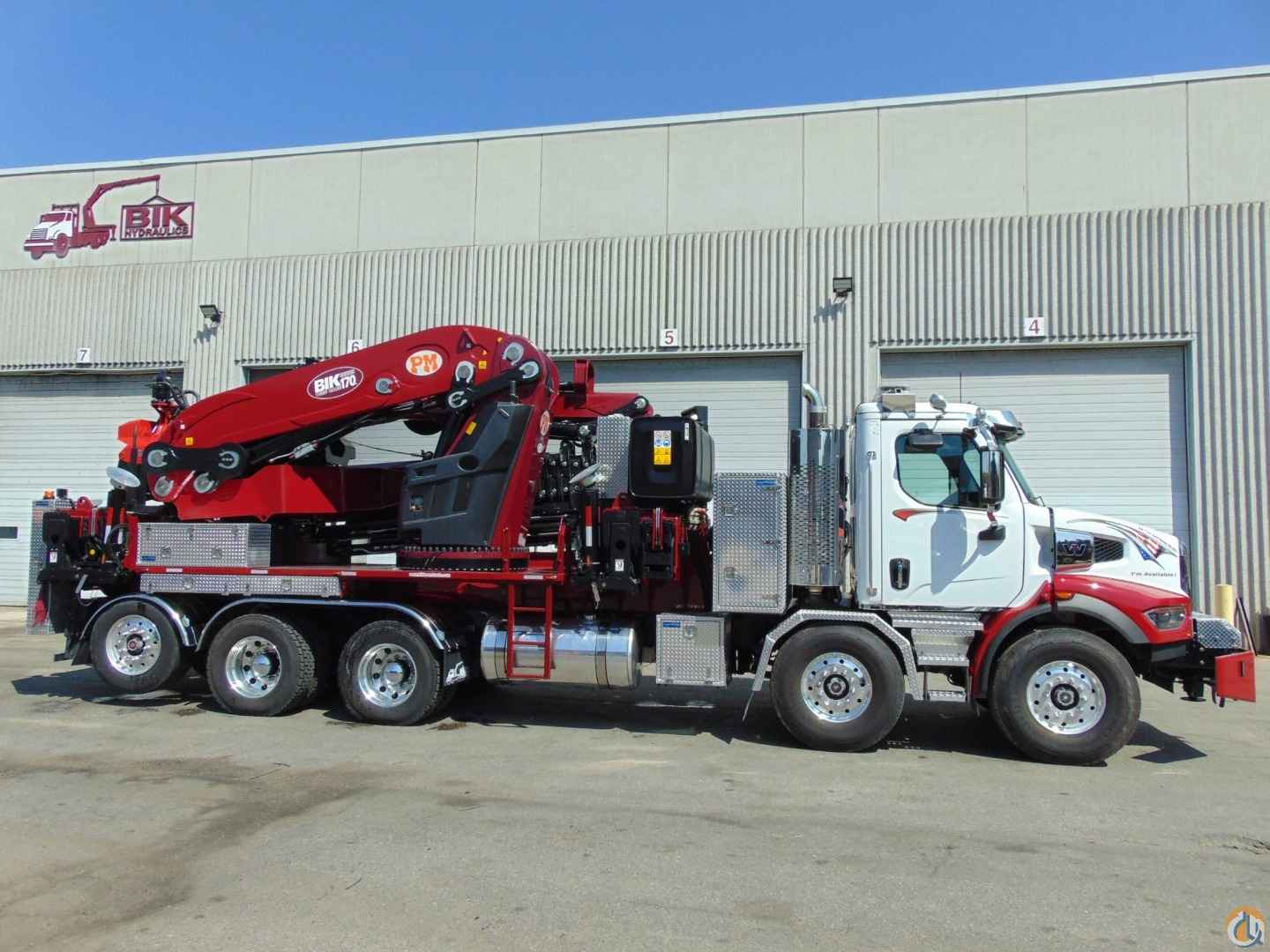

New – BIK Tree-Care Series TC-170 – PM 210 Knuckle Boom
- Hydraulic Knuckle Boom with Jib fold on top of deck
- 8 hydraulic extensions in main and 6 extension in jib with one manual grapple extension
- 170’ total vertical reach (158’ horizontal)
- Continuous Rotation and Dual Planetary Gear Rotation
- Double pilot operated on slewing and pilot operated check valves on all cylinders
- Special Extra High Tensile Steel Structure, Lowest weight to ton/m size in its class
- Dual Main lift and dual knuckle lift cylinders – greater power and easy access , Boom / bed wings painted your colour Red
- Hydraulic Extra Wide Main outriggers at pedestal – 40’ – hydraulic tilting when retracted
- Auxilary 34’ spread stabilizers installed at rear behind drives, 2-hyd out & down rearward & 1-at front bumoer
- Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
- 2.7 ton single part line lifting winch plumbed to the end of jib (custom jib stowe brackets on top of bed wing to be established)
- DANFOSS Split Valve – 2 pressure line system Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System allowing constant crane monitoring & visual display
- Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS.
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
TRUCK DETAILS

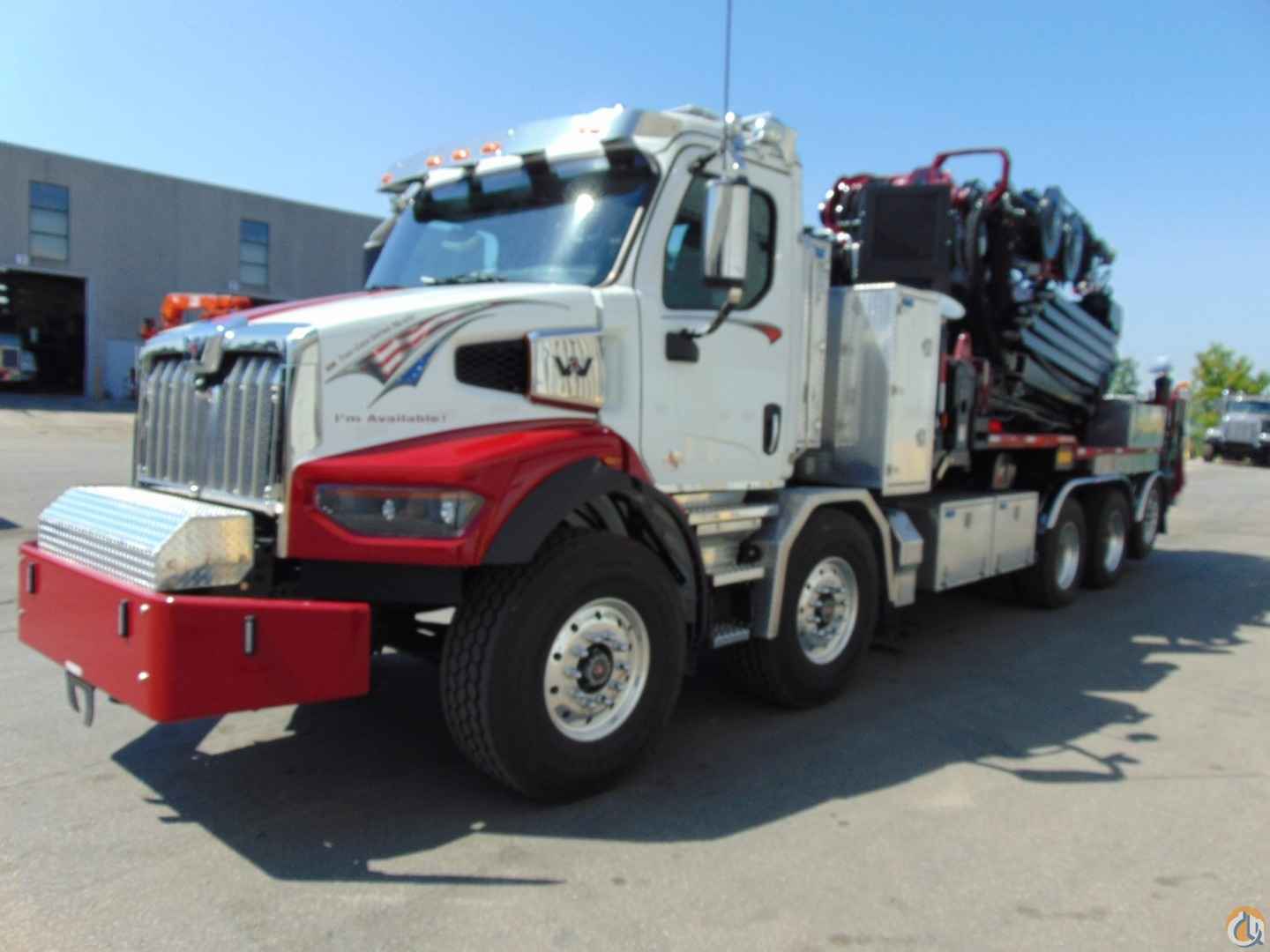

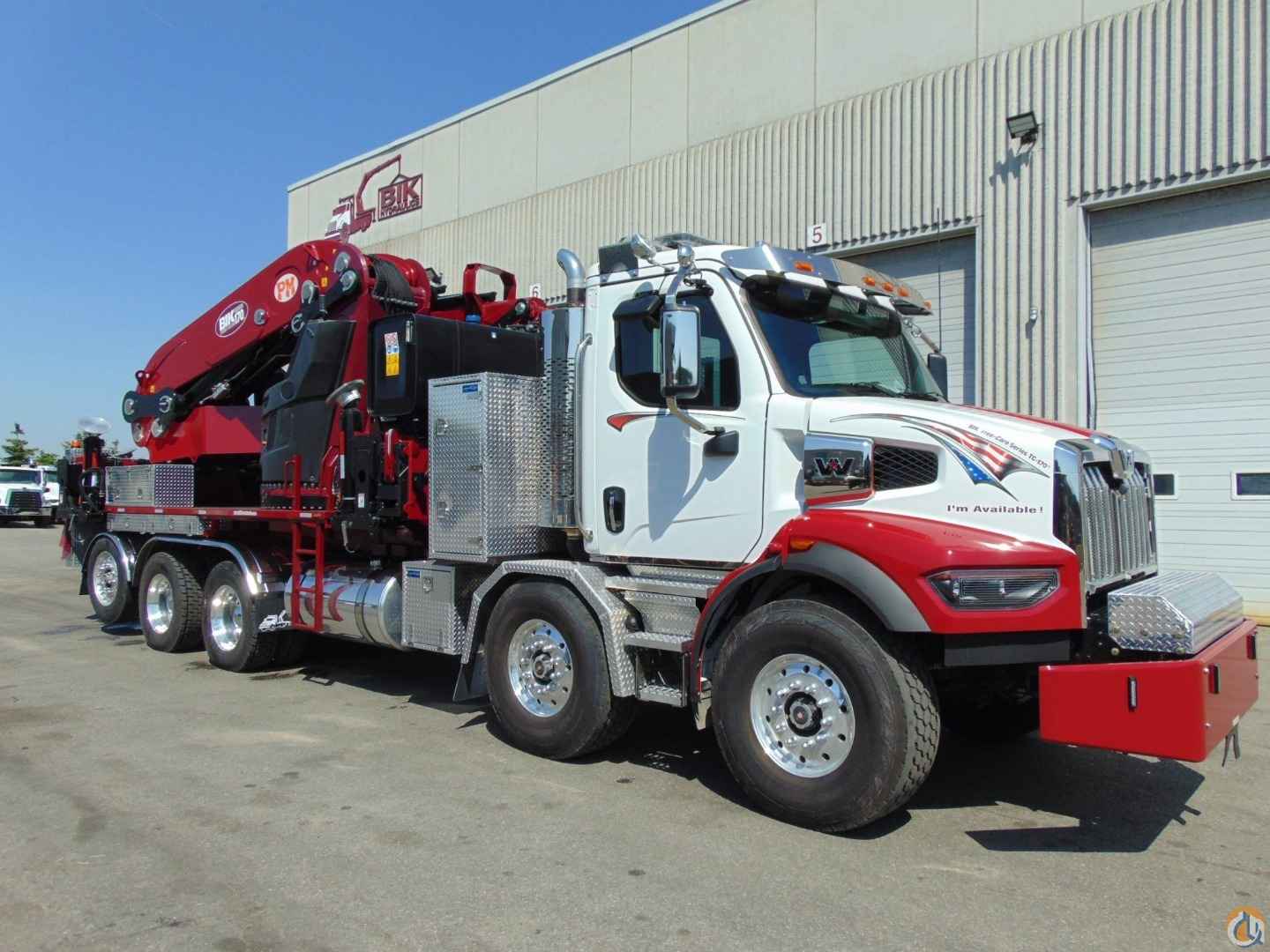

New – Western Star 4800 Sloped Short Nose T/A Steer-T/A Rear with Tag axle– 5 Axle
- DDC-13 Diesel – 102,000 lb GVWR 470 hp with Jake
- Eaton Ultrashift 18 spd trans.
- (2) x 20,000 LB fronts with 425 / 65R22.5 tires
- 46,000 LB Rears on air ride Susp.
- 20,000 lb self steer tag axle behind t/a’s
- Double Frame
- Polished ALCOA Aluminum Wheels front and outer rear
- Dual Chrome single polished Exhaust, Chrome Grille & Bumper
- Dual 80 gallon aluminum fuel tank

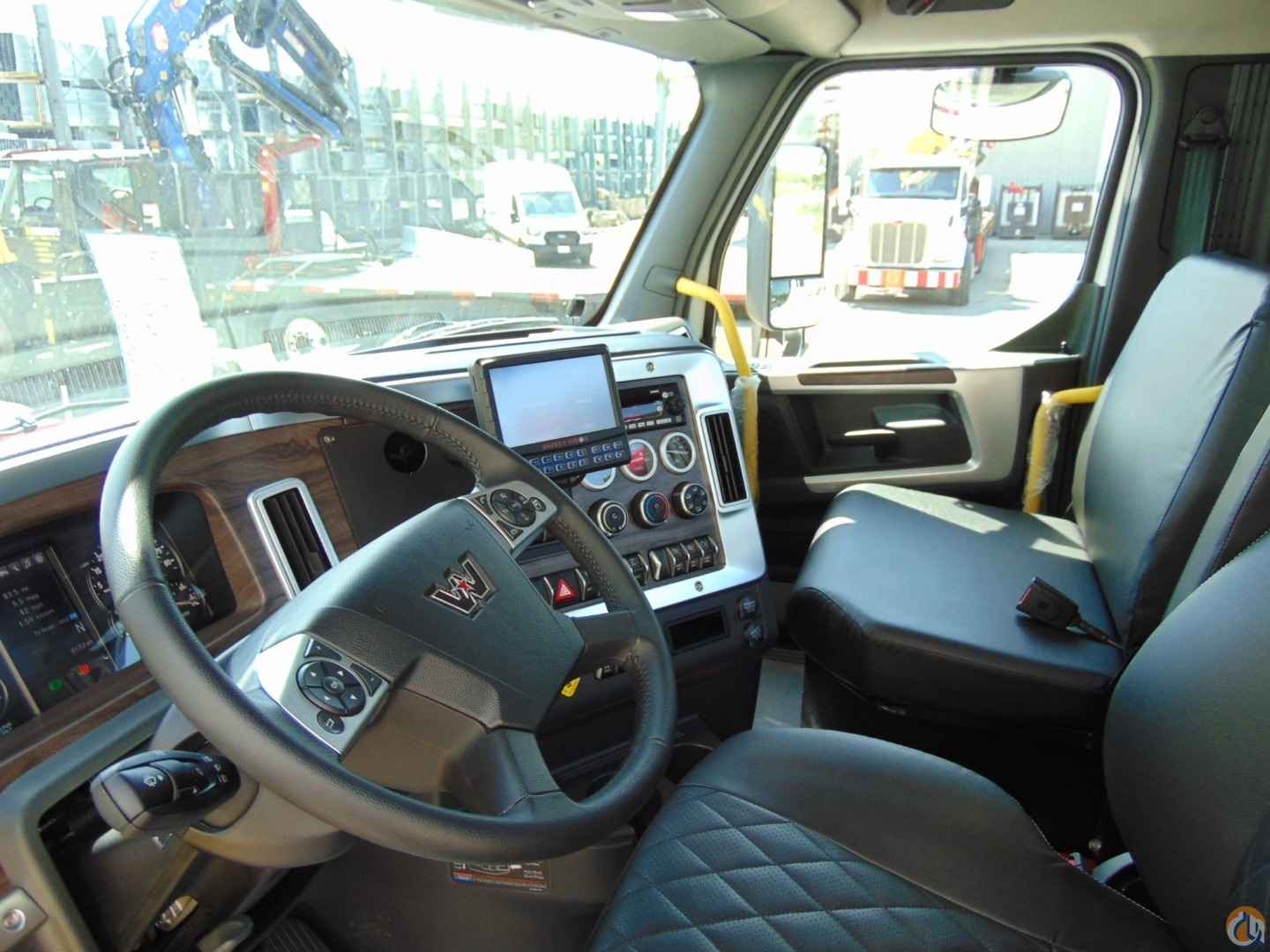

- Loaded with Options including: A/C, Tilt/Telescopic steering, top level Interior, AM/FM/CD, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, front steel bumper with fog lights and open top storage box behind bumper both sides, 4 wheel lock-ups, power window both sides , power mirrors & door locks, Air ride cab, full differential locks, trailer air tow package, truck cab white color, truck painted your colours as requested, rear half fender from checker plate (similar to 2nd steer axle curves), rear 3-section lights to be in checke rplate material and rear truck frame cover, Dot bumper, etc…
Options Included:
- (4) pcs – 2” PVC stab pads w/holders
- (7) Alum storage box installed
- Custom re-enforced manual extension for grapple
- Mecanil SG-280 Grapple Saw with spare parts kit
- On site boom feature/operation familiarization by BIK tech for 2-3 days
Additional Options Available:
- Dump deck or Chip Box type dump body (instead of flat deck or 5th wheel)
- (2) Additional Manual pull out boom extensions for regular lifting hook to end of hydraulic reach (adds 11’ more reach)
- (1) Aluminum single man self-levelling basket
- Mecanil SG160 grapple saw with spare parts kit
