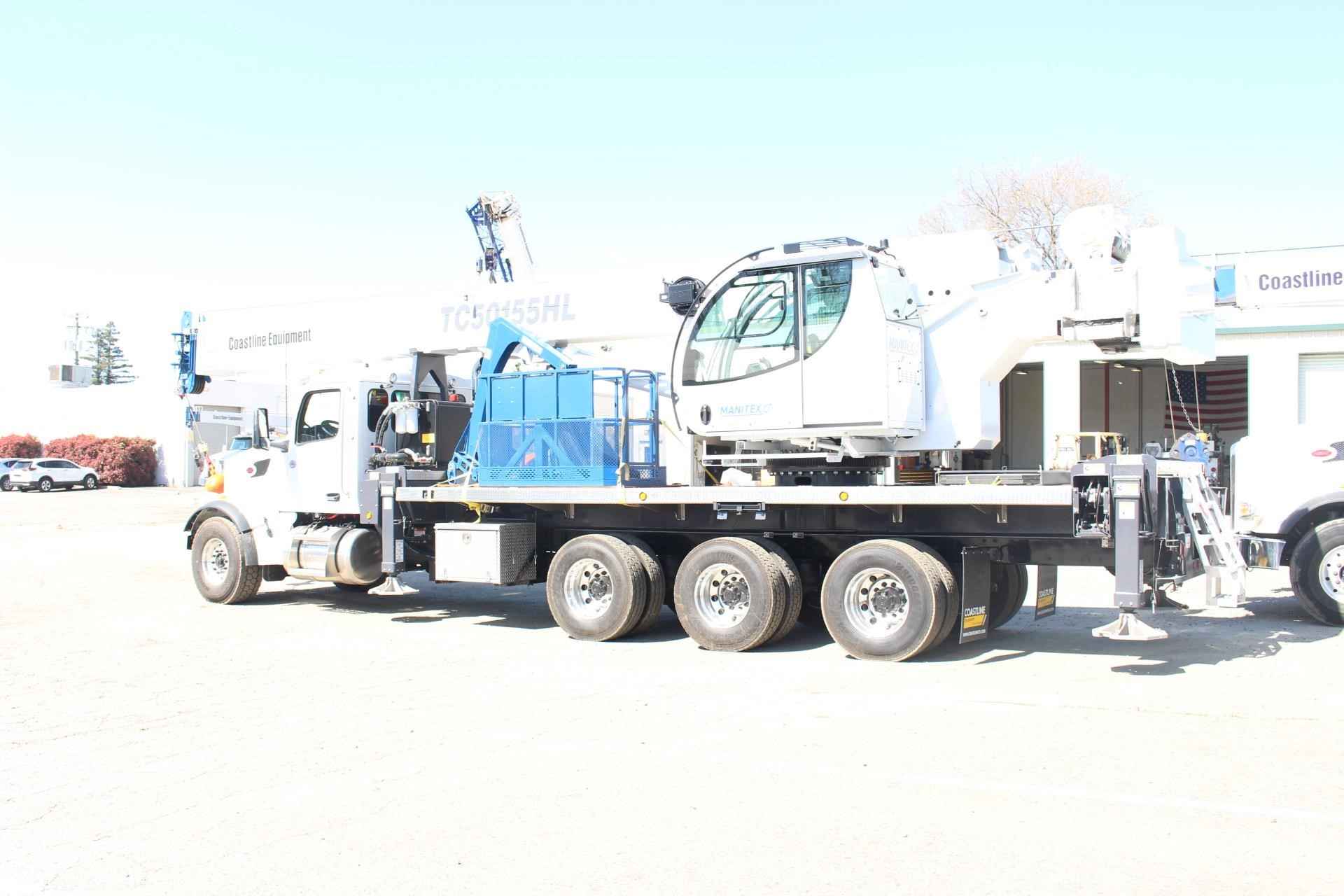

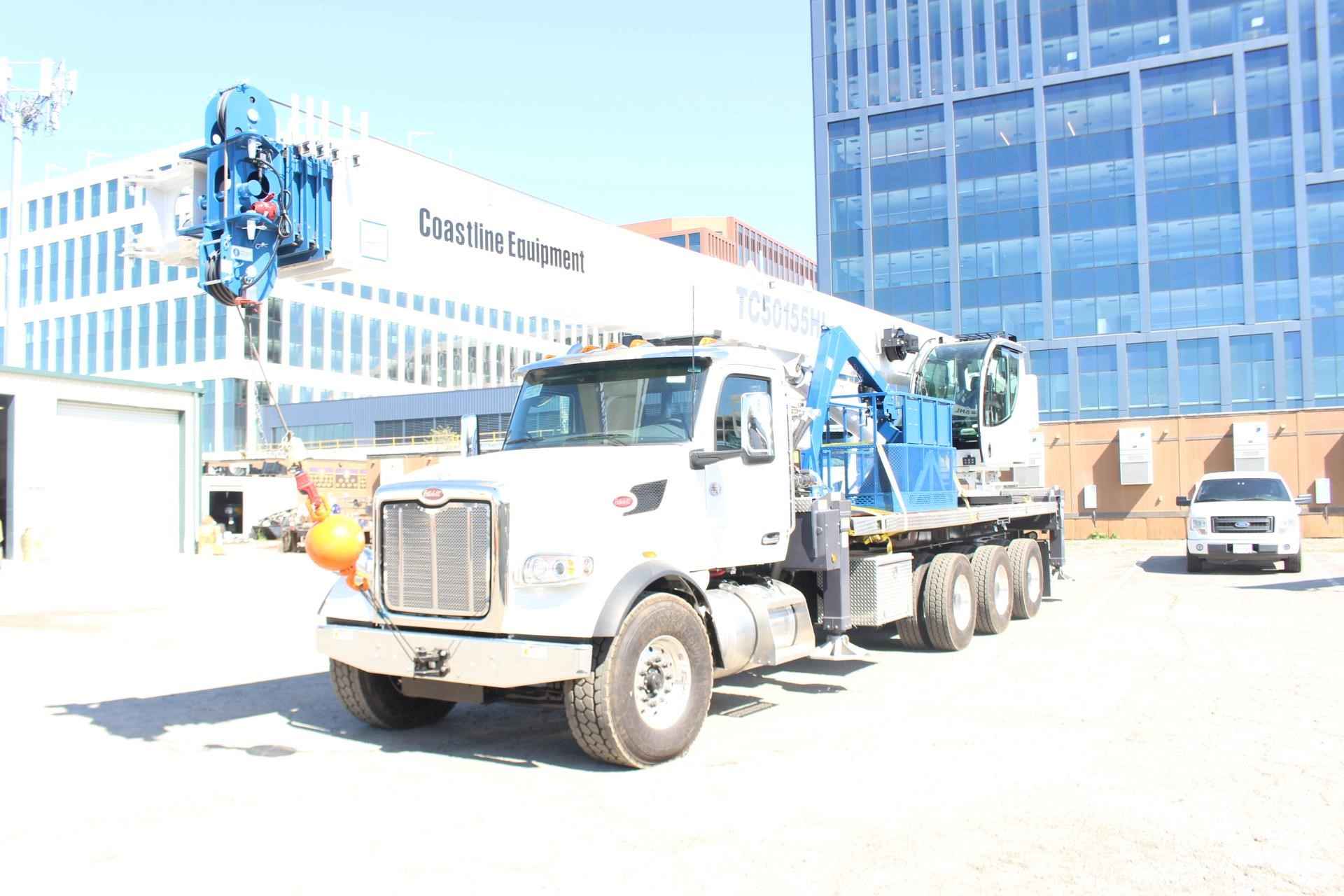

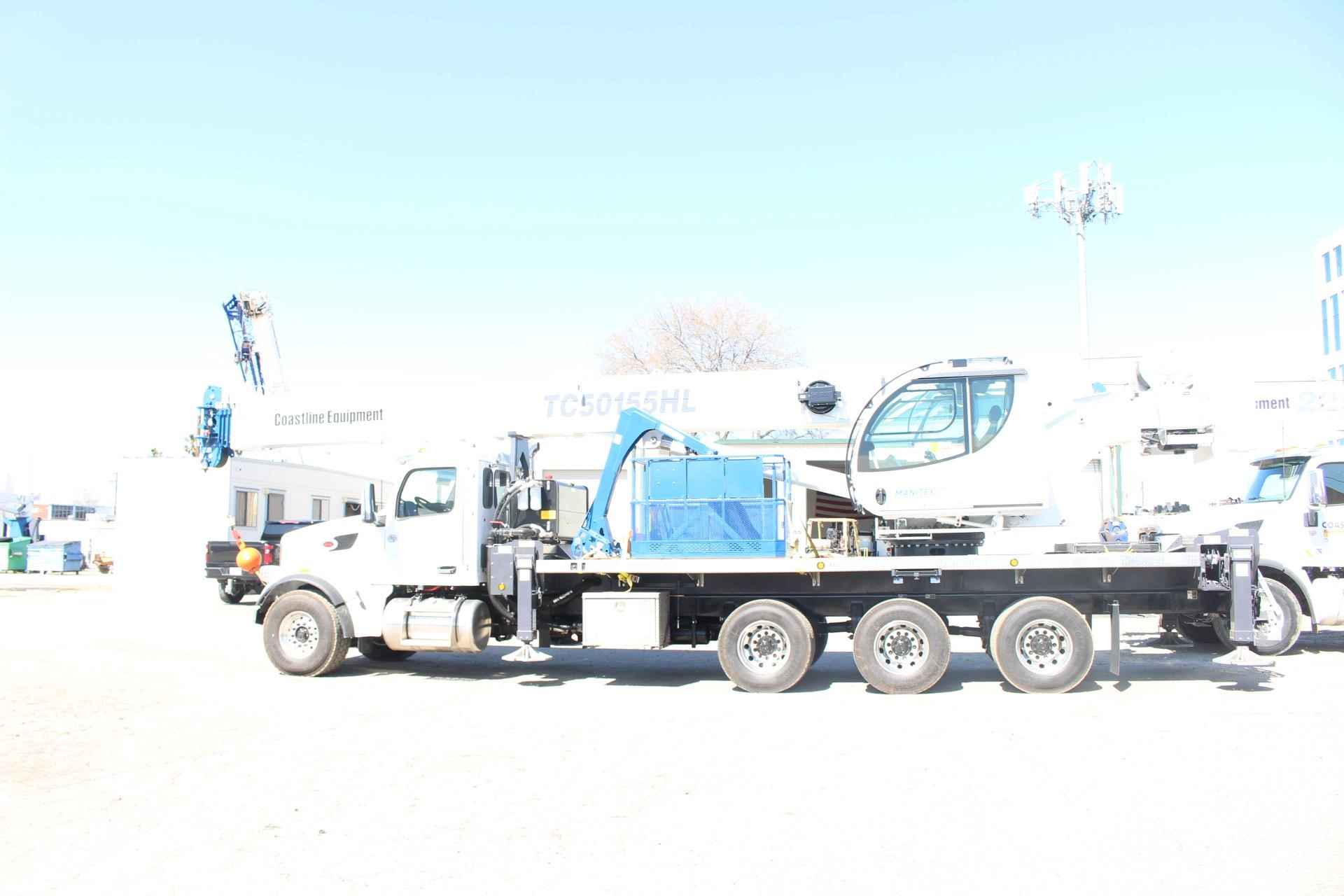

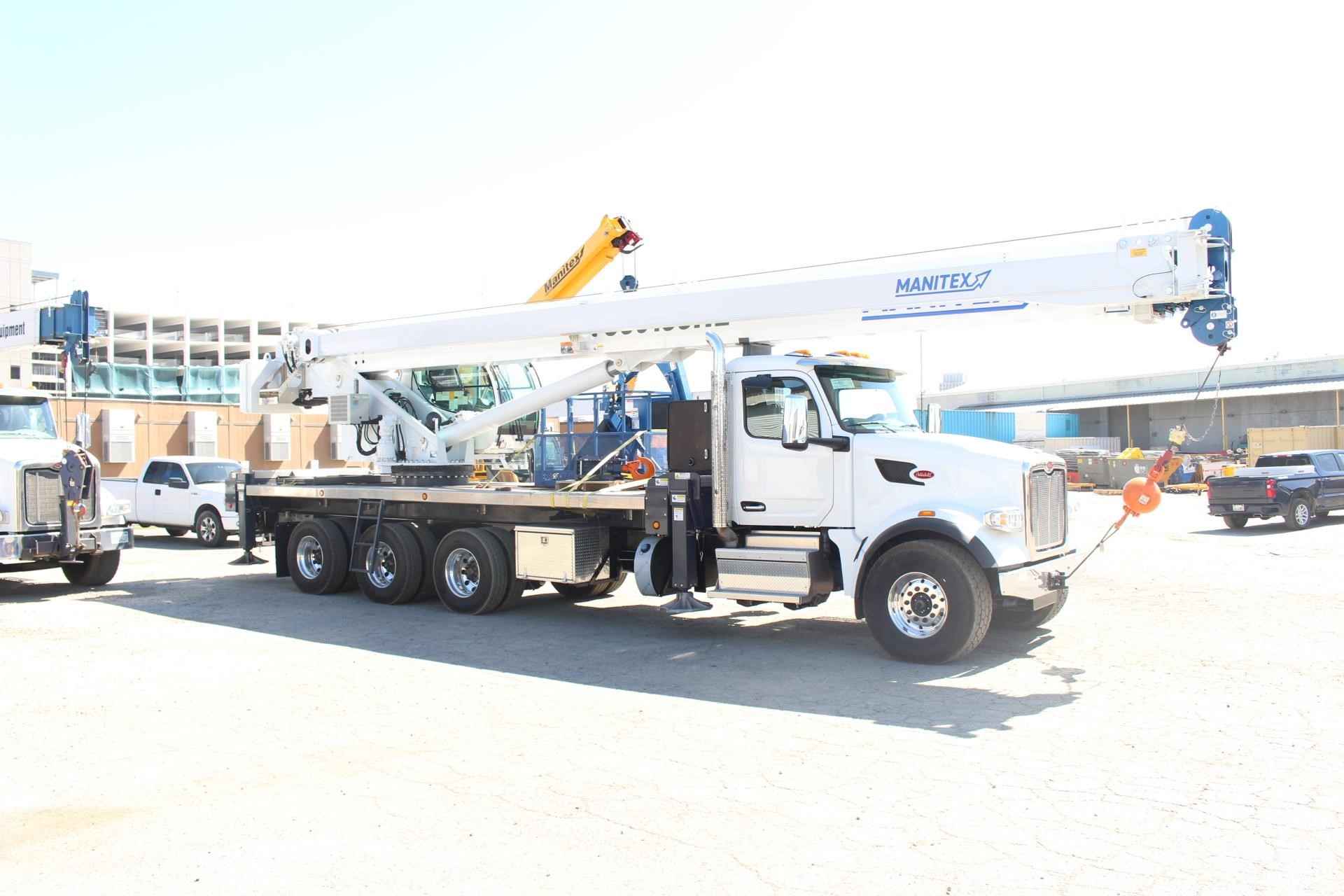

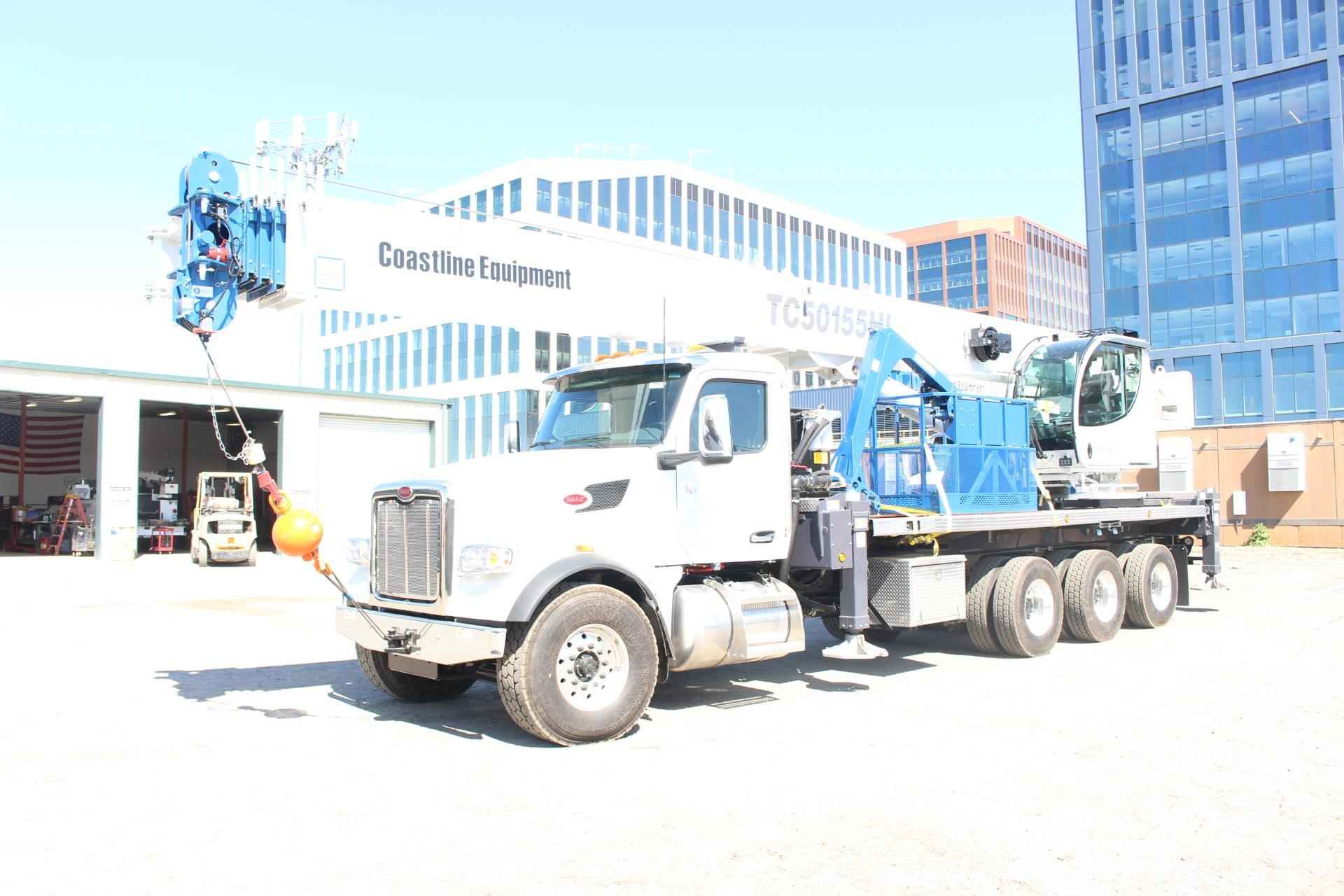

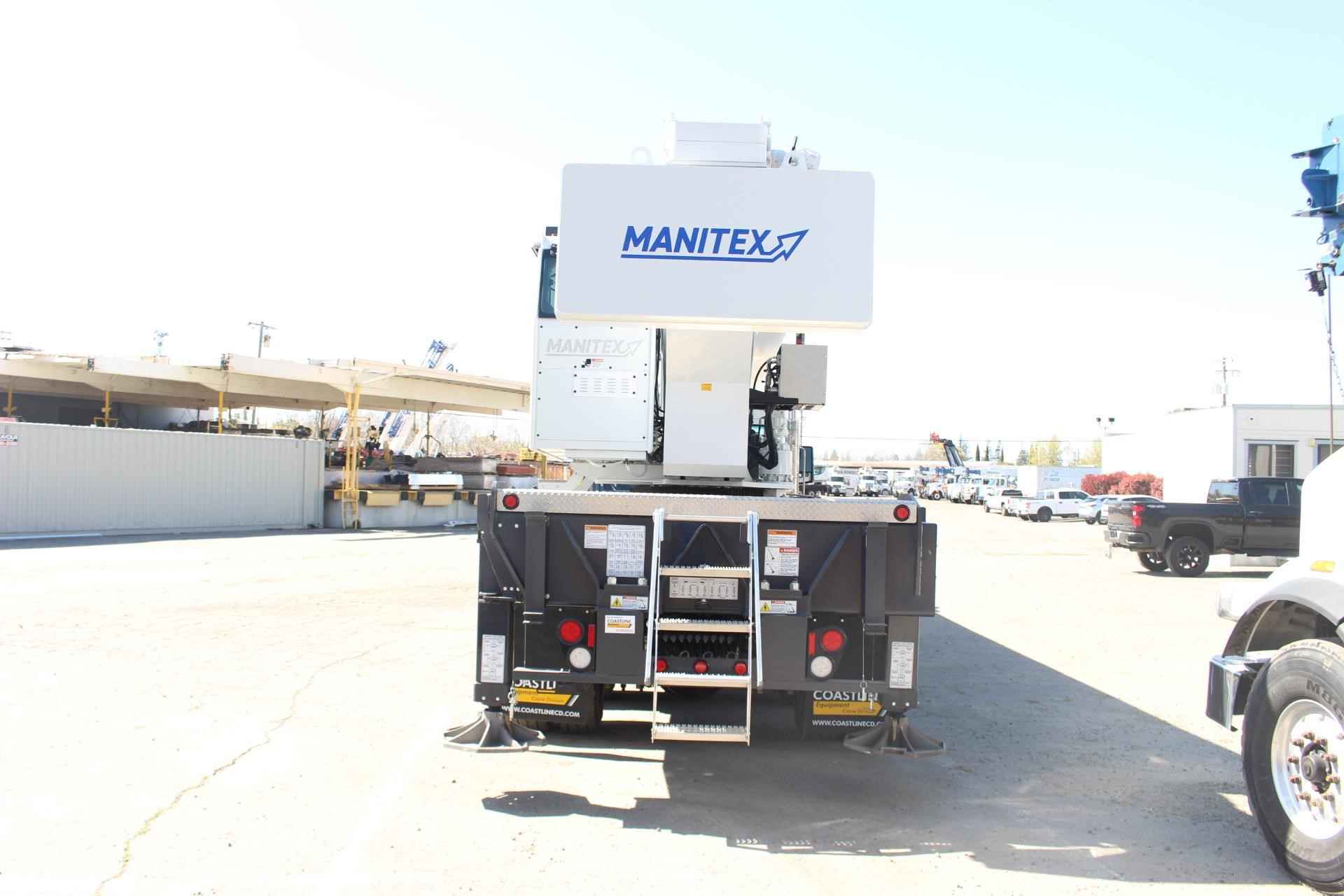

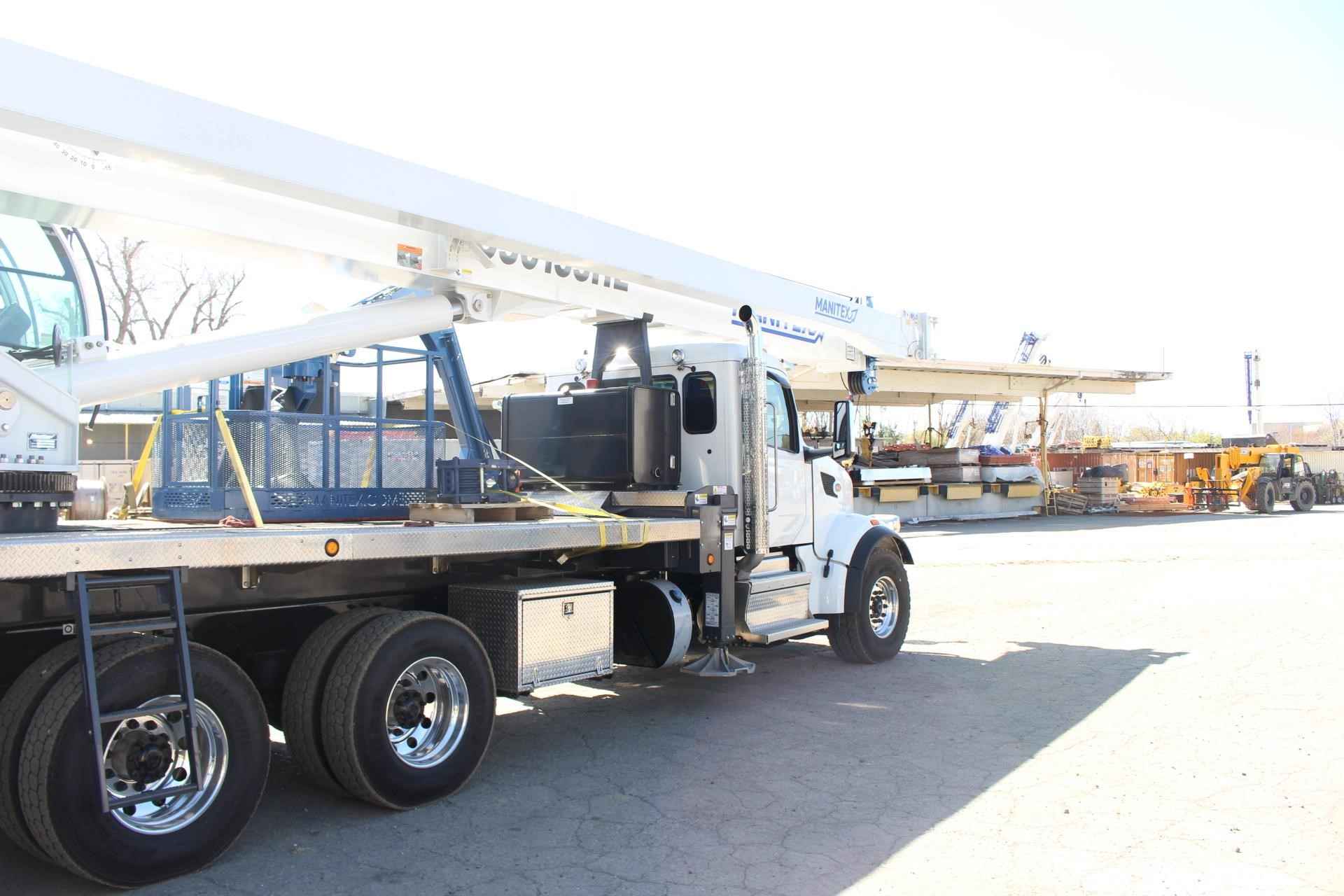

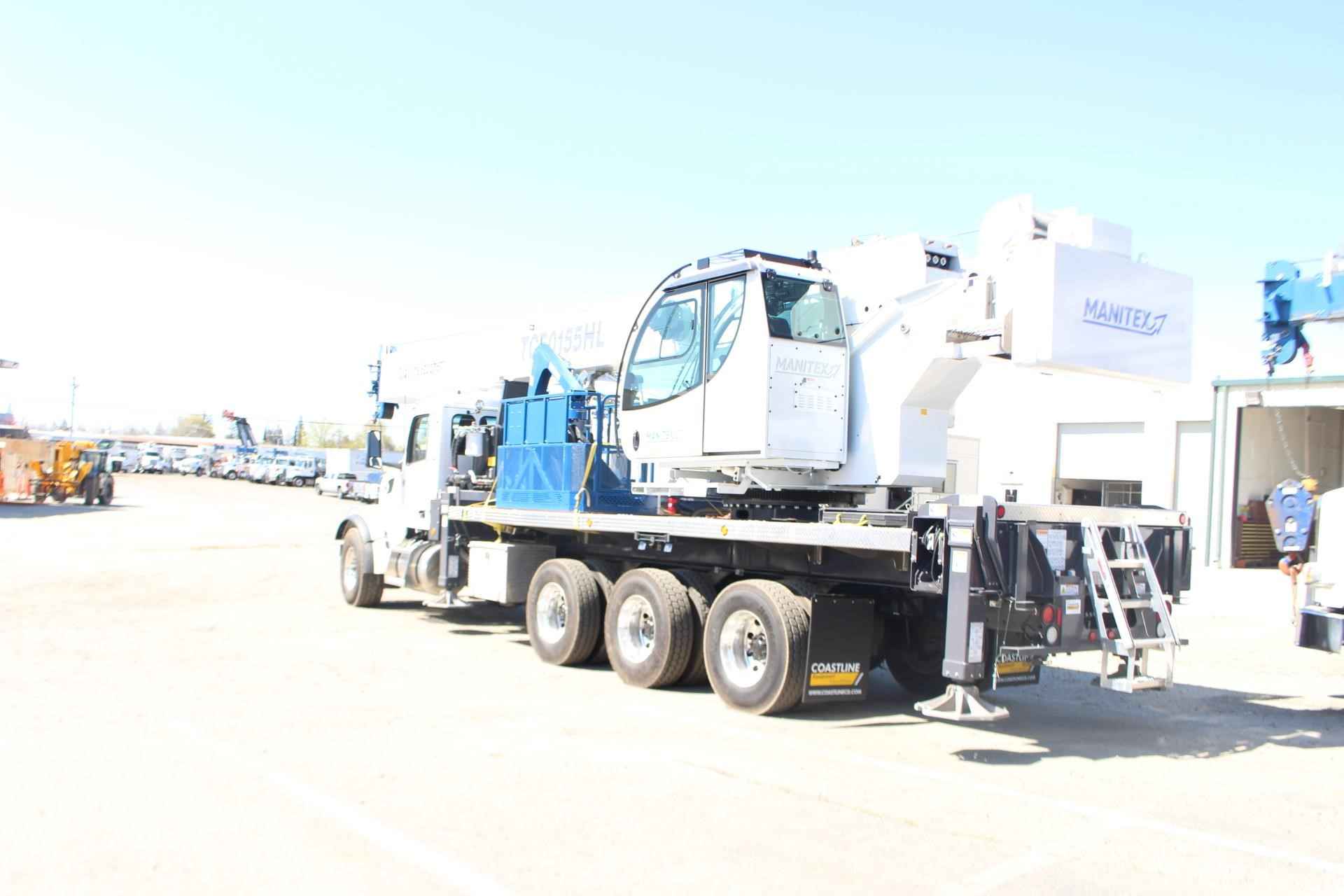

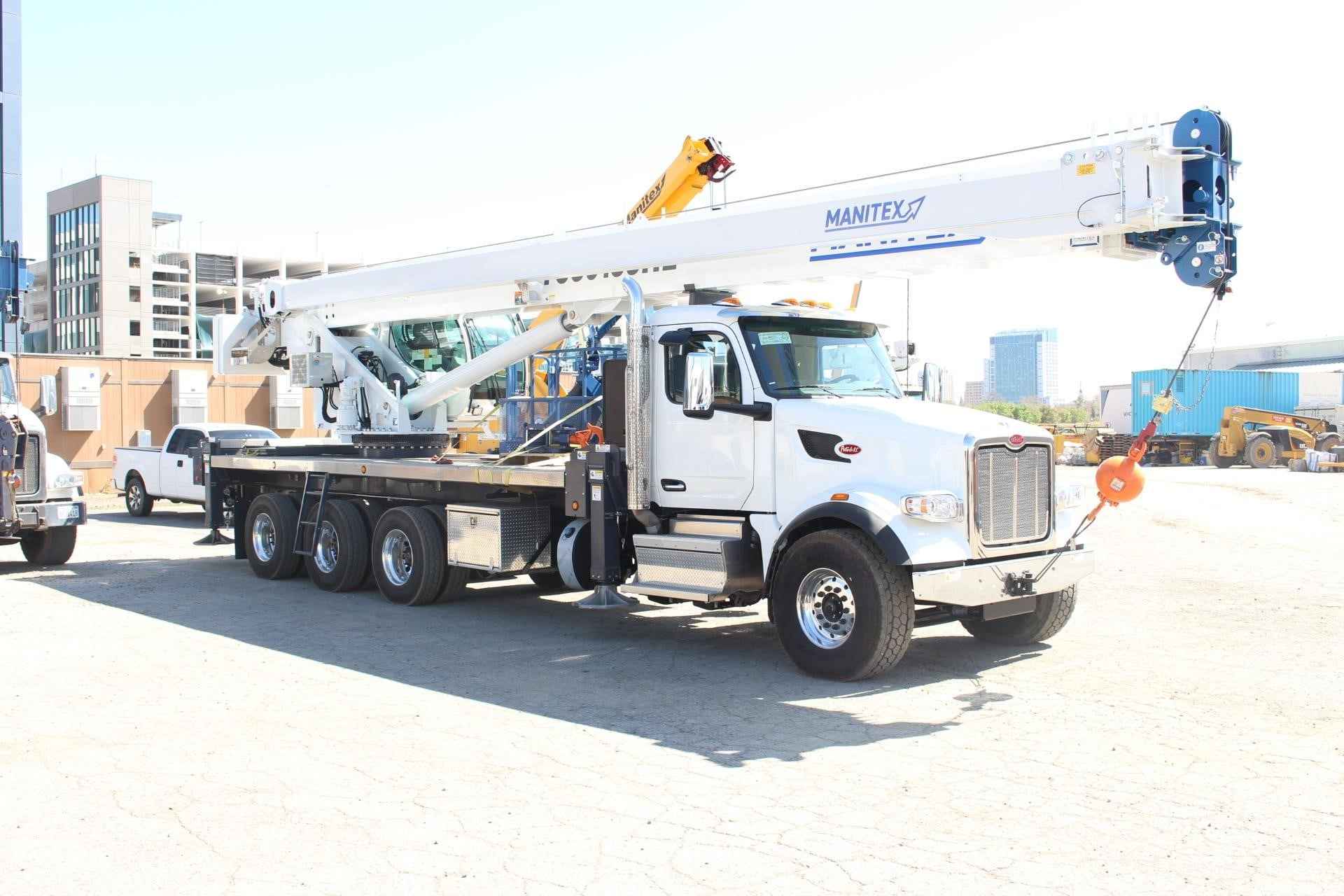

MANITEX 50155HL Standard features: 155’ Five Section Telescopic Boom with heavy lift option, 2-speed Hoist w/Grooved Drum, Roller Tensioner, Piston Motor, 4- load sheave quick reeve boom head, Externally Wired anti-two block w/lockout, Boom hoist cylinder, System pressure gauge, 360° Area of operation, Continuous rotation, Tilting cab, Heater/air conditioner, Upper hatch guard/Windshield cover, Engine Monitoring System, Removeable boom rest, Engine start/stop, Combined Free Swing and non-Free Swing functionality, Hydraulic Rotation drum indicator, Thumb operated electronic throttle, 1-variable displacement pump/1-Gear pump-CCW Rotation-standard, Boom length and angle indicators, Radio remote ready, 7-ton hook and ball, 500’ 5/8” Dia. Rotation Resistant Wire Rope, Audible Outrigger Motion Alarm, 155 gal Hydraulic Reservoir w/suction strainer & ball valve, Turret, Rotation bearing and Swing system – Mechanical houselock, New Load moment indicator – Full visual/Audio Capacity Alert w/shutoff, ROC Solid outriggers; 4 out and down outriggers, 22’ over-all spread, Features a hand held Radio Operated Controller and includes capacities for immediate 13’4” and retracted 7’2” spreads, Remote winch controls included with hand held radio controller for the outriggers, Outrigger monitoring system-verification only, Front bumper stabilizer – for short lower frame configurations only, 2 retractable ladders, Diamond plated aluminum decking, Oil cooler, bubble level, Signal horn, Third wrap limit for main winch and auxiliary winch, Electric over hydraulic controls, Operators service/parts manuals, 102” Wide Platform Standard Additional Options Included: • 6400 Lb Ctwt Special for HL-Requires engineering approval • Offset Fixed Jib • Standard Mount Installation • 35 Ton 3-Sheave Hook Block 1-7 part line • A92.2 Aerial Lift Manbasket Dual Rating • Hot shift PTO • Sub frame-TC500 Intermediate Frame 102” Wide Platform • Front Bumper Stabilzer • Radio Remotes – Paddles • 2 person lightweight steel, Rotating, Quick-Attach Basket • 1 Aluminum Toolbox (36” x 24” x 24”) Chassis Mount • Remote Mount Pump Install w/Drive Shaft MOUNTED ON 2027 PETERBILT 567 Mounted on a 2027 Peterbilt 567 tractor chassis with a X-15 525V engine, Allison 4500 RDS-P Transmission Gen 6, Paccar FX-20 Steer axle 20,000 lb. front axle, Meritor RZ-XX166 Tri-Drive rear axle, Full Set Alcoa Aluminum Wheels, 26”Aluminum 100 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Sterling Gray, ConcertClass AM/FM/WB 3.5,USB port with Bluetooth radio, Air horn mounted under cab, dual heated mirrors, outside stainless steel sun visor, Unit is painted Axalta Two Stage white.
