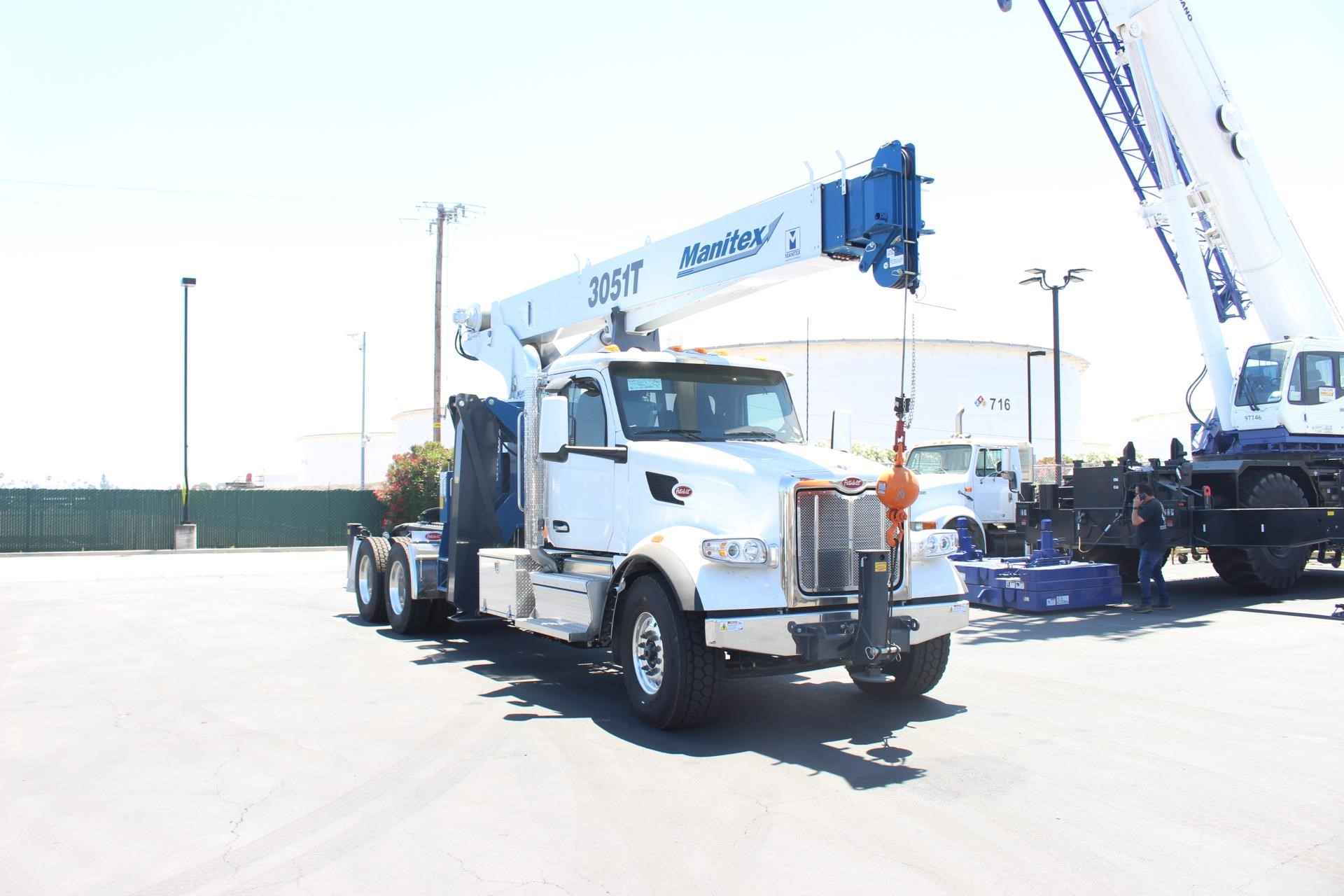

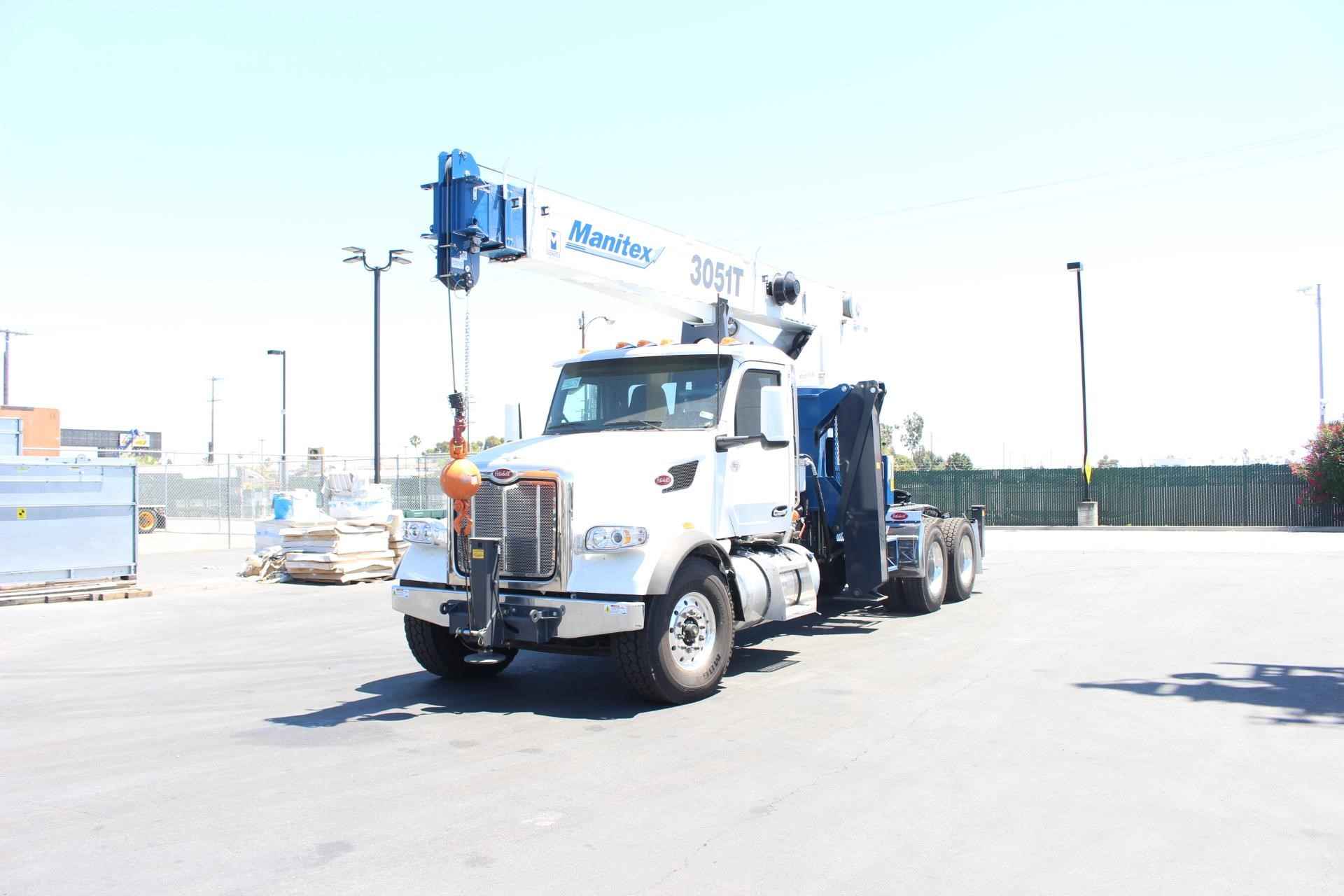

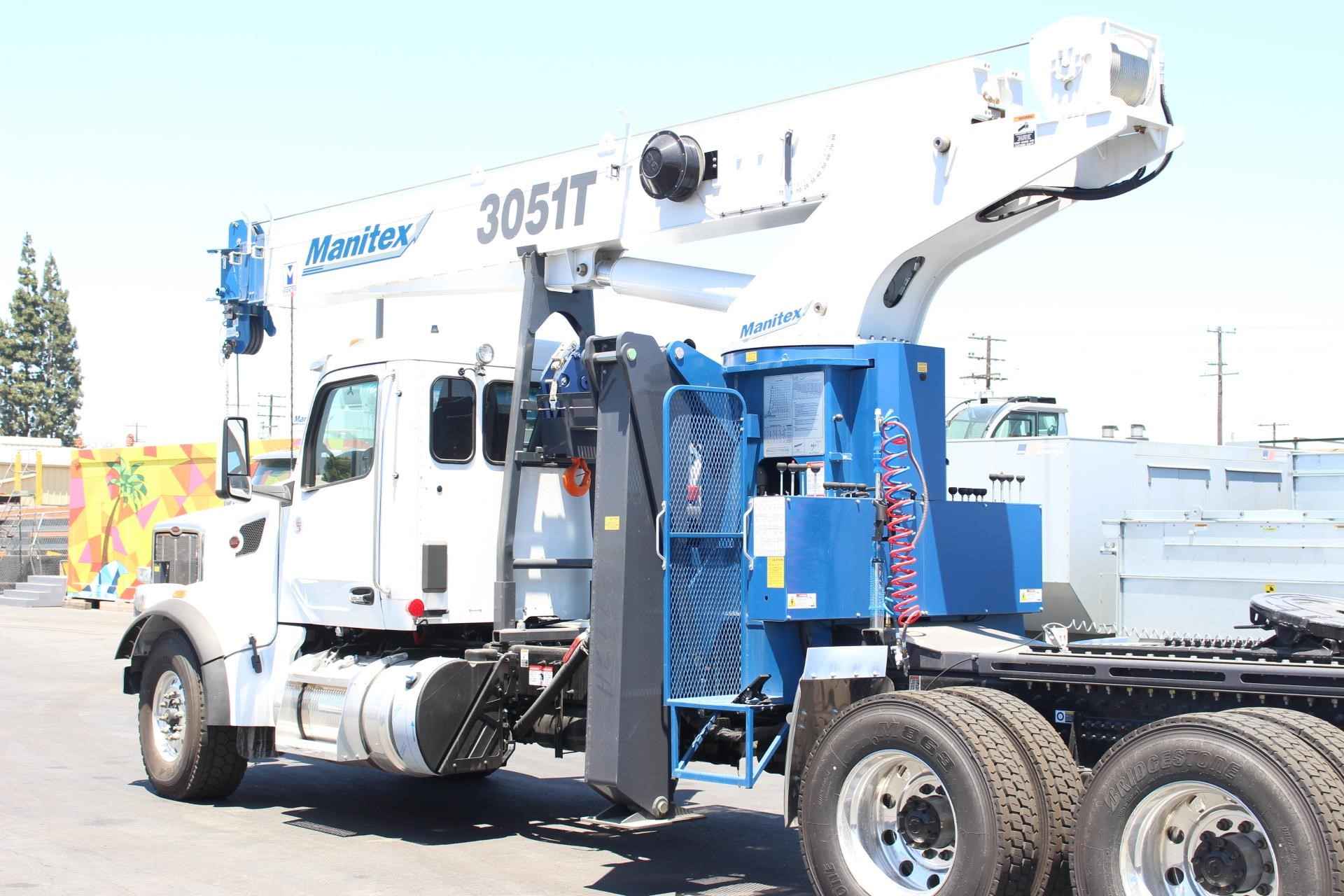

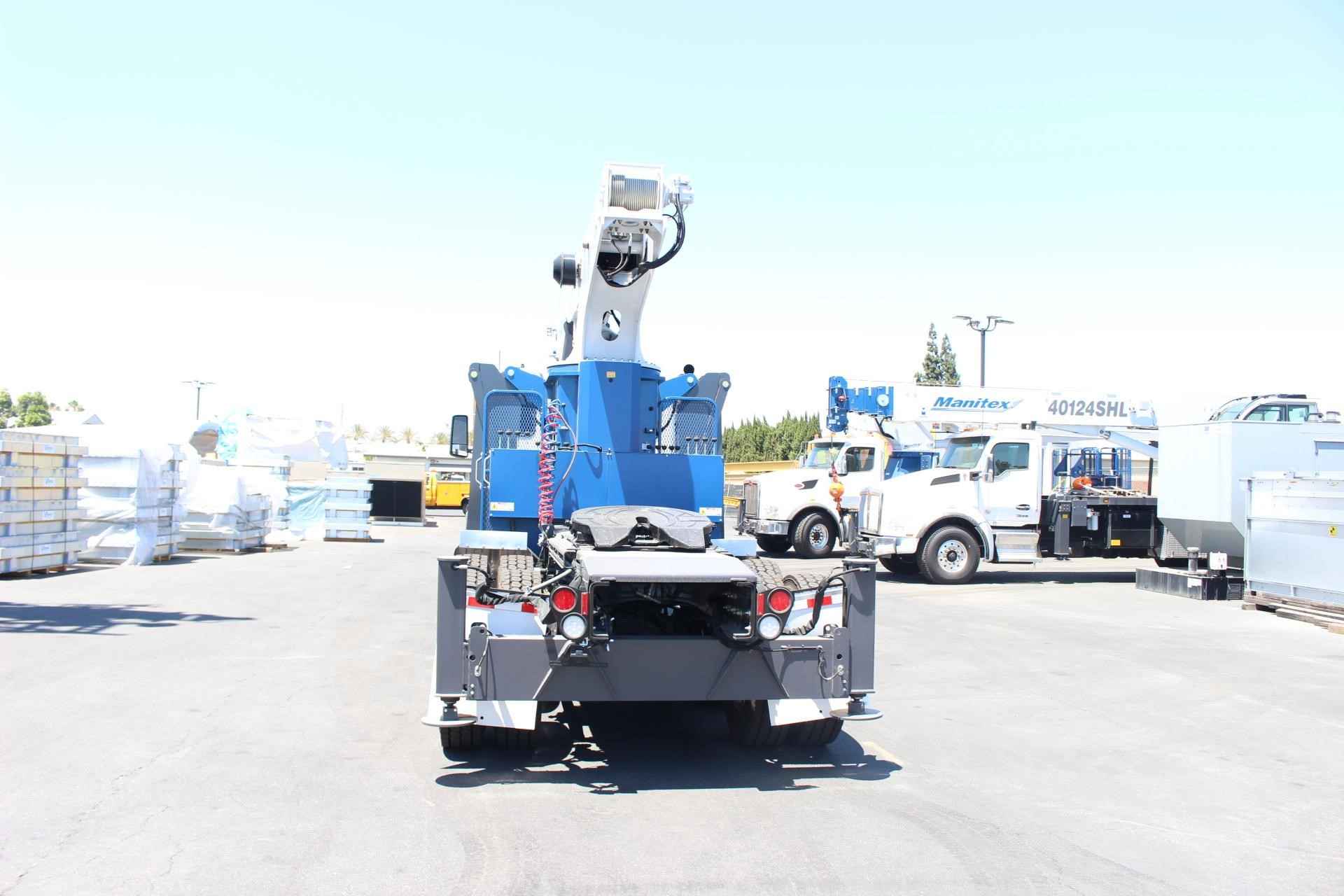

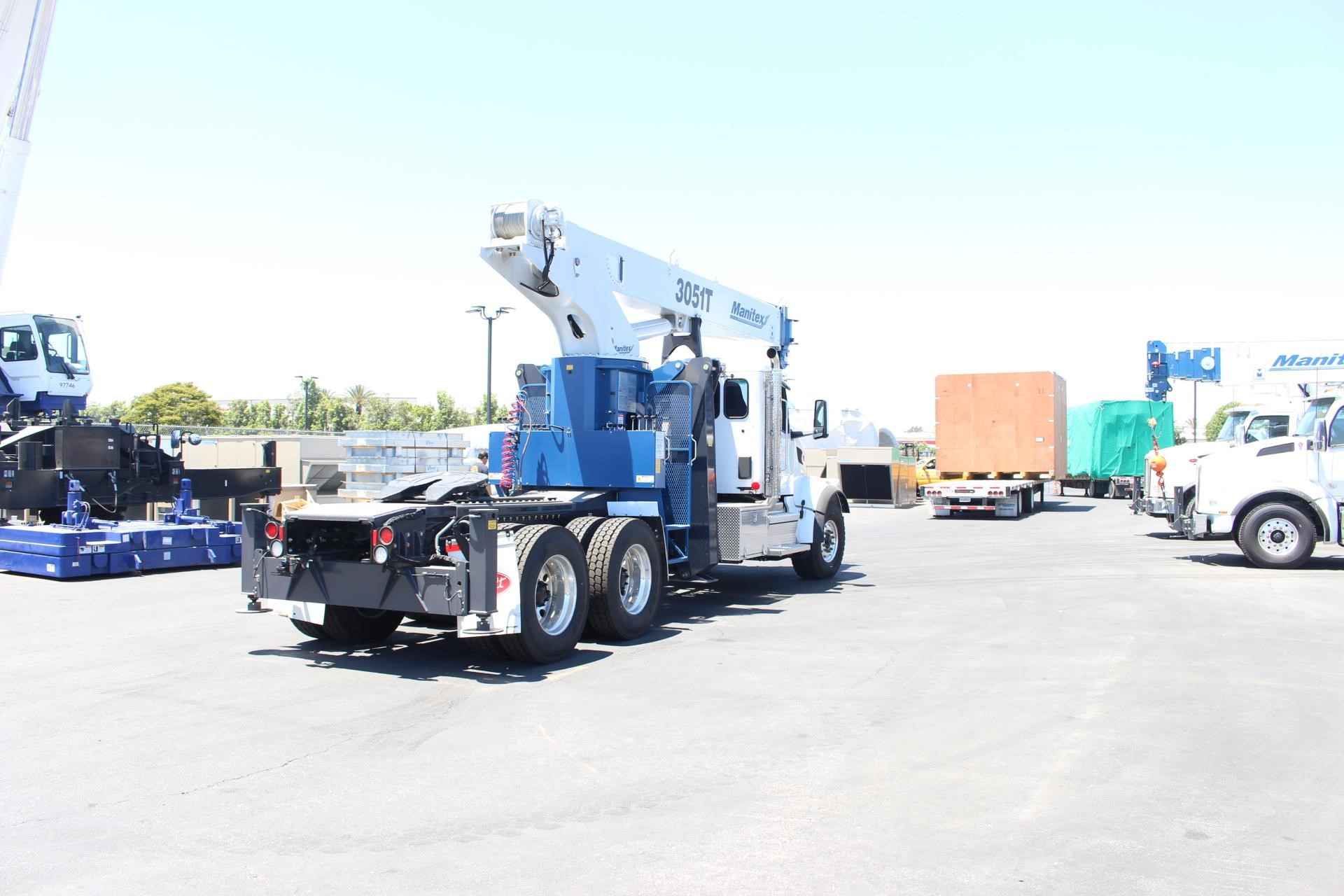

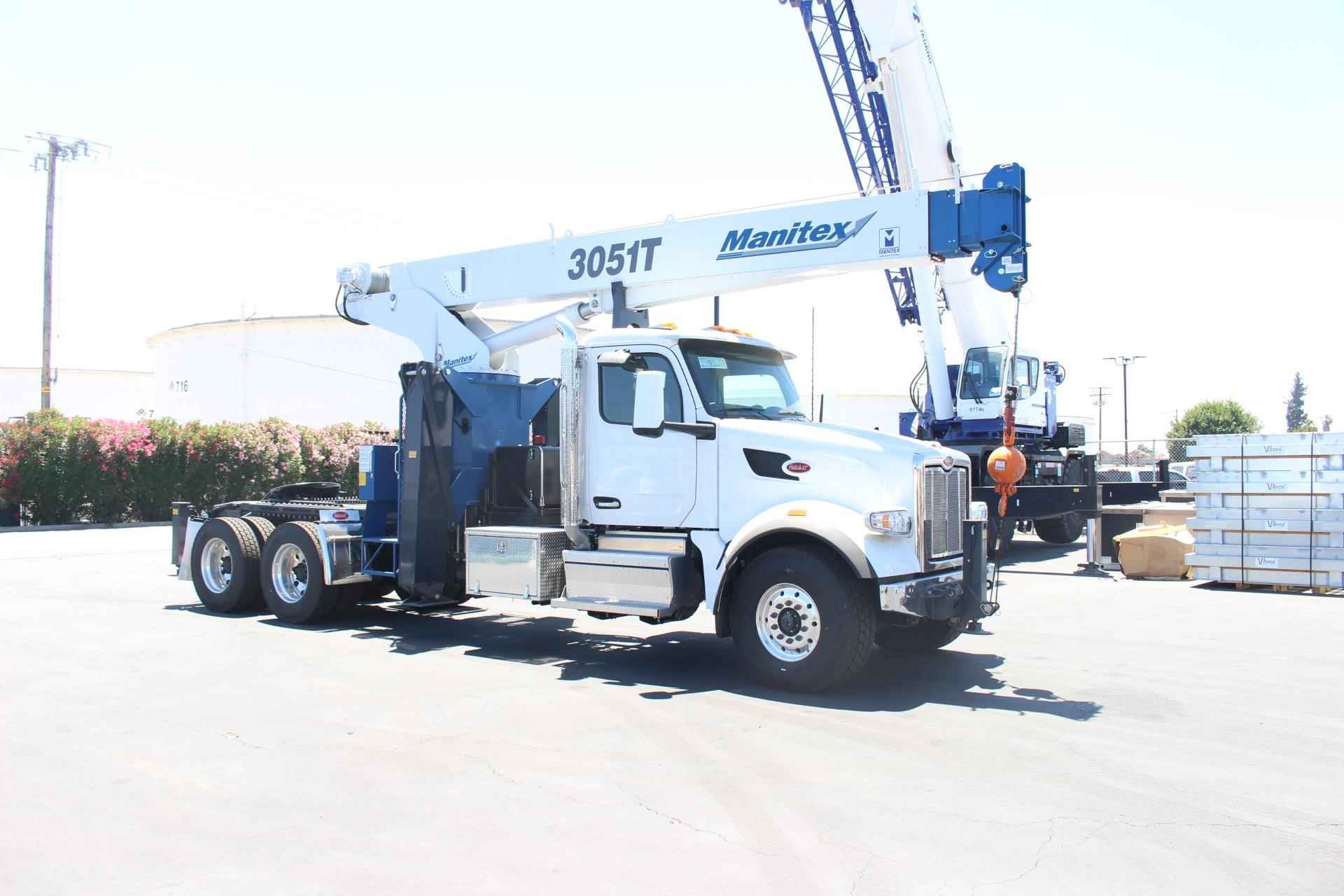

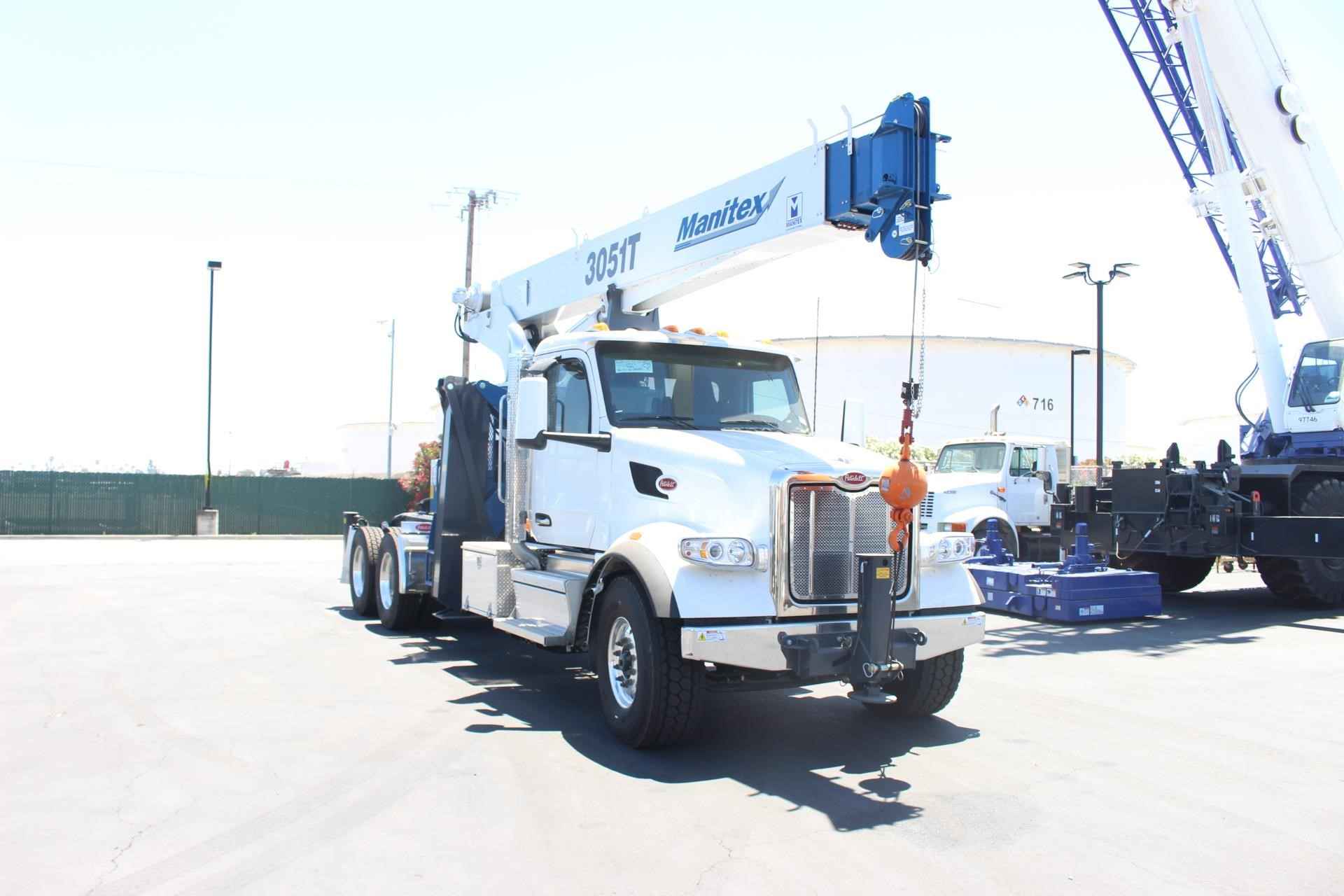

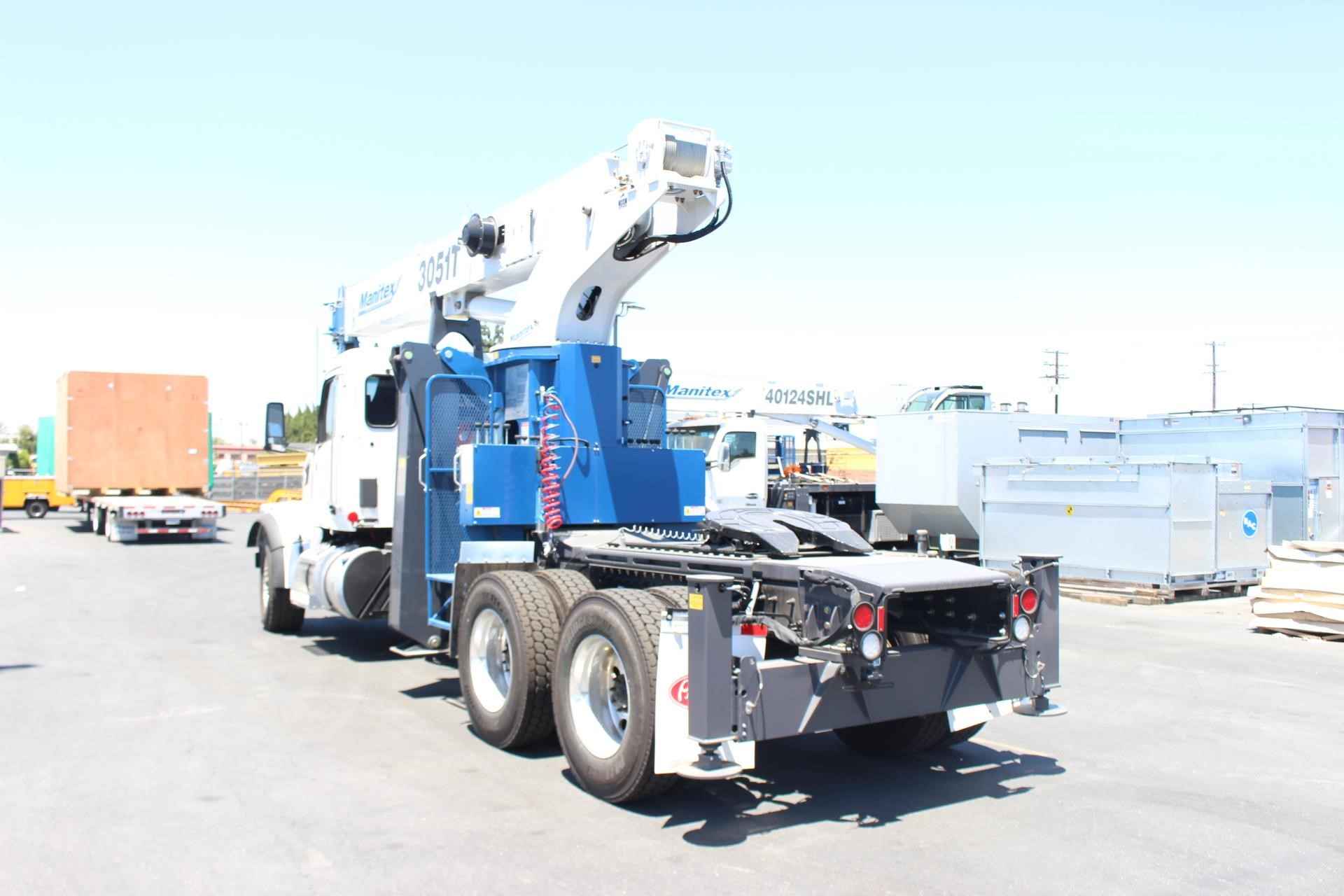

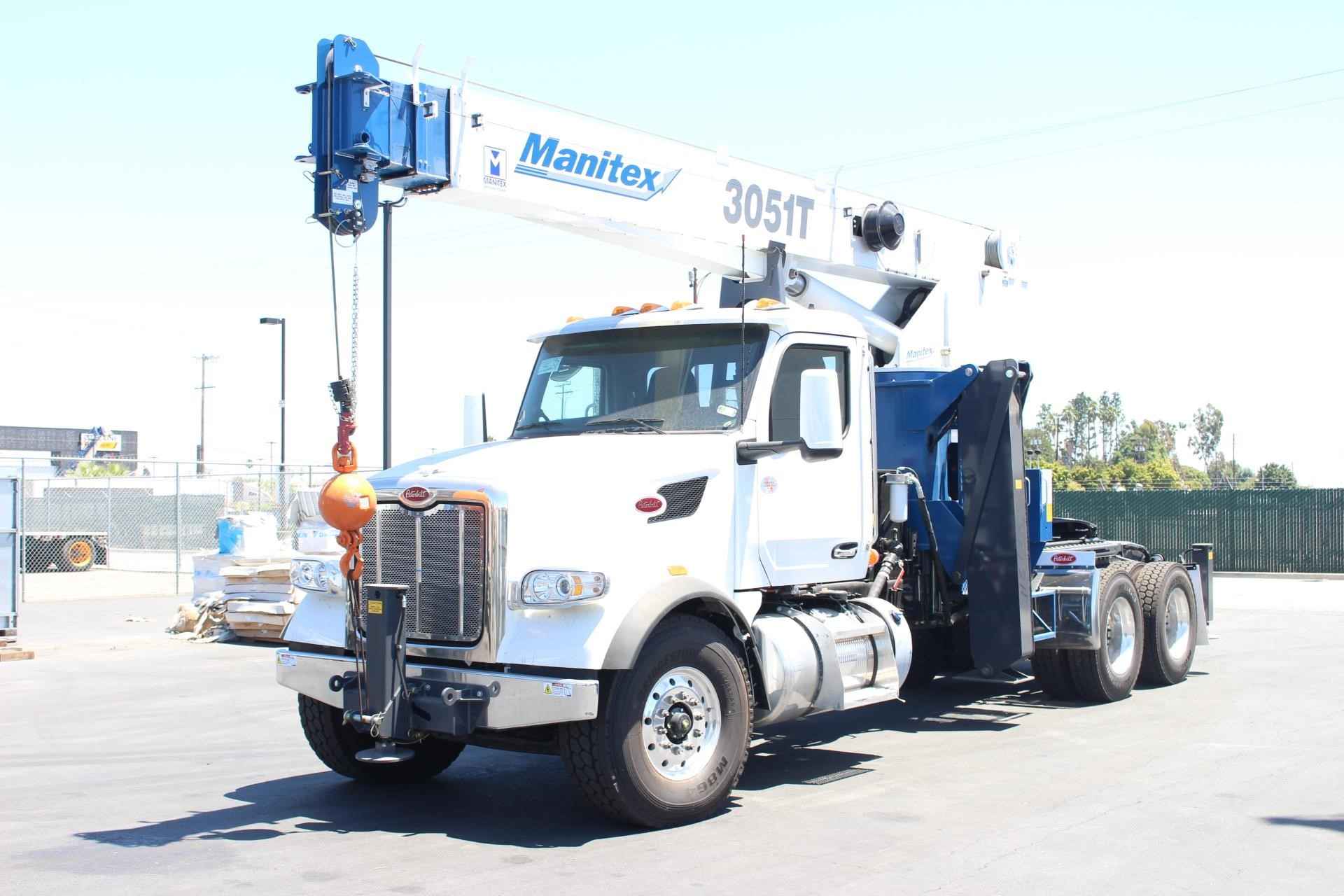

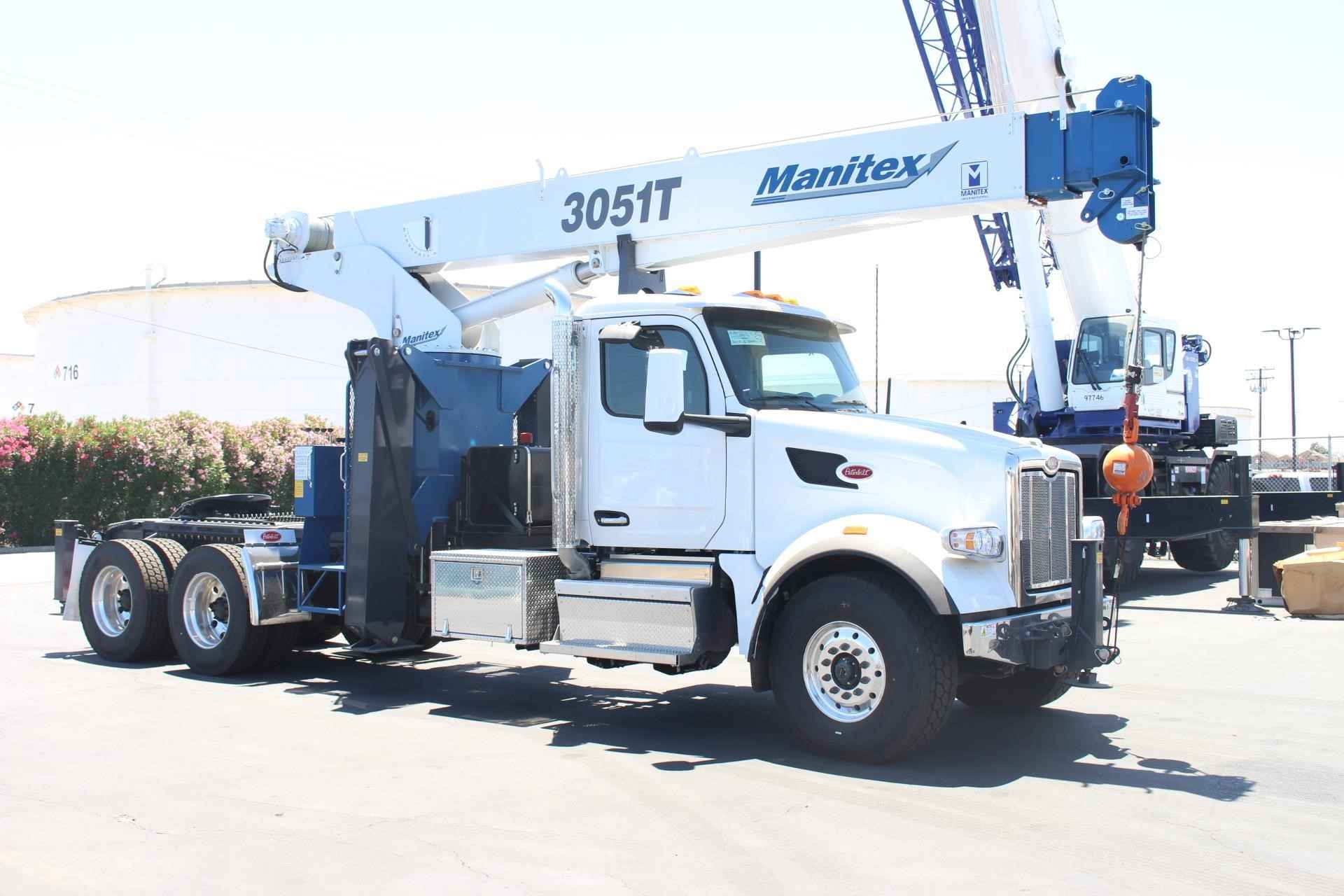

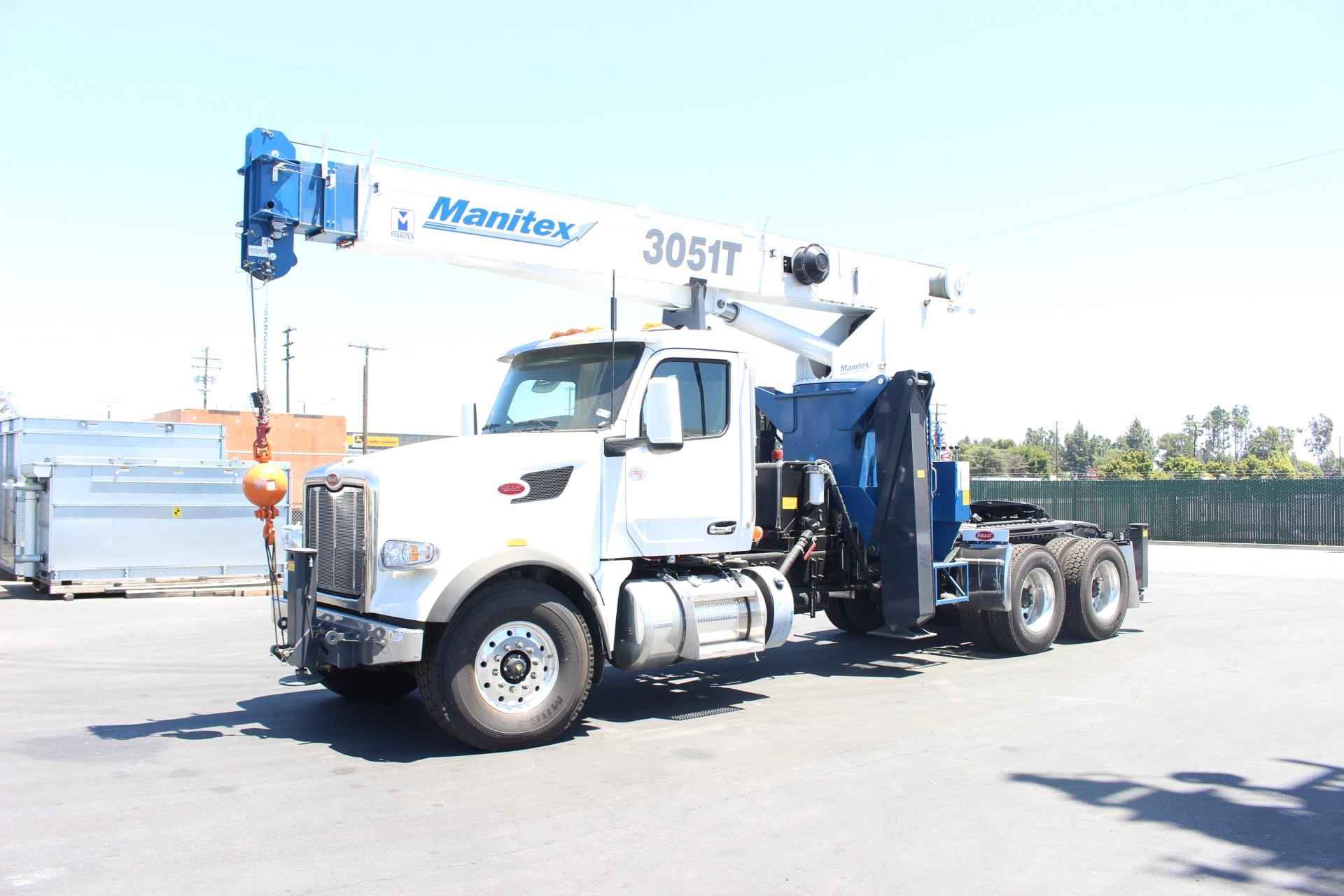

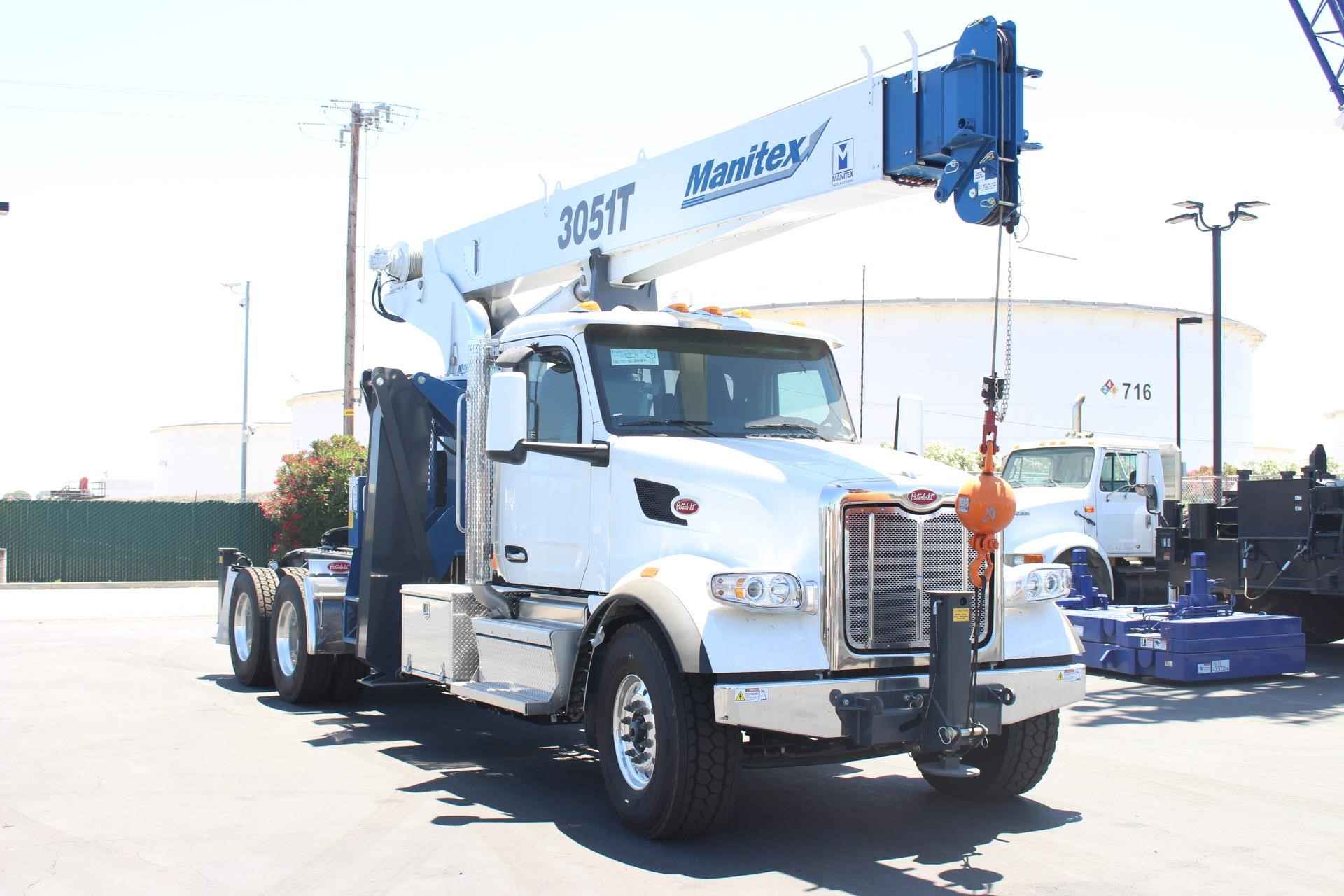

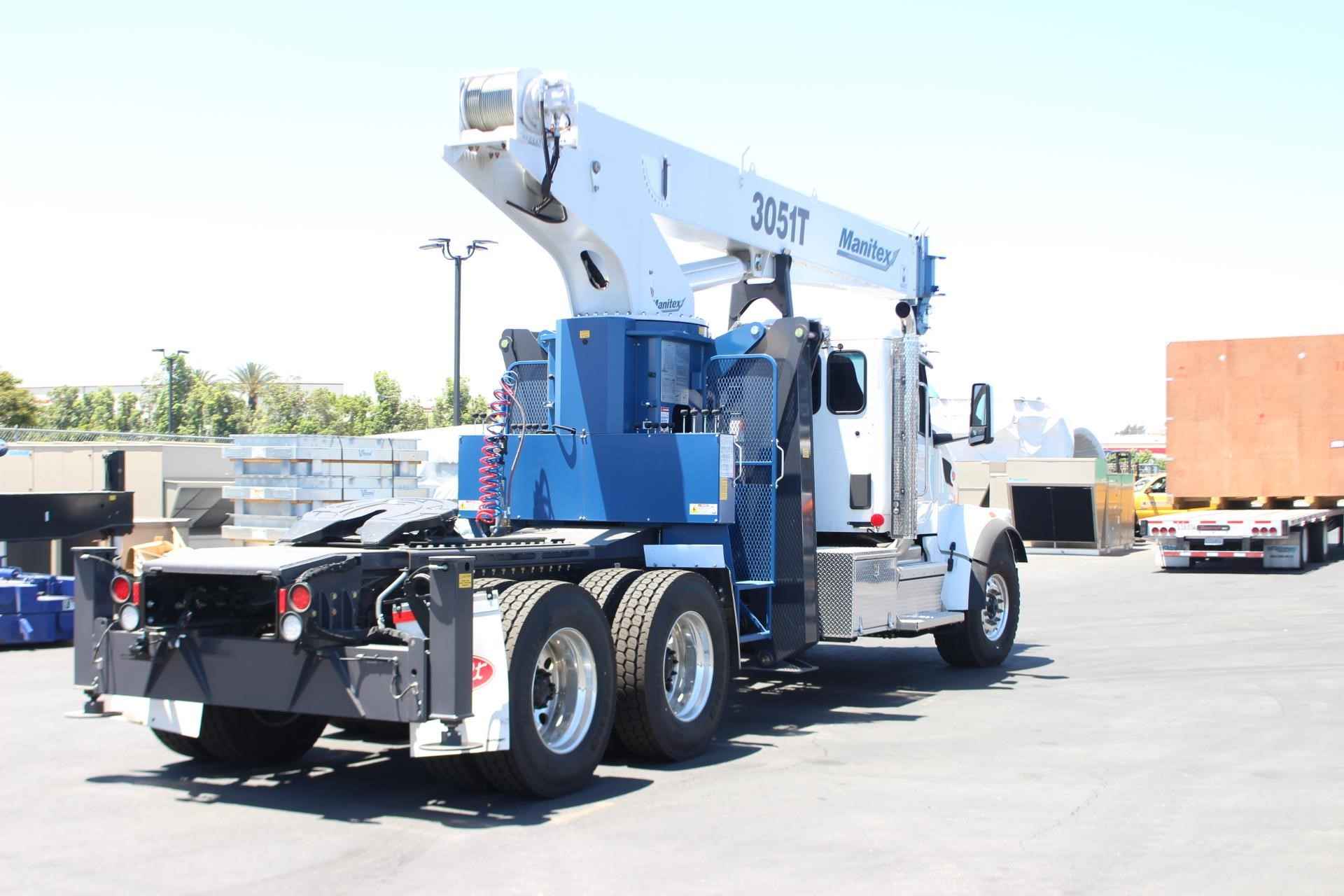

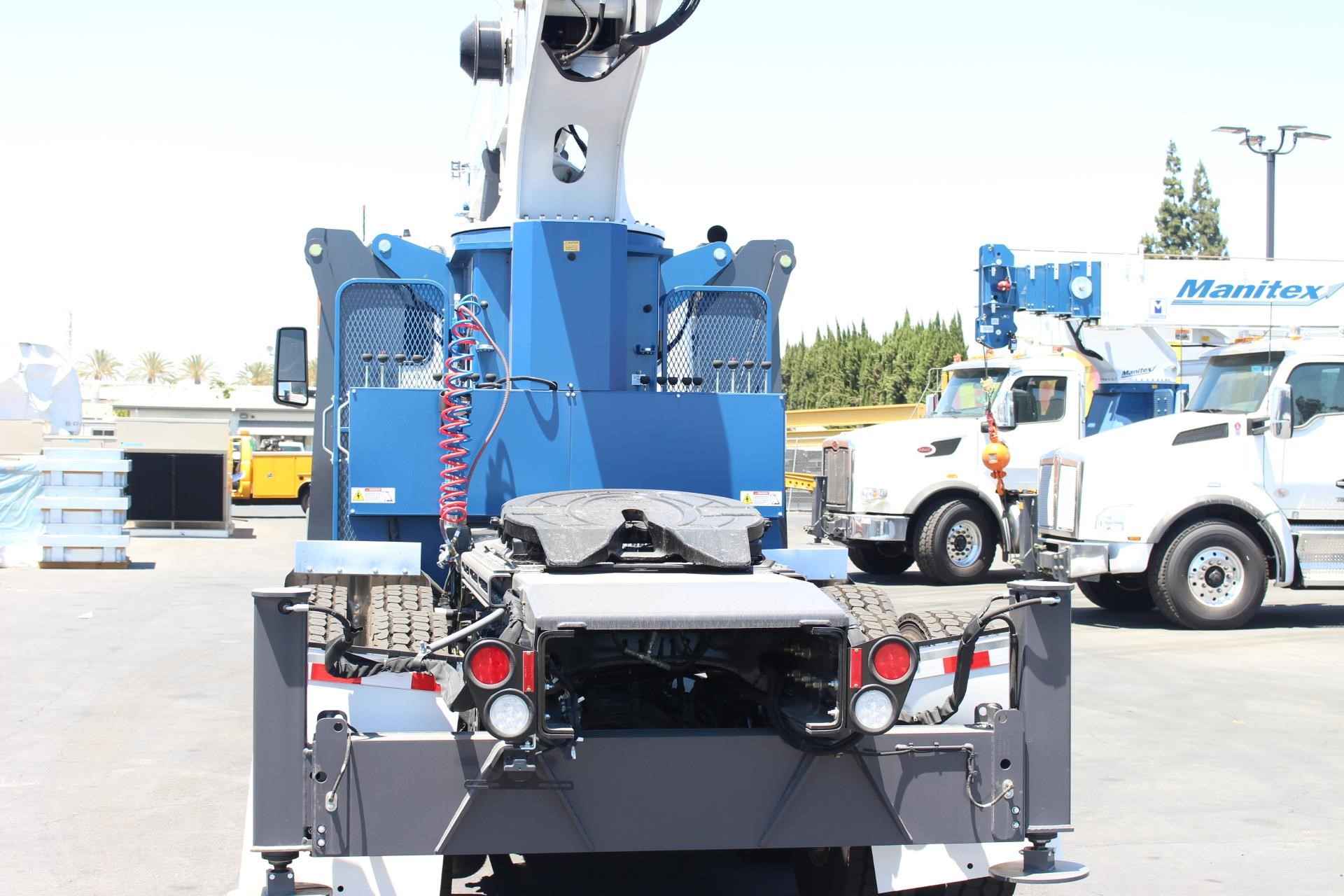

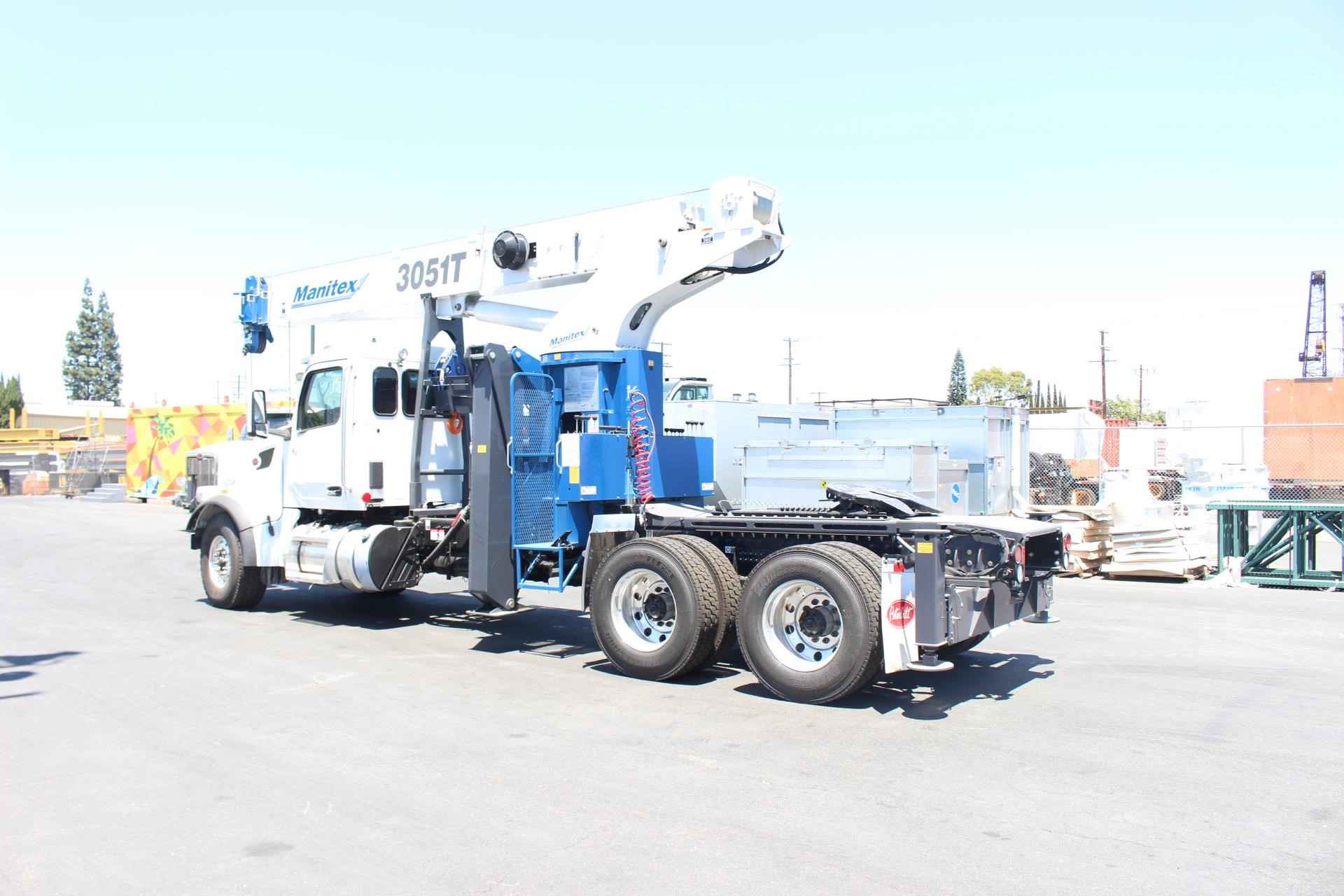

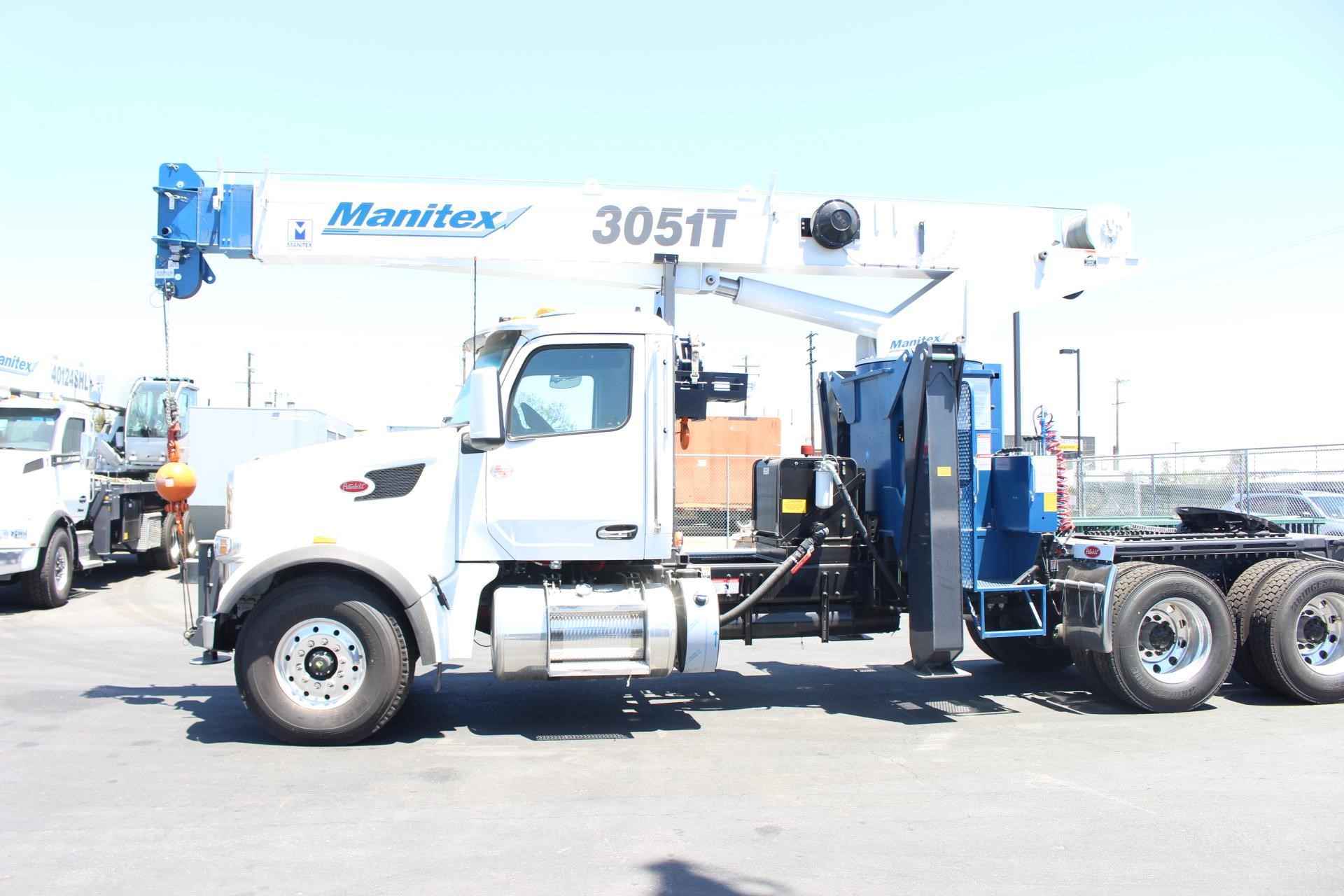

MANITEX 3051T 30 TON Standard features: 51’ Three-Section Telescopic Boom, 7 Ton Hook and Ball, 3-Load Sheave Quick Reeve Boom Head, Hard-Wired Anti-Two Block w/lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non continuous Rotation, Boom Rest- Tractor Mount with Load Block Bracket, Engine Start/Stop, Operator’s Service/Parts Manuals, Boom Length and Angle Indicators, Electronic Foot Throttle, Signal Horn, Bubble Level, Beverage Cup Holders, 2-speed Hoist w/Grooved Drum, 335’ of 9/16” Rotation Resistant Wire Rope, 70 Gallon Reservoir Mount for Tractor Mount w/Suction Strainer & Ball Valve, Pedestal, Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Can Bus Load Moment Indicator w/Internal length Cable – Audio/Visual Capacity Alert w/Shutoff, Hermetically sealed Printed Circuit Board Electrical System w/LED Circuit Status Indicators, Audible Outrigger /Stabilizer Motion Alarm, Subframe Tractor Mount, Out and Down Rear Stabilizers, A-Frame Outriggers, 3-Section Gear Hydraulic Pump – CCW Rotation is Standard, Outrigger Monitoring System. Additional Options Included: • Tractor Mount for 3051TM • 3 Section Vane Pump-Clockwise Rotation • Hot shift PTO • Drive Shaft for Pump Installation • Front Center Stabilizer • 15 Ton 1-Sheave Quick Reeve Block • Mounting - Front Center Stabilizer • Control valve for operation of single stabilizer, Required w/FBS • Aluminum Toolbox (36” x 24” x 24”) Chassis Mount MOUNTED ON 2027 PETERBILT 567 Mounted on a 2027 Peterbilt 567 tractor chassis with a X15 525 diesel engine with an Allison 4500 RDS-P Transmission, Dana Spicer D2200F 22,000 lb. front axle, Meritor RT46-160 46,000 lb. tandem rear axle, Hendrickson HMX EX 46,000 lbs. rear suspension, Diff Lock tandem axles, Holland FW35 fifth wheel, Full Set Alcoa Aluminum Wheels, Aluminum 100 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, dual heated mirrors, interior color Sterling Gray, ConcertClass radio AM/FM/WB, air horn mounted under cab, exterior stainless steel sunvisor, Halogen headlights, and unit is painted Axalta Two Stage White.
