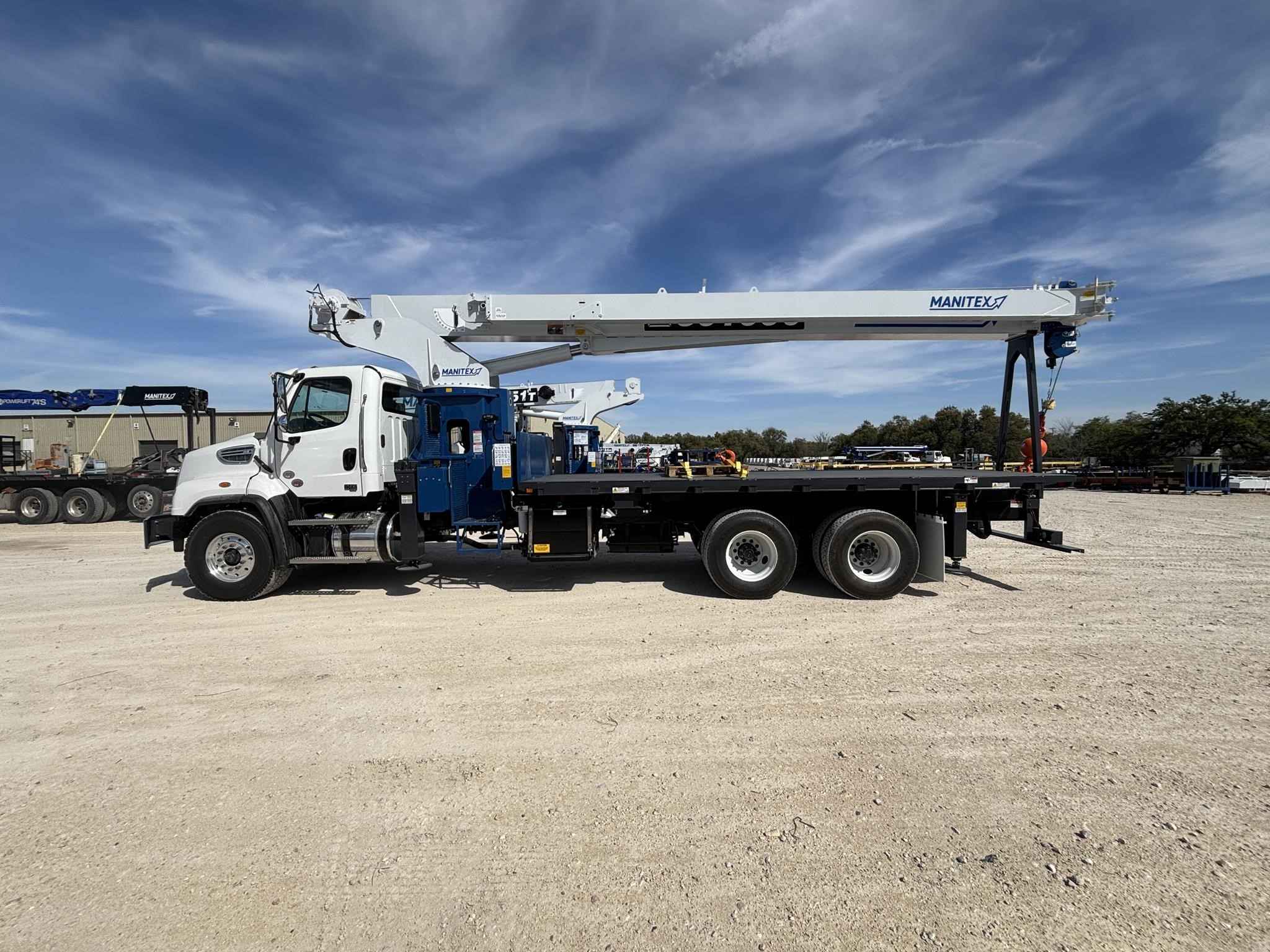

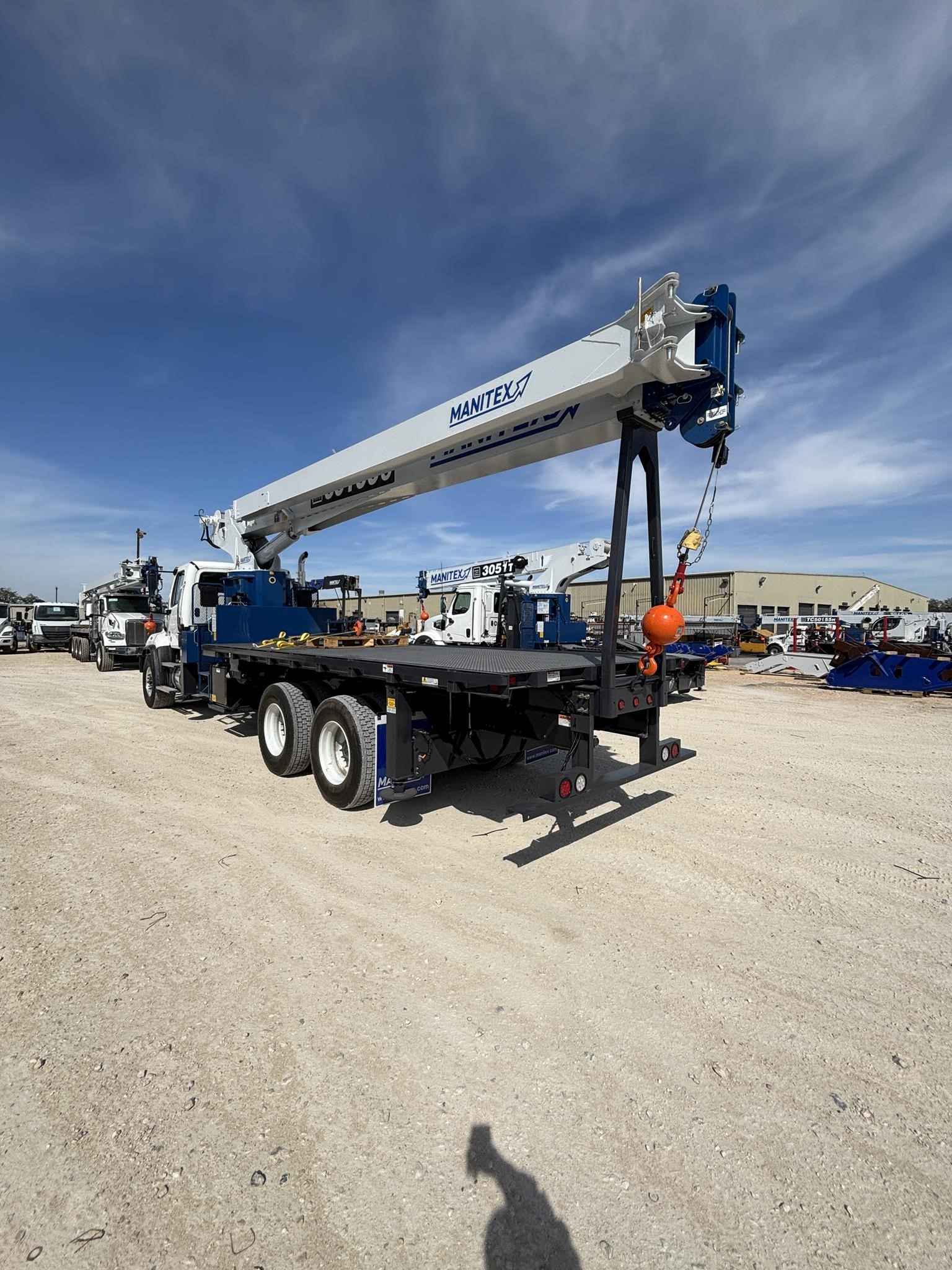

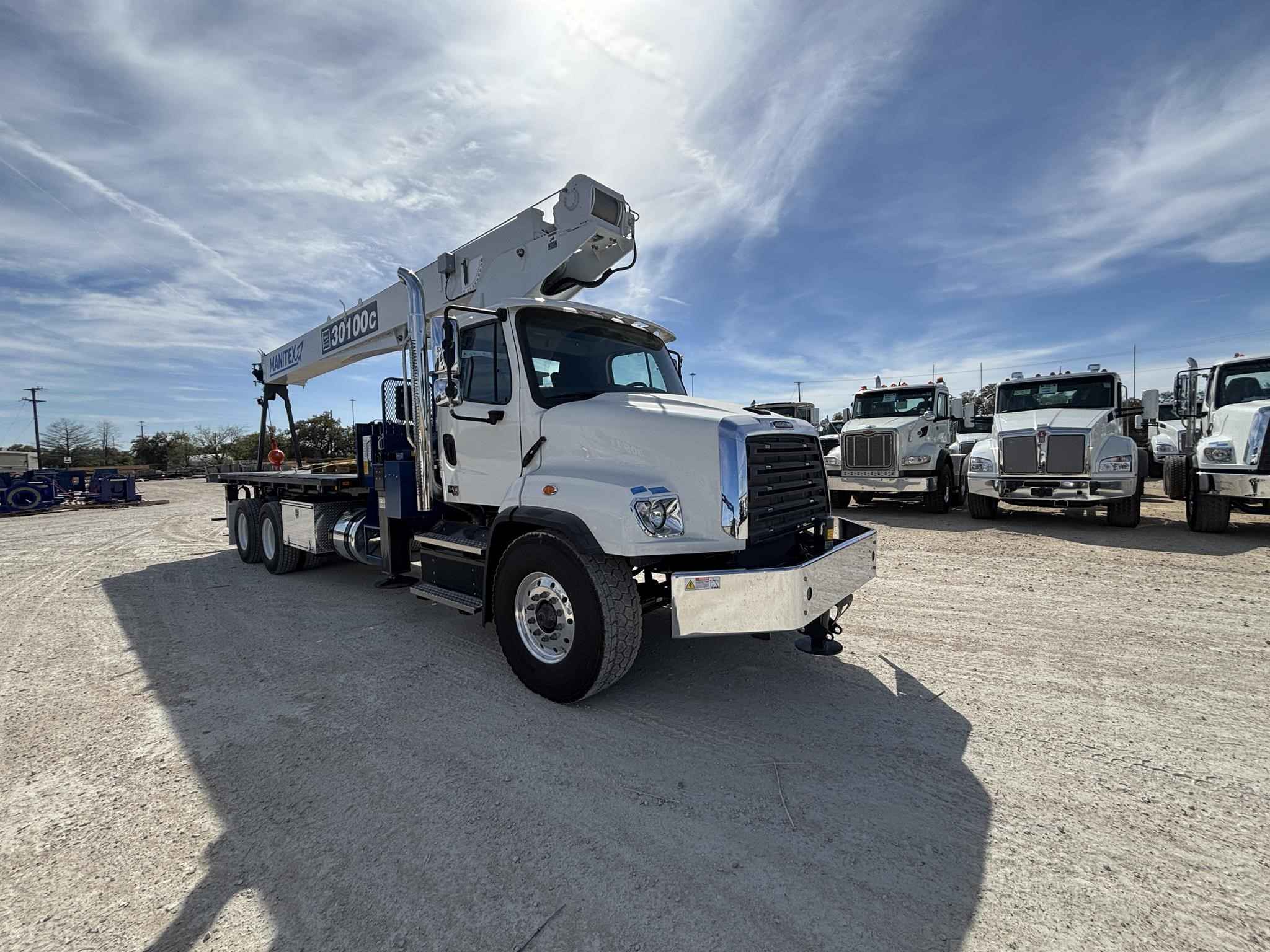

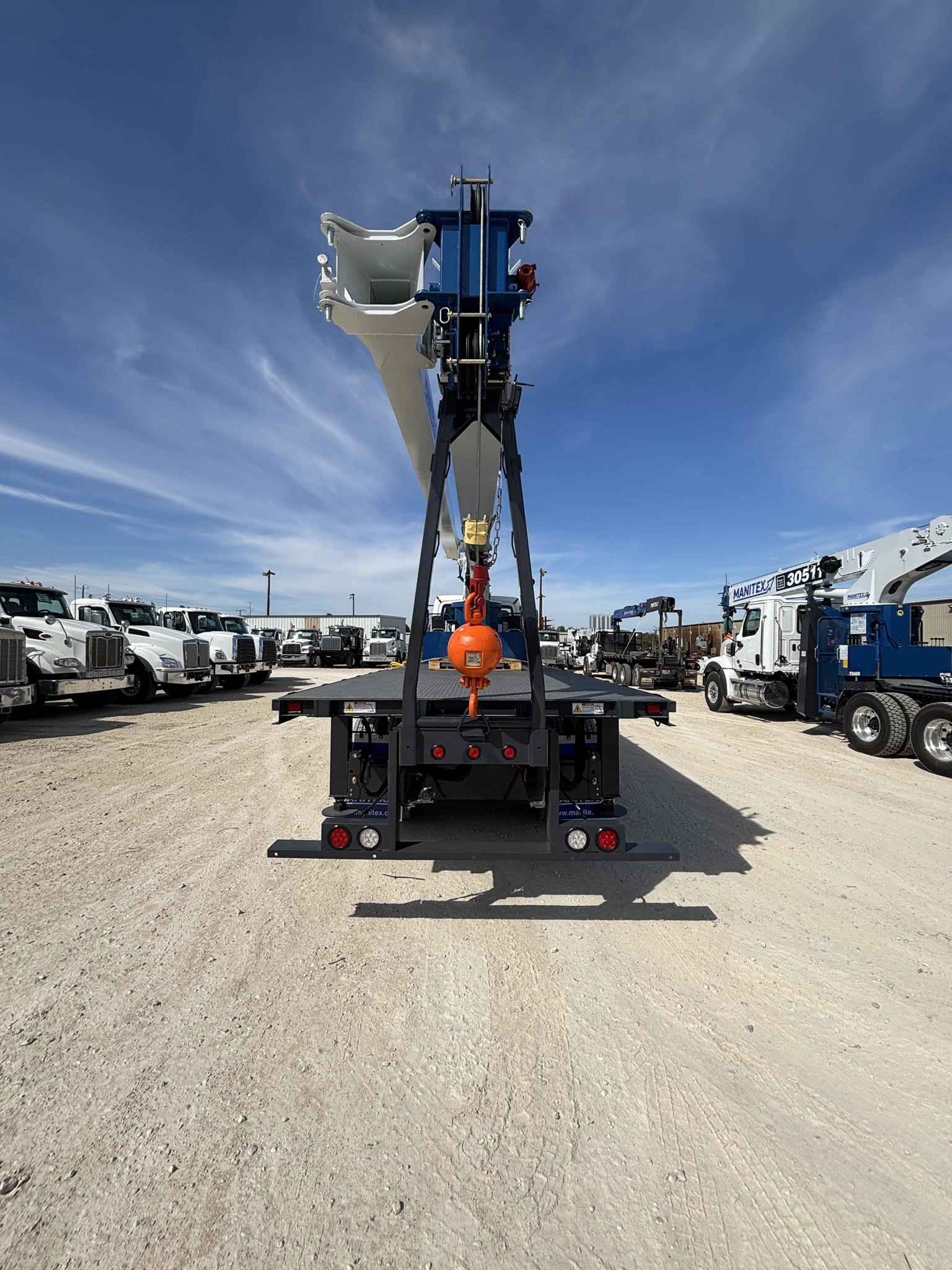

2027 MANITEX 30100C Standard features: 100’ Four-Section Telescopic Boom, 7-ton hook and ball, 3- load sheave quick reeve boom head, Externally Wired anti-two block w/lockout, Boom hoist cylinder, System pressure gauge, 372° Non Continuous rotation, Removable boom rest, Engine start/stop, Operators service/parts manuals, Boom length and angle indicators, Electronic Foot throttle, Signal Horn, Bubble Level, Beverage cup holders, Braden Winch, 2-speed Hoist w/grooved drum, 335’of 9/16” Rotation Resistant Wire Rope, Subframe for 21’ Bed, 70 gallon reservoir w/suction strainer and ball valve, Pedestal, Swept Back Turret, Rotation bearing and Swing system, Dual Operator Control Stations, Can Bus Load moment indicator w/Internal length Cable-audio/visual capacity alert w/shutoff, Hermetically sealed Printed Circuit board electrical system w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, A-frame Link Type Front Outriggers (22’4” Spread Width), Out and Down Rear Stabilizers (13’7” Spread), 3-Section Hydraulic Pump-Counterclockwise Rotation is standard, Outrigger Monitoring System. Additional Options Included: • Radio ATB – 100’ Boom • 1 piece 26’ Jib • 21’ HH Steel Bed x 102” • Standard Mount Installation • 3 Section Vane Pump Clockwise Rotation • Hot Shift PTO • Non-Standard HD Hydraulic Reservoir Mounting • Heavy Duty Hydraulic Reservoir Mounting • Front Center Stabilizer • Mounting-Front Center Stabilizer • Control Valve for operation of single stabilizer • Aluminum Tool Box (48” x 24” x 24”) Chassis Mount MOUNTED ON FREIGHTLINER 114SD Mounted on a 2027 Freightliner 114SD tractor chassis with a Cummins X12 430V HP diesel engine, Allison 4000 RDS Automatic Transmission, Detroit DA-F-20.0.5 20,000 lb. front axle, Meritor MT-40-14X 40,000 lb. R Series Tandem rear axle, Full set of Alcoa polished wheels, Aluminum 60 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Gray/Black, AM/FM/WB Bluetooth Phone and audio radio, Air Horn mounted under cab, Dual heated mirrors, Stainless steel sunvisor, Halogen headlights and unit is painted White.
