Features

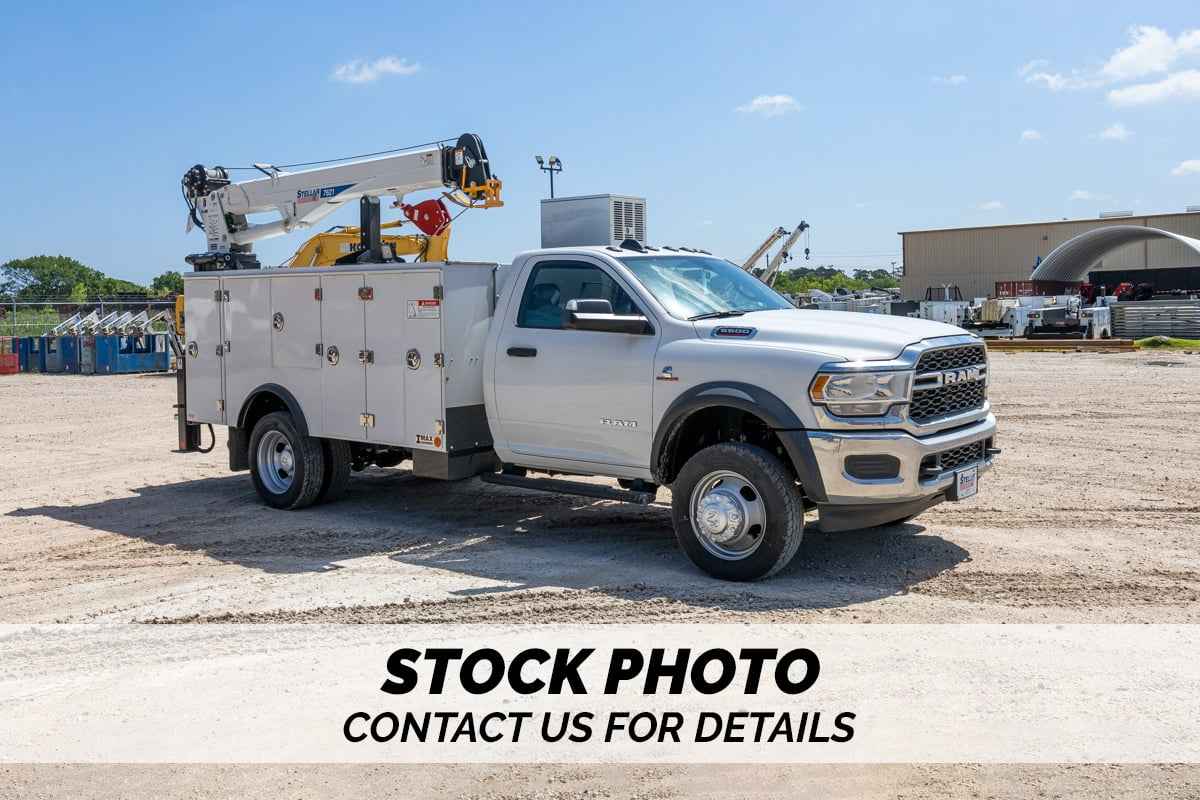

Stellar 7621 Telescopic Service Crane Specifications Crane Rating (with Boost): 44,840 ft-lb (6.2 tm)* Boom Length: 11’ (3.35 m) from CL of Crane Boom Extension: - 1st Stage: Hydraulic 60” (152.4 cm) - 2nd Stage: Hydraulic 60” (152.4 cm) Max. Reach: 21’ (6.40 m) from CL of Crane Max. Vertical Lift: 23’ (7.01 m) Boom Elevation: -10˚ to +80˚ Controls: Stellar® CDTplus™ radio control standard for all functions Winch - Rope Diameter: 3/8” (0.95 cm) 6X31 IWRC-DGXIP X 100’ (30.48 m) - Line Pull Speed: 60 ft/min (18.29 m) - Max. Single Part Line: 3750 lbs (1700 kg) - Max. Double Part Line: 7500 lbs (3402 kg) Rotation: 400˚ power (worm gear) Lifting Capacities: - 7500 lbs @ 5’10” (3400 kg @ 1.78 m)** - 2135 lbs @ 21’ (965 kg @ 6.40 m)** *Crane rating in Boost Mode. Normal crane rating is 38,000 ft-lbs (5.25 ton-m) **Maximum capacities in Boost Mode.
