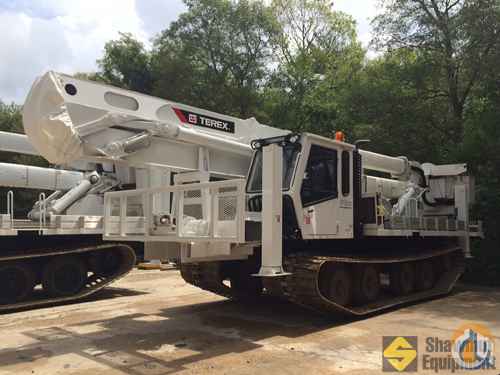

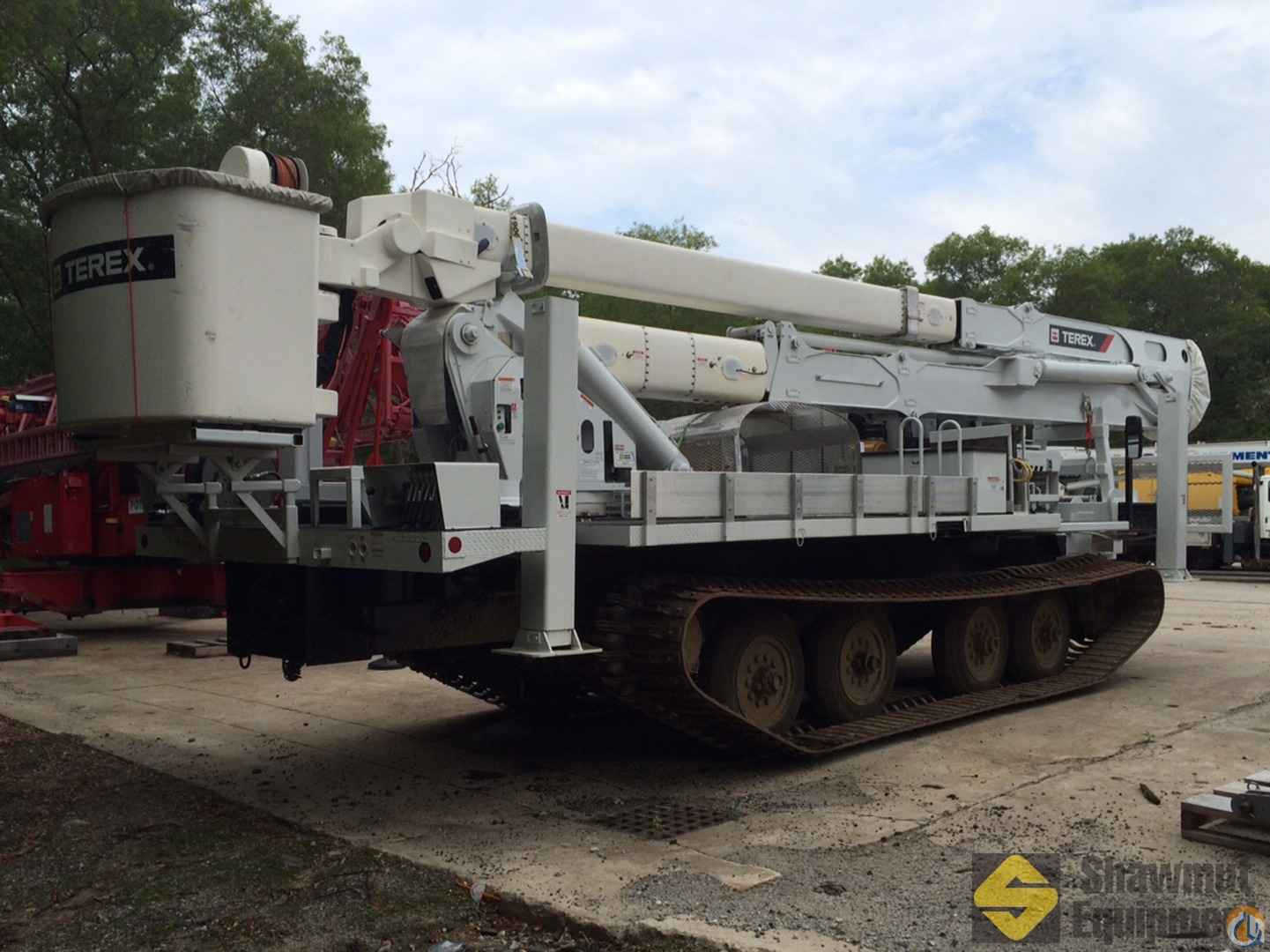

2015 Terex Hi-Ranger TM100, S/N: 2150253688, 100-Ft. Tracked Material Handling Bucket
Bucket Specifications:
- Working Height: 100 Ft
- Lower Controls on Turntable
- Telescopic Lower Boom
- Fiberglass Lower Boom Insert
- Telescopic Upper Boom
- Upper Boom Has 14.2 Ft Clear Insulation
- Continuous Rotation
- End Mount Platform 35” x 57” x 42”
- Platform Liner
- Platform Cover
- 180 Degree Hydraulic Basket Rotator
- Hydraulic Basket Tilt – Upper and Lower Controls
- Engine Start / Stop at Upper and Lower Controls
- Dual Tool Outlets at Basket with Flow Divider
- Hydraulic Articulating Extending 90 Degree Jib
- Category B Machine Rated at 69 KV
- Components for Category A Rating
- Auxiliary Power
- Two Sets of Out & Down Outrigger & Controls
- Lower Tool Outlet
- Full Length Subframe
- 80 Gallon Bed Mounted Hydraulic Reservoir
- Painted White
- Boom Rest
- Full Length Flat Bed
- Two Pullout Side Access Steps
- Four Wood Outrigger Pads & Pad Storage
- Access Steps to Basket
- Two Outrigger Control Covers
- 50 Ft 2/0 Grounding Cable
- Strobe Light
- Back Up Alarm & Engine Start/Stop at Rear
- Engine Throttle Control at Rear
- Flare Kit & Fire Extinguisher
- Hannay Spring Loaded Hose Reel with 35 Ft Hose
- Adjustable Flow Divider in Lower Tool Circuit
- 15 Ton Pintle Hook at Rear with Two Safety Eyes
- Front Mounted Winch DP30
- Four Way Roller Assembly
- Winch Control in Cab
- Heavy Duty Brush Guard at Front
- 100” x ¾” Winch Rope
Carrier Specifications:
- Prinoth GT3000 Basic Vehicle
- Espar D5 Engine Coolant Heater w/ 7 Day Timer
- 1 Person Cab
- Air Conditioning in Cab
- 40” Wide Standard “D” Dent Type Tracks (6 Ply Belts)
- Two (2) Heated Mirrors
- Audible Electric Inclinometer
- Amber Beacon Light w/ Protector
- Additional 3rd Wet Battery 950 CCA
- Satellite Boosting Lugs
- PTO Hours: Approximate 2,365 (3/7/25)
- Engine Hours: Approx. 3,139 (3/7/25)
