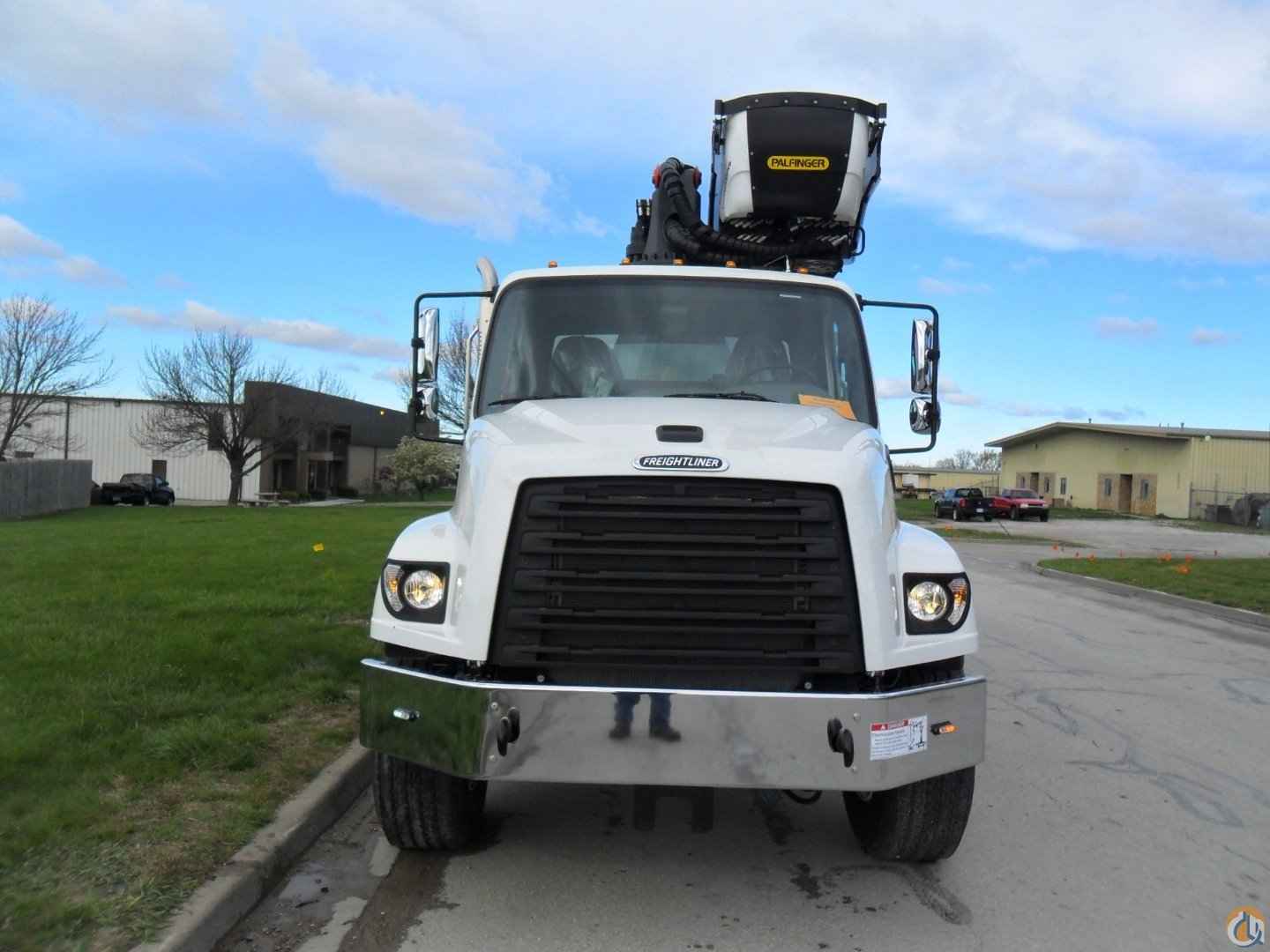

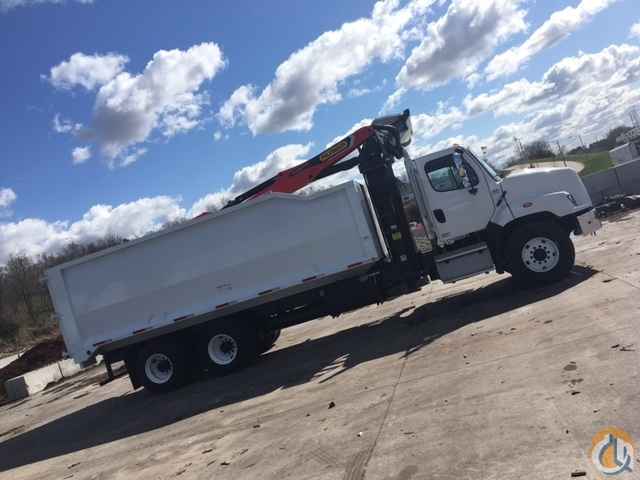

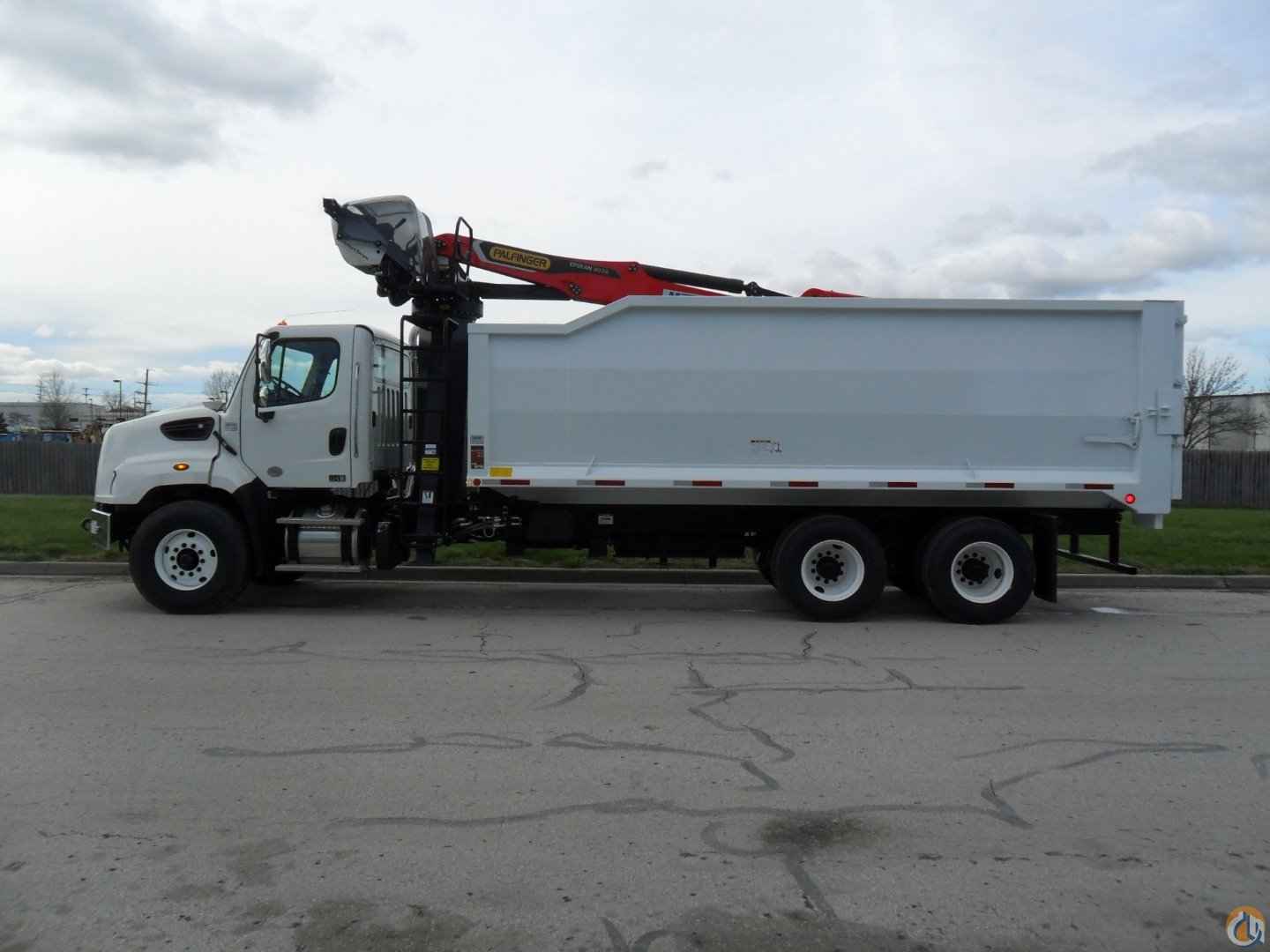

Palfinger Epsilon/Palfinger M13A80 Material Handler Crane (Sold)

Epsilon M13A80 Tree Service Grapples are Available

Palfinger's new A Frame tree service and logging grapples are now available!! These new models will be in high demand and will be first come first served. We can use our own chassis, which are Freightliner 114SD or Western Star 4700, or you can supply the chassis with the right specifications. We use BeauRoc bodies with 450 Hardox bodies for our set ups and can customize your set up to suit your needs. Call Bart at 913-703-1011 with any questions! The specs are as follows-

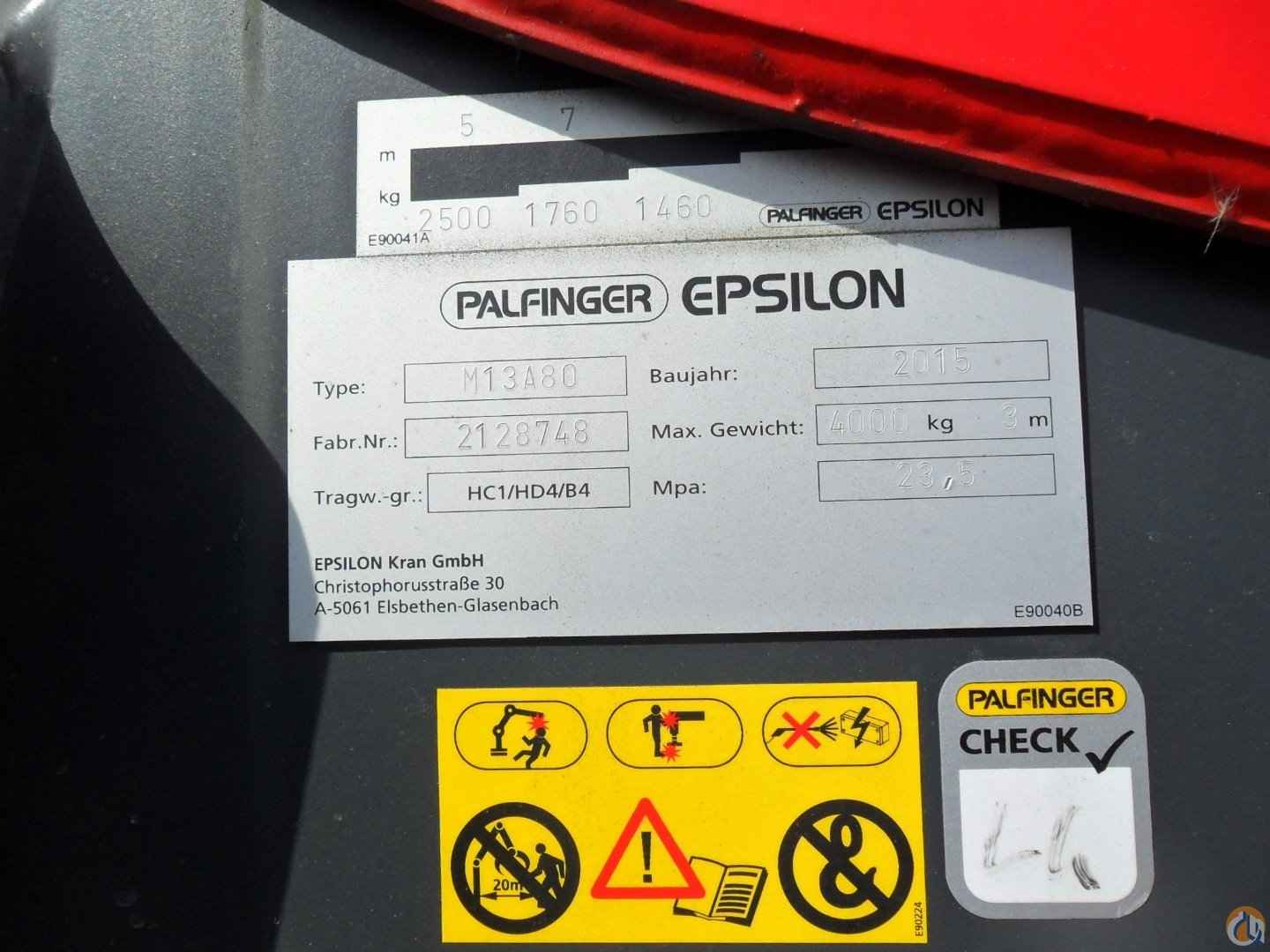

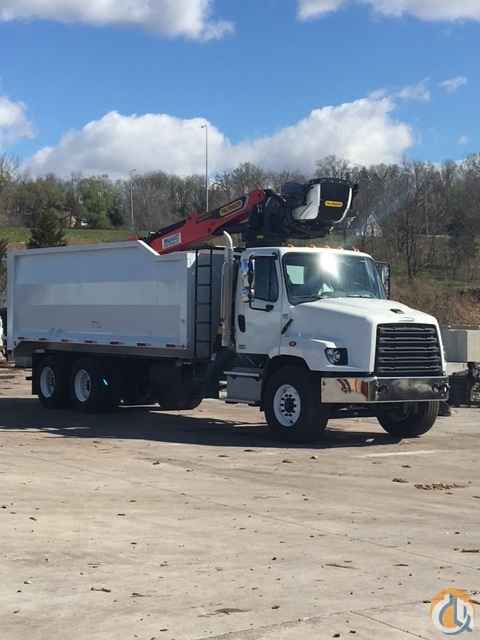

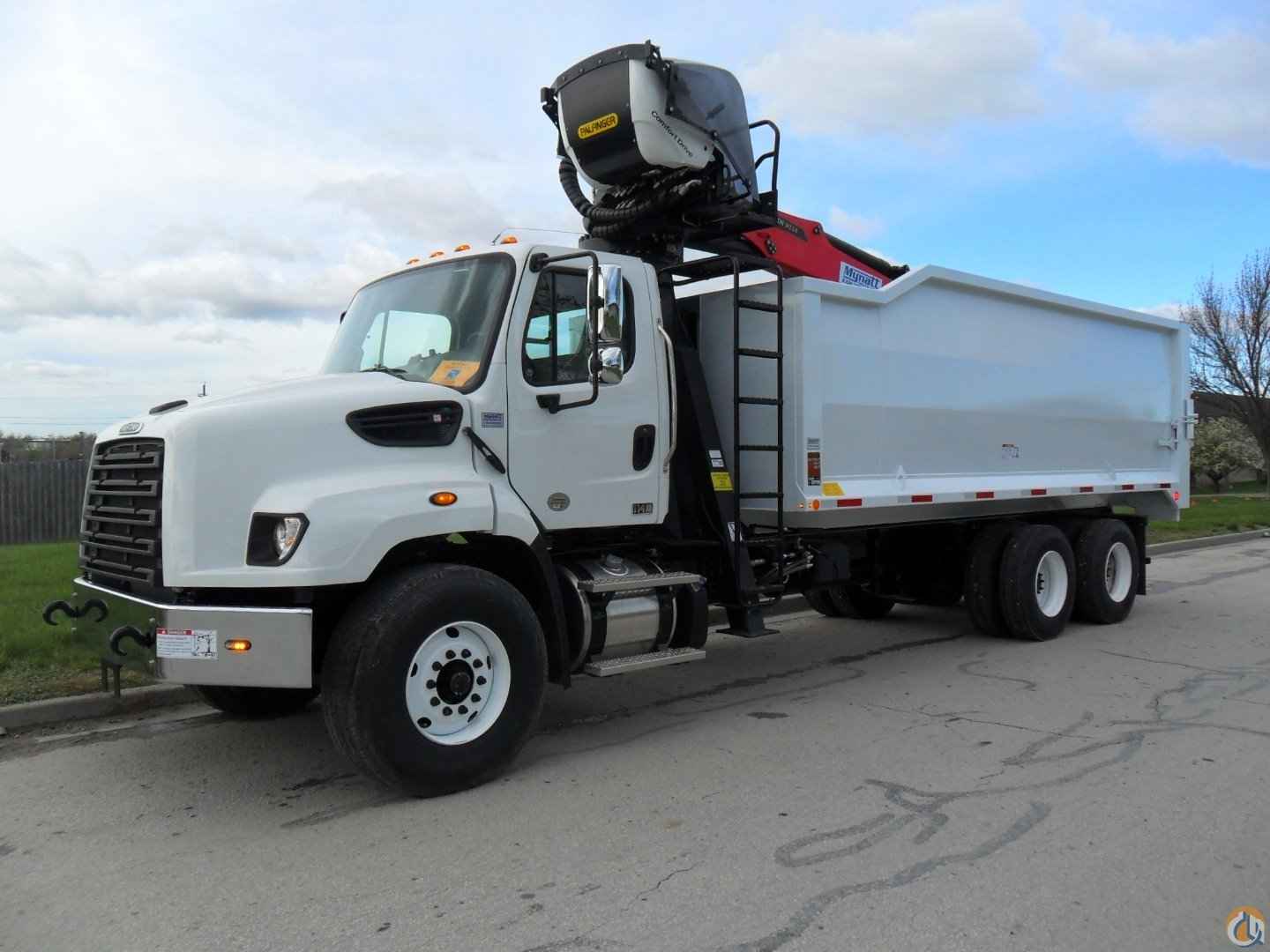

Palfinger/Epsilon A Frame Loader/ M13A80

Net Lifting Moment 92,200 ft-lbs/Net Slewing Torque 14,010 ft-lbs

Right side mounted operator station with two mechanical joysticks

Telescoping actions controlled by joysticks and slewing is controlled by foot(swing) pedals

Control valve is mounted on the operators station

Seat can be adjusted both forward/back

Independantly controlled hydraulic stabilizers(2 section)/controlled from topseat

Double circuit control valve-Recommended flow of 20 GPM(2x)

Operating pressure of crane: 3,410 psi

Continuous rotation of crane

Dual ladders with truck mounted column(15" taller than trailer mount)

Main boom cylinder protection with a top mounted outer boom cylinder

Linkage system between main and outer boom

Epscope-patented telescope system with interior hose routing for more protection of the hydraulic hoses

KTL primed and powder coated finish

4 Halogen worklights, 2 on the operators station and 2 on the outer boom

Mounting bolts and hose packages for both booms

M13A80 comes with a single telescoping extension to 26' 5"

CWP Cold weather package(seat heaters)

Seat belt

BK138 Epsilon rotator RB10F and Epslink bearing and bolt

79 gallon oil tank/Frame mounted oil cooler

A18FDO Rexroth Bent Axis Twin Flow Piston Pump(fixed displacement)

Air Pintle Hitch

EQUIPMENT SALES - CRANE PKG. - Heiden Grapple HC-20-TG-3/36 62" Open/36" Wide/Trash Grapple

Two composite stabilizer pad. 15 3/4" square. Slides under stabilizer plate, with rope handle.

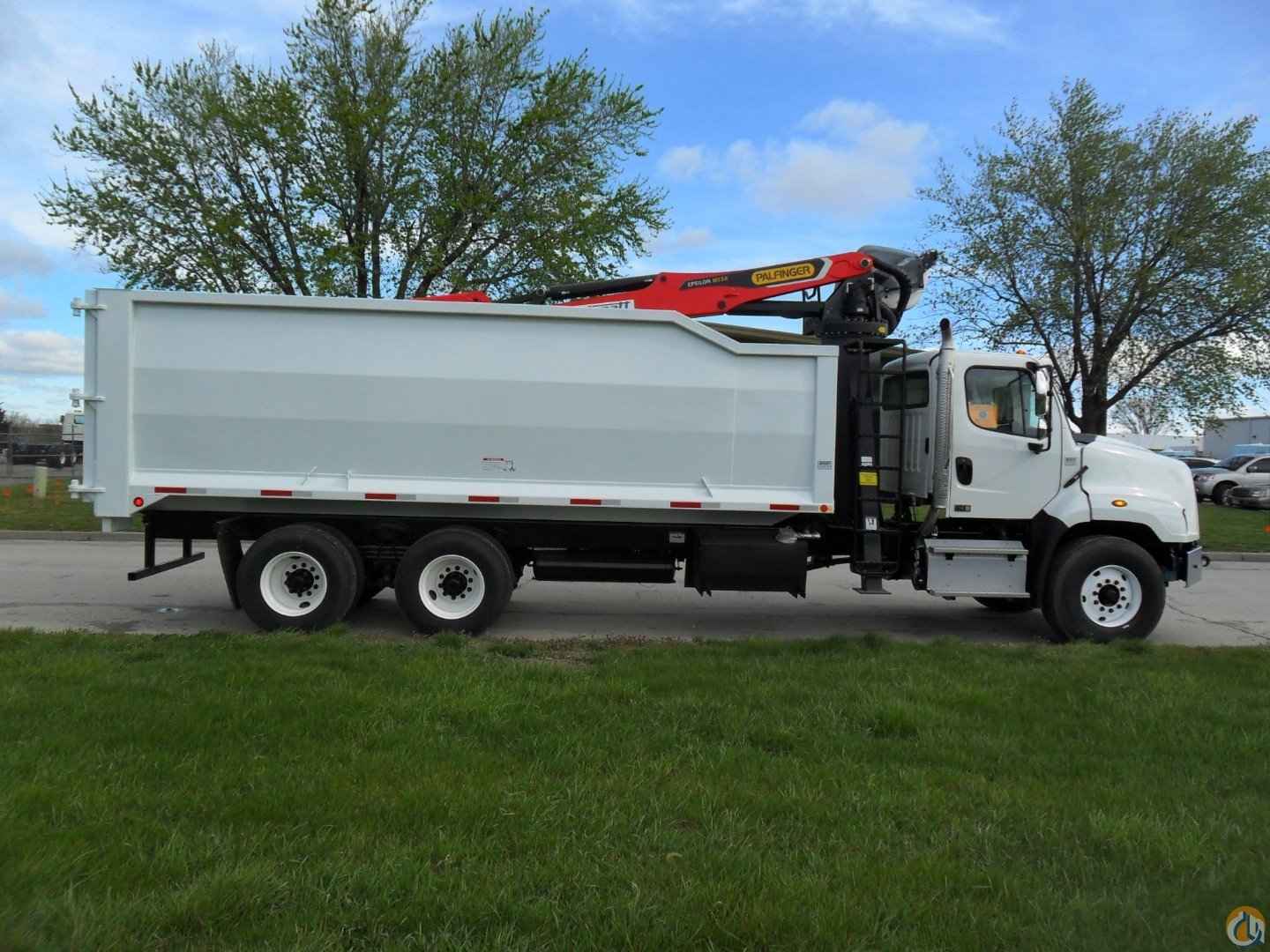

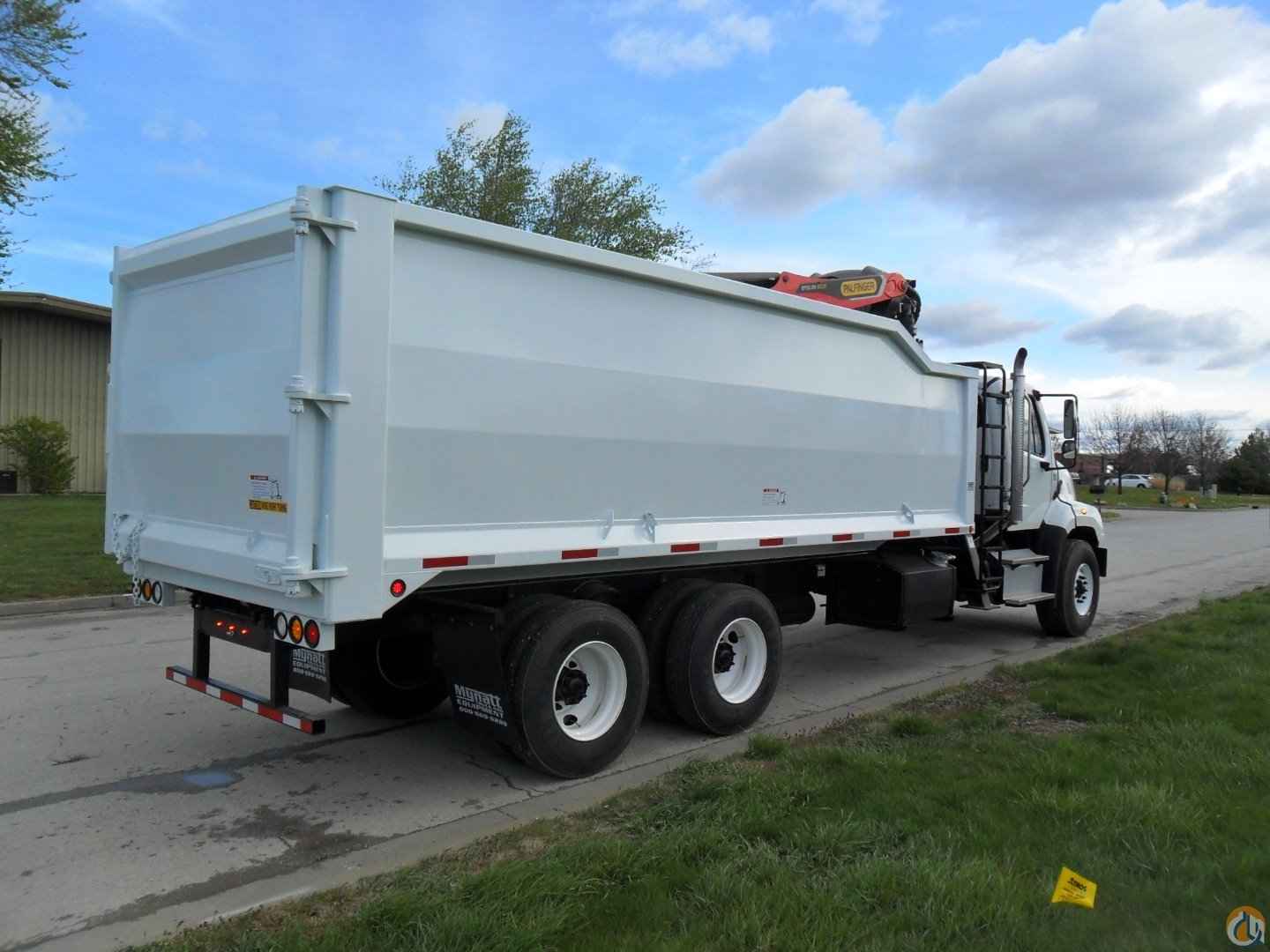

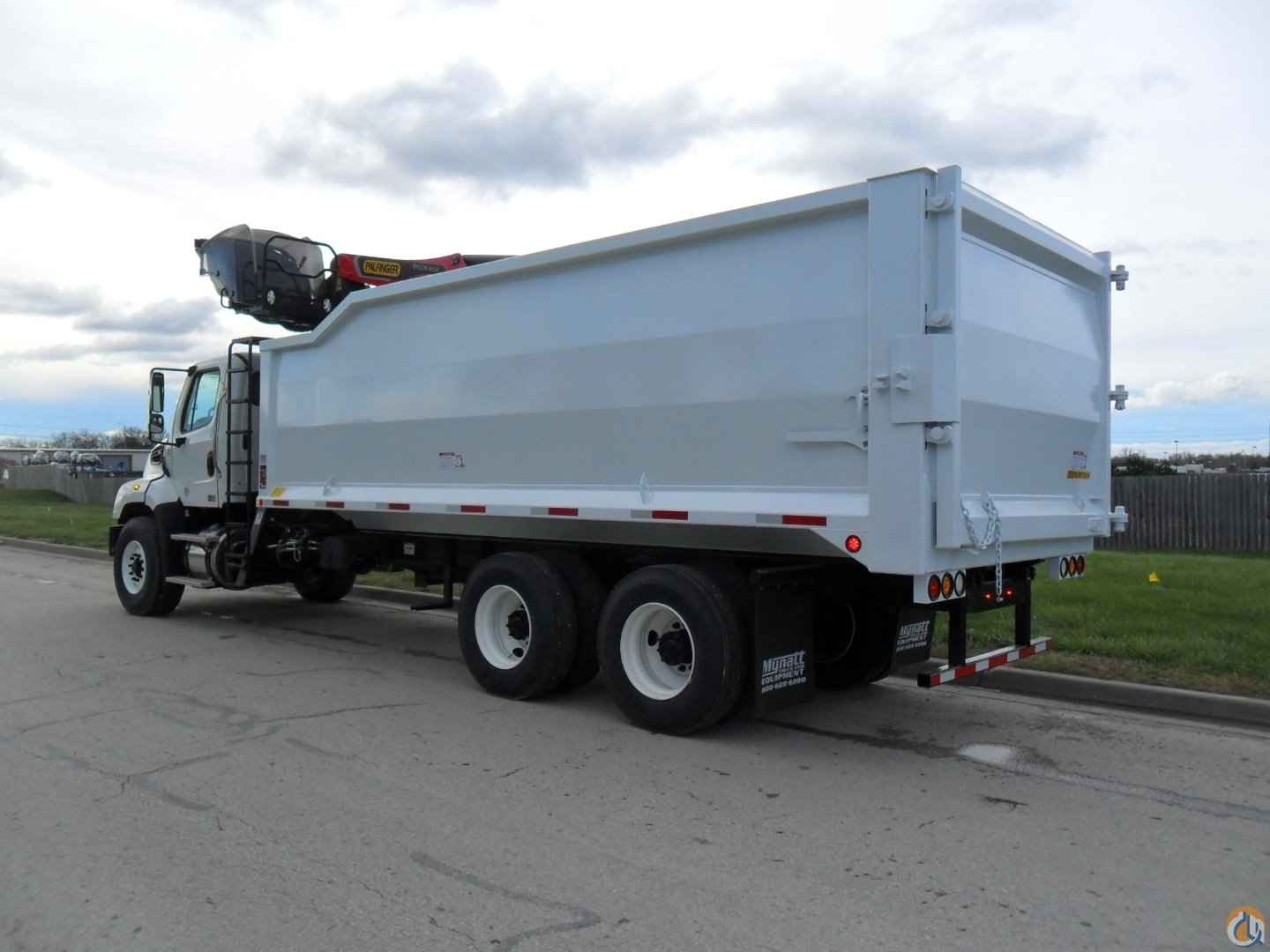

BeauRoc 22 Ft. Hurricane Body(MPHD) 84" high sides and Hardox 450 construction.Cab Cover included. (Stationary body and rear mount)

Installation of crane with oil cooler and 79 gallon tank in rear position, new PTO and pump, hydraulic oil, hose connections, stainless steel pressure lines, schedule

80 black pipe return lines, and complete electrical install. Includes body paint, dump body install,mudflaps and light kit.

Coneholder, watercooler holder, and rear light package

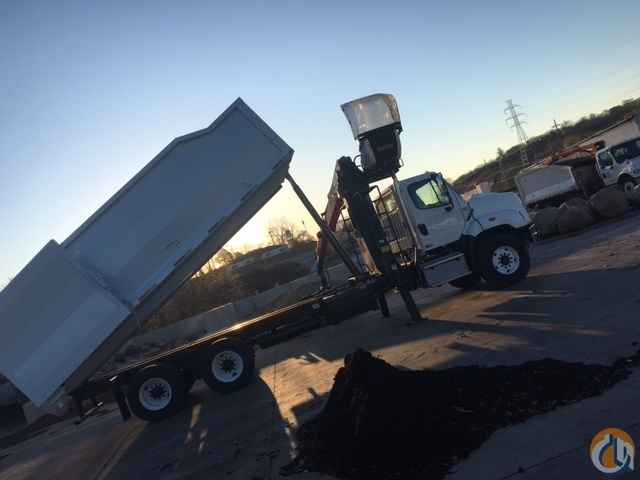

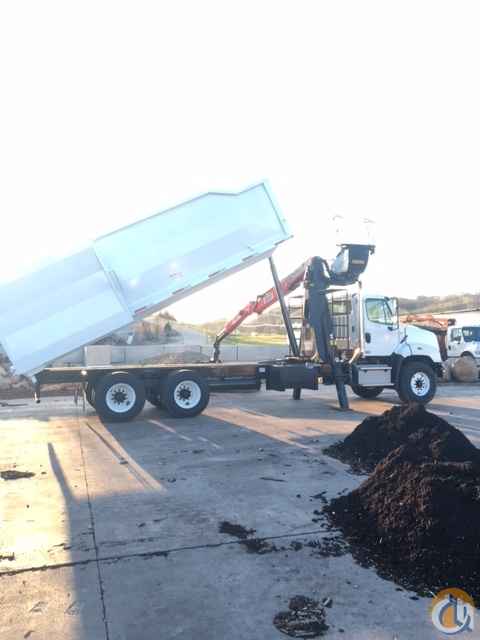

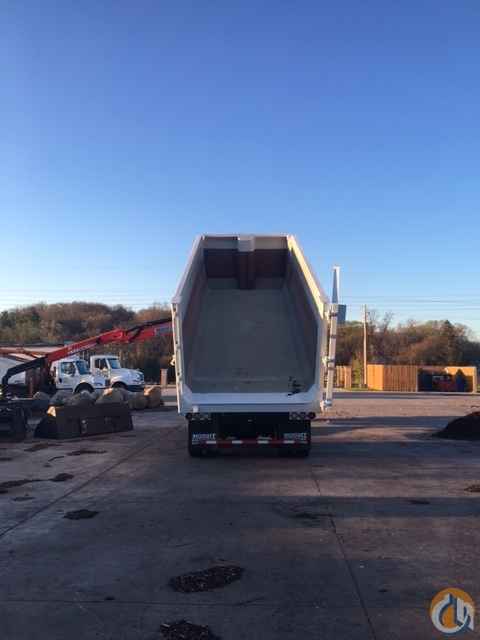

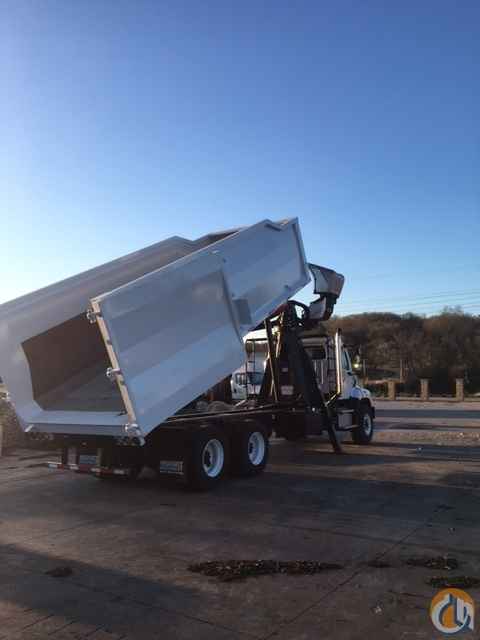

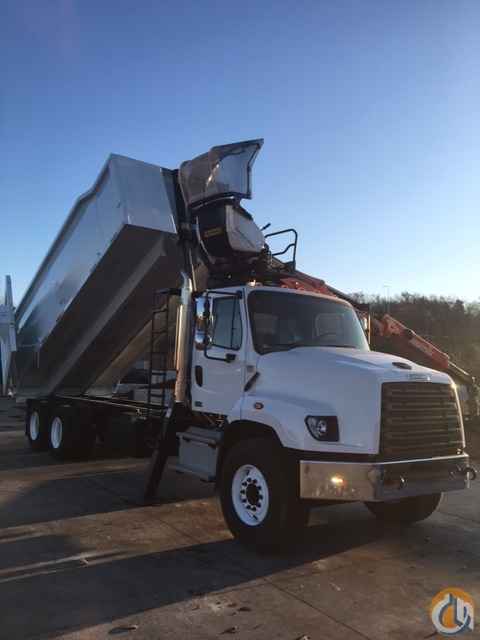

BeauRoc MPHD Hardox Hurricane dump body with hoist. 72"sides and 22' body.
