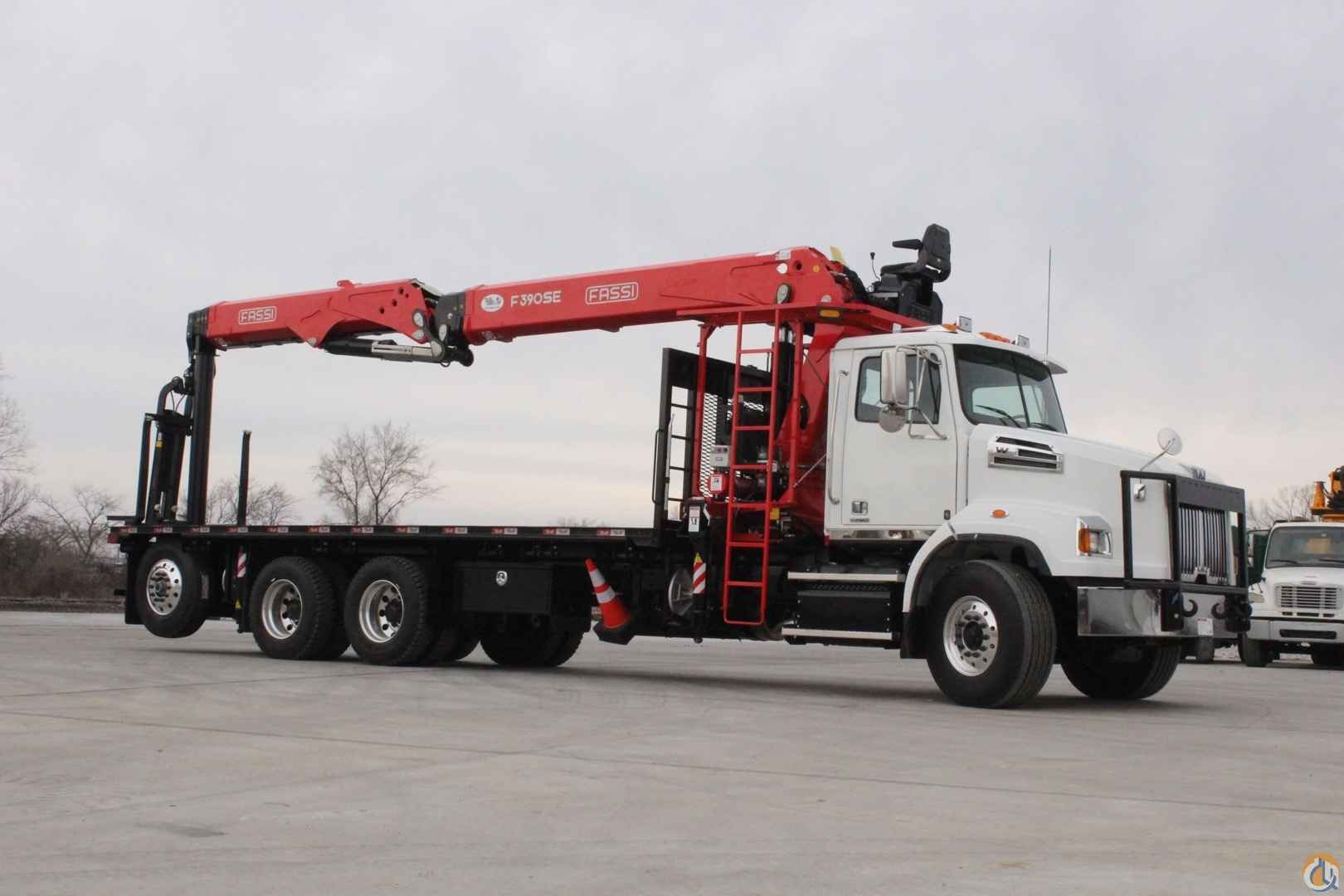

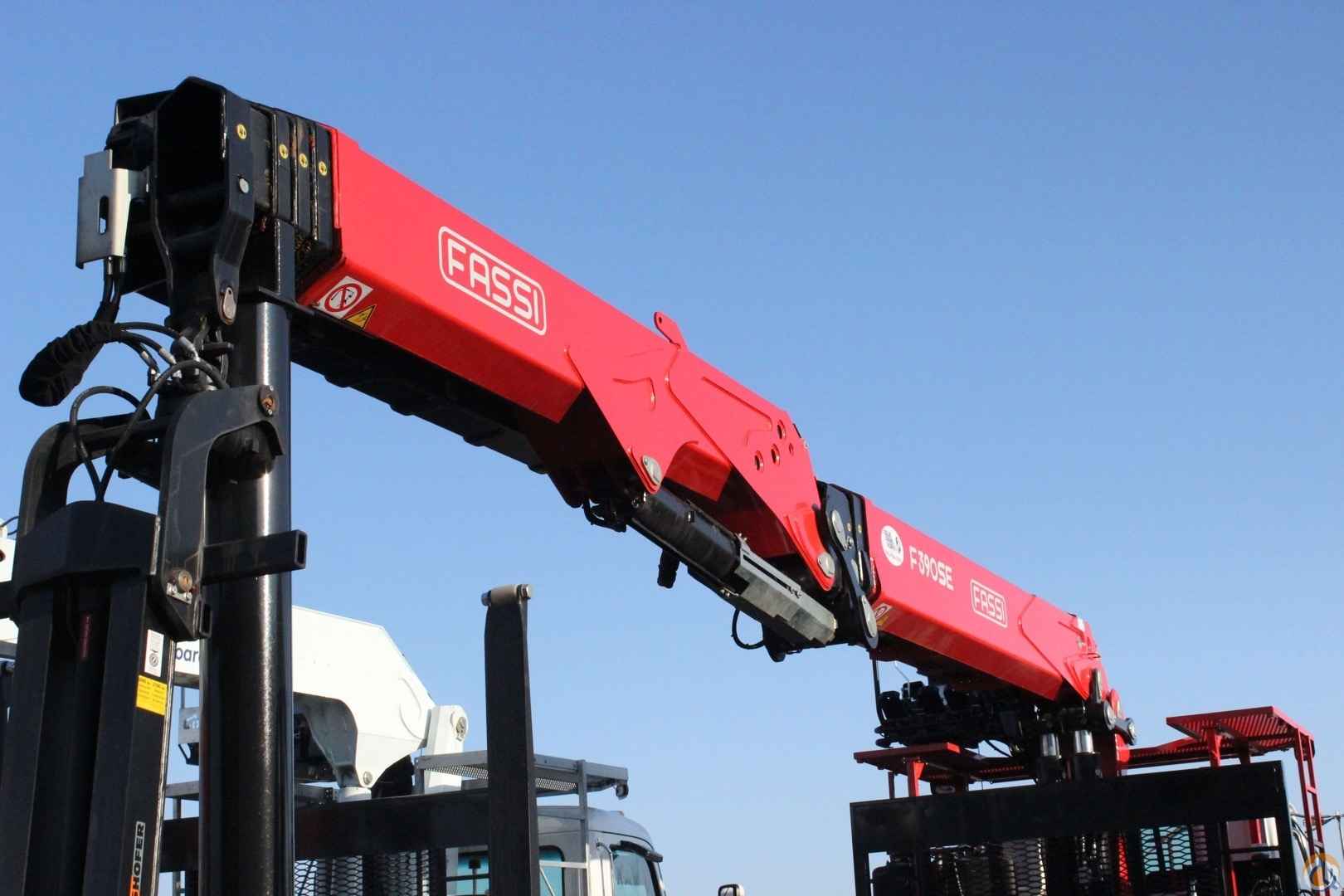

New Fassi F390SE.24 wallboard crane installed on 2018 Western Star 4700SB chassis.

Crane specifications:

Lifting capacity: 202,524 lbs. ft.
Standard reach: 78’11”
Hydraulic extension: 51’5”
Rotation arc: 430 degrees
Rotation torque: 49,117 lbs. ft.
Working pressure: 4,360 psi
Pump capacity: 16gal/16min
Oil tank capacity: 66 gal.
Outriggers spread crane: 22’6”
Supplementary outriggers: 16’4”
Degree of boom elevator: 85 degrees

Truck Specifications:

450 hp DD13 Engine
Aluminum 100 gal Fuel Tank
Aluminum Wheels
425/65R22.5 Front Tires
11R22.5 Rear Tires
Power Locks & Windows
18-speed Ultrashift Transmission
Tuftrac Spring Suspension
20,000 lb. Front Axle
46,000 lb. Rear Axle
66,000 lb. GVWR

Ref no: BM-2453, NT-1150
