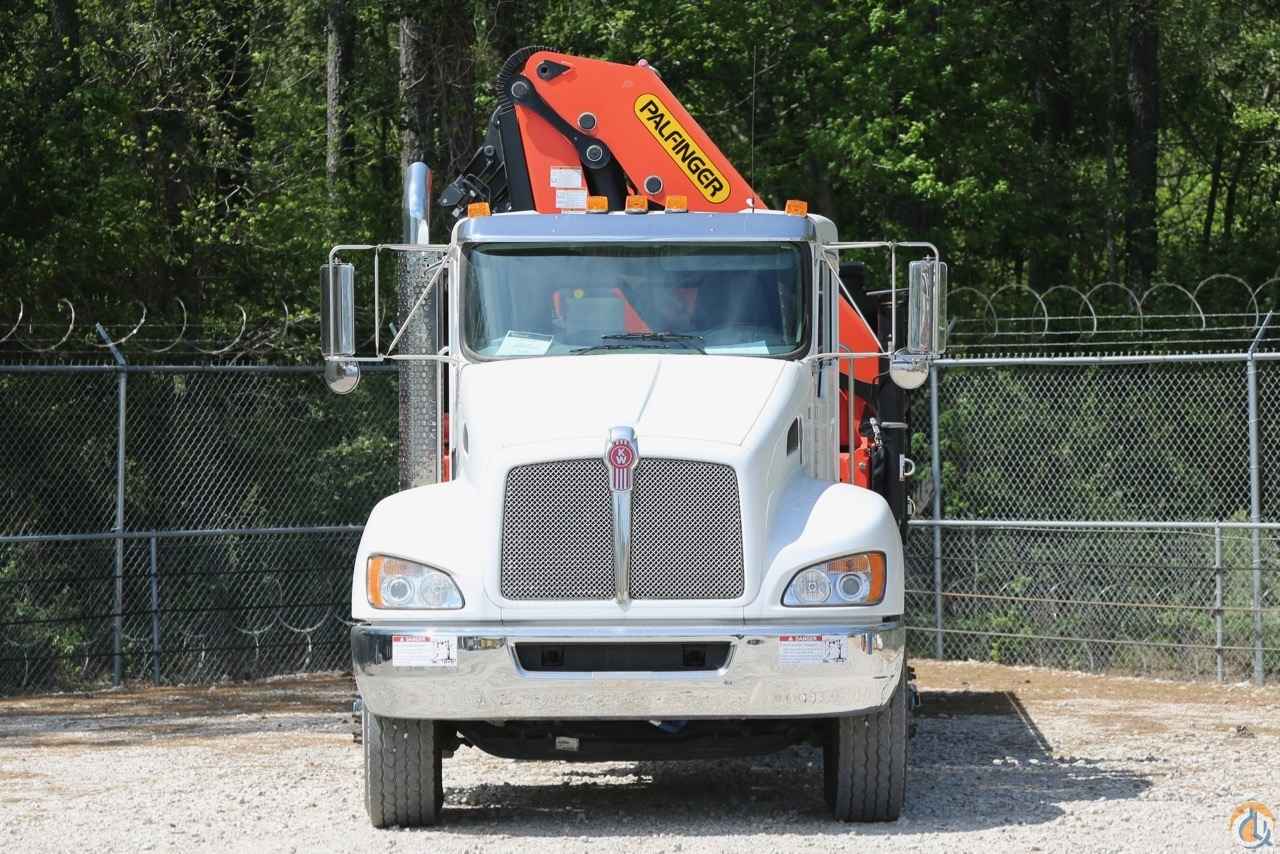

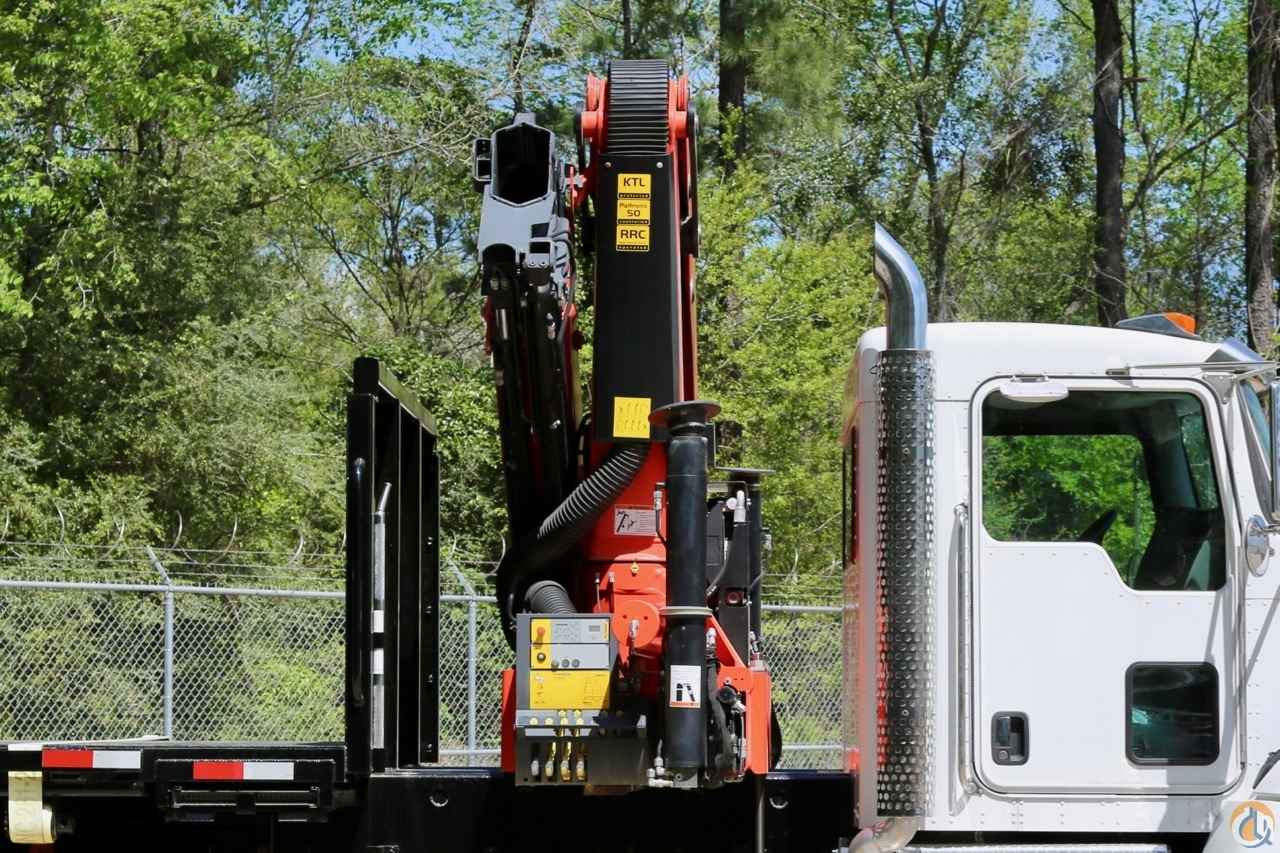

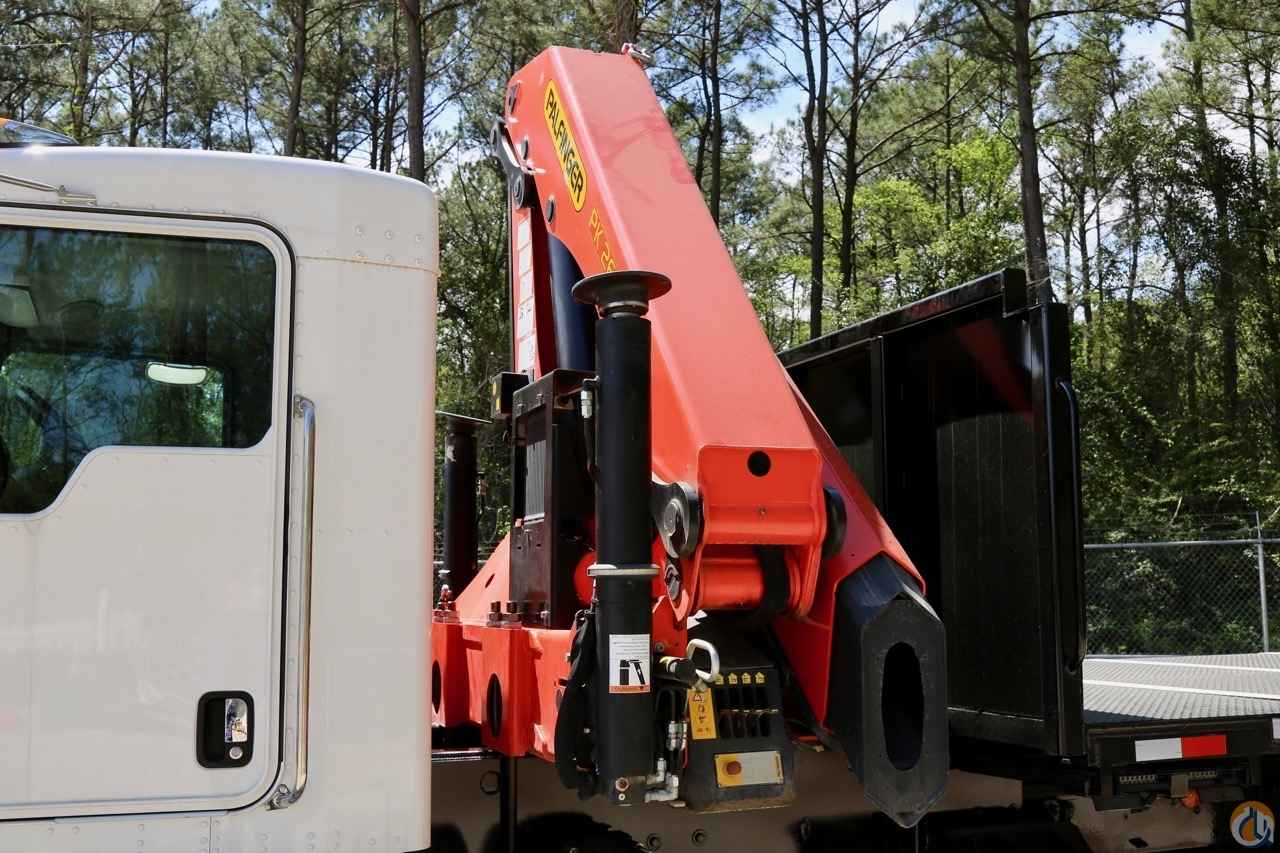

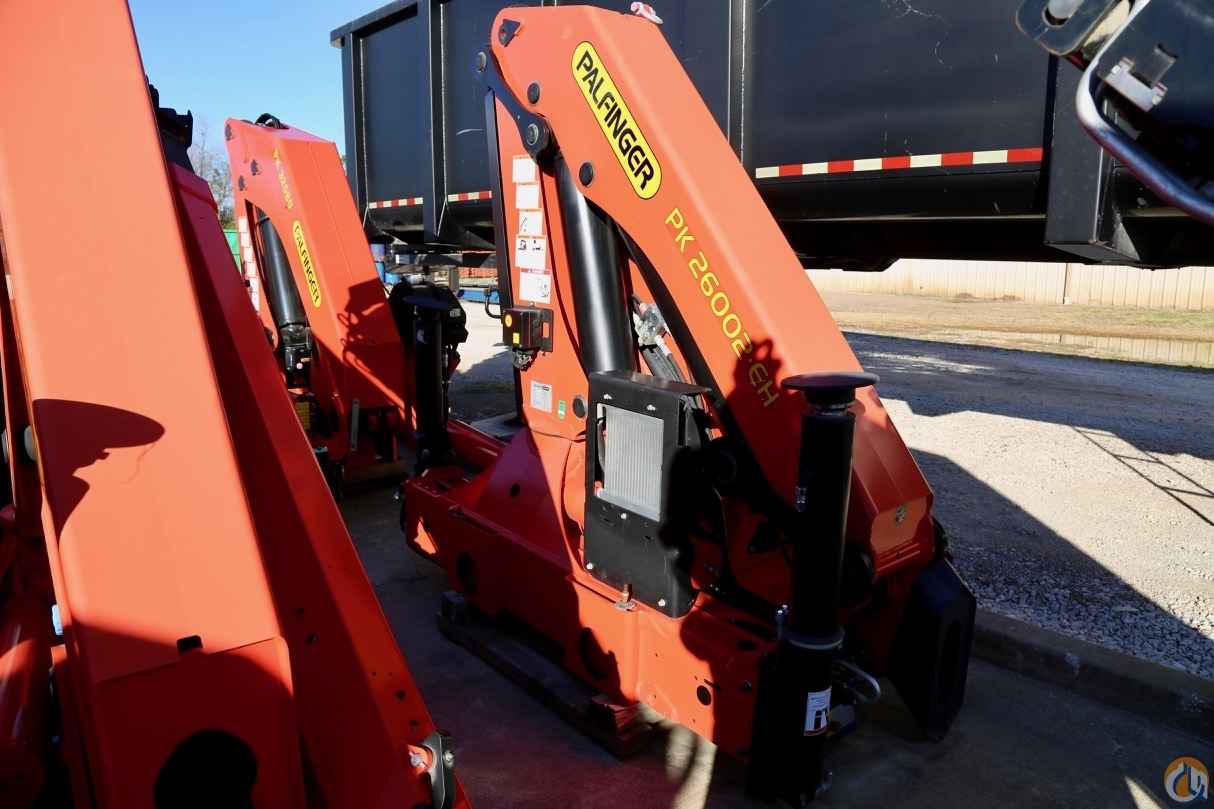

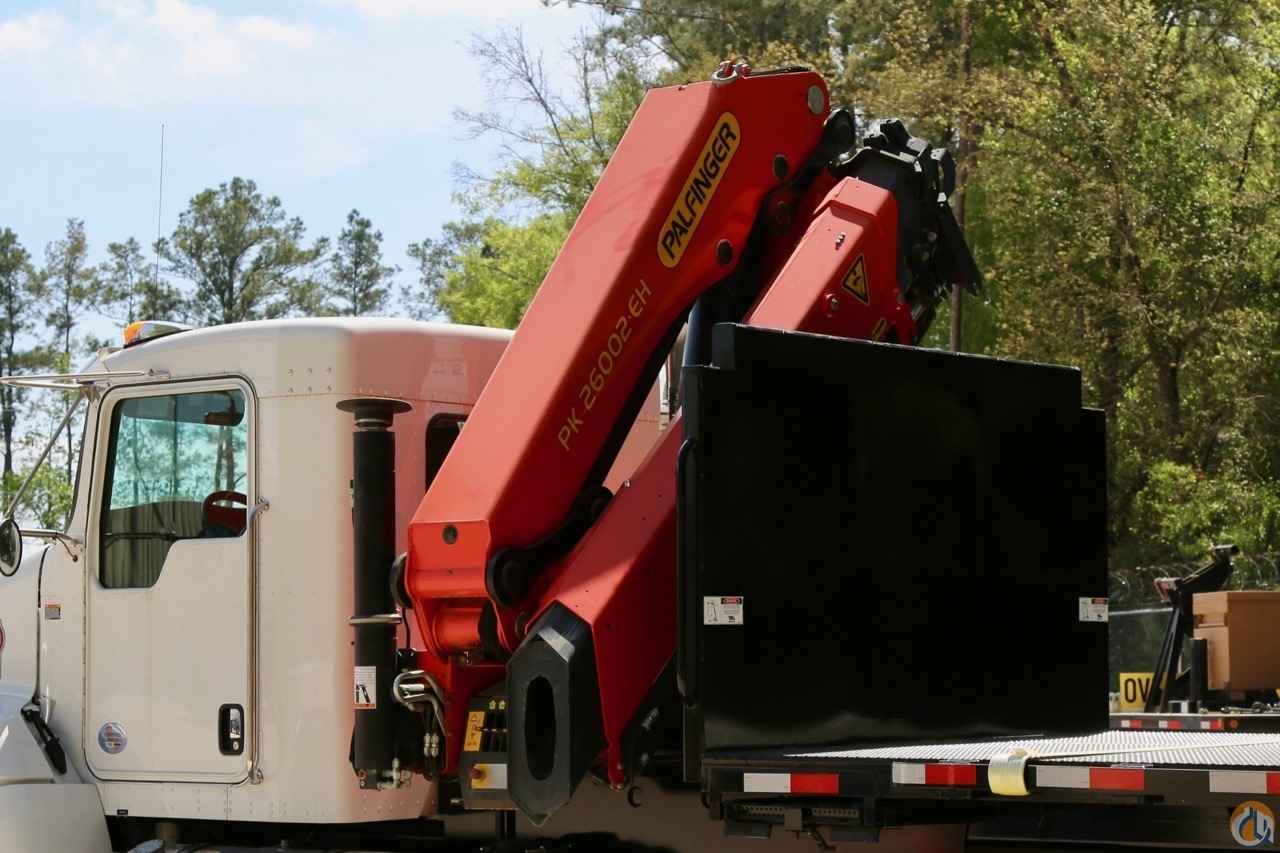

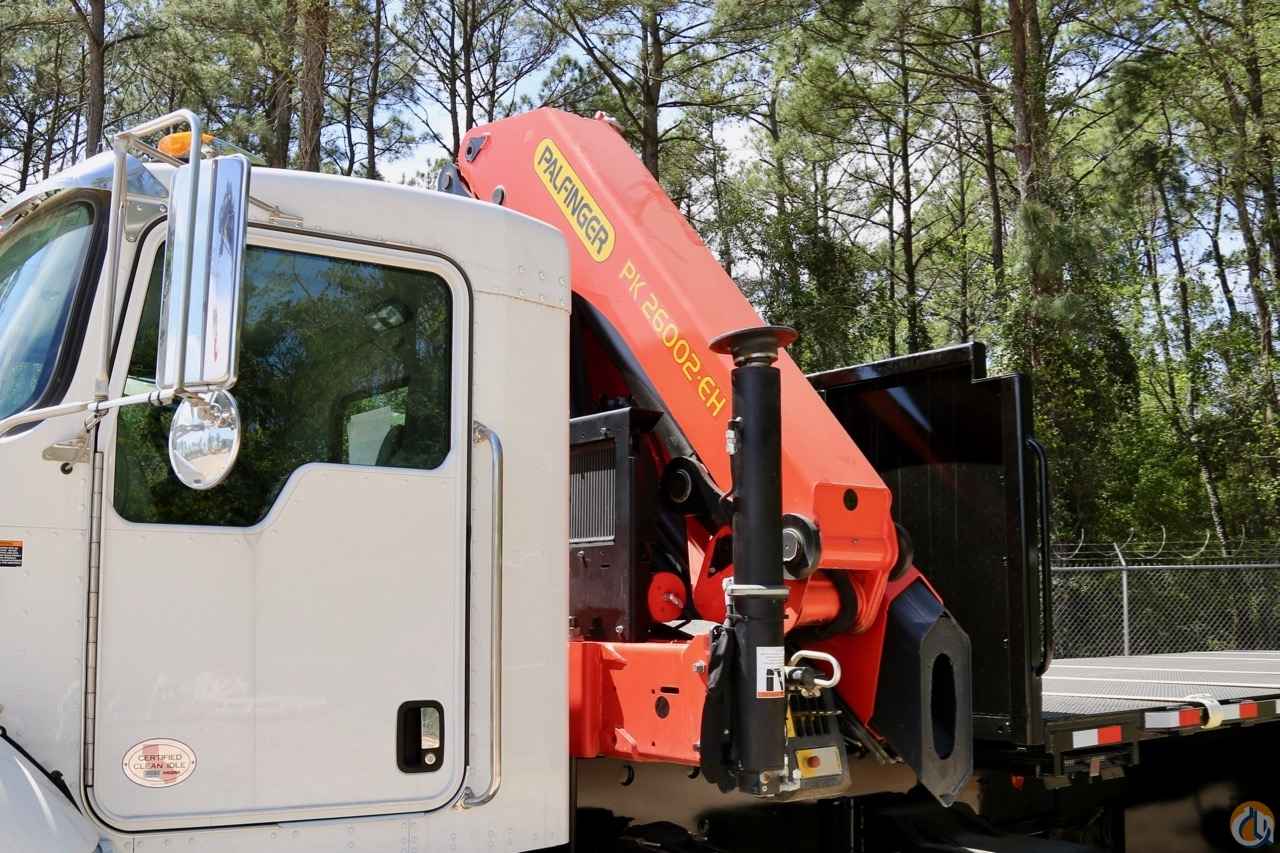

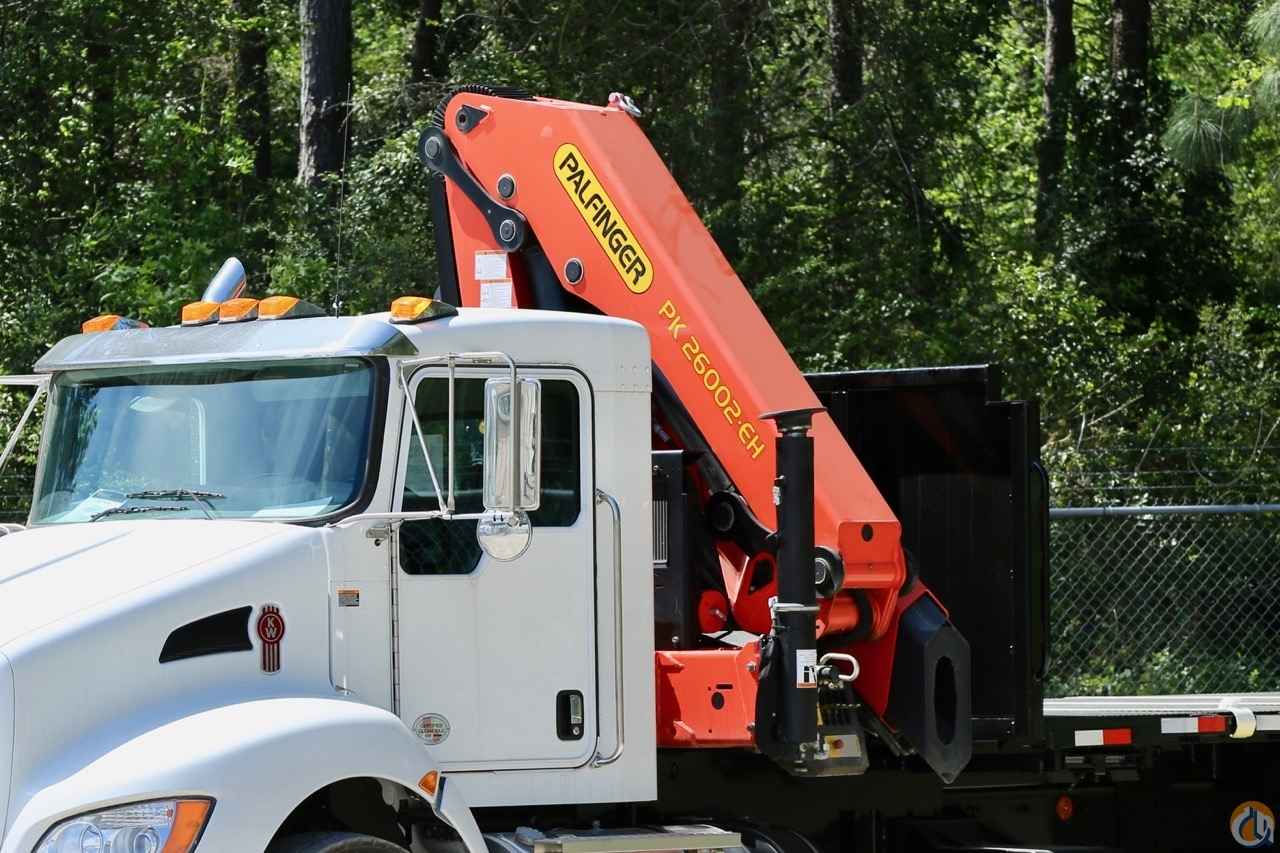

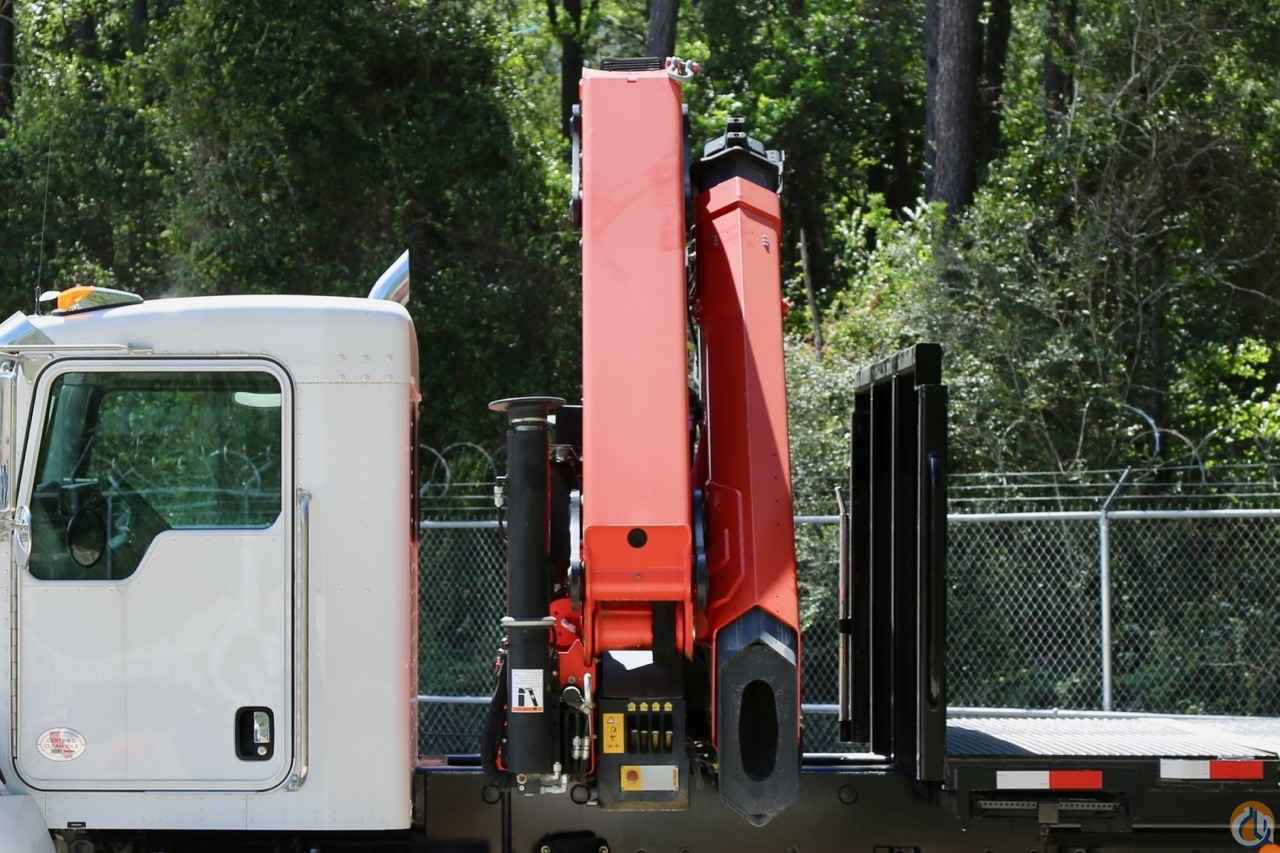

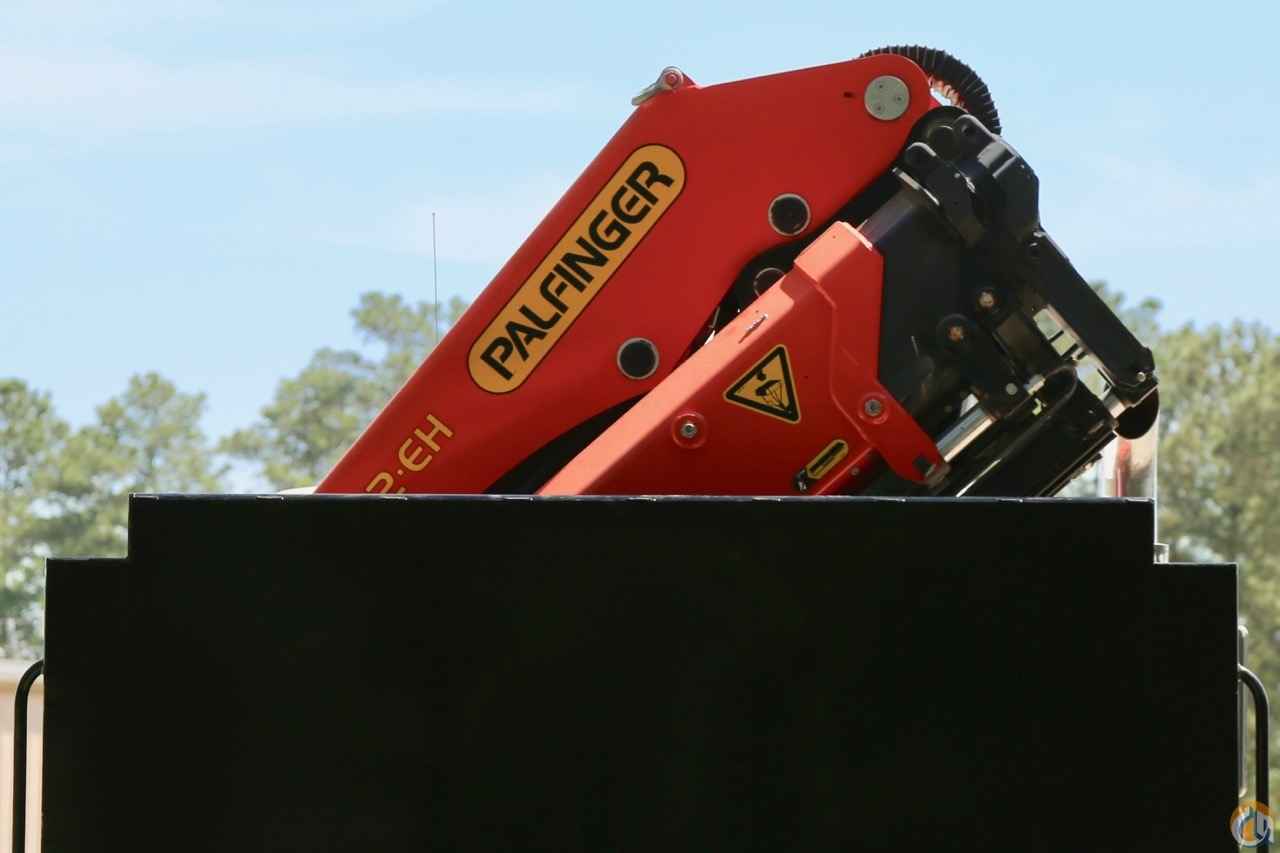

2014 Palfinger PK 26002 EH Mounted Knuckle Boom Crane
SOLD
Sales Dept.: 866-458-5915
Last Updated: 17 Jul 2018
Capacity: 9.80
Boom/Jib: 33
Condition: New

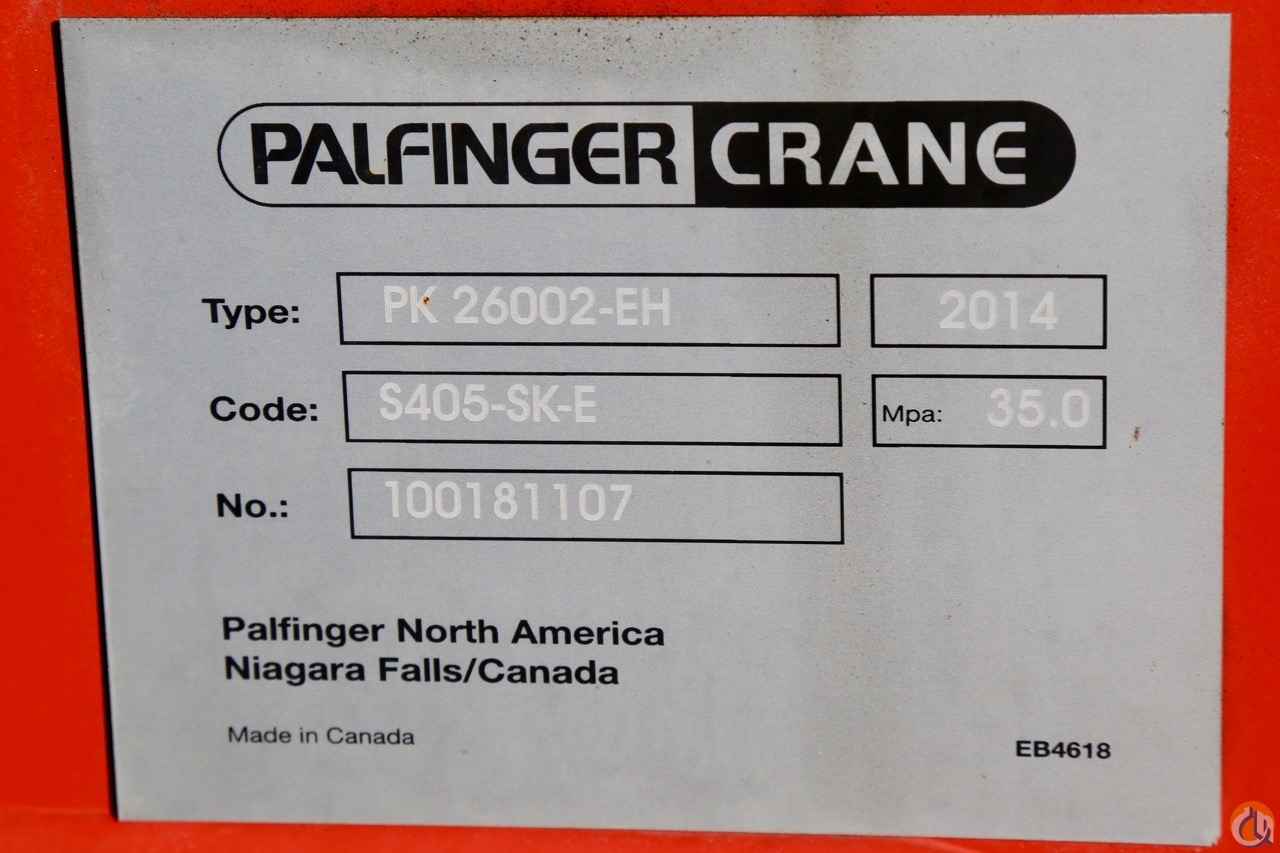

Serial #: 100181107
Unit #: BM-2239
The enormous reach of the Palfinger PK 26002 EH High Performance opens up a wide range of applications.
• More efficiency with fly jib due to DPS Plus
• Perfect appearance and the highest value retention thanks to KTL
• Additional applications with Power Link Plus
• Increased operating times due to low-maintenance extension system
• High operator friendliness thanks to optional radio remote control
Specifications
Max. lifting moment: 170695 ft_lbs
Max. lifting capacity: 19620 lbs
Max. hydraulic outreach: 33' 6"
Max. manual outreach: 76' 5"
Max. outreach (with fly jib): 96' 5"
Slewing torque with 1 gear: 20,260 ft_lbs
Stabilizer spread (std): 16' 5"
Fitting space required (std): 3' 2"
Max. operating pressure: 5075 psi
Dead weight (std.): 5690.0 lbs
Width folded: 8' 3"
Pump capacity: 19.8 to 26.4 US gal./min
SAP Type: S405EH
CraneWorks, LLC
www.Crane-Works.comContact: Sales Dept.
Phone: 866-458-5915
Fax: 713-491-9359
THIS LISTING HAS SOLD
Condition
New
0 views this week
0 people have saved
Condition
New
The enormous reach of the Palfinger PK 26002 EH High Performance opens up a wide range of applications.
• More efficiency with fly jib due to DPS Plus
• Perfect appearance and the highest value retention thanks to KTL
• Additional applications with Power Link Plus
• Increased operating times due to low-maintenance extension system
• High operator friendliness thanks to optional radio remote control
Specifications
Max. lifting moment: 170695 ft_lbs
Max. lifting capacity: 19620 lbs
Max. hydraulic outreach: 33' 6"
Max. manual outreach: 76' 5"
Max. outreach (with fly jib): 96' 5"
Slewing torque with 1 gear: 20,260 ft_lbs
Stabilizer spread (std): 16' 5"
Fitting space required (std): 3' 2"
Max. operating pressure: 5075 psi
Dead weight (std.): 5690.0 lbs
Width folded: 8' 3"
Pump capacity: 19.8 to 26.4 US gal./min
SAP Type: S405EH
Rental Prices
Please contact the dealer for pricing -- 1-866-458-5915
