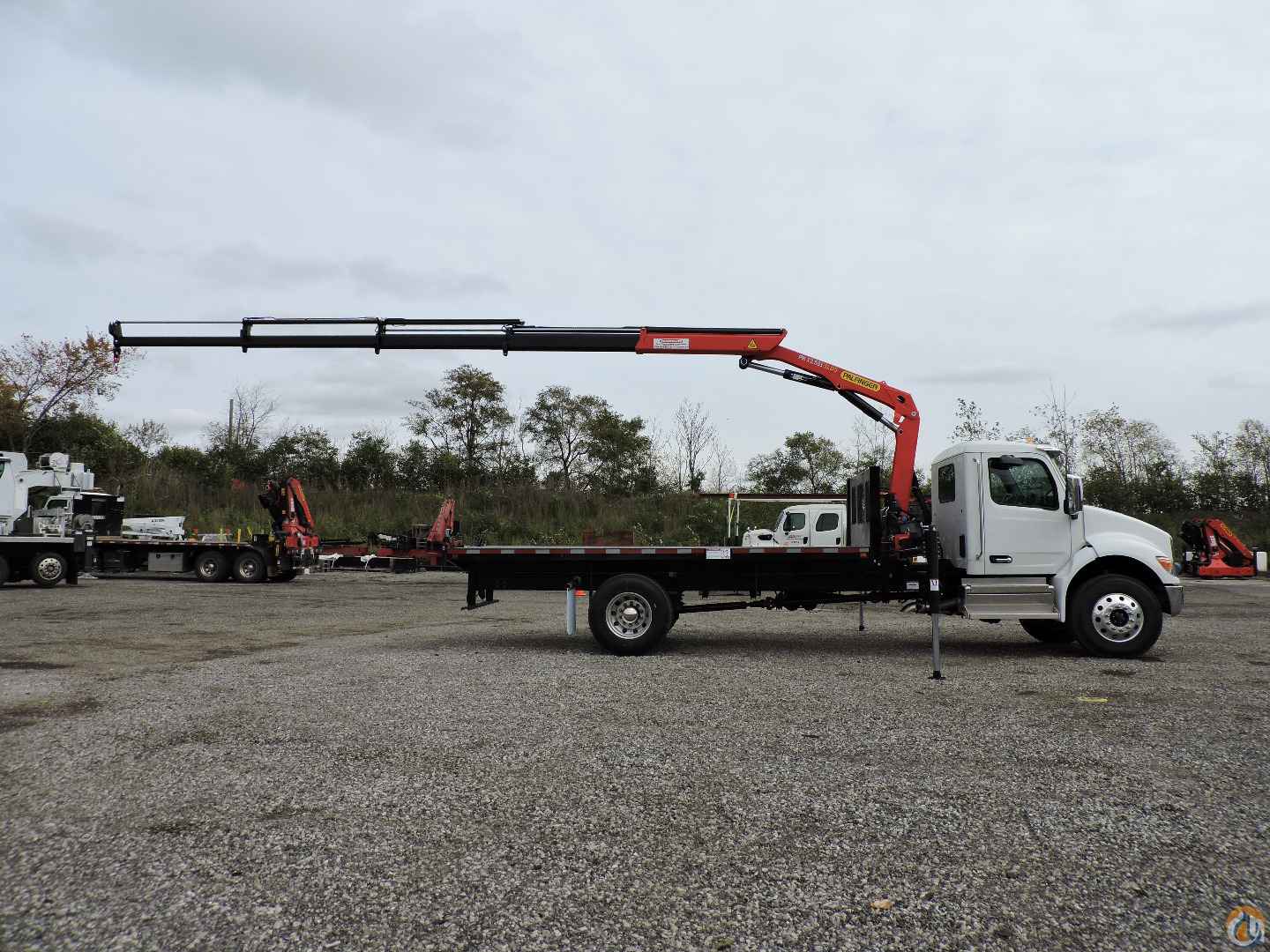

Palfinger PK 12.501 SLD 5 equipped as follows:

- Mounted back of cab

- Maximum lifting moment 11.4 mt (82,160 ft/lb)

- 4-section hydraulic boom extension to 39’6”

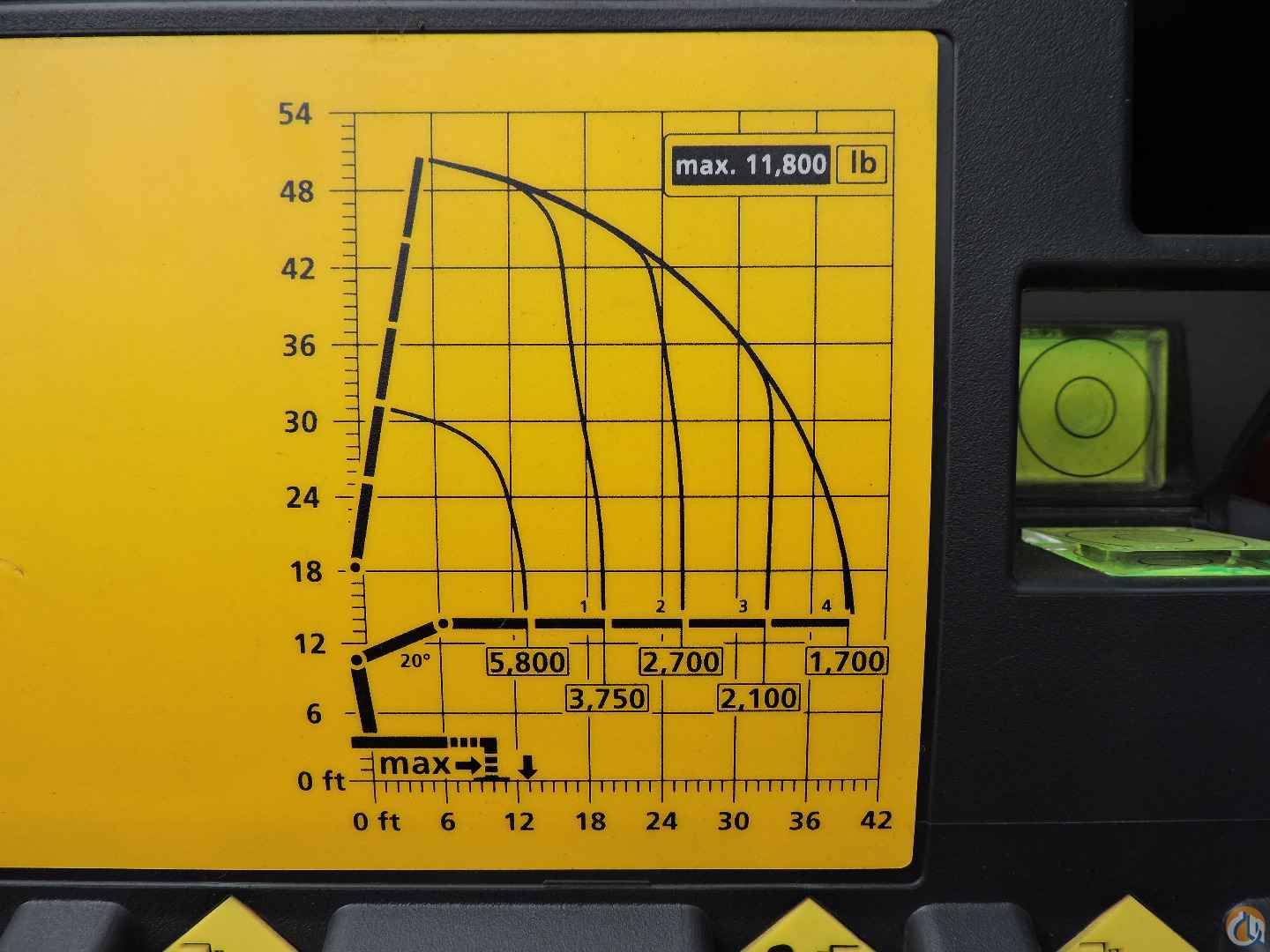

- Maximum lifting capacities:

- 13’ – 5,800#

- 19’ – 3,750#

- 26’ – 2,700#

- 32’ – 2,100#

- 39’ – 1,700#

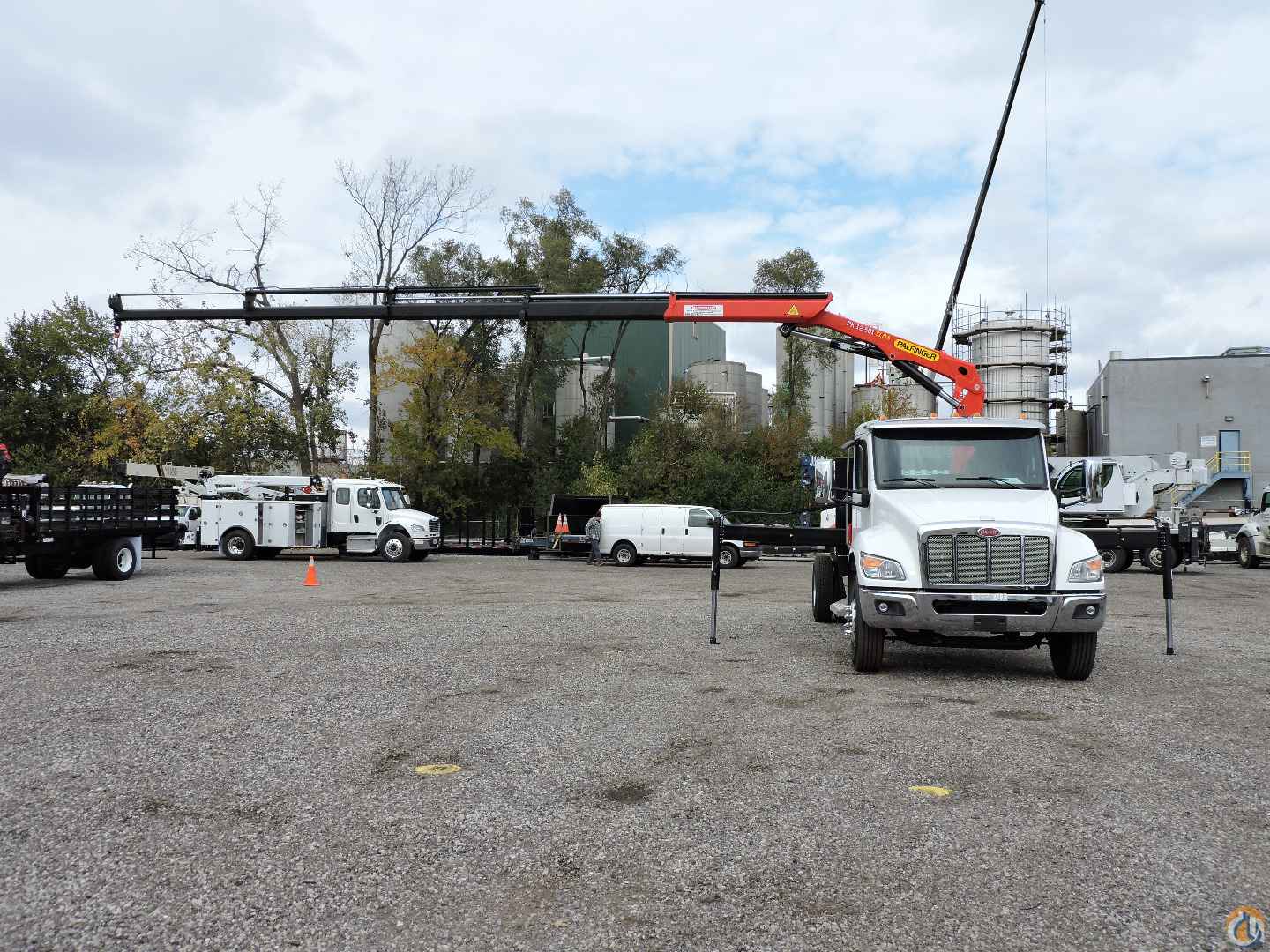

- R3X telescopic outriggers hydraulically extendable to 18’4”

- Two (2) PVC stabilizer shoes 15 3/4” diameter. Slides onto stabilizer plate, with rope handle and storage bracket, installed.

- Paltronic overload protection system

- Single linkage at outer boom with 15 degree Power Link Plus

- Rotation angle 400 degrees

- Single ground control station

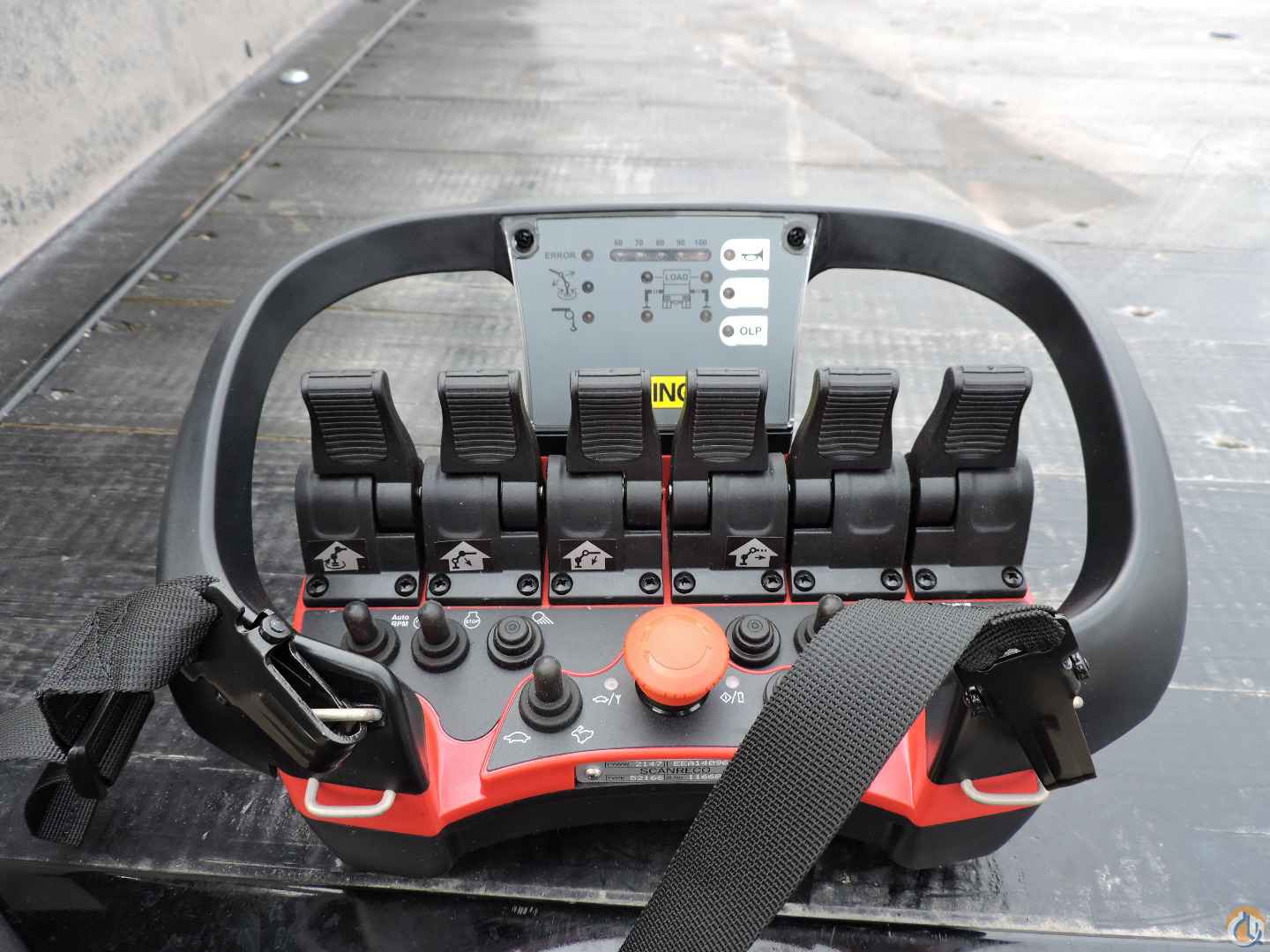

- Radio remote control with Paltronic display on handeset

- Bubble level at both outrigger control stations

- Load holding valves on main, outer and extension cylinders

- Return oil utilization

- 17.2-gallon oil tank – mounted on crane base

- 11.5 HP Oil cooler

- 11,900# roller bearing load hook

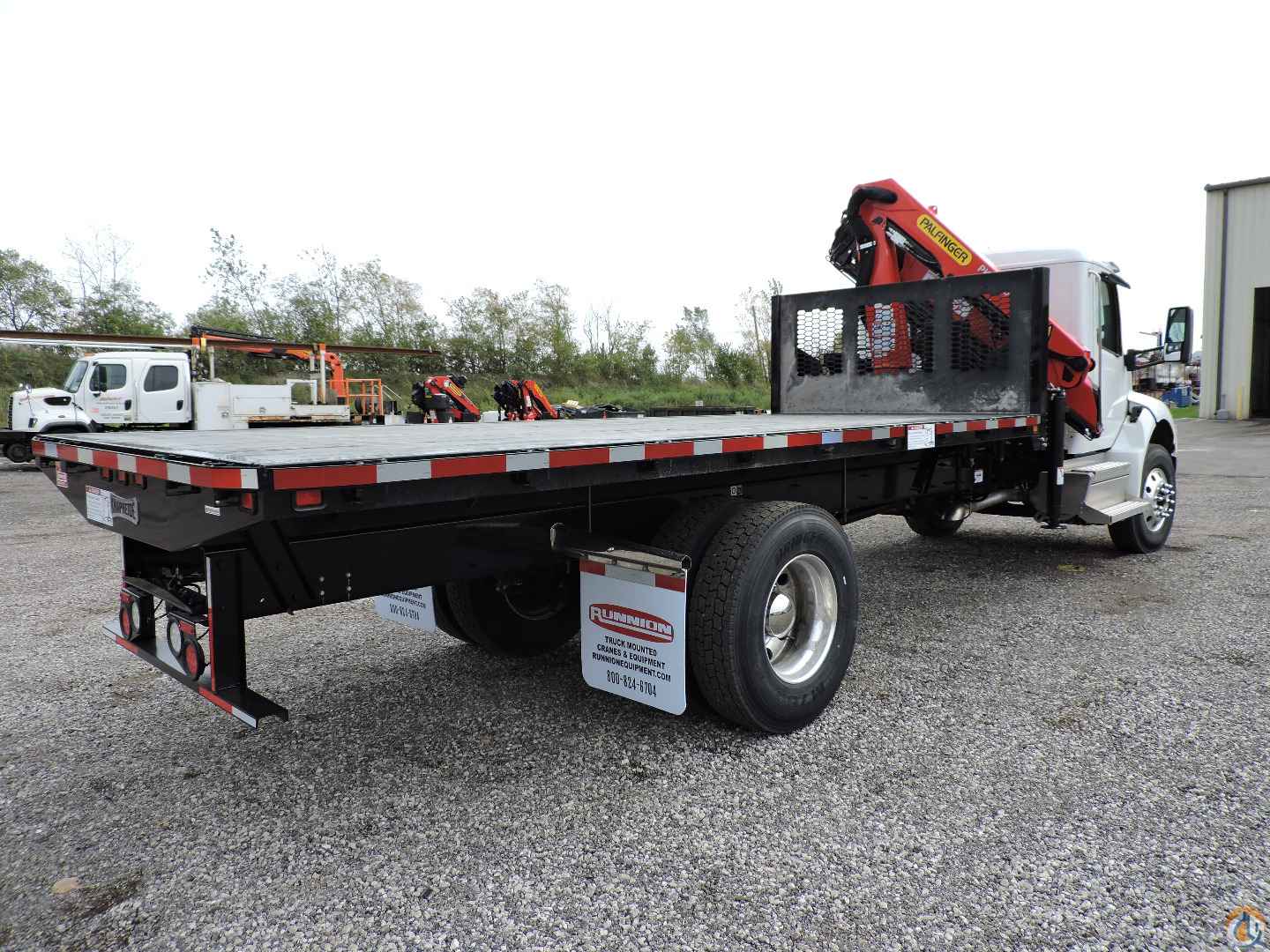

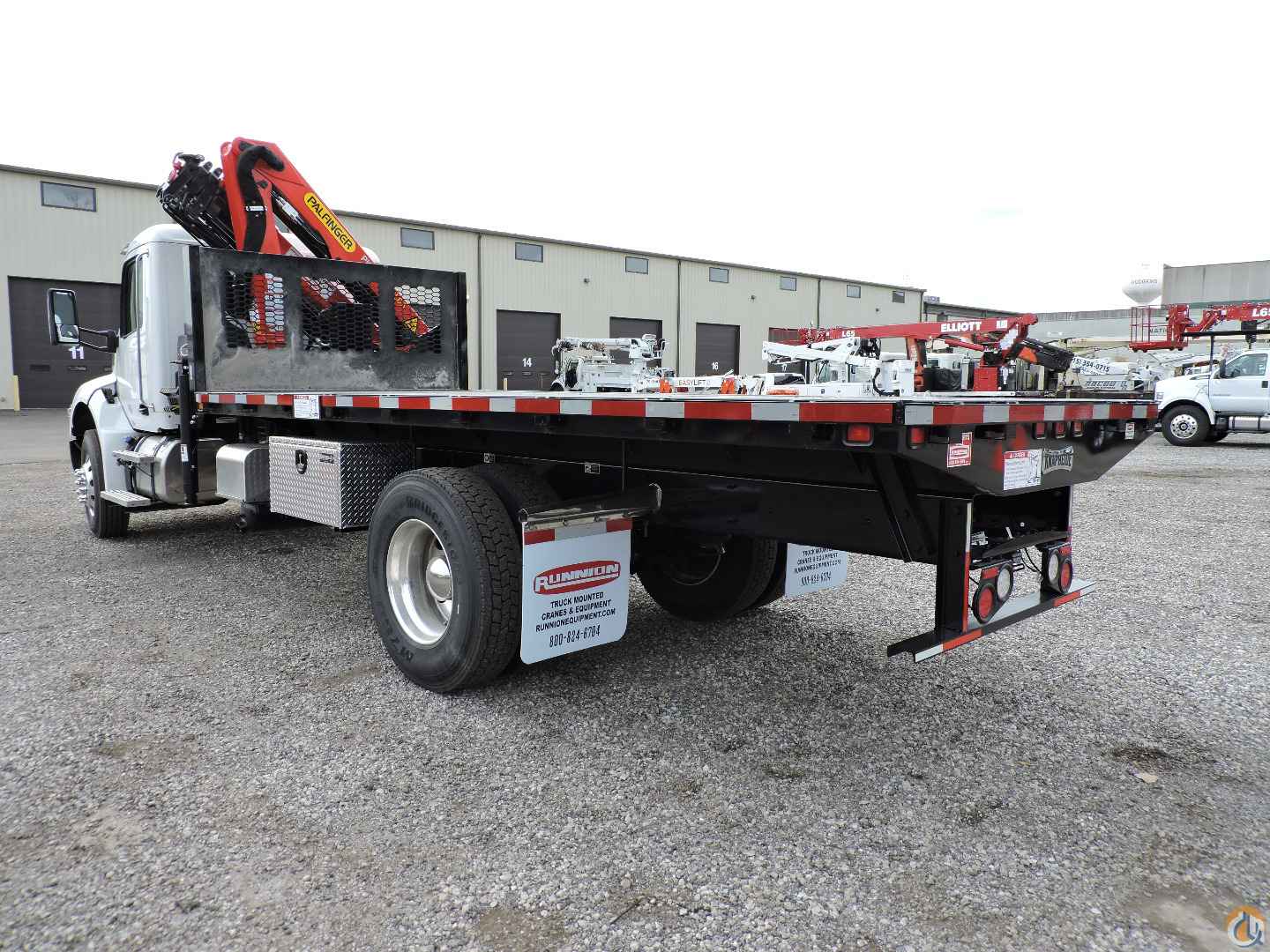

- 18’ Knapheide Heavy Hauler Jr with rub rails and underbody tie down rails

- 40” HD bulkhead

MOUNTED ON:

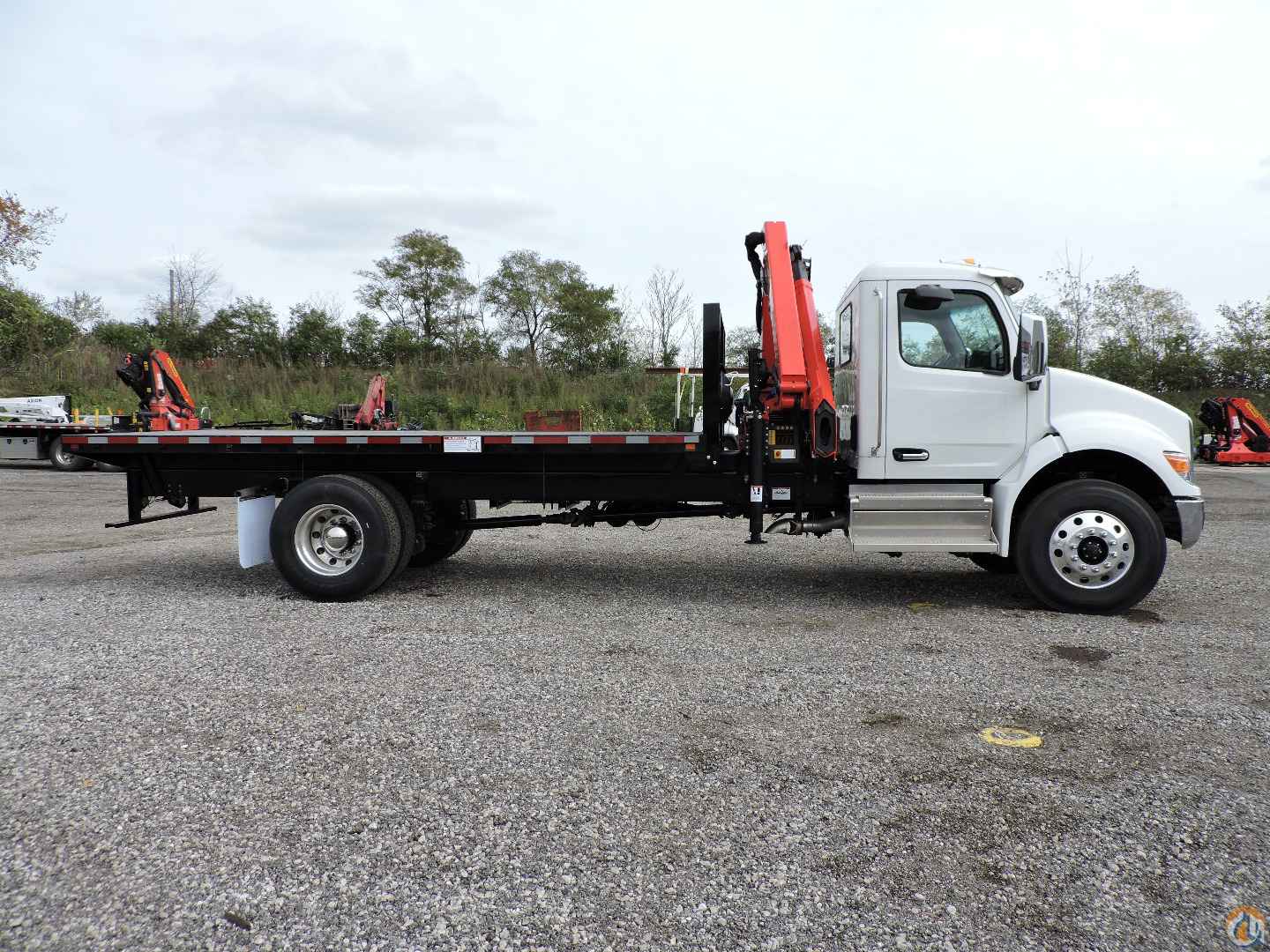

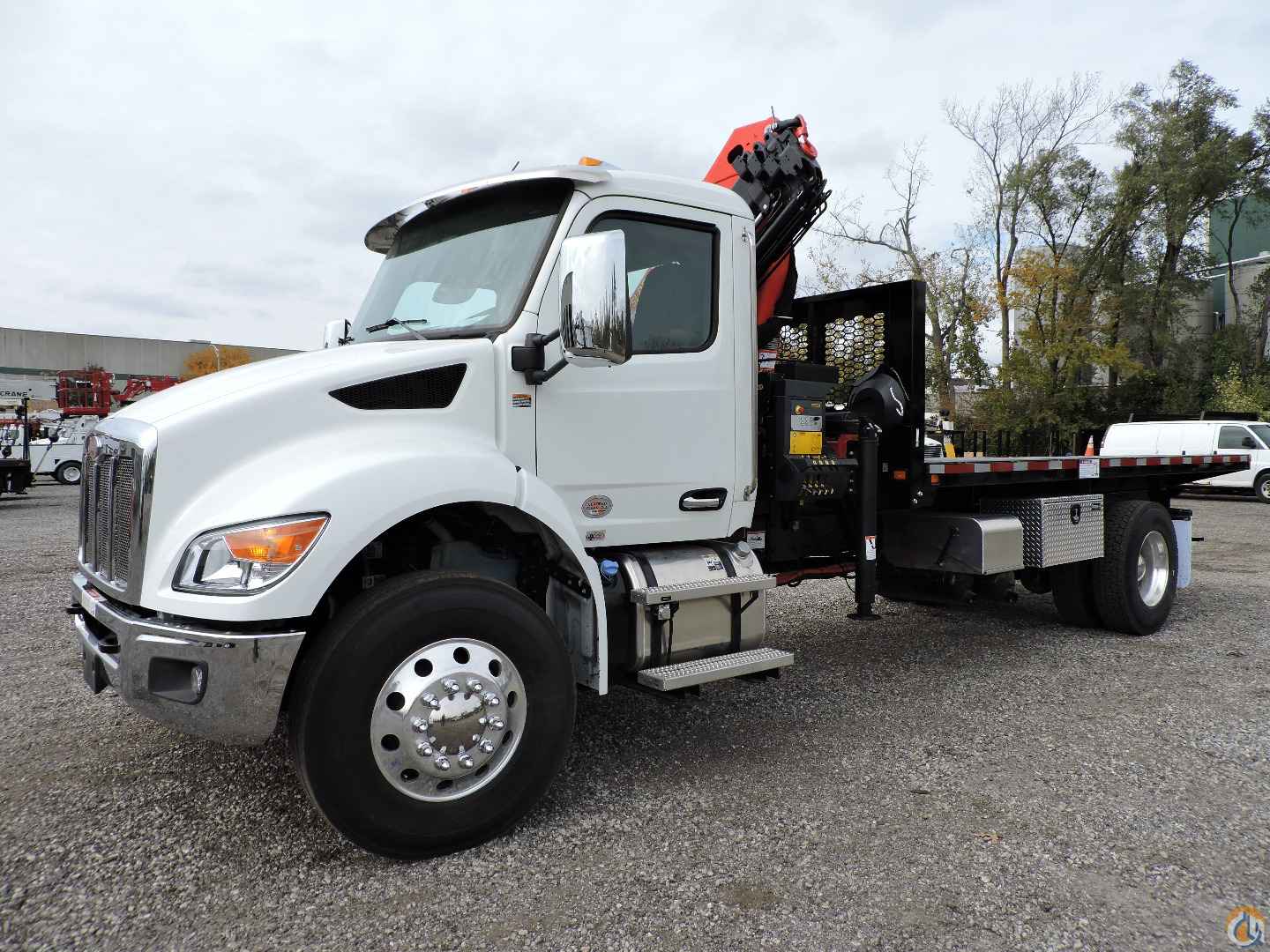

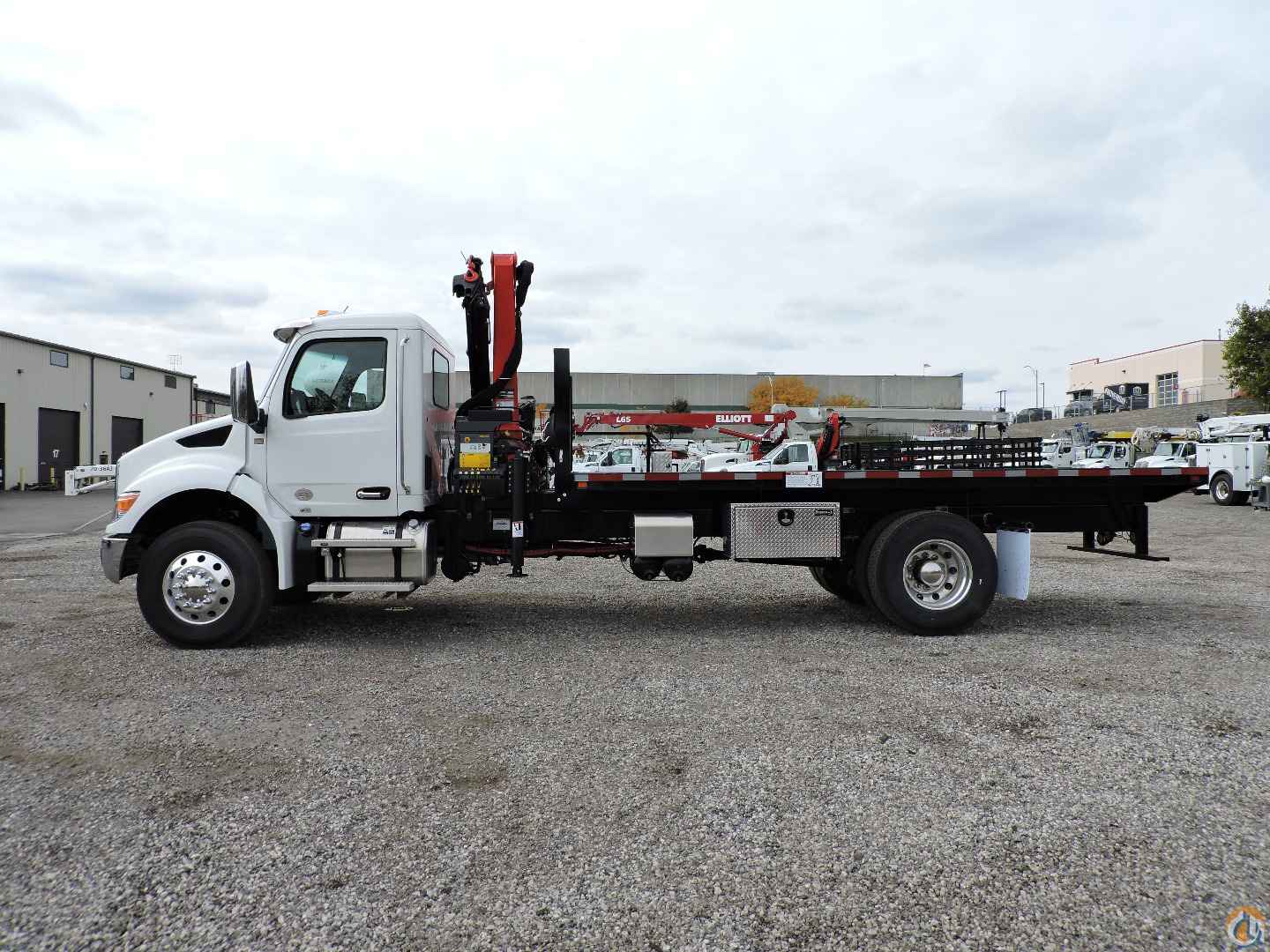

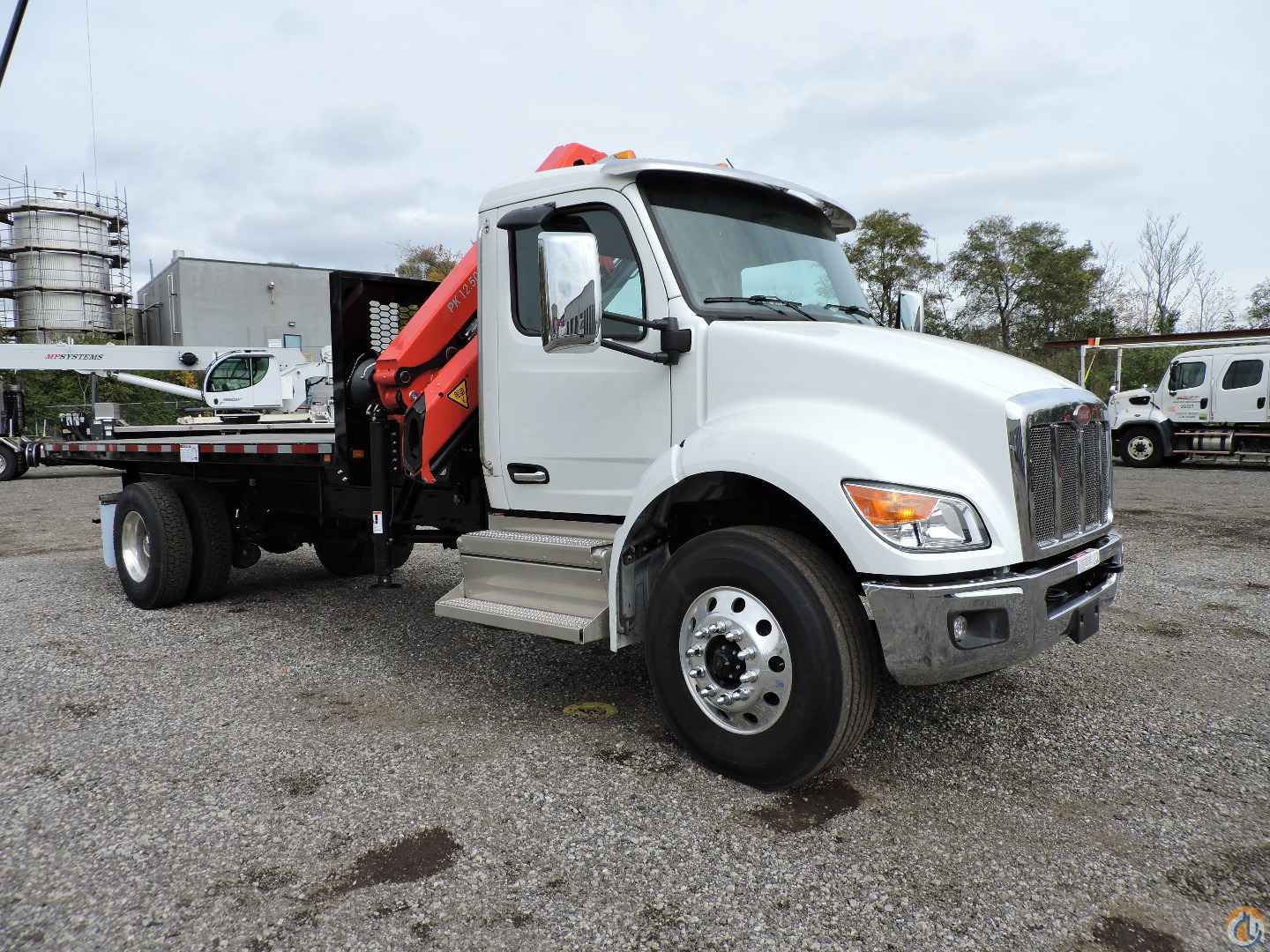

2024 Peterbilt 537 equipped as follows:

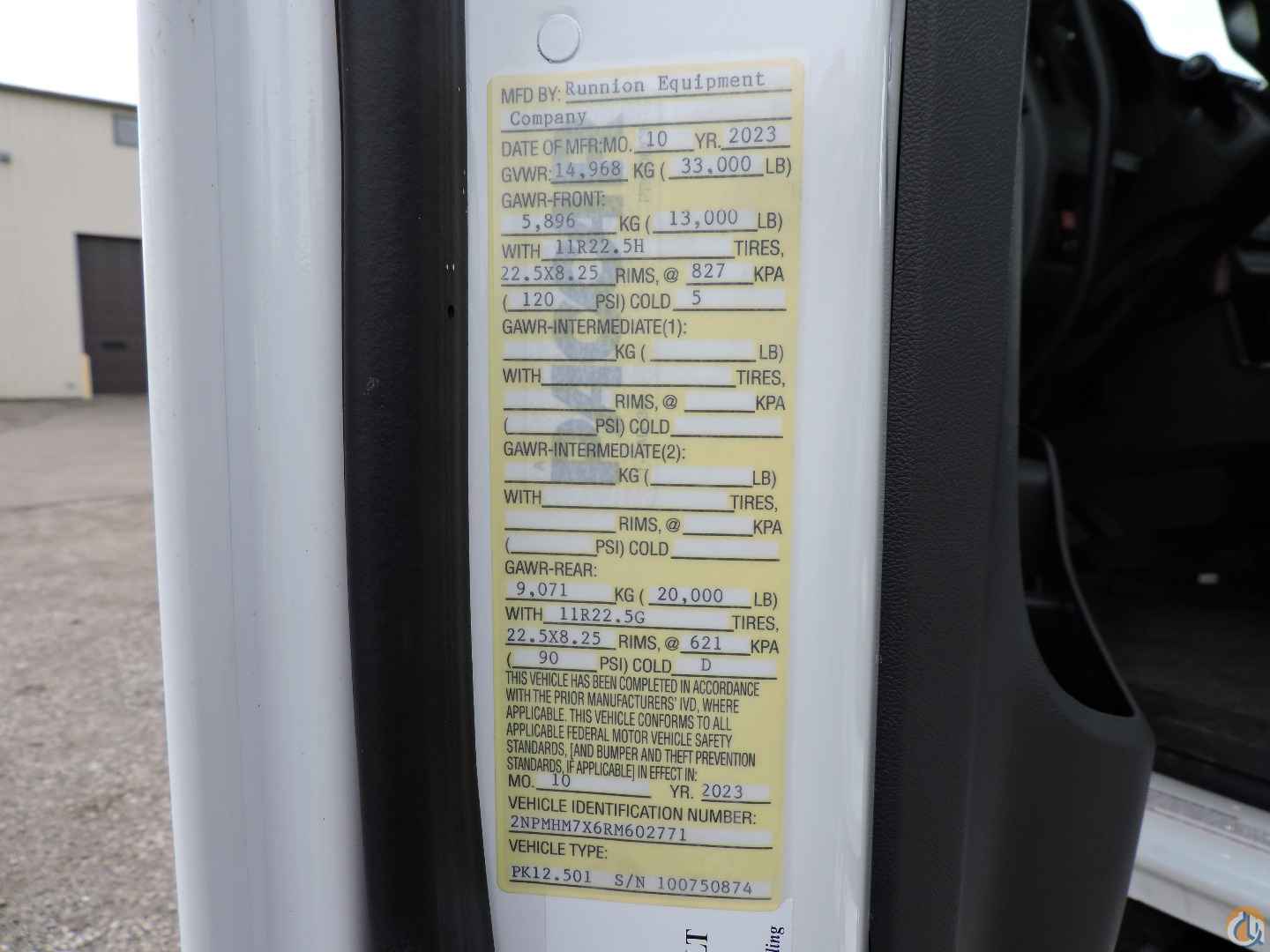

- 33,000 lb GVWR

- Paccar PX-7 engine, 280 hp @ 2400 rpm, 660lb/ft @ 1600

- Exhaust brake

- Paccar TX-8 automatic transmission

- Front Axle – 13,000# with 13,200# Taper Leaf springs

- Rear Axle – 20,000# with AirTrac suspension

- Tires – 11R22.5

- Front wheels – 22.5x8.25 aluminum with high polish

- Rear wheels – 22.5x8.25, aluminum outer, steel inner

- Differential locks on tandem axles

- Air brakes with Anti-Lock Braking System 4S4M

- Block heater

- Bendix air dryer with heater

- 50-gallon aluminum fuel tank

- 14-gallon DEF tank

- Stainless steel outside sunvisor

- Steel bumper with bright finish

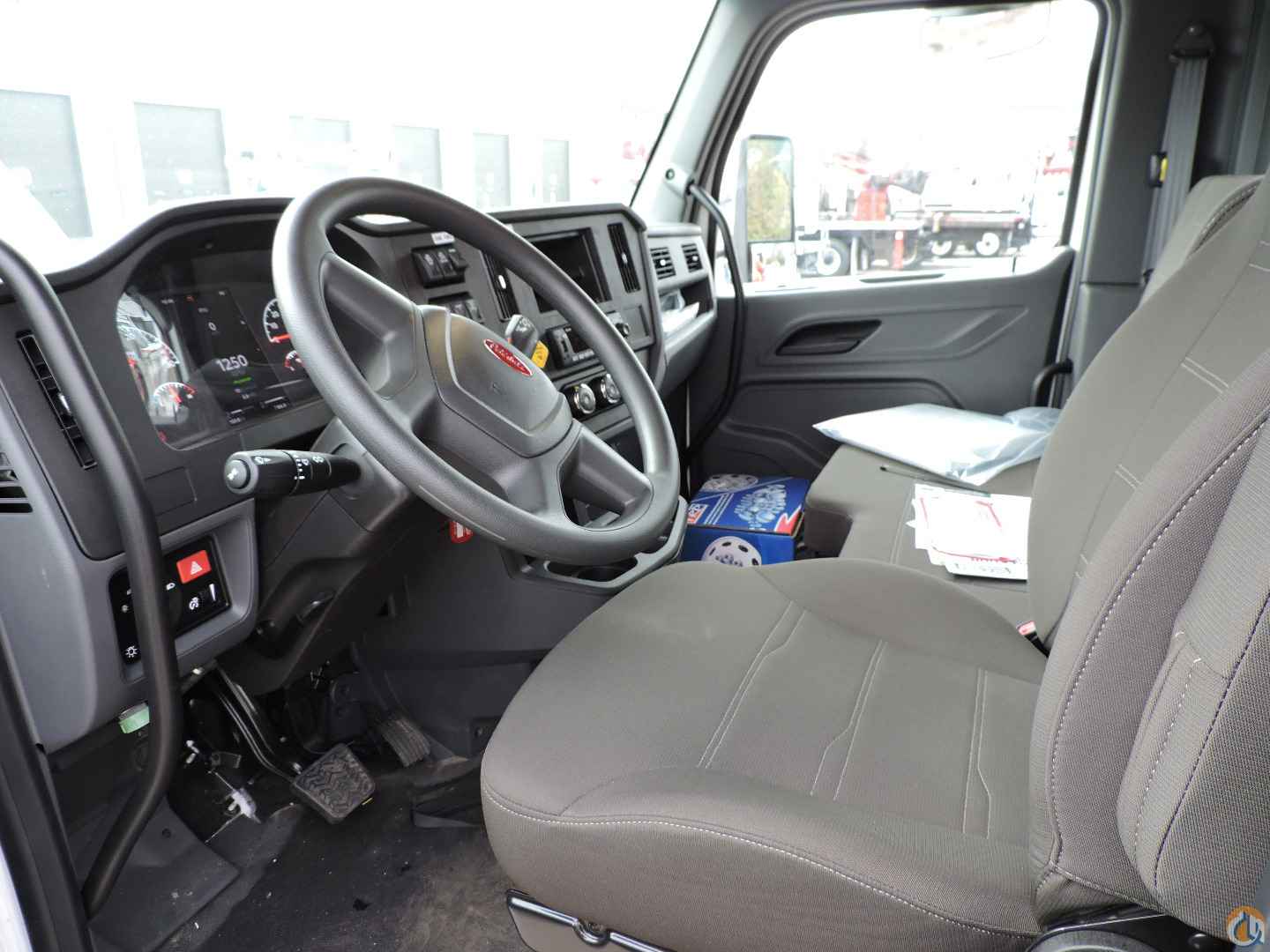

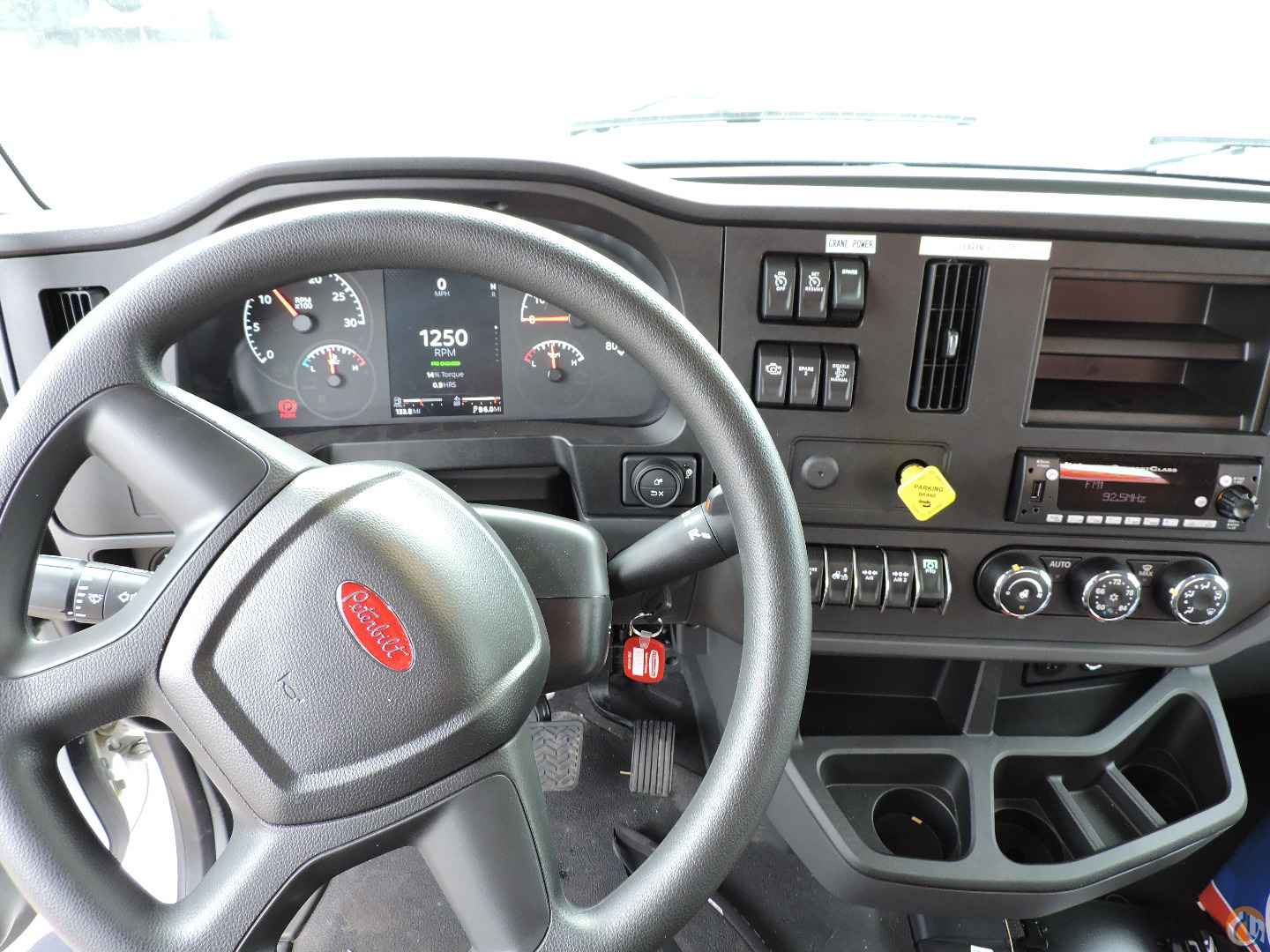

- Driver’s seat – air ride, high back cloth with dual armrests

- Passenger’s seat – two-person, fixed, low back cloth, toolbox

- Adjustable steering column – tilt/telescope

- Power windows and doors

- Mirrors – heated and motorized with bright finish

- Air horn

- ConcertClass Stereo – AM/FM, WB, USB, Bluetooth phone

- Cab air suspension

- Painted white
