Features

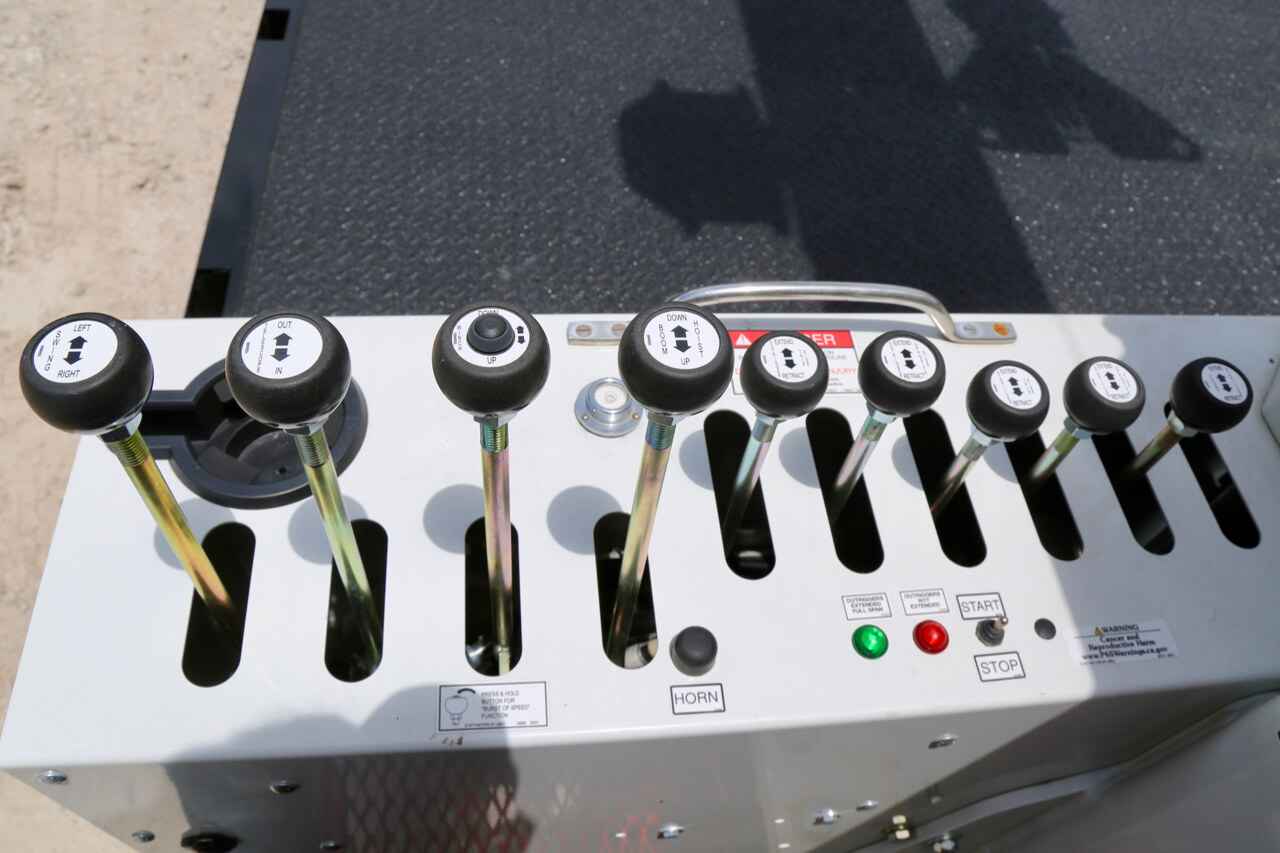

TECHNICAL SPECS LIFTING CAPACITY: 36,000 LBS / 16 329 KG BOOM LENGTH: 70’ / 21,3 M BOOM SECTIONS: 3 MAXIMUM TIP HEIGHT: 120' / 36,6 M WINCH BARE DRUM PULL: 12,800 LBS / 5806 KG WINCH SINGLE LINE PULL: 9,600 LBS / 4354 KG OPERATOR CONTROLS: DUAL STANDUP OUTRIGGER TYPE (FRONT): A-FRAME OUTRIGGER SPREAD (FRONT): 20’10” / 6,3 M OUTRIGGER TYPE (REAR): "A" STAB OUTRIGGER SPREAD (REAR): 10’4” / 3,1 M UNIT WEIGHT (BARE): 16,235 LBS / 7364 KG OVERALL HEIGHT: 12'11" / 3,9 M RECOMMENDED CAB TO AXLE (CA): 168" / 429 CM RECOMMENDED GVWR: 33,000 LBS / 14 968 KG Standard Features Industry-Leading Lifetime Structural Warranty Only Elliott backs up its quality with a lifetime structural warranty on everything we build Wide Range of Lifting Capacities and Boom Lengths for Many Applications Elliott has one of the broadest ranges of boom lengths available for virtually every application Patented Features that Improve Productivity & Safety Patented features like Elliott's Standup Ride-Around Control Console improve operator comfort and productivity. Full Length Subframe Plated subframe minimizes twist from chassis rails providing rock solid foundation for your work High Capacity Single Line Pull Winches Let you lift more weight with fewer wraps of rope High Capacity Two-Speed Winch improves control and speeds job cycle time Heavy-Duty Turret Rotation Bearing Larger size reduces equipment stress and provides a longer life Full Color Load Moment Indicator (LMI) Provides clear lifting feedback for increased safety High Speed Outrigger Setup Elliott's high speed outriggers dramatically improve setup times. Customized Outrigger Solutions for a Range of Chassis and Terrain Friction-Free Jib Extension System Rollers provide a smooth and simple extension operation Oversized Boom Tip Jib and Accessory Mounting 'Ears' Makes work platform and accessory mounting more reliable and secure Heavy Duty Boom Tip Provides additional structural rigidity Solid Steel Boom Sheaves Provide excellent reliability, shape retention and long useful life Easy-Access Wear Pad Adjustment and Boom Servicing Saves service time and allows for easy performance adjustments Oversized Grease Port in Main Boom Section Opening in main boom section make greasing internal boom sections easy and convenient Color Coded Hydraulic Hoses High quality steel braided hoses for long life and leak free performance. Color coded to improve serviceability and shorten downtime. Cupholder and 12V Charger Keep user amenities improve operator comfort and satisfaction
