Palfinger Drywall Crane Available in July!!

THIS LISTING HAS SOLD

Last Updated: 22 Jun 2017
Request a Quote
Email Seller
Save to Favorites
Print
Make an Offer

  • SOLD

  • Year: 2016
  • Capacity: 1.50
  • Boom/Jib: 74'
  • Location: Kansas, United States
  • Hours: Inquire
  • Condition: New
  • Serial #: Verify
  • Unit #: Verify

THIS LISTING HAS SOLD

Palfinger Drywall Crane Available in February!!

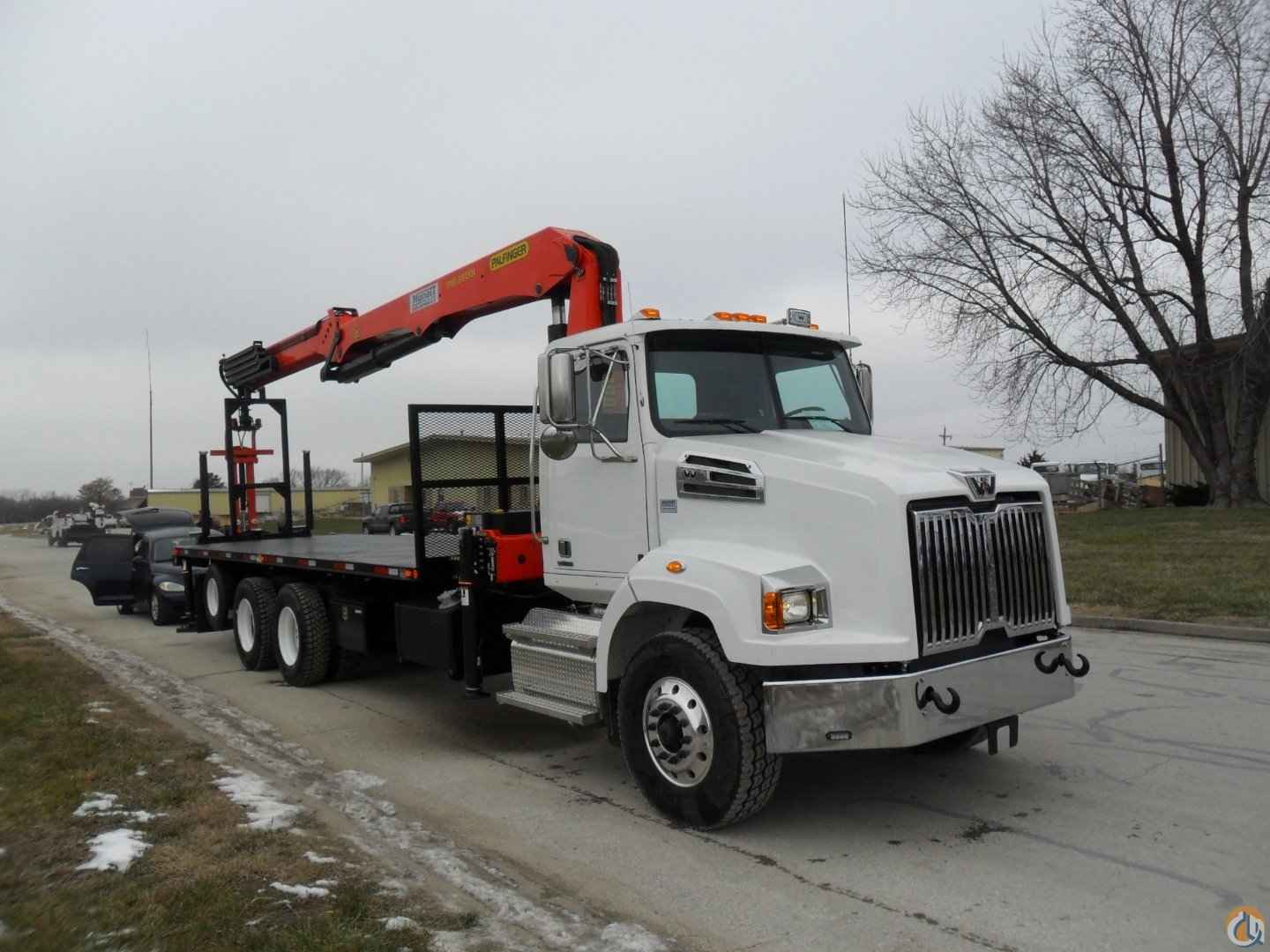

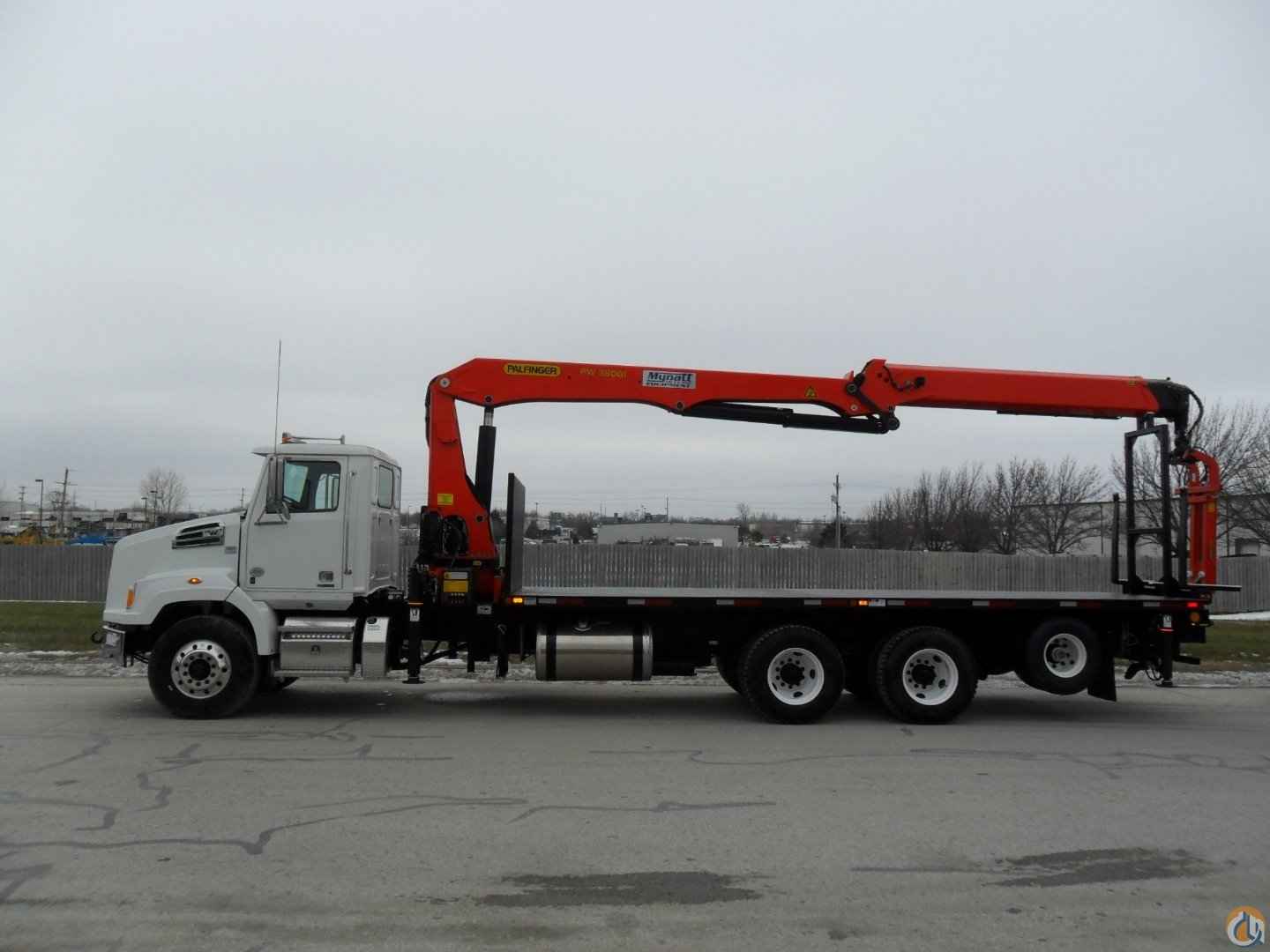

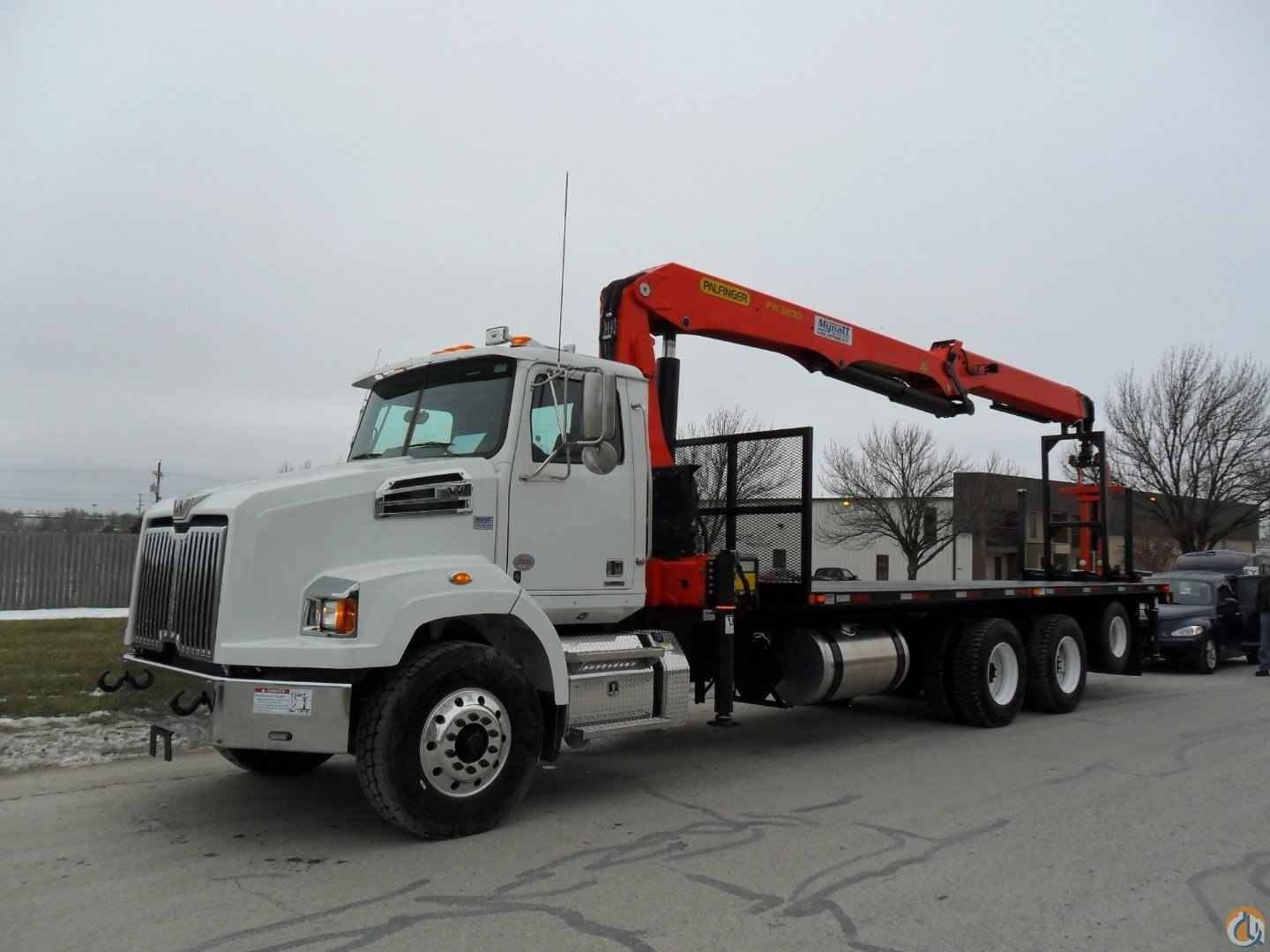

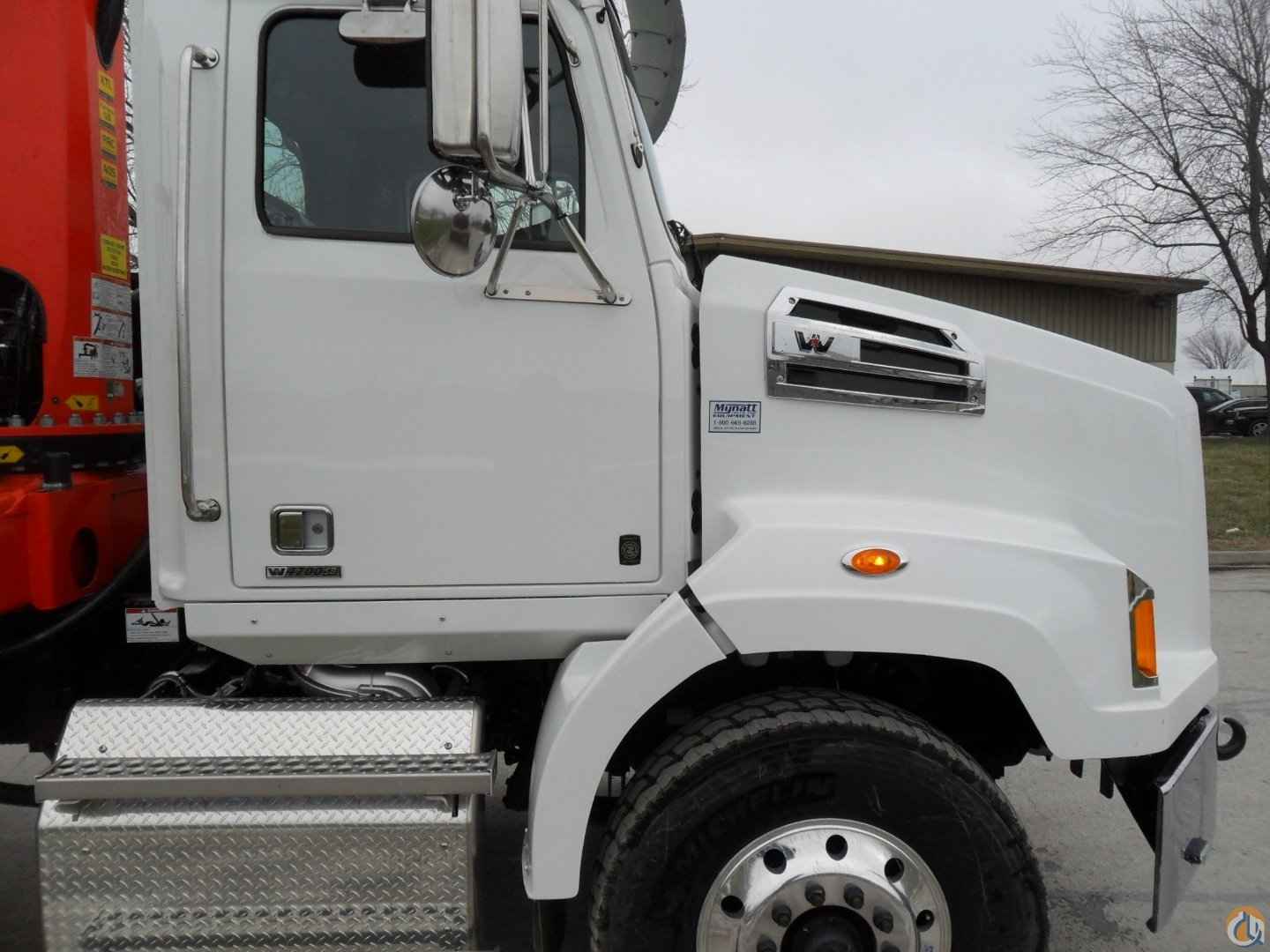

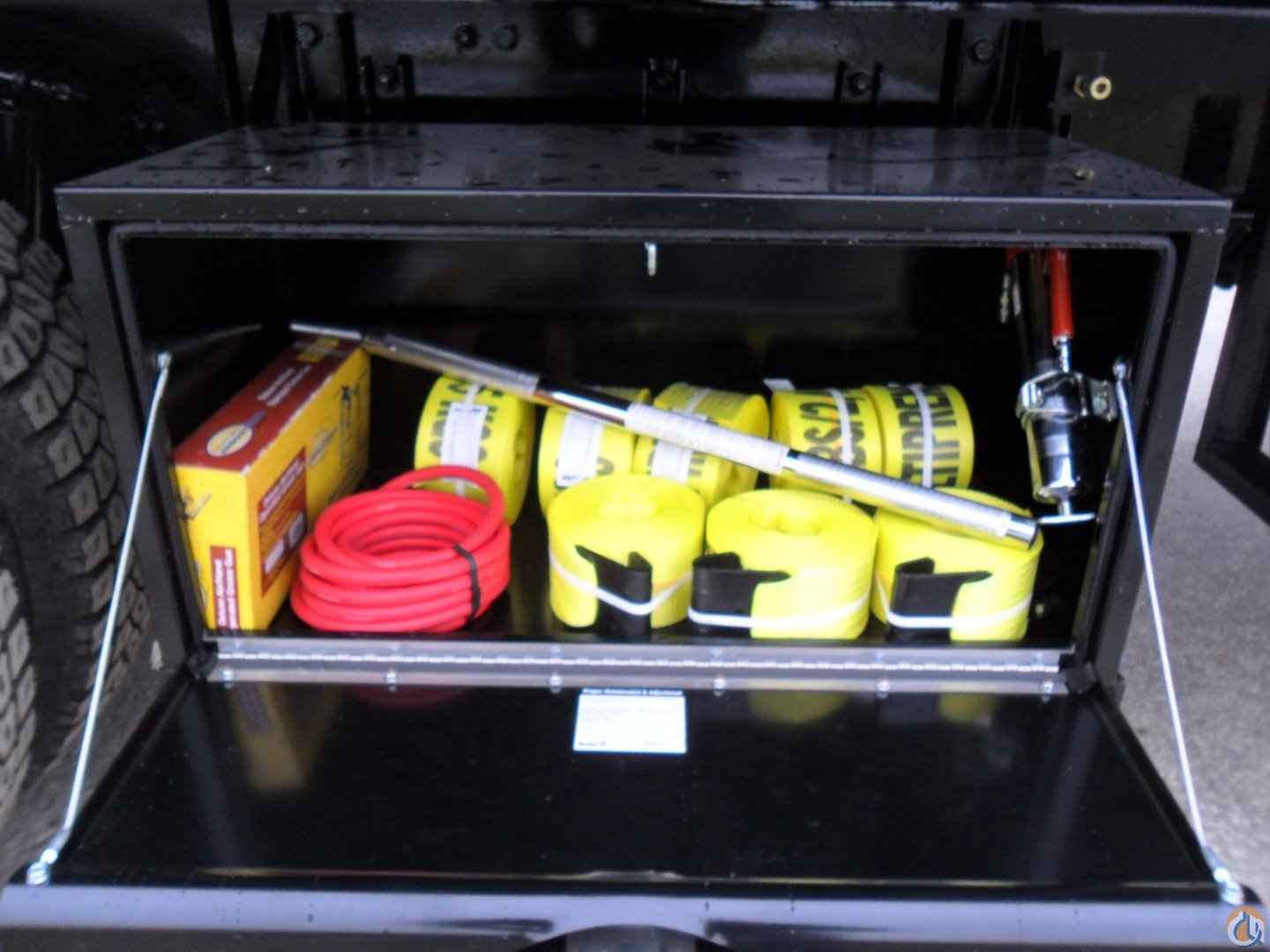

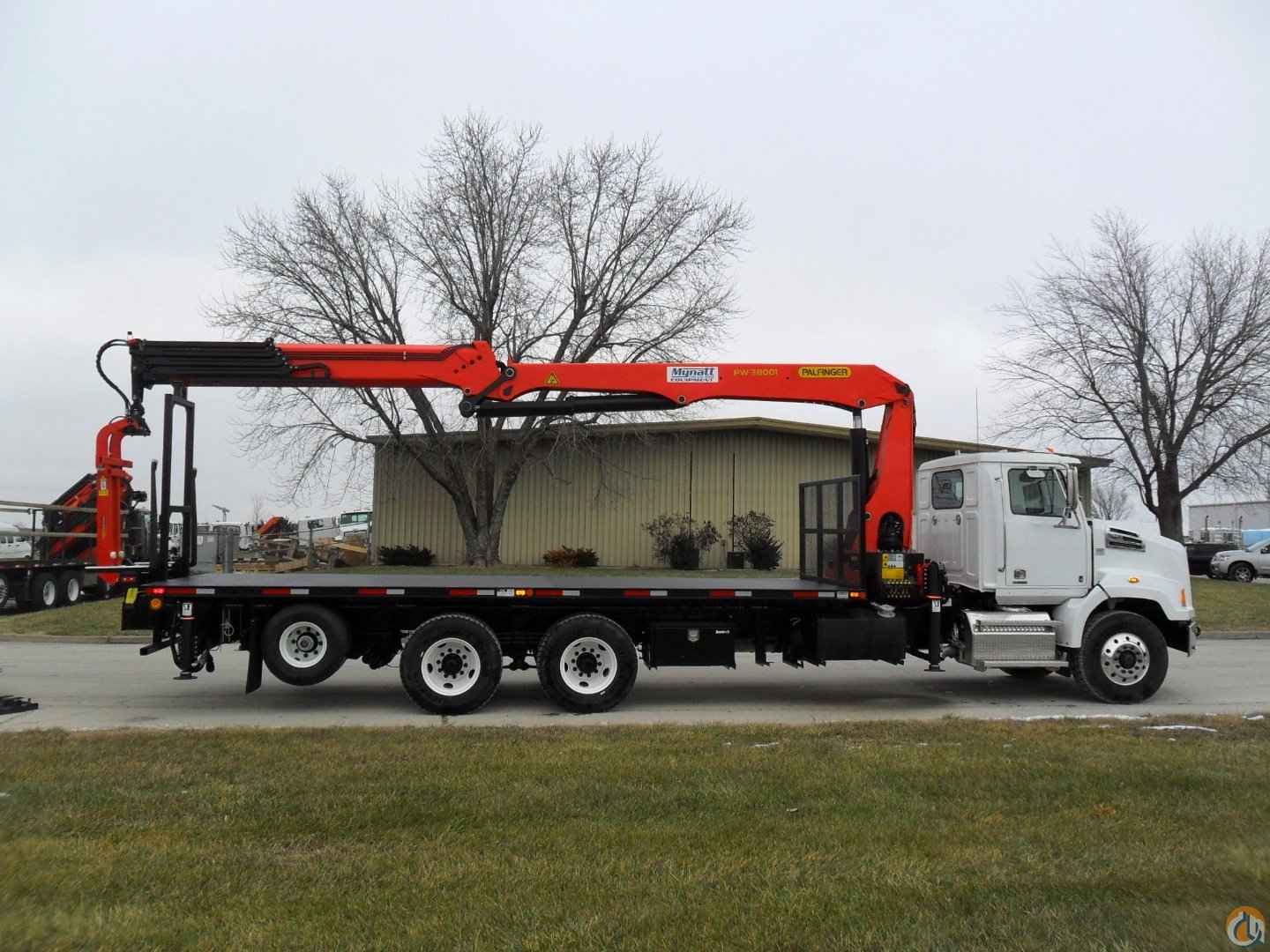

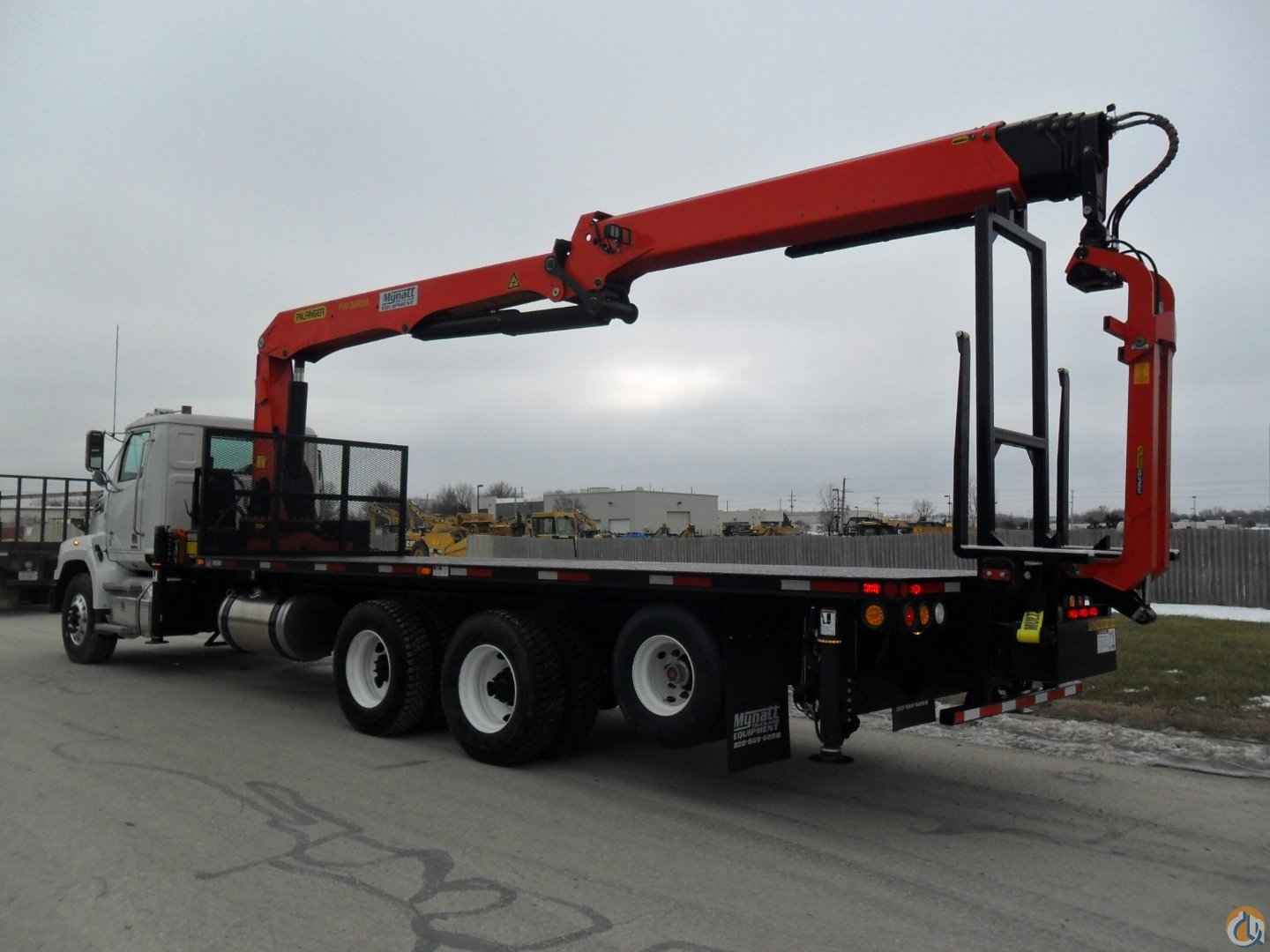

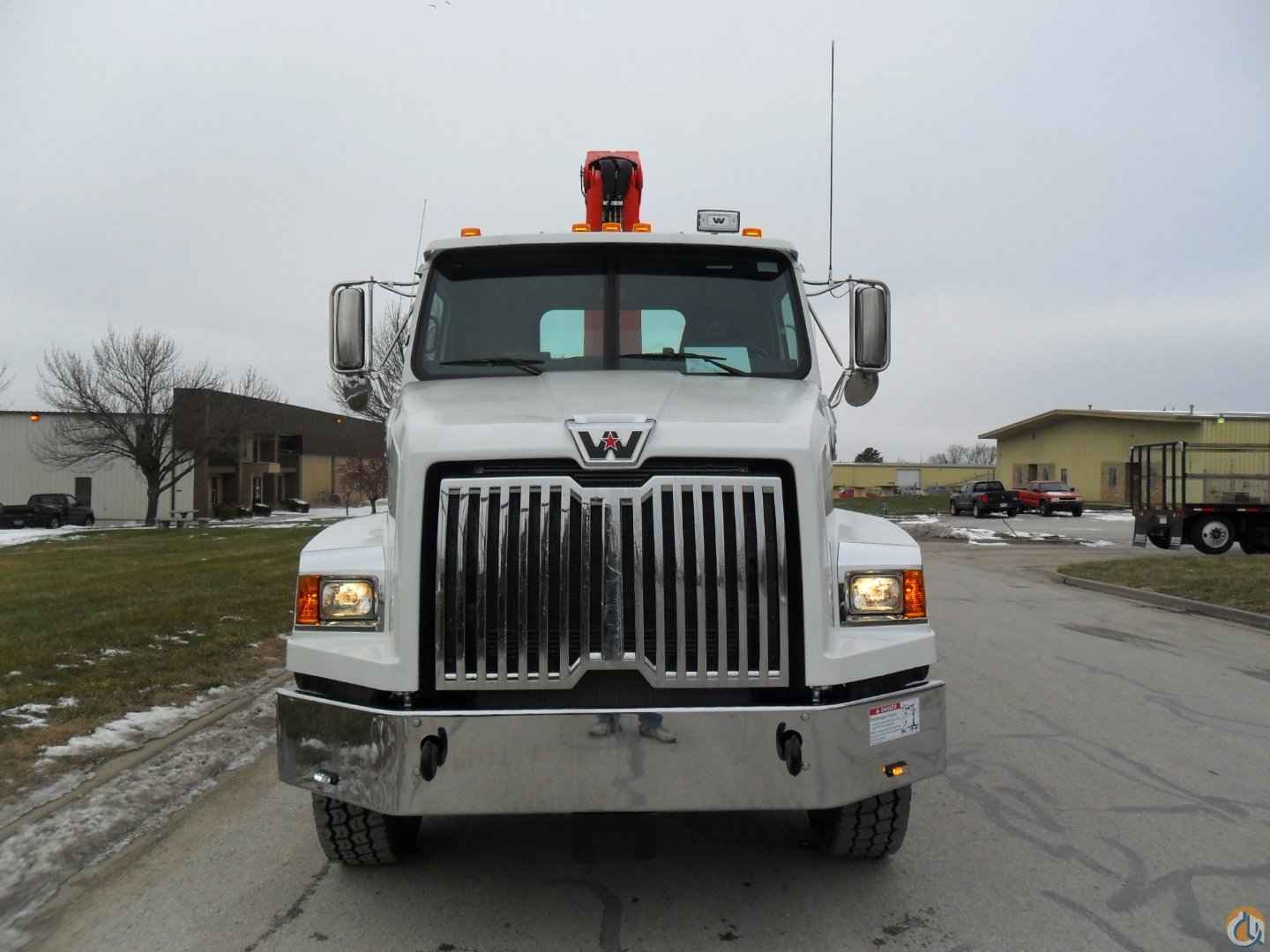

Mynatt Truck & Equipment can build this PW38001 C drywall crane/truck for you! This crane has a horizontal lift of 3050 lbs at 61 ft and has a vertical reach of 74ft! This is one of Palfinger's work horses that makes life easier for the drywall industry. The crane comes with a Kinshofer fork and rotator as well! The complete package will include either a Freightliner 114SD or Western Star 4700 chassis with an automatic transmission. The price includes a toolbox and 8 straps, a 24 1/2' flatbed with headboard, and a rear boom stow for the crane. The crane includes a remote control, overload protection, alarms for boom stow and the remote cradle, and an automatic greaser for the crane. Mynatt Truck & Equipment is centrally located outside Kansas City and has been a Palfinger Dealer since 1988! Give Bart a call if you have any interest at 913-703-1011!!

Palfinger PW38001C RRC Crane & Equipment Package



Crane Package Spectifications:



- Maximum lifting moment 213,430 ft-lbs

- 61' horizontal boom length via 4-hydraulic extensions

 - 74' vertical reach (may vary depending on truck frame height)

 - Maintenance free boom extensions (no grease required to be applied directly to extension sections)

 - 470° rotation via turntable with dual motors

 - Danfoss control valve mounted at ground level

 - 6-function Scanreco radio remote control with paddles

 - Single circuit, load sense hydraulics via Rexroth piston pump with high pressure filter installed at crane base

 - Two function hose kit to boom tip for fork rotate and open/close functions with protective steel cover over hose trays

 - Extension system with return oil utlilization system

 - Load holding valves on inner, outer and extension boom cylinders

 - Paltronic PAL150 overload protection system, also provides "soft-stop" hydraulic functions

 - Active Oscillation Supression (AOS) system - equalizes sudden load changes or shock loads onvcrane

 - Telescopic hydraulic outrigger beams with a spread of 25' 1"

 - Telescopic auxiliary hydraulic outrigger beams with a spread of 11' 10"

 - Crane and auxiliary outrigger control valve mounted at crane base

 - Flashing amber LED lights mounted on each outrigger stabilizer cylinder

 - Box level at both outrigger control stations

 - Hour meter with service interval indicator

 - 79 US gal. oil tank with filter

 - Base mounted oil cooler

 - Crane stow sensor mounted at knuckle position on crane column

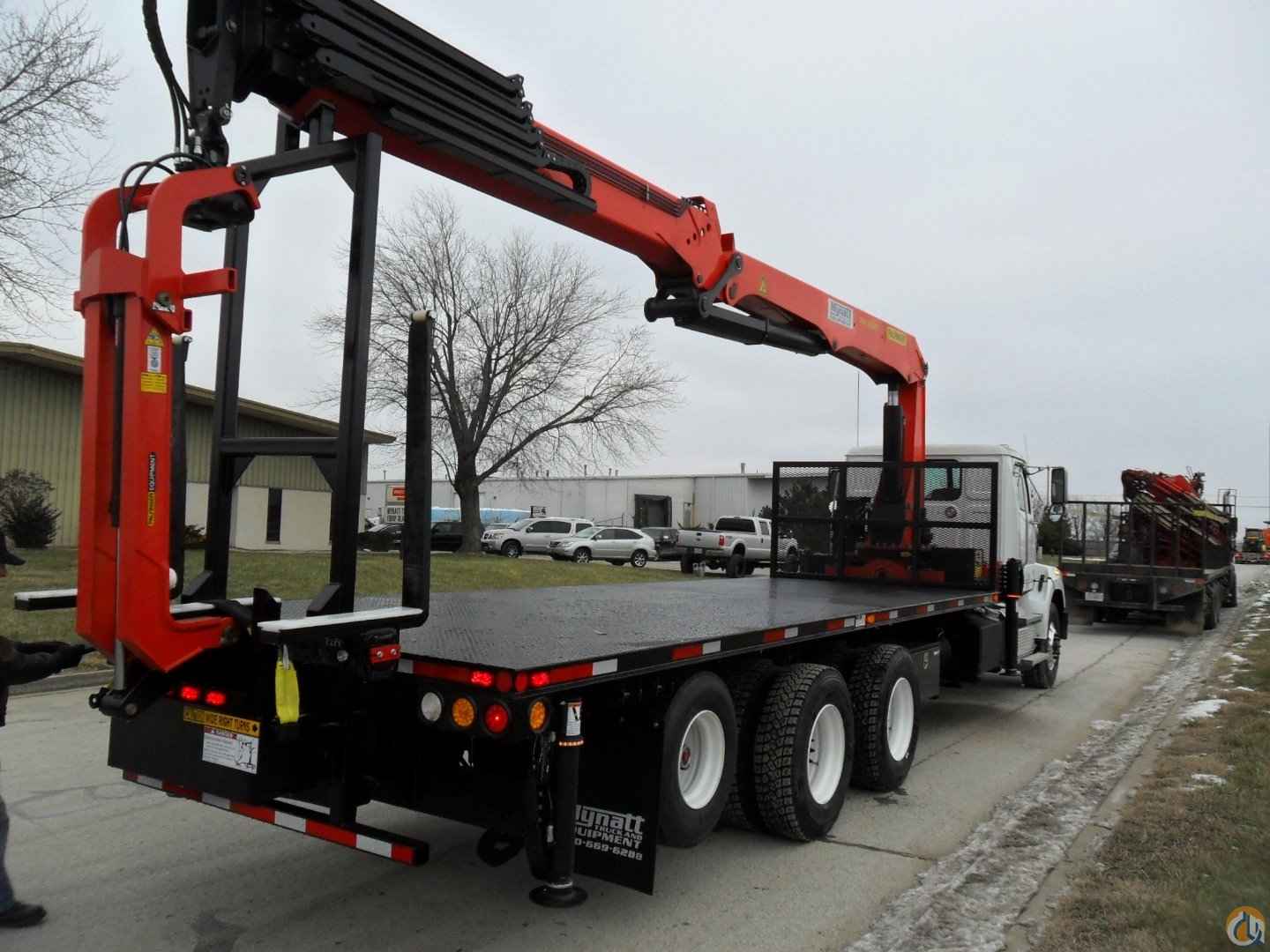

 - One set of Palfinger/Kinshofer hydraulic drywall forks, 6,000 lb. capacity

 - 10,000 lb. Axial capacity Kinshofer continuous rotation rotator and link

 - Tine spread of 25" to 63", flat lift height of 54" and throat height of 22"

 - Slide under composite outrigger pads with galvanized, lockable storage brackets for crane outrigger pads
