Cormach 50000 WB95 Drywall Pallet Fork Material Crane
SOLD
Sales Dept.: 866-458-5915
Last Updated: 16 Jul 2018
Boom/Jib: 95
Condition: New
Serial #: 100.11.02
Unit #: BM-2111

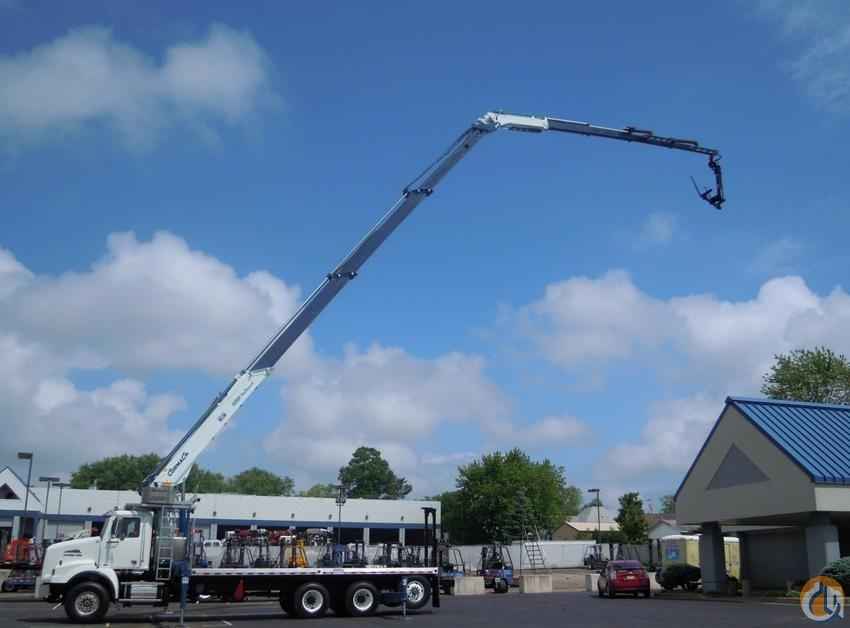

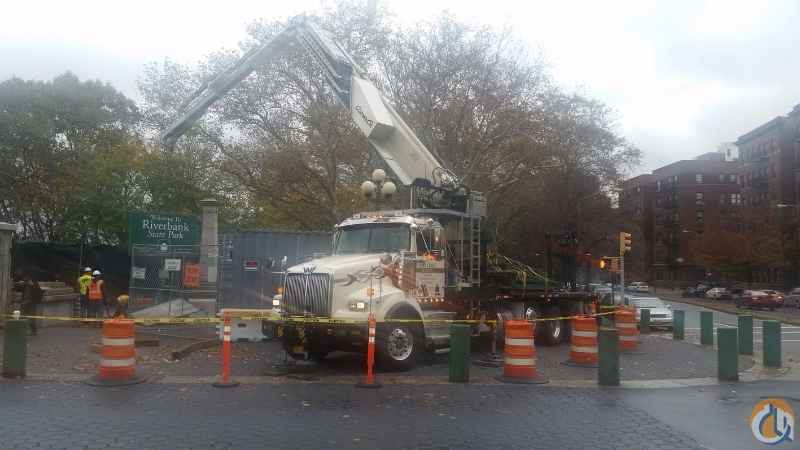

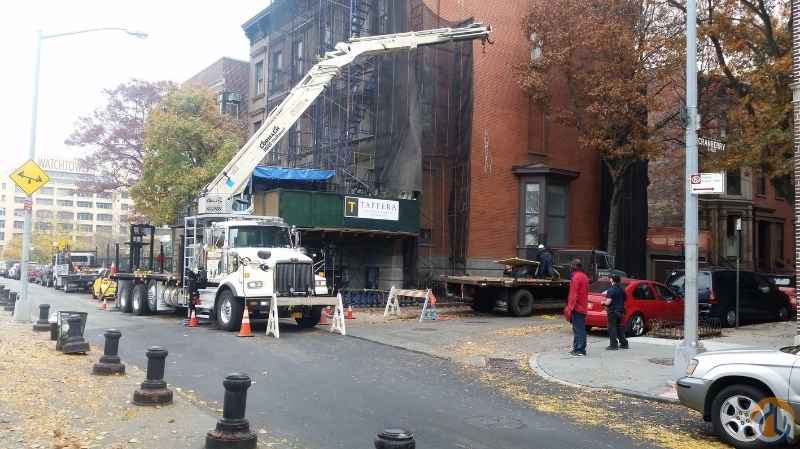

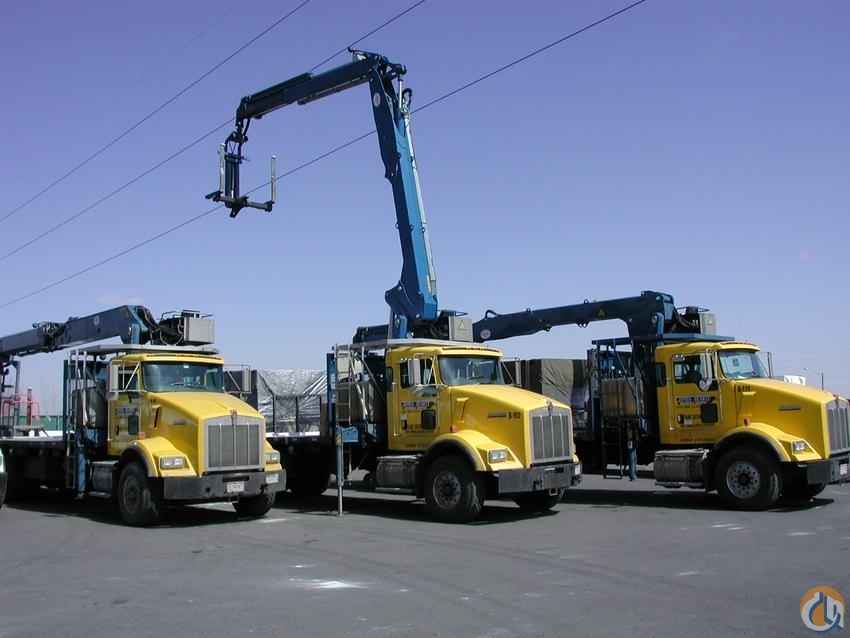

Sister units shown
Technical specifications
Static moment at the turret pin: 63000 (daN/m), 464663 (lbs/ft)
Hyd. boom length: 29000 (mm), 95' 2" (in)
Weight (without oil and fitting): 6410 (kg), 14130 (lbs)
Lifting capacity: 2780 (kg), 6130 (lbs)
Slew torque: 4000 (daN/m), 28938 (lbs/ft)
Slewing speed: 360- 58 (° – sec), 360- 58 (° – sec)
Outriggers extension: 2626 + 2626 (mm), 8' 7" + 8' 7" (in)
Outriggers width: 7620 (mm), 25' 0" (in)
Pump delivery: 100 (lit/min), 26 (gal/min)
Pressure: 320 (bar), 4640 (Psi)
Oil tank capacity: 250 (lit), 66 (us gal)
CraneWorks, Inc.
www.Crane-Works.comContact: Sales Dept.
Phone: 866-458-5915
Fax: 713-491-9359
THIS LISTING HAS SOLD
Condition
New
0 views this week
0 people have saved
Condition
New
Sister units shown
Technical specifications
Static moment at the turret pin: 63000 (daN/m), 464663 (lbs/ft)
Hyd. boom length: 29000 (mm), 95' 2" (in)
Weight (without oil and fitting): 6410 (kg), 14130 (lbs)
Lifting capacity: 2780 (kg), 6130 (lbs)
Slew torque: 4000 (daN/m), 28938 (lbs/ft)
Slewing speed: 360- 58 (° – sec), 360- 58 (° – sec)
Outriggers extension: 2626 2626 (mm), 8' 7" 8' 7" (in)
Outriggers width: 7620 (mm), 25' 0" (in)
Pump delivery: 100 (lit/min), 26 (gal/min)
Pressure: 320 (bar), 4640 (Psi)
Oil tank capacity: 250 (lit), 66 (us gal)
Rental Prices
Please contact the dealer for pricing -- 1-866-458-5915
