THIS LISTING HAS SOLD

Condition

New

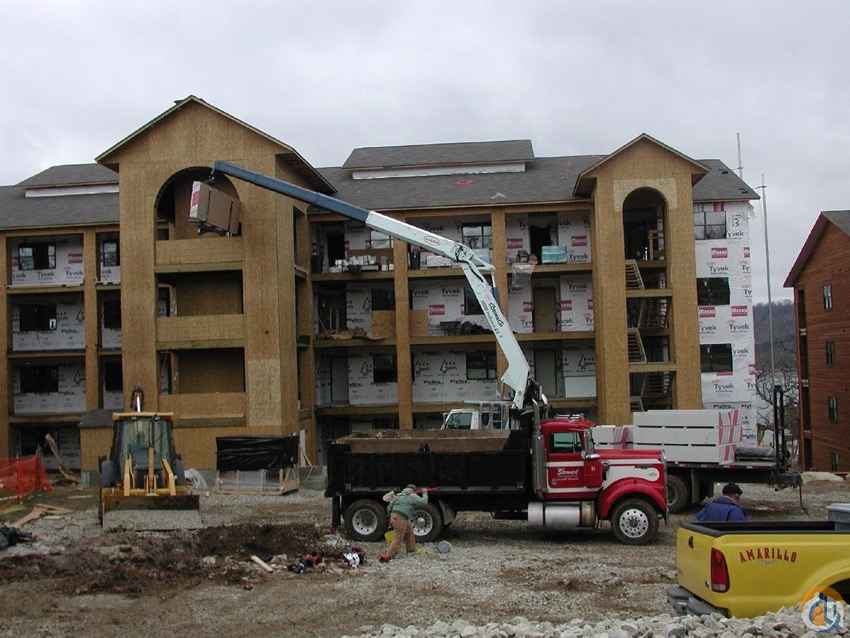

Sister unit shown

Technical specifications

Static moment at the turret pin: 35,700 (daN/m); 258,270 (lbs/ft)

Hyd. boom length: 20,060 (mm); 65' 10" (in)

Weight (without oil and fitting): 5,060 (kg); 11,160 (lbs)

Lifting capacity: 2,380 (kg); 5,250 (lbs)

Slew torque: 4,000 (daN/m); 28,938 (lbs/ft)

Slewing speed: 360° - 58 (° – sec); 360° - 58 (° – sec)

Outriggers extension: 1,750 1,750 (mm); 5' 9" 5' 9" (in)

Outriggers width: 5,765 (mm); 18' 11" (in)

Pump delivery: 100 (lit/min); 26

Pressure: 290 (bar); 4,120 (Psi)

Oil tank capacity: 250 (lit); 66 (us gal)

  • Boom: 65'
  • Capacity: 5.50
  • Condition: New
  • Unit #: BM-2218
  • Serial #: 75.15.05
  • Location: Olathe Kansas USA

View the manufacturer specifications here: Cormach 30000 WB65 Specs
