Tadano GTC-1300 Crawler Telescopic Boom Crane for Sale

       ·         SC-787

·         5-section full power telescoping boom

·         2 extension modes w/ dual hydraulic cylinders, load-holding valves, and extension/retraction cables

·         Boom head w/ (8) cast nylon sheaves (21.4") on heavy-duty roller bearings (6 load + 2 lead-in) for quick reeving

·         Prep for jib stowage on side of boom

·         Aux Boom Head: quick-reeve single sheave boom head (14.7") for single-part reeving

·         Engine: Cummins QSL9 (U.S. EPA Tier 4f / Stage IV)

·         350 HP @ 2100 rpm

·         1,201 lb-ft torque @ 1500 rpm

·         Turbocharged / aftercooled, 8.9L

·         Operator Cab: fully enclosed A/C steel cab (20° tilt)

·         Cameras: rear, winch view, right side

·         Work lights + tinted safety glass

·         6-way adjustable seat w/ seatbelt

·         Joystick controls + electronic foot pedals

·         Full dash instrumentation + safety shutdown / seat switch

·         Counterweight: 6-piece design w/ (3) upper configurations

-          Config A: 23,350 lb

-          Config B: 46,700 lb

-          Config C: 70,000 lb

-          (2) carbody CWTs @ 10,000 lb each (20,000 lb total)

·         Main Hoist: 2-speed planetary winch

·         Multi-disc internal brake + counterbalance valve

·         758 ft of 7/8" wire rope

·         Aux Hoist: 2-speed planetary winch

·         Multi-disc internal brake + counterbalance valve

·         613 ft of 7/8" wire rope

·         Travel: two-speed track drive per side

·         Hydraulic axial piston motors w/ parking brakes

·         Skid steer + counter rotation

·         Swing: closed-loop hydrostatic swing system w/ selectable swing modes (free swing w/ counter-swing or closed-loop)

·         Planetary reducer + slew bearing for full 360° rotation

·         Swing parking brake + service brake + 4-position house lock

·         Frame: all-steel welded frame, precision machined

·         Side Frames / Tracks: OPTI-WIDTH hydraulic extend/retract

·         Track rollers: (2) top + (13) bottom per side

·         Track shoes: 36" 3-bar semi-grouser

·         Load Moment Indicator: Tadano AML-C rated capacity limiter + anti-two block

·         OPTI-WIDTH display + audible/visual warnings + control function shutdown

·         Operator-set working range limits w/ automatic soft stop

·         13.8 USt headache ball w/ swivel hook and latch

·         80 US ton, 3 sheave Hook Block

·         Standard Tadano blue/white paint

Arriving November 2026 - Call For Pricing

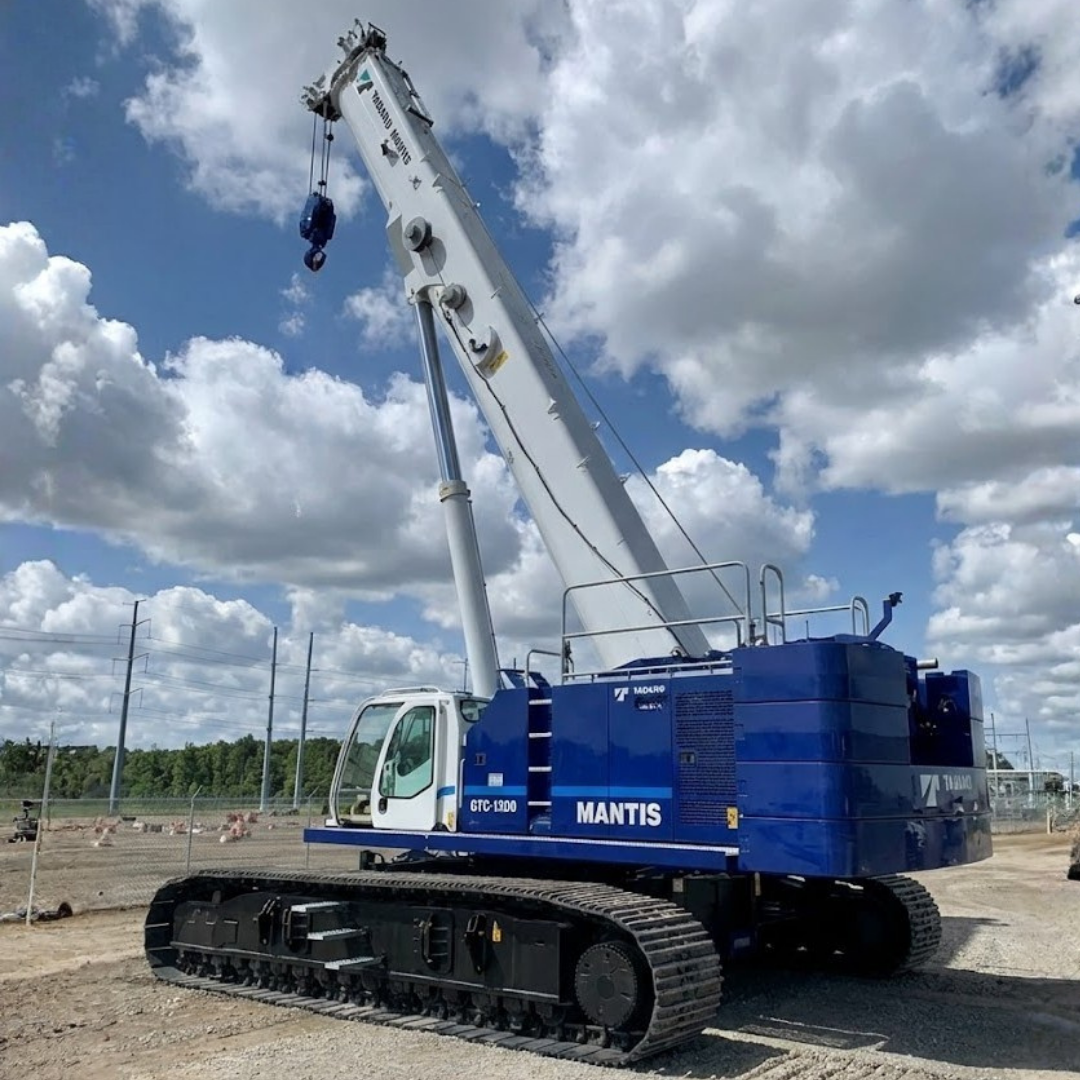

** Stock Photo **
