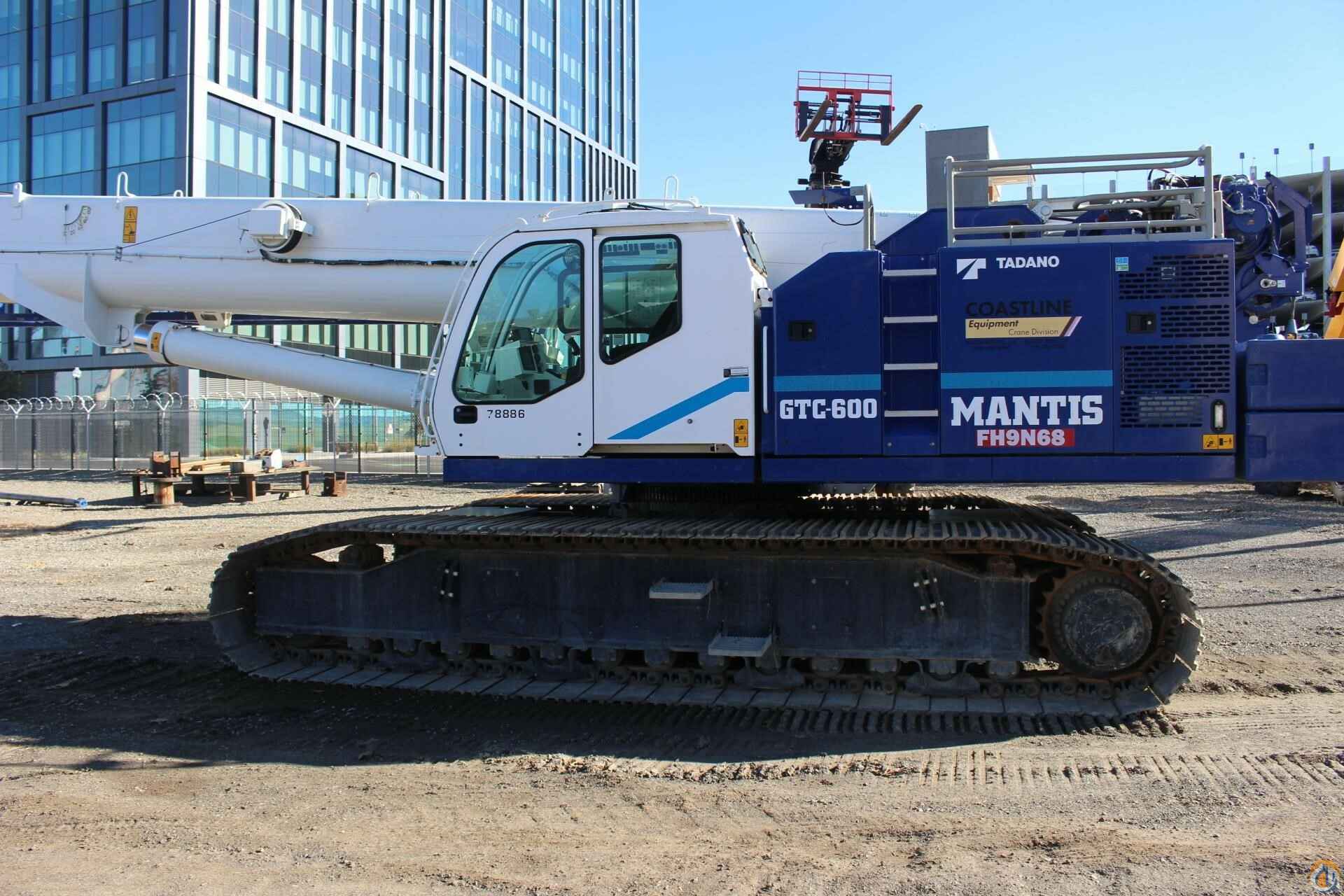

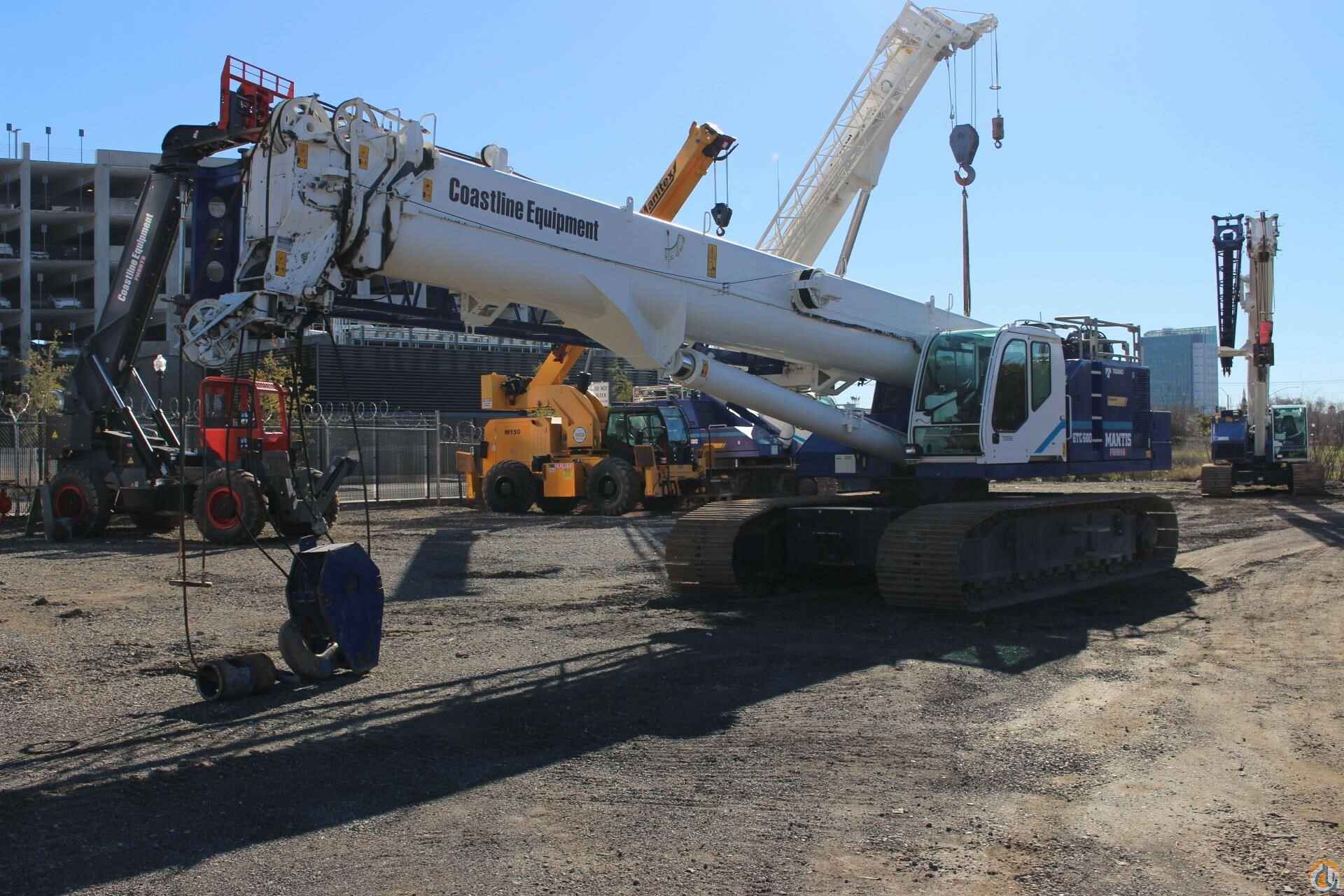

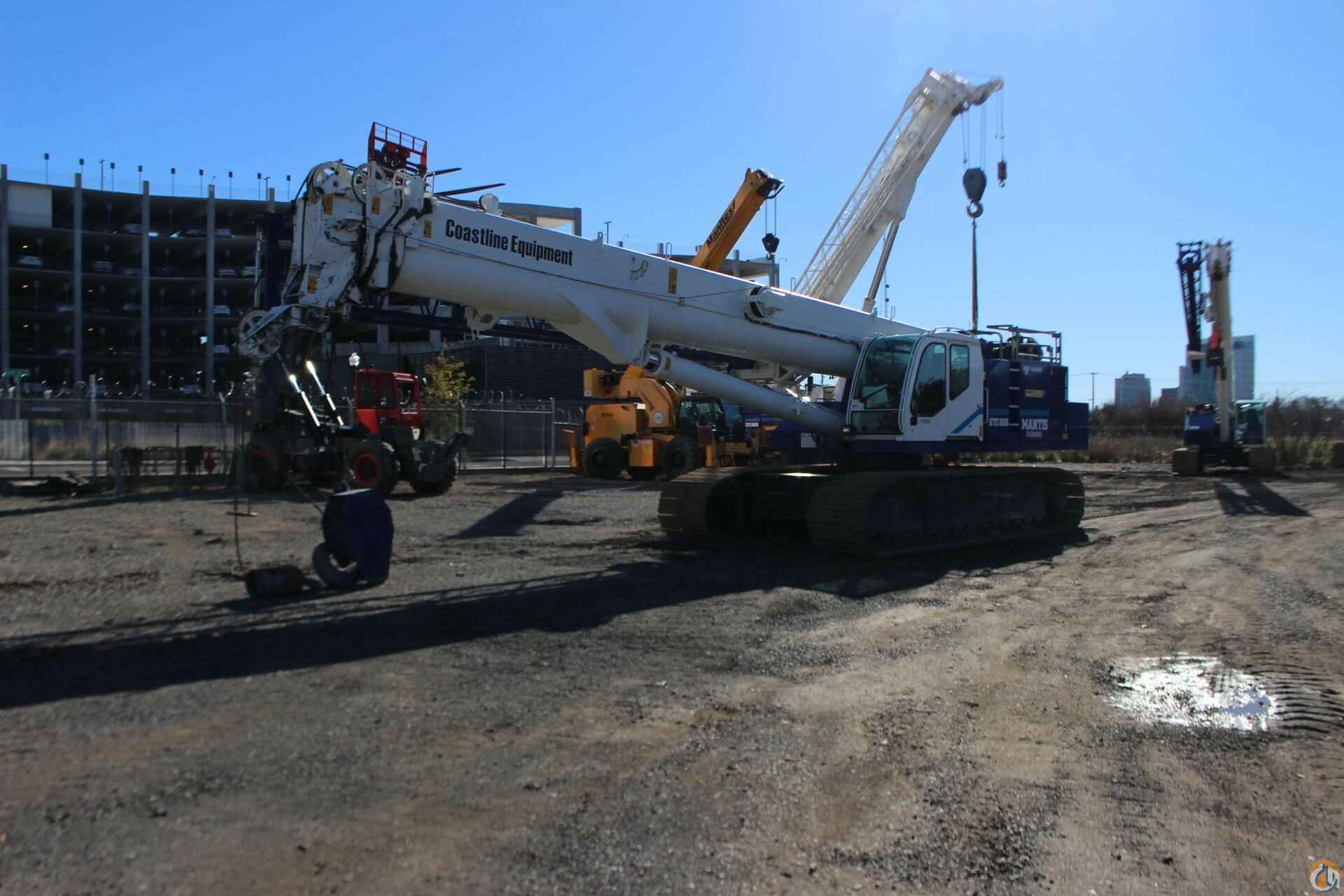

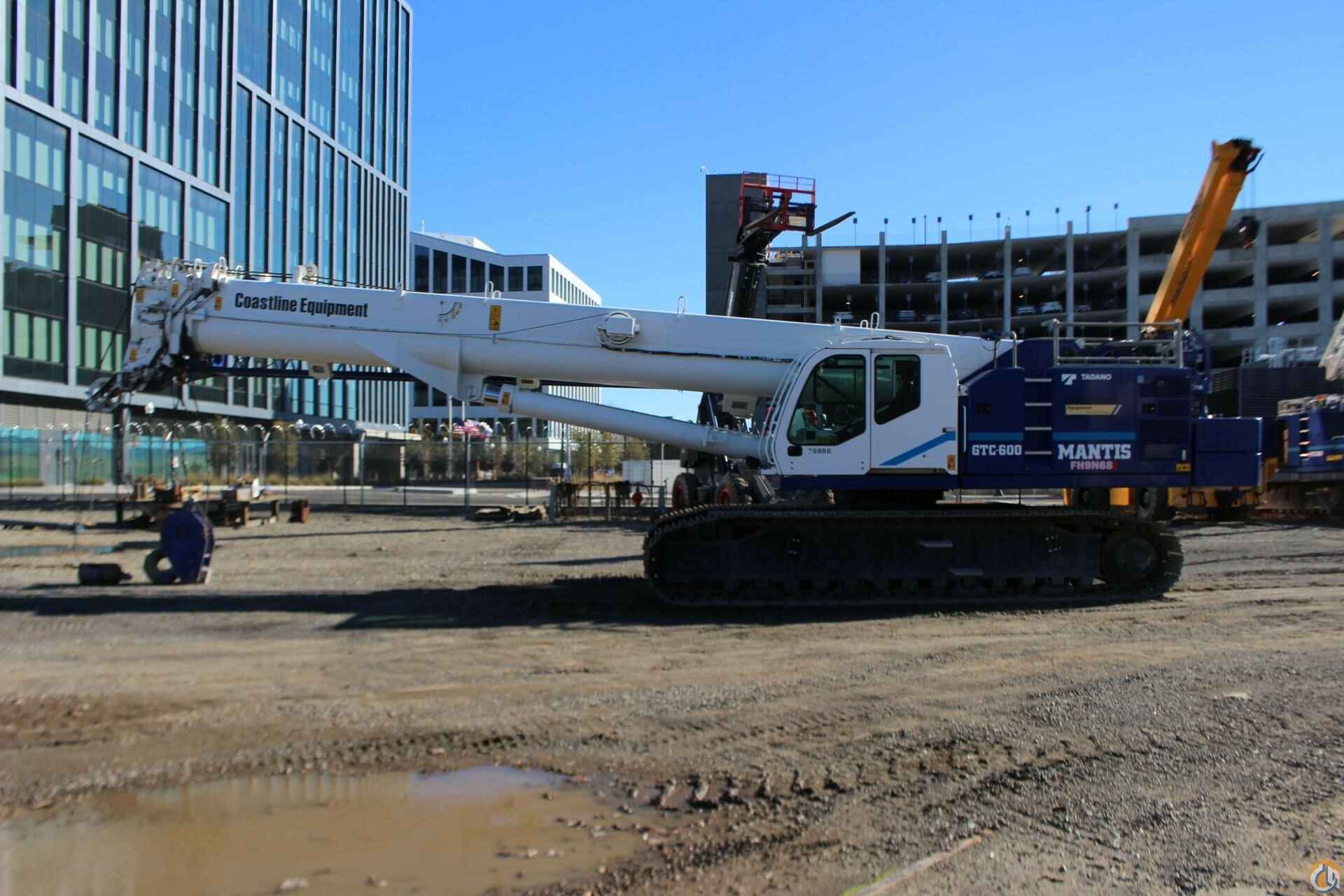

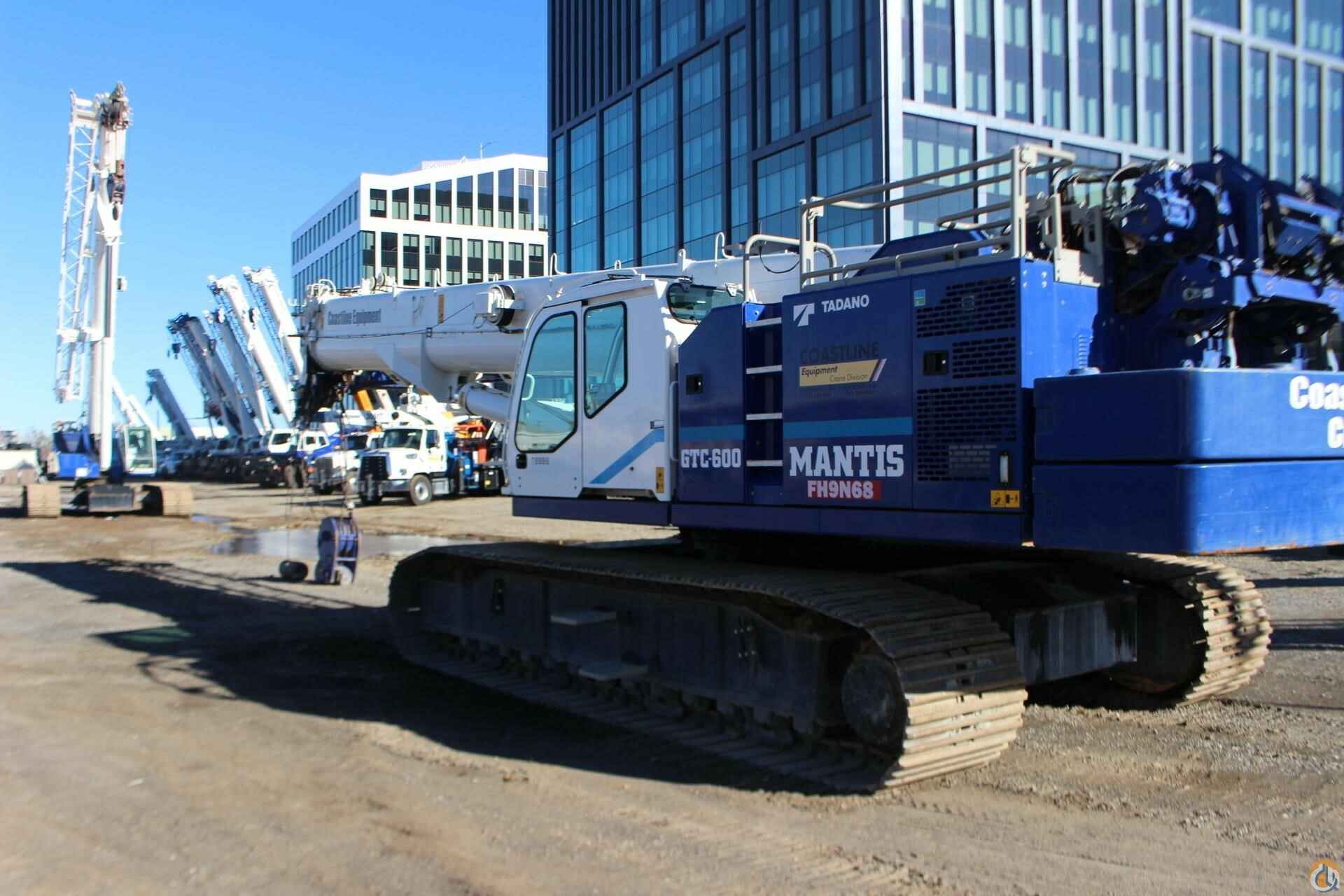

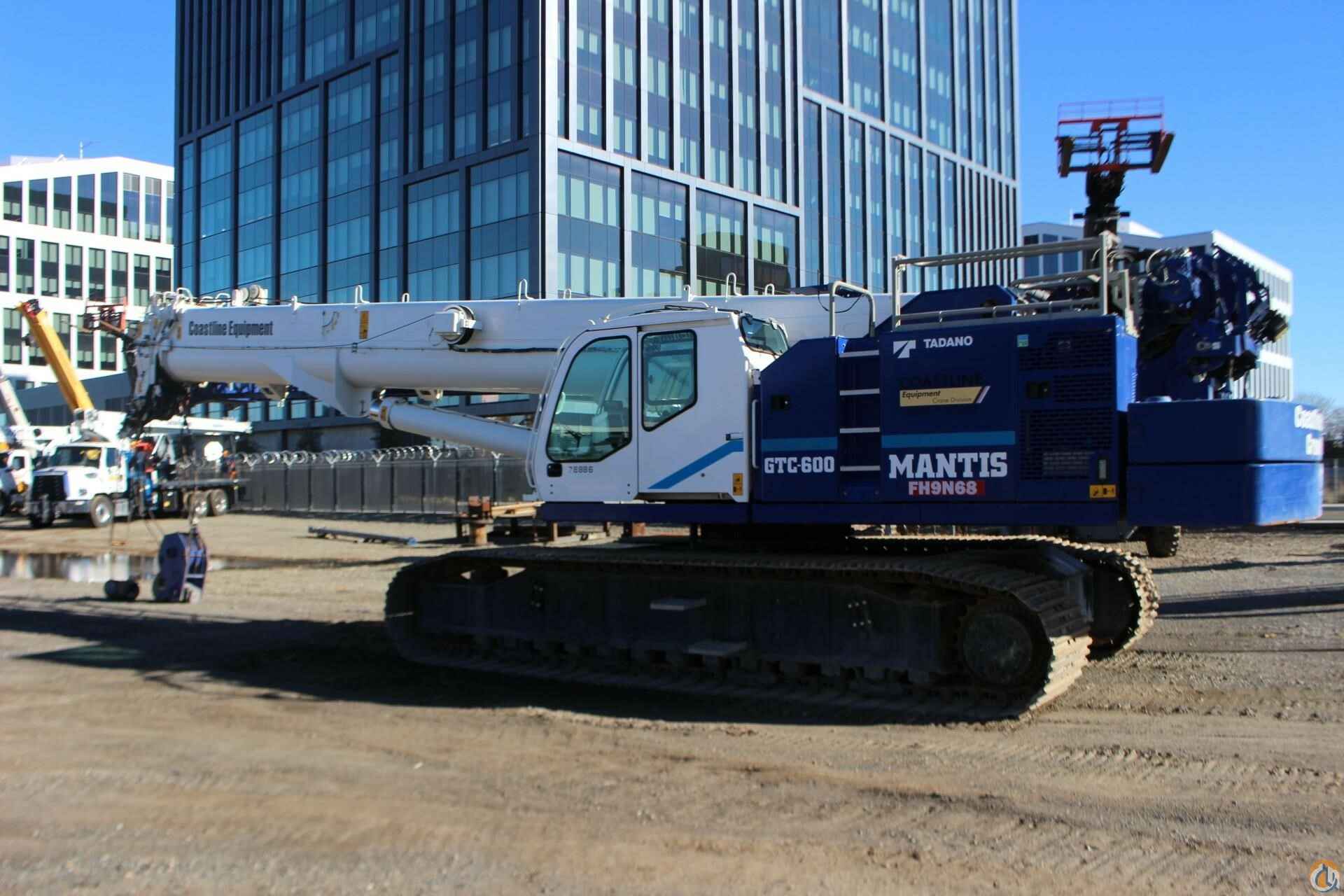

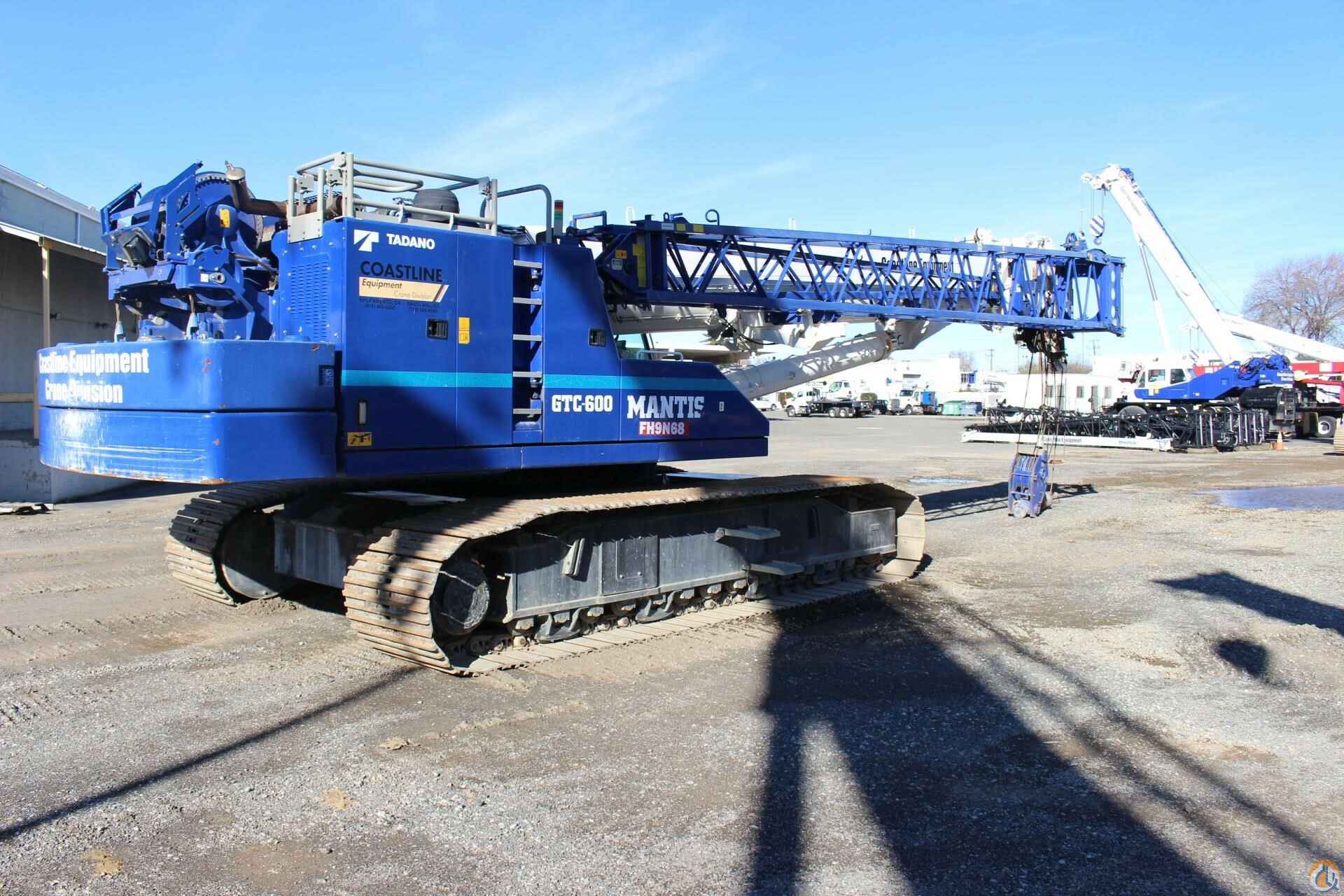

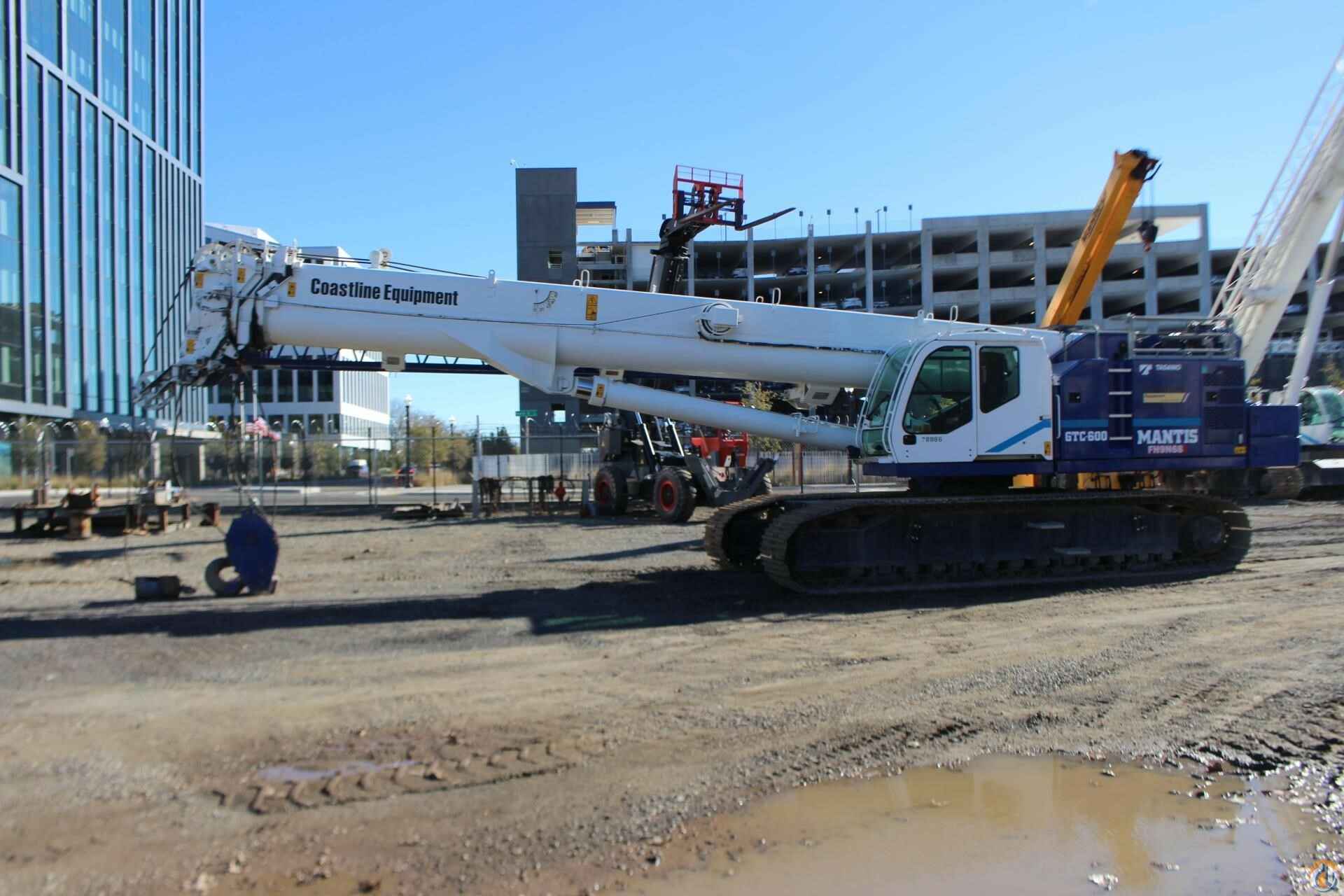

2018 TADANO MANTIS GTC-600
Standard features:
• 66 ton lift capacity
• 4 section 37.7’ – 118.1’ full power telescopic boom
• Cummins QSB6.7 310 HP Tier 4f Diesel Engine
• Standard Cab with A/C, Heat, Engine Monitoring, tilts to 20 degrees
• Tadano AML-C LMI System with North American (ft.- lbs.) Load Charts, and A2B Tadano HELLO-NET Telematics
• Video Camera Monitor – 3 closed circuit cameras – winch, rear, and right side view
• Work Lights – 3 Halogen work lights with remote controls
• Main Winch with drum rotation indicator, grooved drums, and cable follower, 650’ of 3/4” rotation resistant wire rope
• Auxiliary Winch with drum rotation indicator, grooved drums, and cable follower, 410’ of 3/4” rotation resistant wire rope
• Hydraulic Extendable Undercarriage with 3 track width zones
• 35.4-Inch 3-Bar Semigrouser track shoes
• 30,000 lb. rear counterweight with radio control removal system
• 13,225 lb. carbody counterweight
• Crane access walkways and folding aluminum upper handrail system
• Hydraulic Oil – ISO VG32 – Mineral Based Oil
• 3 color LMI Light Bar
• Standard Tadano Mantis Blue/White paint
Additional Options:

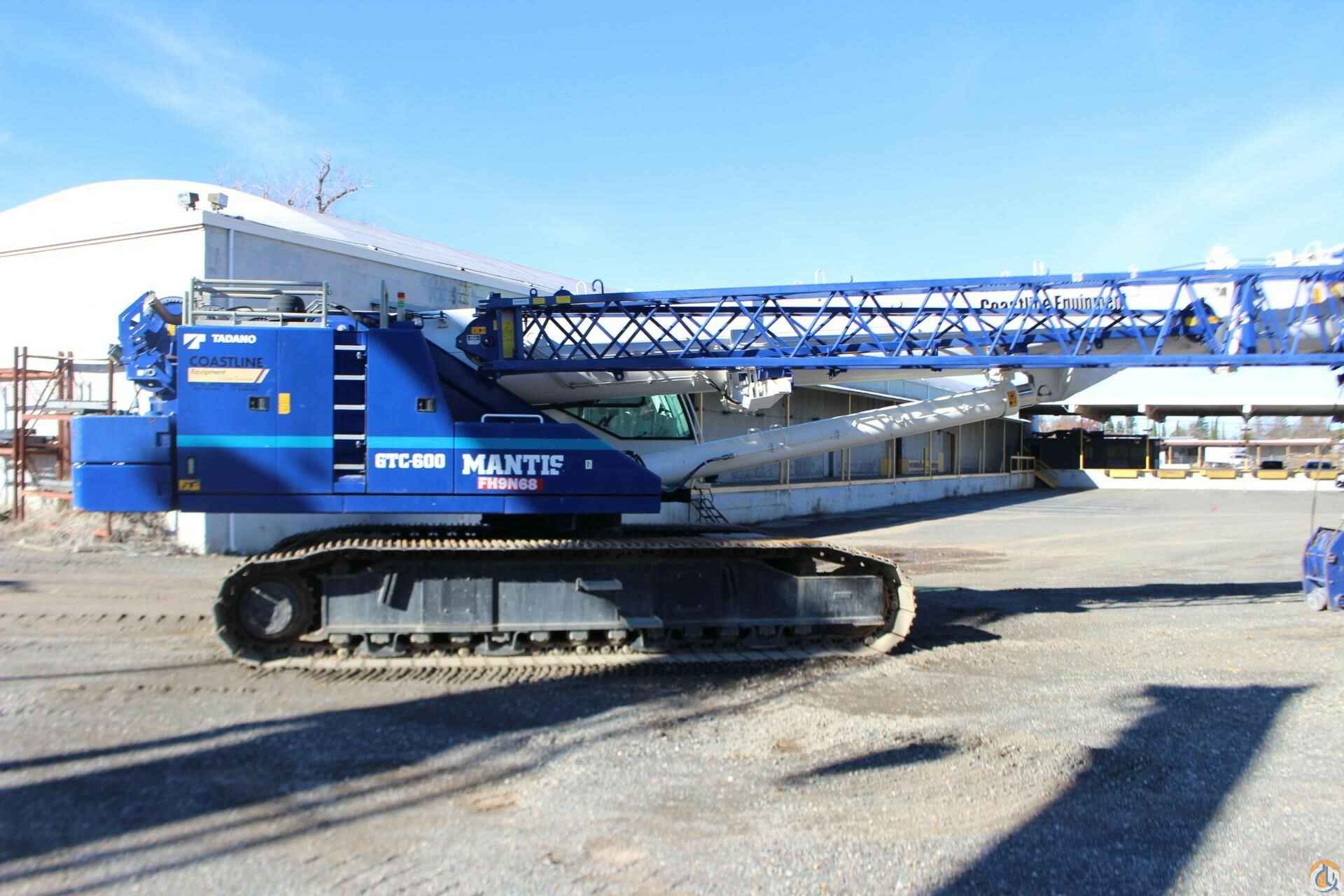

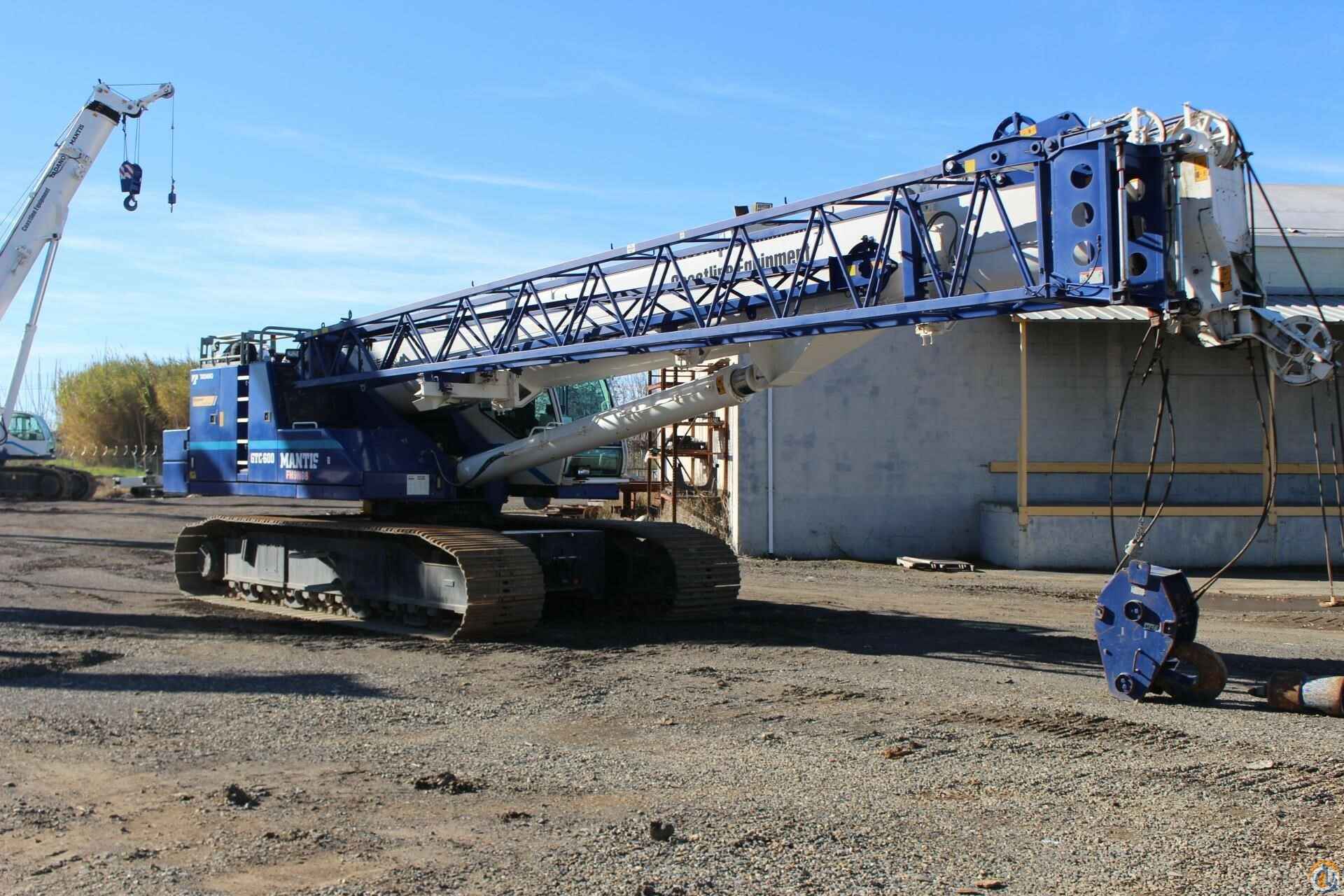

• 33.1’ to 58.1’ bi-fold jib offsets 3.5°, 25°, and 45°
• Auxiliary Boom Head.
• 66 Ton Quick Reeve Hook Block
• 15 Ton Headache Ball
• 360° House Lock – Mechanical house lock actuated from operator cab.
