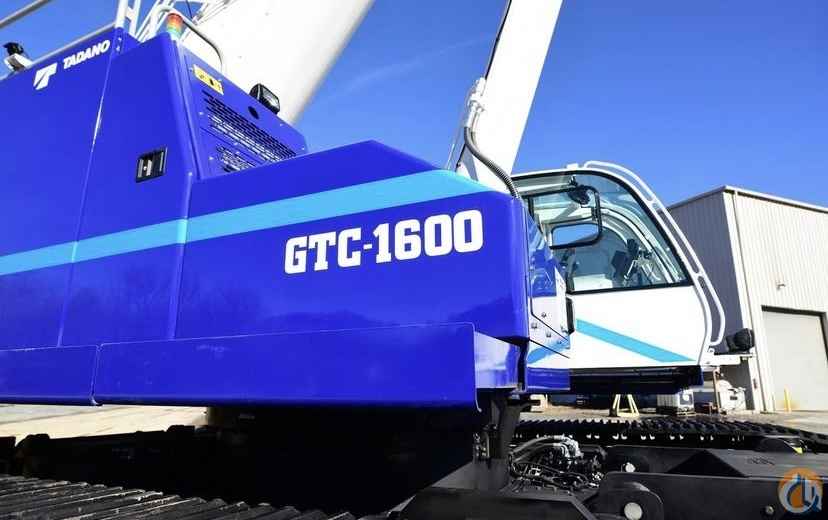

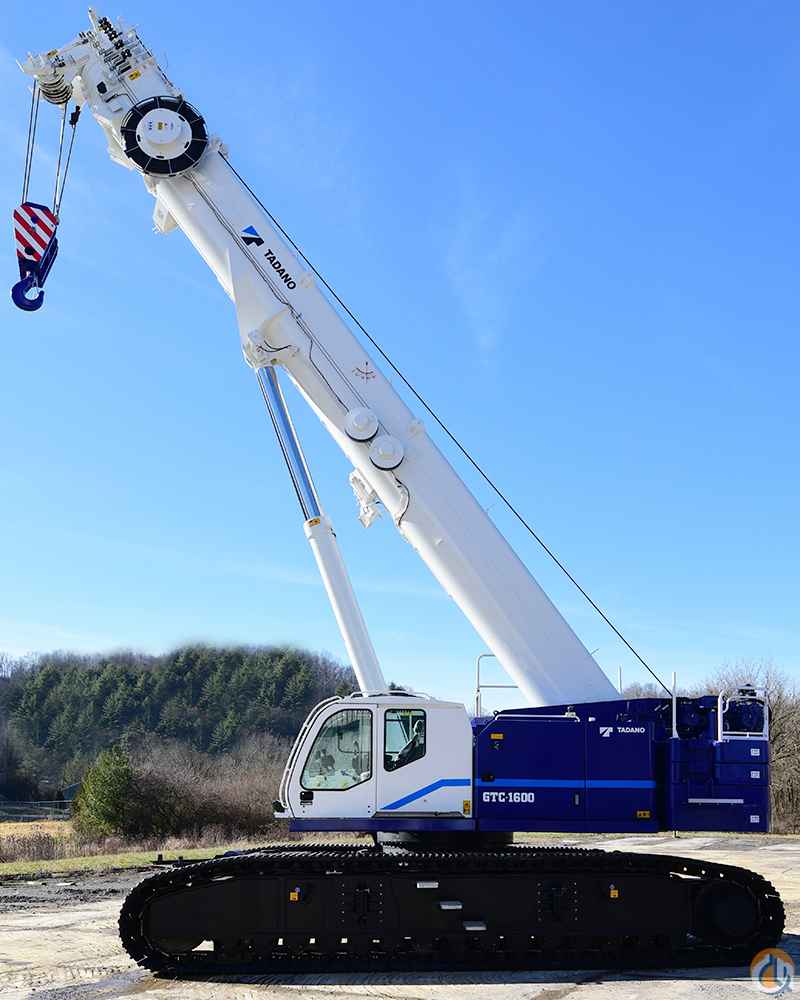

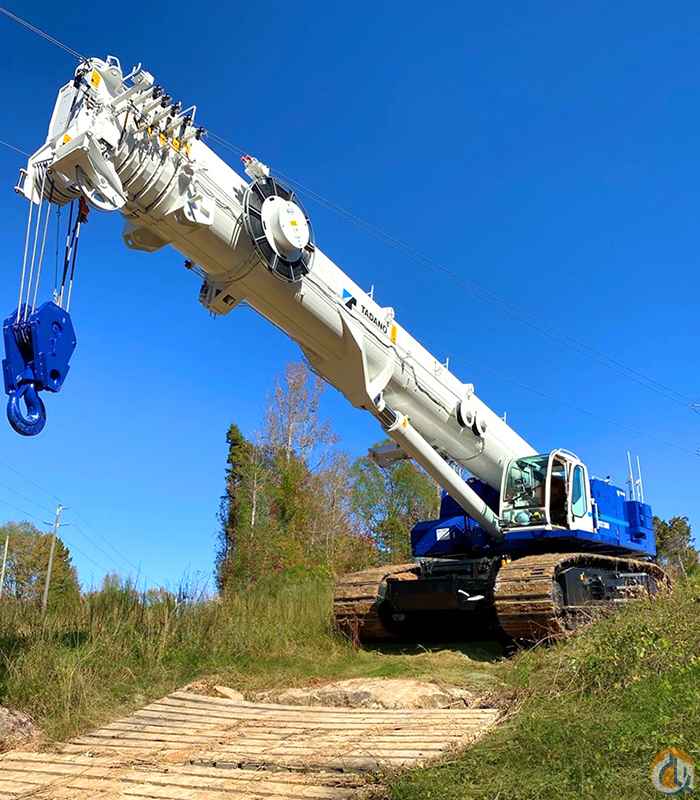

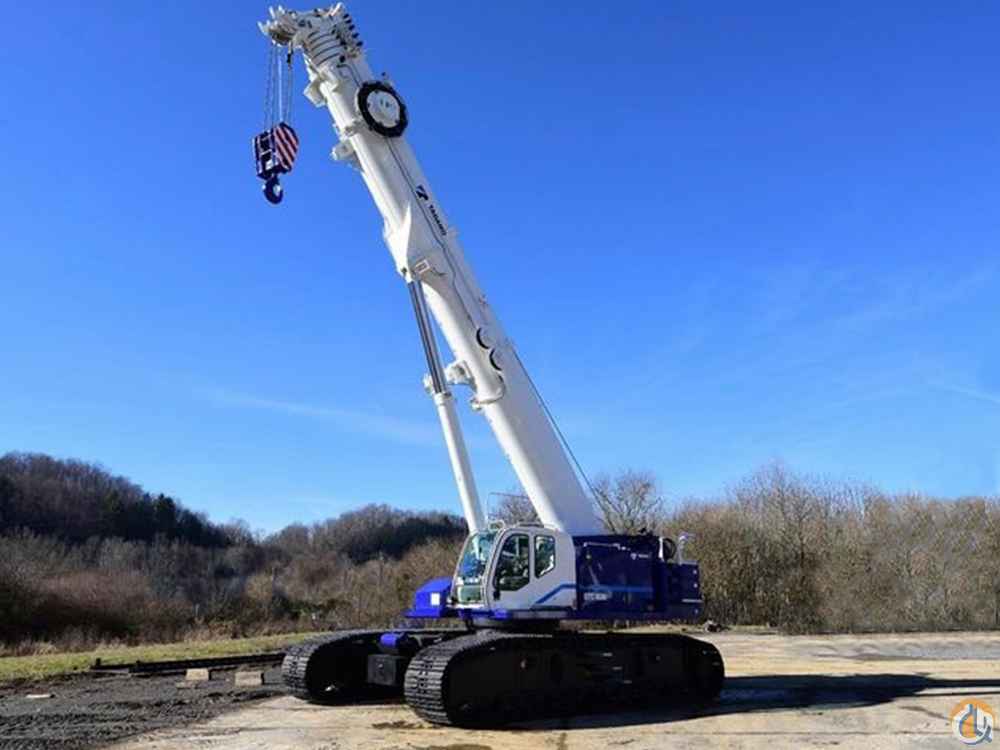

2022 Tadano Mantis GTC-1600
160 Ton (145t) lift capacity
6-section 200’ (61 m) boom
33'-59' two stage hyd offsettable jib
110 ton 7 sheave block, 8 ton headache ball,
Cummins 326 HP B6.7 U.S. EPA Staage V Diesel Engine
Standard Cab with A/C, Heat, Engine Monitoring, 20 degree tilt configuration,
Tadano AML-E LMI System with North American (ft - lbs) Load Charts
Full color LCD touch screen provides a continuous display with automatic switching charts for 0.5°, 1.5°, 2.5°, and 4° slope,
3 color light bar HELLO-NET Telematics System Video Camera Monitor - 3 closed circuit cameras - winch, rear, and right side view, 3 work lights with remote controls
Main Winch with grooved drum, cable follower, drum rotation indicator, 3rd wrap indicator 1050 ft of 3/4" (19mm x 320m) Rotation resistant wire rope
Auxiliary Winch with grooved drum, cable follower, drum rotation indicator, 3rd wrap indicator and 738 ft of 3/4" (19mm x 320m) Rotation resistant wire rope

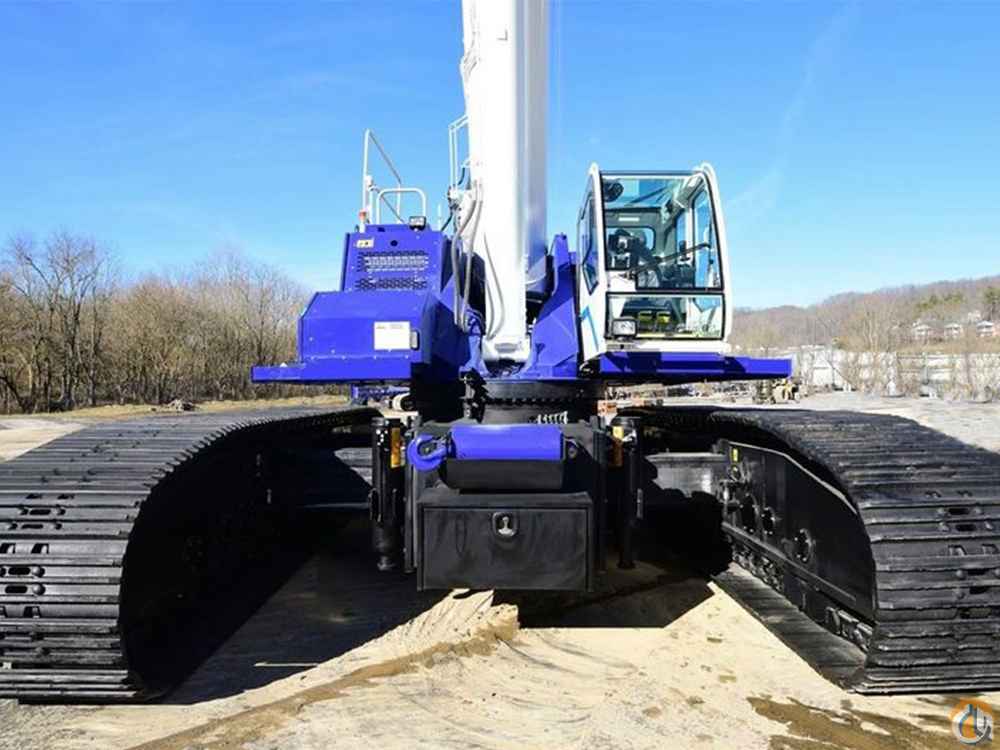

Auxiliary Boom Head Hydraulic Extendable Undercarriage 35.4" (900mm), 3-Bar semi-grouser track shoes
70,000 lb upper counterweight
24,700 lb carbody counterweight
Carbody Counterweight Storage box
Crane access walkways and folding aluminum upper handrail system
Two Stage Carbody Jacks and rigging mode
360 Degree House Lock - mechanical house lock actuated from operator cab
Standard Tadano Mantis Blue / White paint Hydraulic Oil - ISO VG32 - Mineral Based Oil Operation & Parts Manuals (English Version)
Contact Exact Crane for more details and request a quote today!
