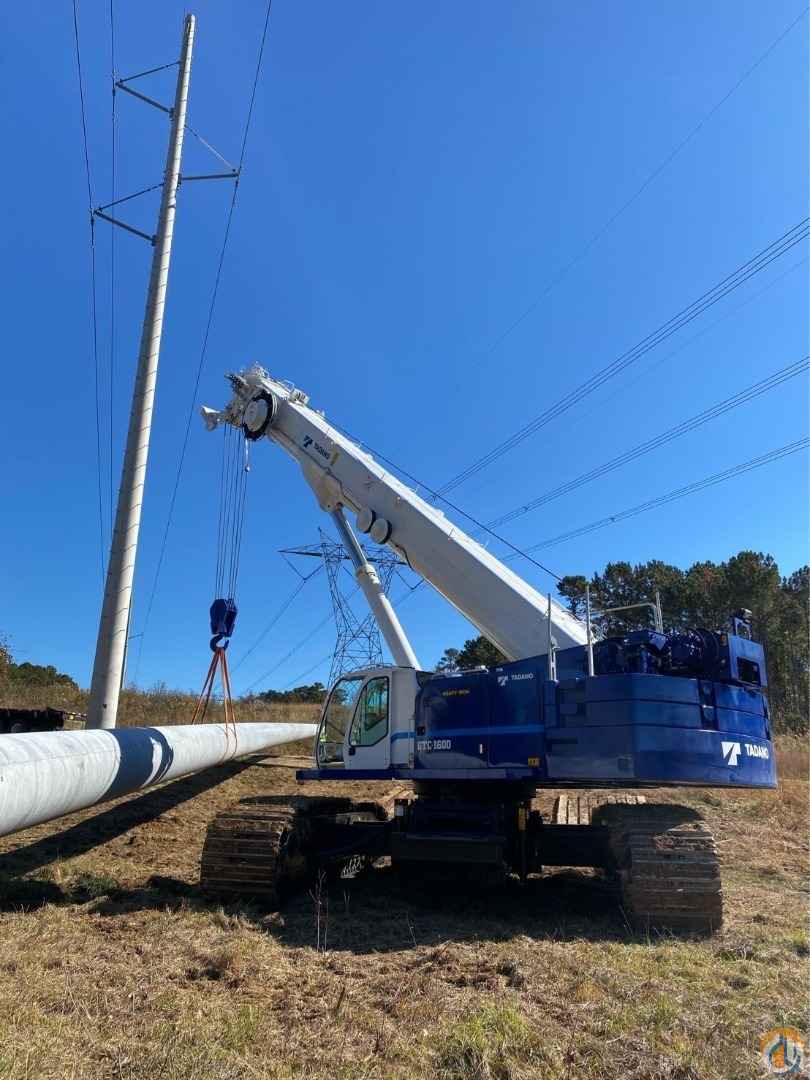

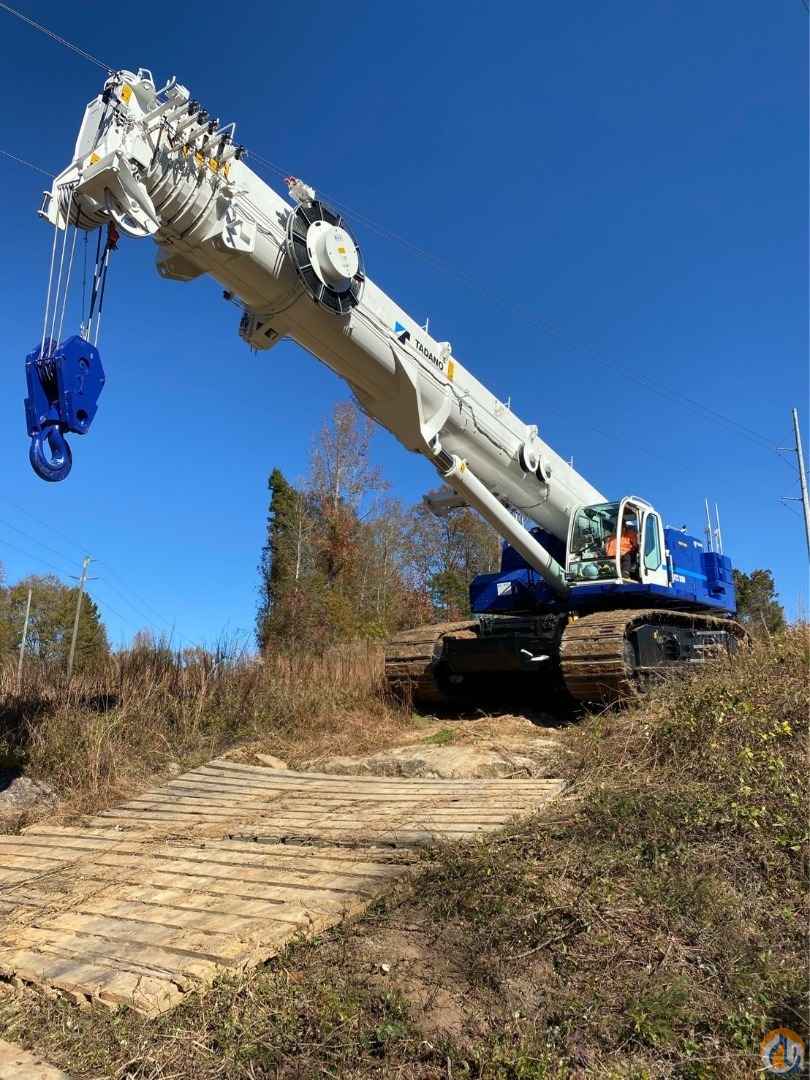

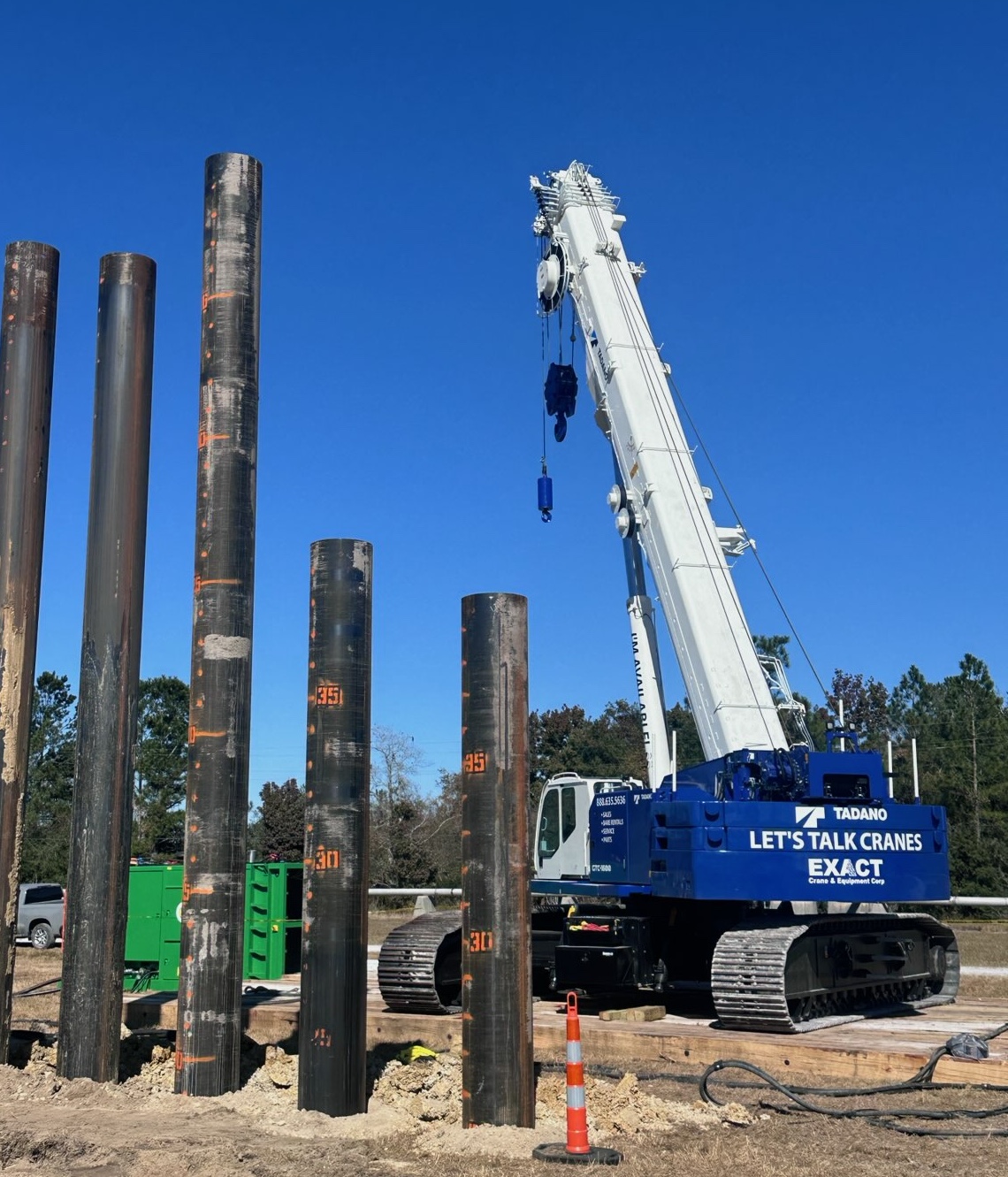

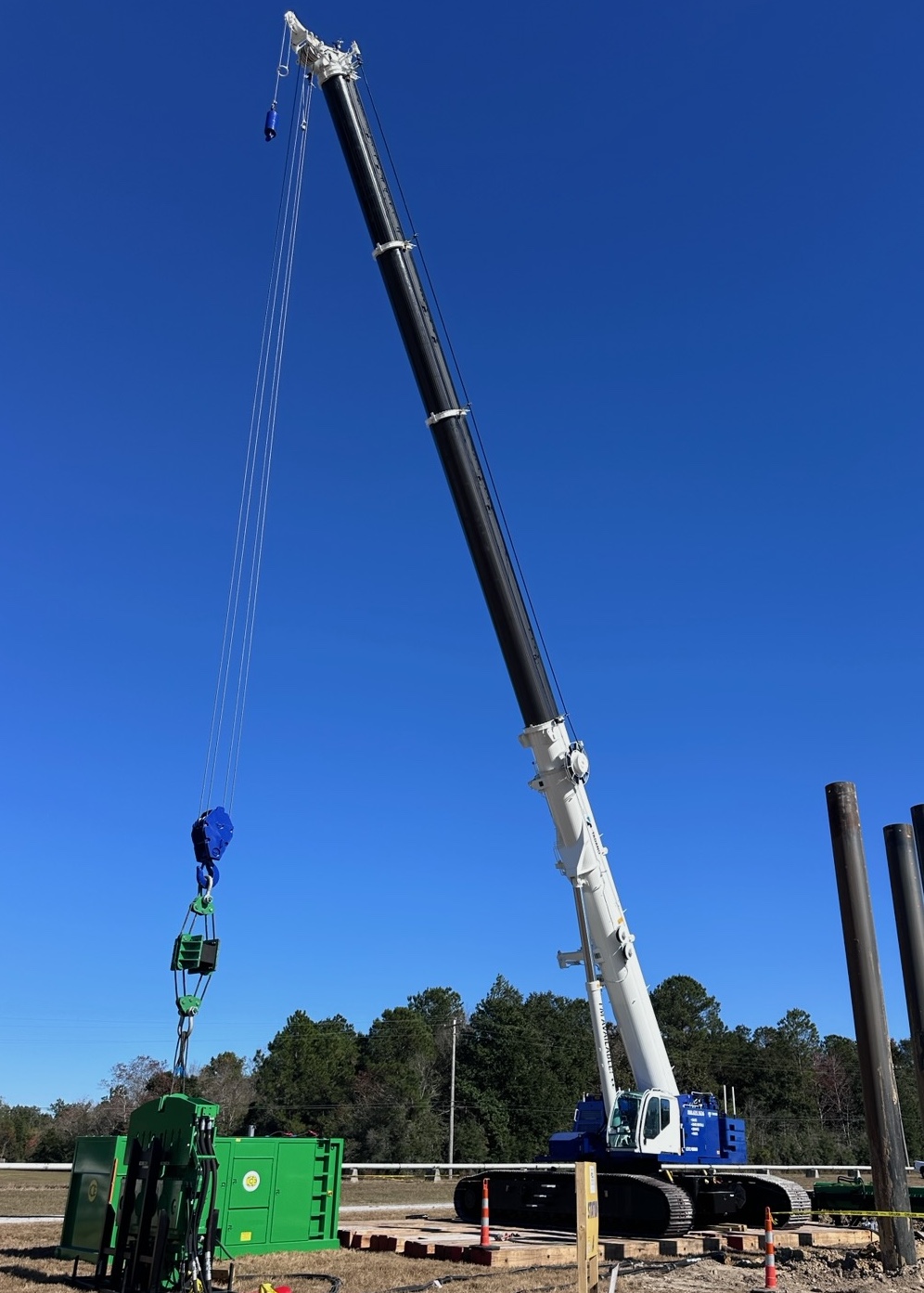

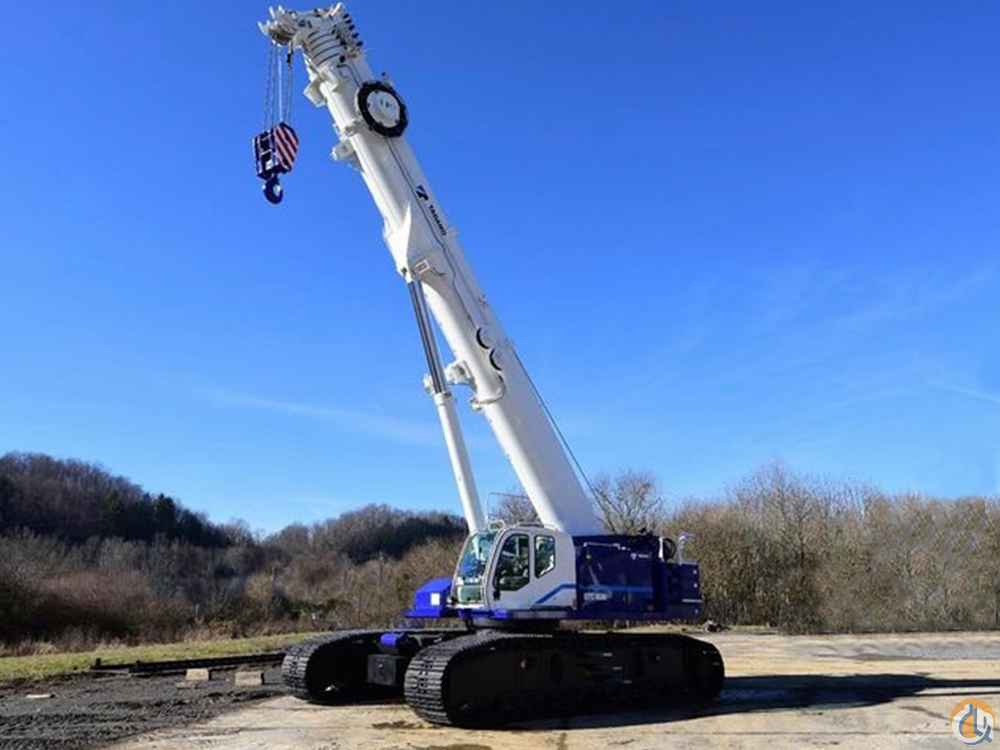

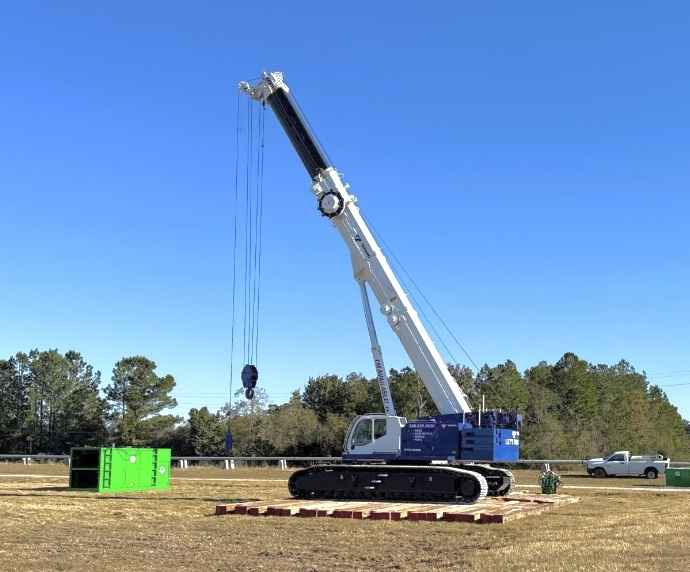

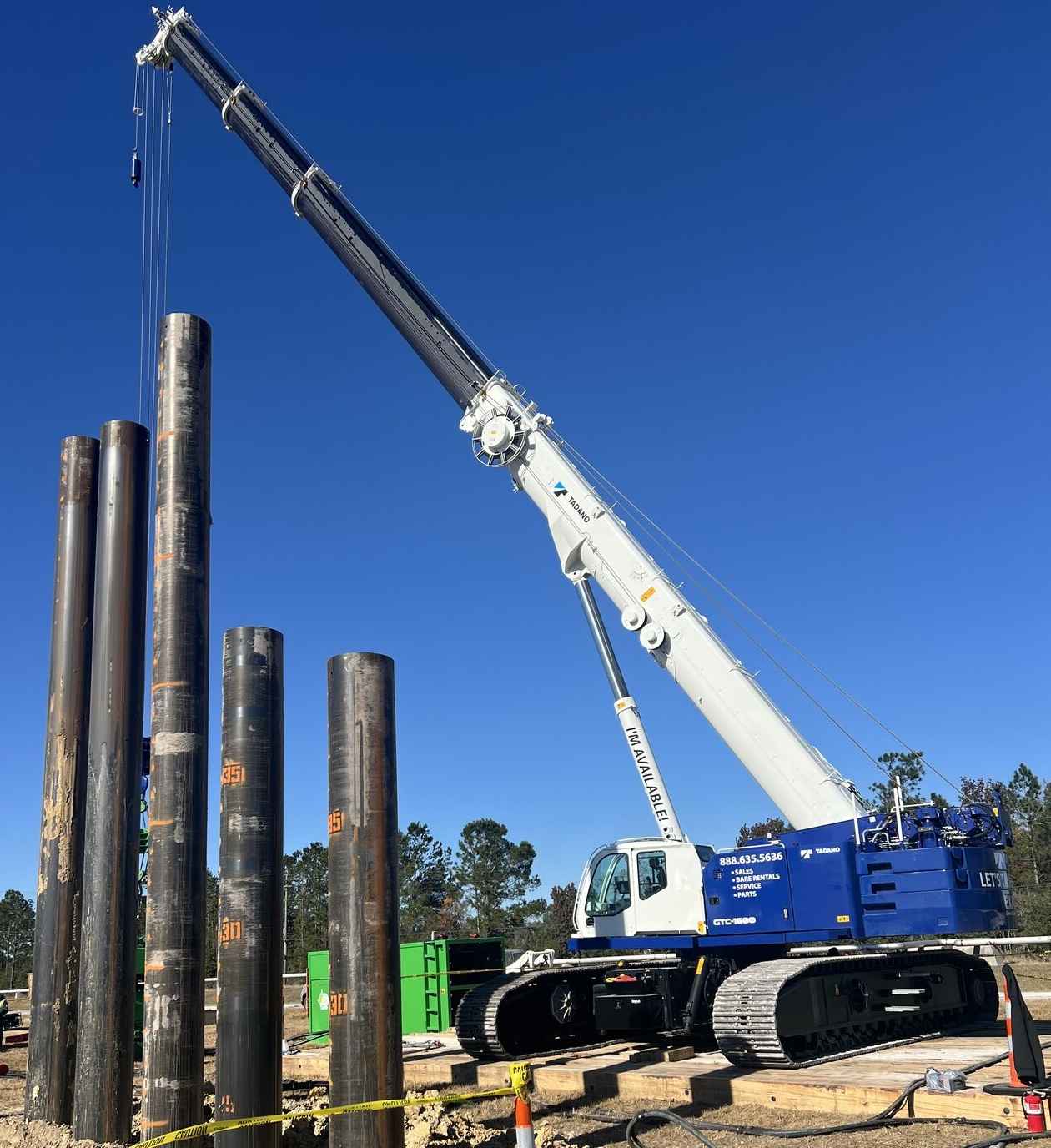

New Tadano Mantis GTC-1600 Teleboom Crawler Crane

160 Ton (145t) lift capacity

6 section 200’ (61 m) boom

33'-59' two stage hydraulic off-settable jib

110 ton 7 sheave block

8 ton headache ball

Cummins 326 HP B6.7 U.S. EPA Stage V Diesel Engine

Standard Cab with A/C and Heat

Engine Monitoring

20 degree tilt configuration

Tadano AML-E LMI System with North American (ft - lbs) Load Charts

Full color LCD touch screen provides a continuous display with automatic switching charts for 0.5°, 1.5°, 2.5°, and 4° slope, & a 3 color light bar

HELLO-NET Telematics System Video Camera Monitor

3 closed circuit cameras - winch, rear, and right side view

Work Lights - 3 work lights with remote controls

Main Winch with grooved drum, cable follower, drum rotation indicator, 3rd wrap indicator and 1050 ft of 3/4" (19mm x 320m) Rotation resistant wire rope

Auxiliary Winch with grooved drum, cable follower, drum rotation indicator, 3rd wrap indicator and 738 ft of 3/4" (19mm x 320m) Rotation resistant wire rope

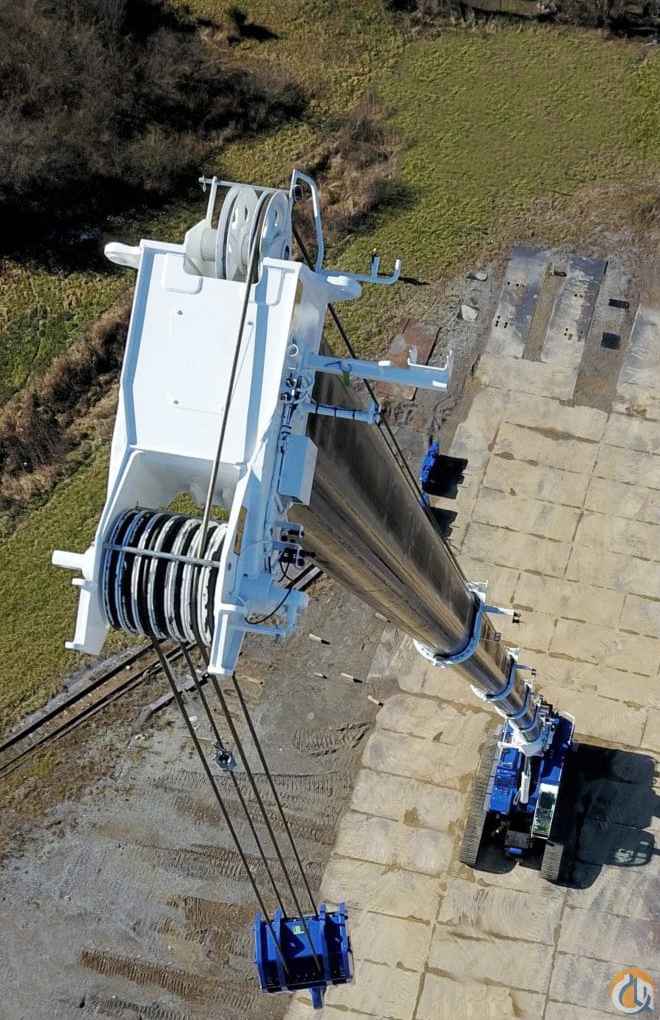

Auxiliary Boom Head

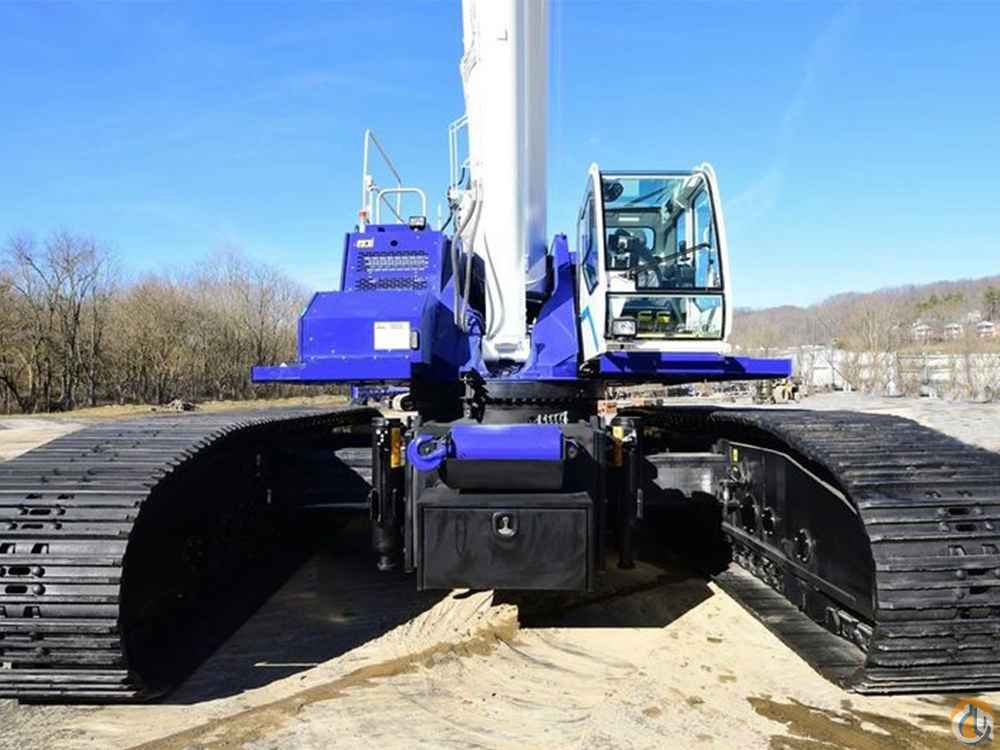

Hydraulic Extendable Undercarriage 35.4" (900mm)

3-Bar semi-grouser track shoes

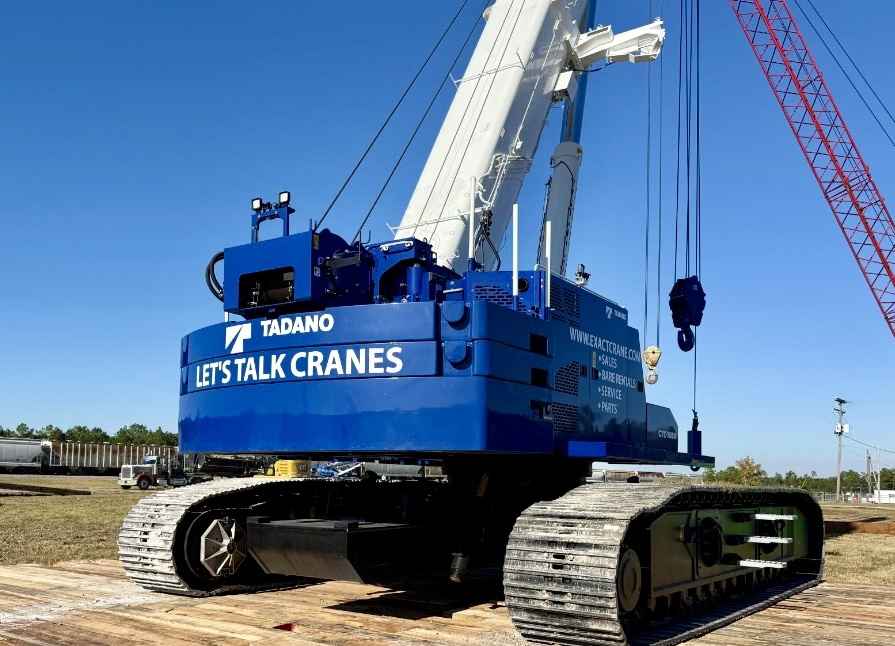

70,000 lb upper counterweight

24,700 lb carbody counterweight

Carbody Counterweight Storage box

Crane access walkways

360 Degree House Lock

Contact Exact Crane for additional details, availability & pricing!
