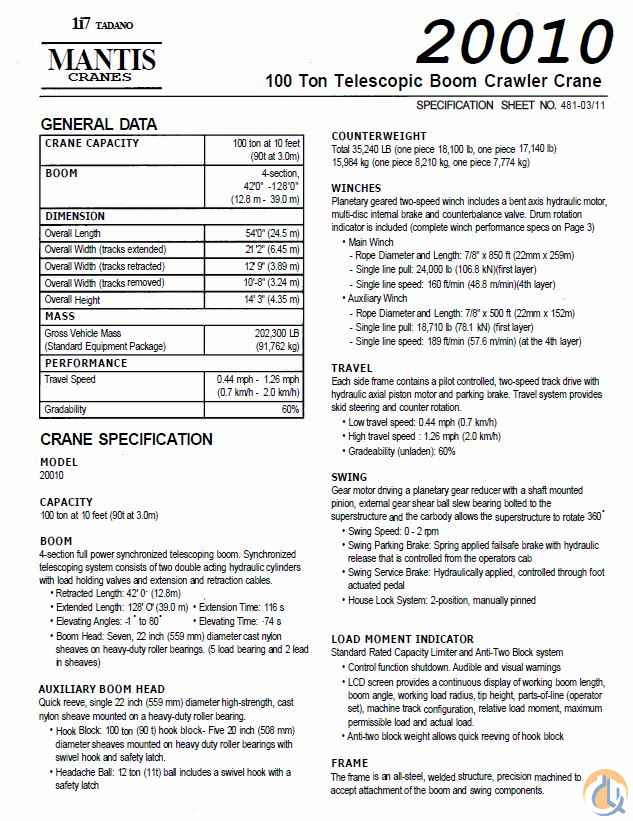

CRANE SPECIFICATION

MODEL: 20010
CAPACITY: 100 ton at 10 feet (90t at 3.0m)
BOOM: 4-section full power synchronized telescoping boom. Synchronized telescoping system consists of two double acting hydraulic cylinders with load holding valves and extension and retraction cables.

• Retracted Length: 42' o· (12.8m)
• Extended Length: 128' O" (39.0 m) • Extension Time: 116 s
• Elevating Angles: -1 ° to 80° • Elevating Time: ·74 s
• Boom Head: Seven, 22 inch (559 mm) diameter cast nylon sheaves on heavy-duty roller bearings. (5 load bearing and 2 lead in sheaves)

AUXILIARY BOOM HEAD:
Quick reeve, single 22 inch (559 mm) diameter high-strength, cast
nylon sheave mounted on a heavy-duty roller bearing.

• Hook Block: 100 ton (90 t) hook block- Five 20 inch (508 mm) diameter sheaves mounted on heavy duty roller bearings with swivel hook and safety latch.
• Headache Ball: 12 ton (11t) ball includes a swivel hook with a safety latch

ENGINE:

• Make/ Model: Cummins QSM11
• Type: 6 Cylinder, Water cooled, 4 Cycle
• Aspiration: Turbocharged and Aftercooled
• Max.Output: 375 hp (280 kw) @ 2100 RPM
• Max Torque: 1,400 Lb-ft (1,898 Nm)@ 1400 RPM
• Piston Disp: 10.8 liter
• Bore x Stroke:107mm x 124mm
• Emission Cert: U.S. EPA ner 3, Euromot Stage IIIA
• Alternator: 130 amp

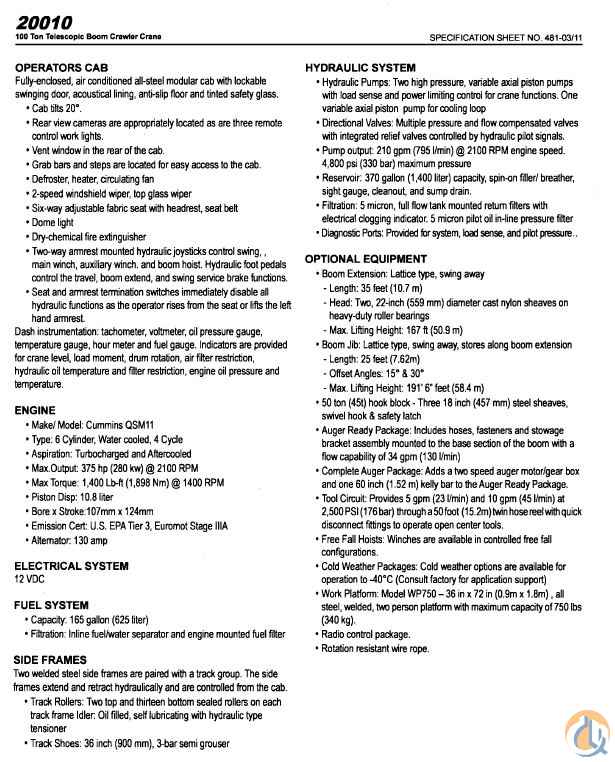

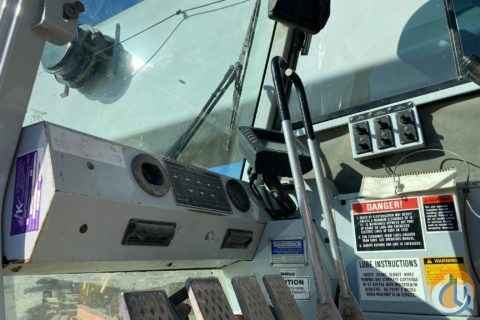

OPERATORS CAB
Fully-enclosed, air conditioned all-steel modular cab with lockable swinging door, acoustical lining, anti-slip floor and tinted safety glass.

• Cab tilts 20° .
• Rear view cameras are appropriately located as are three remote control work lights.
• Vent window in the rear of the cab.
• Grab bars and steps are located for easy access to the cab.
• Defroster, heater, circulating fan
• 2-speed windshield wiper, top glass wiper
• Six-way adjustable fabric seat with headrest, seat belt
• Dome light
• Dry-chemical fire extinguisher

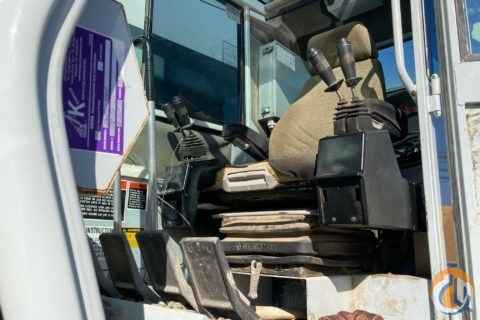

• Two-way armrest mounted hydraulic joysticks control swing, , main winch, auxiliary winch. and boom hoist. Hydraulic foot pedals control the travel, boom extend, and swing service brake functions.
• Seat and armrest termination switches immediately disable all hydraulic functions as the operator rises from the seat or lifts the left hand armrest.
