2007 Mantis 9010 FOR SALE

Year: 2007

Capacity: 45

Condition: Good

Hours: 4468

Location: Virginia

Boom: 105

Jib: 20

Notes

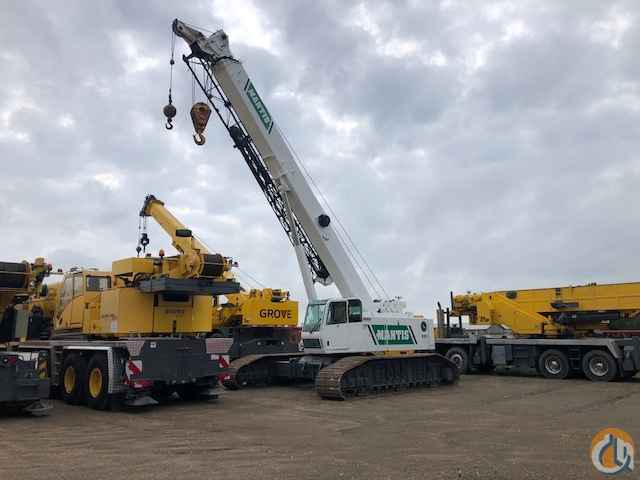

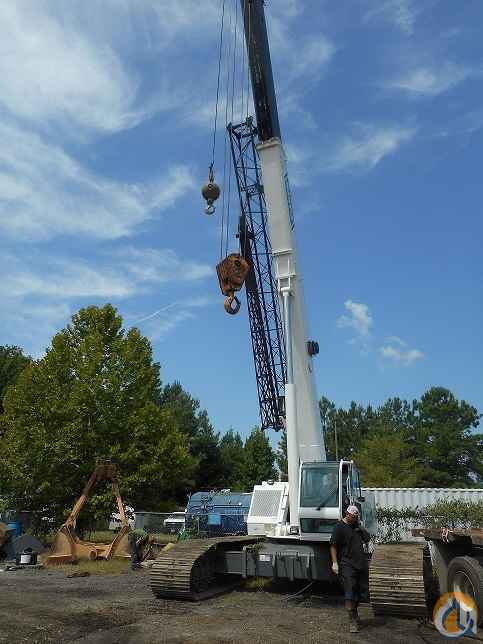

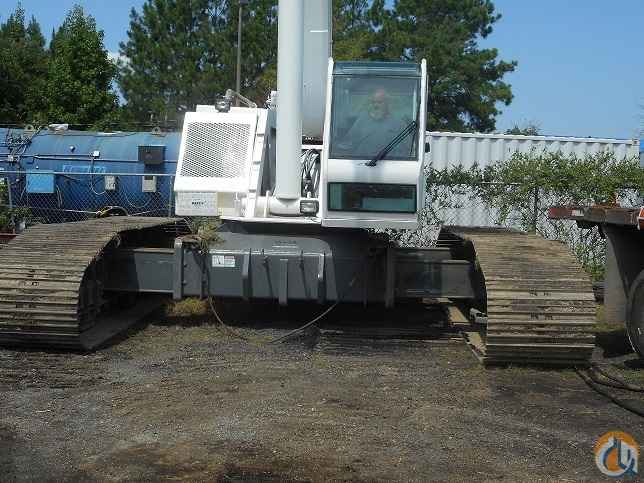

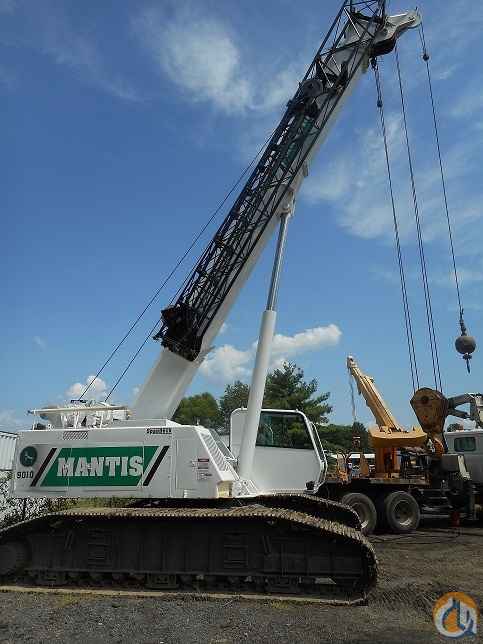

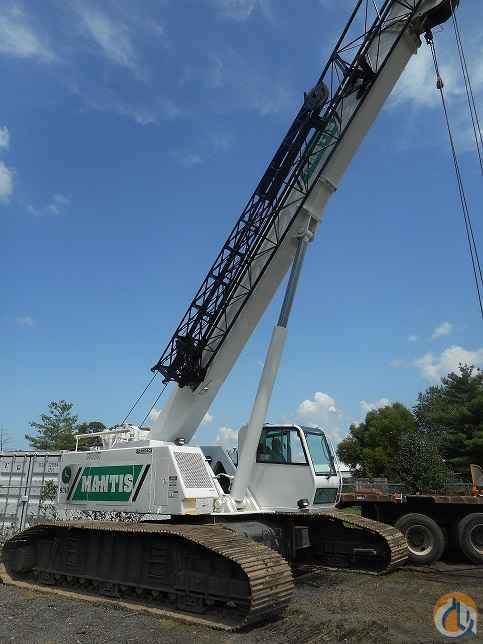

2007 Mantis 9010, 45 Ton, Telescopic Boom Crawler Crane; CranesList ID: 721,

  • 34'-105' Four Section Full Power Boom with Auxiliary Nose Sheave,
  • 20’ Two piece Bi-fold Jib,
  • Main Winch with 5/8" rotation resistant wire rope
  • Drum Rotation Indicator, Two Speed on Main, Load Moment Indicator & Anti-Two Block - Standard Rated Capacity Limiter and Anti-Two Block system includes audio and video warnings and control function shutdown. System’s LCD screen provides a continuous electronic display of working boom length, boom angle, working load radius, tip height, parts-of-line (operator set), machine track configuration, relative load moment, maximum permissible load and actual load. The standard Work Area Definition audio and video warnings aid the operator in avoiding job-site obstructions by pre-setting and defining the work area. The anti-two block weight allows quick reeving of hook blocks.
  • Hook Ball and Hook Block,
  • Counterweight - The single piece 15,000# counterweight can be removed and installed via a pendant attached to the boom,
  • 68% Gradeability Pick-and-carry the full crane load chart through 360°,
  • 12' Overall Width (Tracks Retracted),
  • 18' 4" Overall Working Width,
  • Cummins QSB Diesel Engine,
  • 36” Track Width,
  • 19' Track Length,
  • Reconditioned, Cleaned & Painted.

http://www.CranesList.com,

LOCATED IN VIRGINIA!

%

$0

Get pre-qualified
