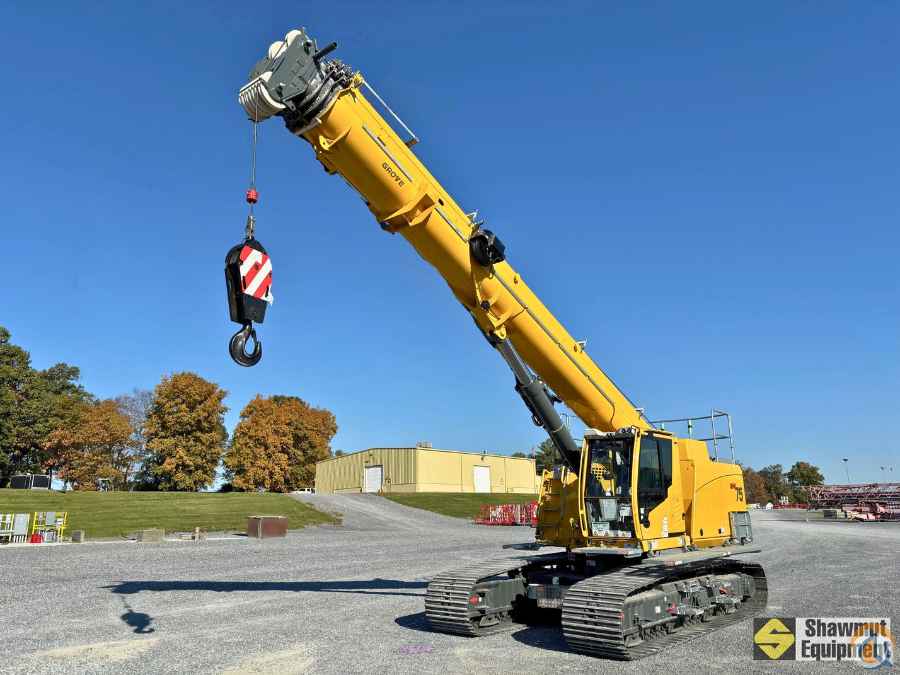

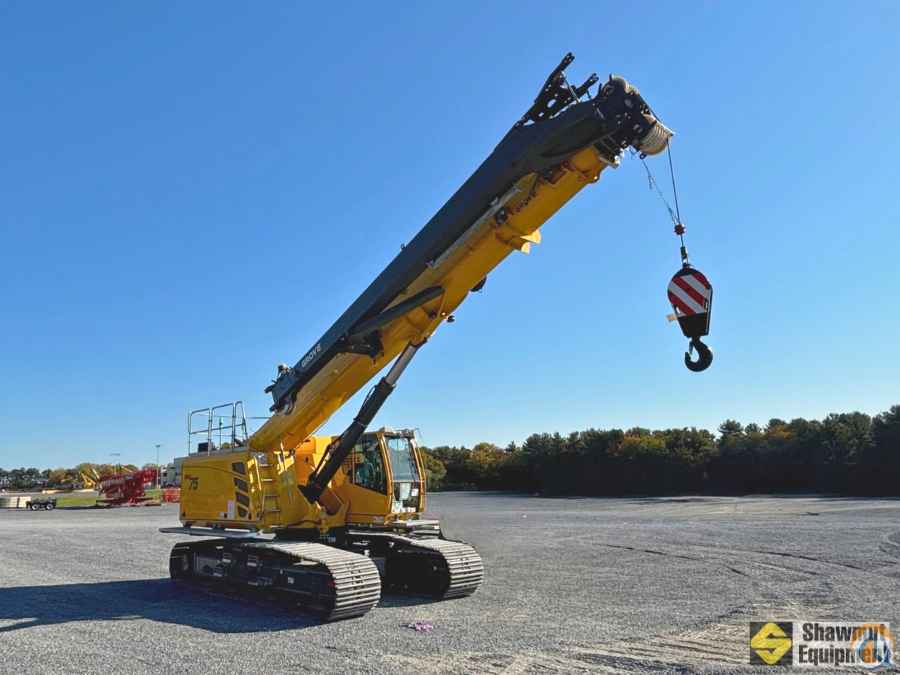

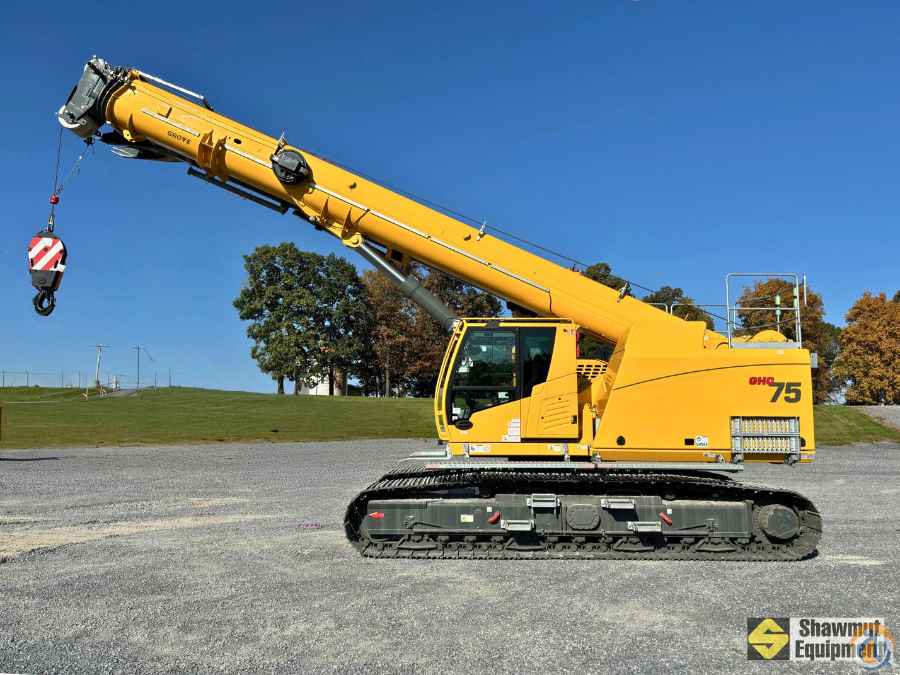

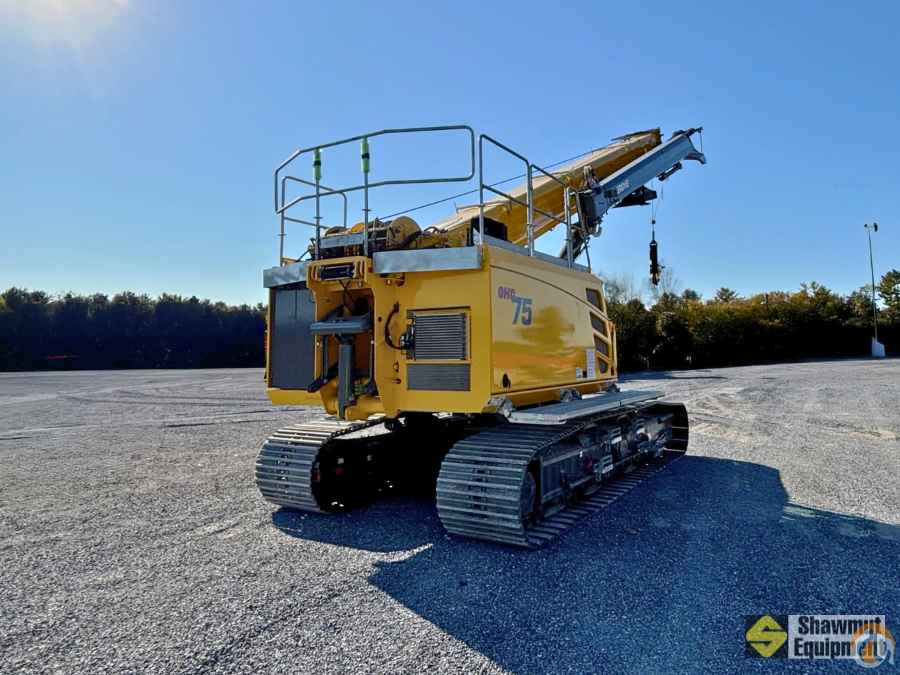

One (1) New 2024 Grove GHC75, S/N: 75.5.236, 75 Ton Capacity Telescopic Boom Crawler Crane, Equipped As Shown Below:
- 36’ – 118’ 4-Section Sequenced / Synchronized
Full Power Main Boom
- 26’ 3” Offsettable Swingaway Extension
- Swingaway Offsetts at 0, 20 and 40 Degrees
- Auxiliary Boom Nose
- Seven Sheave Main Boom Nose
- Main & Auxiliary Hoists
- Drum Rotation Indicators
- Operator’s Cab Tilts to 20 Degrees
- Ergonomic Control Panels
- Load Sensing Electric Dual Axis Control Joysticks
- Monitor In Cab for Rear, Right & Hoist Cameras
- Air Conditioning for Operator’s Cab
- 360 Degree Continuous Swing
- Swing Barrier Protection
- 36’ – 118’ 4-Section Sequenced / Synchronized
Full Power Main Boom
- 26’ 3” Offsettable Swingaway Extension
- Swingaway Offsetts at 0, 20 and 40 Degrees
- Auxiliary Boom Nose
- Seven Sheave Main Boom Nose
- Main & Auxiliary Hoists
- Drum Rotation Indicators
- Operator’s Cab Tilts to 20 Degrees
- Ergonomic Control Panels
- Load Sensing Electric Dual Axis Control Joysticks
- Monitor In Cab for Rear, Right & Hoist Cameras
- Air Conditioning for Operator’s Cab
- 360 Degree Continuous Swing
- Swing Barrier Protection - Central, Easily Accessible Lubricating Strip
- Cummins QSB6.7L (Tier IV Final) Diesel Engine
- 38,450 Lbs Total Counterweight
- Hydraulically Extendable Undercarriage
- Maintenance-Free Crawlers (62 Track Shoes)
- 36” Triple-Bar Track Shoes
- 2-Stage Track Motors for High Travel Speed
- “Graphical RCL” Load Moment Indicator
- External RCL Light Bar
- Anti Two Block System
- One Rotating Beacon Light on Top of Cab
- Two Additional LED Lights Mounted on Base Boom
- Foldable Catwalk on Both Sides of S/S
- 38.5 Ton 3-Sheave Hookblock
- 5.5 Ton Headache Ball
