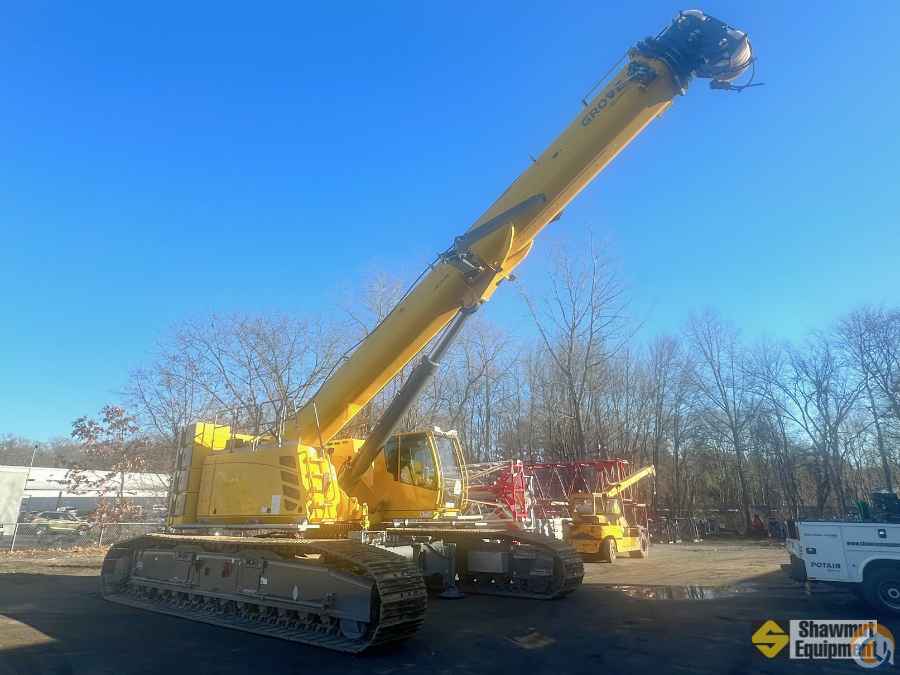

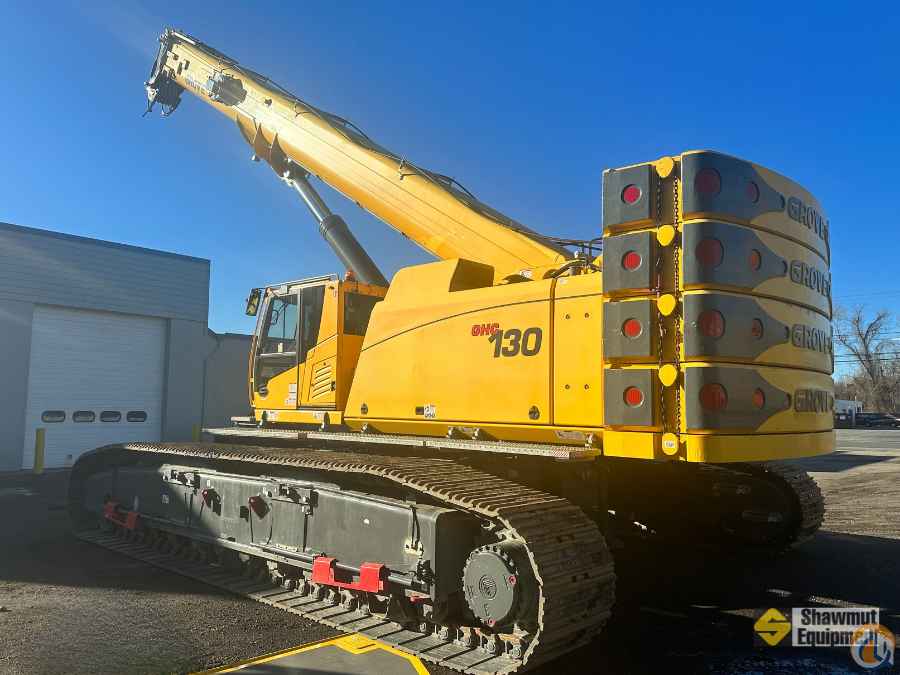

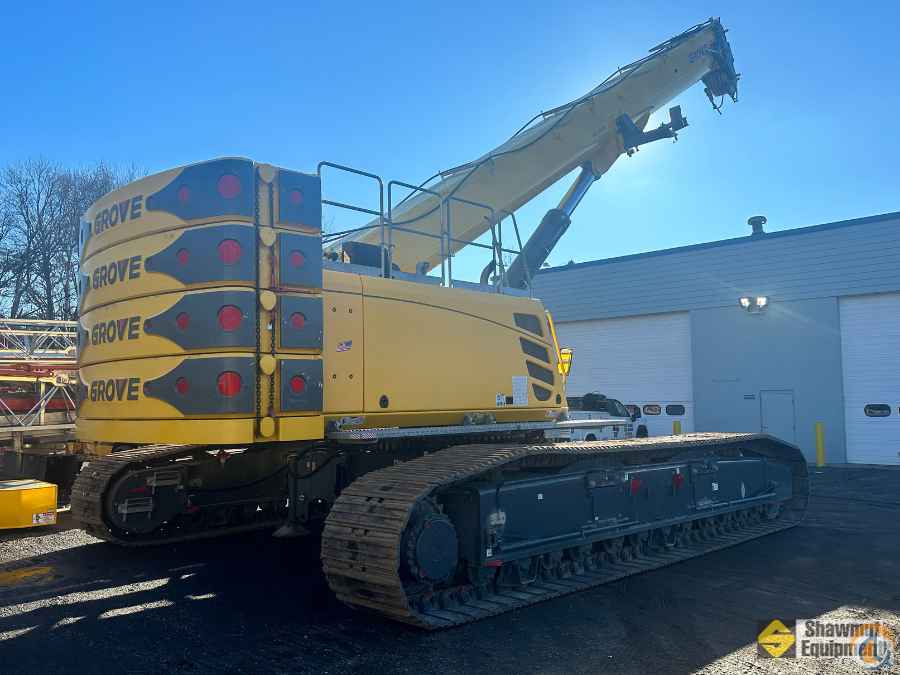

2019 Grove GHC130, S/N: 130.5.233, 132-Ton Capacity Telescopic Boom Crawler Crane
Specifications:
- 41’ 4”–131’ 11” 4-Section Sequenced Synchronized Full Power Main Boom
- Swingaway Offsetts at 0, 20 and 40 Degrees
- Auxiliary Boom Nose
- Five Sheave Main Boom Nose
- Main & Auxiliary Hoists w/ 26 mm Wire Rope
- Drum Rotation Indicators & Third Wrap Indicators
- Operator’s Cab Tilts to 20 Degrees
- Ergonomic Control Panels
- Load Sensing Electric Dual Axis Control Joysticks
- Air Conditioning for Operator’s Cab
- 360 Degree Continuous Swing
- Swing Barrier Protection
- Cummins QSB6.7L (Tier IV Final) Diesel Engine
- 73,458 Lbs Total Counterweight
- Hydraulically Extendable Undercarriage
- Maintenance-Free Crawlers (74 Track Shoes)
- 36” Triple-Bar Track Shoes
- 2-Stage Track Motors for High Travel Speed
- “Graphical RCL” Load Moment Indicator
- Anti Two Block System
- One Rotating Beacon Light on Top of Cab
- Two Additional LED Lights Mounted on Boom Base Section
- Foldable Grated Platform on Side of Cab
- 88 Ton 3-Sheave Hookblock
- 16.5 Ton Headache Ball
- Engine Hours: Approx. 2,273 (6/3/25)
