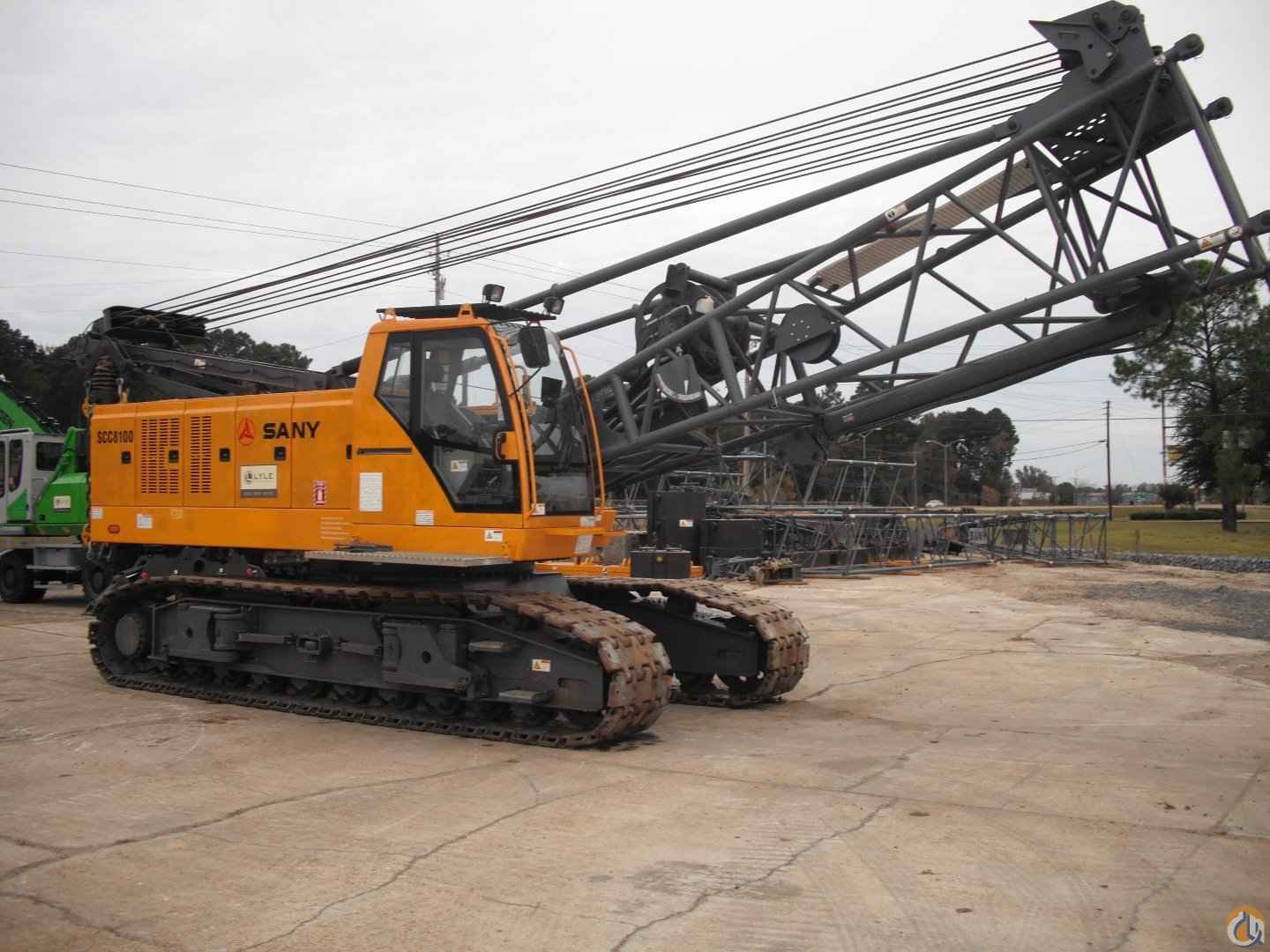

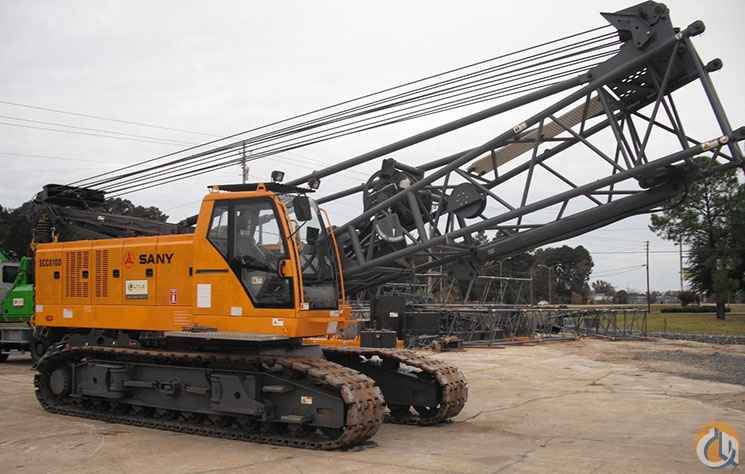

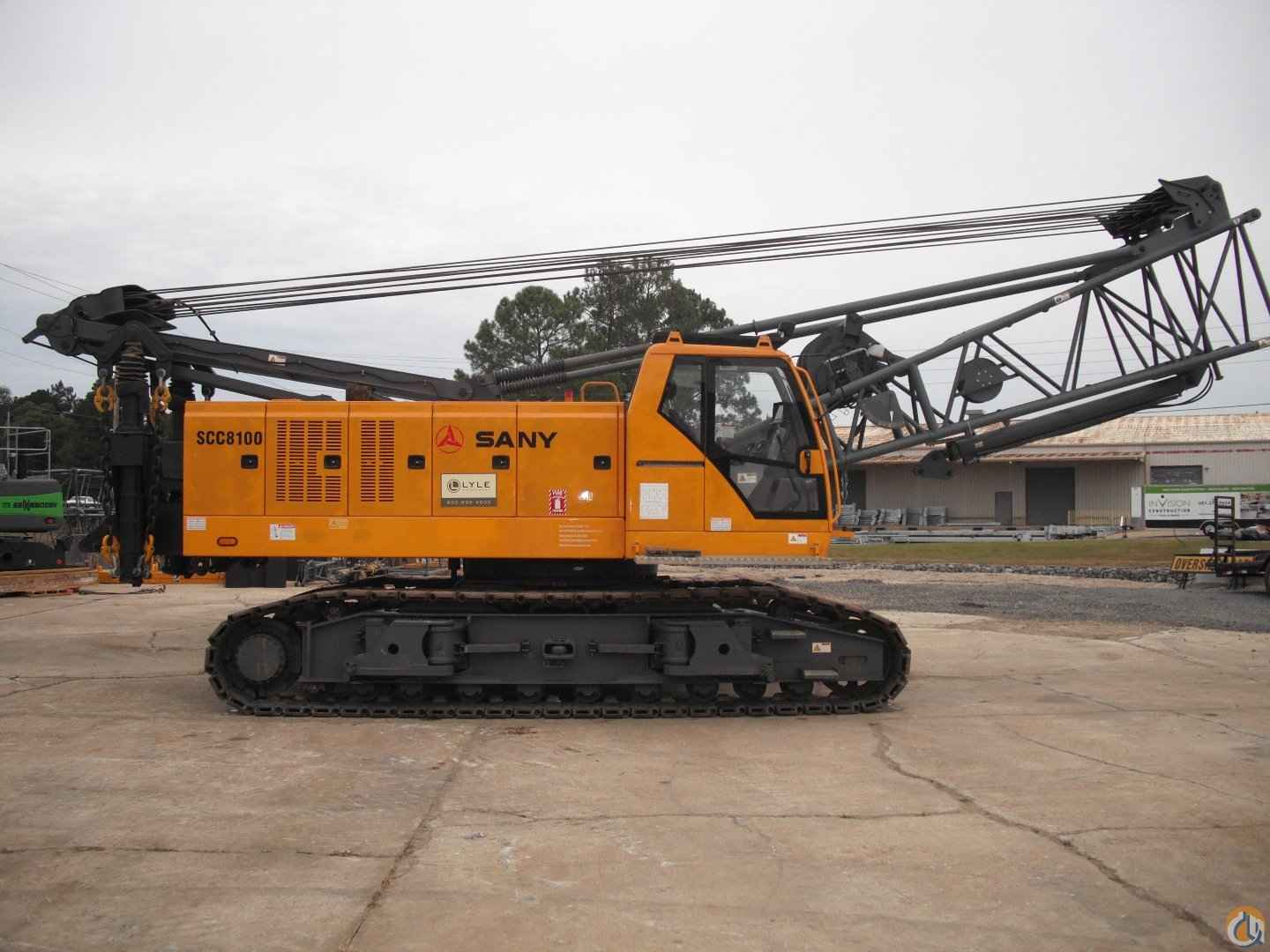

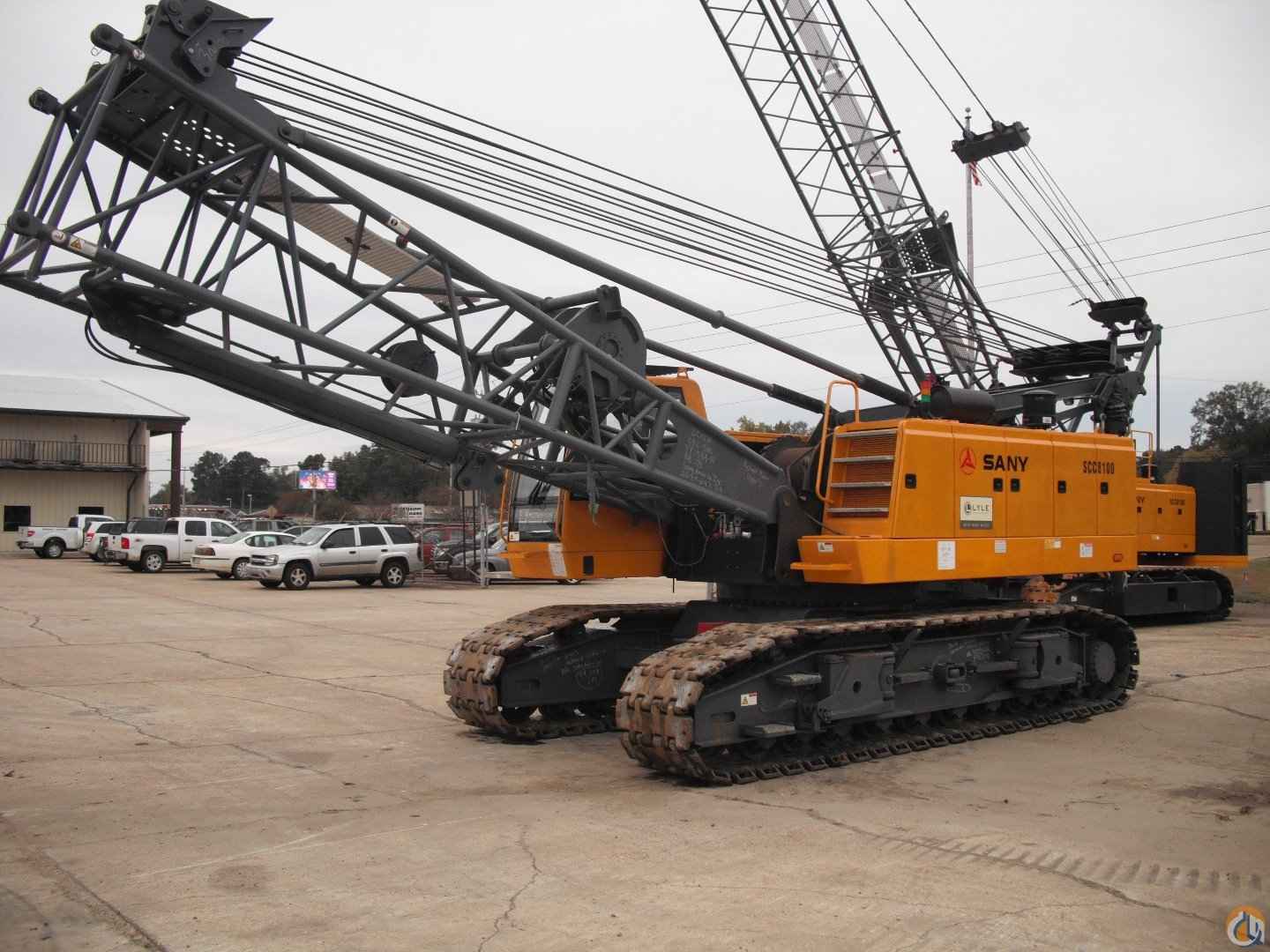

2012 SCC8100 SANY Crawler Crane - 110 US ton
BASE MACHINE:
Engine: US Cummins Model QSC8.3 engine, 245 hp/2000rpm, Maximum torque: 935 ft.lbs/1400rpm, Emission standard: Tier Ⅲ, Fuel tank: Volume 106 gal
Control System – CAN Bus system
Hydraulic System – Imported Bosch Rexroth sourced main components
Main, Aux. and Boom Hoist Hydraulic Mechanisms – hydraulic winches w/ self-adjusting wet disc brake, LEBUS designed drums, 24 mm load hoist rope on both drums
Swing System – Hydraulic w/ self-adjusting wet disc brake, free swing and swing lock
Driver’s Cab – Air conditioned lighting for night operation

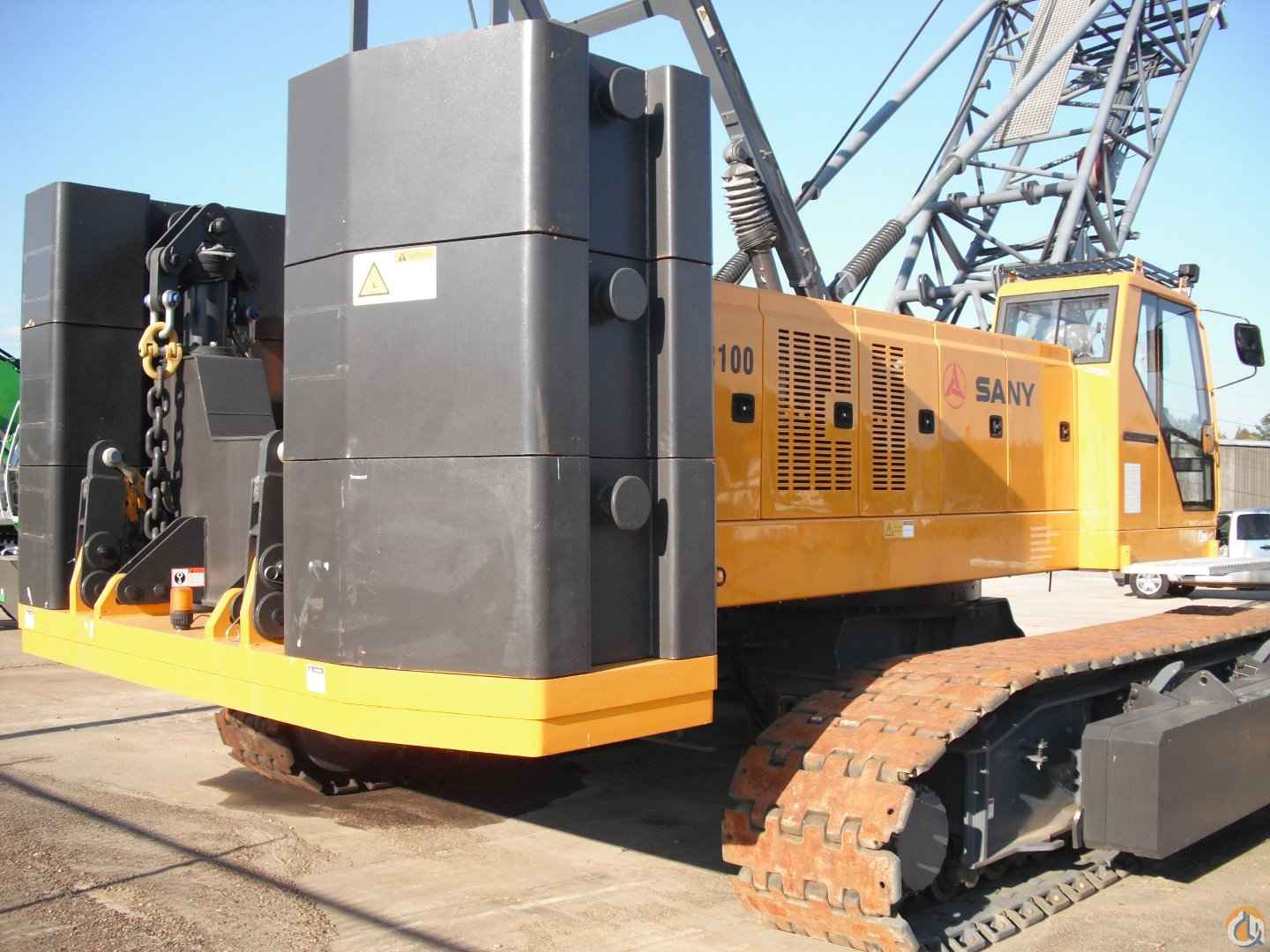

Counterweights- Self erecting, 64,800lbs upper counterweight and 22,000lbs lower counterweight
LOWERWORKS
Independent Hydraulic Drive; Self-adjusting Travel Brake; 33.5” Crawler Pads; Two Speed Travel
ATTACHEMENTS
•H – Tube Boom - length 219. 8’ (67m), composition: boom base 21’ 4’ (6.5m), boom insert 9’ 10” (3m) x 1, boom insert 19’ 8” (6m) x 1, boom insert 29’ 6” (9m) x 5, boom tip 21’ 4” (6.5m), and boom tip extension 3’ 9” (1.15m)
•Jib - jib base 14’ 9” (4.5m), jib insert 14’ 9” (4.5m) x 2, jib tip 14’ 9” (4.5m)
HOOK BLOCKS
110 Ton (100mt) hook block, 88 Ton (80mt) hook block 55 Ton (50mt) hook block, 9.9 Ton (9mt) hook ball
SAFETY DEVICES
Load Moment Limiter; Over-hoist Limit Device of Main and Auxiliary Hook Blocks; Over Roll-out Limit Device for Main and Auxiliary Hooks; Boom Limit Device; Boom Back-stop Device; Winch Brake; Closed Circuit Camera Monitoring System; Automatic Troubleshooting System; Operational Monitor; Pharos; Anemometer; Lightning Protection Device; Operational Alarms; Function Locking System and numerous other safety features.
