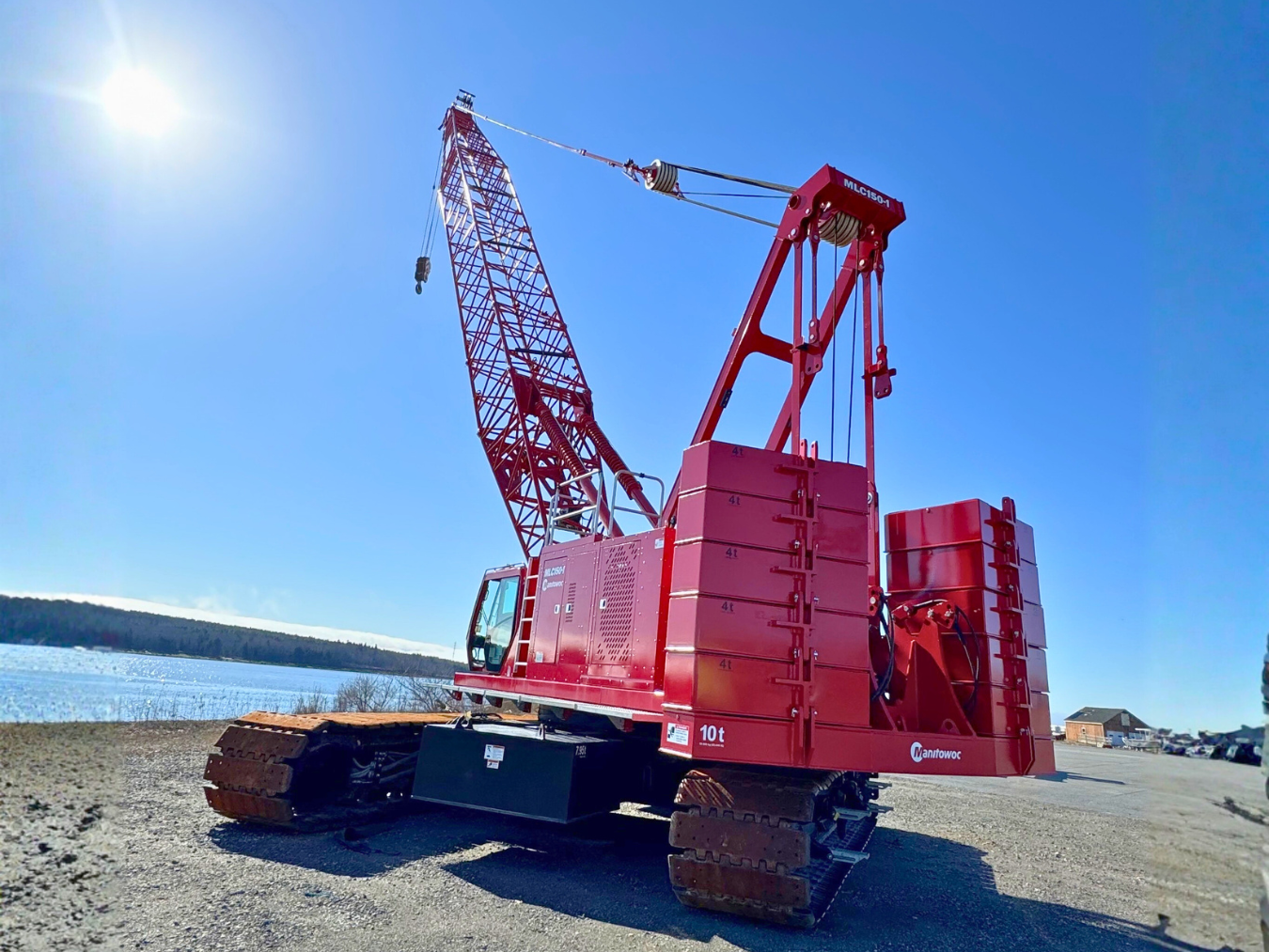

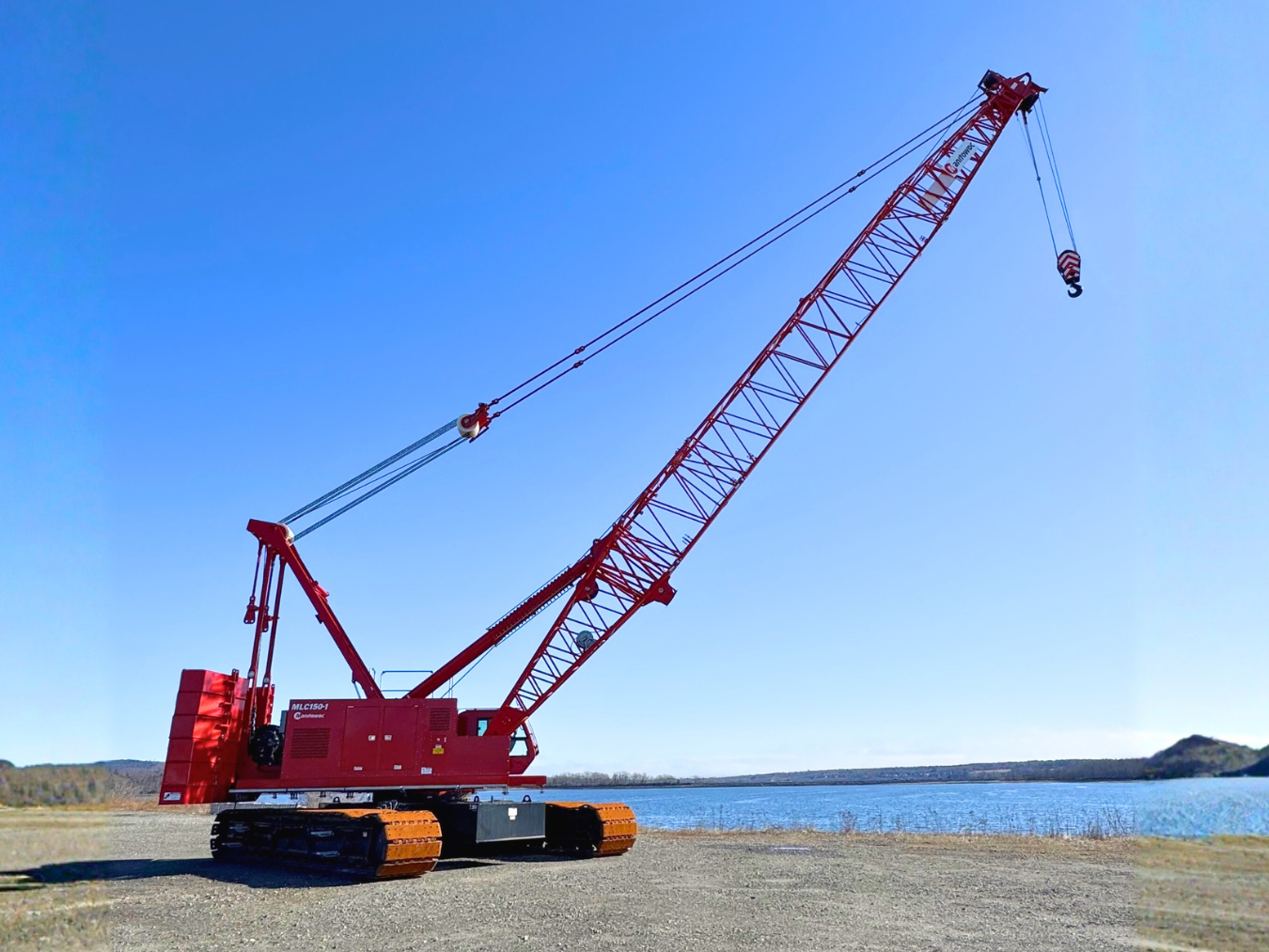

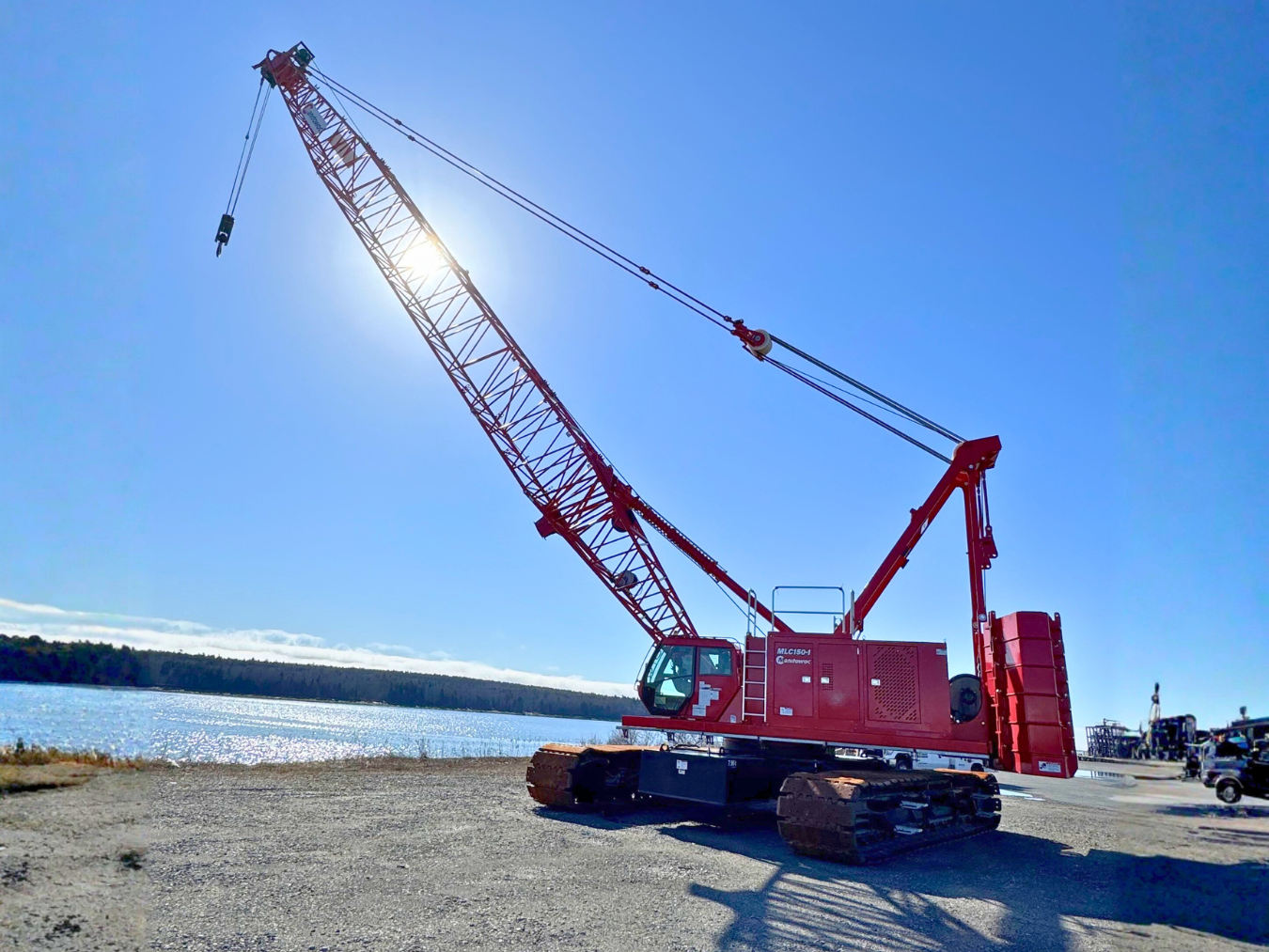

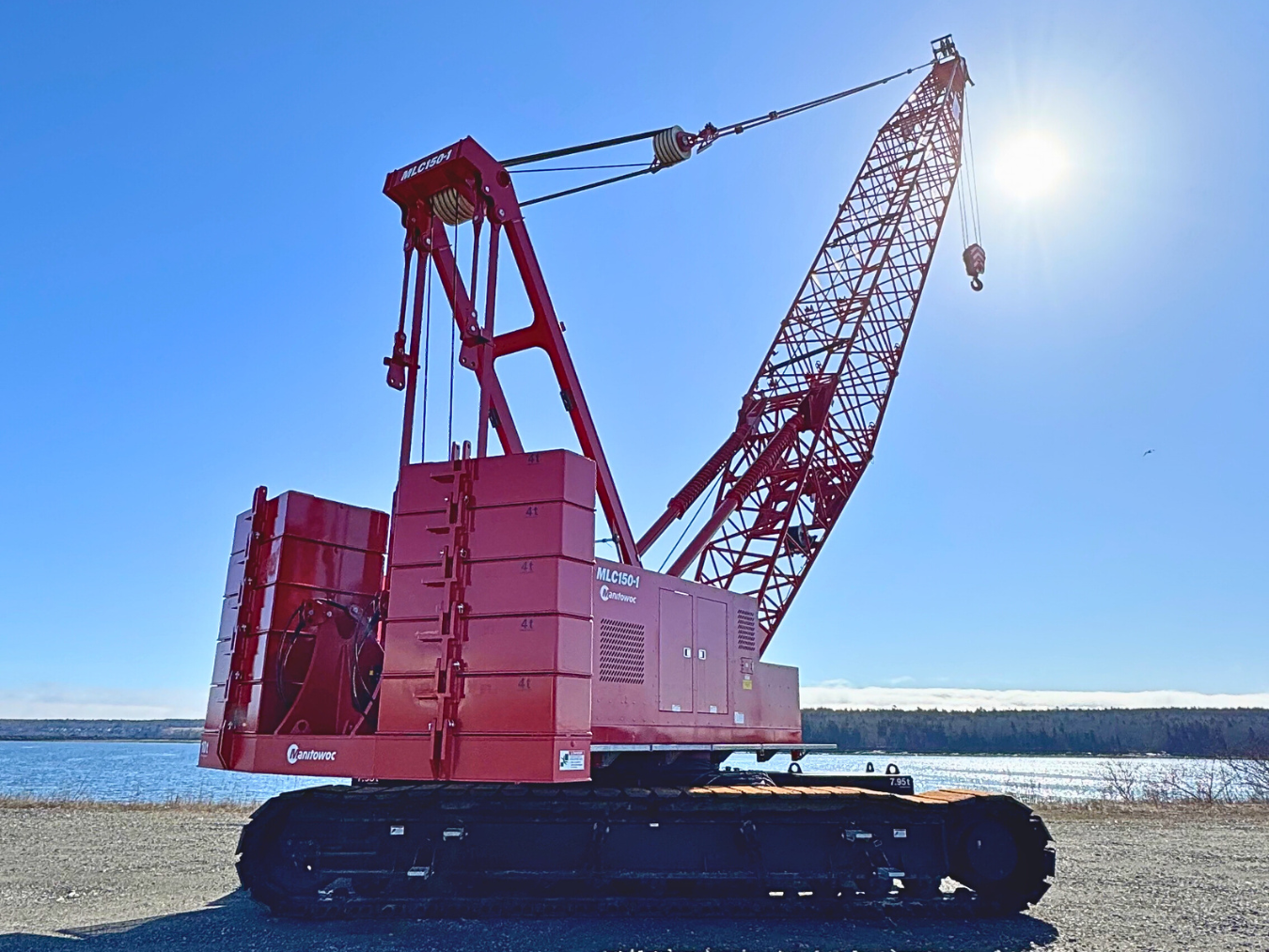

2024 Manitowoc MLC150-1, S/N: 9150-1033, 165 Ton Capacity Lattice Boom Crawler Crane

Specifications:

- 157.5 Ft Boom Including 49.2 Ft Basic Boom: (1) 9.8 Ft, (1) 19.7 Ft and (2) 39.4 Ft Inserts
- Detachable Upper Boom Point
- Two Equal Width Main Drums
- 1,063 Ft of 26 mm Wire Rope on Front Drum
- 830 Ft of 26 mm Wire Rope on Rear Drum
- Drum Rotation Indicators
- Power Hoisting / Lowering on Both Drums
- Free Fall on Both Drums
- Self Erect Option
- Series 2 Counterweight (145,500 lbs. Total)
- 48-Inch-Wide Cast Steel Crawler Pads
- Cummins QSB6.7 325 HP Tier 4f Diesel Engine
- Crane Control System w/ Two Full Graphic Displays, Jog Dial and Ergonomic Joysticks
- Travel and Swing Alarms
- Mirror Package
- Drum Viewing Mirror
- Fully Enclosed Operators Cab with Cab Tilt
- Crane Level Indicator in Cab
- Cab Radio
- Air Conditioning in Operator’s Cab
- Auto-Lube for Turntable Bearing
- Cold Weather Package
- Wind Speed Indicator
- 93.7 Ton 3 Sheave Hookblock
- 33.1 Ton Single Sheave Hookblock
- 16.5 Ton Overhaul Ball
- Hours: 1,732
